JGM Project car

Old 24 January 2011, 07:45 PM
  #151
stevebt
600bhp'ish
iTrader: (8)

stevebt's Avatar

Join Date: Sep 2002
Posts: 16,599
Default

Is a twin turbo an easy setup as that engine is huge and your just fitting it in a normal impreza so there won't be a lot of space
stevebt is offline
Old 24 January 2011, 08:06 PM
  #152
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

Originally Posted by stevebt View Post
Is a twin turbo an easy setup as that engine is huge and your just fitting it in a normal impreza so there won't be a lot of space
Soon see

Appear to have lots of space just behind head lights

I do think it would be awesome on a just a gt35r but engine and throttle body all lays out nice for twin.

Also able at some point for example to fit two 400-450bhp turbos, a 900bhp turbo maybe harder to find space for.

I am going to use internal wastegated subaru turbos so space should be okay, main issue to plan is route for downpipes.

Also the space in normal rotated positio is same as flat 4 so another option is a turbo each side
Jolly Green Monster is offline
Old 24 January 2011, 08:12 PM
  #153
stevebt
600bhp'ish
iTrader: (8)

stevebt's Avatar

Join Date: Sep 2002
Posts: 16,599
Default

Twin gt35r's with .63 housing on boost early and loads of power Do the 3ltr blocks keep pulling like the 2.35's or do they make it more torquey similar to a 2.5?
stevebt is offline
Old 24 January 2011, 08:22 PM
  #154
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

Originally Posted by stevebt View Post
Twin gt35r's with .63 housing on boost early and loads of power Do the 3ltr blocks keep pulling like the 2.35's or do they make it more torquey similar to a 2.5?
Crank is same throw as 2litre with 97mm bore so should be like 2.2 with two extra cylinders.

Although rods for this engine are custom length and longer.
So hoping similar delivery to 2.35

Gt35 pair of too big.

Treating each bank as a separate engine you wouldnt put a gt35r .63 on 1.65litre.

Heads are currently being worked by SMG. Along with cams, valves, springs etc and cam profile similar to my 2.35 which I love so I hope it has peak power at circa 7000rpm etc
Jolly Green Monster is offline
Old 24 January 2011, 09:38 PM
  #155
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

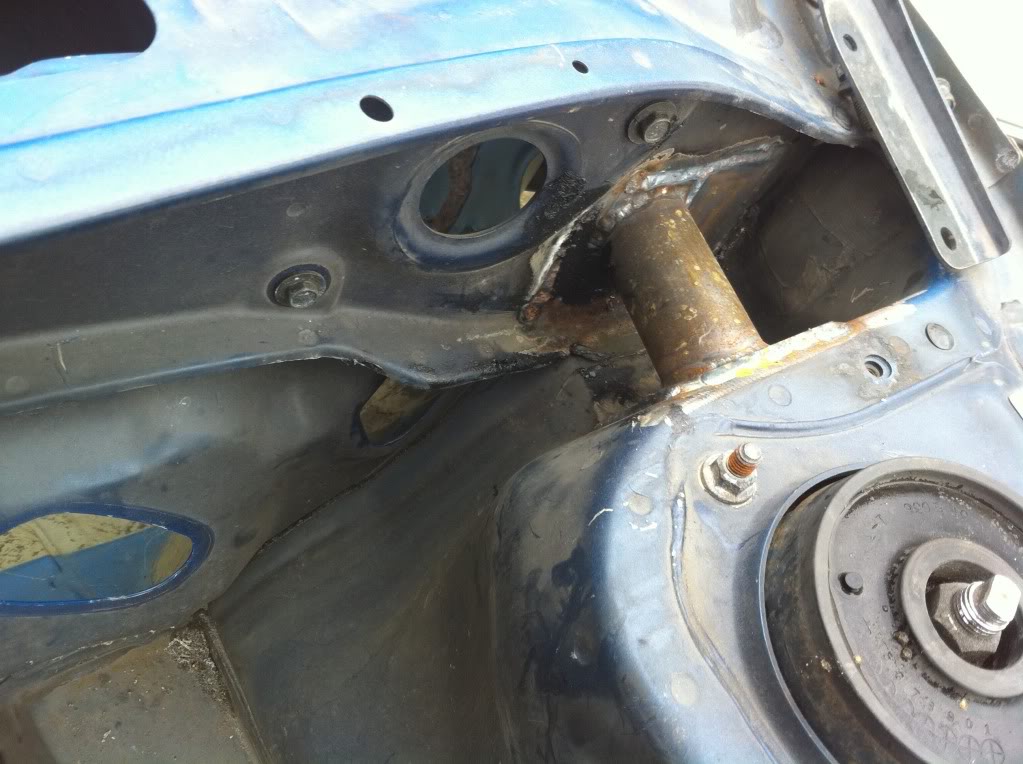

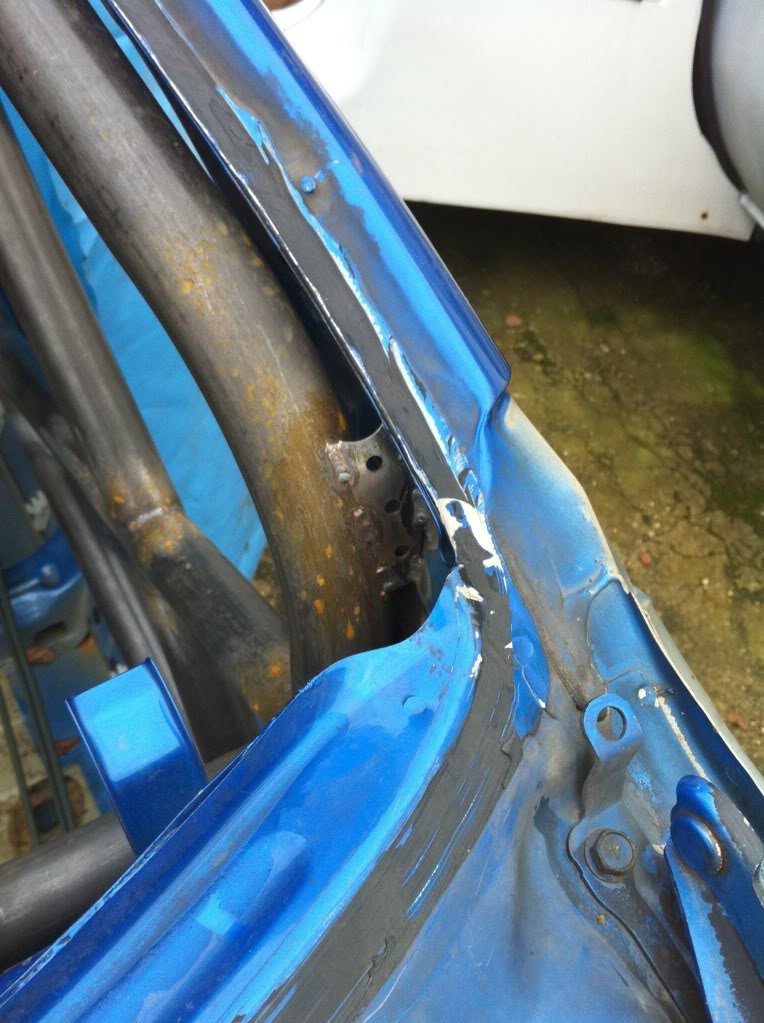

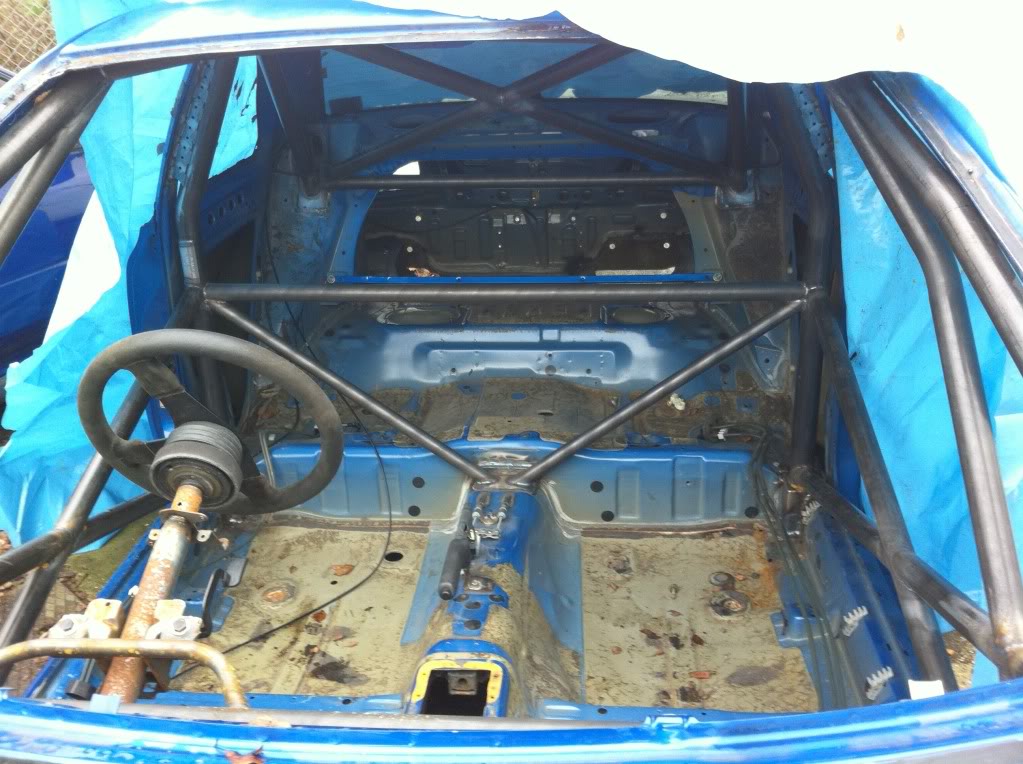

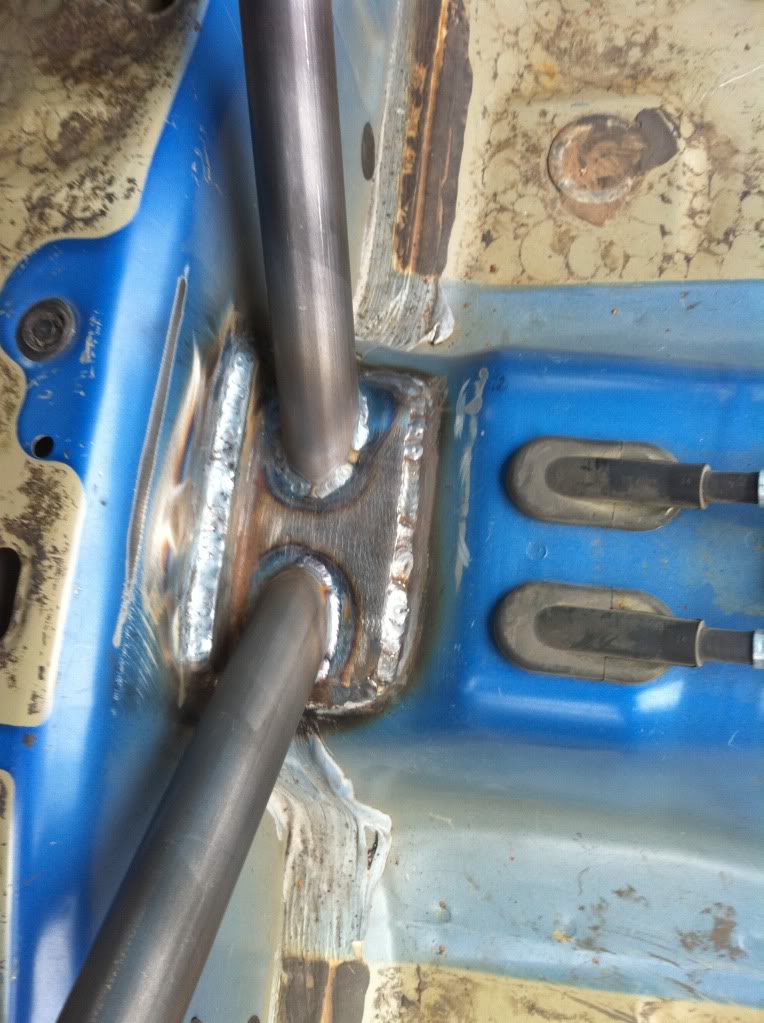

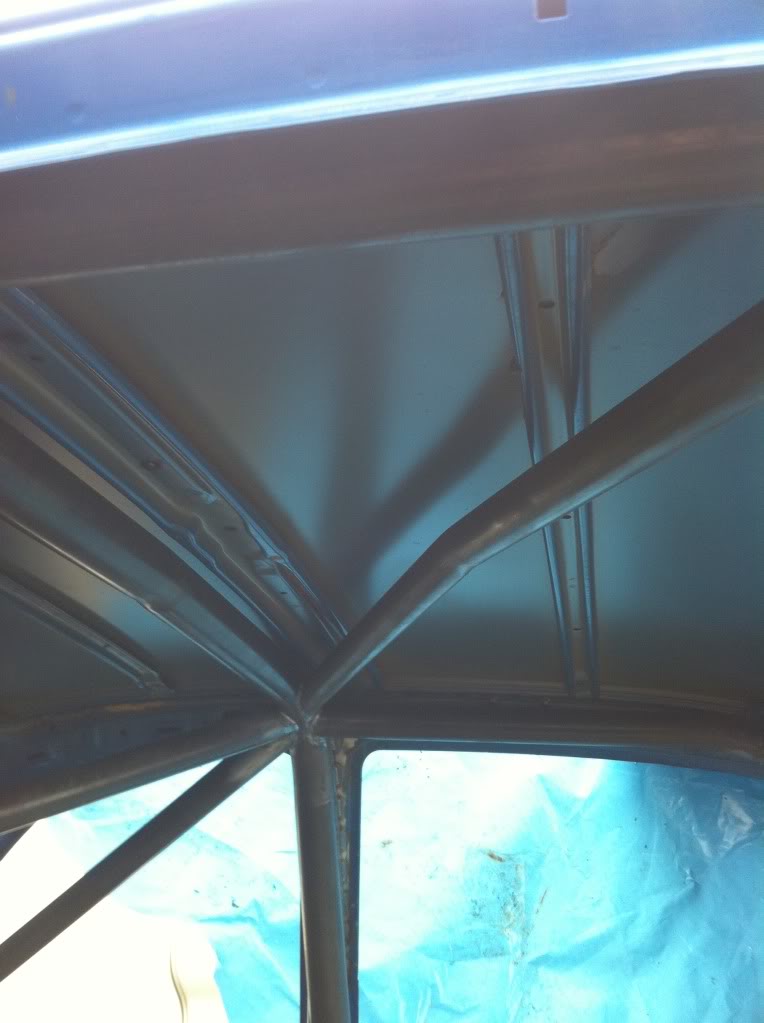

few more pics as I was trigger happy

Name:  32dae543.jpg
Views: 0
Size:  57.8 KB
Name:  bbf531fc.jpg
Views: 0
Size:  119.2 KB
Name:  0707d0a9.jpg
Views: 0
Size:  139.5 KB
Name:  dfb27f59.jpg
Views: 0
Size:  110.9 KB
Name:  e2eea6d0.jpg
Views: 0
Size:  121.5 KB
Jolly Green Monster is offline
Old 24 January 2011, 10:09 PM
  #156
Neil..
Scooby Regular
iTrader: (35)

Join Date: Nov 2006
Posts: 2,784
Default

Very nice..
Neil.. is offline
Old 24 January 2011, 10:16 PM
  #157
Stevesbluewrx
Scooby Regular
iTrader: (4)

Stevesbluewrx's Avatar

Join Date: Aug 2005
Location: Also known as The Gimp
Posts: 3,662
Default

Looking good Simon dear boy.



Steve
Stevesbluewrx is offline
Old 24 January 2011, 10:25 PM
  #158
scooby_greg
Scooby Regular
iTrader: (1)

scooby_greg's Avatar

Join Date: Jan 2009
Location: East Grinstead
Posts: 44
Default

Looking good Simon - enjoying the updates!! Should be interesting now it all starts coming together
scooby_greg is offline
Old 24 January 2011, 11:10 PM
  #159
si2000
Scooby Regular
iTrader: (8)

Join Date: Mar 2008
Posts: 974
Default

Very nice Si, the cage looks awesome
si2000 is offline
Old 27 January 2011, 11:27 PM
  #160
Scooby_drew
Scooby Regular
iTrader: (6)

Join Date: Jan 2005
Location: Pontecarlo
Posts: 869
Default

Coming together nice Simon, very impressed so far, can't wait to see the finished article.

Do you have any pics of the work you dud to trim the existing wings and arches for the ABW arches, either in this one or the green one? My arches arrived from Darren last week and am eager to install just not sure how much and where to trim fir correct clearance?

Drew
Scooby_drew is offline
Old 28 January 2011, 05:54 PM
  #161
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

Its been a day of grinders, welders, spanners, hammers and engine crane and a jack lol

Massive thanks to Ian(bod) for his help today, thanks yo stew at tfs for use of man tools and for making both Ian and I feels stupid by noticing the obvious lol

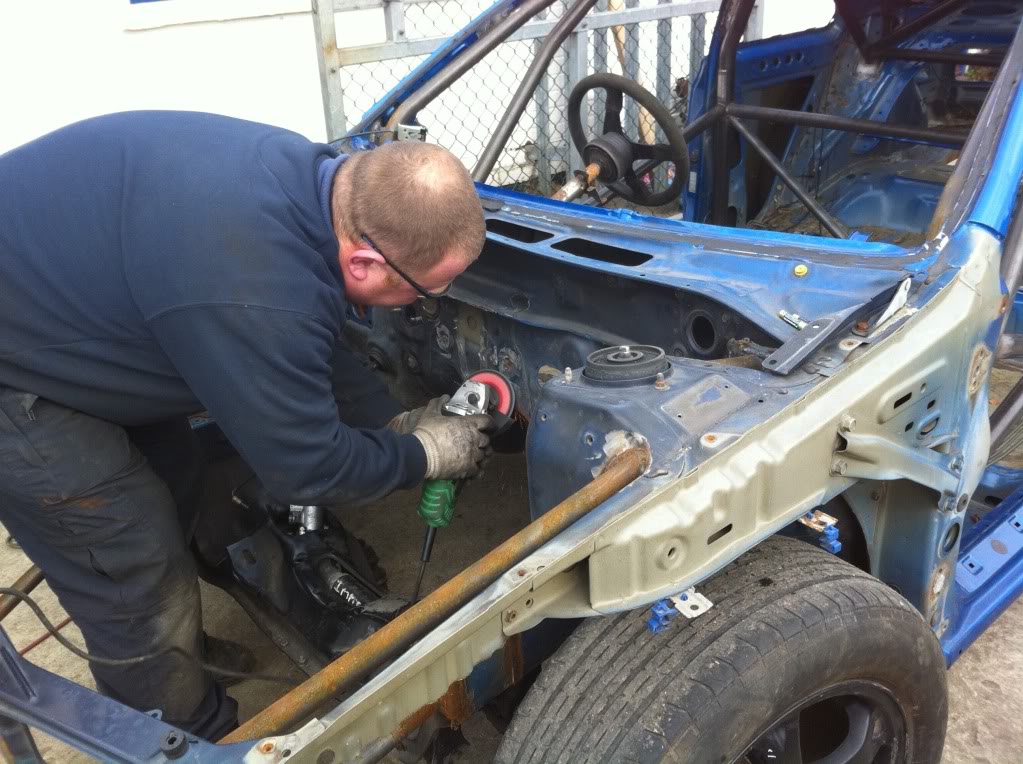

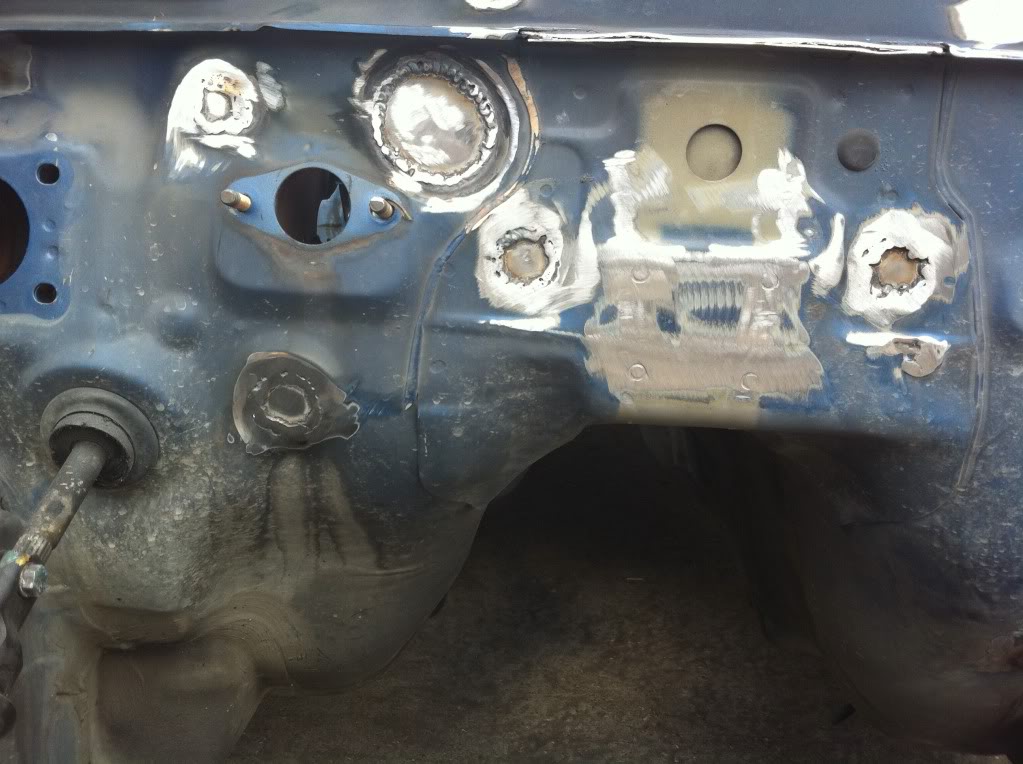

Bulk head unneed holes plated
Name:  d7c960d6.jpg
Views: 0
Size:  144.9 KB
Name:  d7c9296c.jpg
Views: 0
Size:  112.4 KB

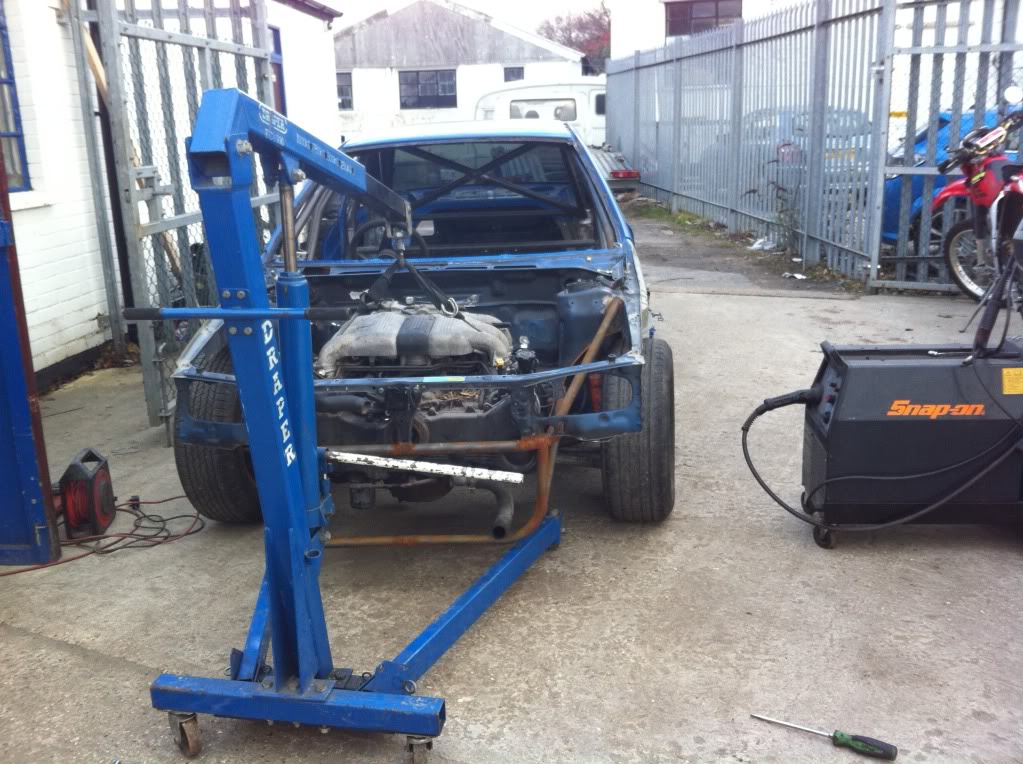

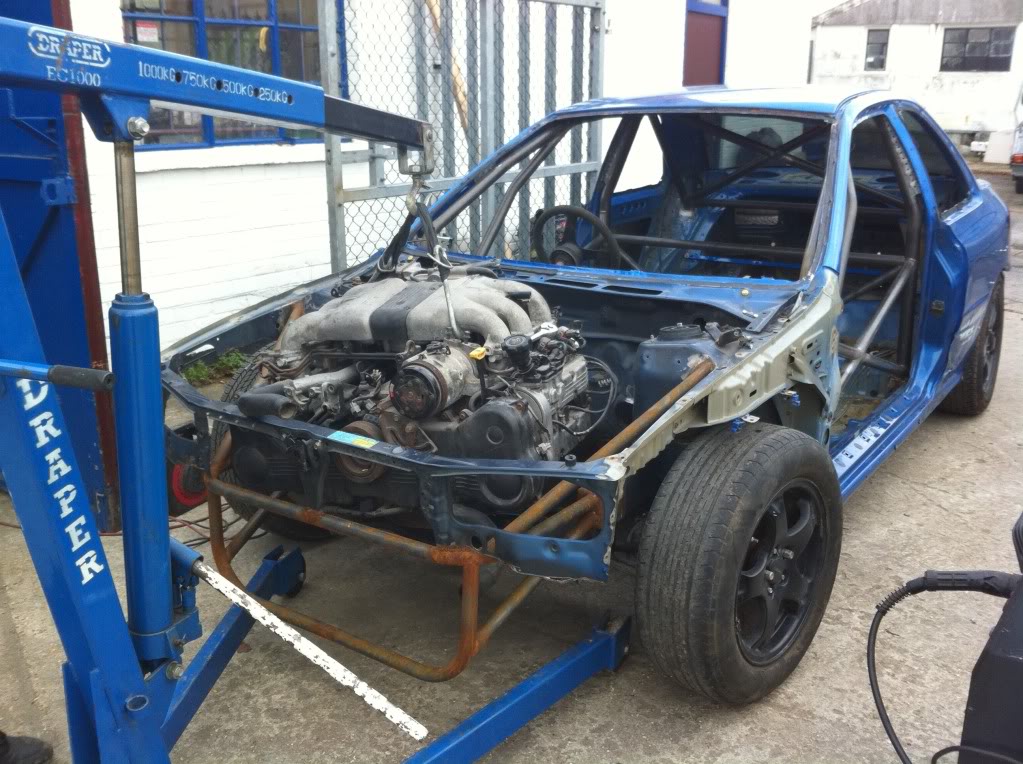

Massive thanks to Pat for loaning me and engine
Name:  7da26f67.jpg
Views: 0
Size:  168.3 KB
Name:  3fff8cfa.jpg
Views: 0
Size:  165.1 KB

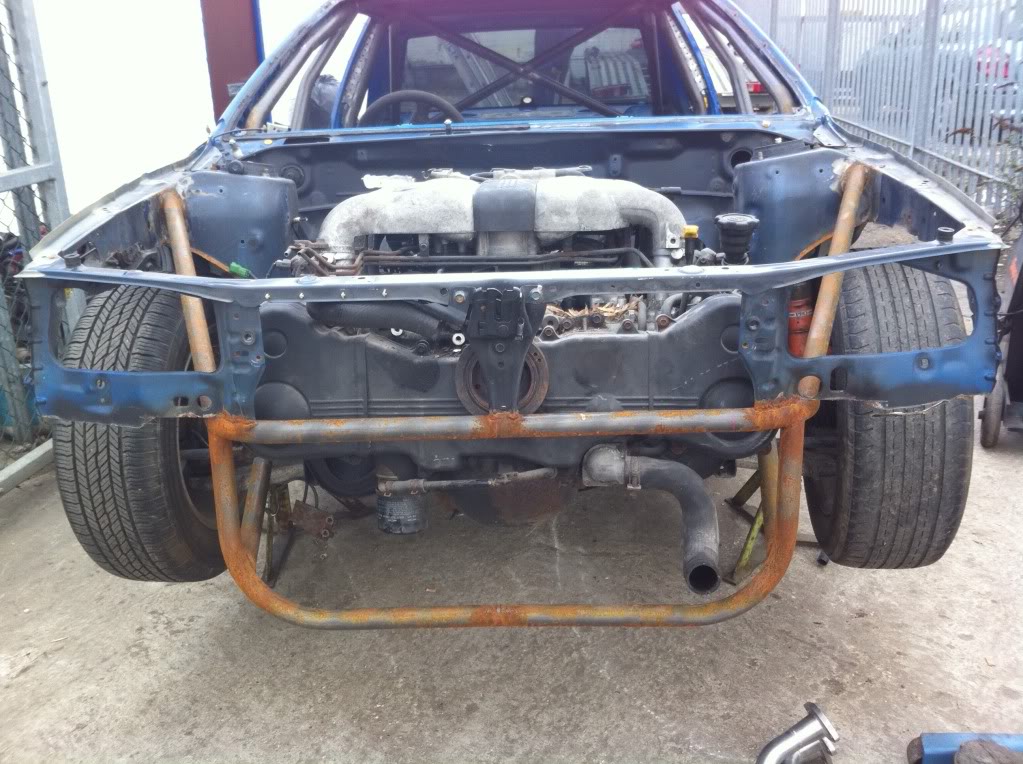

Thanks to stew for loan of a gearbox
Name:  e9027fd1.jpg
Views: 0
Size:  160.8 KB

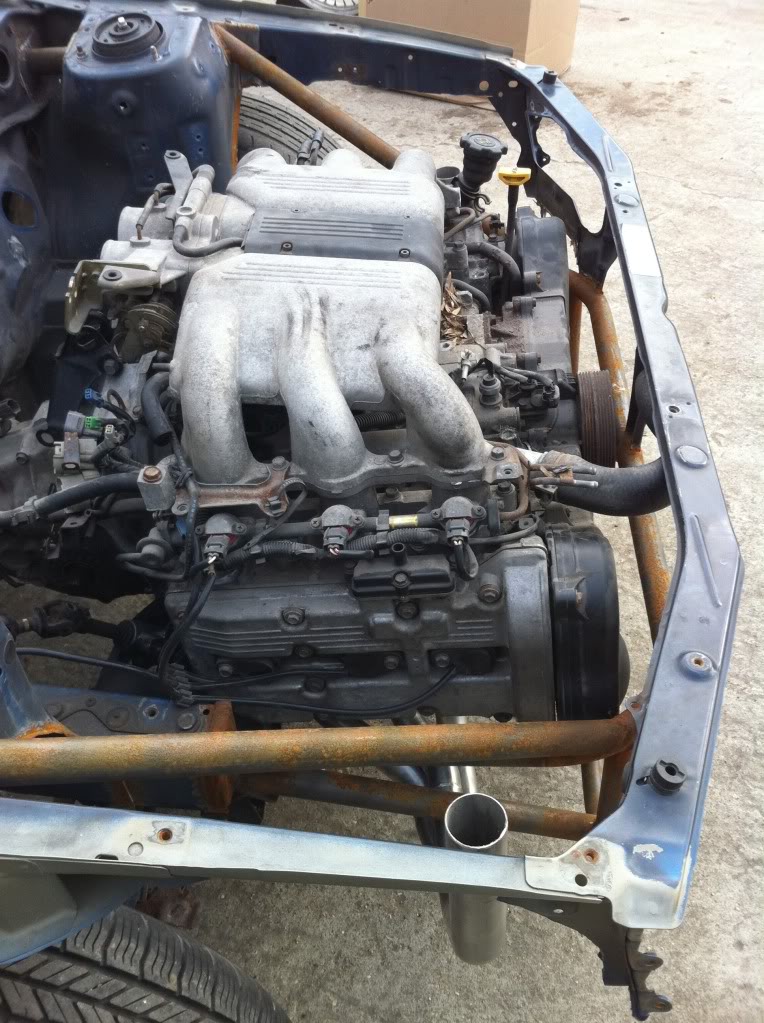

Turbo positions playing and clearance perfect
Name:  a75bacea.jpg
Views: 0
Size:  167.3 KB

Simon
Jolly Green Monster is offline
Old 28 January 2011, 05:58 PM
  #162
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

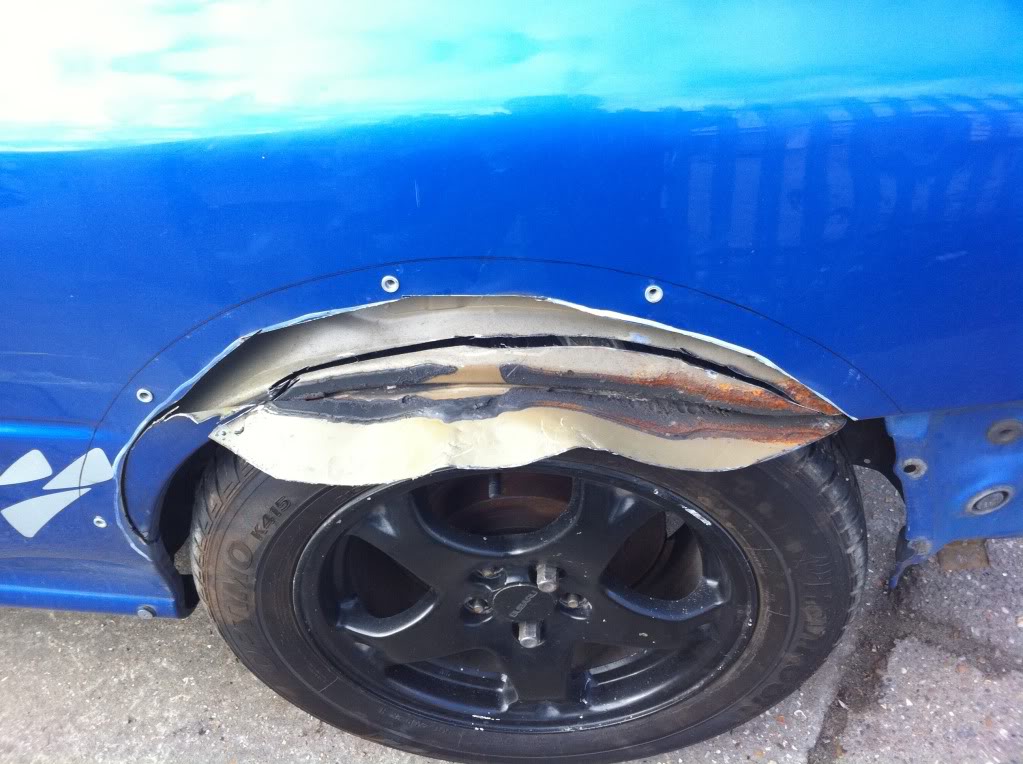

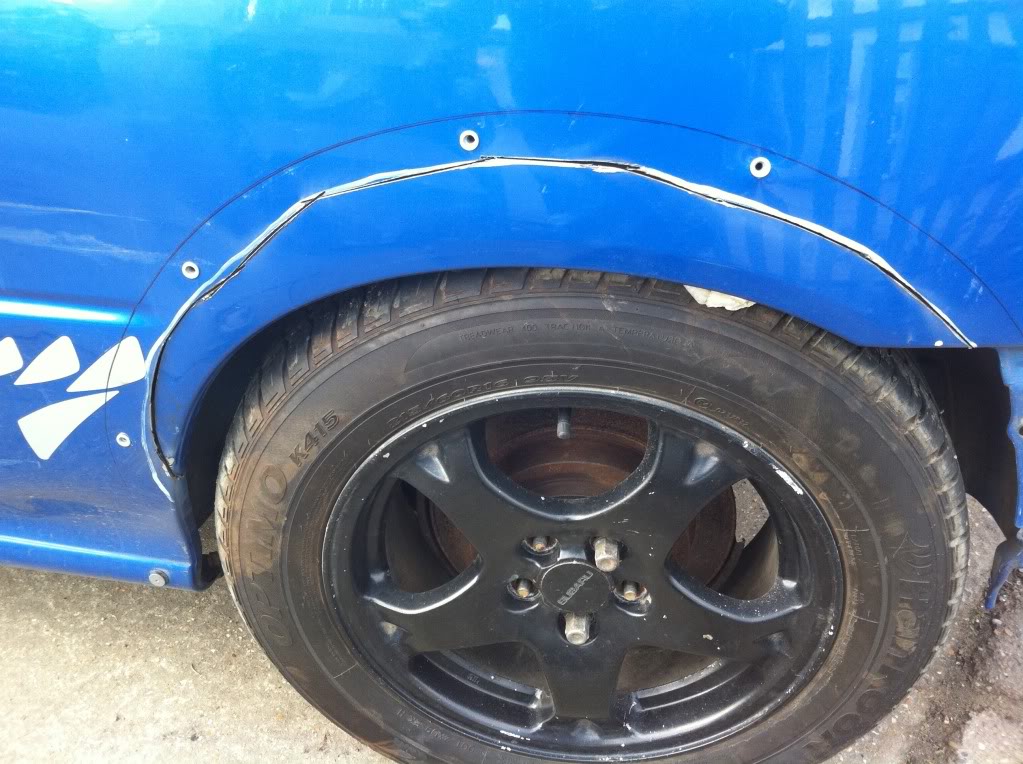

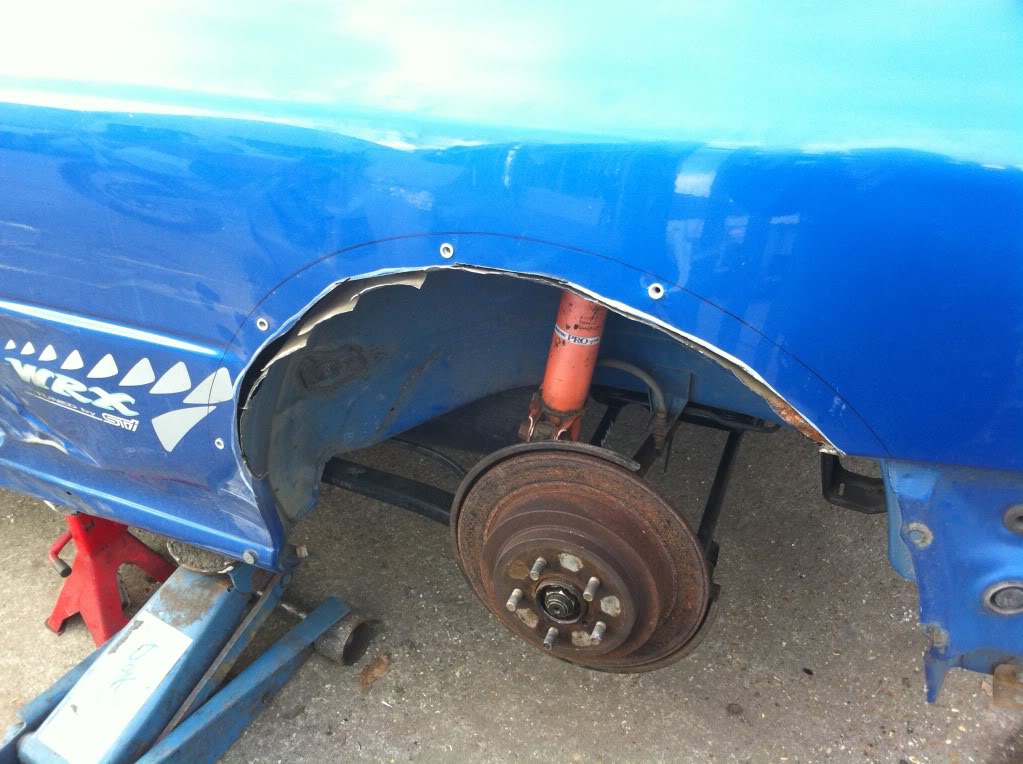

Flipping freezing today but rear arches sorted too just need welding to finish off
Name:  2b02ada2.jpg
Views: 0
Size:  141.7 KB
Name:  a2362eae.jpg
Views: 0
Size:  122.1 KB
Name:  e00b726d.jpg
Views: 0
Size:  125.3 KB

Simon
Jolly Green Monster is offline
Old 28 January 2011, 06:18 PM
  #163
dunx
Scooby Senior
iTrader: (3)

dunx's Avatar

Join Date: Jun 2006
Location: Slowly rebuilding the kit of bits into a car...
Posts: 14,334
Default

Originally Posted by Jolly Green Monster View Post
Its been a day of grinders, welders, spanners, hammers and engine crane and a jack lol



Simon
I really see this with six open exhausts and a supercharger...

dunx
dunx is offline
Old 28 January 2011, 07:22 PM
  #164
Scooby_drew
Scooby Regular
iTrader: (6)

Join Date: Jan 2005
Location: Pontecarlo
Posts: 869
Default

Originally Posted by Jolly Green Monster View Post
Flipping freezing today but rear arches sorted too just need welding to finish off




Simon
Alot more trimming there than I thought, thank you. Does the rear bumper require trimming too?
Scooby_drew is offline
Old 28 January 2011, 11:48 PM
  #165
wrx287
Scooby Regular
iTrader: (8)

wrx287's Avatar

Join Date: Aug 2007
Location: Swansea.In search of more power!!
Posts: 6,498
Default

Damn Aint read this since before christmas. Looking good Going to be a monster when it's done May pop up to Scooby shootout this year if its up and running What ECU you going for?
wrx287 is offline
Old 28 January 2011, 11:58 PM
  #166
maydew
Scooby Regular
iTrader: (9)

maydew's Avatar

Join Date: Oct 2006
Location: midlands
Posts: 2,316
Default

looking good mate, whats the plan for the rads/fans/ic ,gonna sound awesome
maydew is offline
Old 29 January 2011, 12:04 AM
  #167
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

errrmm ecu Syvecs S6GP

rad in front of front panel.. against the bars etc.. with no grill and will poke up through where grill would be.
FMIC as pictured earleir in normal fmic location
Cans on back of rad between the bars etc
Jolly Green Monster is offline
Old 31 January 2011, 08:15 PM
  #168
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

Car now inside

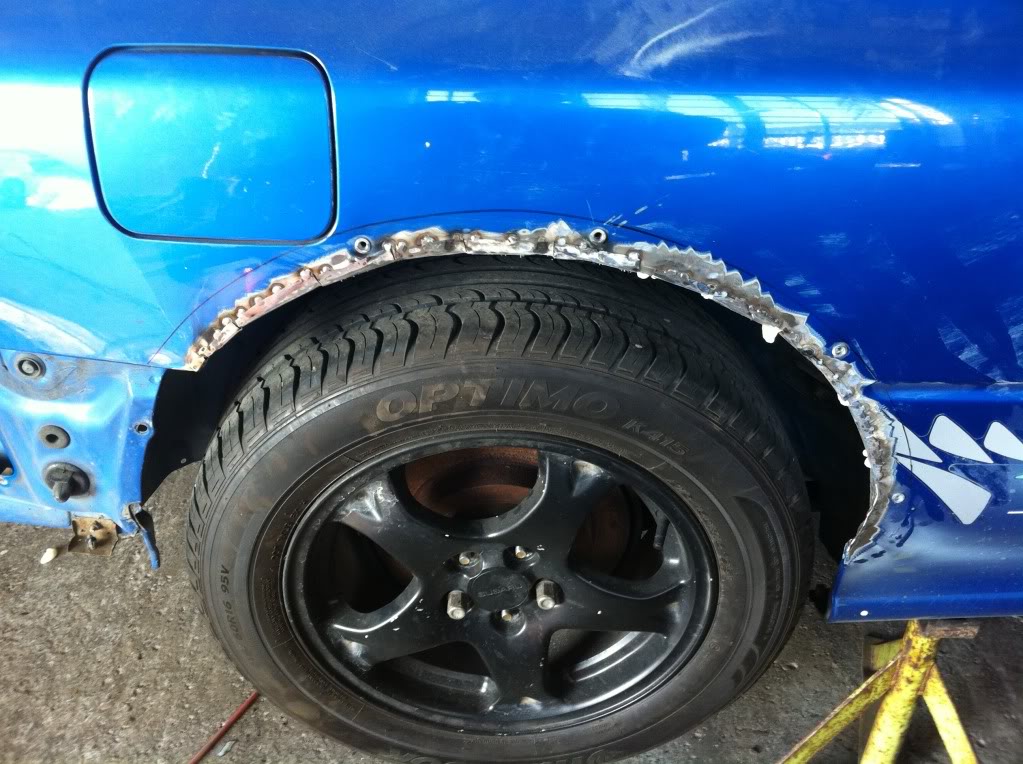

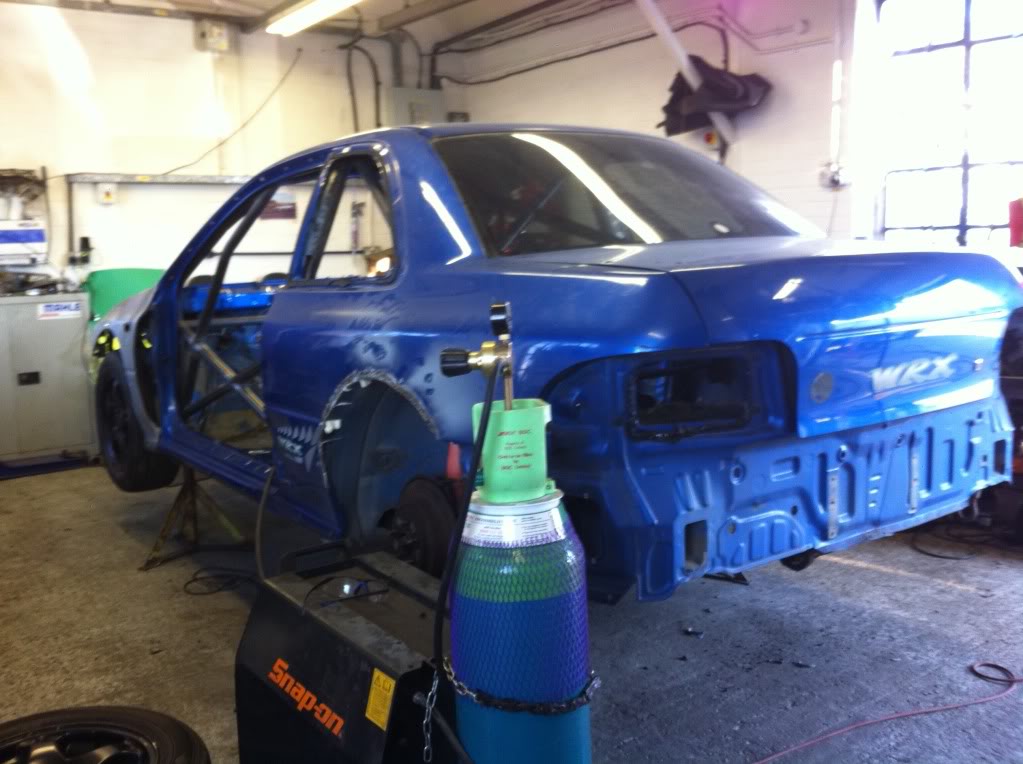

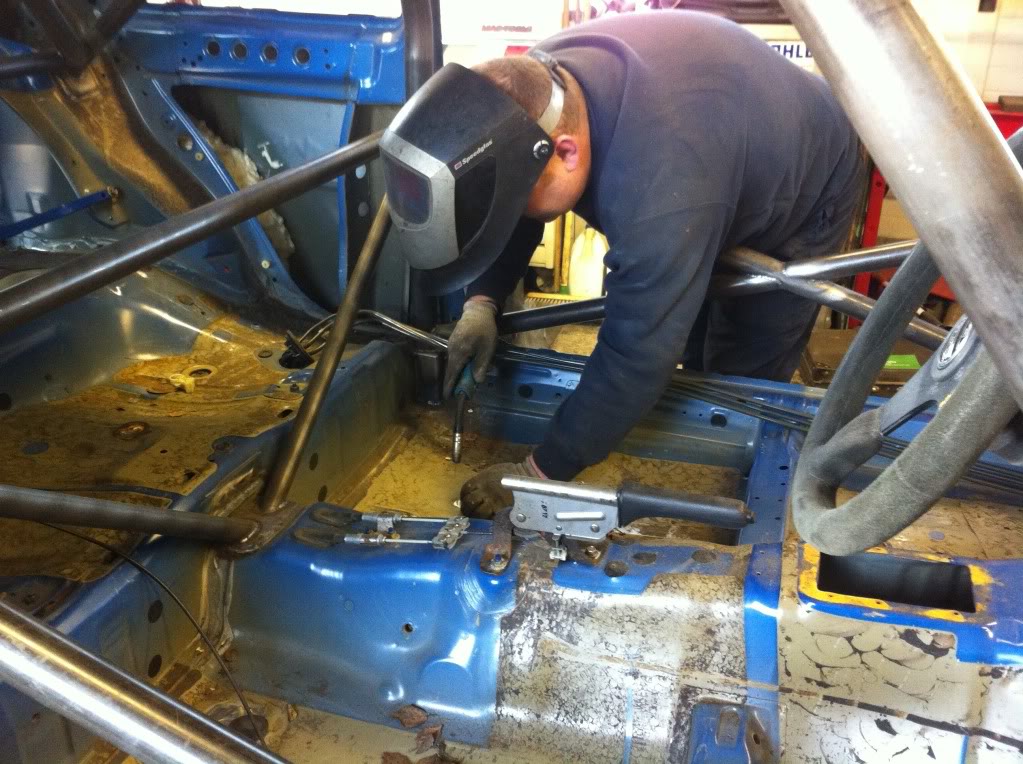

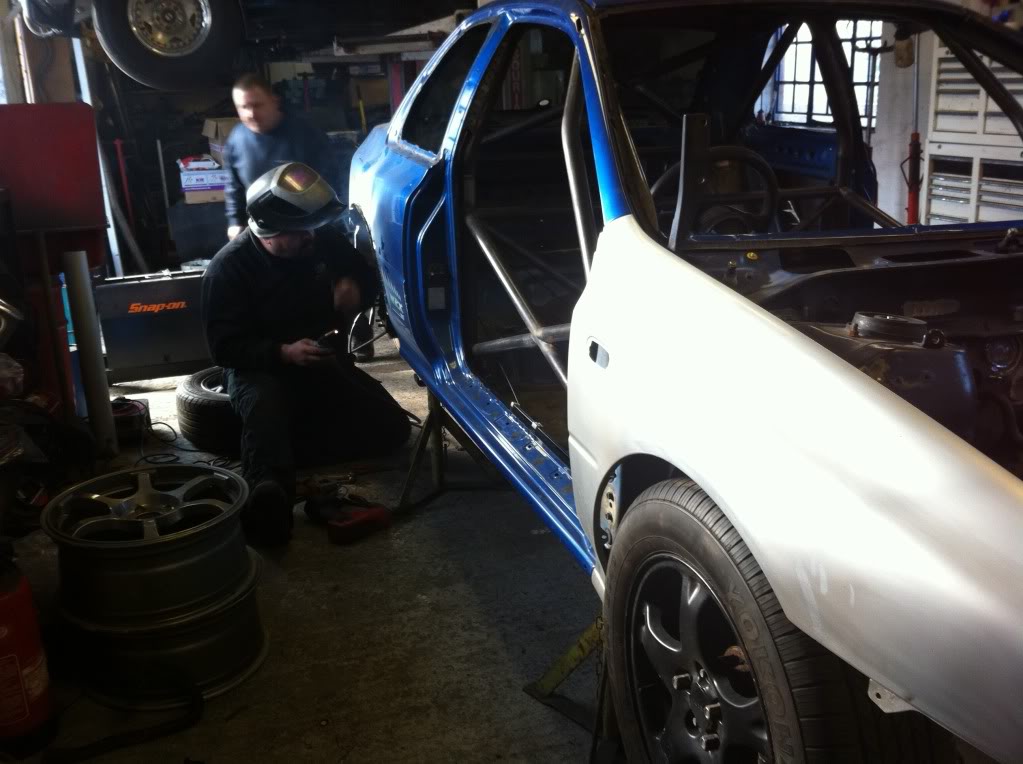

Massive thanks to stew and Ian for hard work on Rear arches now welded, holes in floor plated whilst I checked and rechecked and checked again before drilling front wings for arhes
Name:  c20a6c3c.jpg
Views: 0
Size:  159.1 KB
Name:  0d43567a.jpg
Views: 0
Size:  98.7 KB
Name:  fb477ba3.jpg
Views: 0
Size:  97.4 KB
Name:  0977fb25.jpg
Views: 0
Size:  146.2 KB

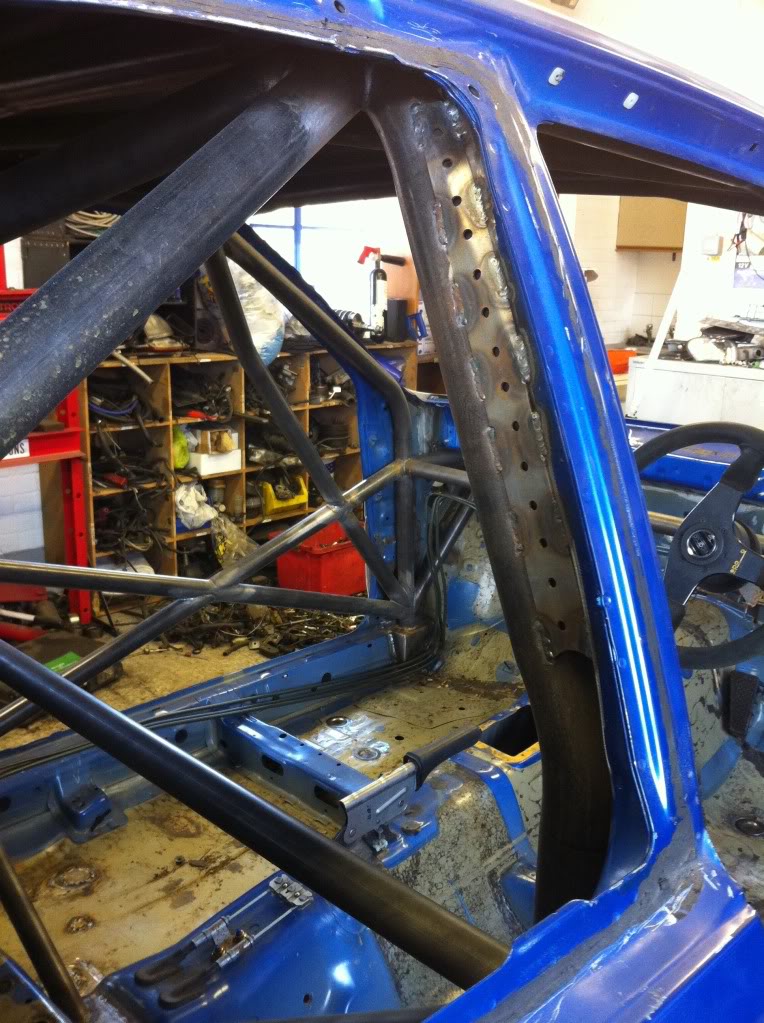

keep noticing extra noce touches with cage, tacked to shell on both sides of main hoop
Name:  c8692af2.jpg
Views: 0
Size:  165.2 KB

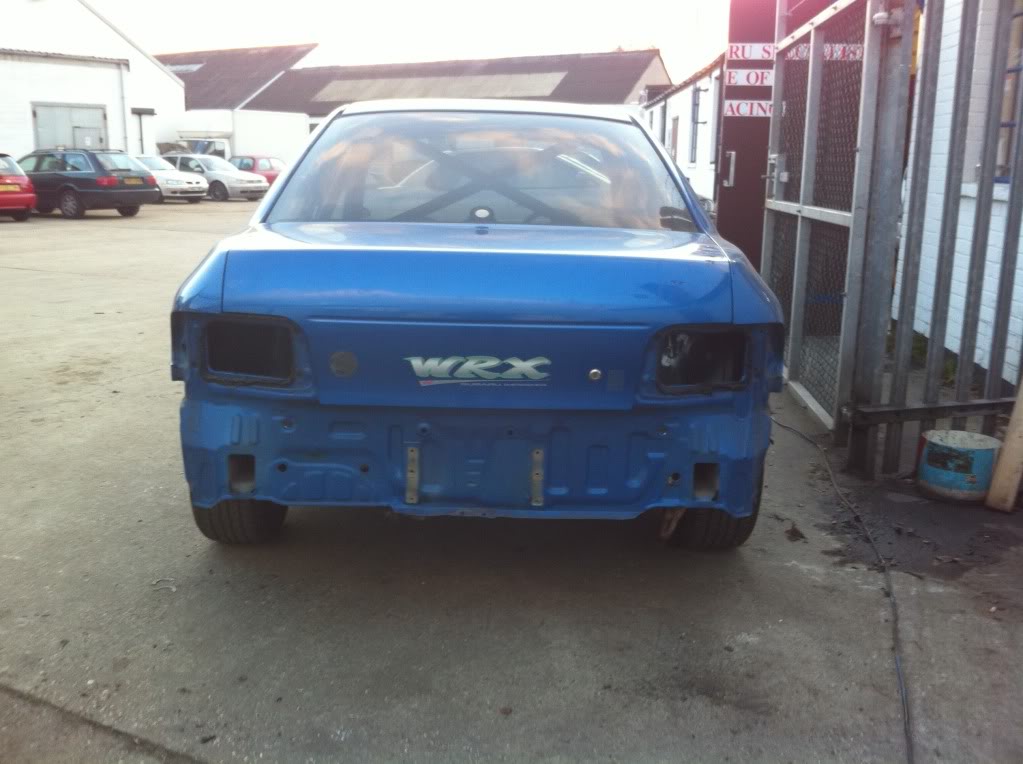

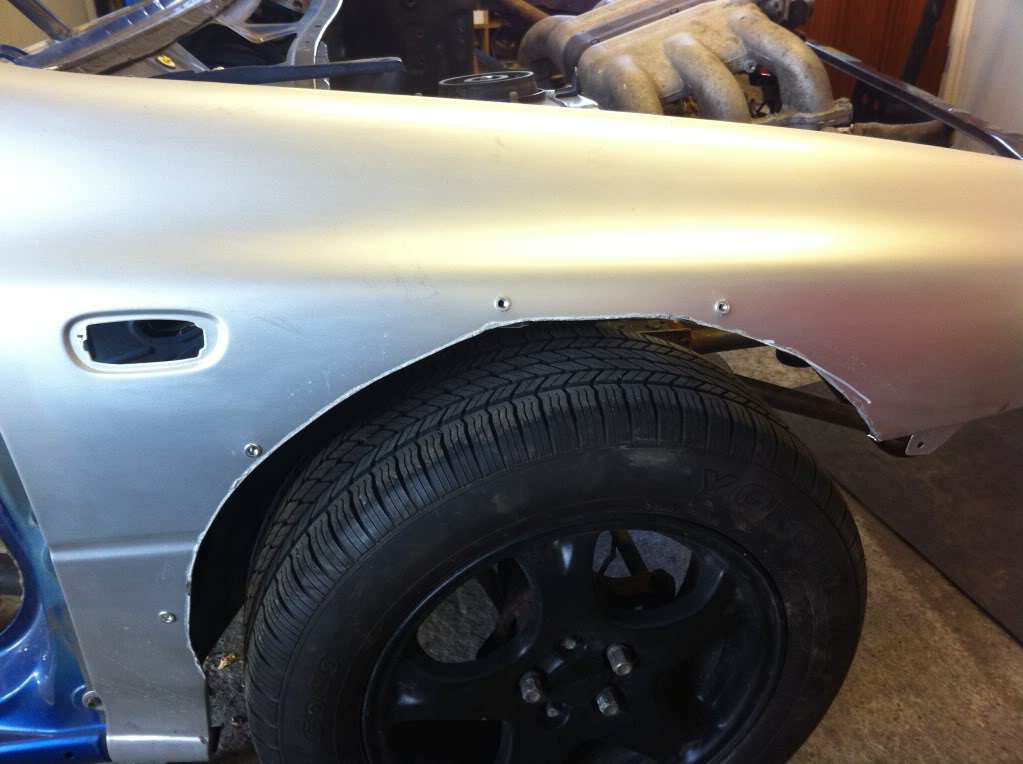

Still my fav the cross of cage viewed through rear window
Name:  87256368.jpg
Views: 0
Size:  91.0 KB
Name:  fc7f5376.jpg
Views: 0
Size:  87.5 KB

Simon

Last edited by Jolly Green Monster; 31 January 2011 at 08:18 PM.
Jolly Green Monster is offline
Old 31 January 2011, 09:07 PM
  #169
[email protected] STImulation
Scooby Regular
iTrader: (3)

m@t STImulation's Avatar

Join Date: Apr 2009
Posts: 1,445
Default

coming together quite fast looking forward to more trick parts later on

what overall weight do you think you will have saved??
or shall I wait till the end of the tread. ill be interesting to see how much it weighs in at, and the comparable power to weight between the green and new 2 dr cars you have

Last edited by [email protected] STImulation; 31 January 2011 at 09:13 PM.
m@t STImulation is offline
Old 31 January 2011, 09:13 PM
  #170
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

couple of hundred ish lol
Jolly Green Monster is offline
Old 31 January 2011, 11:56 PM
  #171
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,919
Default

Looking good Si, nice progress.
frayz is offline
Old 01 February 2011, 10:18 PM
  #172
super_ted
Scooby Regular
iTrader: (30)

super_ted's Avatar

Join Date: Dec 2008
Location: Oxfordshire
Posts: 2,602
Default

love this thread, moving along fast.
super_ted is offline
Old 01 February 2011, 11:32 PM
  #173
dunx
Scooby Senior
iTrader: (3)

dunx's Avatar

Join Date: Jun 2006
Location: Slowly rebuilding the kit of bits into a car...
Posts: 14,334
Default

Twin VF 35's and around 700 bhp sounds nice...

dunx
dunx is offline
Old 02 February 2011, 06:57 PM
  #174
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

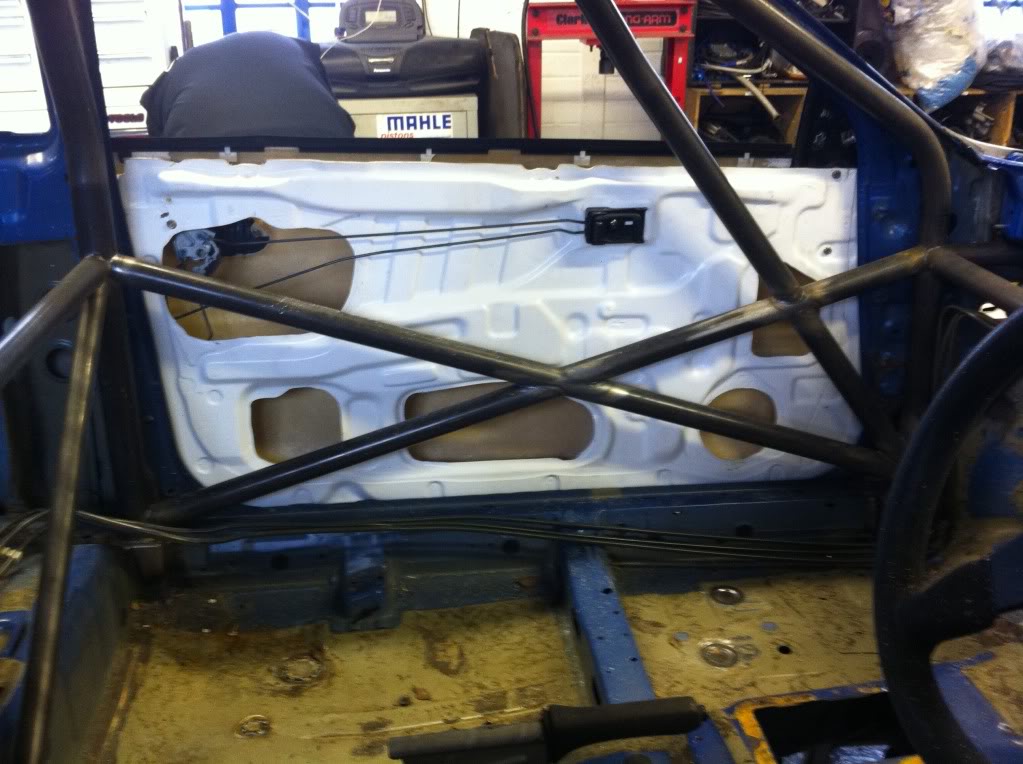

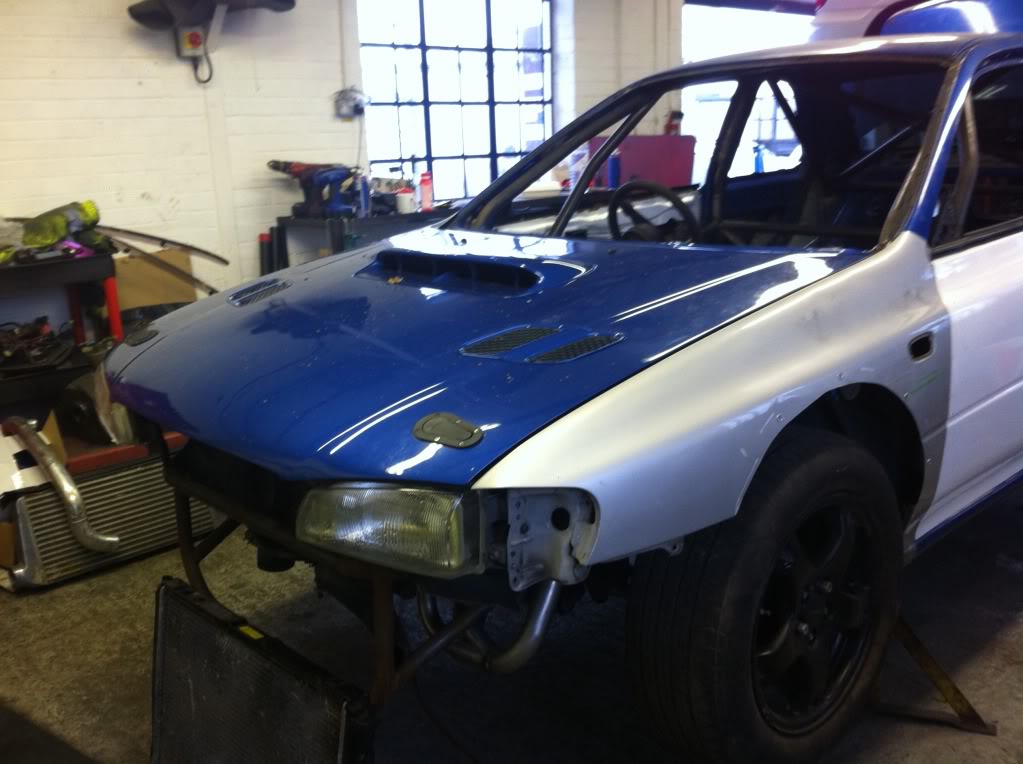

Name:  0c3ffdd9.jpg
Views: 0
Size:  93.2 KB
Name:  a36939b5.jpg
Views: 0
Size:  101.8 KB
Name:  8af3d307.jpg
Views: 0
Size:  122.8 KB
Name:  302f6a48.jpg
Views: 0
Size:  111.0 KB
Jolly Green Monster is offline
Old 02 February 2011, 07:02 PM
  #175
IainMilford
Scooby Regular
iTrader: (15)

IainMilford's Avatar

Join Date: Jun 2008
Location: On the right side of 650bhp!
Posts: 3,670
Default

you aint hanging around !!
IainMilford is offline
Old 02 February 2011, 10:22 PM
  #176
[email protected] STImulation
Scooby Regular
iTrader: (3)

m@t STImulation's Avatar

Join Date: Apr 2009
Posts: 1,445
Default

the cage is sexy
m@t STImulation is offline
Old 03 February 2011, 11:46 PM
  #177
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

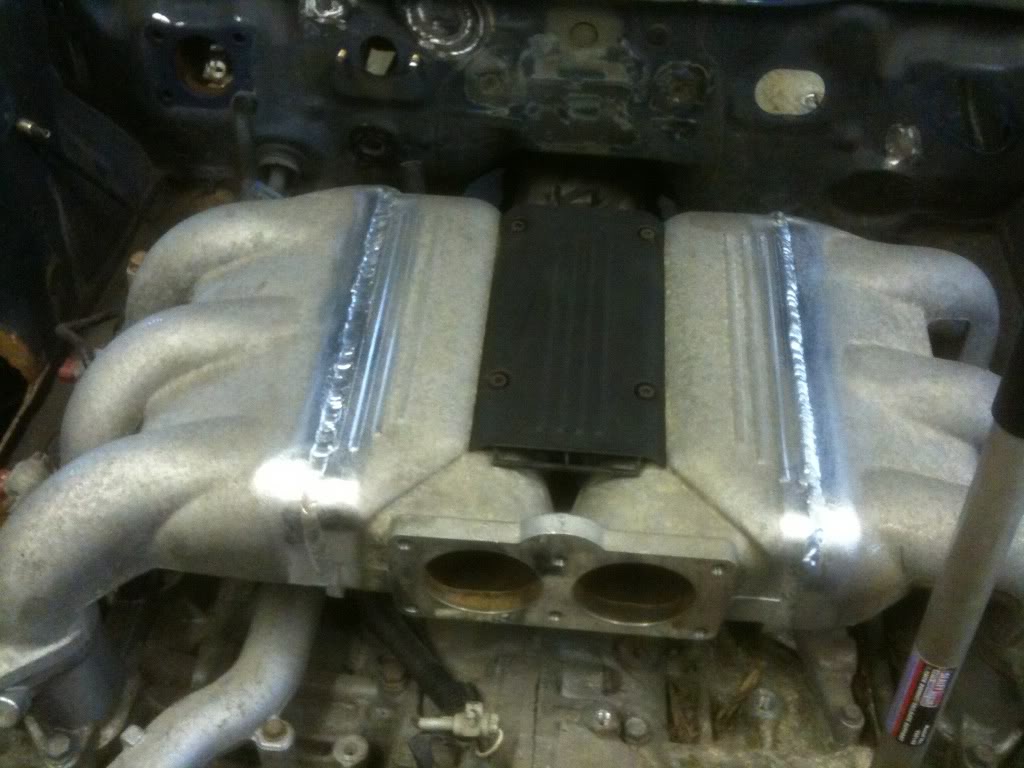

Front entry fannimold
Name:  628d718e.jpg
Views: 0
Size:  93.7 KB

Simon
Jolly Green Monster is offline
Old 03 February 2011, 11:49 PM
  #178
banny sti
Scooby Senior
iTrader: (68)

banny sti's Avatar

Join Date: Oct 2004
Location: Type R
Posts: 16,564
Default

You need to make the fannymold as shiny as the welding
banny sti is offline
Old 04 February 2011, 12:26 AM
  #179
Jolly Green Monster
ECU Specialist
Thread Starter
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Default

Originally Posted by banny sti View Post
You need to make the fannymold as shiny as the welding
thats what Stew @ TFS said.. damn that means he might be right and I need to spend some evenings with some wet and dry rather thasn a spray car
Jolly Green Monster is offline
Old 04 February 2011, 01:00 PM
  #180
V4JDMSTi
Scooby Regular
iTrader: (2)

Join Date: Jan 2005
Location: Essex
Posts: 12,706
Default

Originally Posted by Jolly Green Monster View Post
thats what Stew @ TFS said.. damn that means he might be right and I need to spend some evenings with some wet and dry rather thasn a spray car
Sod making it shine. You'll have to keep it that way then = grief. Powdercoat it with a chrome look powder or crackle black imo.
V4JDMSTi is offline

Thread Tools
Search this Thread
Quick Reply: JGM Project car


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
