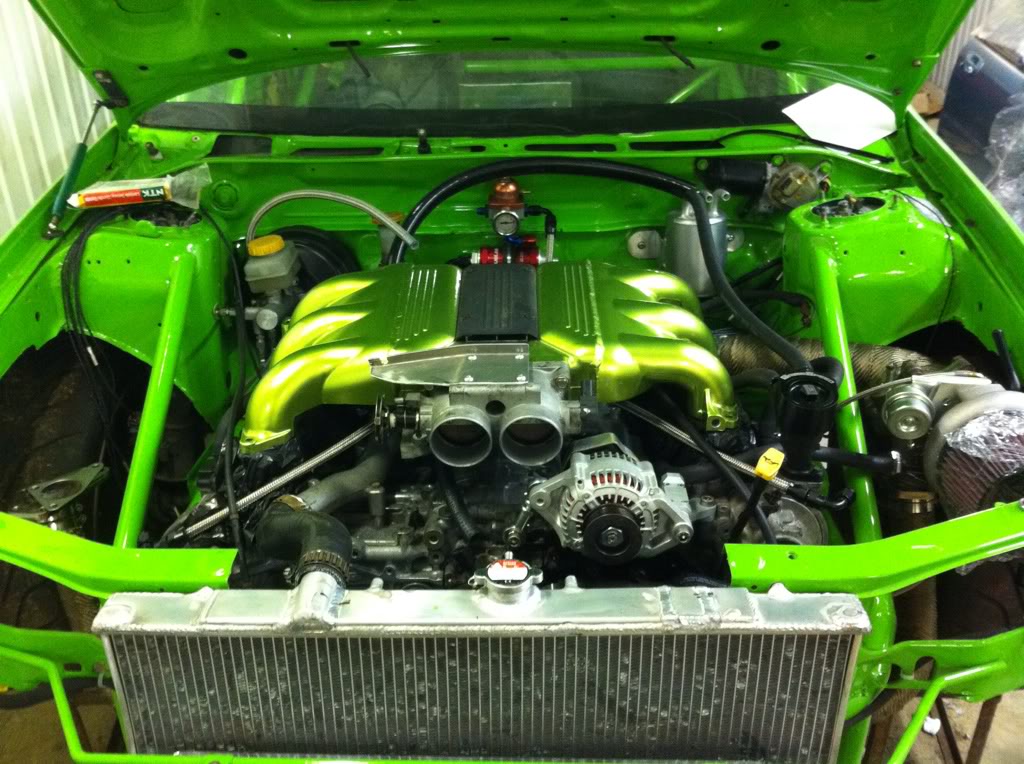

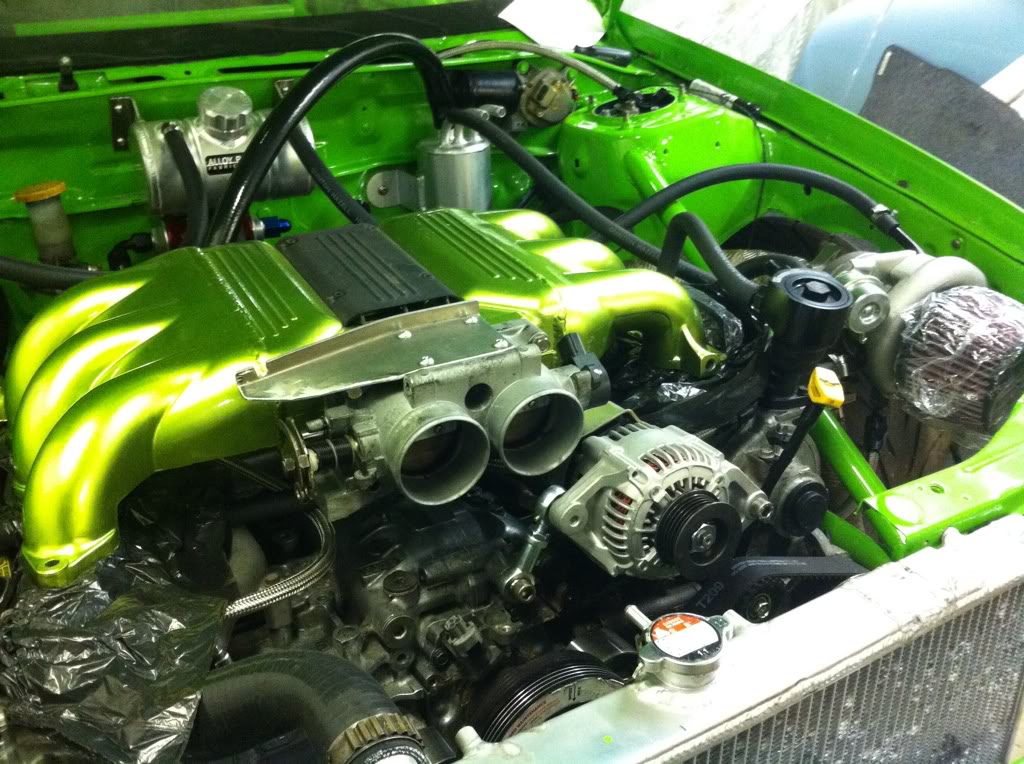

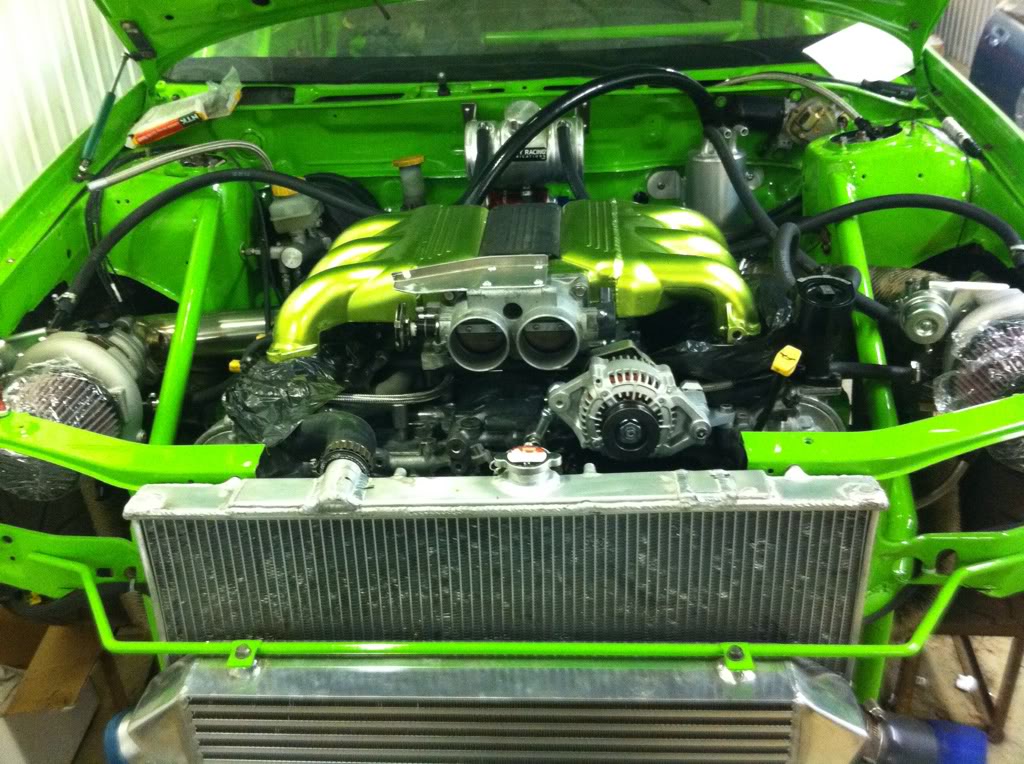

Some done again today

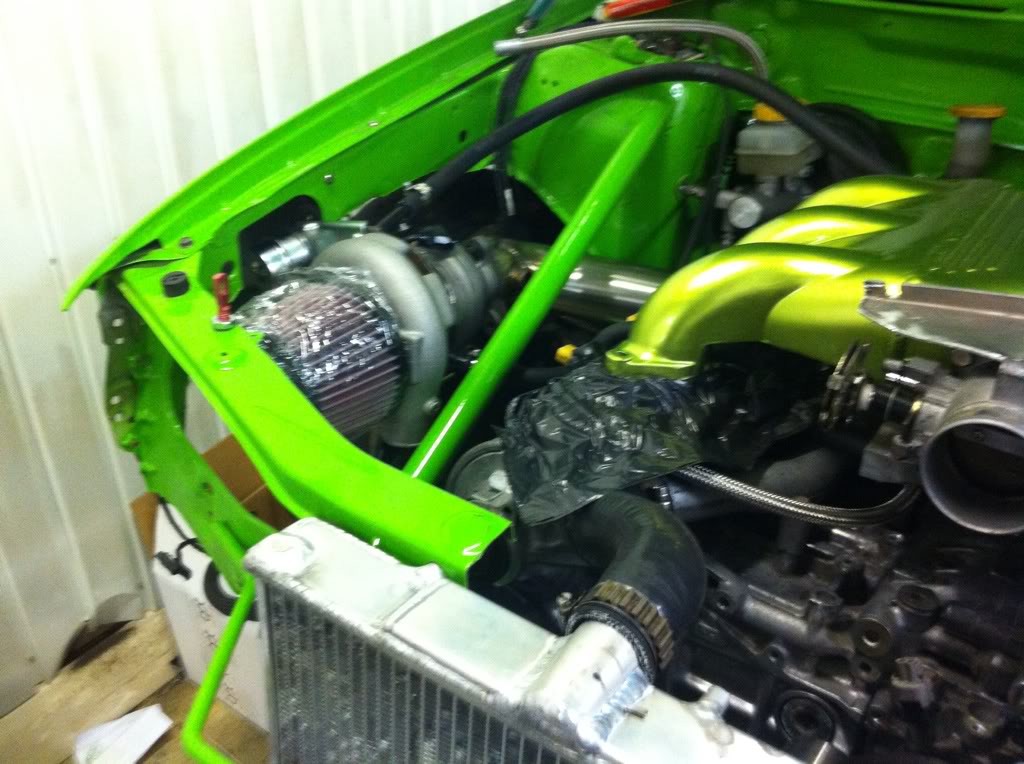

Second turbo housing rotated, and fitted
Header tank, fuel feed bulkhead fitting, fuel feed to pump all mounted/done
Fuel rails and injectors back on as altered to give more clearance for fittings
An old friend popped in and he was unaware of even the cars existance and his reaction to the car was v amusing.
Brought home the work thats been put in and how close it is to running.
Simon
Second turbo housing rotated, and fitted
Header tank, fuel feed bulkhead fitting, fuel feed to pump all mounted/done
Fuel rails and injectors back on as altered to give more clearance for fittings
An old friend popped in and he was unaware of even the cars existance and his reaction to the car was v amusing.
Brought home the work thats been put in and how close it is to running.
Simon

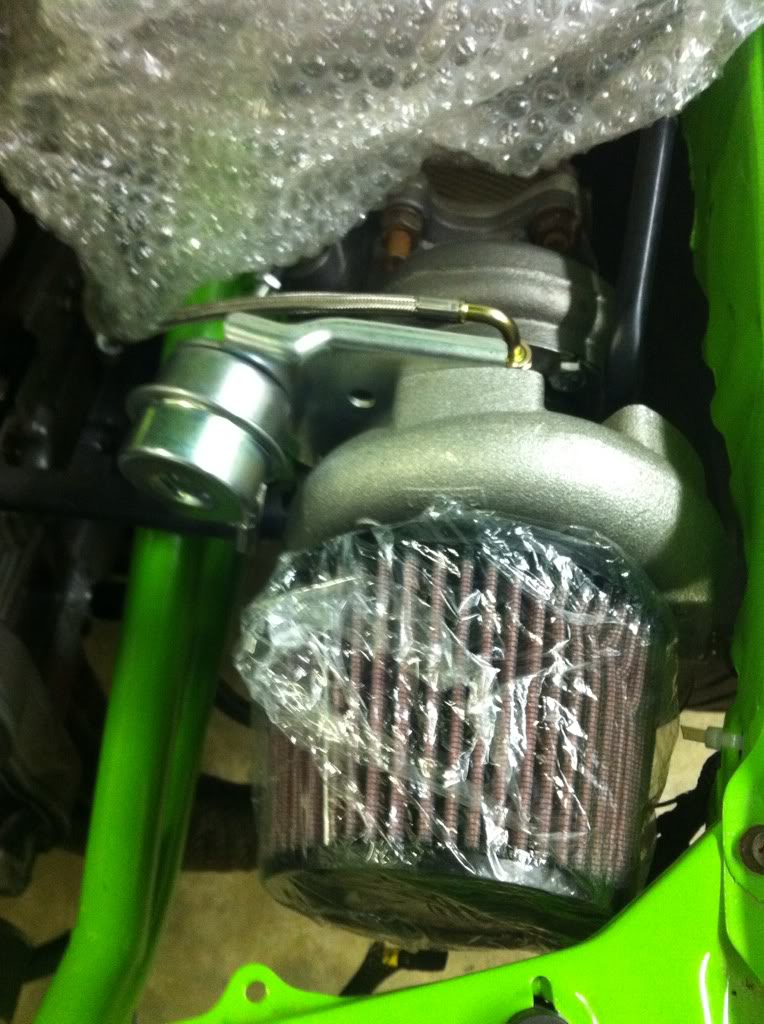

Do the turbos work efficiently when you have the filter bolted directly to the comp cover?
Do they not need a length of silicone (or ally pipe with joiners) between filter and housing, to act as a kind of laminar airflow-inducing venturi?
Do they not need a length of silicone (or ally pipe with joiners) between filter and housing, to act as a kind of laminar airflow-inducing venturi?
Last edited by joz8968; Jan 18, 2012 at 08:00 PM.
Subaru Tuning Specialist
Joined: Jun 2002
Posts: 6,654
Likes: 1
From: 7.74 @179 mph 1/4 mile - road legal
We will find out when Simon and I line up against each other at Marham in 8 weeks
Joking aside, looking at many drag race cars they run with just an intake trumpet directly on to the inducer. In my experience the shorter the intake runner the higher the possibility of compressor surge but top end flow is not compromised.
Joking aside, looking at many drag race cars they run with just an intake trumpet directly on to the inducer. In my experience the shorter the intake runner the higher the possibility of compressor surge but top end flow is not compromised.
Thread Starter
Former Sponsor
iTrader: (4)
Joined: Jan 2001
Posts: 16,548
Likes: 2
From: ECU Mapping - www.JollyGreenMonster.co.uk
If its a problem I can profile the boost to avoid surge or add intake pipes but I cant see it being necessary..
8weeks, gulp, I best get my skates on
Simon
8weeks, gulp, I best get my skates on
Simon
Is it just all the engine bay bits to be done and the mapping?
Or has all the drivetrain gotta be installed too?
How many man hours worth of work would you say is roughly left to complete?
Or has all the drivetrain gotta be installed too?
How many man hours worth of work would you say is roughly left to complete?
Last edited by joz8968; Jan 18, 2012 at 09:35 PM.
Thread Starter
Former Sponsor
iTrader: (4)
Joined: Jan 2001
Posts: 16,548
Likes: 2
From: ECU Mapping - www.JollyGreenMonster.co.uk
off the top of my head - gearlinkage, fuel return to tank, gearbox oil, engine oil, water, intercooler pipes, oil feeds for turbos, one oil return, alternator (also needs a belt) and starter motor wiring, dash wiring, dash back in, fuel pump wiring, other wiring bits - fuse box for the car loom - ecu fuse box is done already, coils need fitting, relays need plugging in, all the engine loom/ecu loom needs moving to correct places and plugging in, oil pressure up etc
double check everything several times... lol need to build a map to suit the custom loom too.
probably 40 man hours, so I need 4 people working on it tomorrow lol
Simon
When finished, I'm desperate to see some pics/vids of this beast turning its wheels in anger.........
Do you reckon you'll make Marham?
Do you reckon you'll make Marham?
Last edited by joz8968; Jan 19, 2012 at 03:07 PM.
Thread Starter
Former Sponsor
iTrader: (4)
Joined: Jan 2001
Posts: 16,548
Likes: 2
From: ECU Mapping - www.JollyGreenMonster.co.uk
Massive thanks to CJ, Richard (Dukeboy), and Ian (Bod) for spending the day working on the car, Ed for the timing light and lorry battery and Dan for videoing first start and charlie for the smells
video of first start might be a little bit of fuel in the exhaust, only a little lol - exhaust current consists of a silencer on each downpipe as awaiting more parts
direct link http://s950.photobucket.com/albums/a...t=IMG_1283.mp4
another short vid
direct link
http://s950.photobucket.com/albums/a...t=9dff964a.mp4
Simon
video of first start might be a little bit of fuel in the exhaust, only a little lol - exhaust current consists of a silencer on each downpipe as awaiting more parts
direct link http://s950.photobucket.com/albums/a...t=IMG_1283.mp4
another short vid
direct link
http://s950.photobucket.com/albums/a...t=9dff964a.mp4
Simon
Subaru Tuning Specialist
Joined: Jun 2002
Posts: 6,654
Likes: 1
From: 7.74 @179 mph 1/4 mile - road legal
Nice one Simon
I remember that buzz when I first fired up my H6, its great for motivation.
Wish I had a team doing my 40hrs work in 1 day lol, takes me about 2 weeks to get that much time to spend on the car at the moment!
I remember that buzz when I first fired up my H6, its great for motivation.Wish I had a team doing my 40hrs work in 1 day lol, takes me about 2 weeks to get that much time to spend on the car at the moment!
Thread Starter
Former Sponsor
iTrader: (4)
Joined: Jan 2001
Posts: 16,548
Likes: 2
From: ECU Mapping - www.JollyGreenMonster.co.uk
I guess that makes yours the first british eg33 in and impreza and this the second, or the first green one with a spoiler on a thursday lol.
