New 2dr wide arch sprint/hillclimb car build
28 January 2010, 10:38 AM
#61
Scooby Regular
Thread Starter
iTrader: (5)
Join Date: Jul 2004
Posts: 687
Likes: 0
Received 0 Likes
on
0 Posts
30 January 2010, 10:43 PM
#63
Scooby Regular
Thread Starter
iTrader: (5)
Join Date: Jul 2004
Posts: 687
Likes: 0
Received 0 Likes
on
0 Posts

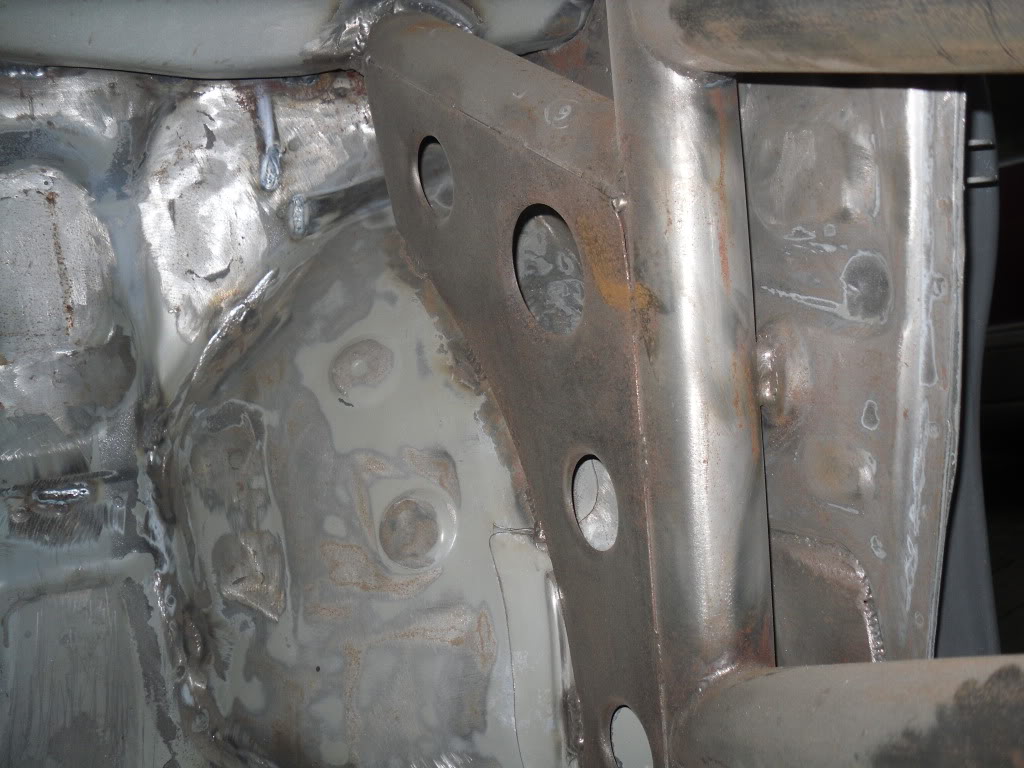

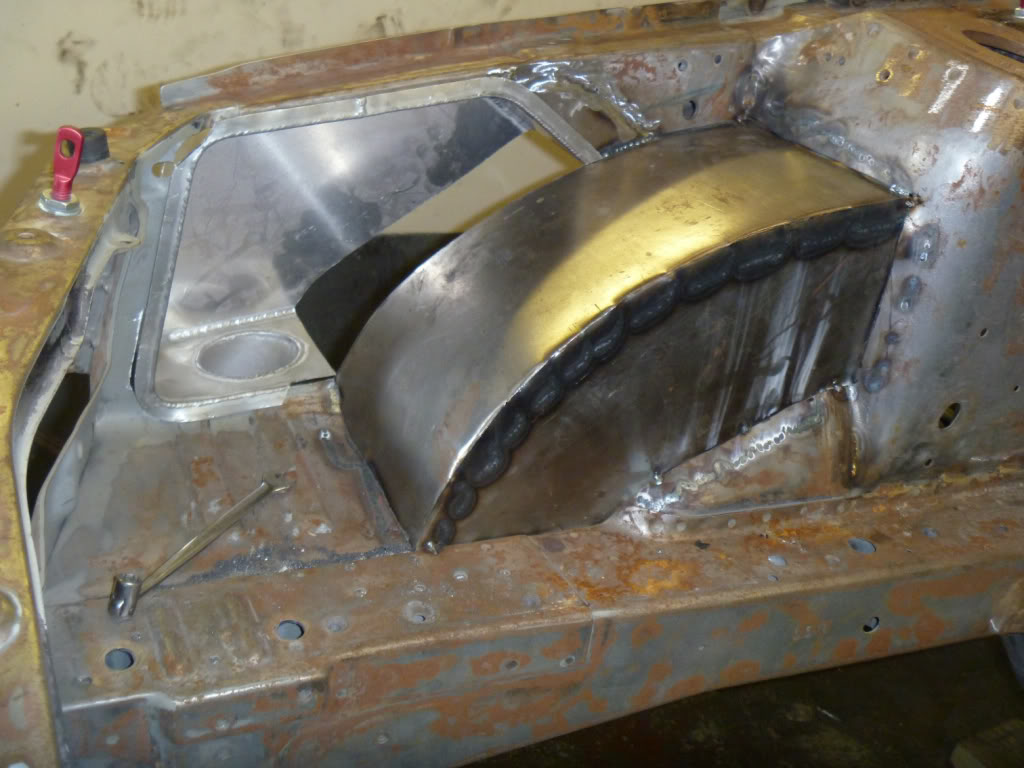

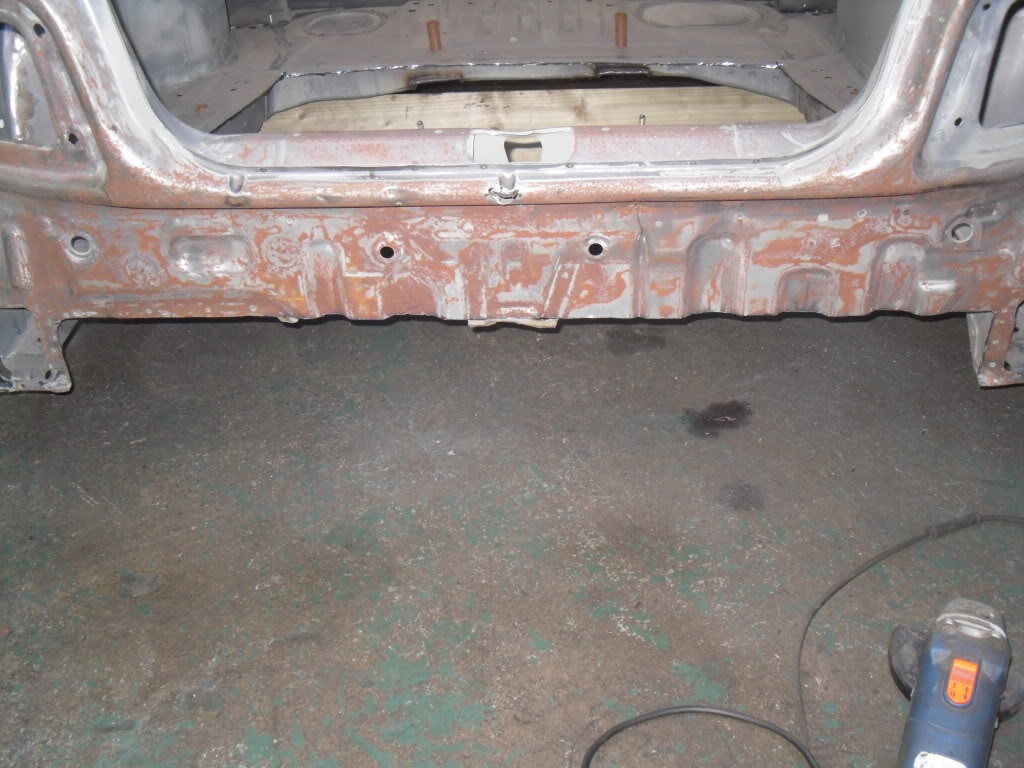

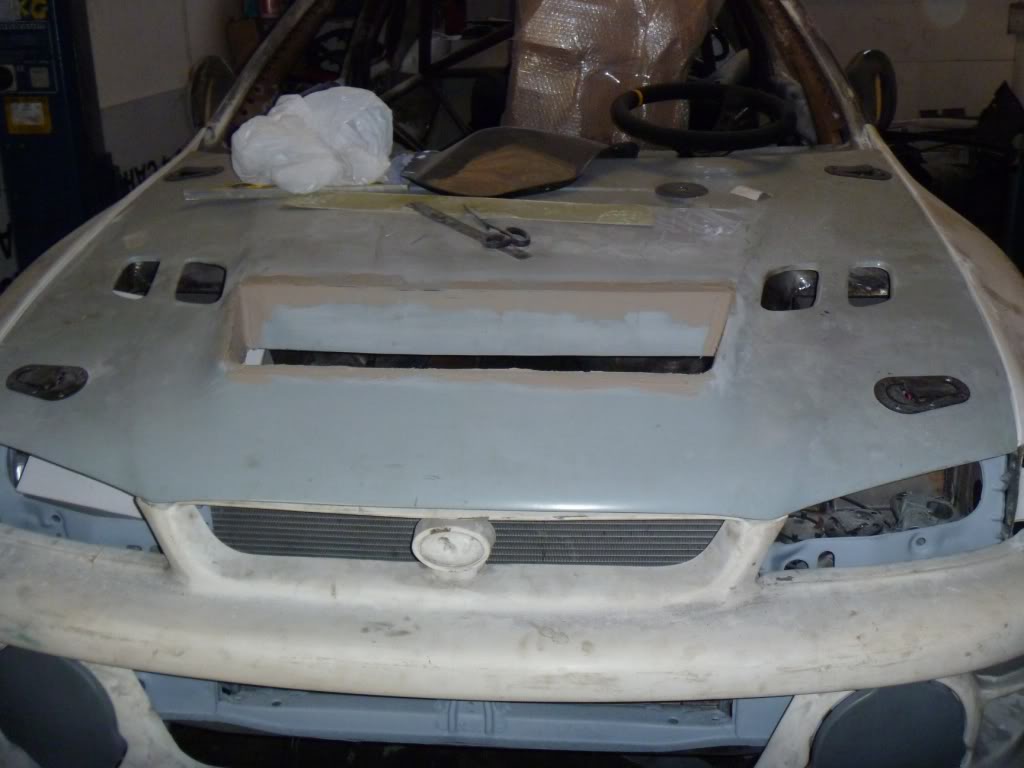

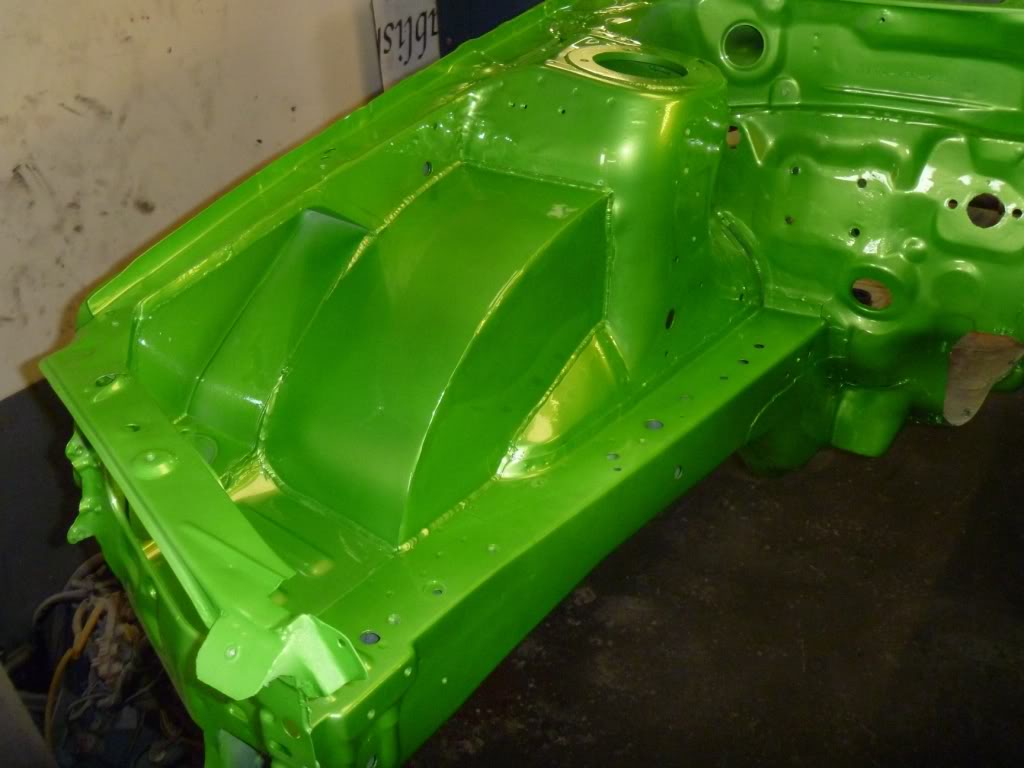

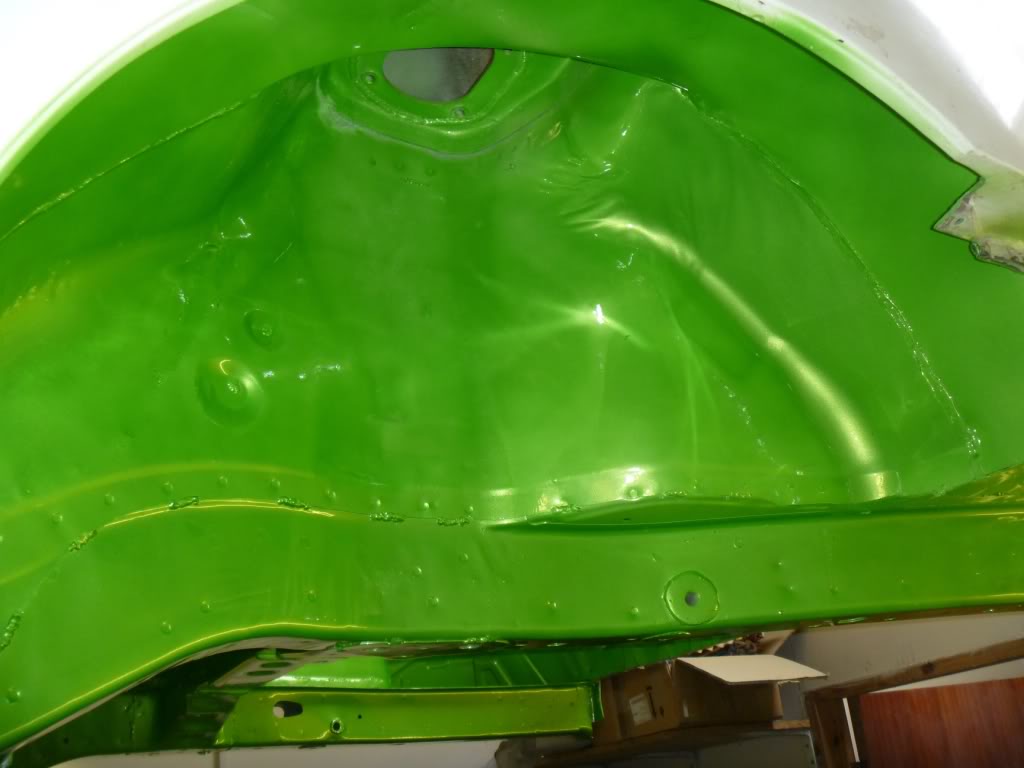

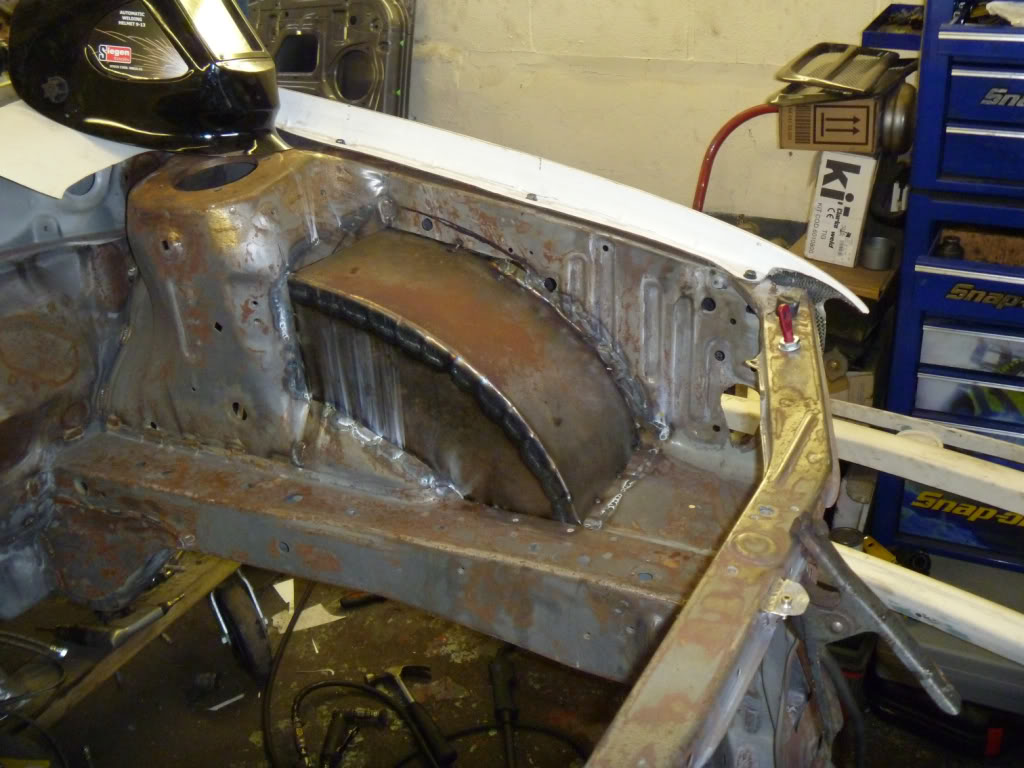

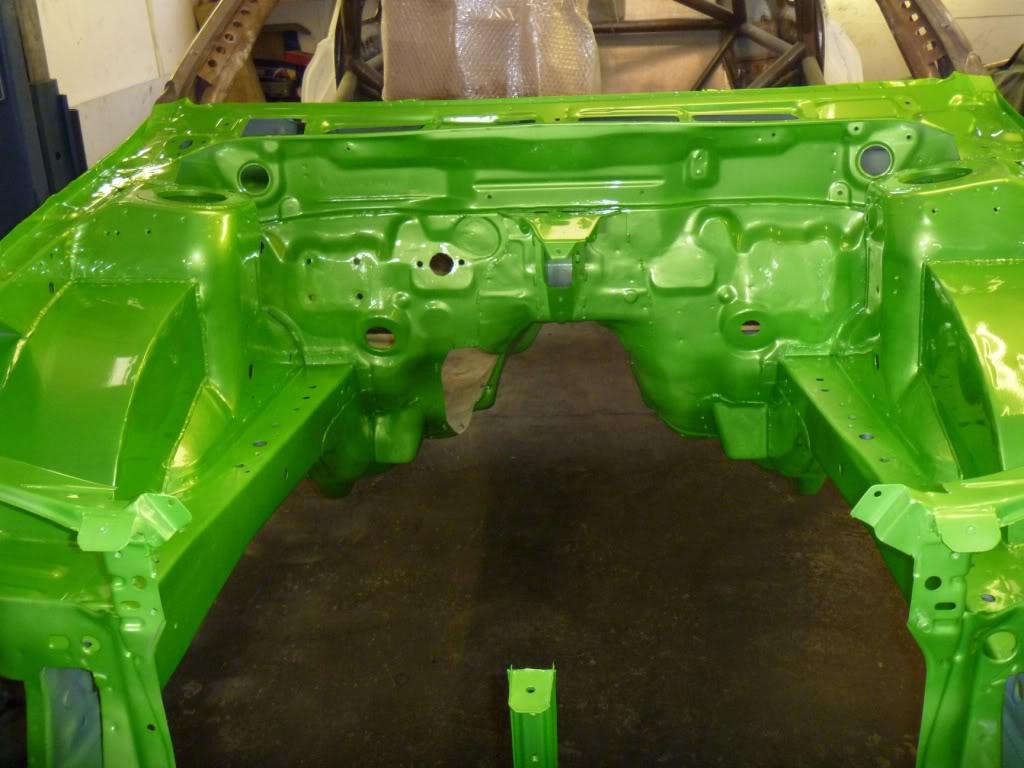

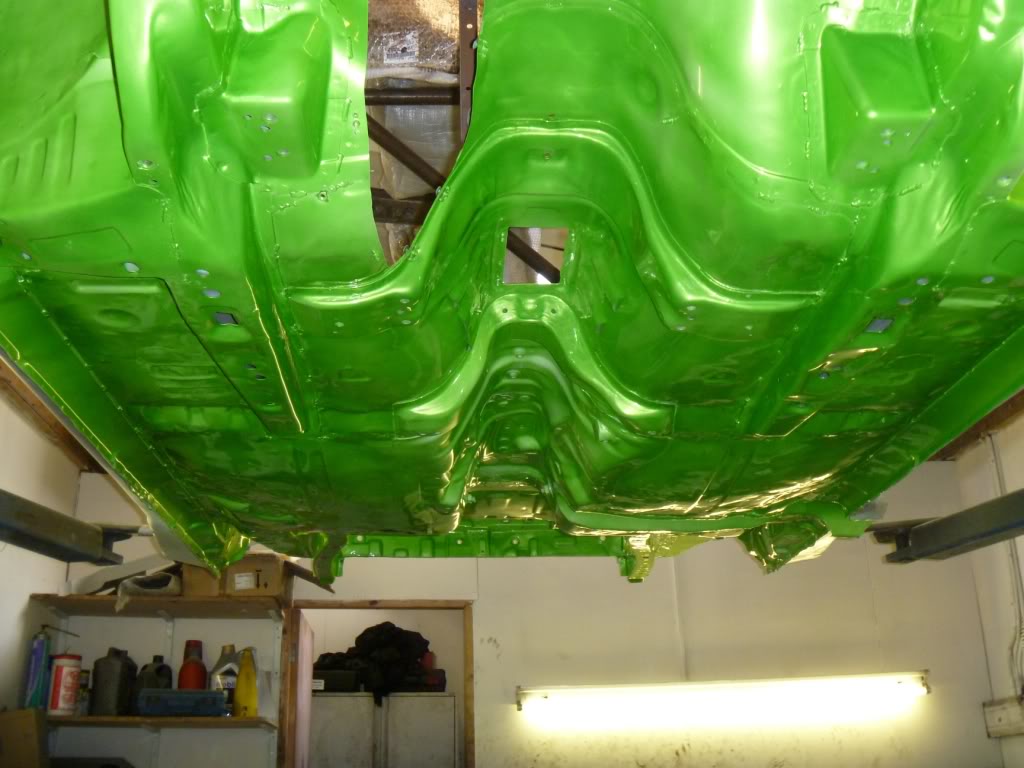

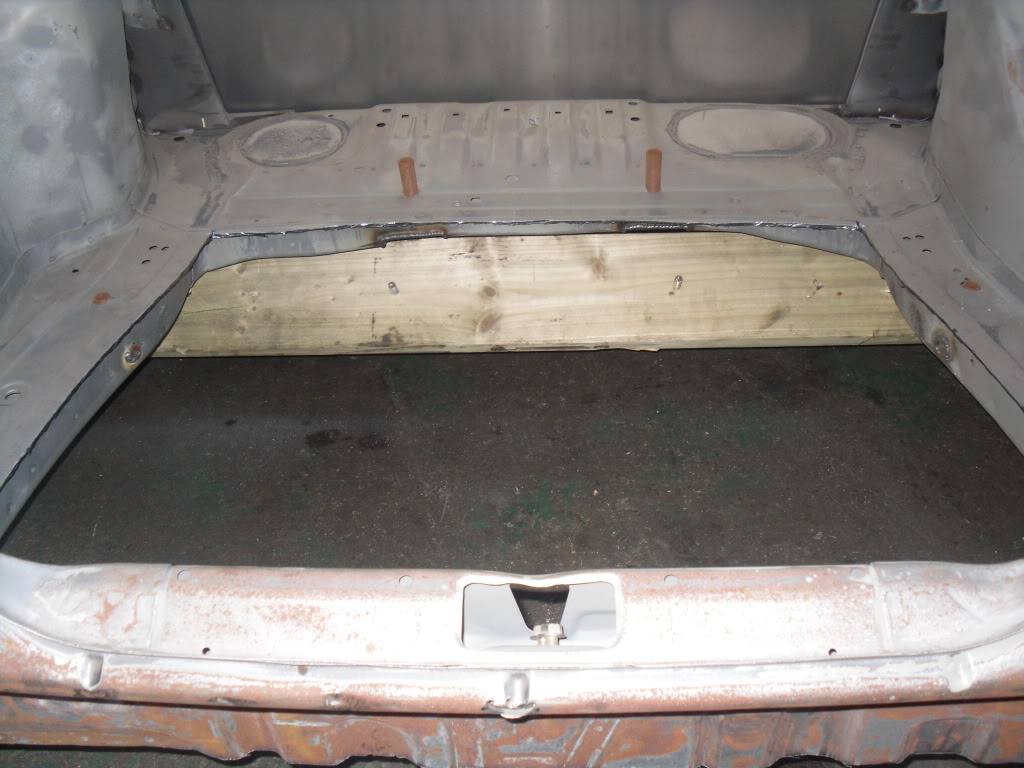

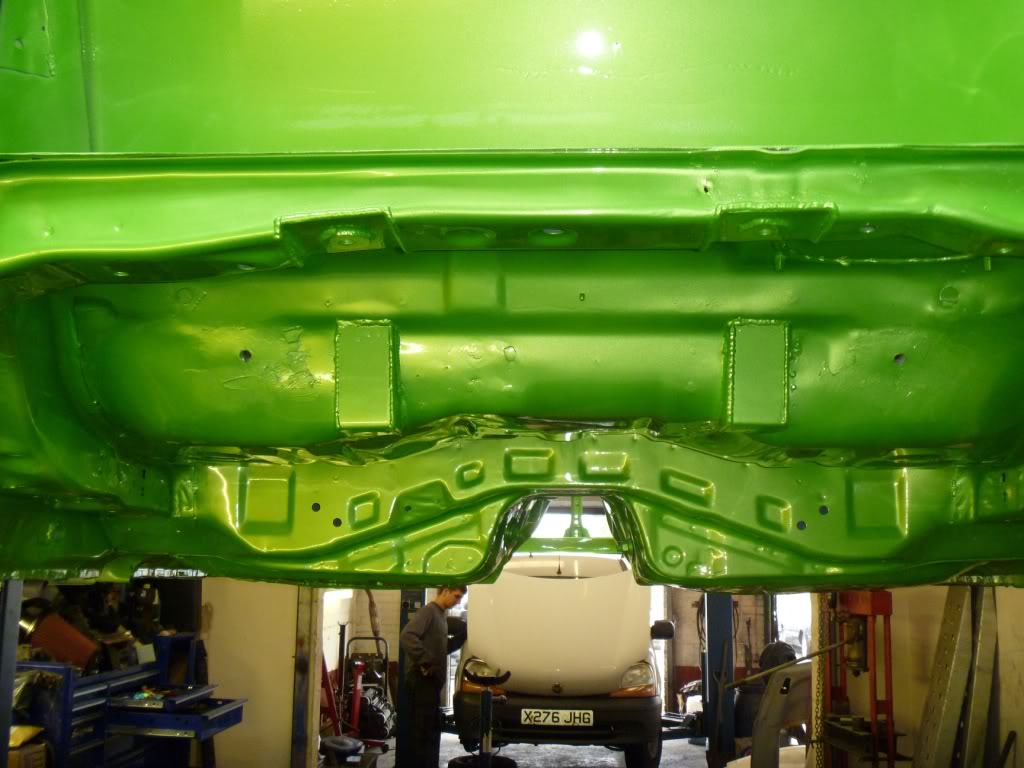

Right im now gettin back onto the car after some time off,the car is just being finished seam welding by the end of next week all should be done and all xs weight removed ready for paint.Soon as its back i will post more pics of the finished shell before paint.Will post pics tomoz of the carbon front bumper and side skirts.
14 February 2010, 06:20 PM
#67
Scooby Regular
Thread Starter
iTrader: (5)
Join Date: Jul 2004
Posts: 687
Likes: 0
Received 0 Likes
on
0 Posts

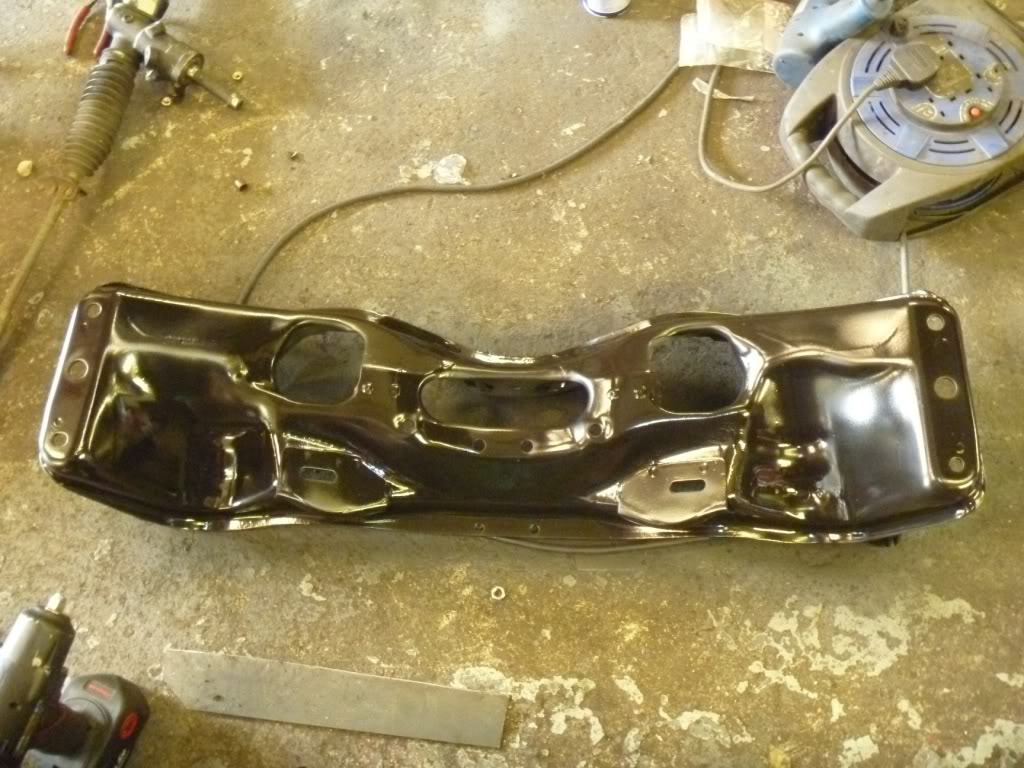

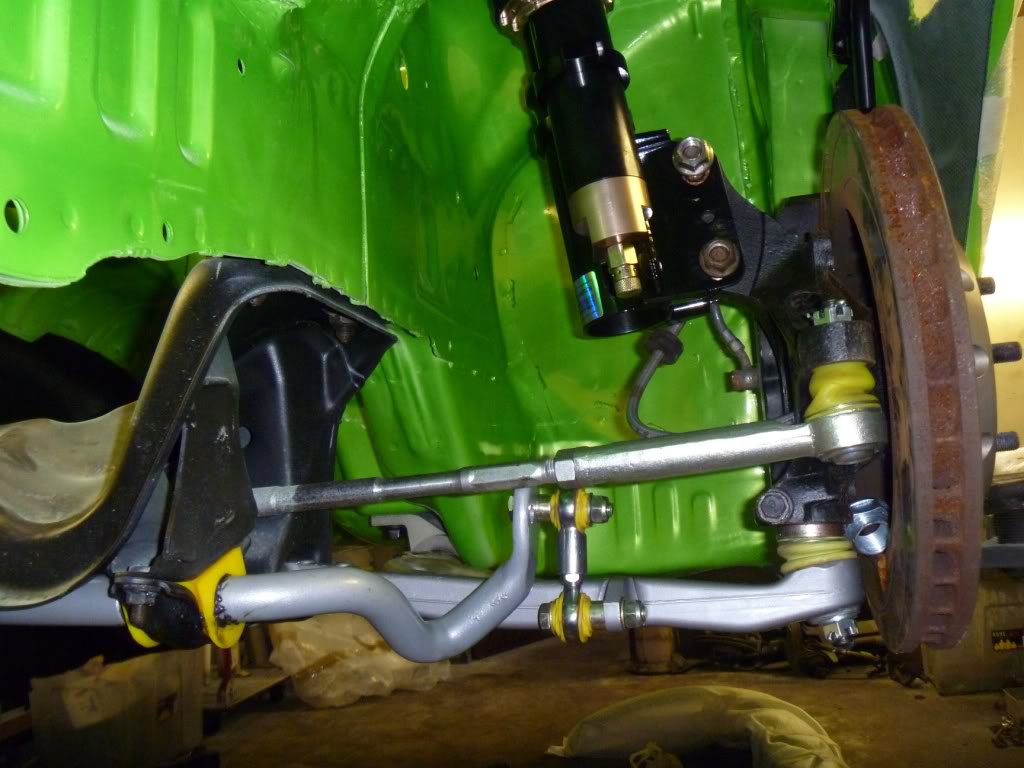

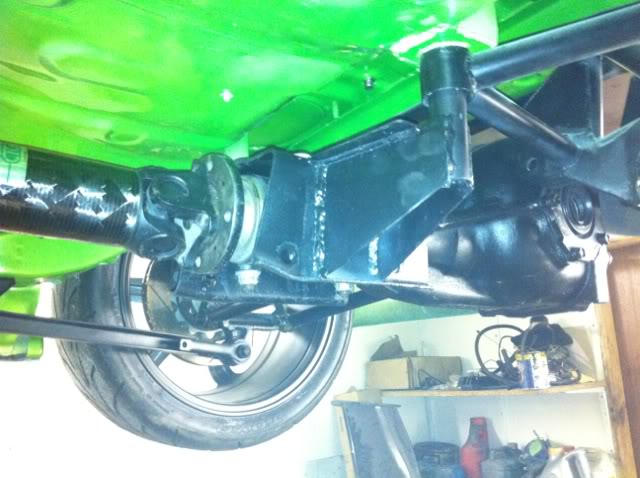

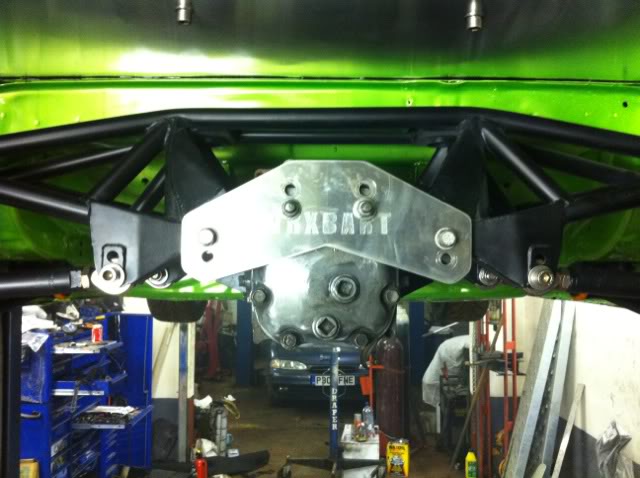

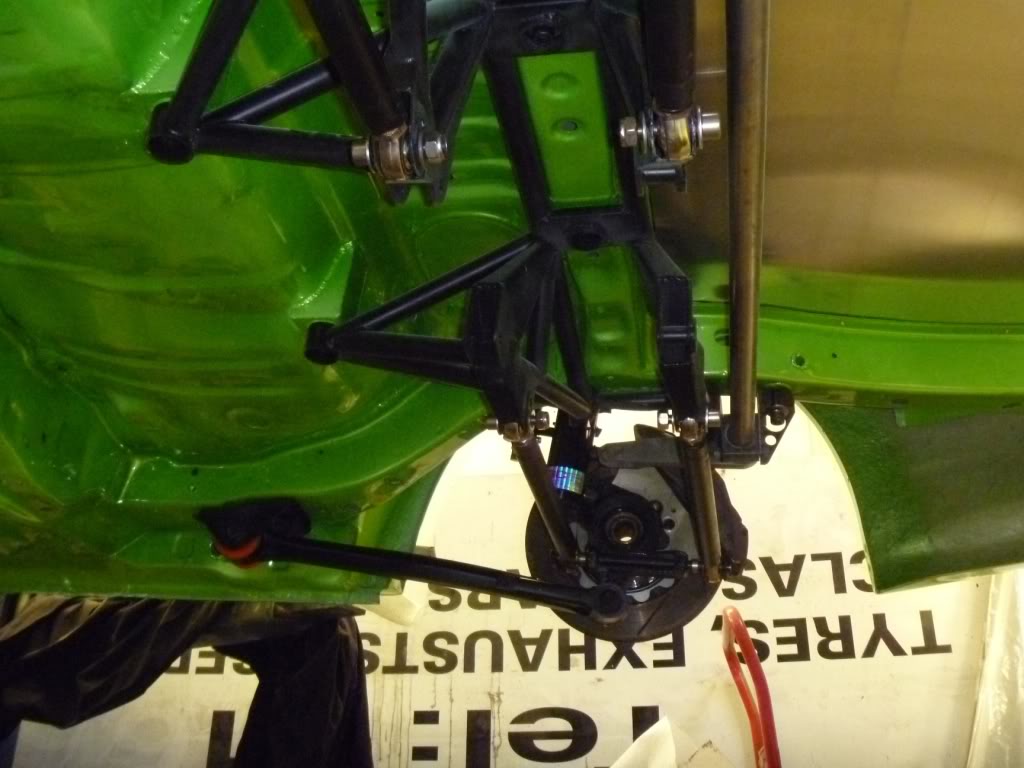

Well bought some new parts for the car,I was selling a load of wrc parts for a mate.And i decided to buy them lol.So the car is now getting WRC hubs,shafts,rear cross member,antiroll bars.Then just got to source a WRC front cross member hopefully found one,also thinking of running a set of wrc exe-tc?
19 February 2010, 02:32 PM
#73
Former Sponsor
Join Date: Jul 2005
Location: Wellingborough, Northamptonshire
Posts: 2,859
Likes: 0
Received 0 Likes
on
0 Posts

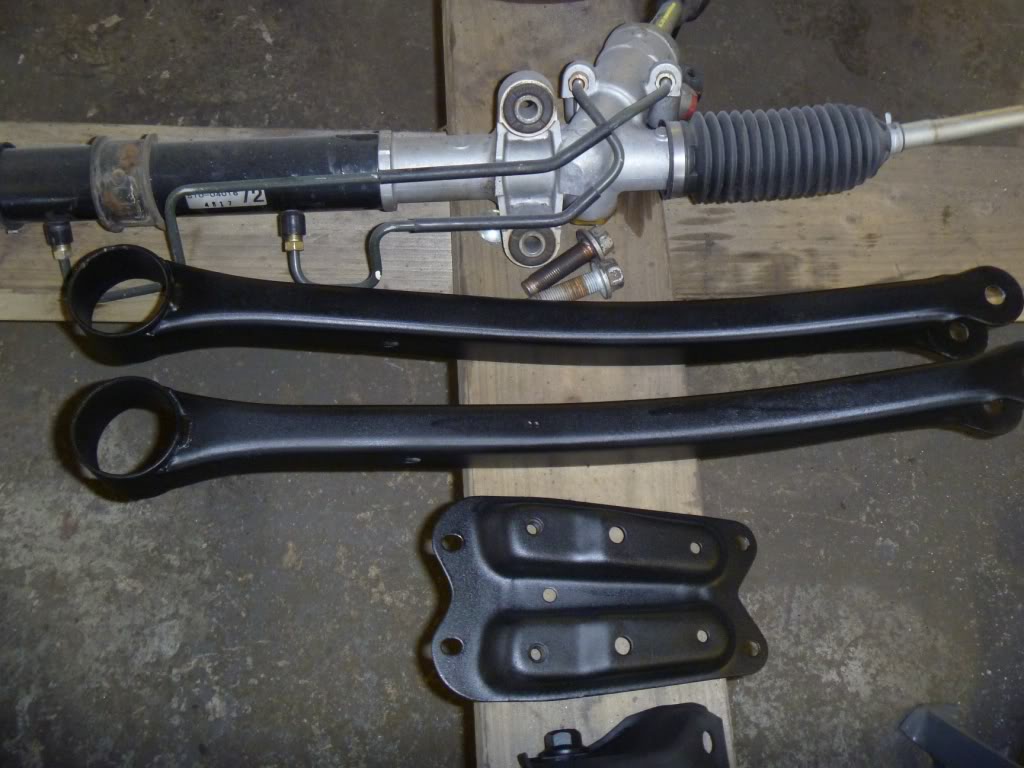

How are you going to convert the rack to make it suitable for the column mounted PS?
The standard rack will not put up with that electric power steering as it's designed to deflect in the pinion housing to actuate the hydraulic assistance.
The standard rack will not put up with that electric power steering as it's designed to deflect in the pinion housing to actuate the hydraulic assistance.
21 February 2010, 01:56 PM
#75
Former Sponsor
Join Date: Jul 2005
Location: Wellingborough, Northamptonshire
Posts: 2,859
Likes: 0
Received 0 Likes
on
0 Posts
I don't see why you couldn't modify a stock rack, take out the valving, modify the pinion shaft etc. But it seems like a lot of hassle to replace a perfectly good PS system that's not too heavy or bulky in the first place.
Titan Motorsport Engineering do a whole range of racks that would be suitable.
Titan Motorsport Engineering do a whole range of racks that would be suitable.
21 February 2010, 02:10 PM
#76
Scooby Regular
Thread Starter
iTrader: (5)
Join Date: Jul 2004
Posts: 687
Likes: 0
Received 0 Likes
on
0 Posts
I don't see why you couldn't modify a stock rack, take out the valving, modify the pinion shaft etc. But it seems like a lot of hassle to replace a perfectly good PS system that's not too heavy or bulky in the first place.
Titan Motorsport Engineering do a whole range of racks that would be suitable.
Titan Motorsport Engineering do a whole range of racks that would be suitable.
16 September 2011, 09:17 PM
#90
Scooby Regular
Thread Starter
iTrader: (5)
Join Date: Jul 2004
Posts: 687
Likes: 0
Received 0 Likes
on
0 Posts

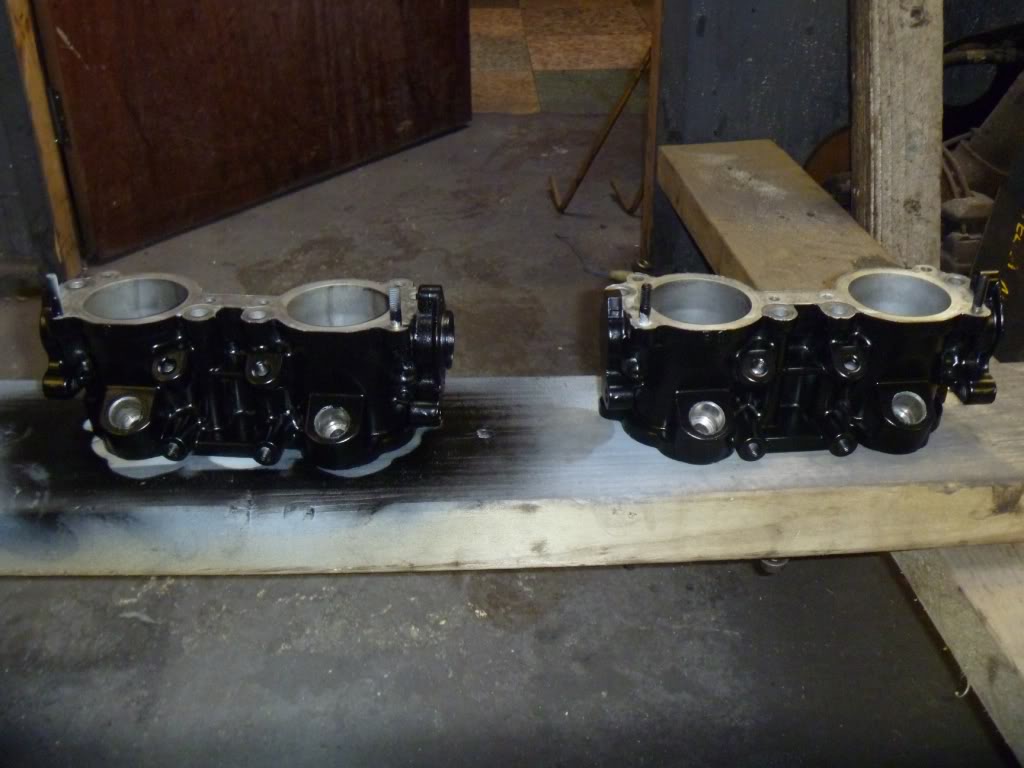

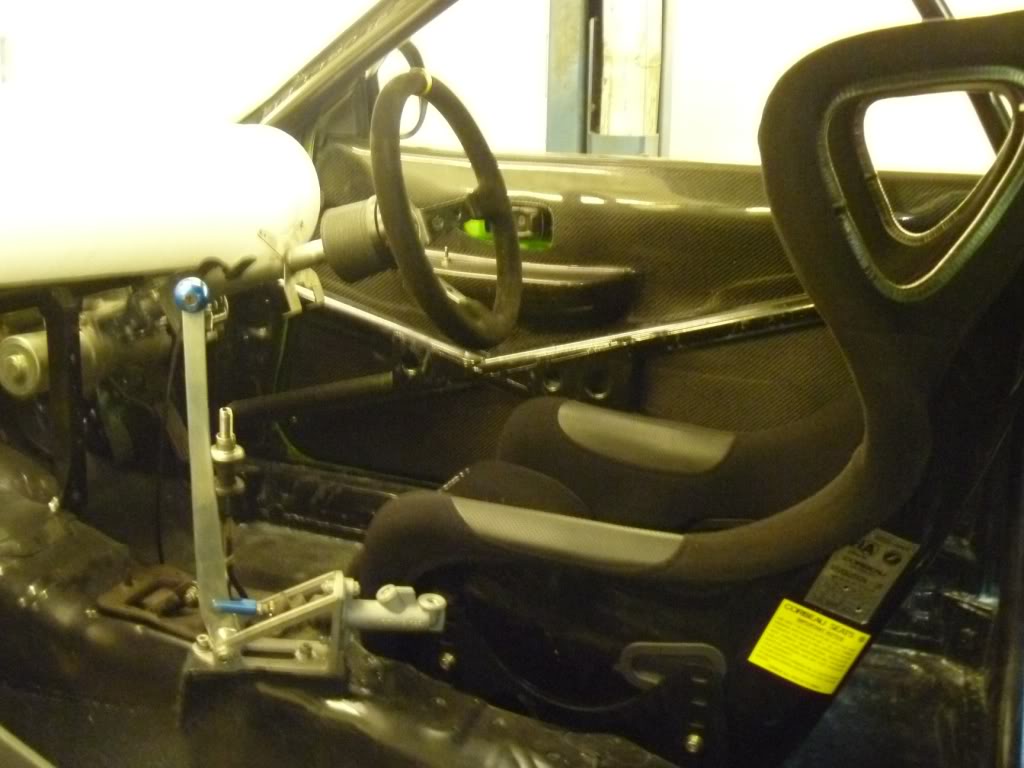

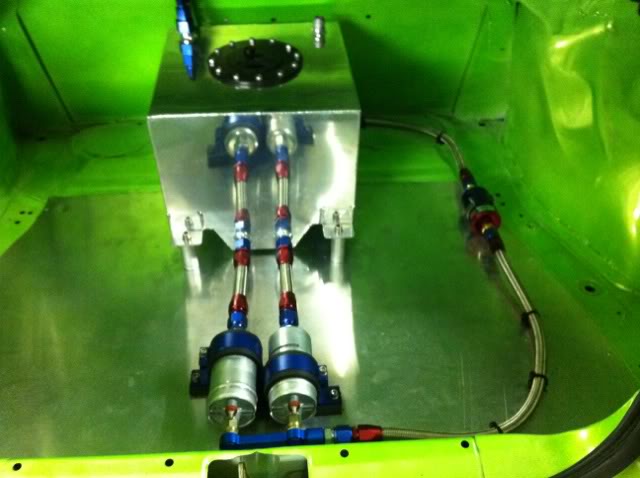

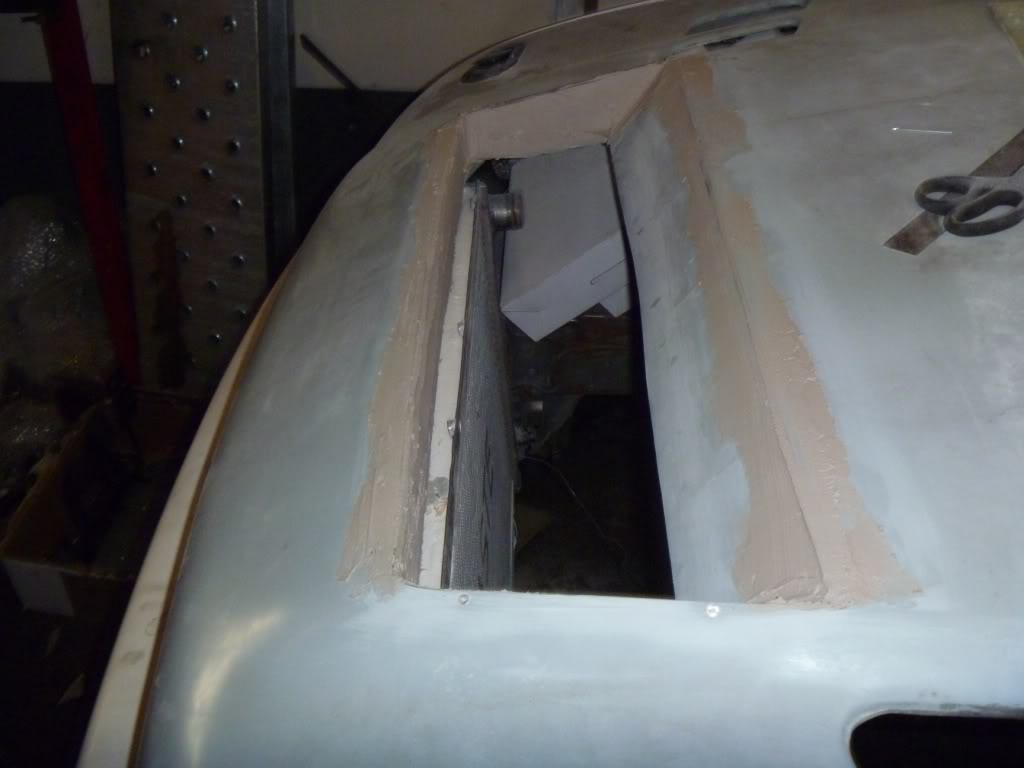

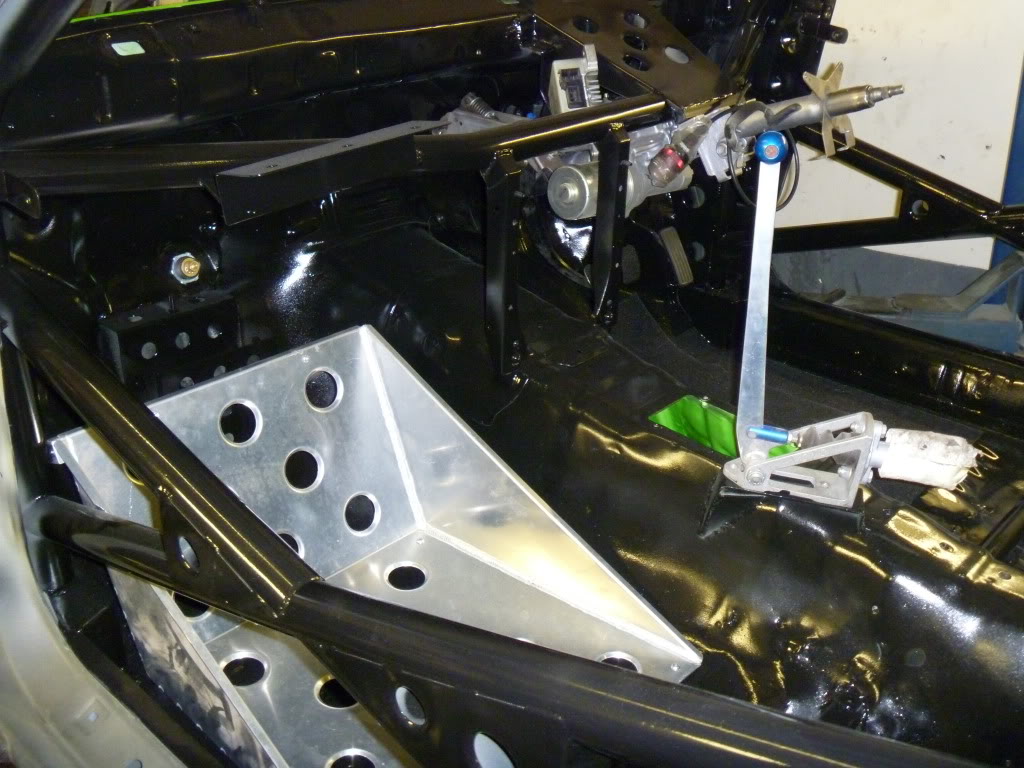

Thanks mate. It's taken a long time and now it's in bits because I'm not happy with aspects of it. Changing front brake master. Re fitting John Stevenson wiring loom neatly. Re positioning seat. Re designing rear defuser. Fitting wrc inspired roof vent. Fitting fuel cooler ducted via flat floor. Then just had a new lateral/ SD motorsport engine built after the demise of my bottom end at totb. Fresh ej22t block 97mm bore honed fitted with lateral race stroker pistons, lateral stroker race rods, nitride crank, acl bearings, 14mm head studs, cosworth head gaskets, avcs heads lateral ported polished with supertech valves springs titanium retainers, lateral race avcs cams. Just fitting with a new set of ID 2000. Cosworth manifold and scoobyclinic billet gt35 turbo.
