Blobeye to Hawkeye S12 WRC Replica build
#31
Scooby Regular
It’s looking awesome buddy! Glad to see you’re still putting in the time on it.
#32
Scooby Regular
Thread Starter

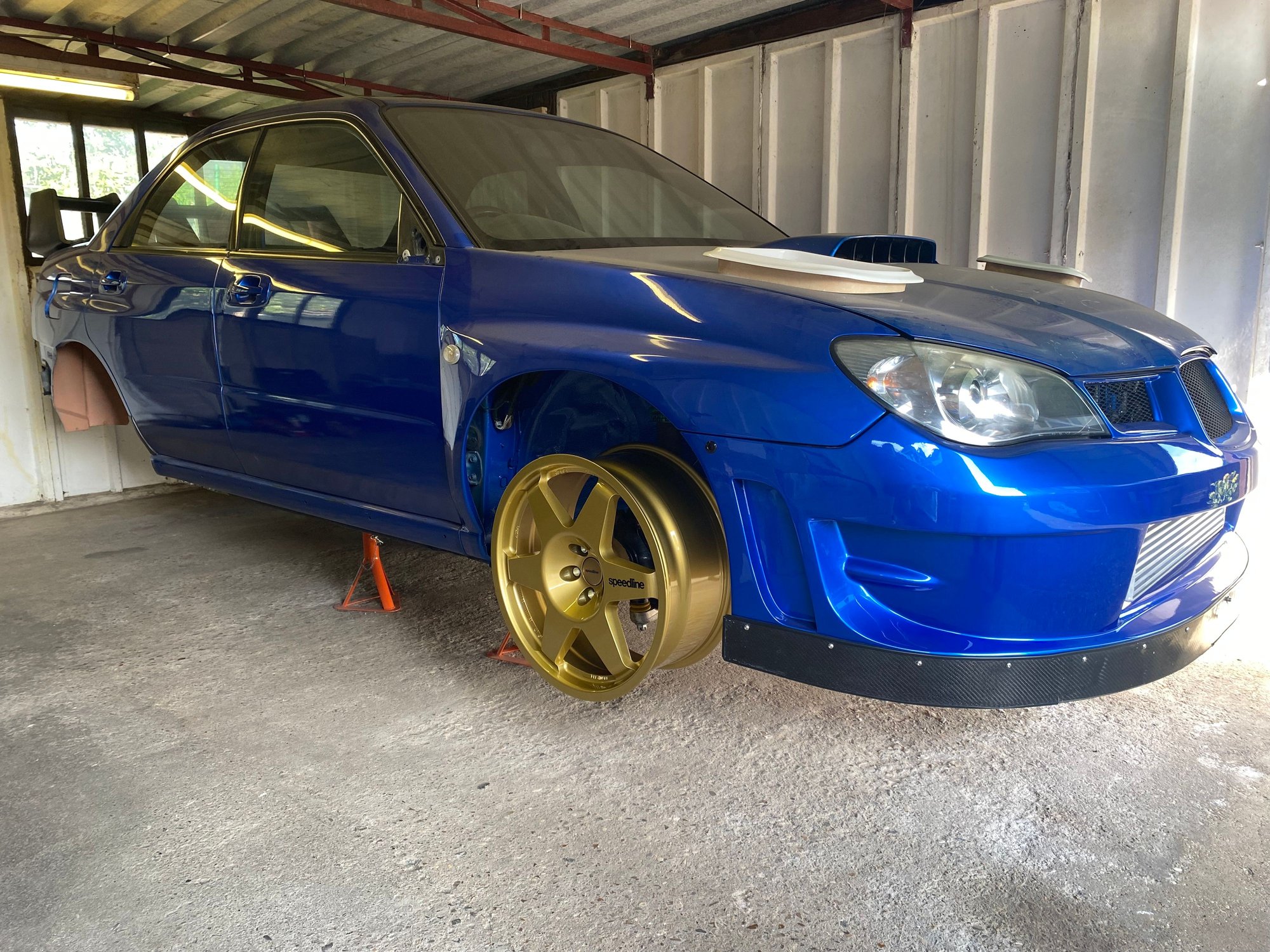

new wheels turned up today. Mega excited think the gamble will pay off. Speedline 2013C 18x8 et11
Then as usual got carried away. Offered up the prodrive alcons just for photos.
Then got even more carried away and offered up the bonnet vents and spoiler to see if what i picture in my head will work.
Very happy with them. Always loved these style wheels since having revolution milleniums before. Cheers
The following users liked this post:
#33
Scooby Regular
Thread Starter
Bringing this upto date, got finished chasing out the rust on the back n/s and all primered up. So underside upto the floor is now all done and finished.
Picked up this great rally 3 piece carbon parcelshelf/firewall and rear seat delete from matt @ mb developments
Order from ICP for group N sti pillowball trailing arms, new mounting bolts/nuts and bracket bolts
Now the good bits, homemade spray booth and we have paint! Love to see the change and how bright it makes the underside.
Now to let that dry/cure, order some bilt hamber cavity wax's and then start with piecing bits back together and the rebuild begins again.
cheers everyone. Simon
Picked up this great rally 3 piece carbon parcelshelf/firewall and rear seat delete from matt @ mb developments
Order from ICP for group N sti pillowball trailing arms, new mounting bolts/nuts and bracket bolts
Now the good bits, homemade spray booth and we have paint! Love to see the change and how bright it makes the underside.
Now to let that dry/cure, order some bilt hamber cavity wax's and then start with piecing bits back together and the rebuild begins again.
cheers everyone. Simon
The following 6 users liked this post by gc8simon:
#36
Scooby Regular
Thread Starter
Thanks for the kind words people, there was
2 of us masking and took us just over half an hour. Never expected to be going so over the top but i am my own worst enemy and just keep pushing..
anyway got a few photos and bits to add up now, got the teins cleaned up and refitted
along with brake pipe clips and grommits etc

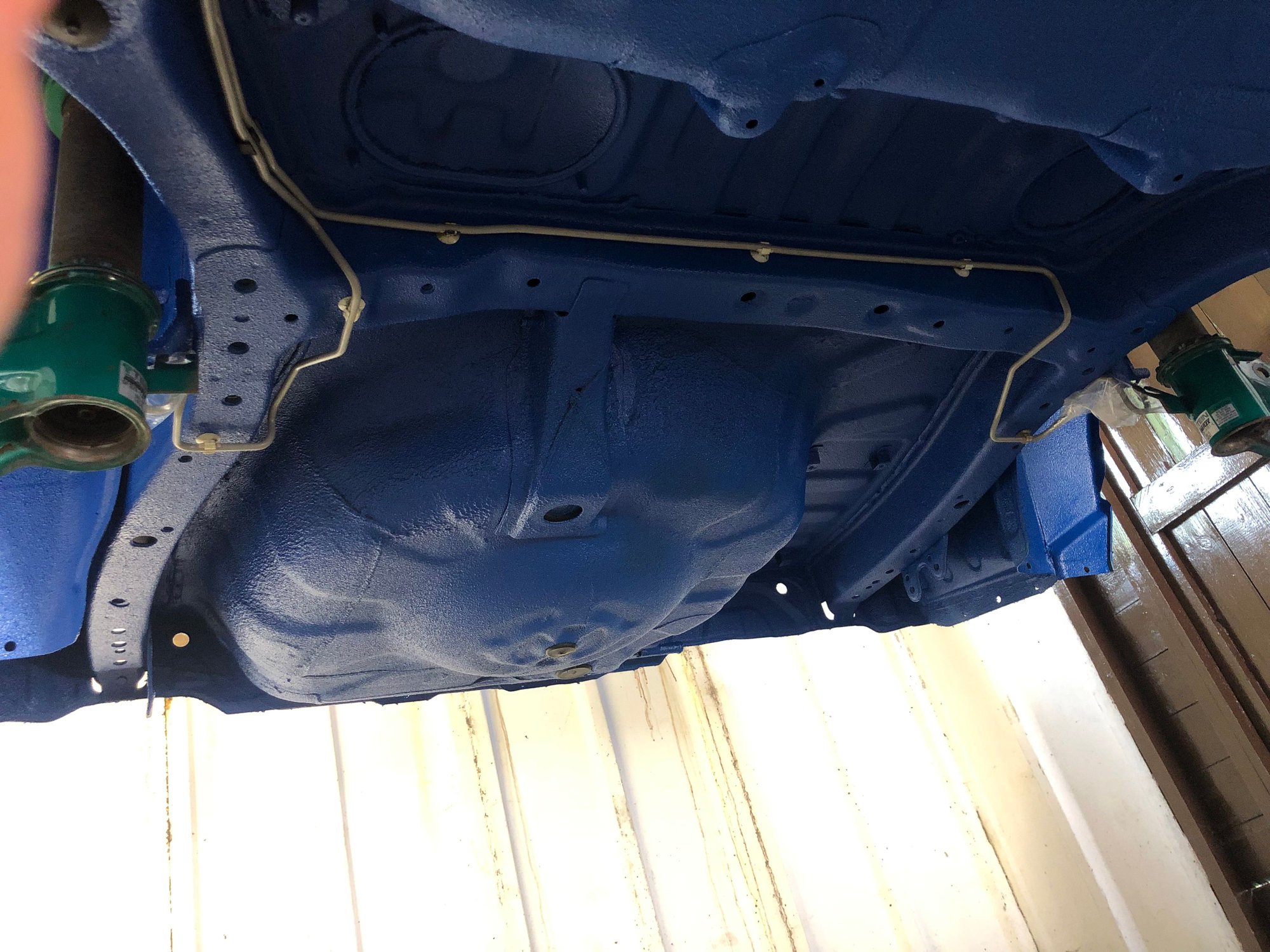

Then the new rear brake pipes turned up from ICP
fuel tank wiped down, rust chased out on the seams and flaking sealer removed, then rust killed and coated with raptor.
Tubular rear subframe turned up to but unfortunatly fouls on a gusset bracket for the spare wheel on the top tube so the guy is
making a modified one to hopefully clear it.
thats all for now everyone, cheers again.
2 of us masking and took us just over half an hour. Never expected to be going so over the top but i am my own worst enemy and just keep pushing..
anyway got a few photos and bits to add up now, got the teins cleaned up and refitted
along with brake pipe clips and grommits etc

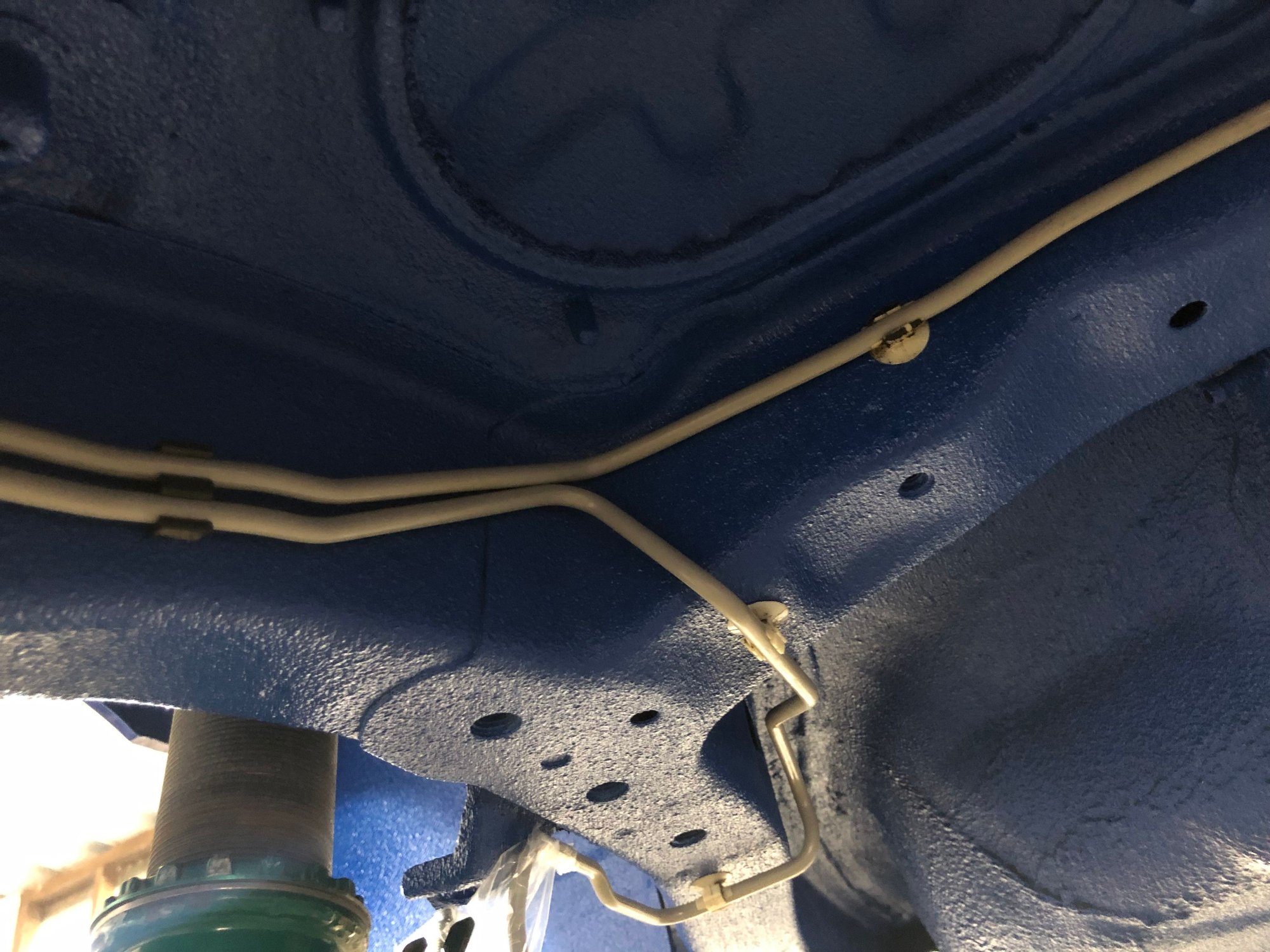

Then the new rear brake pipes turned up from ICP
fuel tank wiped down, rust chased out on the seams and flaking sealer removed, then rust killed and coated with raptor.
Tubular rear subframe turned up to but unfortunatly fouls on a gusset bracket for the spare wheel on the top tube so the guy is
making a modified one to hopefully clear it.
thats all for now everyone, cheers again.
#37
Scooby Regular
Whats the weight difference for the two subframes. Are you going to keep it clear or paint it?
#40
Scooby Regular
Thread Starter
So figured i best bring this upto date again, had some bits powdercoated

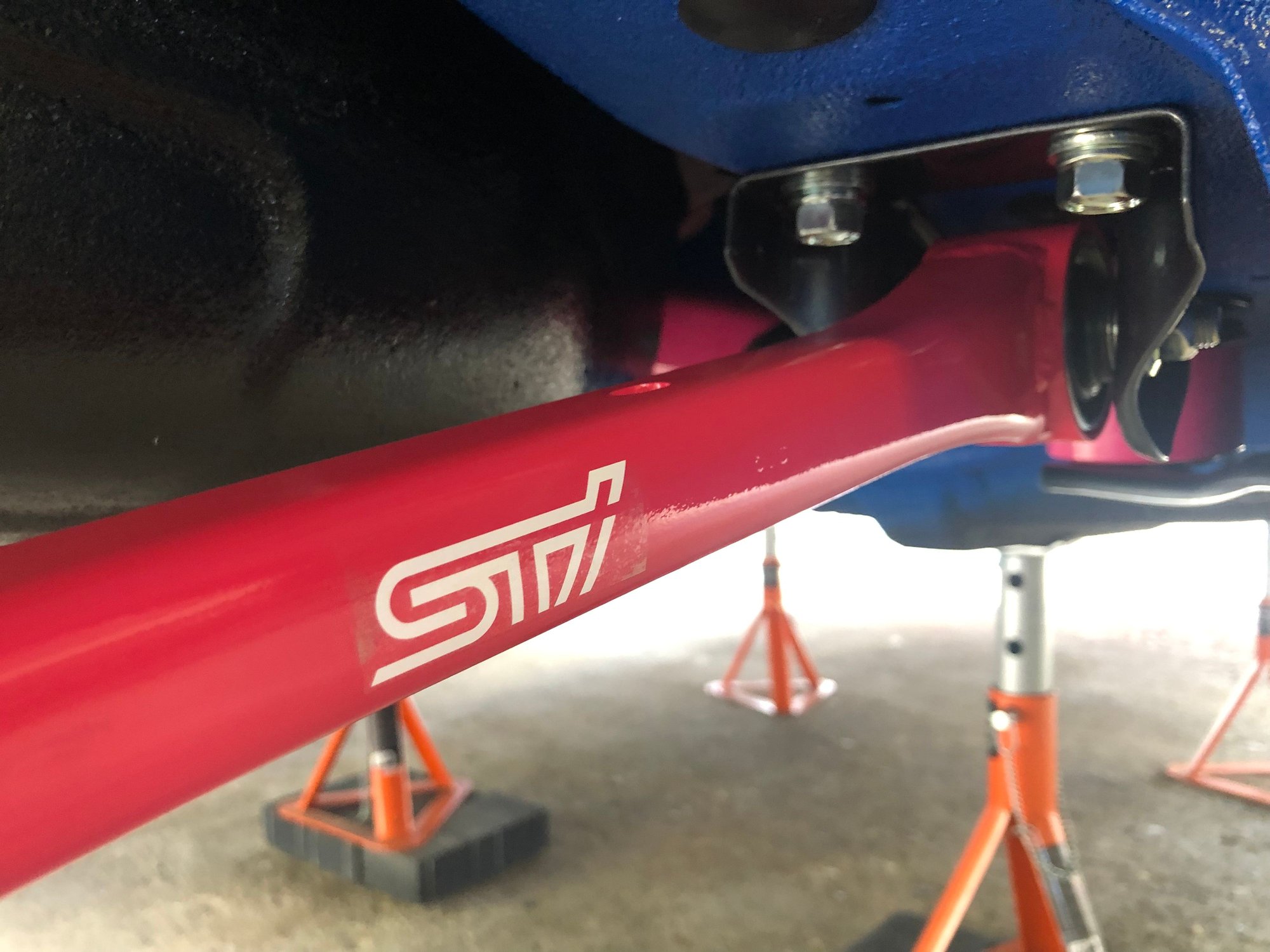

Sti Group N trailing arm fitted with new bracket and hardware
Rear diff outrigger has new oem bushes in, new oem mounting plates with bolts (2 main mounting bolts are on order - due september) also 2 new dampers with nuts and U brace diff mounts
Picked up this off a friend of mine, just need to order the adapter for 5 speed on the linkage

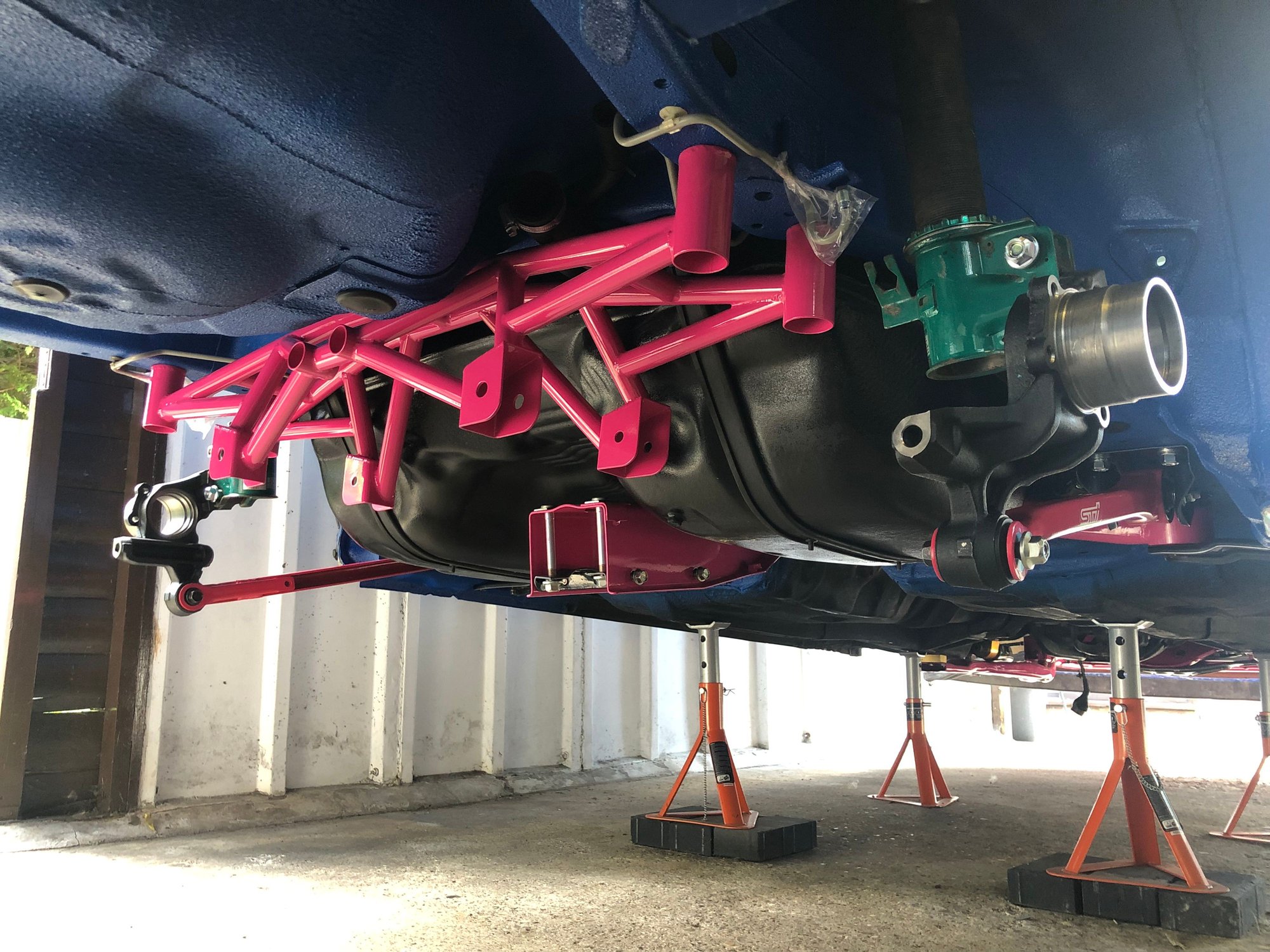

Had a little issue with the tubular subframe on clearance but turned out i got sent the wrong one, so 3-4 weeks later we have a new one which fits. Thats currently at the powdercoaters as we speak

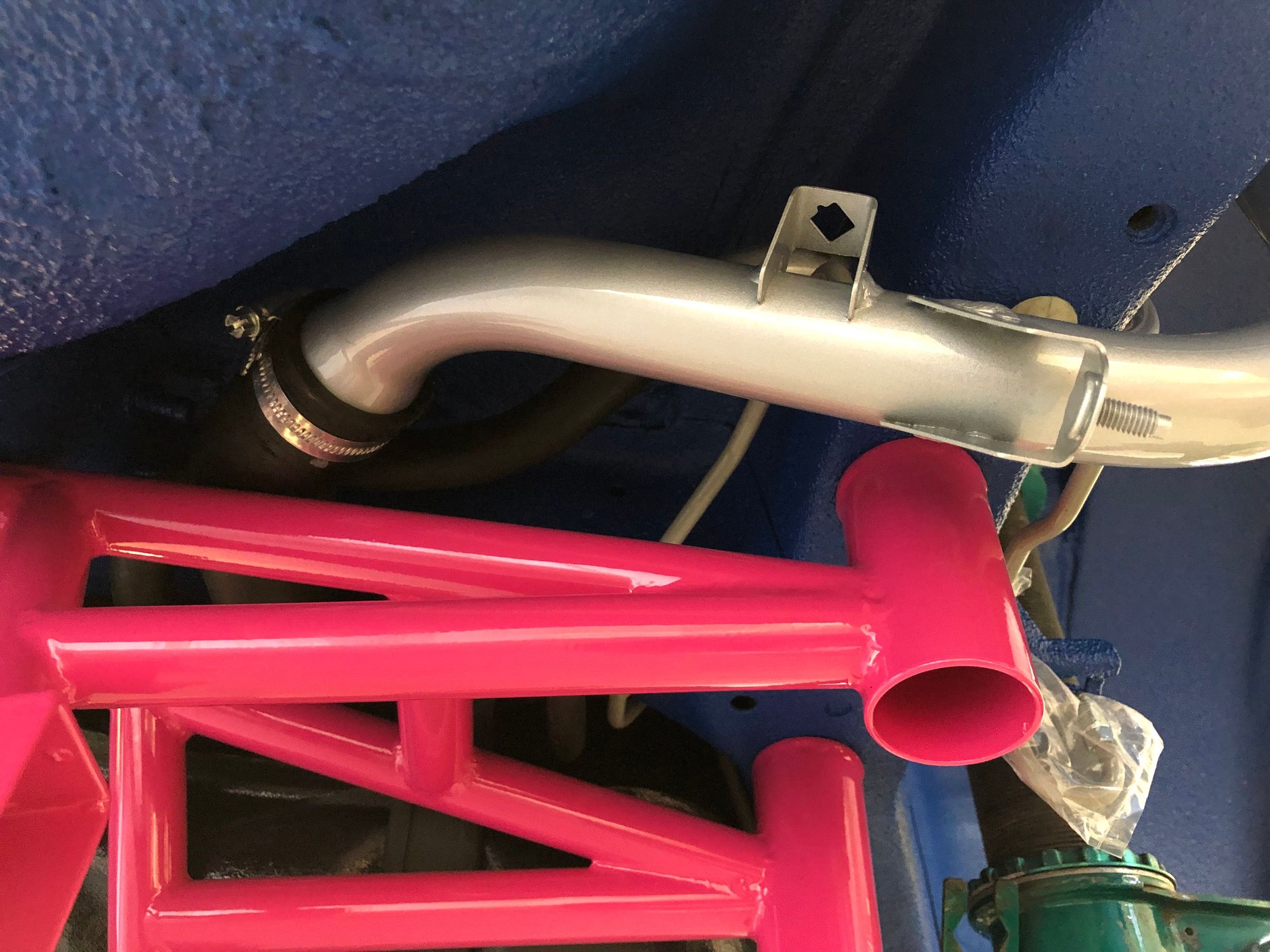

another care package from ICP new filler neck, rear shocker to hub bolts and 2 new rear Hubs
Thats all for now, have a few brackets and subframe at powdercoat, have a few bits on order at subaru, then can get the fuel filler neck fitted back up, rear subframe on and both trailing arms bolted up.
cheers people. Simon
Sti Group N trailing arm fitted with new bracket and hardware
Rear diff outrigger has new oem bushes in, new oem mounting plates with bolts (2 main mounting bolts are on order - due september) also 2 new dampers with nuts and U brace diff mounts

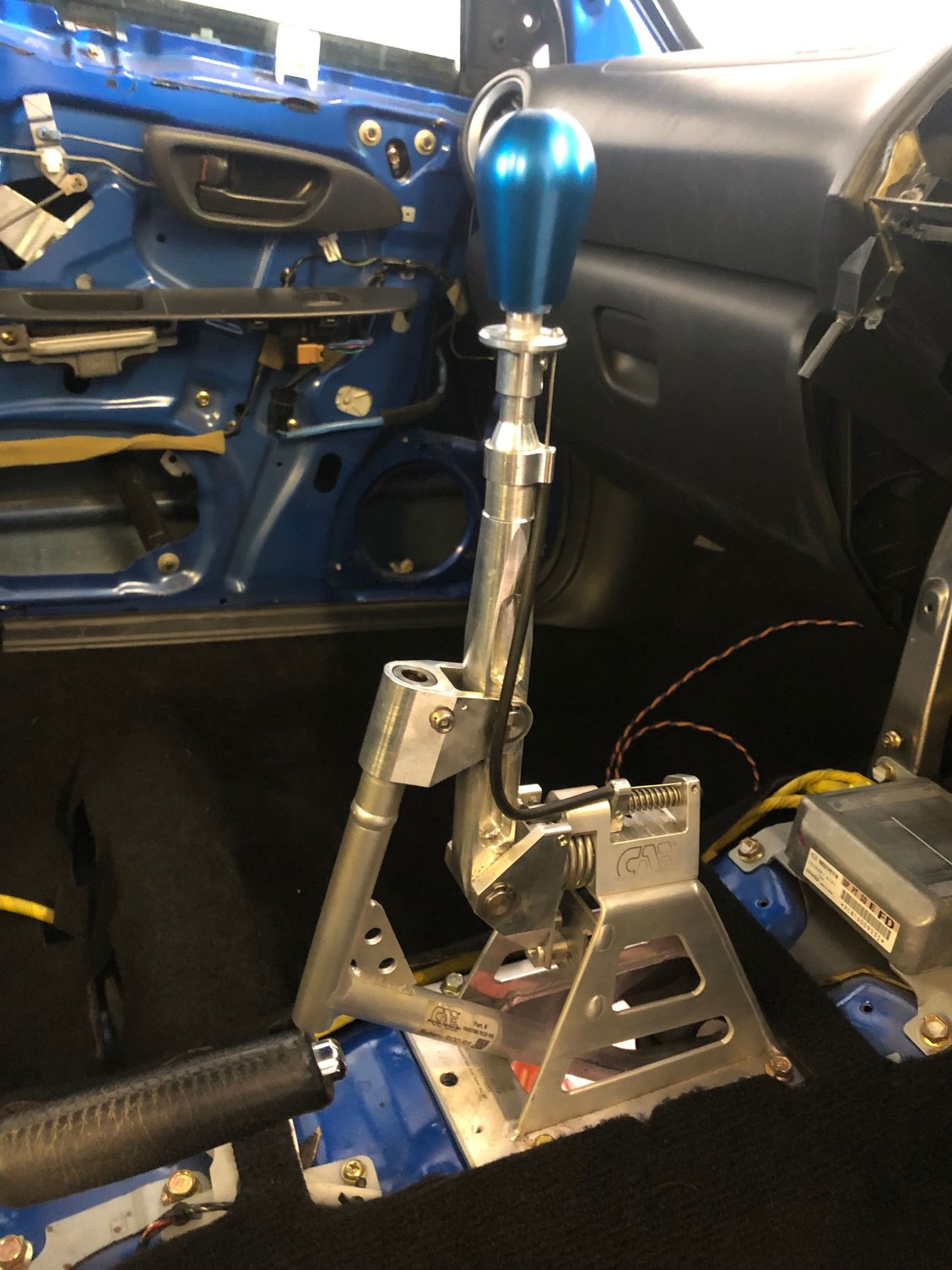

Picked up this off a friend of mine, just need to order the adapter for 5 speed on the linkage
Had a little issue with the tubular subframe on clearance but turned out i got sent the wrong one, so 3-4 weeks later we have a new one which fits. Thats currently at the powdercoaters as we speak
another care package from ICP new filler neck, rear shocker to hub bolts and 2 new rear Hubs
Thats all for now, have a few brackets and subframe at powdercoat, have a few bits on order at subaru, then can get the fuel filler neck fitted back up, rear subframe on and both trailing arms bolted up.
cheers people. Simon
#43
Scooby Regular
Thread Starter
#44
Scooby Regular
#45
Scooby Regular
Hi Simon,
As Nossy says, there's a lot to show for it. Most of the hard, dirty work is done already so now you can start looking forward to installing the fun parts!
I'm really looking forward to seeing this one completed!
As Nossy says, there's a lot to show for it. Most of the hard, dirty work is done already so now you can start looking forward to installing the fun parts!
I'm really looking forward to seeing this one completed!
The following users liked this post:
#46
Scooby Regular
Thread Starter
Cheers fellas, probably being a little harsh on myself saying that, but an itch for a porsche 996 is really getting under my skin and coming between me and finishing this car.
The following users liked this post:
#47
Scooby Regular
Please get the Porsche, stop building this and Pm me with the price you want for the carbon firewall and seat delete and the rear subframe.
prrty please.
prrty please.
#49
Scooby Regular
Thread Starter
Thanks mate, in the very early photos it was a 24" identiti dr jekyll but i got rid of that and now theres a 26" orange 5 lurking in some of the photos
#50
Scooby Regular
haha sorry but i can point you in the right direction for these bits. Carbon firewall/parcel shelf/seat delete is available from rallytech for £1300 and the tubular subframe came from a chap on facebook
Thanks mate, in the very early photos it was a 24" identiti dr jekyll but i got rid of that and now theres a 26" orange 5 lurking in some of the photos
Thanks mate, in the very early photos it was a 24" identiti dr jekyll but i got rid of that and now theres a 26" orange 5 lurking in some of the photos
#51
Scooby Regular
Thread Starter

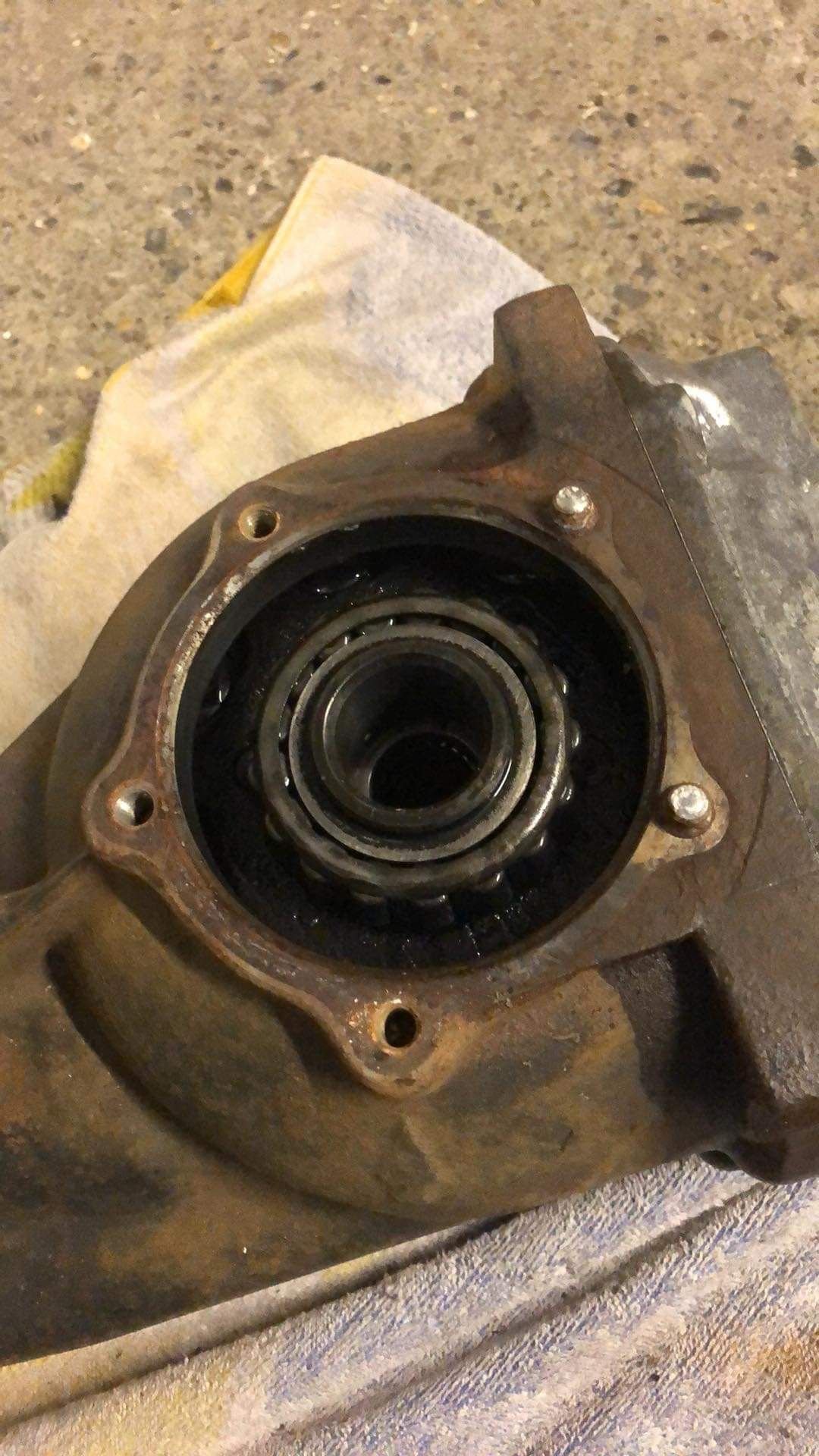

as you can see by the photos i have got all new bolts for the rear casing and the drain plugs, but then 3 bolts snapped on the bearing covers. Luckily managed to heat them up and get them out but the covers broke off parts of the lugs so i need to order both side covers+bolts and a gasket for the rear casing. Otherwise i got it wire wheeled and cleaned up and then sprayed matt black. End casing will be going silver.
Then ordered all the rear anti roll bar components from whiteline for the 24mm, 2 parts showed up still waiting for the actual arb, and need to order the new bolts for the mounting brackets

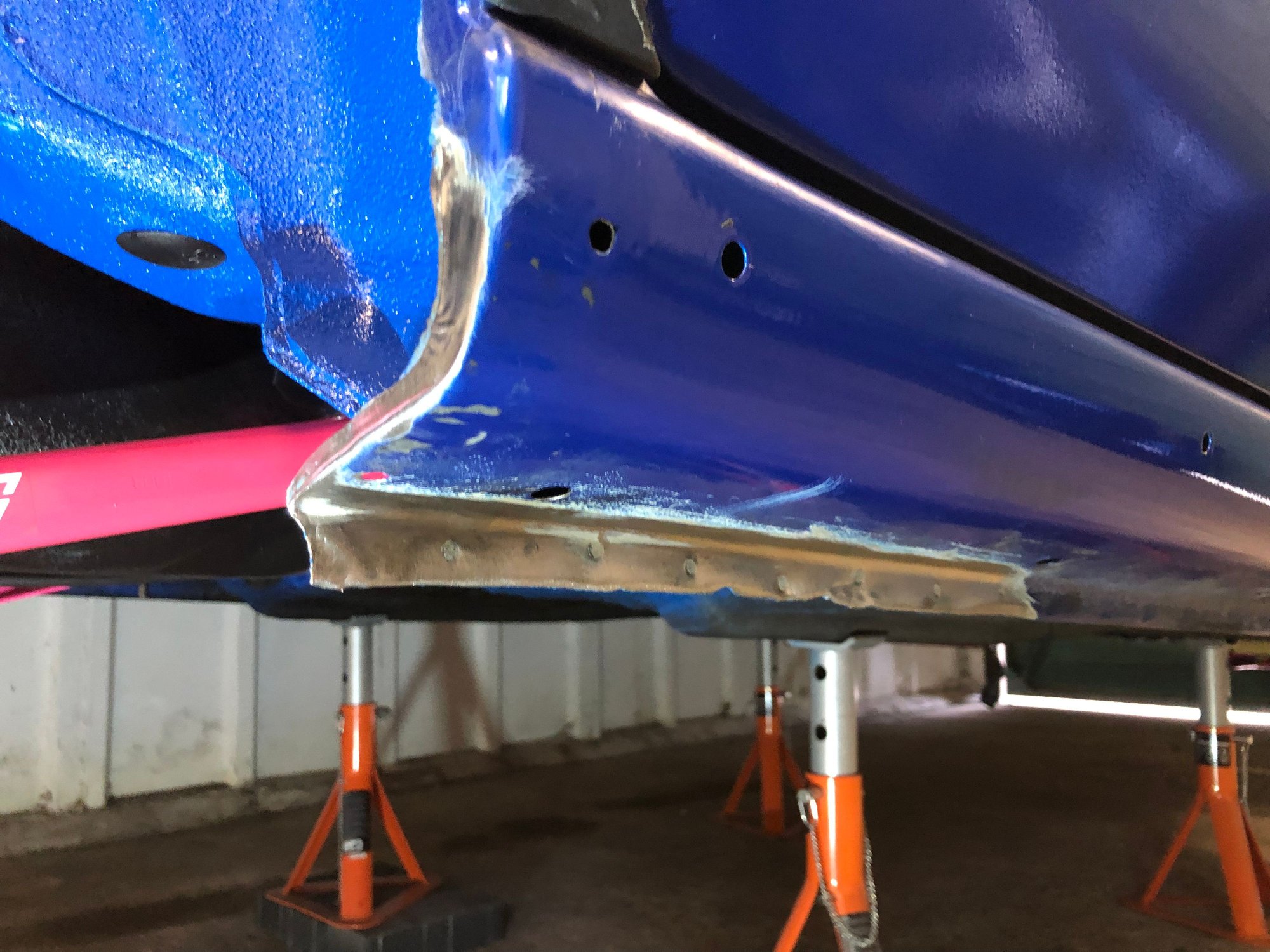

Then next couple of jobs ive being doing are cavity protection, using bilthamber products, and then to address some bare metal and surface rust on the outer sill areas before winter. Removed front wings and bumper just to check behind them, as i did underneath i havent bare metal'd everything as its crystal clear there isnt rust other than the areas obvious
The sills have had 2 coats of bilthamber on and left to cure will then put some paint over the top just to seal it all in for now. Exterior will eventually have a full respray so these areas will be covered properly at a later date. Then all i have left is just a couple of random photos ive taken, got a list of bits to order from subaru/icp and waiting on next payday.
cheers everyone.
#53
Scooby Regular
Thread Starter
Hi mate, perserverance i guess. Fortunatly mine wasnt undersealed after factory because the tar just gets so messy. I had a grinder with twister cup attachments and a drill with various wire wheel heads off ebay which all makes short work of the factory stonechip protection.
#55
Scooby Regular
Thread Starter
in other news some new bits turned up for the rear differential, new end casing (had painted silver) diff bearing covers - orings and bolts

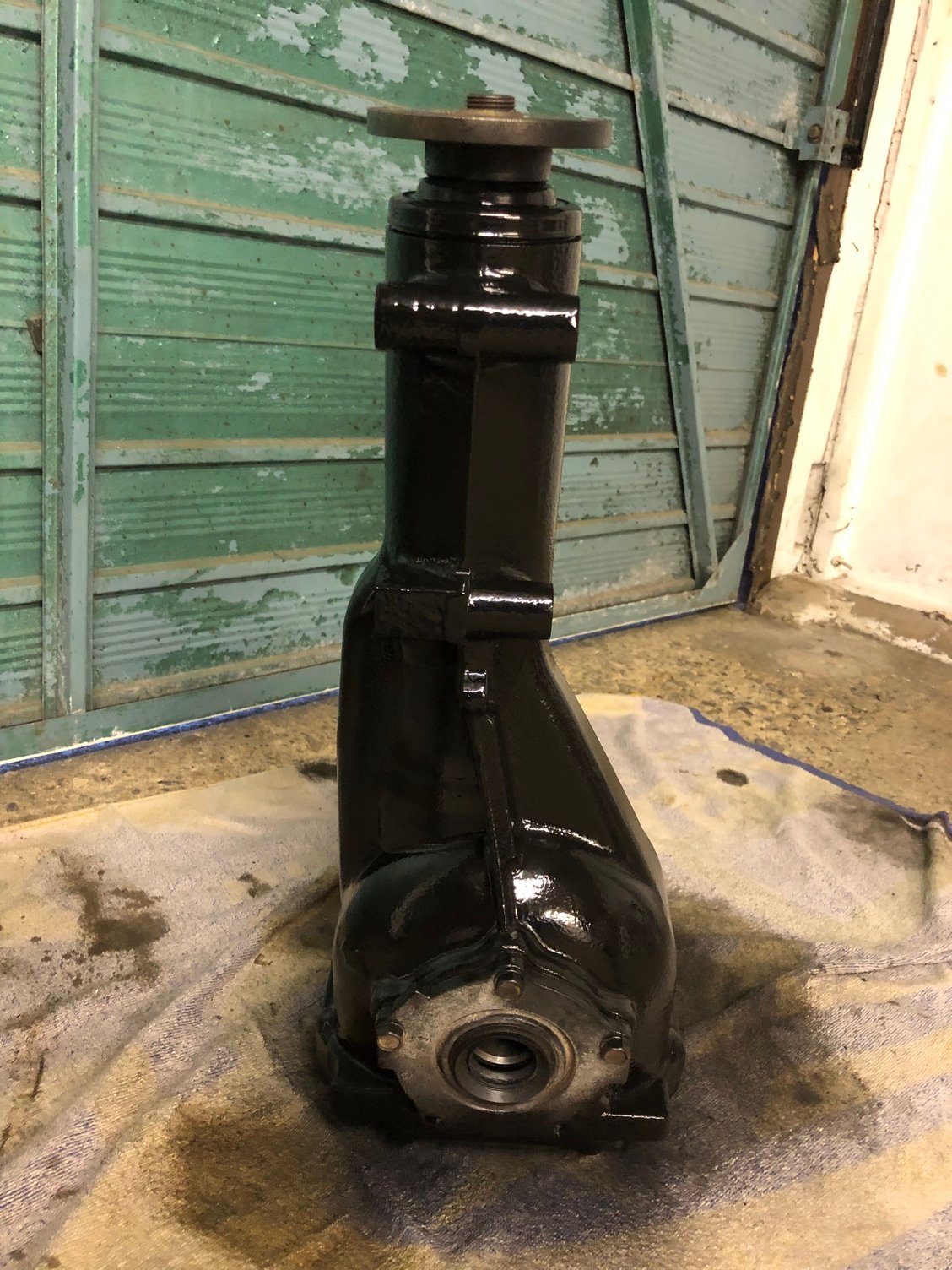

So all painted up and all rebuilt with new casing, bolts, drain plugs, breather, bearing covers and bolts

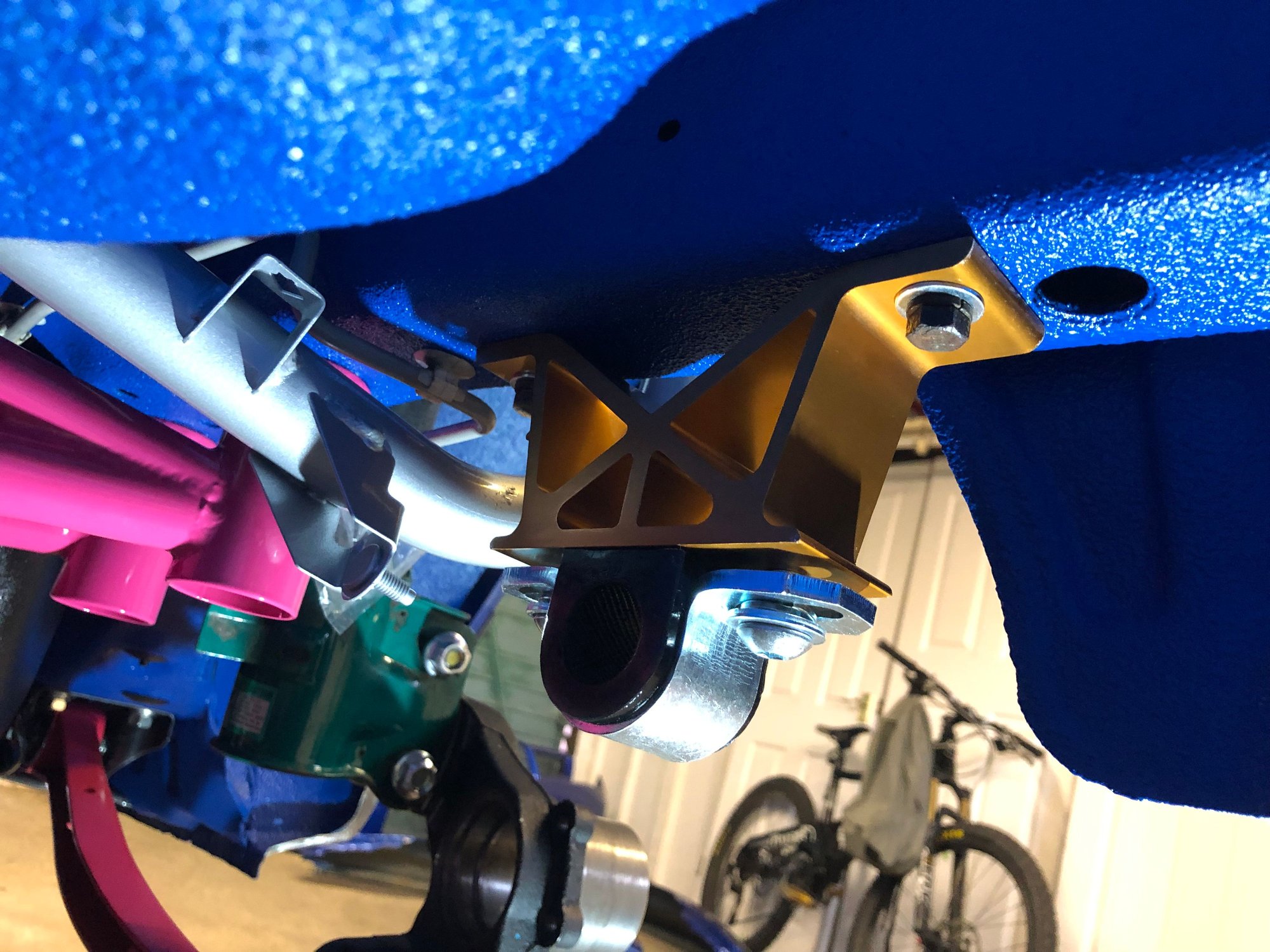

Diff fitted up with new studs and nuts then new nuts and bolts for the powdercoated mount brackets on the diff outrigger. Also whiteline 24mm arb turned up. Not sure on all the gold
bits so may send them for powdercoat yet

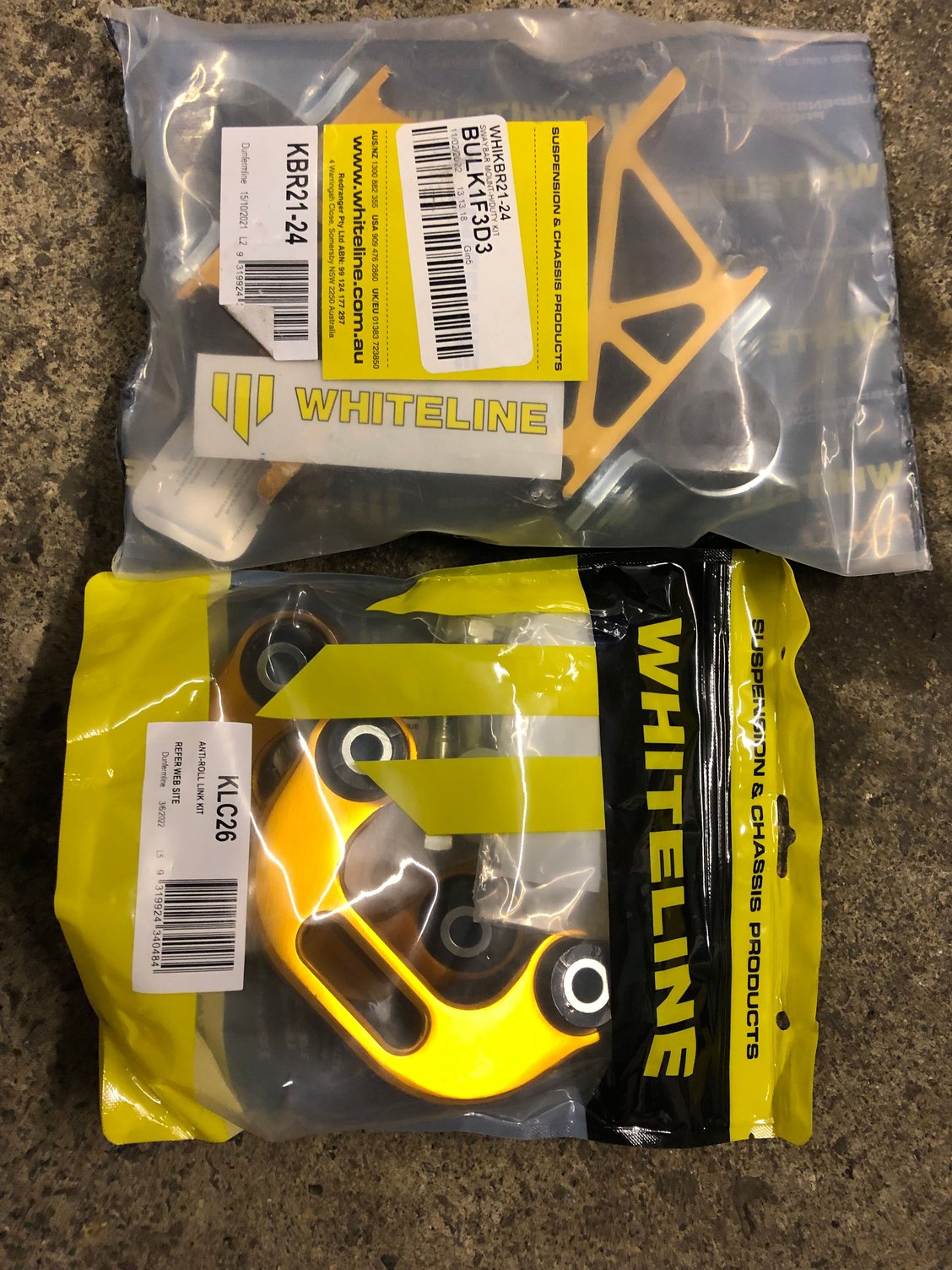

Just placed an order for whiteline lateral arms, lateral arm bolt kit, backing plates, new bolts, abs tone rings + bolts, wheel bearings and flanges. Stay tuned
The following users liked this post:
#56
Scooby Regular
Thread Starter
Well some of you might have seen a few weeks ago i decided to break the project car, i sold some big pieces off like the tubular subframe, cae shifter, carbon firewall delete, rcm exhaust and then regretted it all. So now done a massive U turn on the car and carrying on with it.

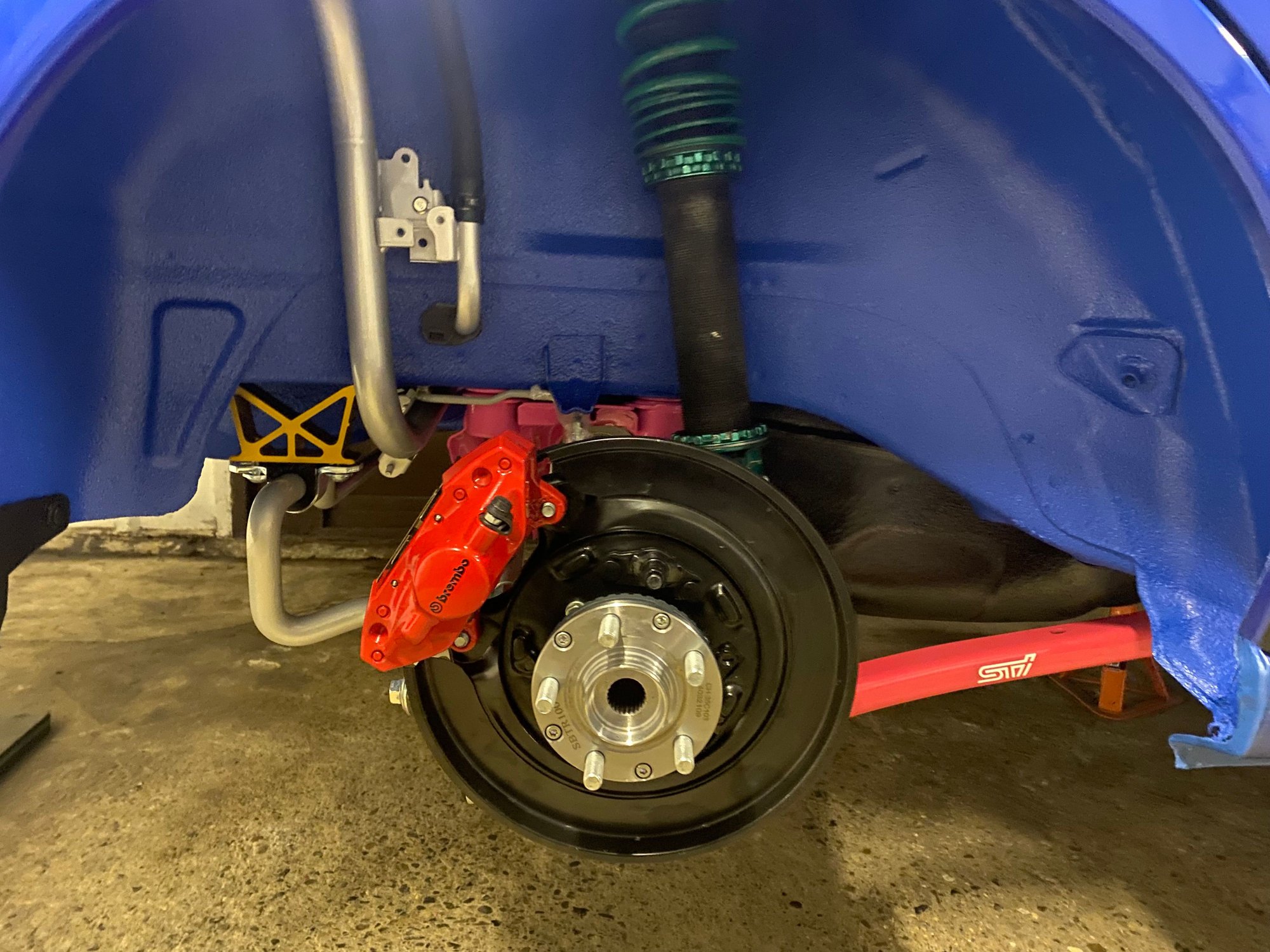

got all new rear hub assemblies built up

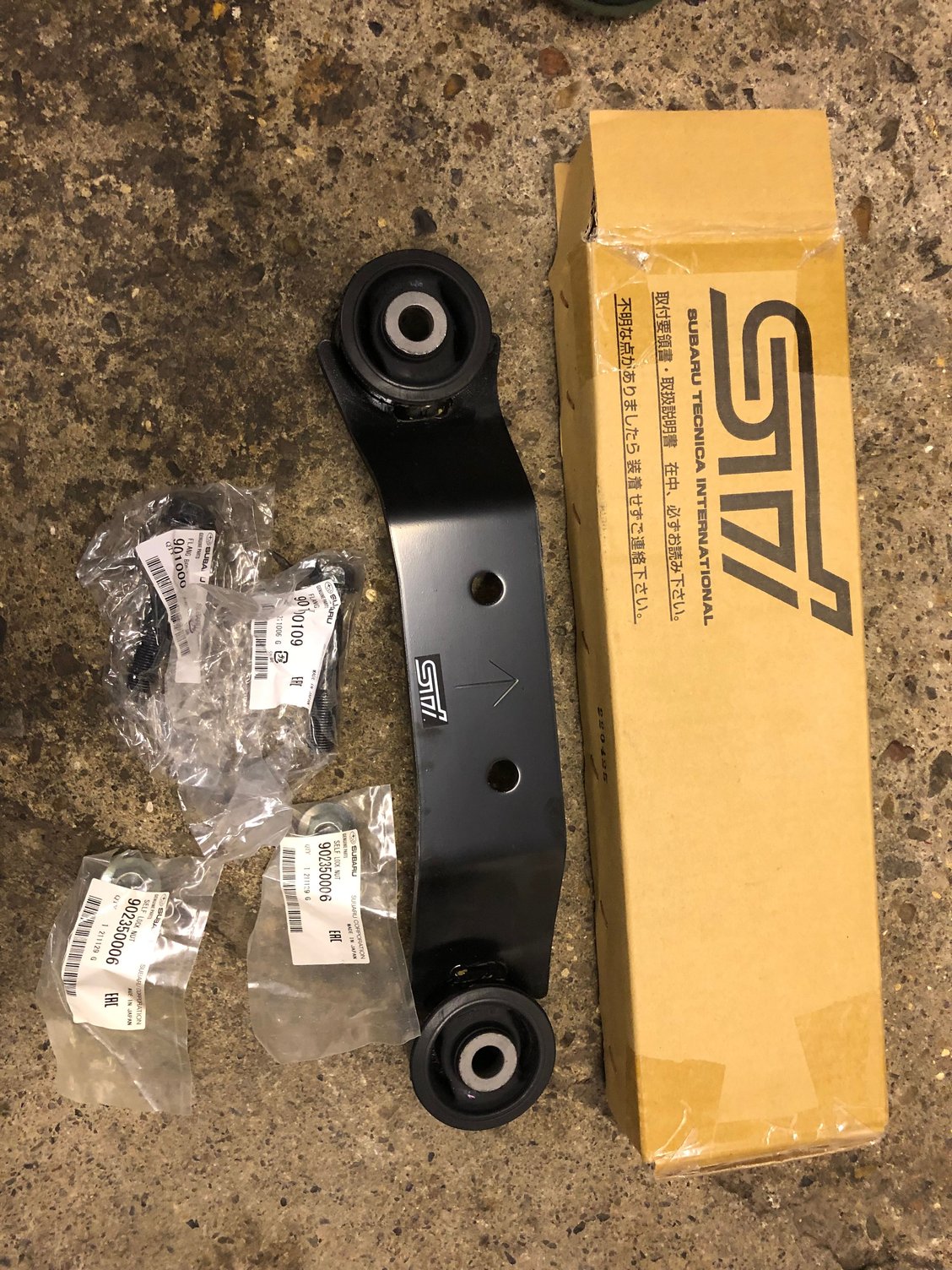

Bought some recently refurbished rear brembo's and Sti rear diff mount brace

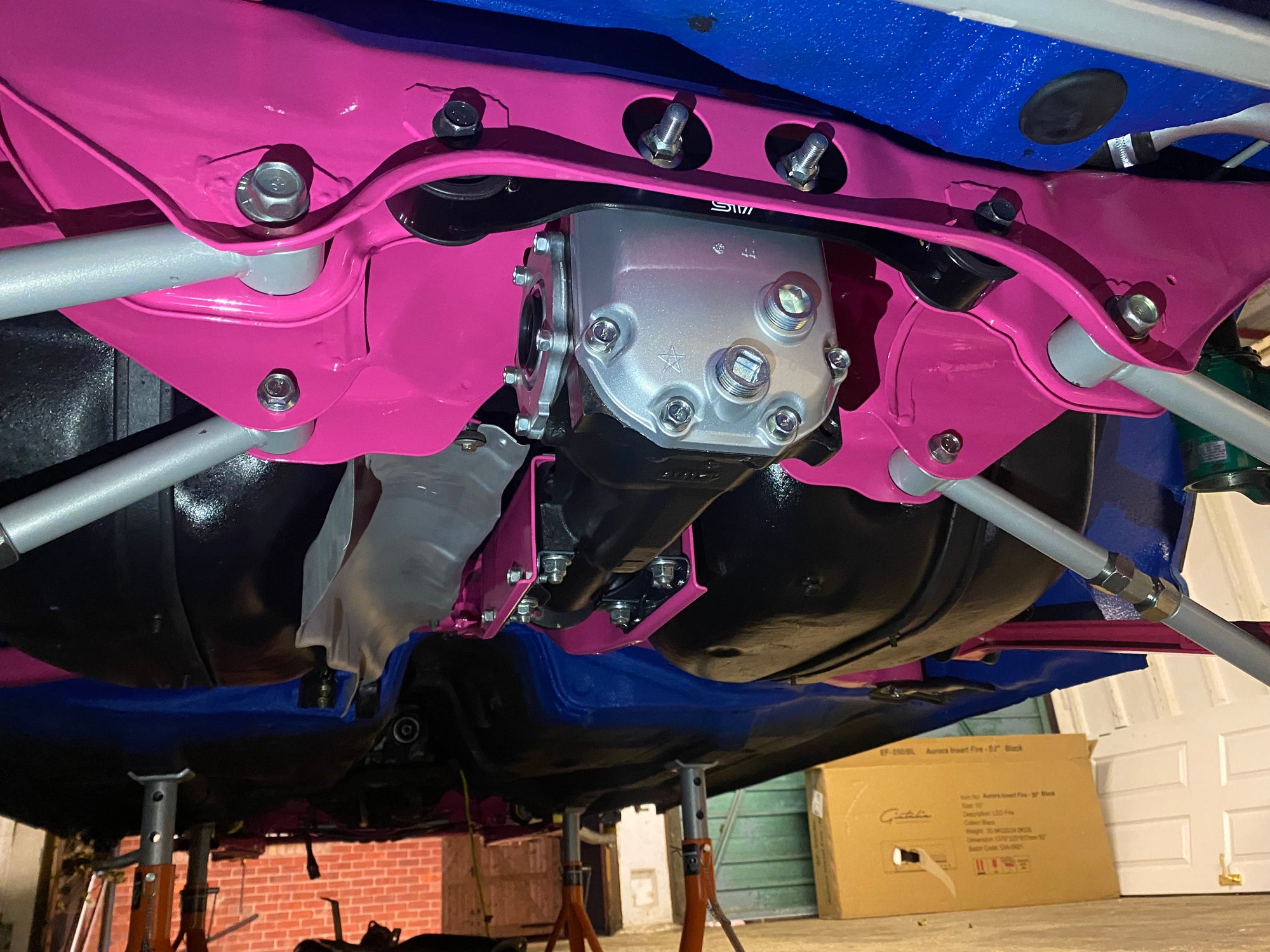

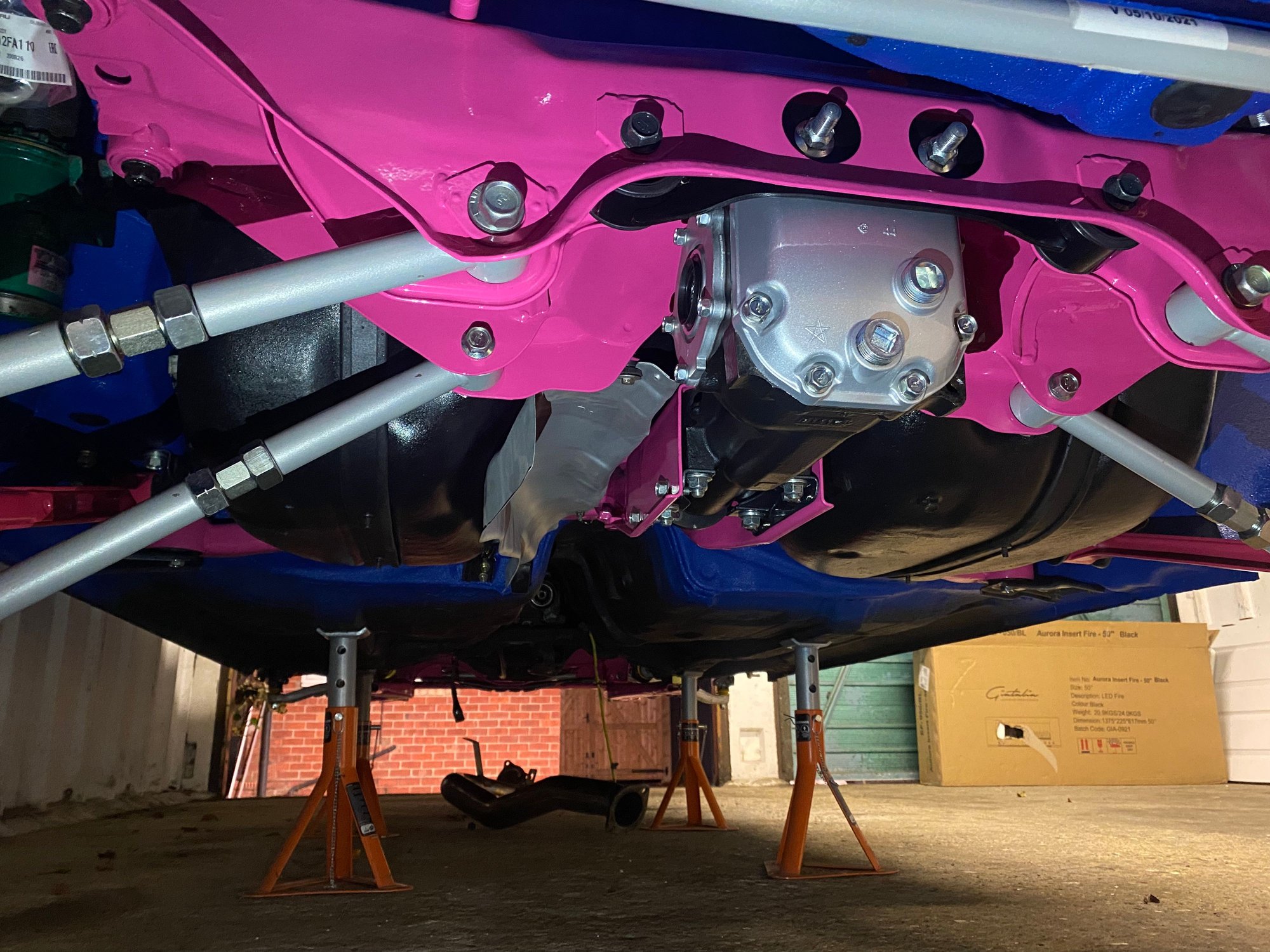

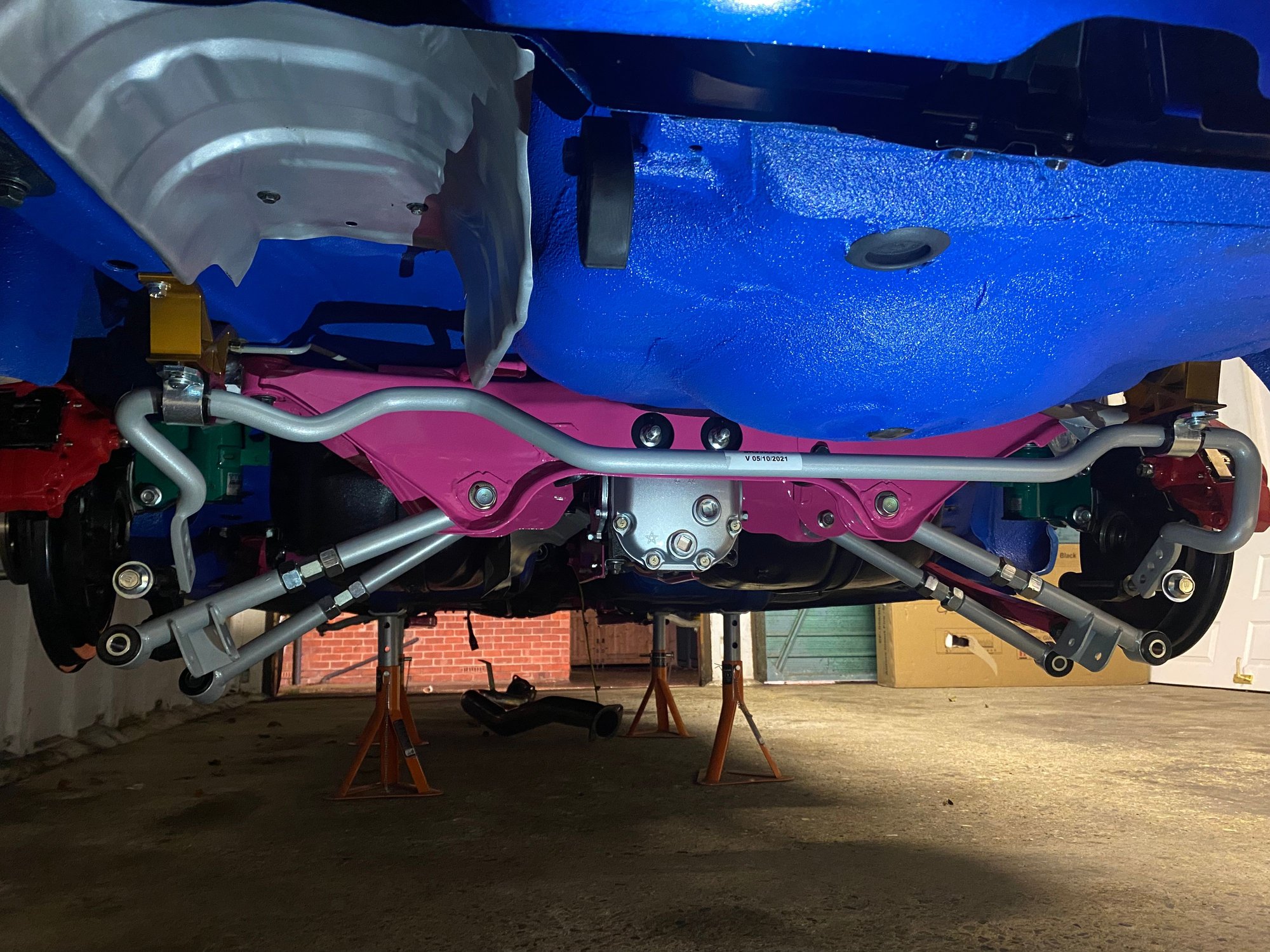

Then onto some photos of standard subframe powdercoated, new mounting bolts and hardware for diff brace, Heatshields have been vapour blasted like new and fitted back on, whiteline rear arm set with all new bolt kit
Next job is to get rear driveshafts all cleaned rust killed and painted up, refit them and get some diff oil in. Then find a new manifold and uppipe and try get exhaust all mated up ready to fire it back up
got all new rear hub assemblies built up
Bought some recently refurbished rear brembo's and Sti rear diff mount brace
Then onto some photos of standard subframe powdercoated, new mounting bolts and hardware for diff brace, Heatshields have been vapour blasted like new and fitted back on, whiteline rear arm set with all new bolt kit
Next job is to get rear driveshafts all cleaned rust killed and painted up, refit them and get some diff oil in. Then find a new manifold and uppipe and try get exhaust all mated up ready to fire it back up
