Will it make 400 bhp
#31
Scooby Regular
I'm sure someone will know, hence asking. Can anyone please confirm if the MY15 onwards top mount will easily fit on a MY03 JDM STI please? Anyone know how much more efficiency you get with the MY15 onwards in relation to the MY03??? I'm not after huge power, I'm after 400bhp but would live with around 420bhp. I know my current TMIC will do that but I'm always interested in getting there more efficiently before I right off the TMIC idea & go FMIC. Thanks to all 👍🏼
I doubt whether it will fit to a RHD car without mods to clutch master cylinder setup.
http://www.subaruforester.org/vbulle...ml#post1332208
https://forums.nasioc.com/forums/sho...ti+tmic&page=2
#32
Scooby Regular
Don,
Very many thanks. I think it's fantastic to have someone like yourself on here helping people out. Honestly many thanks. Will read through it all when I can. 👍🏼😉
Very many thanks. I think it's fantastic to have someone like yourself on here helping people out. Honestly many thanks. Will read through it all when I can. 👍🏼😉
#33
Scooby Regular
#34
Scooby Regular
Note those temps will be so high because the car will have just done a run and then had to creep round for another in stop start creeping traffic
Also RCM cone in the bay could be swapped for inner wing setup,
It would be interesting to see how high those IAT would go if my car had standard sti topmount,
#35
Scooby Regular
Thread Starter

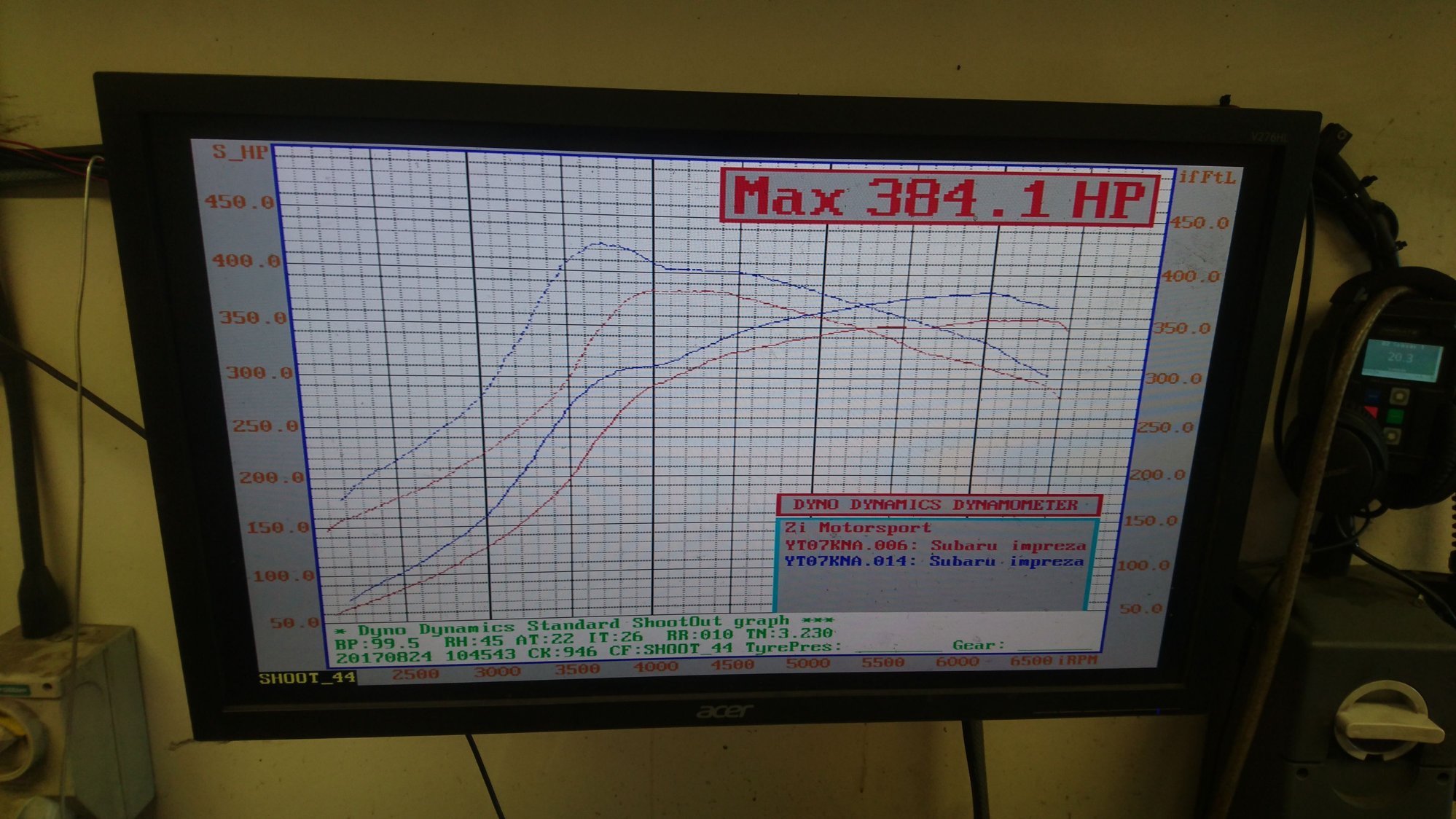

So i just got back from having it done. It turns out that the car was 374bhp anyway when they did the first run.
Only a slight increase in power but a much better torque curve. He said it was running lean at low rpm, having retardation for det at high rpm and the boost was all over the place. Its the most expensive 10 bhp i will ever buy but worth every penny. Feels a lot better to drive and builds boost a lot earlier. I never had a prob with the power it was the way it was delivered. Well worh the money for the peace of mind he had it in the mid 390s but the intercooler and maf were struggling so dialed it back a bit
#37
Scooby Regular
Thread Starter
That was my problem in the first place. It felt like i had to thrash it and im not a car thrasher. Much better now alot more driveable its got the torque alot lower down where it needed to be
#39
Former Sponsor
Just to comment ...

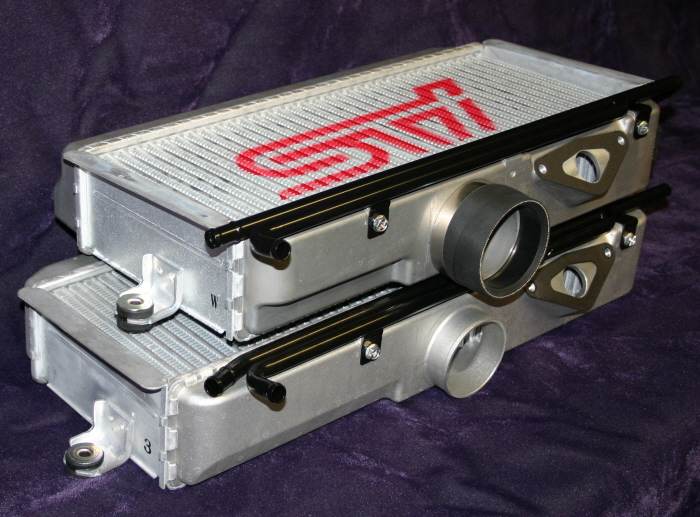

Standard new age top mount is good to about 450 bhp if only used for fast road, track at 420 using a correctly chosen turbo that will do that level without having to use excessive boost is no problem.
The standard airbox will support 420 bhp using a K & N panel filter again with the right supporting mods ... but if you fitted a Cosworth panel for example it would not
For information the standard MY08 hatch (onwards) top mount will support 500bhp for fast road and occasional track, I have customers in Germany at this level using their stock intercoolers in the is form. And German autobahns do "test" a car :-)
Standard new age top mount is good to about 450 bhp if only used for fast road, track at 420 using a correctly chosen turbo that will do that level without having to use excessive boost is no problem.
The standard airbox will support 420 bhp using a K & N panel filter again with the right supporting mods ... but if you fitted a Cosworth panel for example it would not
For information the standard MY08 hatch (onwards) top mount will support 500bhp for fast road and occasional track, I have customers in Germany at this level using their stock intercoolers in the is form. And German autobahns do "test" a car :-)
#40
Scooby Regular
Just to comment ...
Standard new age top mount is good to about 450 bhp if only used for fast road, track at 420 using a correctly chosen turbo that will do that level without having to use excessive boost is no problem.
The standard airbox will support 420 bhp using a K & N panel filter again with the right supporting mods ... but if you fitted a Cosworth panel for example it would not
For information the standard MY08 hatch (onwards) top mount will support 500bhp for fast road and occasional track, I have customers in Germany at this level using their stock intercoolers in the is form. And German autobahns do "test" a car :-)
Standard new age top mount is good to about 450 bhp if only used for fast road, track at 420 using a correctly chosen turbo that will do that level without having to use excessive boost is no problem.
The standard airbox will support 420 bhp using a K & N panel filter again with the right supporting mods ... but if you fitted a Cosworth panel for example it would not
For information the standard MY08 hatch (onwards) top mount will support 500bhp for fast road and occasional track, I have customers in Germany at this level using their stock intercoolers in the is form. And German autobahns do "test" a car :-)
#41
Scooby Regular
iTrader: (1)
Join Date: Apr 2010
Location: South Yorkshire
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Tidgy the dyno not a good place for a TMIC at the best of time so you may see higher intake temps but for the fast road it's fine for over 400bhp mate,, the clinics fan will never replicate being on the road for cooling...
#42
Scooby Regular
iTrader: (2)
a lot depends on how much heat the turbo produces which must depend upon the boost it's run and the setup. I've monitored my in/out intercooler temps for a number of years. My MD321T @1.6 bar runs around 125c and the H which was on there previously ran 135c which is very manageable for a topmount. This is using a CAIK.
I have witnessed 180c with the H but that was because of a boost leak, it does show what impact an unhappy turbo can have though.
Trev
I have witnessed 180c with the H but that was because of a boost leak, it does show what impact an unhappy turbo can have though.
Trev
#43
Scooby Regular
#44
Scooby Regular
iTrader: (1)
Join Date: Apr 2010
Location: South Yorkshire
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Tidgy have a read of this mate not all TMIC are the same. ... http://www.processwest.com.au/produc...ntercooler-kit
Last edited by TIZERBOY; 19 September 2017 at 04:48 PM.
#45
Scooby Regular
Tidgy have a read of this mate not all TMIC are the same. ... http://www.processwest.com.au/produc...ntercooler-kit
#47
Scooby Regular
Given the price $1100 + import tax + vat your not far off £1500 which you can easily get a front mount fitted for. Uprated top mounts are better than the standard ones but decent ones are typicly more expensive than front mounts. Not to mention even these limit the performance. Fm allows more timing etc even as low as 300 you'll see an improvement going from tm to fm so it's a no brainer. Laws of physics havnt changed since the likes if Harvey smith ran all his tests and clinic back to backed them so i dont geg why you'd want to keep it in the stock location.
#48
Scooby Regular
iTrader: (2)
a top mount will heat soak if you park it up for half an hour, it wont to much if in traffic with the engine running and it's pulling air from outside the car as in CAIK or standard intake by the offside headlight. If the intake cone is inside the enginebay then the turbo will pull those temps at tickover.
My Grimmspeed cost me around £600 delivered from the states.
Trev
My Grimmspeed cost me around £600 delivered from the states.
Trev
#49
Scooby Regular
iTrader: (1)
Join Date: Apr 2010
Location: South Yorkshire
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Given the price $1100 + import tax + vat your not far off £1500 which you can easily get a front mount fitted for. Uprated top mounts are better than the standard ones but decent ones are typicly more expensive than front mounts. Not to mention even these limit the performance. Fm allows more timing etc even as low as 300 you'll see an improvement going from tm to fm so it's a no brainer. Laws of physics havnt changed since the likes if Harvey smith ran all his tests and clinic back to backed them so i dont geg why you'd want to keep it in the stock location.
#50
Scooby Regular
#51
Scooby Regular
iTrader: (1)
Join Date: Apr 2010
Location: South Yorkshire
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
a top mount will heat soak if you park it up for half an hour, it wont to much if in traffic with the engine running and it's pulling air from outside the car as in CAIK or standard intake by the offside headlight. If the intake cone is inside the enginebay then the turbo will pull those temps at tickover.
My Grimmspeed cost me around £600 delivered from the states.
Trev
My Grimmspeed cost me around £600 delivered from the states.
Trev
#54
Scooby Regular
iTrader: (1)
Join Date: Apr 2010
Location: South Yorkshire
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Will work so much better with the Grimmspeed splitter mate the STI splitter don't cover the whole surface of the cooler,, with my Process West it came with a splitter that covered 40% more than my sti one... also seals against the cooler really well...
Last edited by TIZERBOY; 21 September 2017 at 02:07 PM.
