JDM Hatch STi

Old 13 August 2017, 05:52 PM
  #31
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by hedgecutter View Post
Any chance of seeing the alignment values from either of you at Chevron?
If you can pm me the price, that would be good too.
They showed me the numbers before and after but I didn't get a copy to bring home sorry.
AbbasSTI is offline
Old 13 August 2017, 08:03 PM
  #32
PT82
Scooby Regular

PT82's Avatar

Join Date: Oct 2016
Location: Mid Wales
Posts: 325
Default

I just got an invoice also sorry, plus Bob Rawle looked at the car with regards the map. Even though he didn't do anything I imagine I was charged for his time.
Had some camber bolts also and the bill was about 300 iirc.
PT82 is offline
Old 06 September 2017, 03:30 PM
  #33
kennyc
Scooby Regular
iTrader: (1)

kennyc's Avatar

Join Date: Jan 2005
Posts: 554
Default

Very nice. Take care of it not many about
kennyc is offline
Old 29 January 2018, 01:54 PM
  #34
bonesetter
Scooby Regular
iTrader: (9)

bonesetter's Avatar

Join Date: Jul 2006
Location: Midlands
Posts: 3,448
Default

Originally Posted by AbbasSTI View Post
Bob mapped my car yesterday and kindly sent through the below graph. It's still with Chevron for more suspension tinkering. I can't wait to pick it up tomorrow
Engine mods for the below are:

Turbo back heat wrapped Milltek Twinscroll exhaust
Walbro fuel pump
3 Port boost solenoid
Cosworth panel filter
Bob Rawle Racerom remap (High/Low boost settings, launch control, FFS, Auto-blip on downshift & in gear boost control)

Nice clean looker. 370 is nice power. Hoping for similar myself

What 3-port did you go with as need to pick one up myself
bonesetter is offline
Old 29 January 2018, 02:38 PM
  #35
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by bonesetter View Post
Nice clean looker. 370 is nice power. Hoping for similar myself

What 3-port did you go with as need to pick one up myself
I wasn't sure so have just been out to take a look and it says Pierburg on it


It was sourced & fitted for me by Chevron.
Chevron also sourced and fitted the Hatch specific Walbro pump they recommended over the RCM one I had bought. They also prefer the K&N panel filter to the Cosworth one.
I trust Simon 100% and followed his advice & don't regret it at all.
AbbasSTI is offline
Old 29 January 2018, 07:53 PM
  #36
Hughy
Scooby Regular

Hughy's Avatar

Join Date: Jan 2011
Location: Notts area
Posts: 280
Default

Originally Posted by AbbasSTI View Post
I wasn't sure so have just been out to take a look and it says Pierburg on it


It was sourced & fitted for me by Chevron.
Chevron also sourced and fitted the Hatch specific Walbro pump they recommended over the RCM one I had bought. They also prefer the K&N panel filter to the Cosworth one.
I trust Simon 100% and followed his advice & don't regret it at all.
Have to agree with you 100% with regards to Simon at Chevron, he had my car last week for a set of new tyres and quit a few handling upgrades on my 2011 Saloon and the transformation in handling is unbelievable, he is a Master at what he does and a true gent..........
Hughy is offline
Old 29 January 2018, 08:04 PM
  #37
bonesetter
Scooby Regular
iTrader: (9)

bonesetter's Avatar

Join Date: Jul 2006
Location: Midlands
Posts: 3,448
Default

Thanks Abbas

Mine's in there Thursday
bonesetter is offline
Old 29 January 2018, 09:21 PM
  #38
hedgecutter
Scooby Regular
iTrader: (5)

Join Date: Sep 2010
Location: far, far west
Posts: 1,792
Default

Originally Posted by bonesetter View Post
Thanks Abbas

Mine's in there Thursday
Probably buying yourself some handling upgrades 😉
hedgecutter is offline
Old 29 January 2018, 09:39 PM
  #39
bonesetter
Scooby Regular
iTrader: (9)

bonesetter's Avatar

Join Date: Jul 2006
Location: Midlands
Posts: 3,448
Default

Originally Posted by hedgecutter View Post
Probably buying yourself some handling upgrades ��
it's true! I've crumbled and going for the Ohlins
bonesetter is offline
Old 29 January 2018, 10:25 PM
  #40
PT82
Scooby Regular

PT82's Avatar

Join Date: Oct 2016
Location: Mid Wales
Posts: 325
Default

Simon is a lovely guy. He was busy as hell when I collected my car getting ready for a Time Attack weekend at Brands but still showed me around his place and we had a good chat about cars in general.
PT82 is offline
Old 08 February 2018, 01:24 PM
  #41
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

I was finding my car wouldn't get the miles to a tank I expected. With the help of Bob Rawle and Andy Clark of AC Speedtech it was clear I needed a new front Air/Fuel sensor.
Andy Clark could see what the sensor was doing (using Ecutek)and it was taking a long time to heat up. Great service from Andy, booked me in at short notice diagnosed the fault + 2 cups of coffee and no charge



I got the correct part number thanks to The Don Clark. One of his old posts was also assuring:
Originally Posted by Don Clark View Post
The Heater element/circuit usually fails. They seem to have a life span of about 7 years from previous experience/s.
Ordered through ICP and it arrived the next day.
Andy Clark fitted it and logged the car again and mentioned the Advance Multiplier was at 0.75 and he'd done plenty of runs that would usually bring it back 1....... Andy said it would probably just take a little more time & so did Bob.



Andy and basically every GTR owner that I met in the AC Speedtech waiting room recommended the ECU Connect Ecutek bluetooth dongle. So I got one delivered. But couldn't get it to power up from the OBD port. Ecutek customer support was awesome, I got a message from Paul Blamire which made me feel really special . The issue was my OBD port, when plugged into another car it works spot on. So I powered it with a powerbank and was good. I'll get the OBD sorted soon.

The ECU Connect app is really easy to use, I've only played with it a little but my advance multiplier was already at 1 and the log I sent to Bob was all good.
Ecutek have sent Bob some beta updates so he can add more functionality and RaceRom goodies to the map/app. Like live adjustment of launch control, valet mode etc.

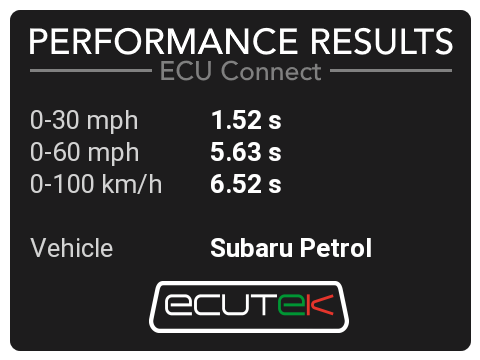

0-60 1st attempt, it was a little slippery with DCCD in Auto, traction control on, no LC or FFS:

My Km/h to mph conversion is out & I'm sure I was slowing down before it beeped
AbbasSTI is offline
Old 08 February 2018, 01:48 PM
  #42
RAGGY DOO
Scooby Regular
iTrader: (1)

RAGGY DOO's Avatar

Join Date: Sep 2015
Location: Avoid bob Rawle
Posts: 2,349
Default

Very peculiar that nearly every Jdm hatch that as been mapped has led to a lambda failure all most immediately
RAGGY DOO is offline
Old 08 February 2018, 01:50 PM
  #43
ZANY
Scooby Regular

Join Date: Oct 2014
Location: ....
Posts: 5,286
Default

A very nice car

Infact after seeing yours in the flesh Id honestly have a 2.0 sti hatch anyday as a daily better than a golf bloody diesel anyday
Superb result mate
ZANY is offline
Old 08 February 2018, 02:26 PM
  #44
juggers
Scooby Regular
iTrader: (1)

Join Date: May 2006
Posts: 4,445
Default

Some tasty GTRS there!
juggers is offline
Old 08 February 2018, 02:26 PM
  #45
hedgecutter
Scooby Regular
iTrader: (5)

Join Date: Sep 2010
Location: far, far west
Posts: 1,792
Default

Originally Posted by RAGGY DOO View Post
Very peculiar that nearly every Jdm hatch that as been mapped has led to a lambda failure all most immediately
Lets hope it's just an age thing, it would be peculiar if it went within a year or so.
hedgecutter is offline
Old 08 February 2018, 02:33 PM
  #46
hedgecutter
Scooby Regular
iTrader: (5)

Join Date: Sep 2010
Location: far, far west
Posts: 1,792
Default

Most are over 7 years old when they arrive, so ripe for failure, like rubber suspension mounts and bushes perishing.
On a brighter side, I'm enjoying your thread alot, great info and feedback for Jdm hatches.
hedgecutter is offline
Old 08 February 2018, 02:36 PM
  #47
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by RAGGY DOO View Post
Very peculiar that nearly every Jdm hatch that as been mapped has led to a lambda failure all most immediately
As Don said, they commonly last around 7 years. When they become lazy the ECU compensates.

If you'd like I could send you the ECU Connect by post and you could do a log which might help diagnose the problems?
Bob's map on mine drives awesome, seems to be giving a good MAF voltage/ using plenty of grams/s etc. Most importantly the Advance Multiplier is exactly where it needs to be.
PM me your address and I'll post it out, just send it back when you're done
AbbasSTI is offline
Old 08 February 2018, 02:47 PM
  #48
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Moral of the story:
Bob's maps and customer service are excellent.
AC Speedtech are 10/10 also and highly recommended
Ecutek again are awesome, with rapid replies from legends of the Subaru world.
ECU Connect is very handy to check everything is A-OK.

Next plans for me is to save up some money and get some decent suspension from Chevron.The Cusco on now are letting the car down.

I had to park on an average kerb, but with the Cusco needing to be so low it scratched my splitter which resulted in a crack to the bumper Any higher and they're too close to the bump stops. With only 80mm total travel they're not very useful.



AbbasSTI is offline
Old 08 February 2018, 03:04 PM
  #49
RAGGY DOO
Scooby Regular
iTrader: (1)

RAGGY DOO's Avatar

Join Date: Sep 2015
Location: Avoid bob Rawle
Posts: 2,349
Default

Was on the **** years ago with Andy when he worked at rc development
They mapped my brothers gtir he knows what jes doing
RAGGY DOO is offline
Old 08 February 2018, 04:05 PM
  #50
bonesetter
Scooby Regular
iTrader: (9)

bonesetter's Avatar

Join Date: Jul 2006
Location: Midlands
Posts: 3,448
Default

Good news with an easy fix too

I like the sound of the ECU Connect Ecutek bluetooth dongle - where did you get yours from?
bonesetter is offline
Old 08 February 2018, 04:10 PM
  #51
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by bonesetter View Post
Good news with an easy fix too

I like the sound of the ECU Connect Ecutek bluetooth dongle - where did you get yours from?
I got mine from TDI North but any EcuTek dealer can get one
AbbasSTI is offline
Old 08 February 2018, 04:20 PM
  #52
PT82
Scooby Regular

PT82's Avatar

Join Date: Oct 2016
Location: Mid Wales
Posts: 325
Default

Great thread. Do you have a link for the sensor? May aswell change mine when it gets serviced as a precaution.
PT82 is offline
Old 08 February 2018, 04:43 PM
  #53
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by PT82 View Post
Great thread. Do you have a link for the sensor? May aswell change mine when it gets serviced as a precaution.
Originally Posted by Don Clark View Post
JDM 2.0L twinscroll hatch

Air/Fuel sensor:- 22641AA500

Rear O2 sensor:- 22690AA850
But always best, especially with your spec C, to give ICP your chassis no. to double confirm. I needed the front one.

With the ECU Connect you can see how long it takes for the sensor to get going = if it needs changing. If was in your shoes I'd rather spend the money on the ECU Connect than the sensor. I'm sure it will still work for logging even though your OS mapped, but email/facebook message ecutek to confirm.
AbbasSTI is offline
Old 08 February 2018, 04:57 PM
  #54
PT82
Scooby Regular

PT82's Avatar

Join Date: Oct 2016
Location: Mid Wales
Posts: 325
Default

Cheers buddy, will look into it. Nurburgring and Spa in May so everything needs to be tip top!!
PT82 is offline
Old 08 February 2018, 08:14 PM
  #55
fpan
Scooby Regular
iTrader: (10)

Join Date: Jan 2007
Location: UK
Posts: 2,768
Default

Thanks for the update, I really enjoy reading your thread and glad you got it sorted .
Out of interest, is the front sensor different to the 2.5 model?
For what it's worth, wideband sensors are sensitive to being knocked, as well.
fpan is offline
Old 08 February 2018, 09:09 PM
  #56
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,689
Default

Originally Posted by fpan View Post
Thanks for the update, I really enjoy reading your thread and glad you got it sorted .
Out of interest, is the front sensor different to the 2.5 model?
For what it's worth, wideband sensors are sensitive to being knocked, as well.
Yes and with the twin scroll it comes after the turbo..........

Last edited by Don Clark; 08 February 2018 at 09:10 PM.
Don Clark is offline
Old 08 February 2018, 10:10 PM
  #57
fpan
Scooby Regular
iTrader: (10)

Join Date: Jan 2007
Location: UK
Posts: 2,768
Default

Originally Posted by Don Clark View Post
Yes and with the twin scroll it comes after the turbo..........
A change in downpipe and careless handling of it could be an additional potential reason it has failed.

@Abbas, what suspension does Simon recommend for these cars?

Let us know what was the issue with the OBD port.

Thanks

Last edited by fpan; 08 February 2018 at 10:16 PM.
fpan is offline
Old 08 February 2018, 10:50 PM
  #58
hedgecutter
Scooby Regular
iTrader: (5)

Join Date: Sep 2010
Location: far, far west
Posts: 1,792
Default

Mine was unhappy with a dongle plugged in; it went into limp until I removed it.
hedgecutter is offline
Old 08 February 2018, 10:56 PM
  #59
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by fpan View Post
A change in downpipe and careless handling of it could be an additional potential reason it has failed.

@Abbas, what suspension does Simon recommend for these cars?

Let us know what was the issue with the OBD port.

Thanks
I've not asked Simon yet Re: suspension. Hopefully bonesetter will have an update soon.

I look at these regularly:
Ohlins

And:
R205

But I'm going to have to wait till after Easter as I'm poor
AbbasSTI is offline
Old 08 February 2018, 10:59 PM
  #60
AbbasSTI
Scooby Regular
Thread Starter
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,000
Default

Originally Posted by AbbasSTI View Post
I've not asked Simon yet Re: suspension. Hopefully bonesetter will have an update soon.

I look at these regularly:
Ohlins

And:
R205

But I'm going to have to wait till after Easter as I'm poor
Paul said it's a contact issue with the 12v power coming out of OBD. Quite common apparently. Thankfully I live very close to a fantastic auto electrician who will sort it no problem I'm sure.
AbbasSTI is offline

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
