TD05 20g Twin Scroll. Guesstimations?
#61
#64
#65
If you have the funds then these will allow you to fit the injectors
http://rogerclarkmotorsport.co.uk/st...-spec-c-models
http://rogerclarkmotorsport.co.uk/st...-spec-c-models
#67
#68
Scooby Senior
iTrader: (68)
It has nothing to do with the injectors they are all the same, its how the rail sits on the manifold. Differences in the manifolds shown in this thread
http://bbs.22b.com/forums/showthread...and-sti-7-mani
http://bbs.22b.com/forums/showthread...and-sti-7-mani
#69
It has nothing to do with the injectors they are all the same, its how the rail sits on the manifold. Differences in the manifolds shown in this thread
http://bbs.22b.com/forums/showthread...and-sti-7-mani
http://bbs.22b.com/forums/showthread...and-sti-7-mani
#71
#72
Having the pinks reflowed now and adding an FPR in the near future anyways.
#73
Scooby Senior
iTrader: (68)

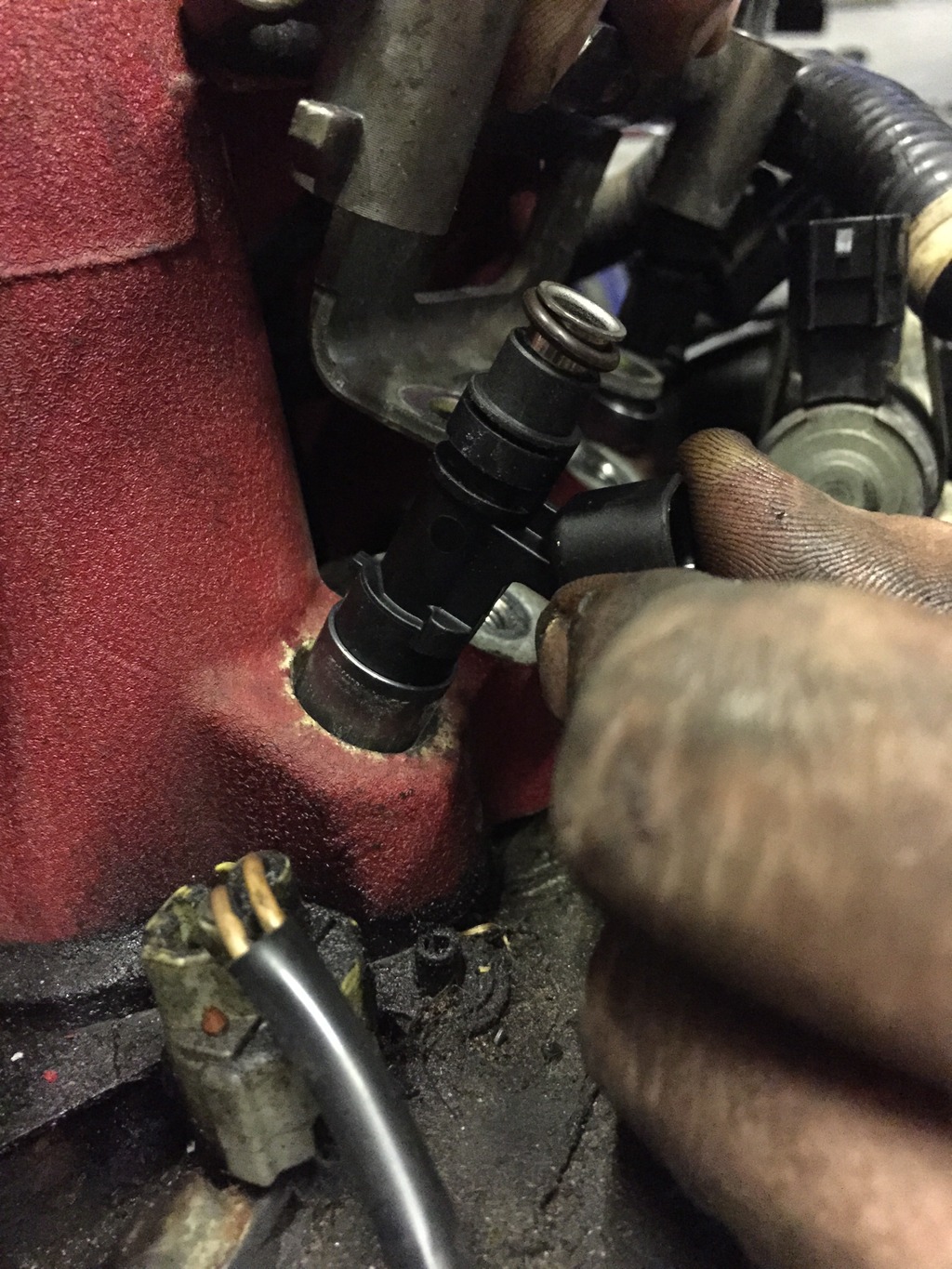

Rails are standard, as is the manifold. Widetrack Blob JDMs apparently came with the one piece manifold. Seemed that the bore for the injectors to sit in was not large enough. It was also 3am, so we gave up pretty quickly and left the pinks in
Having the pinks reflowed now and adding an FPR in the near future anyways.
Having the pinks reflowed now and adding an FPR in the near future anyways.
#78
Scooby Regular
iTrader: (2)
Join Date: Oct 2002
Location: oop north in a spec-c.Now sold and starting on a classic ra track/sprint/road car
Posts: 2,536
Likes: 0
Received 7 Likes
on
7 Posts

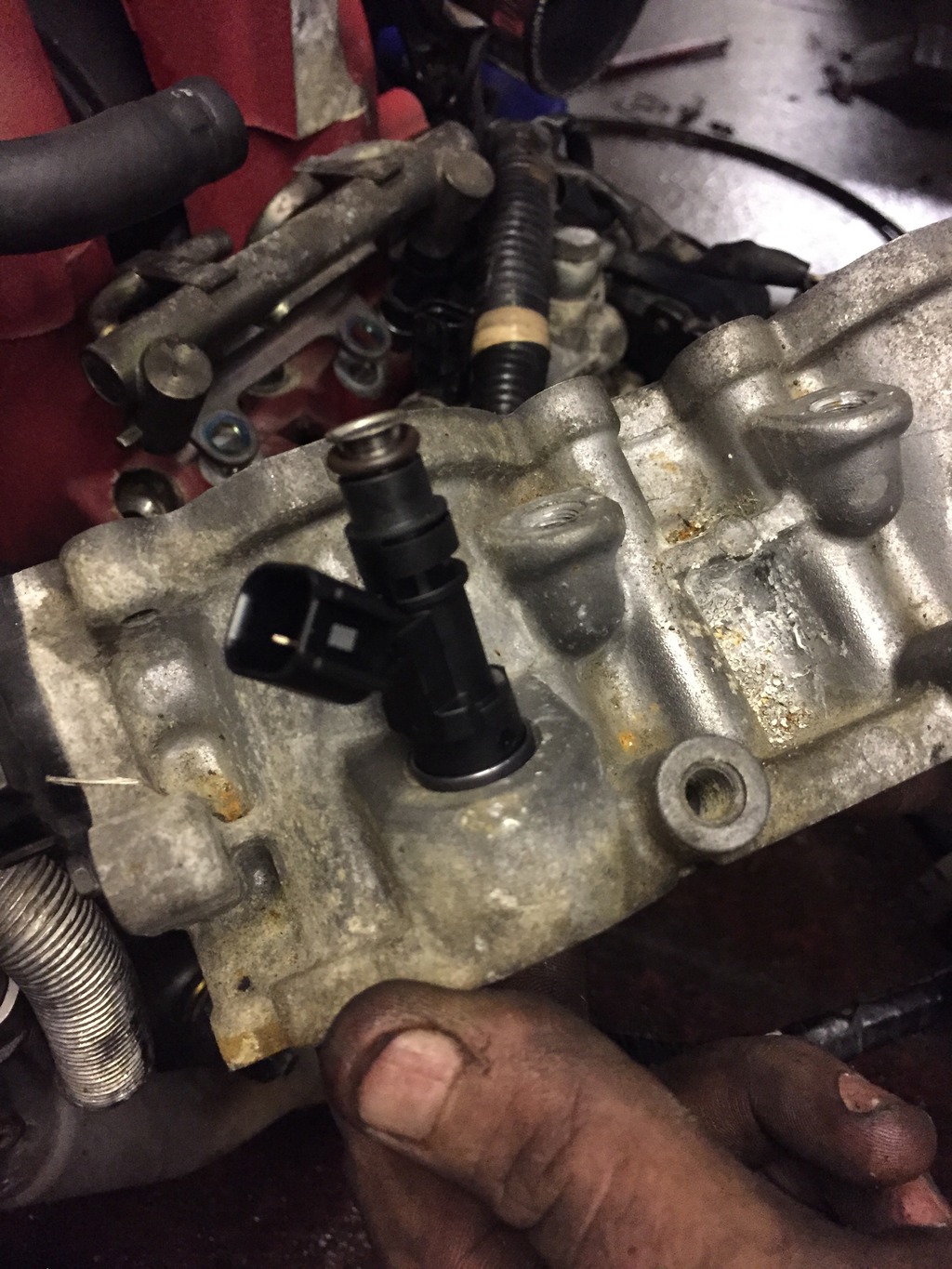

Picture looks a bit odd I have id 1000 fitted in my spec-c manifold and they fitted no problem I know it was 3 in the morning but by chance on the second picture a bottom rubber of an old injector hasnt been left stuck in the bottom of the manifold ??? has it
#80
Scooby Regular
iTrader: (2)
Join Date: Oct 2002
Location: oop north in a spec-c.Now sold and starting on a classic ra track/sprint/road car
Posts: 2,536
Likes: 0
Received 7 Likes
on
7 Posts
I have had a look at mine this morning and going by the photo im sure my injectors never had that metal bushing or what looks like a metal bushing on the bottom like your injector has on the photo mine were the same as the oem at the base with a rubber bung hence the question regarding the rubber bung next question Im not doughting that they are id injectors but are they for an impreza ??? do you have a picture of them ???.
Last edited by gussy; 11 November 2015 at 04:49 PM.
#81
waiting lol, hoping it gets you over that 400 mark, or close.
have you got a pic of the complete injector, that metal bushing looks a bit much, are you sure the metal part is ment to be on them ? perhaps its a bushing for a tgv mani and you remove it for the one piece mani (universal my mate). if the pinks fit both manifolds dont see how the 1000s dont.. best of luck my mate
have you got a pic of the complete injector, that metal bushing looks a bit much, are you sure the metal part is ment to be on them ? perhaps its a bushing for a tgv mani and you remove it for the one piece mani (universal my mate). if the pinks fit both manifolds dont see how the 1000s dont.. best of luck my mate
#82
waiting lol, hoping it gets you over that 400 mark, or close.
have you got a pic of the complete injector, that metal bushing looks a bit much, are you sure the metal part is ment to be on them ? perhaps its a bushing for a tgv mani and you remove it for the one piece mani (universal my mate). if the pinks fit both manifolds dont see how the 1000s dont.. best of luck my mate
have you got a pic of the complete injector, that metal bushing looks a bit much, are you sure the metal part is ment to be on them ? perhaps its a bushing for a tgv mani and you remove it for the one piece mani (universal my mate). if the pinks fit both manifolds dont see how the 1000s dont.. best of luck my mate
First run 425bhp/381ftlbs
Second run 415bhp/396ftlbs
Fairly confident she's a 400hp car now! Goes like stink. A little laggier than the VF37, although it makes it for it when it comes on song. Torque is slid to the right ever so slightly too, but spools similarly to the VF37!
550 pinks at 93% duty!
Overall, a happy chappy!
#84
Scooby Senior
iTrader: (68)
Mapping done. Did two road dyno/delta dash runs to get figures.
First run 425bhp/381ftlbs
Second run 415bhp/396ftlbs
Fairly confident she's a 400hp car now! Goes like stink. A little laggier than the VF37, although it makes it for it when it comes on song. Torque is slid to the right ever so slightly too, but spools similarly to the VF37!
550 pinks at 93% duty!
Overall, a happy chappy!
First run 425bhp/381ftlbs
Second run 415bhp/396ftlbs
Fairly confident she's a 400hp car now! Goes like stink. A little laggier than the VF37, although it makes it for it when it comes on song. Torque is slid to the right ever so slightly too, but spools similarly to the VF37!
550 pinks at 93% duty!
Overall, a happy chappy!
#85
RR's are only so accurate as well, my previous Blob STI made 345 on one, and about two weeks later made 363
Dyno in the seat of my **** is telling me all I need to know at the moment!
#86
Scooby Newbie
Join Date: Feb 2013
Location: Worcester
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts
I have a tdo5 20g billet kinugawa in my 98 sti, after 3 mapping sessions the third done by Paul blamiere on RCM's dyno the turbo stopped play at 360bhp I would advise anyone else to not bother there seems to be some that get results but the majority are cheaply made with crap actuators. The car has a Esl ecu 800cc injectors worked cyl heads RCM's manifold 340 LPG pump sti 8 bottom end etc
#87
Scooby Regular
I have a tdo5 20g billet kinugawa in my 98 sti, after 3 mapping sessions the third done by Paul blamiere on RCM's dyno the turbo stopped play at 360bhp I would advise anyone else to not bother there seems to be some that get results but the majority are cheaply made with crap actuators. The car has a Esl ecu 800cc injectors worked cyl heads RCM's manifold 340 LPG pump sti 8 bottom end etc
Funnuest thin was guy turned up to an rr day a while back with a 380bhp car, uh, no 310 actualy lol
