So I fitted the top and bottom rad hoses and the air box hose no trouble

Started on the axillary hoses (13 of them) but I have 6 left and can’t see where they go, I spent a while taking of different pipes to try them however they don’t seem to fit anywhere
Has anyone got a diagram or something to identify where they go.?

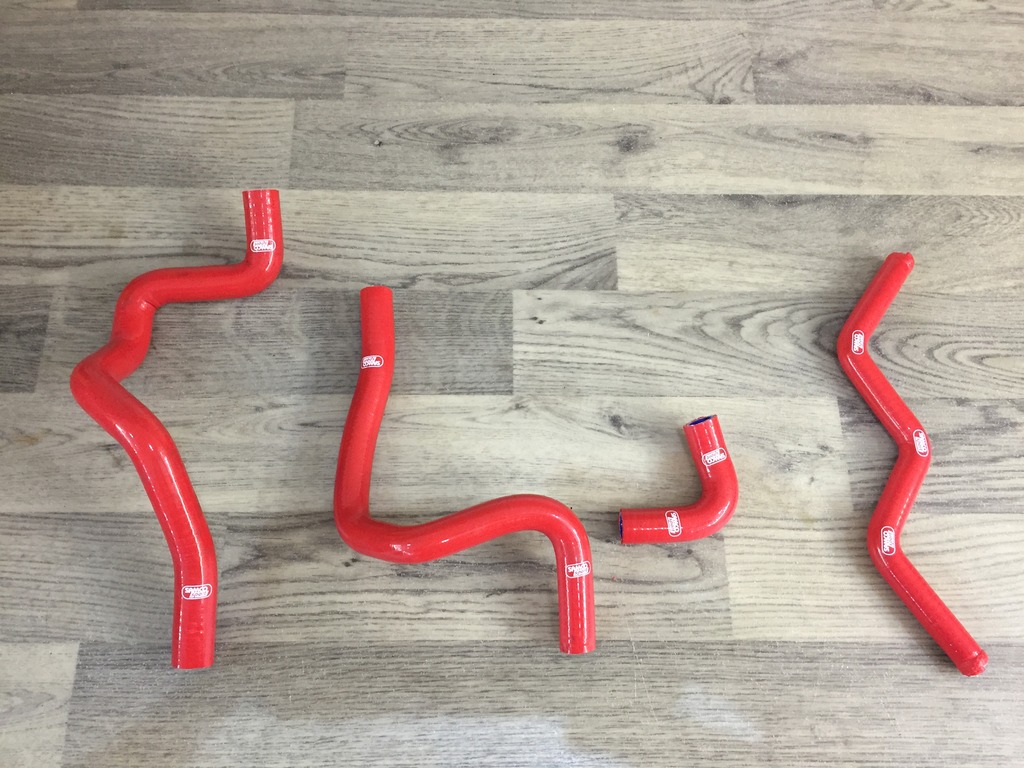

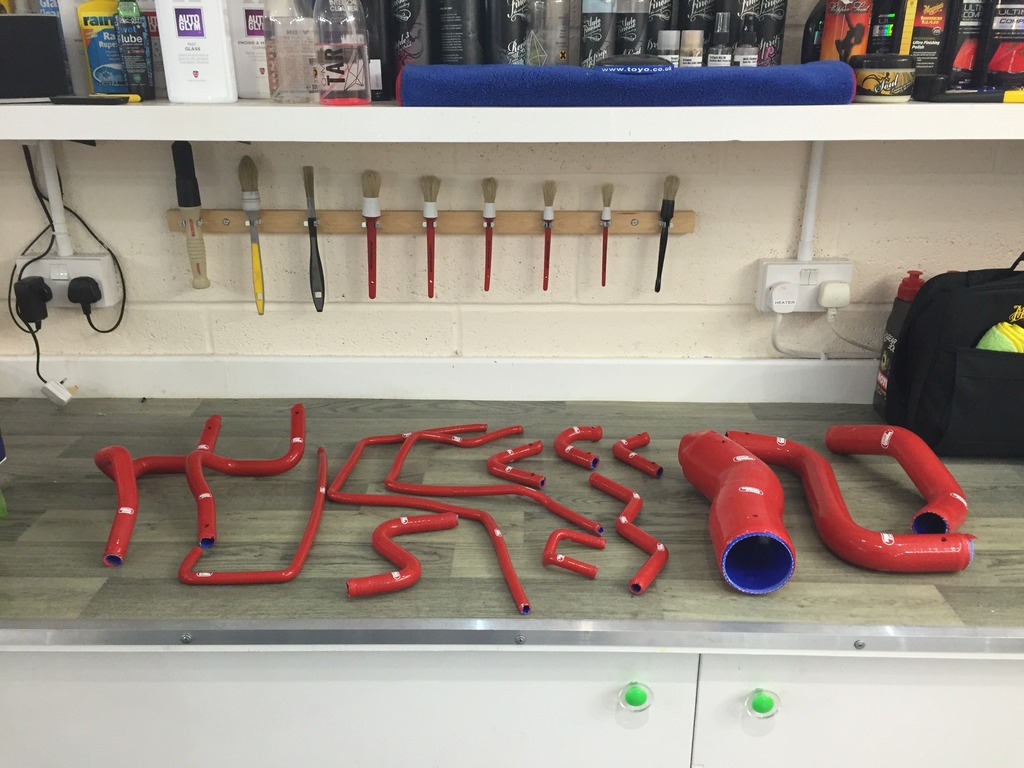

Top picture are all the hoses I received, bottom pic is the ones I have left over. Note the hose shaped like a "W" needs to be cut to make 3 hoses

Can anyone help ?

lordharding

iTrader: (1)

I had 19 and they were all used up














There is two at the bottom where the raditor goes but sorry that's the best I can help you with
I'm sure there was a post on one of the American forums with where they all want but there shouldn't be any left

S3LDM

Thanks for the replyLord Harding, I was out there last night and found their locations with a little help from a friend

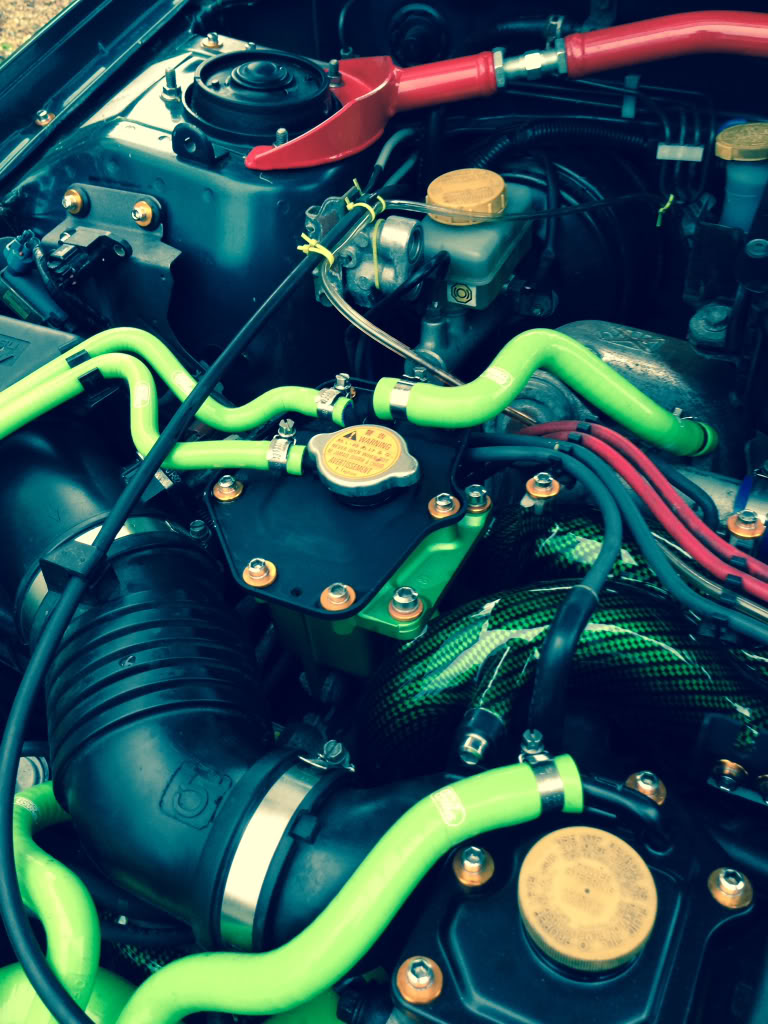

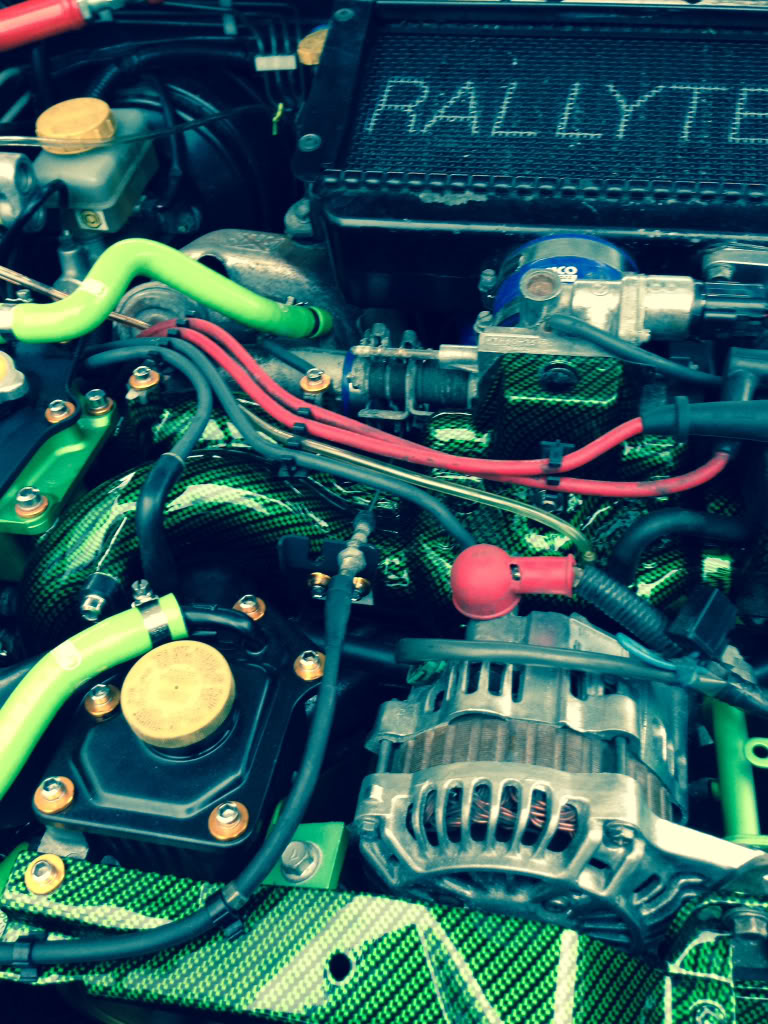

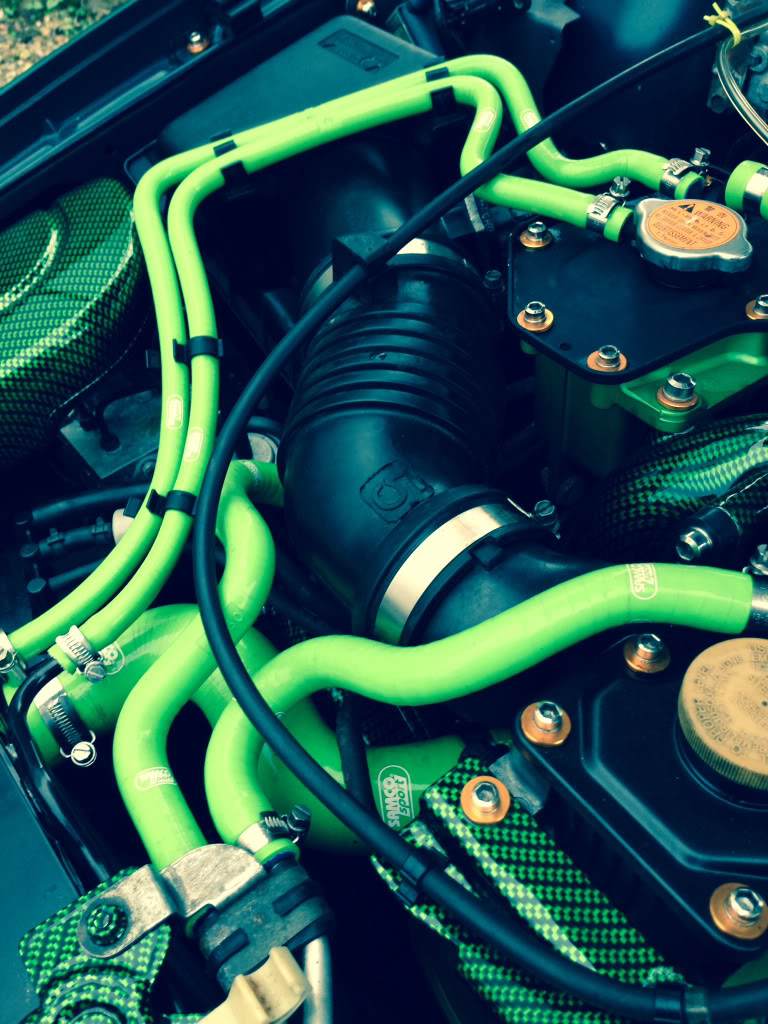

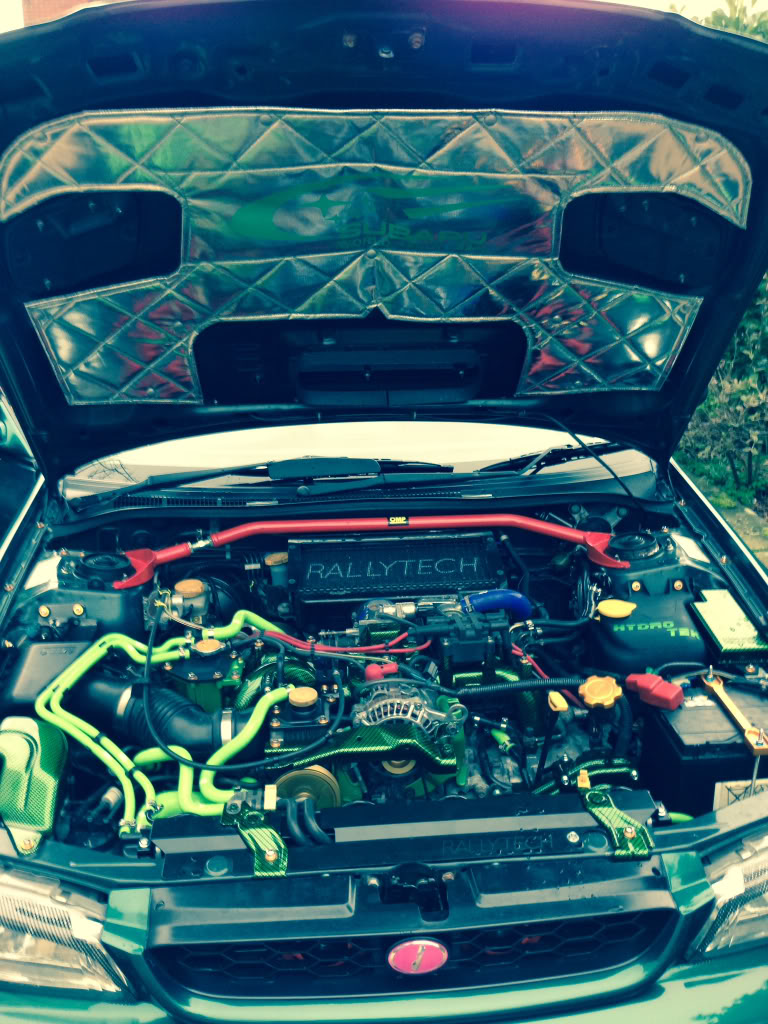

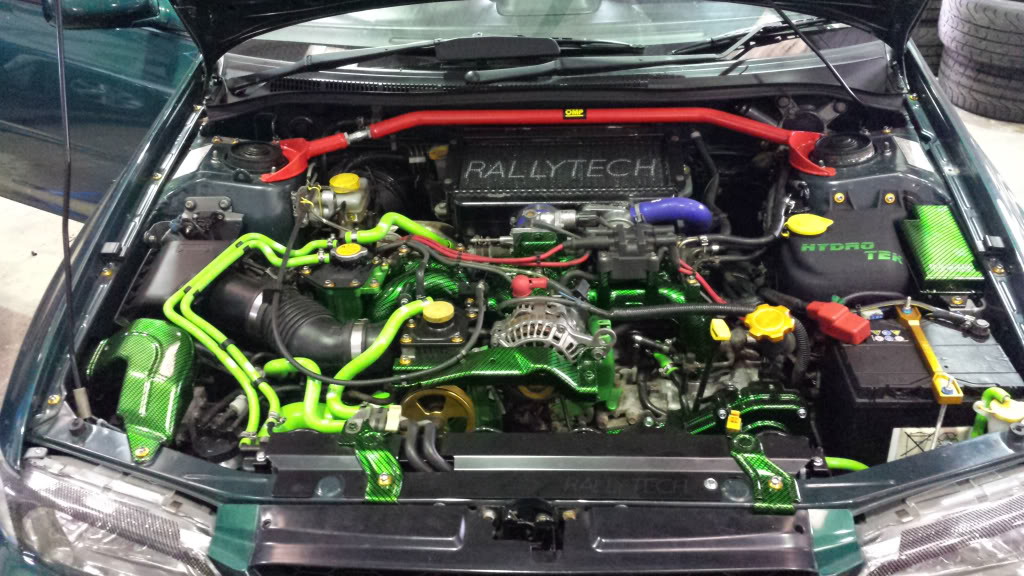

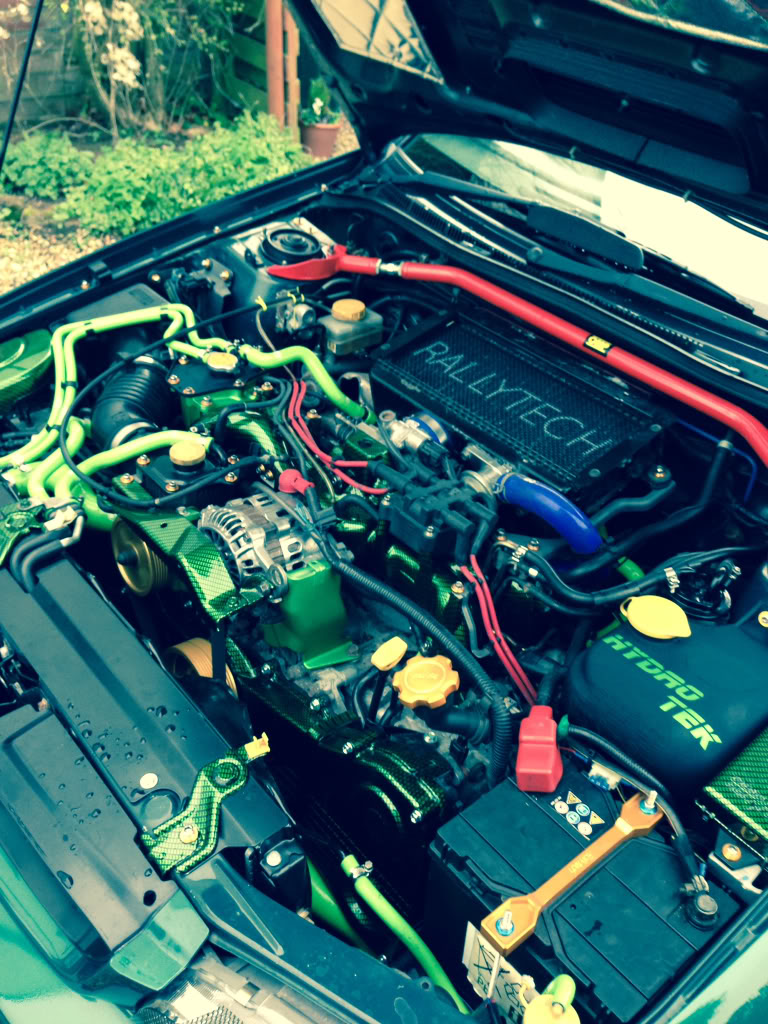

The two on the left are the heater matrix inlet & outlet hoses and are now fitted

The 3 oil cooler modine hoses still not sure exactly where these go, these will be done another time


Thanks for the pics
