Well ok, here's my weekend/track project

Notices
Projects For Serious DIY Car Projects

Well ok, here's my weekend/track project

Old 30 June 2015, 09:27 PM
  #121
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by Fonzey View Post
Saw the car @ Tims' the other day, looks like a good base you got mate - and good plans too
You went to brw? Thanks mate, hopefully will be when I've finished all the bits and bobs.
Then we can have a cadwell day, got a few lined up already
bustaMOVEs is offline
Old 30 June 2015, 09:49 PM
  #122
Fonzey
Scooby Regular
iTrader: (5)

Fonzey's Avatar

Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,901
Default

Yes mate, MOT time for mine so was at BRW.

I'm on a trackday fasting at the moment unfortunately as I've got a wedding to pay for! Should be back at it by Sept/Oct tho
Fonzey is offline
Old 30 June 2015, 10:53 PM
  #123
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Lol, that's when I'll probably be ready lol
bustaMOVEs is offline
Old 05 July 2015, 11:44 AM
  #124
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Slight update-

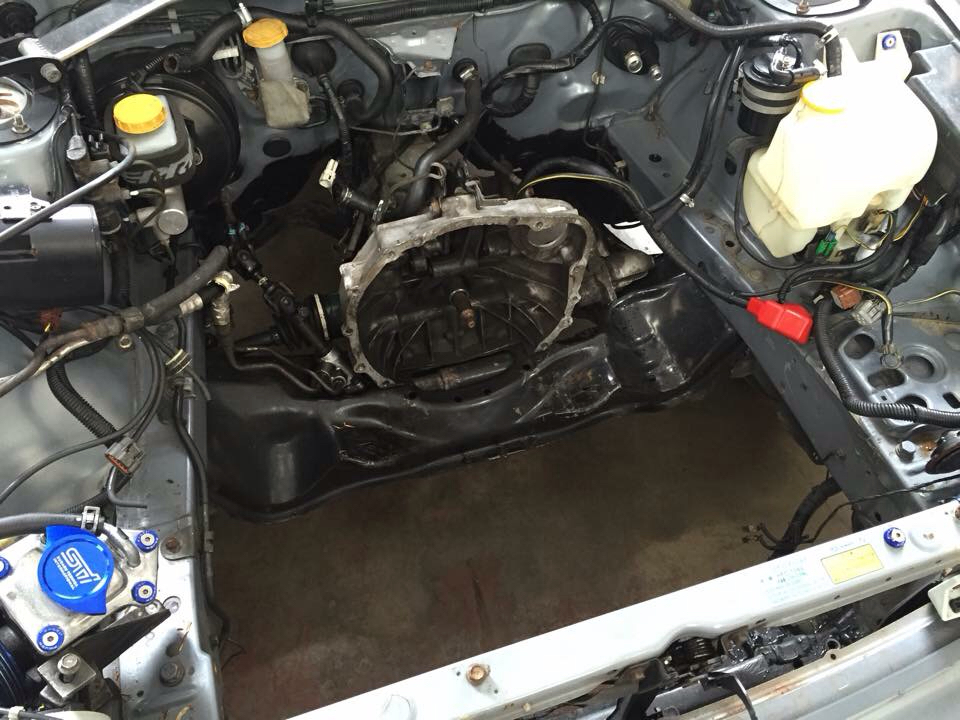

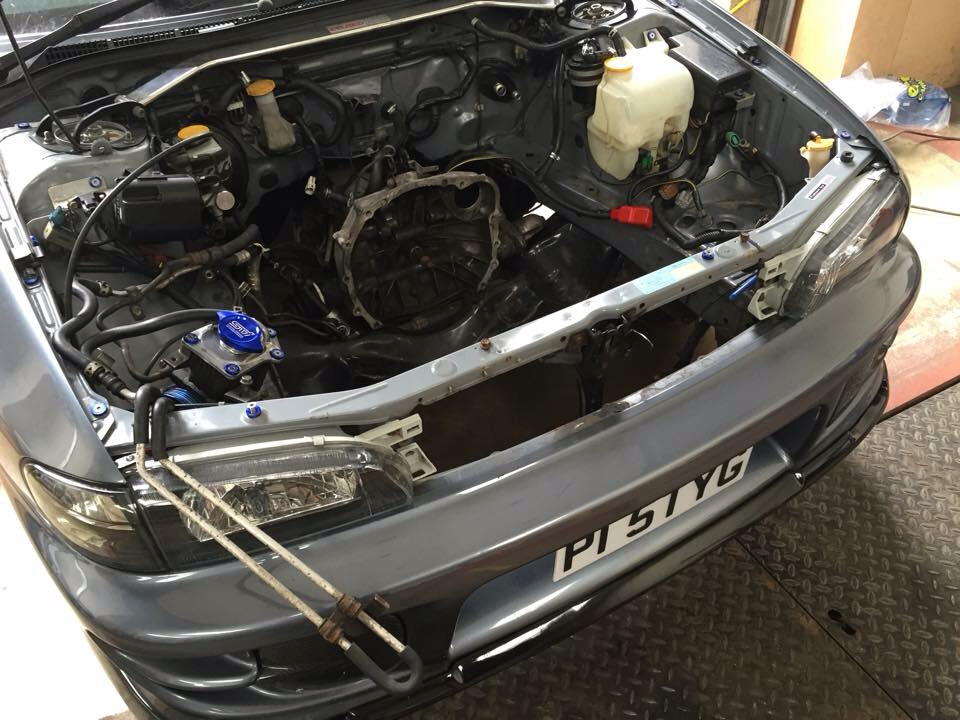

Well engine out

Name:  1ea8a6048438caf982cee9327ecb1a59_zps14supu1l.jpg
Views: 0
Size:  479.9 KB
Name:  81d8d7d3496280e9de3fda4e6331a597_zpsjzigc59k.jpg
Views: 0
Size:  504.7 KB

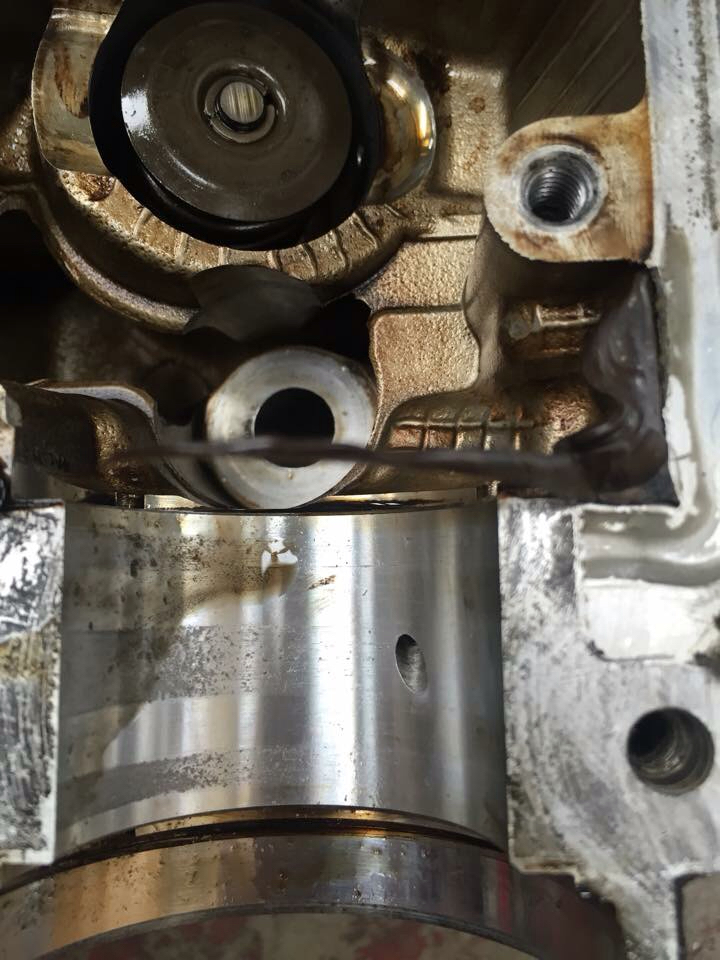

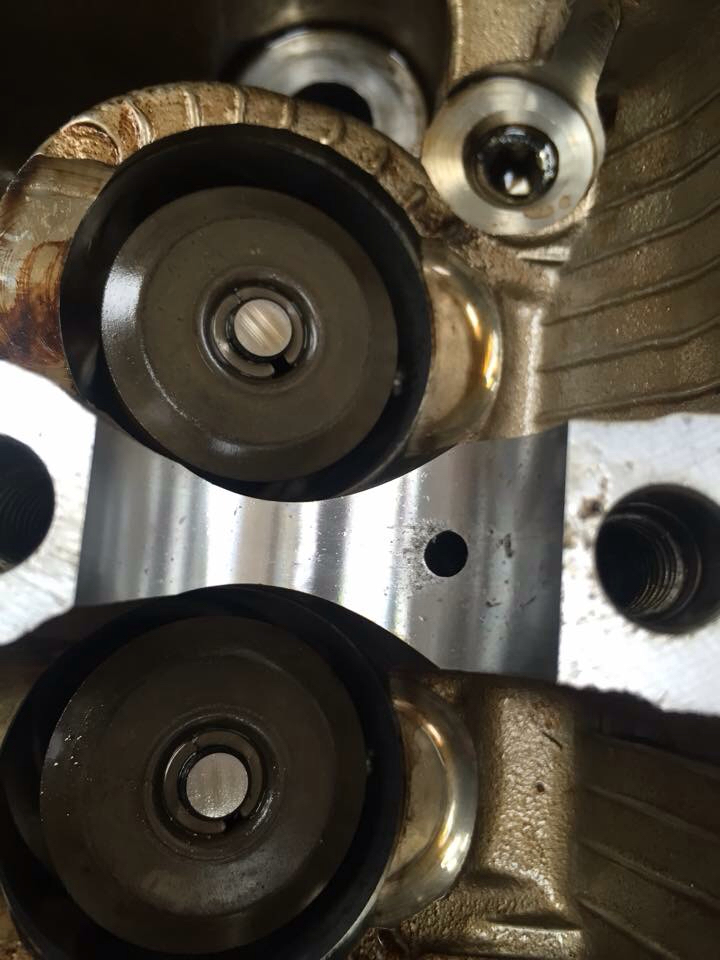

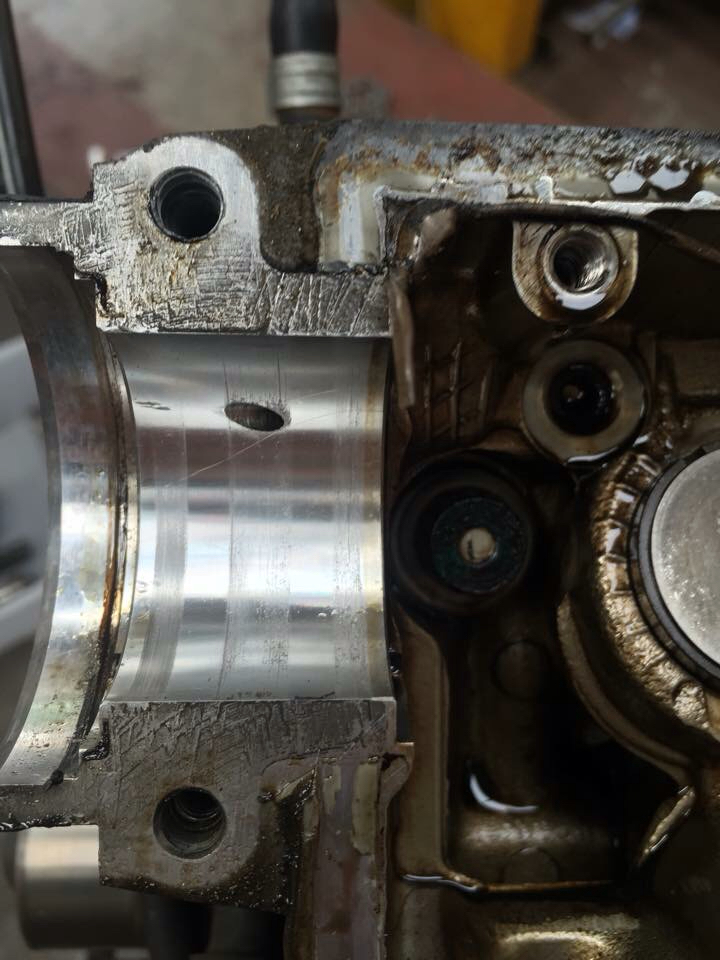

Stripped the heads off the block and found out their fecked (was going to use the heads) seems like when it blew, shrapnel got in to heads and slightly damaged them

Name:  303980398fd67e1d58b85c5e458eec90_zpsleqgfqnz.jpg
Views: 0
Size:  367.1 KB
Name:  57541d780030b4caa2d22e47dd9e2872_zpsi04ostob.jpg
Views: 0
Size:  414.9 KB

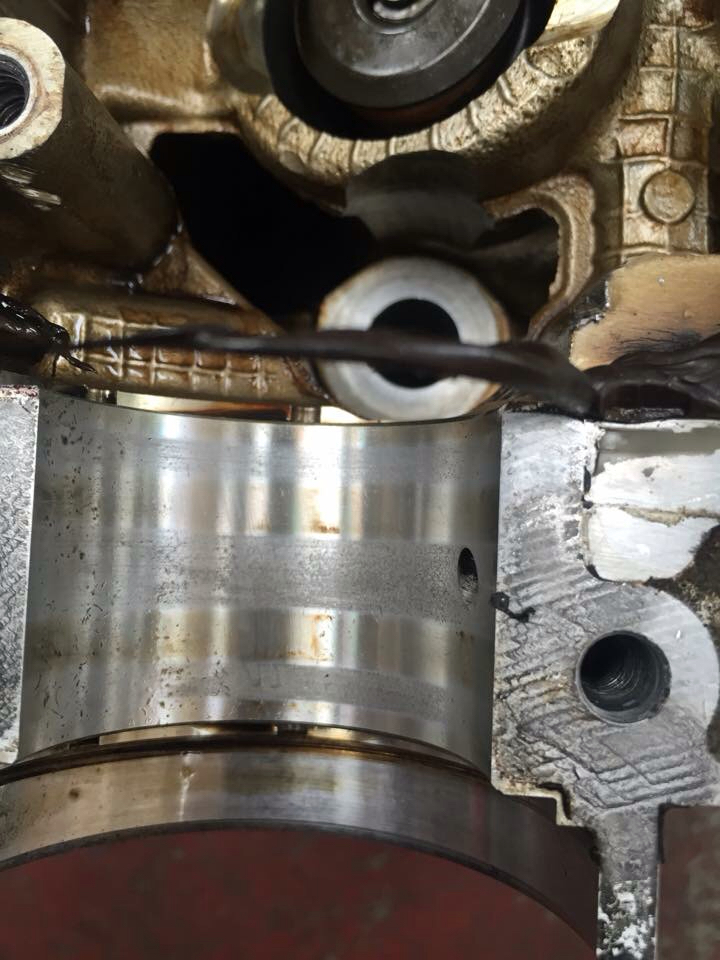

Name:  25cbcecd3645d8662e90227c4b4bd813_zpsproat9fo.jpg
Views: 0
Size:  435.9 KB
Name:  e59271637cfe902082dd6e8eafdc7702_zps33dkcovd.jpg
Views: 0
Size:  444.0 KB

So now, plan is to get some avcs heads and go that route instead now, I'm going to collect some v7 jdm avcs tonight or tomorrow as the alternative choice .
Will update as and when
bustaMOVEs is offline
Old 08 July 2015, 02:32 PM
  #125
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

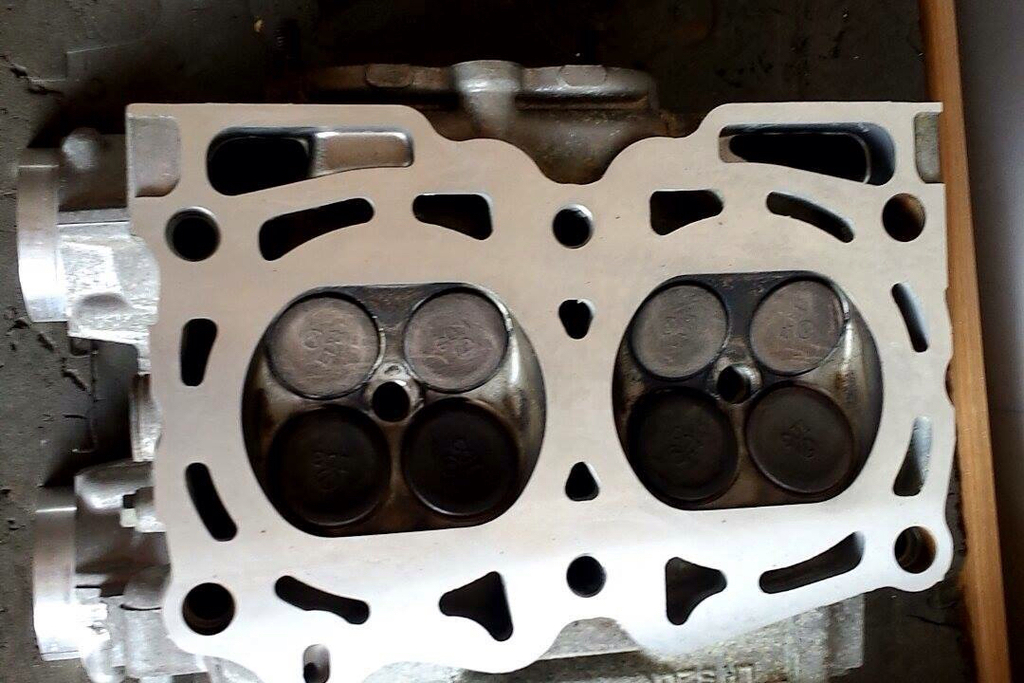

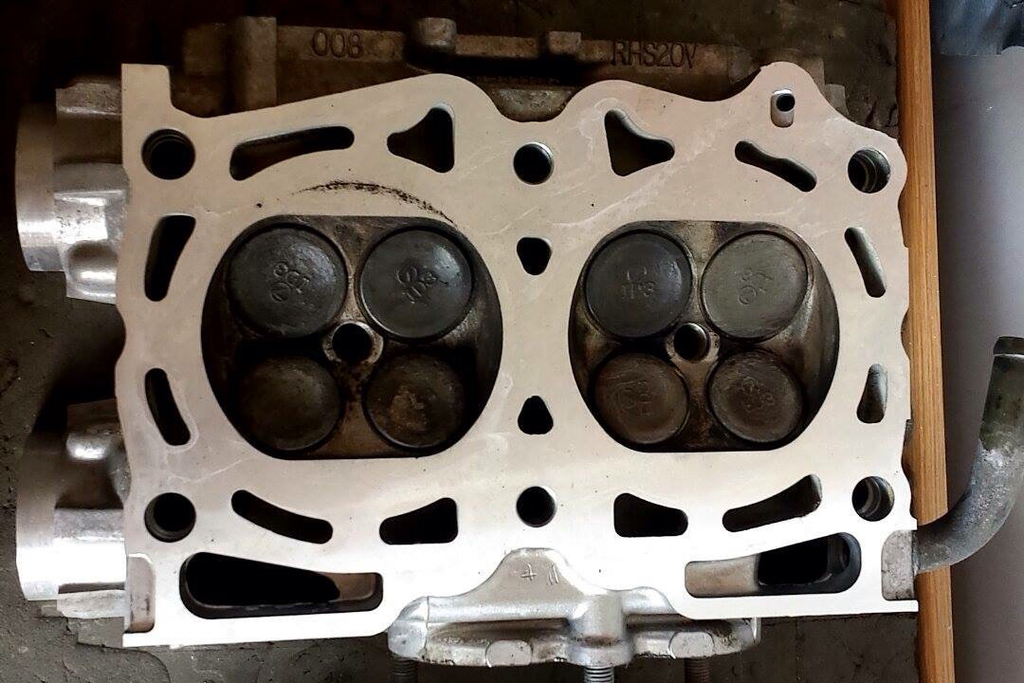

Well as you know above, I needed some heads fast, I wanted to go avcs but wanted to save on costs of my current ones were ok, but that didn't happen so I sourced these.
V7 sti jdm avcs big port better cams.

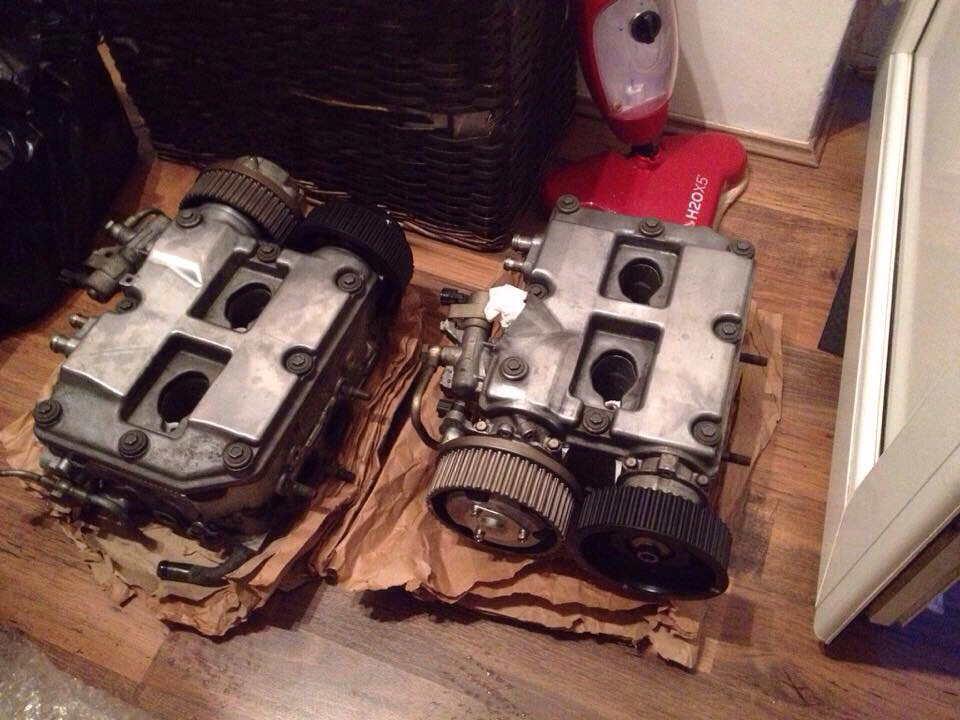

Name:  8f2ad6762f2438538e2be90c4146fc3b_zpsqg1qcdii.jpg
Views: 0
Size:  563.6 KB
Name:  741f318f57f755f82acb55db03df49c2_zpsmrlfcnix.jpg
Views: 0
Size:  635.3 KB
Name:  2b17336a4907c3d99a55c5ad2fc6a6fa_zpsrnhclqkr.jpg
Views: 0
Size:  650.5 KB

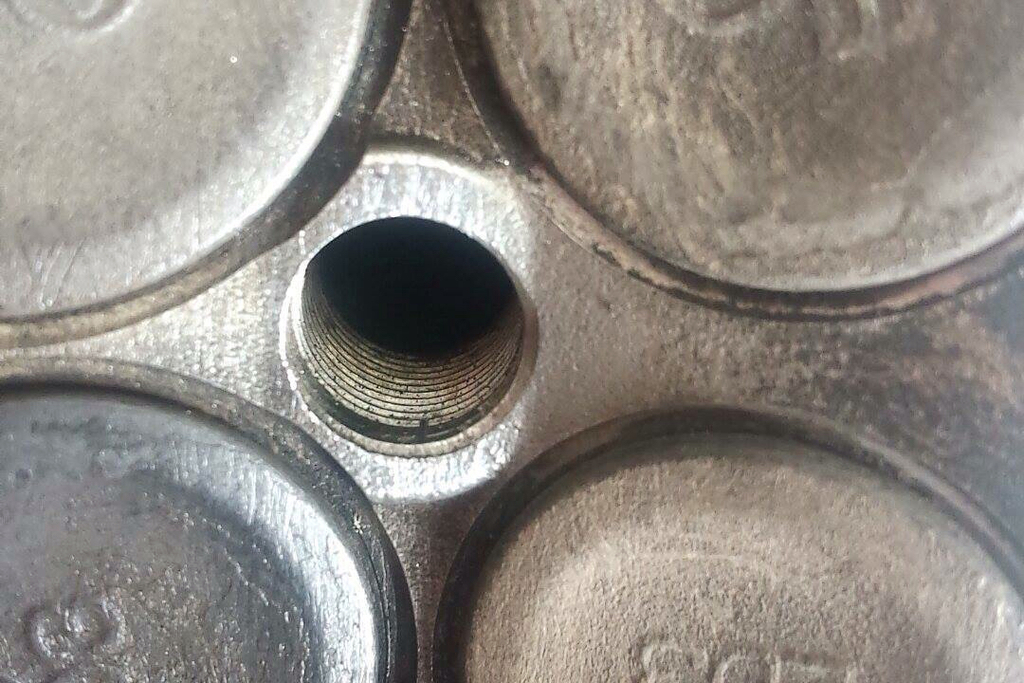

Name:  81756fecc8ec939306c316855cc664e6_zpswuroxput.jpg
Views: 0
Size:  663.5 KB

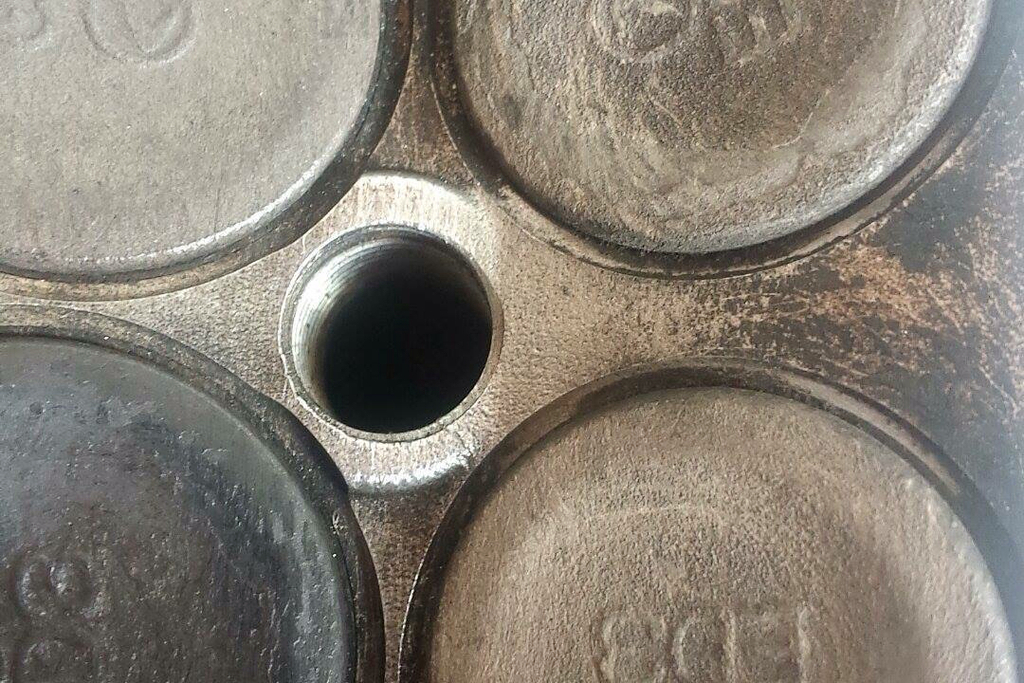

Name:  333e51edb9ae1e5fd3ed51ea5ffc22c2_zpsyfdgd790.jpg
Views: 0
Size:  762.5 KB
Name:  83847a2dd154a48a5d6a019cb969fa2a_zpsrpldef11.jpg
Views: 0
Size:  692.3 KB
Name:  f5479902d5de5a3f6b999a25add96e81_zpscjhvmrpq.jpg
Views: 0
Size:  575.2 KB
bustaMOVEs is offline
Old 08 July 2015, 02:36 PM
  #126
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

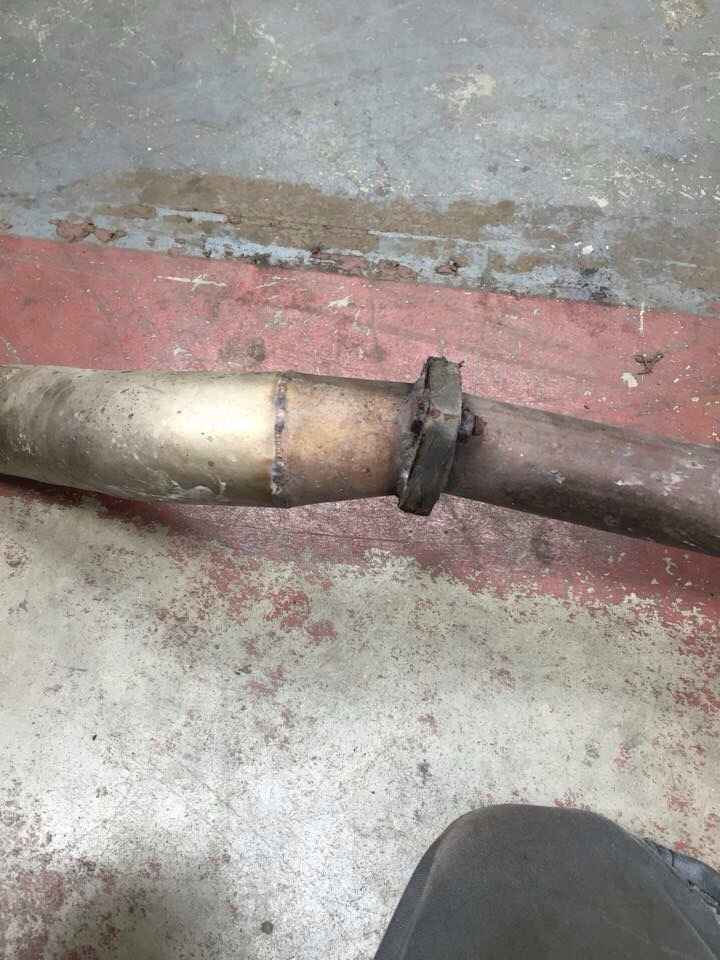

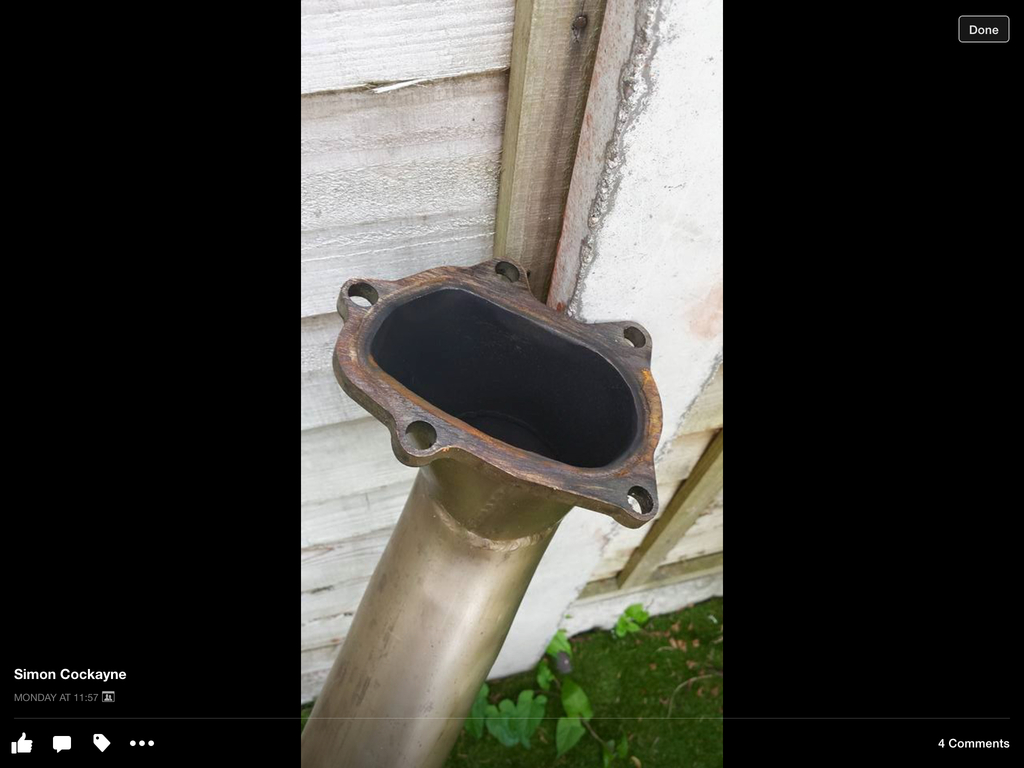

I also was aiming to keep my downpipe as I was led to belive it was 3" but that was wrong too

Name:  0ad4e80f4416d8e48891c4d57ca536ff_zps7oztwdqz.jpg
Views: 0
Size:  466.6 KB

Tapered down to 2.5 or 2" by the looks of it, I have a 3" milltek back box to go on, so was going to get a 3" center pipe made to fit, but then had to source a proper 3" to 3" downpipe.

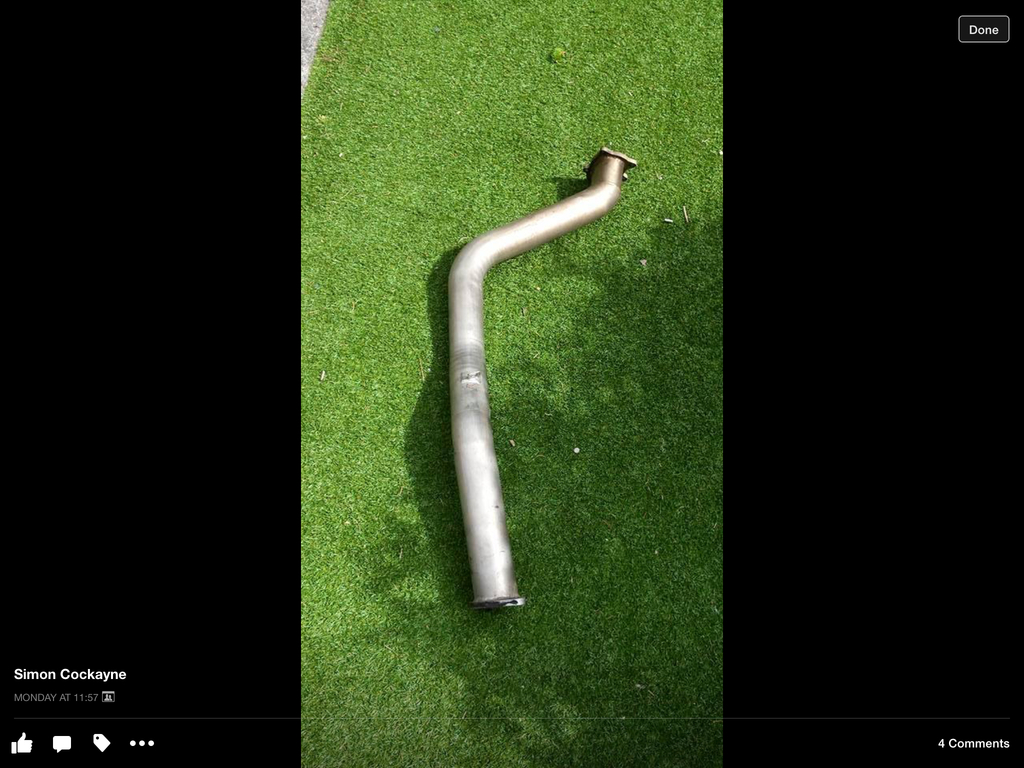

So I found this H&S near new condition

Name:  712298a5c52880766762cdf42583a1b8_zps1lbhmo7o.jpg
Views: 0
Size:  479.9 KB
Name:  63298e4cc851f862bb75521ac8e486a0_zps5bdp82wm.jpg
Views: 0
Size:  304.6 KB
bustaMOVEs is offline
Old 08 July 2015, 02:47 PM
  #127
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Obviously the costs have spiralled as usual, but it's for the better and I want to do it right first time.
Had to get a few sensors etc and a few bits n bobs for block, new rocker caskets as changed heads,
Also for safety and flow got a new 11mm oil pump with valve mod to stop it from sticking which is usual cause on bearing failure

Wideband loom from Tim at jti (what a pleasant guy to deal with) and also avcs loom on way, newage crank trigger G11 on way, loads of bits n bobs needed at last minute lol and there's me thinking I bought everything prior.
bustaMOVEs is offline
Old 09 July 2015, 05:05 PM
  #128
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

the oil pump is a myth.......the jammed / sticking PRV does occur very occassionally but is normally caused by debris rather than initial cause
AS Performance is offline
Old 09 July 2015, 05:23 PM
  #129
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by AS Performance View Post
the oil pump is a myth.......the jammed / sticking PRV does occur very occassionally but is normally caused by debris rather than initial cause
Thanks. I know of one failing just recently on rollers, so better safe than sorry was my initial thought of spending on one
bustaMOVEs is offline
Old 10 July 2015, 05:11 PM
  #130
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

be careful which variety you buy as some are not value for money IMO - carry various options in stock along with most engine components
AS Performance is offline
Old 10 July 2015, 05:20 PM
  #131
ditchmyster
Scooby Regular
iTrader: (7)

Join Date: Dec 2007
Location: Living the dream
Posts: 13,610
Default

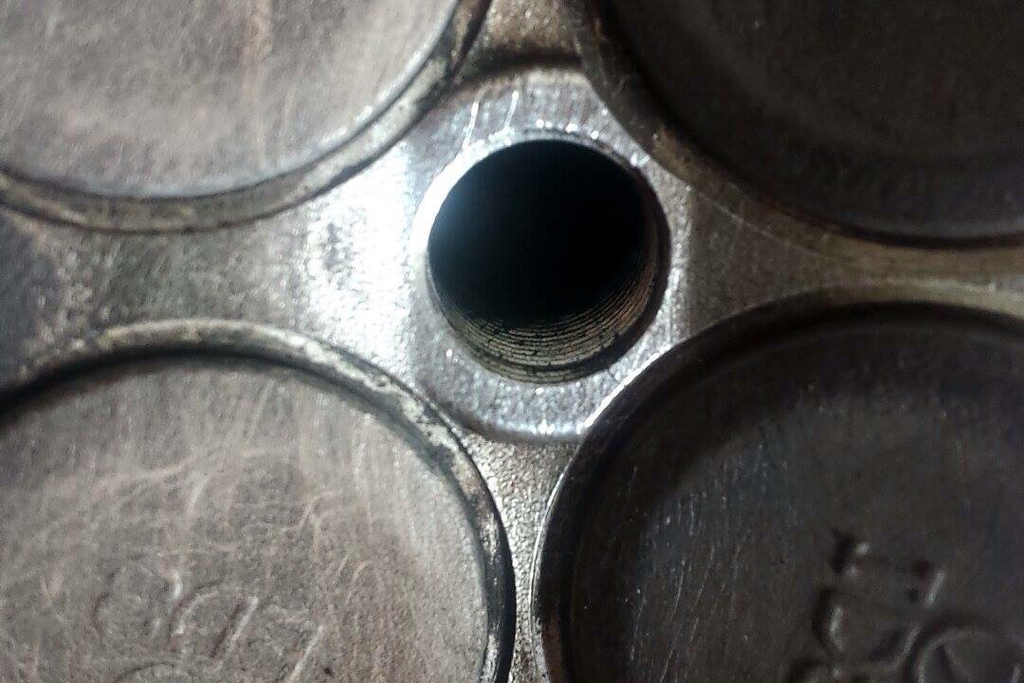

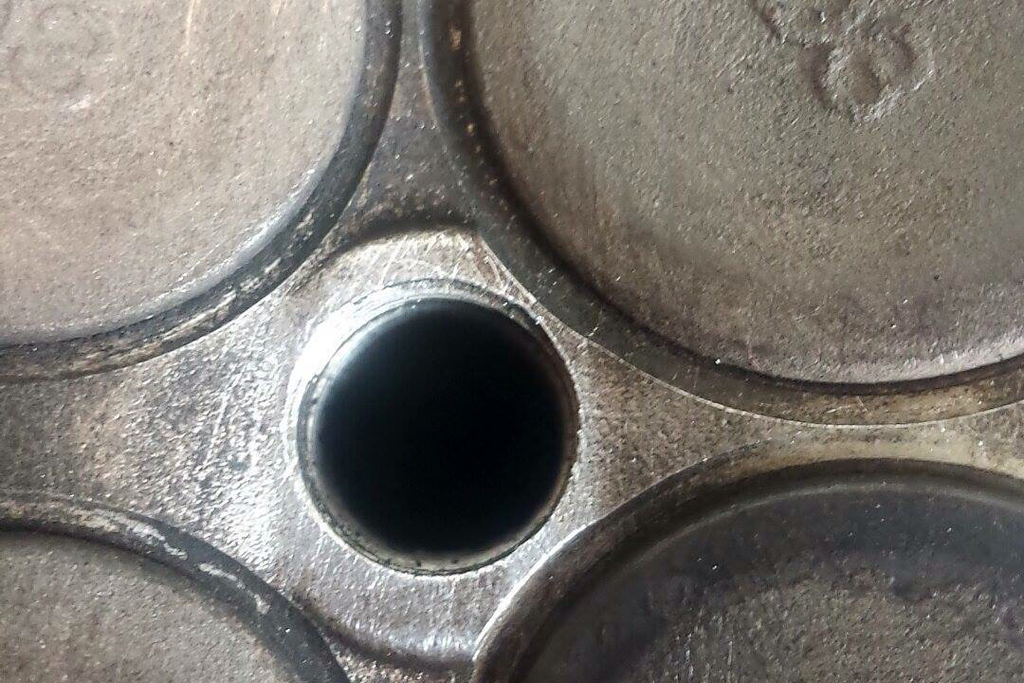

Think I can see some cracks around a couple of the plug holes on those heads buddy.
ditchmyster is offline
Old 10 July 2015, 05:58 PM
  #132
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by ditchmyster View Post
Think I can see some cracks around a couple of the plug holes on those heads buddy.
Not as bad as some I seen, cracked all the way to valve seat, them ones are mint considering, you will not find avcs heads without cracks, if you do then that's very rare and lucky as most avcs have cracks, some worse than other.
But them above, you will not find better! On a used set. I give you the challenge to find if so.
bustaMOVEs is offline
Old 10 July 2015, 06:00 PM
  #133
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by AS Performance View Post
be careful which variety you buy as some are not value for money IMO - carry various options in stock along with most engine components
Already bought.
bustaMOVEs is offline
Old 18 August 2015, 04:14 PM
  #134
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Well update is long overdue, sorry but it's been slightly delayed, but now back on with.
Tim is slowly assembling the block together along with some carefull cleaning taking place, decoked the crowns as they were pretty dirty (thanks Tim )

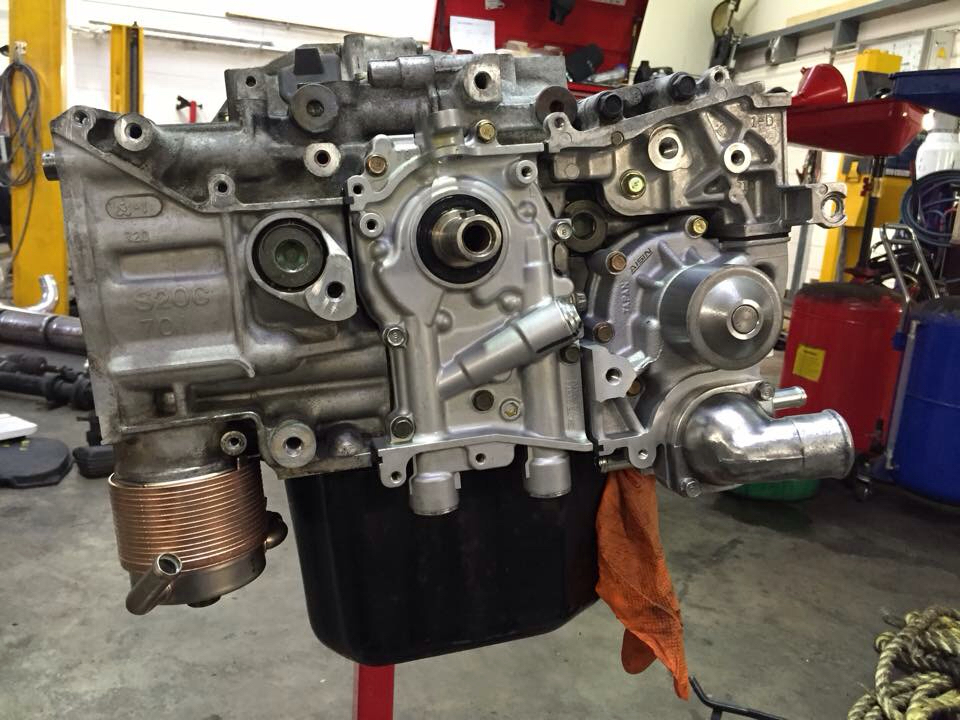

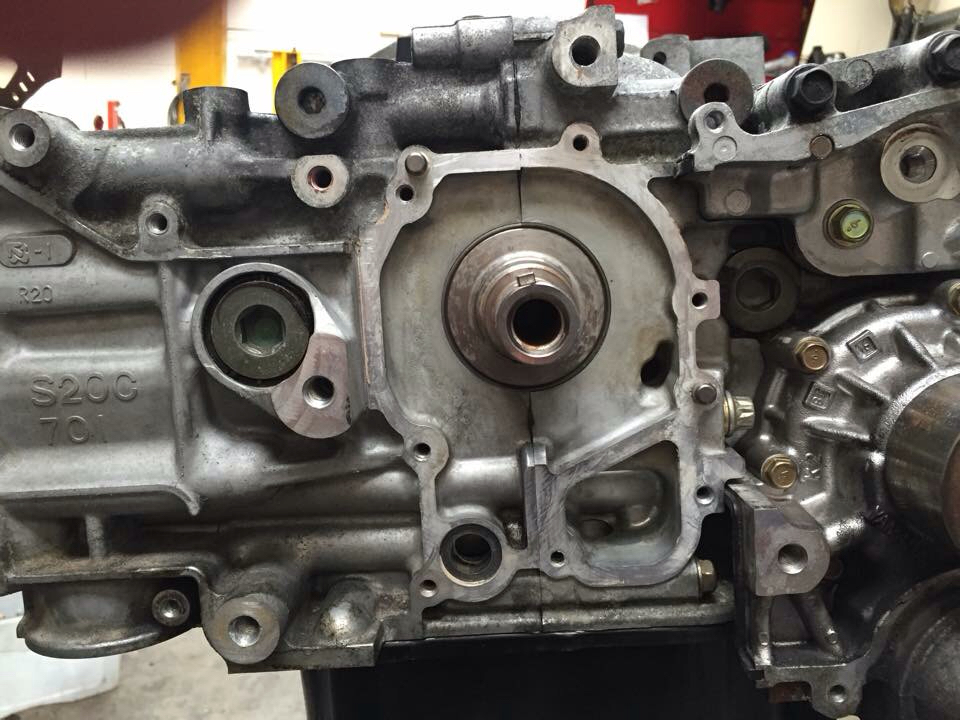

Pics below show RCM 11mm modified oil pump which cost me half an arm , new oil modene again cost other side of my arm and water pump all plumbed in for now.
Will show more as it progresses but the start has begun.

Name:  7ecaf238cd3b12cfd5640ed1f9a71d92_zpsqxv4el3x.jpg
Views: 0
Size:  438.5 KB
Name:  2c58e0957994b4c1c18ccd499521938d_zpst3uwgez5.jpg
Views: 0
Size:  509.4 KB

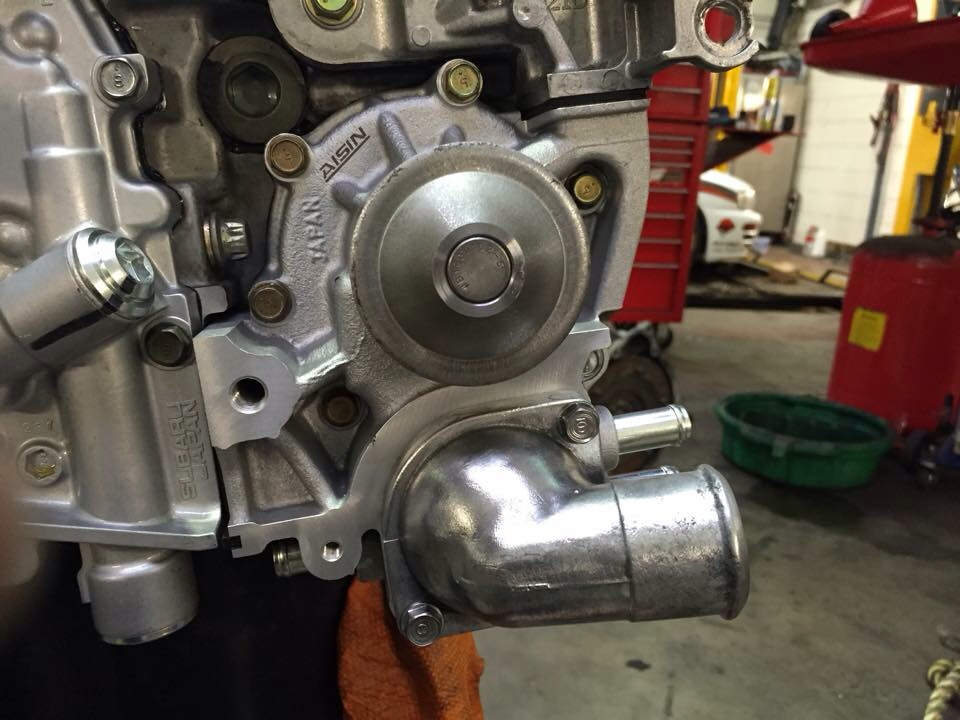

Properly cleaned water pipe bung
Name:  f7f60a4f2eaa5ccb2d0e28d73bf4558f_zpstlhbrxve.jpg
Views: 0
Size:  441.9 KB

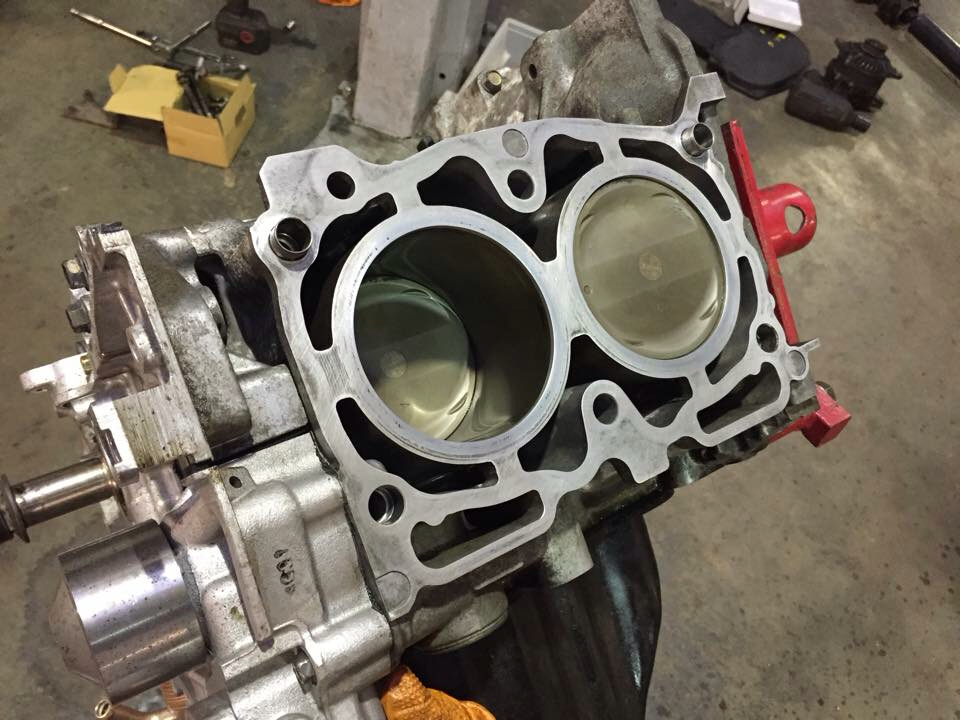

Just look how clean them crown are

Name:  9001a637600f35c1b8a1f7812011a4bd_zpsaaaocz4a.jpg
Views: 0
Size:  456.7 KB

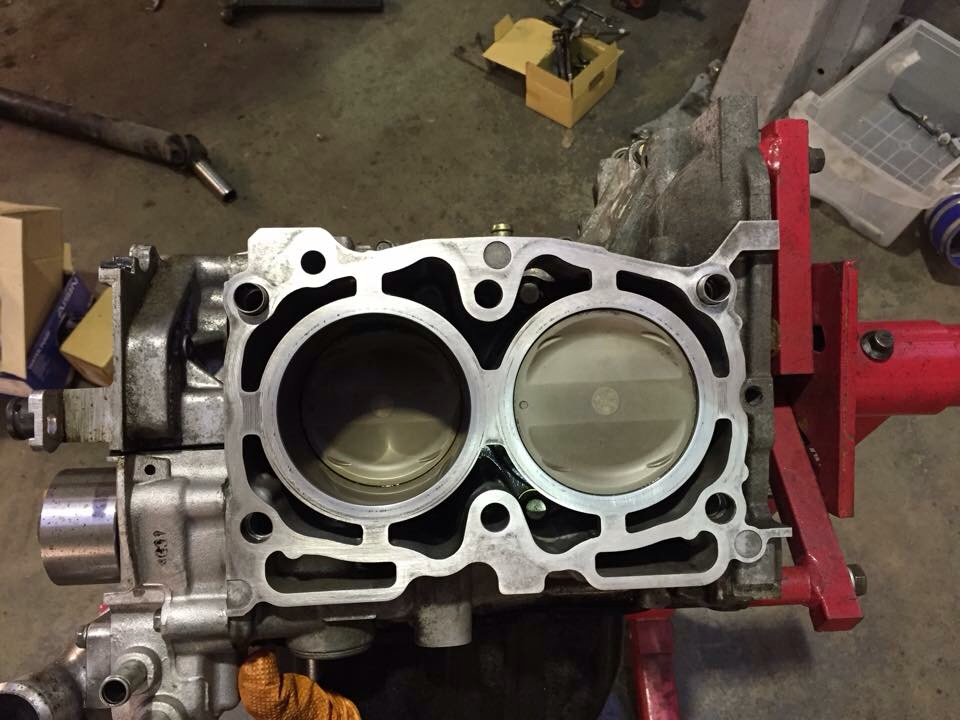

Name:  53d212da9cfeb03fd38a673dea381e66_zpsmpewkixx.jpg
Views: 0
Size:  437.2 KB

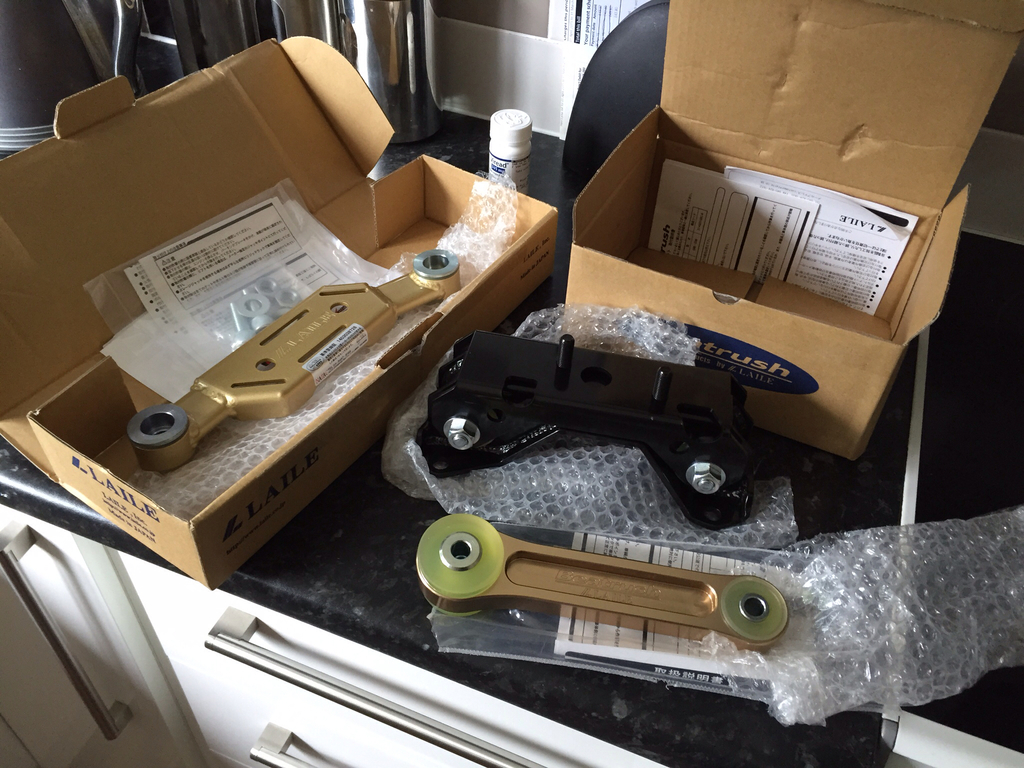

Also these beauty's arrived today #beatrush

Name:  3757ce8853b0487d143cf44262849e3b_zpshrpwff1y.jpg
Views: 0
Size:  788.4 KB

Thanks
bustaMOVEs is offline
Old 23 August 2015, 02:00 PM
  #135
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

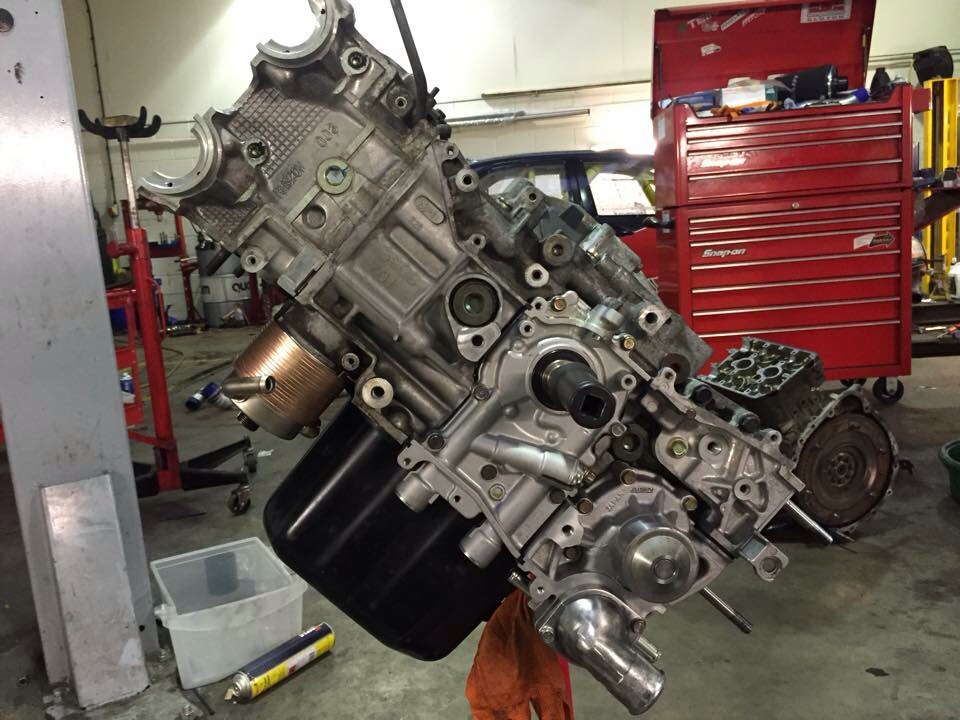

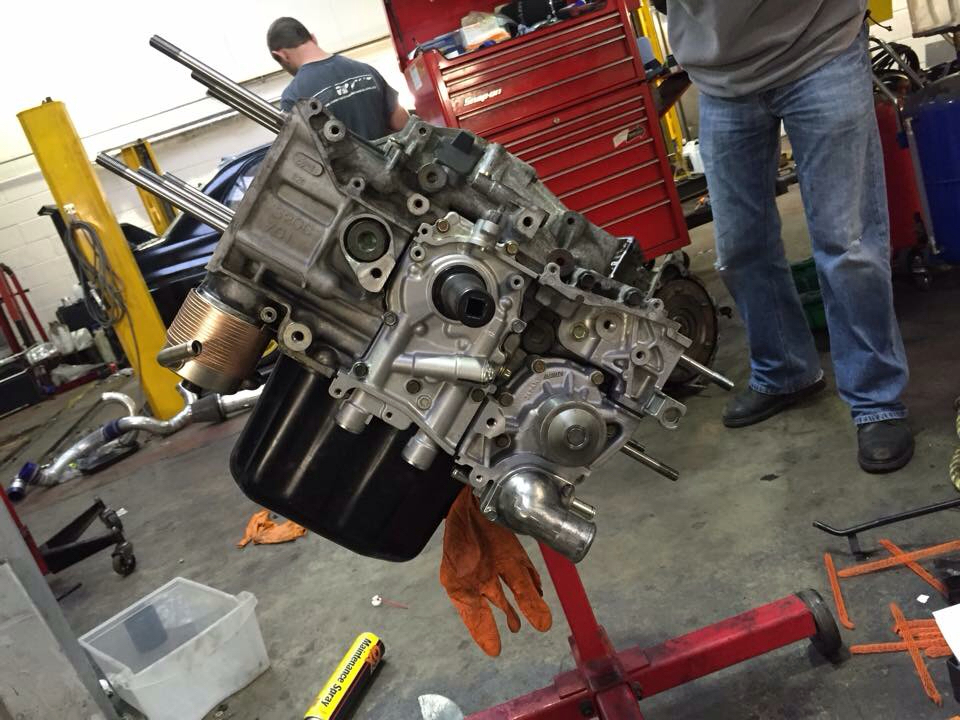

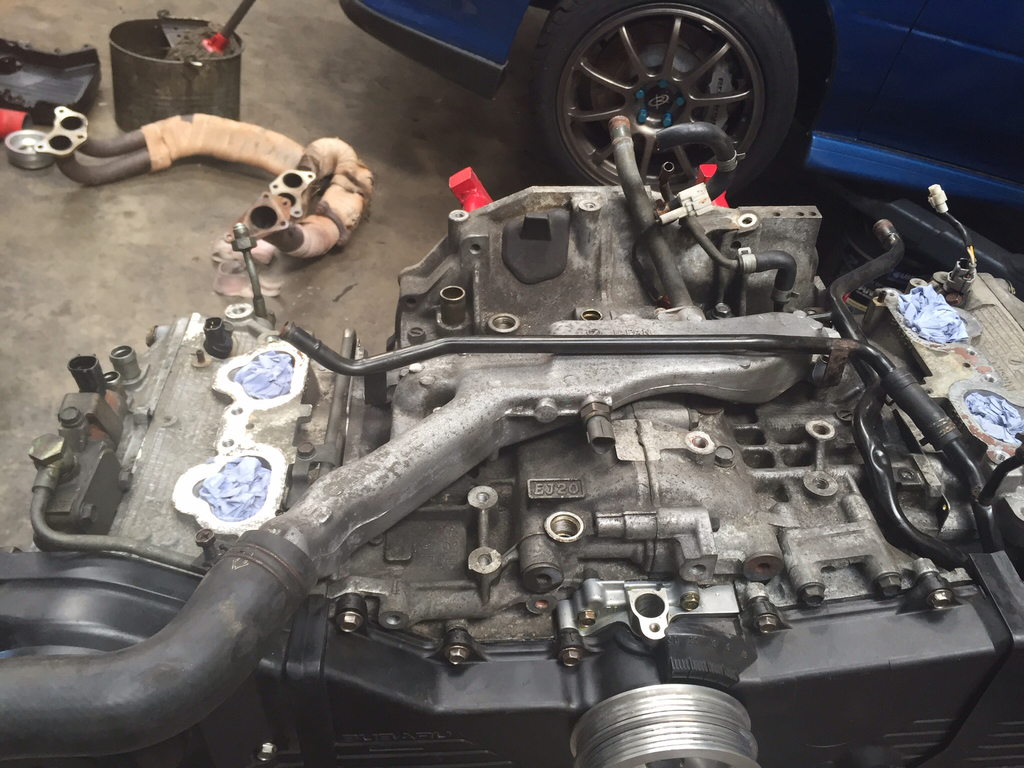

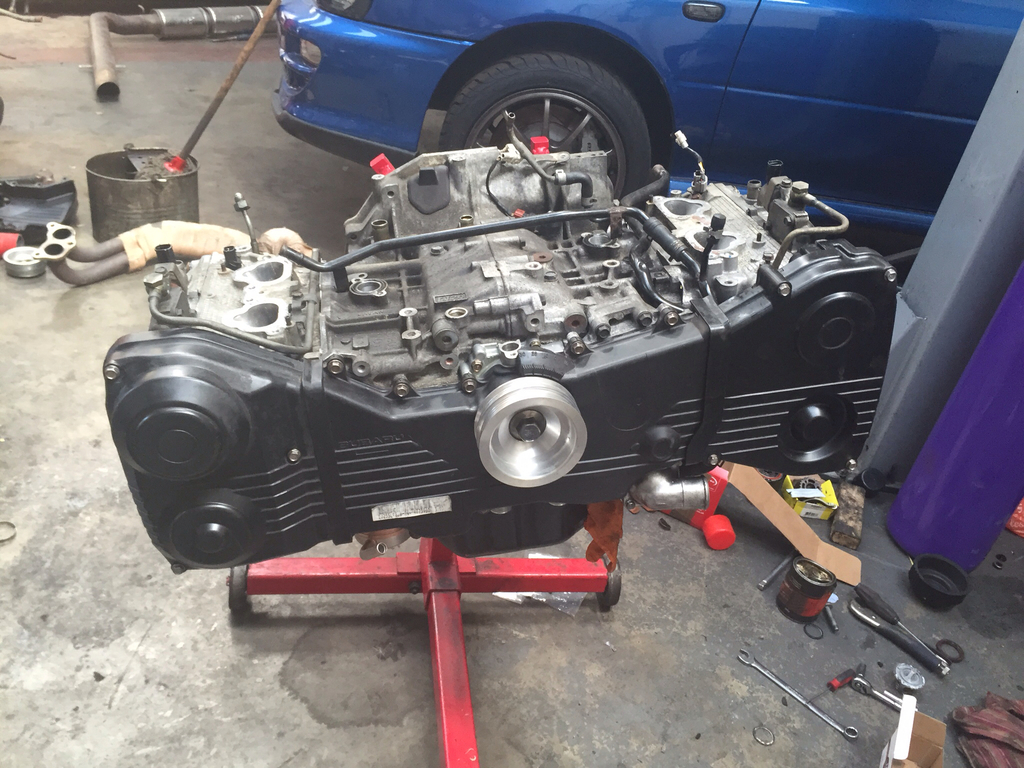

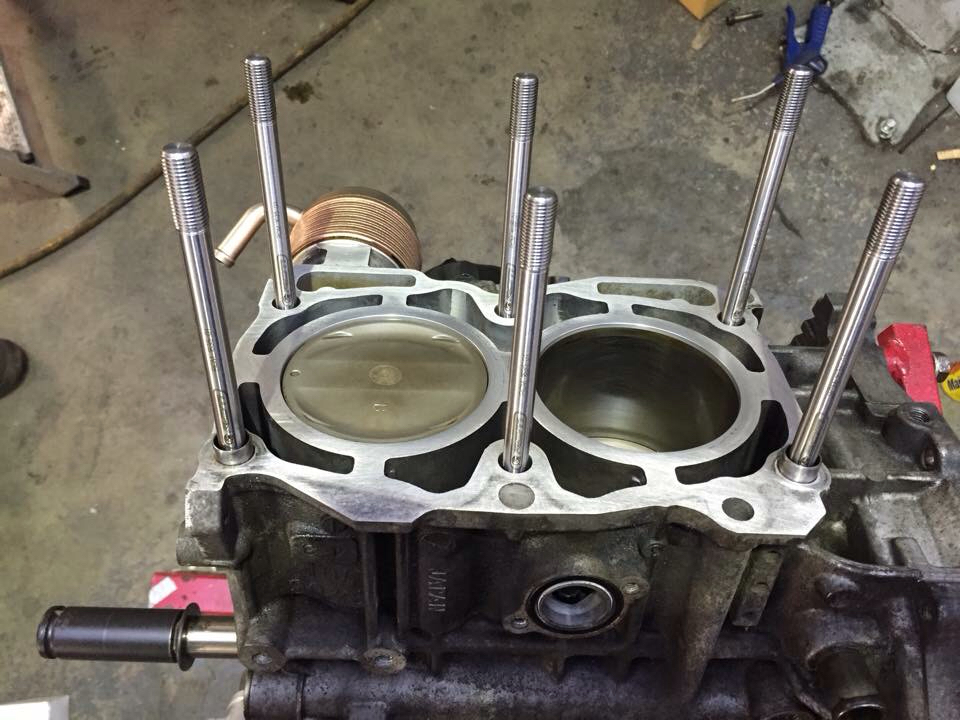

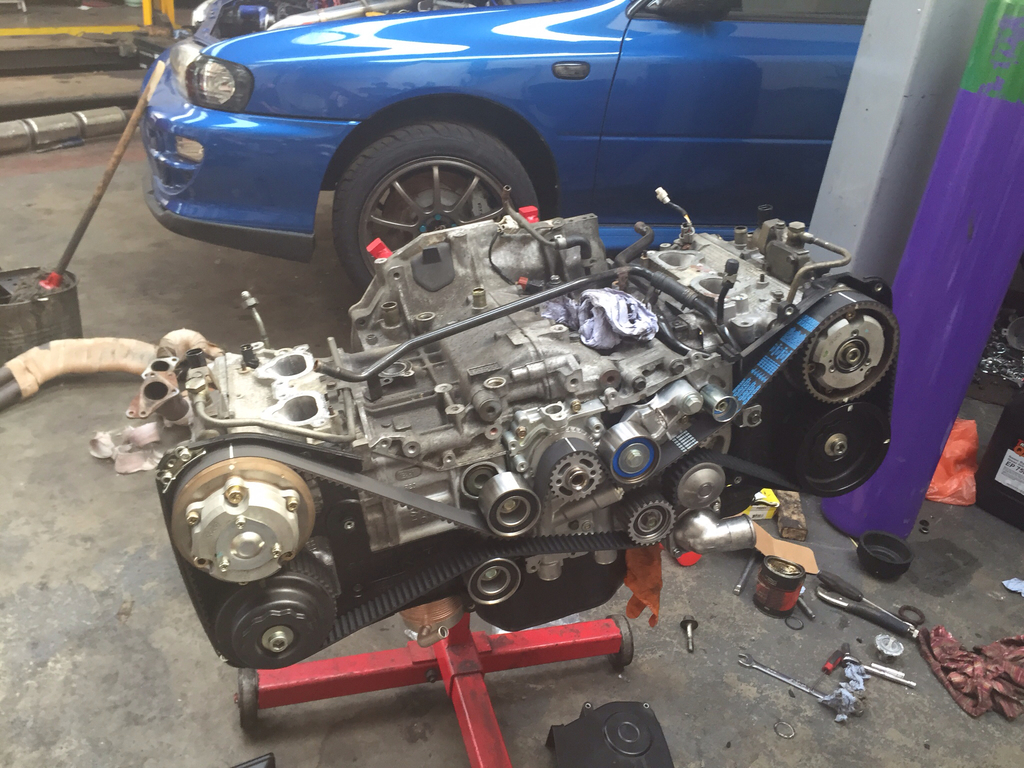

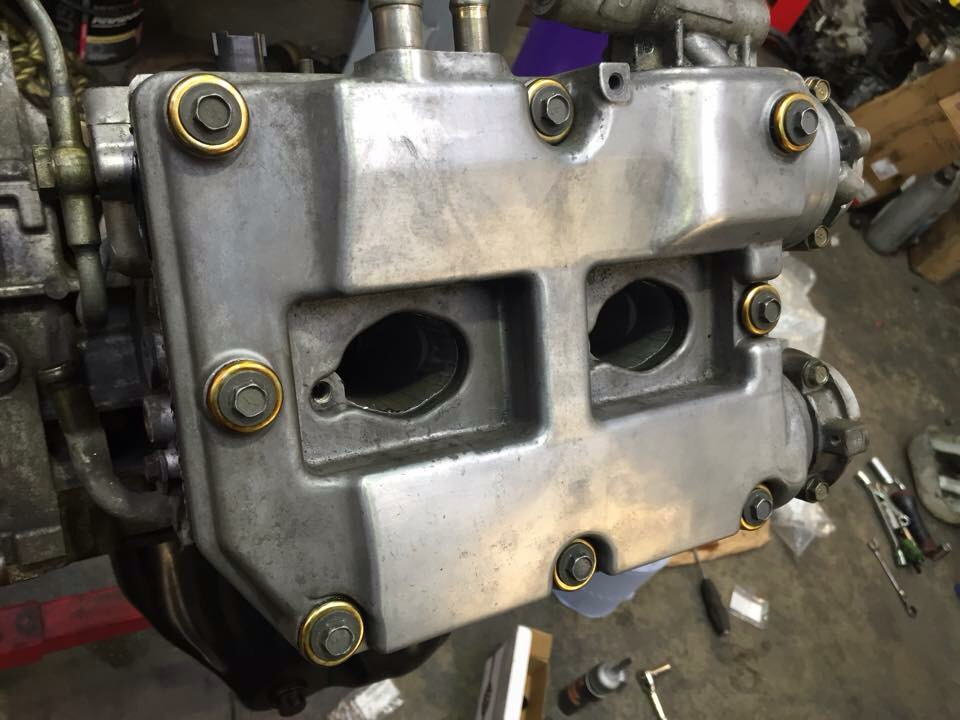

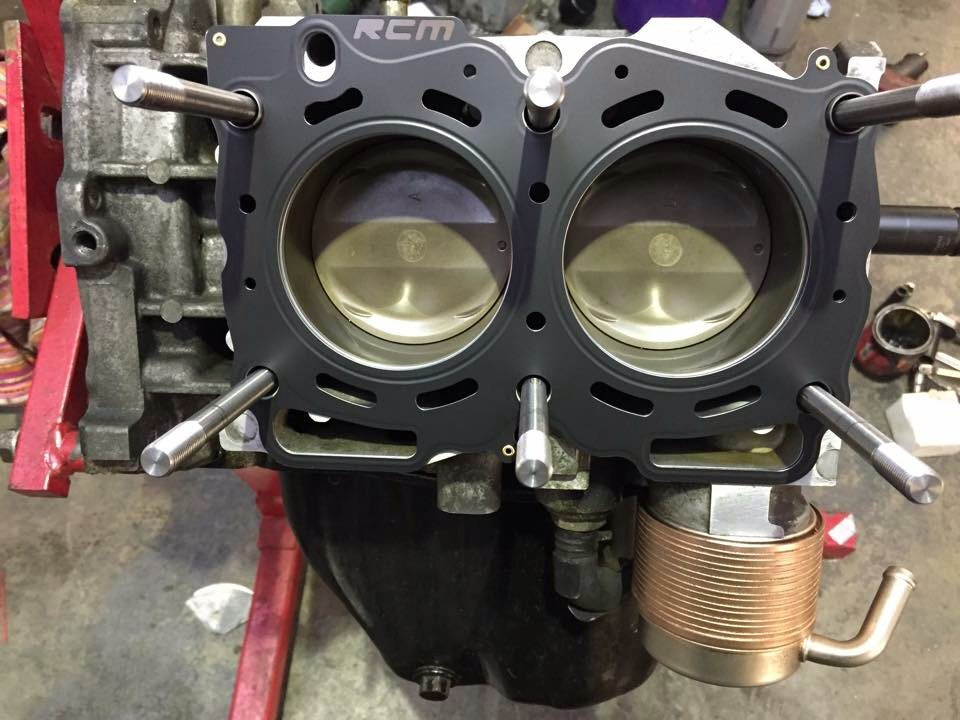

Well now engine built now with both heads on etc ready for all sensors and ancillaries to be attached.
I'll let the photos do the talking.

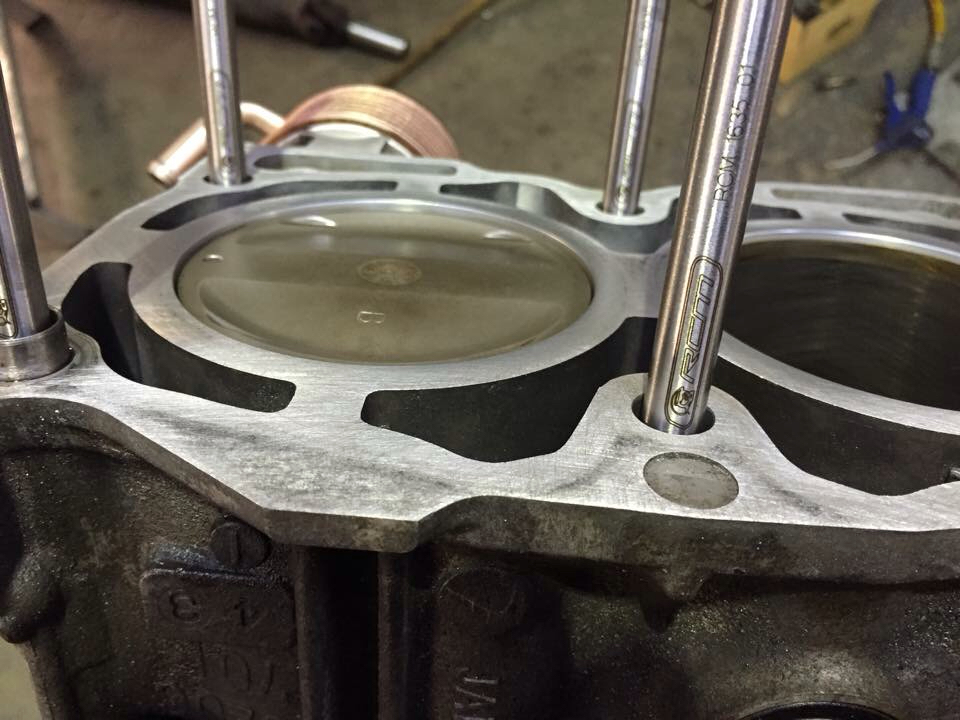

Name:  c73e31999890834847d6114c53bd4263_zpsdwxkxwci.jpg
Views: 0
Size:  395.6 KB
Name:  906b9ca0ddf1ff67fa6ccaa225a81964_zpsuj5o9g7y.jpg
Views: 0
Size:  455.4 KB
Name:  29a19231e1ed34e75bd6039c41e72fac_zpsztjloasd.jpg
Views: 0
Size:  549.8 KB
Name:  8798d3d49158253c6f9f60d8a5a0c279_zpshqszyz8j.jpg
Views: 0
Size:  455.9 KB
Name:  495d056bc35acb0d8ee95e68d21d0a56_zpsduxzr2xn.jpg
Views: 0
Size:  503.6 KB

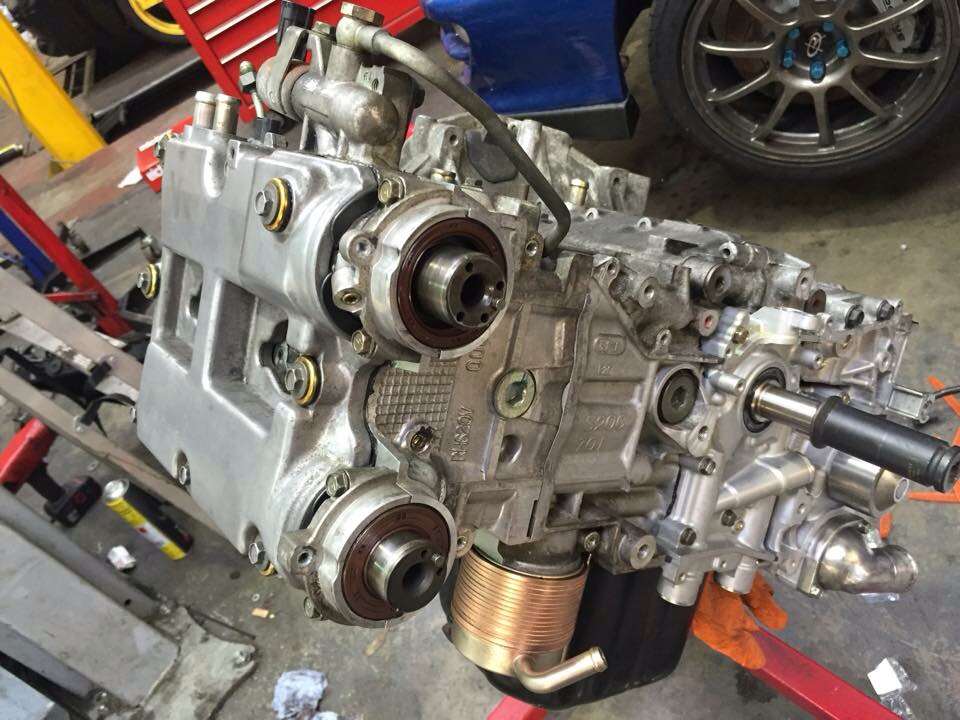

Name:  dd1d33ff72f60904cbe55f36f076b710_zps2u9zt2gt.jpg
Views: 0
Size:  543.5 KB
Name:  e7e22735f4be1ef431d47d6adfad7fee_zpsuc1wo4xb.jpg
Views: 0
Size:  418.7 KB
Name:  f5ca60ec8cb393d911500ec581a7e891_zpsycry4mq7.jpg
Views: 0
Size:  821.4 KB
Name:  d5a6fc028dabf3e7101a6620f8326eda_zpstgzvzwhx.jpg
Views: 0
Size:  808.6 KB
Name:  278da11574f16d68272e763ccd5292b3_zpspxpjy2kv.jpg
Views: 0
Size:  804.0 KB
bustaMOVEs is offline
Old 24 August 2015, 07:33 PM
  #136
Fonzey
Scooby Regular
iTrader: (5)

Fonzey's Avatar

Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,901
Default

Looking good dude. Did you find them washers I dropped into Cyl2 on Friday?

Last edited by Fonzey; 24 August 2015 at 07:34 PM.
Fonzey is offline
Old 24 August 2015, 07:47 PM
  #137
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by Fonzey View Post
Looking good dude. Did you find them washers I dropped into Cyl2 on Friday?
Yes took them out with my tweezers and planning to drop into yours when it's next in
bustaMOVEs is offline
Old 24 August 2015, 07:55 PM
  #138
Fonzey
Scooby Regular
iTrader: (5)

Fonzey's Avatar

Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,901
Default

Originally Posted by bustaMOVEs View Post
Yes took them out with my tweezers and planning to drop into yours when it's next in
Fonzey is offline
Old 05 September 2015, 12:12 PM
  #139
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Well had a bit of time to pop over to tims yesterday and fitted new water pipes to turbo, fitted a few sensors etc to block and put inlet on ready now for billet rails to run parallel.

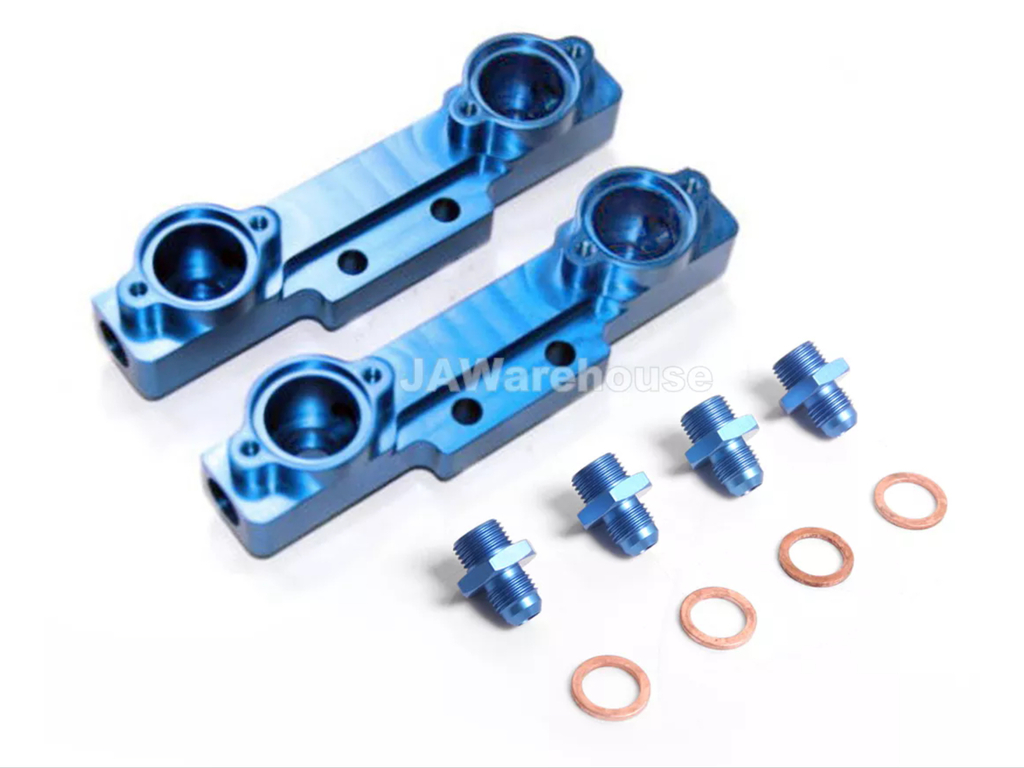

I've gone for the RAWerehouse rails as they have good reviews for a fraction of price compared to others.

Name:  c6b6f70f70cd2995d483614caf1acf50_zpsk1qmxjcp.jpg
Views: 0
Size:  347.8 KB

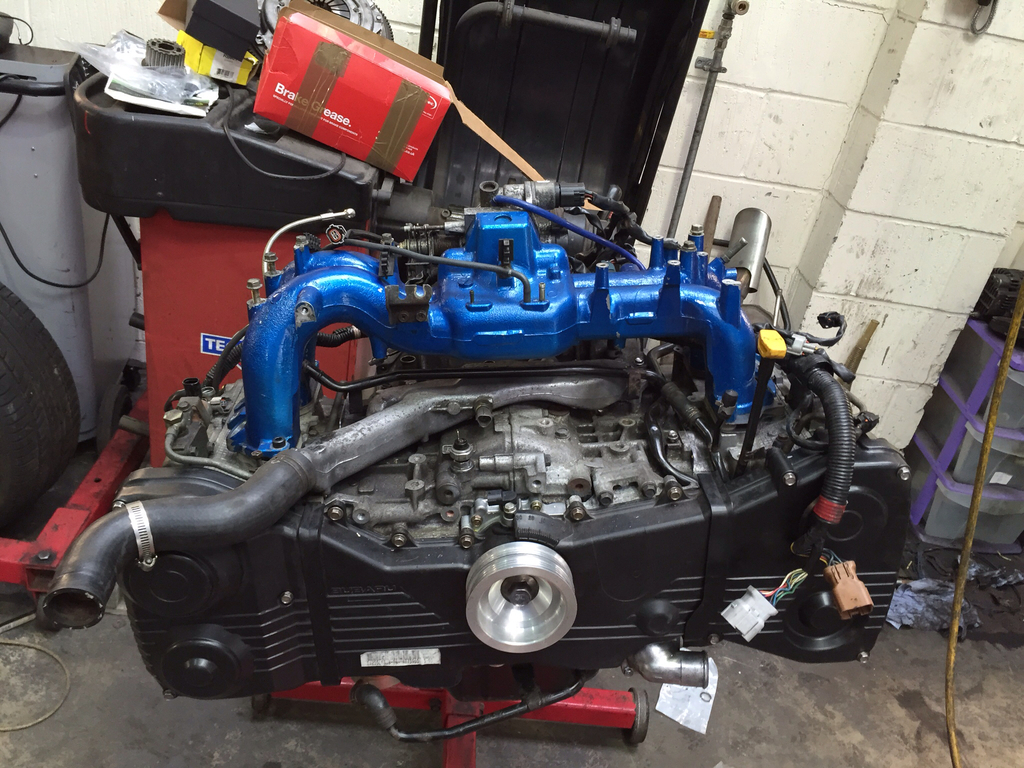

Name:  e79180ccab92a77c197601e7914212af_zpsjlkpph8w.jpg
Views: 0
Size:  861.7 KB

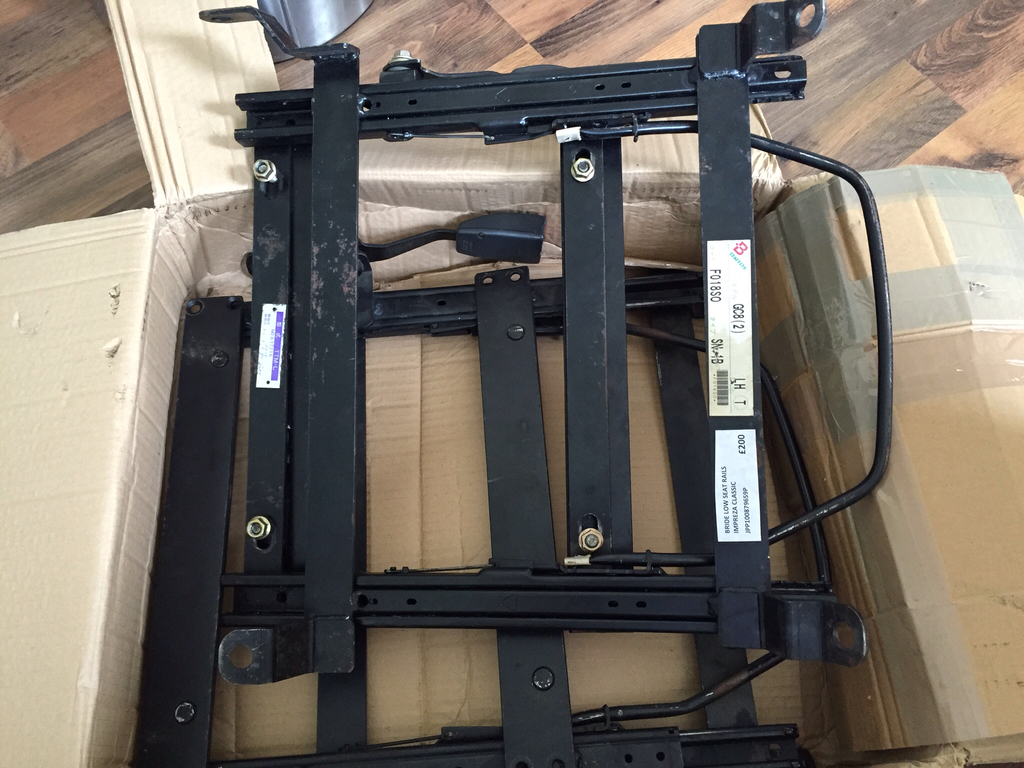

Also got some bride rails for my coberau seats as modding stock rails makes seats sit too high apparently so decided to buy proper rails instead.

Name:  cc74ccc1413a30a0c96d6e9053e3f72c_zpsqkxbgkvz.jpg
Views: 0
Size:  779.6 KB

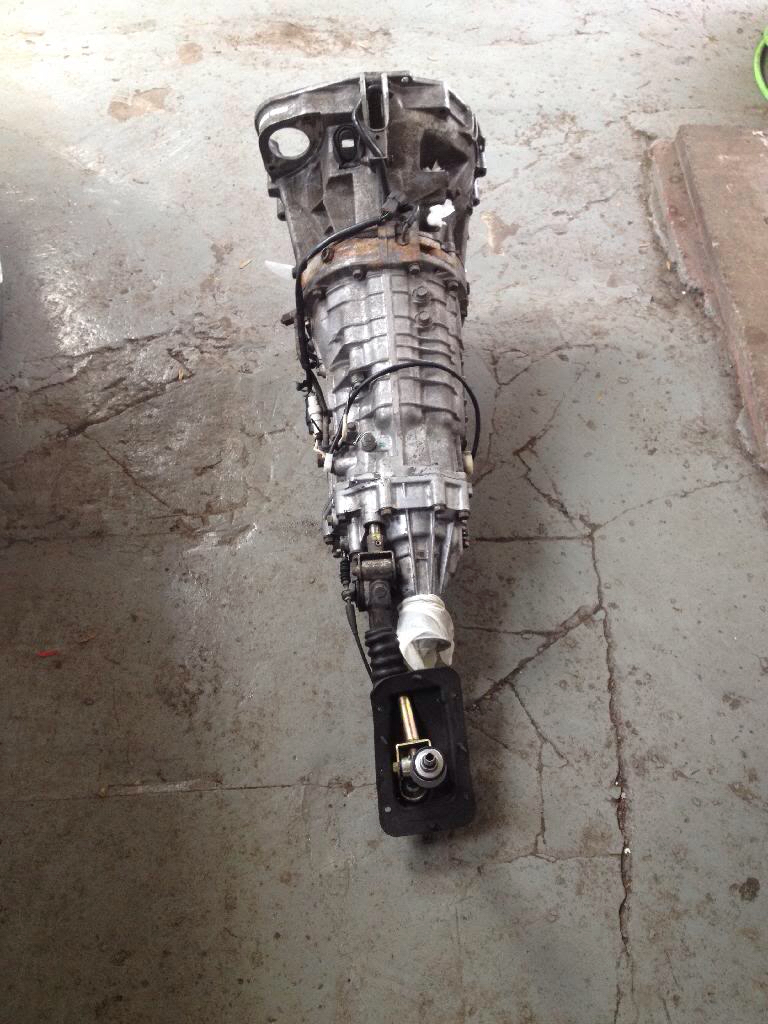

I also decided to get a 6 speed dccd box too, I've sourced a widetrack blob box but can't collect for a couple of weeks yet due to seller can't get to it.
It's had a rebuild with Carbon syncros.

Name:  e1d069fe5e40e243b2bd34ff1297b7f9_zpss3i3vft0.jpg
Views: 0
Size:  489.1 KB

Last edited by bustaMOVEs; 05 September 2015 at 12:13 PM.
bustaMOVEs is offline
Old 06 September 2015, 09:09 AM
  #140
joe v3sti
Scooby Regular
iTrader: (8)

joe v3sti's Avatar

Join Date: Dec 2011
Location: yorkshire
Posts: 3,084
Default

Good stuff Corky! If your gonna be running some power the 6speed will be your favourite mod
joe v3sti is offline
Old 06 September 2015, 11:07 AM
  #141
KAS35RSTI
Scooby Regular
iTrader: (73)

KAS35RSTI's Avatar

Join Date: May 2009
Location: 2.0 bar
Posts: 5,835
Default

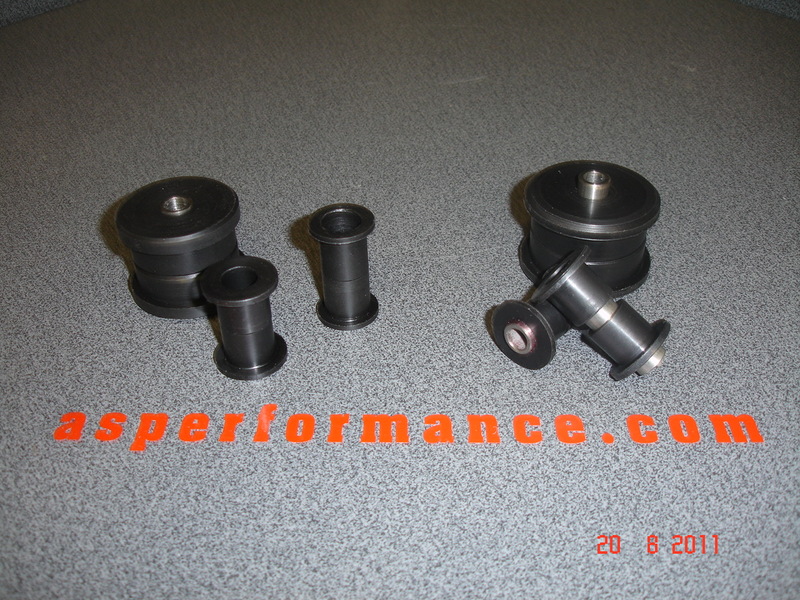

You may as well upgrade the shifter bushes as the box is out to something like Perrin or Kartboy
KAS35RSTI is offline
Old 06 September 2015, 11:45 AM
  #142
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by joe v3sti View Post
Good stuff Corky! If your gonna be running some power the 6speed will be your favourite mod
Hope so,just a big weight difference, but suppose it will hold down a bit of stability .

Originally Posted by KAS35RSTI View Post
You may as well upgrade the shifter bushes as the box is out to something like Perrin or Kartboy
Yes kas that's on the cards, just wait till box is nearer to collecting. P.s thanks for heads up on raw rails.
bustaMOVEs is offline
Old 06 September 2015, 12:30 PM
  #143
KAS35RSTI
Scooby Regular
iTrader: (73)

KAS35RSTI's Avatar

Join Date: May 2009
Location: 2.0 bar
Posts: 5,835
Default

Your welcome
KAS35RSTI is offline
Old 07 September 2015, 09:44 AM
  #144
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

Originally Posted by KAS35RSTI View Post
You may as well upgrade the shifter bushes as the box is out to something like Perrin or Kartboy

or you could sort the job totally with a complete custom kit from ourselves
(to my knowledge no-one else supplies the full set??)
AS Performance is offline
Old 07 September 2015, 05:18 PM
  #145
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by AS Performance View Post
or you could sort the job totally with a complete custom kit from ourselves
(to my knowledge no-one else supplies the full set??)
What's the 'compete custom kit'?
I'm ordering beatrush ones..
bustaMOVEs is offline
Old 08 September 2015, 11:11 AM
  #146
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

to my knowledge no one supplies uprated UJ bushes (which generally are the ones that actually wear) and we have found that it is this that makes the biggest difference to the shift quality for our competition/trackday customers...........
AS Performance is offline
Old 08 September 2015, 04:52 PM
  #147
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Originally Posted by AS Performance View Post
to my knowledge no one supplies uprated UJ bushes (which generally are the ones that actually wear) and we have found that it is this that makes the biggest difference to the shift quality for our competition/trackday customers...........
As said, what is the complete kit? UJ bushes? Would be better if you just posted a picture of what you supply and price.
bustaMOVEs is offline
Old 09 September 2015, 04:45 PM
  #148
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

our 6spd basic "kit" includes both the custom UJ bushes and the lower steady bush at 65inc./posted - we alkso stock rear steady bushes and an extensive range of other components......


and a small review

https://www.scoobynet.com/scoobynet-...ushes-wow.html

Last edited by AS Performance; 09 September 2015 at 04:56 PM.
AS Performance is offline
Old 09 September 2015, 04:55 PM
  #149
AS Performance
Former Sponsor
iTrader: (4)

Join Date: Feb 2013
Location: north east
Posts: 2,227
Default

whats the deal with Facebook links?? seems to not allow in my previous post, sorry......

Name:  imprezagearlinkagebushes_zpsknrr46kj.jpg
Views: 0
Size:  235.5 KB
AS Performance is offline
Old 09 September 2015, 07:17 PM
  #150
bustaMOVEs
Scooby Regular
Thread Starter
iTrader: (30)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,821
Default

Thanks Alyn, but I've now gone for the beatrush items including cradle bushes
bustaMOVEs is offline

Thread Tools
Search this Thread
Quick Reply: Well ok, here's my weekend/track project


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
