Performance friction pad fitting

Reply




Old 12 September 2018, 08:04 PM
  #1
m40ttc
Scooby Regular
Thread Starter

Join Date: Aug 2016
Location: The English riviera
Posts: 33
Default Performance friction pad fitting

Anyone had problems getting them to fit in their Calipers? Tried fitting mine tonight into my front brembos, 1 pad went straight in but the others were so tight on the sides had to sand them down to get them to slide in.
m40ttc is offline
Reply With Quote
Old 12 September 2018, 09:08 PM
  #2
1509joe
Scooby Regular
iTrader: (2)

Join Date: Jan 2009
Location: Not sure
Posts: 1,412
Default

Inspect your calipers first think you'll its them. Corrosion build up behind stainless guides.
1509joe is offline
Reply With Quote
Old 13 September 2018, 08:45 AM
  #3
Godspeed Brakes
THE braking specialist
iTrader: (259)

Godspeed Brakes's Avatar

Join Date: Dec 2000
Location: www.godspeedbrakes.co.uk
Posts: 7,827
Default

Yes as above , there will be corrosion under the pad plates in the calipers , bending them away from the caliper body , which make the pads a tight fit in the calipers , try and clean out under the plates , and bend them back , ideally you need to remove them , clean away the corrosion , apply some paint and refit , if you struggle to do this , last resort would be to take material off the backing plates of the pads , but have a good go at fixing the issue first
Cheers Ian
Godspeed Brakes is offline
Reply With Quote
Old 13 September 2018, 10:15 AM
  #4
EndaITR
Scooby Regular

Join Date: May 2016
Location: Dublin, ireland
Posts: 182
Default

My callipers were fully disambled and cleand prior to the pfz pads. Had same issue one side slotted in but the other side needes a tiny bit of sanding to the bottom and top of the backing plate, 2 sec job
EndaITR is offline
Reply With Quote
Old 13 September 2018, 10:26 AM
  #5
Godspeed Brakes
THE braking specialist
iTrader: (259)

Godspeed Brakes's Avatar

Join Date: Dec 2000
Location: www.godspeedbrakes.co.uk
Posts: 7,827
Default

Originally Posted by EndaITR View Post
My callipers were fully disambled and cleand prior to the pfz pads. Had same issue one side slotted in but the other side needes a tiny bit of sanding to the bottom and top of the backing plate, 2 sec job
Did you remove the pad plates and clean the corrosion away ? or did you just clean the calipers on top of the pad plates ?
Godspeed Brakes is offline
Reply With Quote
Old 13 September 2018, 02:00 PM
  #6
Gambit
Scooby Regular
iTrader: (6)

Join Date: May 2003
Location: Belfast
Posts: 2,399
Default

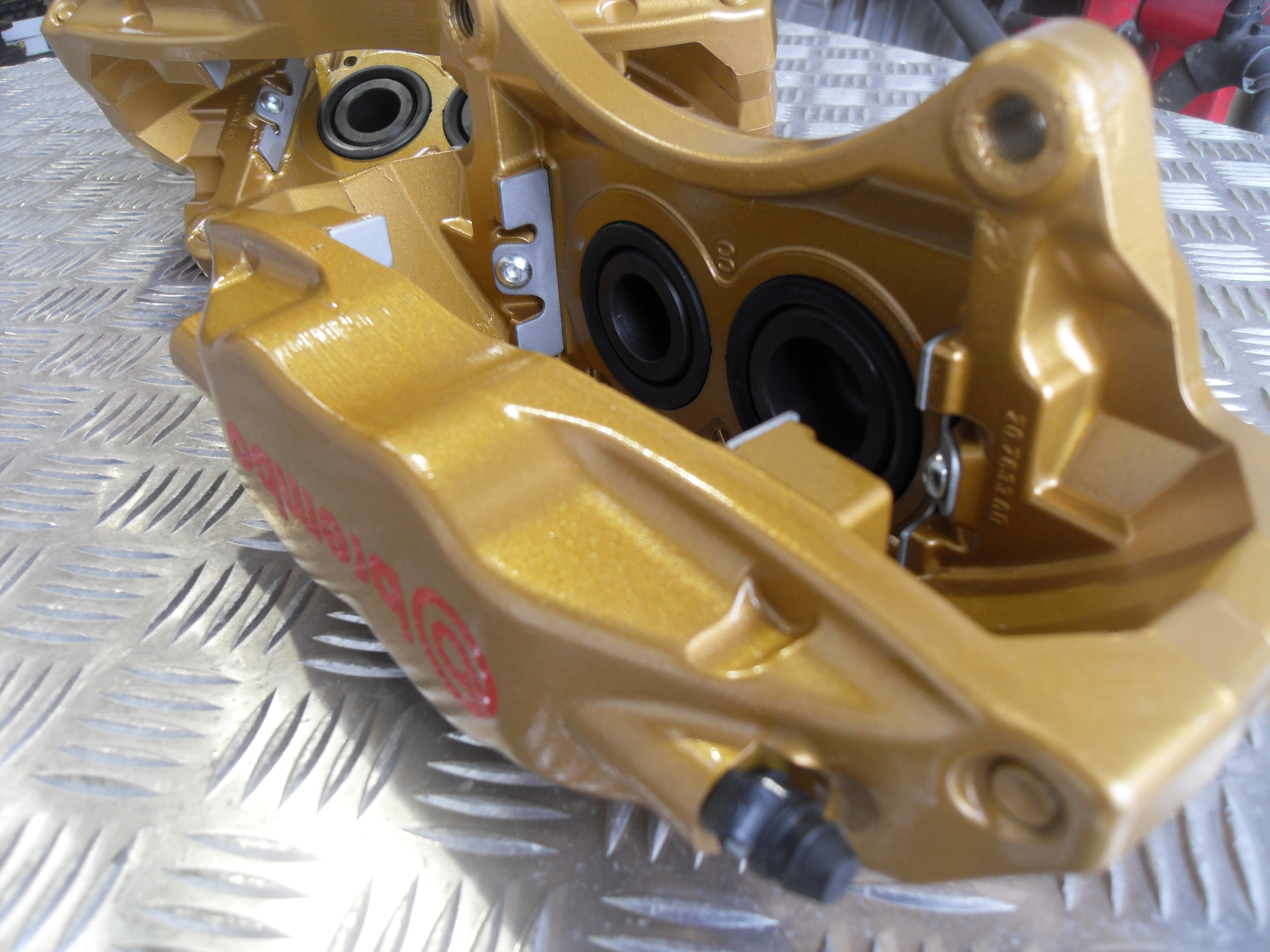

picture of the pad plates

https://www.scoobynet.com/attachment...2&d=1501884664

taken from godspeed thread
https://www.scoobynet.com/trader-ann...-calipers.html
Gambit is offline
Reply With Quote
Old 14 September 2018, 09:19 AM
  #7
EndaITR
Scooby Regular

Join Date: May 2016
Location: Dublin, ireland
Posts: 182
Default

Originally Posted by Godspeed Brakes View Post
Did you remove the pad plates and clean the corrosion away ? or did you just clean the calipers on top of the pad plates ?
Originally Posted by Gambit View Post
Yes as I had stripped them to make them shiny again

Im talking a bare minimum sanding of the pad backing plate here, it was just to free it up a bit, otherwise it was very tight, im not complaining.. ive often had to do it on other
EndaITR is offline
Reply With Quote
Old 15 September 2018, 03:09 PM
  #8
m40ttc
Scooby Regular
Thread Starter

Join Date: Aug 2016
Location: The English riviera
Posts: 33
Default

Thanks for that guys, it was corrosion behind the sliders 👍👍
