horrible shaking/vibrating when applying brakes
#1
Scooby Newbie
Thread Starter
Join Date: Oct 2014
Location: driffield
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
horrible shaking/vibrating when applying brakes
Hi guys, wondering if someone can point me in the right direction. I have a version one wrx import, 4 pot fronts and 2 pot rears. The car failed its mot on low front pads, which I changed. It felt fine at first, but a vibration developed shortly after when breaking. Its now no longer a vibration but a hard shake and is almost undriveable. Few things I should point out, There was a couple of siezed pistons in my front calipers which I've sorted, I didn't change the discs when I did the pads as they looked OK apart from a grove in the front drivers side. Also I believe the rear tracking is out as I've noted the inside edge of the tyres on the back have worn down, so it needs two new tyres on the back. The shaking comes through the whole car not just the steering wheel, and seems to get worse when warmed up. I'm guessingiI've probably got warped discs on front but just wondering if anyone has any suggestions what else it may be. Any advice will be greatly appreciated.
#2
Mate definitely warped discs I had exactly the same on my 05 wrx changed the discs no problems since, mine was worth when it was warm as well, did surprise me though as my scoobys only covered 38 thousand
#3
Scooby Regular
iTrader: (3)
Join Date: Jan 2013
Location: Oxford
Posts: 739
Likes: 0
Received 0 Likes
on
0 Posts
It's due to cheap pads,
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.
#4
Scooby Newbie
Thread Starter
Join Date: Oct 2014
Location: driffield
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Thanks man sounds like that's the issue then, I'll give it a shot
#5
Scooby Newbie
Thread Starter
Join Date: Oct 2014
Location: driffield
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
[QUOTE=InTurbo;11775491]It's due to cheap pads,
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.[/QUOTE
Thanks for the reply but I didn't use cheap pads I used brembo pads
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.[/QUOTE
Thanks for the reply but I didn't use cheap pads I used brembo pads
#6
Scooby Regular
iTrader: (51)
It's due to cheap pads,
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.
They transfer uneven pad deposits on to the disc causing a vibrating affect when the brakes are warm.
Biggest cause of pad transfer is poor quality pads, but it can still happen by having hot brakes and sitting at the lights with your foot on the brake rather than using the handbrake.
This causes the pad to be held against the hot disc causing the pad material to be transferred on to the disc.
If it was a warped disc it would vibrate from cold at any speed.
Trending Topics
#9
Scooby Regular
iTrader: (3)
Join Date: Jan 2013
Location: Oxford
Posts: 739
Likes: 0
Received 0 Likes
on
0 Posts
Like I mentioned can happen with good pads if you sit at light with foot on the brake when there hot.
You mentioned it only happens when car is hot. A warped disc would be apparent from cold!
You mentioned it only happens when car is hot. A warped disc would be apparent from cold!
Last edited by InTurbo; 27 December 2015 at 06:16 PM.
#12
Scooby Regular
iTrader: (3)
Join Date: Jan 2013
Location: Oxford
Posts: 739
Likes: 0
Received 0 Likes
on
0 Posts
If you have vibrations from pad deposits you can try a few methods.
You can try and re bed the pads, but from past experience this has never worked for me,
Other option thats not ideal but does work is to remove the discs from the car and give them a good clean with some very fine wet and dry sandpaper on both sides of the disc.
Last would be a disc skim or a set of new discs.
If that's works but after a while the vibrations come back then the pads are not up to the abuse your giving them or driver error by keeping your foot on the brake.
On one of my previous cars the previous owner fitted mintex pads.
I would constantly end up getting pad deposits regardless of proper use of handbrake and cooling the brakes down after a thrash.
After having to clean the discs a few times I fitted a fast road pad and the problem vanished.

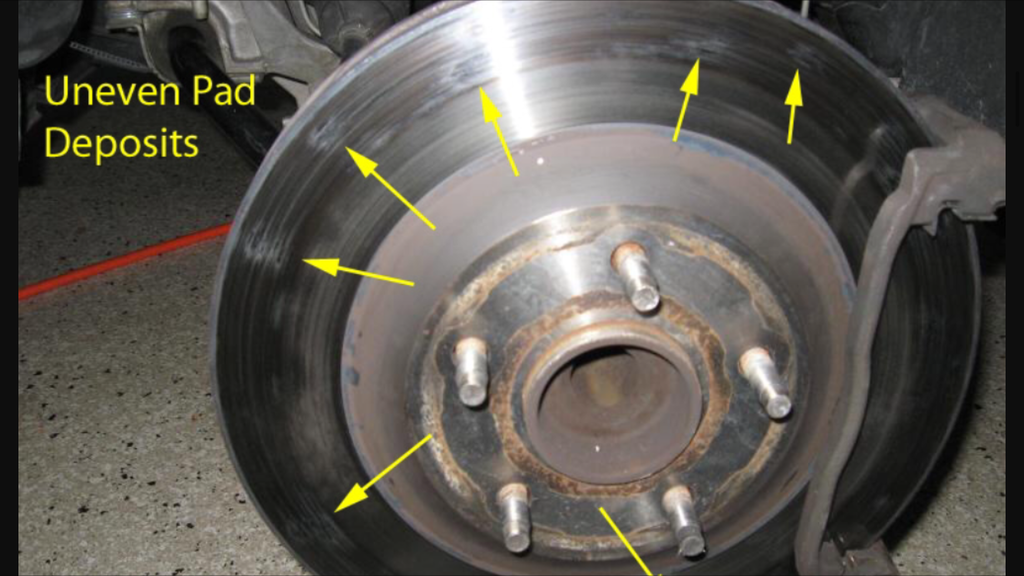

Give you an idea of what your looking for, first pic is pad shape marks from keeping your foot on the brake when there hot.

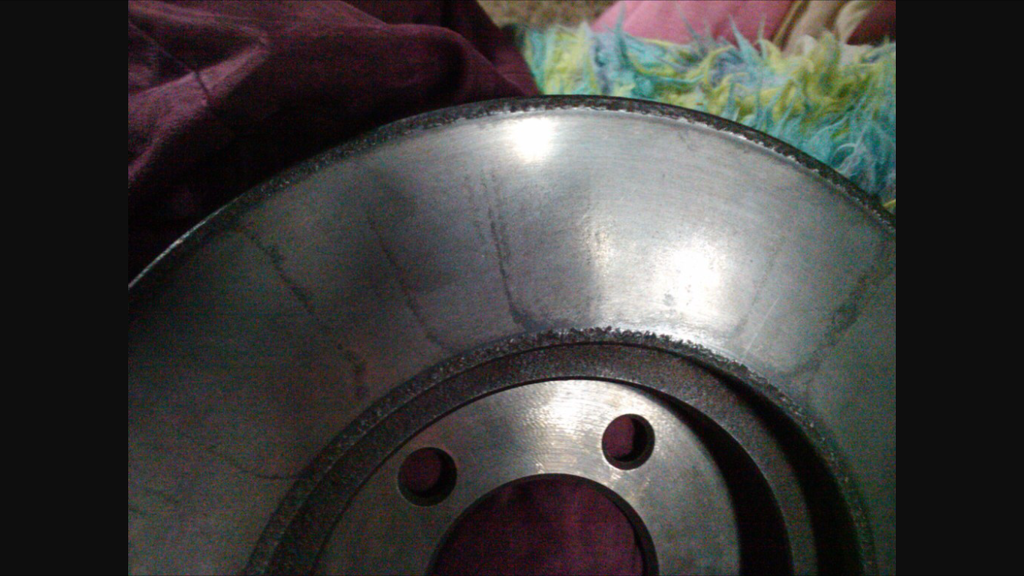

Second is uneven pad transfer from pads that have gotten to hot or just crap.
Last edited by InTurbo; 27 December 2015 at 09:08 PM.
#15
Scooby Regular
iTrader: (4)
Firstly, sorry for hijacking the thread. I am having the same issue, to sum up a severe juddering in the car when applying the brakes which is not there at first, though makes the car undriveable when warmed up. I should also mention that the DTC light is also illuminated.
I have new ScoobyWorx SWRD discs and Black Diamond Predator pads (Fitted less than 1000 miles ago) and have checked the discs for signs of deposits as posted above though none are present. Any thoughts? Could it be something to do with the ABS system?
Thanks in advance.
I have new ScoobyWorx SWRD discs and Black Diamond Predator pads (Fitted less than 1000 miles ago) and have checked the discs for signs of deposits as posted above though none are present. Any thoughts? Could it be something to do with the ABS system?
Thanks in advance.
#16
Scooby Regular
iTrader: (3)
Firstly, sorry for hijacking the thread. I am having the same issue, to sum up a severe juddering in the car when applying the brakes which is not there at first, though makes the car undriveable when warmed up. I should also mention that the DTC light is also illuminated.
I have new ScoobyWorx SWRD discs and Black Diamond Predator pads (Fitted less than 1000 miles ago) and have checked the discs for signs of deposits as posted above though none are present. Any thoughts? Could it be something to do with the ABS system?
Thanks in advance.
I have new ScoobyWorx SWRD discs and Black Diamond Predator pads (Fitted less than 1000 miles ago) and have checked the discs for signs of deposits as posted above though none are present. Any thoughts? Could it be something to do with the ABS system?
Thanks in advance.
#18
Scooby Regular
iTrader: (2)
Are we certain you THOROUGHLY cleaned the disc to hub mating surfaces?
A garage near us recently fitted all new brakes on my lad's Clio 197 Sport...they only got the fronts on the wrong sides, (grooved), and the disc to hub mating surfaces were far from clean when we swapped 'em over.
A garage near us recently fitted all new brakes on my lad's Clio 197 Sport...they only got the fronts on the wrong sides, (grooved), and the disc to hub mating surfaces were far from clean when we swapped 'em over.
