AST Suspension - 5300 Series Coilover System - 3 Way

Old 02 February 2018, 10:30 AM
  #1
[email protected]
Scooby Regular
Thread Starter

Join Date: Dec 2017
Location: Bristol
Posts: 31
Default AST Suspension - 5300 Series Coilover System - 3 Way

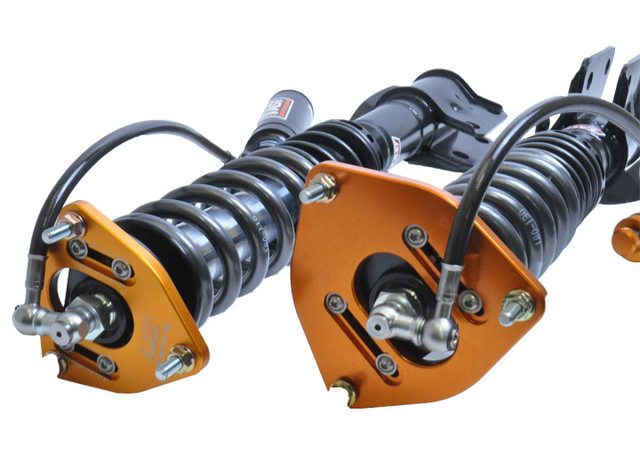

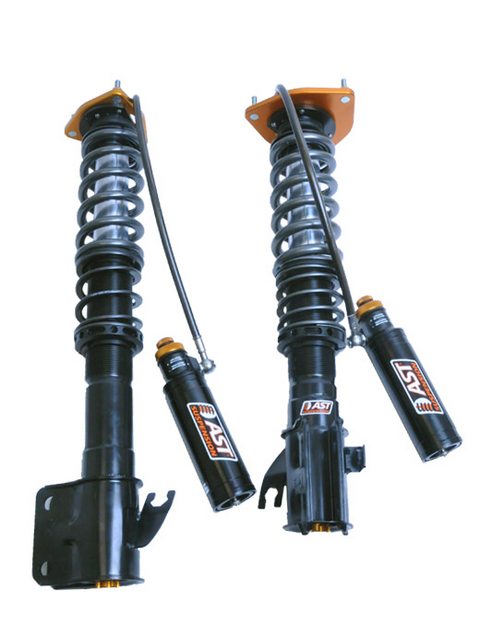

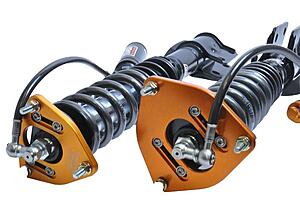

AST Suspension - 5300 Series Coilover System - 3 Way



For the absolute best performance on the track, AST Suspension designed the Competition 3-way adjustable series. The 5300 Series shock absorbers are rebound adjustable in 12 positions on the strut.

The high-speed compression is adjustable in 12 positions and the low-speed compression is adjustable in 14 positions. Both compression adjustments are made using an external canister. All adjusters work completely independent.

Many years of technical knowledge, testing and experience has been refined, fettled and brought together to create a perfect balance between the choice of springs and the corresponding damping characteristics. This makes it a versatile product for every customer. The 5300 series shock absorbers are the best solution for every race team. Once installed te shock absorbers are easy to setup, highly reliable and require low maintenance during the season because of the high grade of materials used.

All of this together makes the 5300 series shock absorbers a championship winning damper, over and over again. The AST 5300 Suspension is worldwide renowned for its performance at every level.



Benefits include
- High end, track ready suspension
- Rebound, Low & Hi Speed Compression Adjustable, with a remote reservoir
- Remote reservoirs allow additional travel, heat dissipation and oil/nitrogen gas capacity
- 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking maneuvers
- Aluminum cylinder, threaded body shocks, factory mounting style
- New low friction seal on all AST dampers
- Spherical lower eye shock mounts
- Reservoir with hose or piggyback (piggyback examples: ’08 STI)
- Spherical upper shock mount assemblies
- Synthetic hydraulic fluid
- Optional DLC Coated 44,5mm inverted shafts
- Optional DDP piston (double digressive)
- Fully serviceable and rebuildable
- Revalvable for specific characteristics

4,224.00 Including VAT and Shipping. Contact us via Message here, on 01173012542 or [email protected]


Last edited by [email protected]; 02 February 2018 at 10:34 AM.
Simon@AST is offline
Old 02 February 2018, 10:37 AM
  #2
SmurfyBhoy
Scooby Regular

SmurfyBhoy's Avatar

Join Date: May 2014
Location: Glasgow
Posts: 2,037
Default

I am still recovering from my kidney removal for the 5200's you recently shared

Now you go and do this to me,

Anymore bodyparts sold and i won't be able to type
