EJ-Audi 6 speed conversion parts, flywheel, clutch etc
Some parts I have just removed from my Impreza running the ultra strong and affordable Audi O1E 6 speed gearbox. Covered 10,000 mile in the past 18 months these parts are well proven, the flywheel alone would cost hundreds to manufacture. I have changed to an organic setup and at the same time I have changed the flywheel (no longer need the paddle for drag racing)
The clutch system is mk4 golf V6 4motion/R32 etc so is readily available should you need in the future.

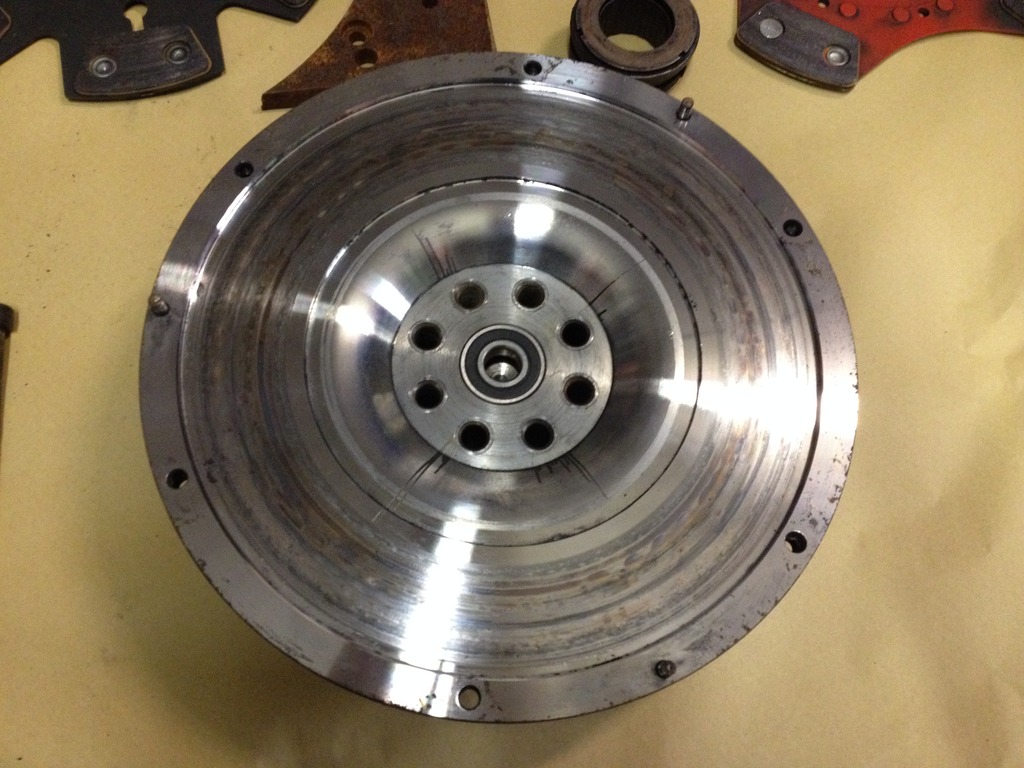

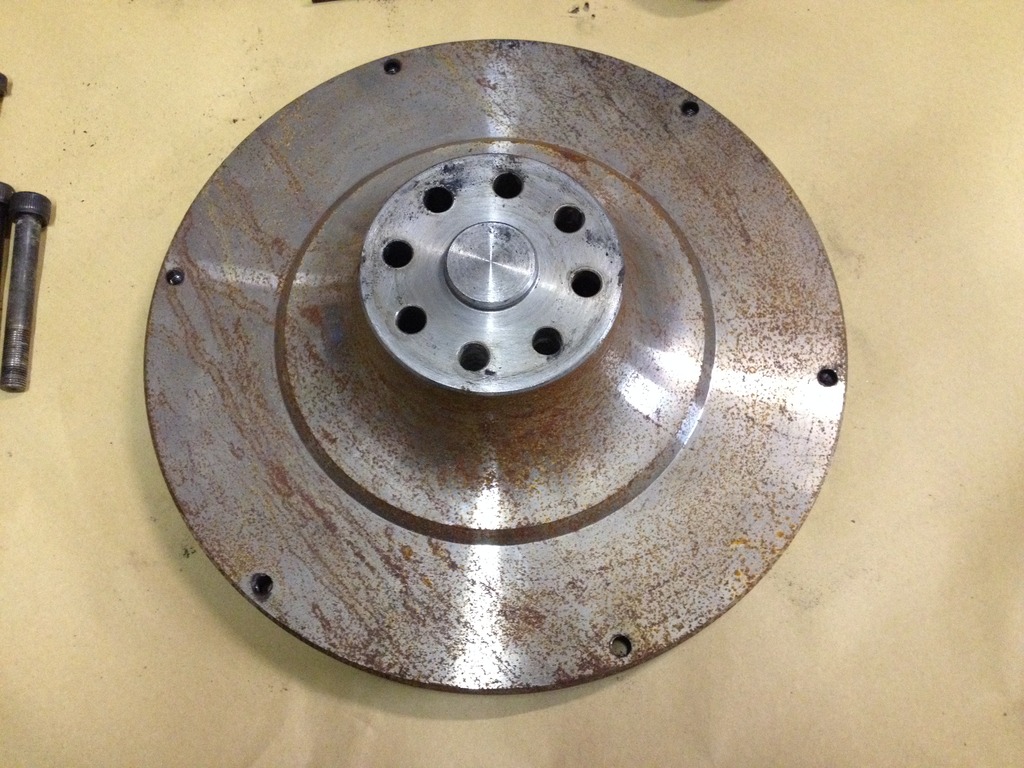

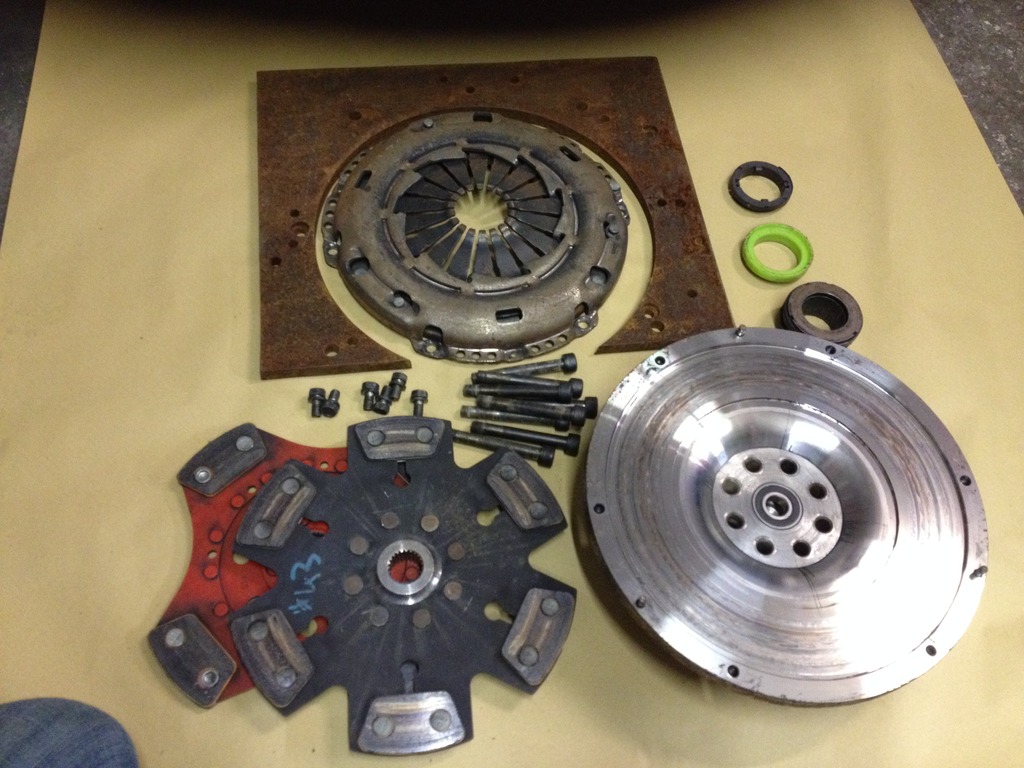

Included: Bespoke 4140 high alloy steel billet flywheel, made to suit the impreza engine (all EJ) and the Audi O1E gearbox with a 12.5mm thick adaptor in place.

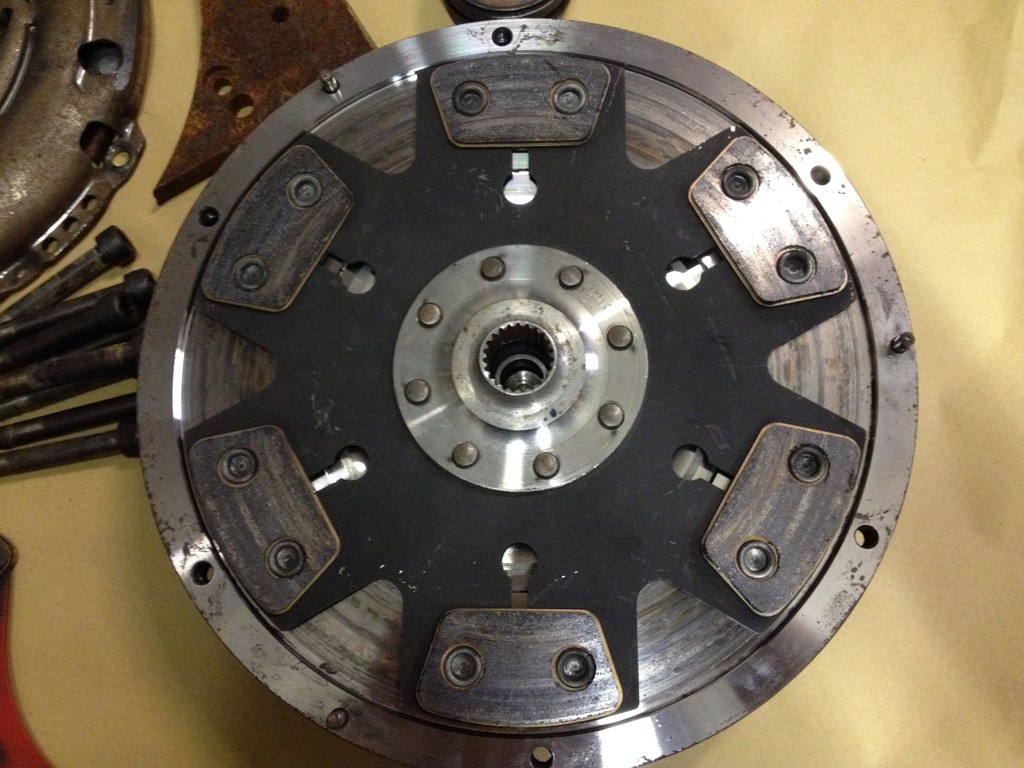

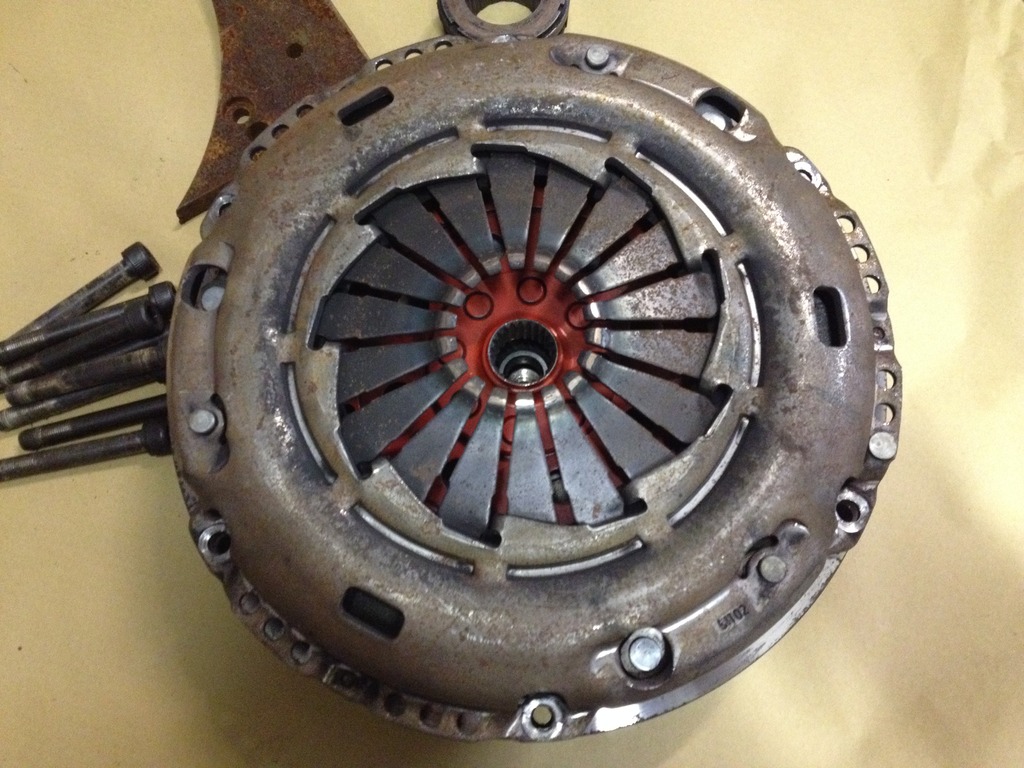

Used clutch cover and Tilton 6 puk clutch (showing signs of use but still perfectly servicable)

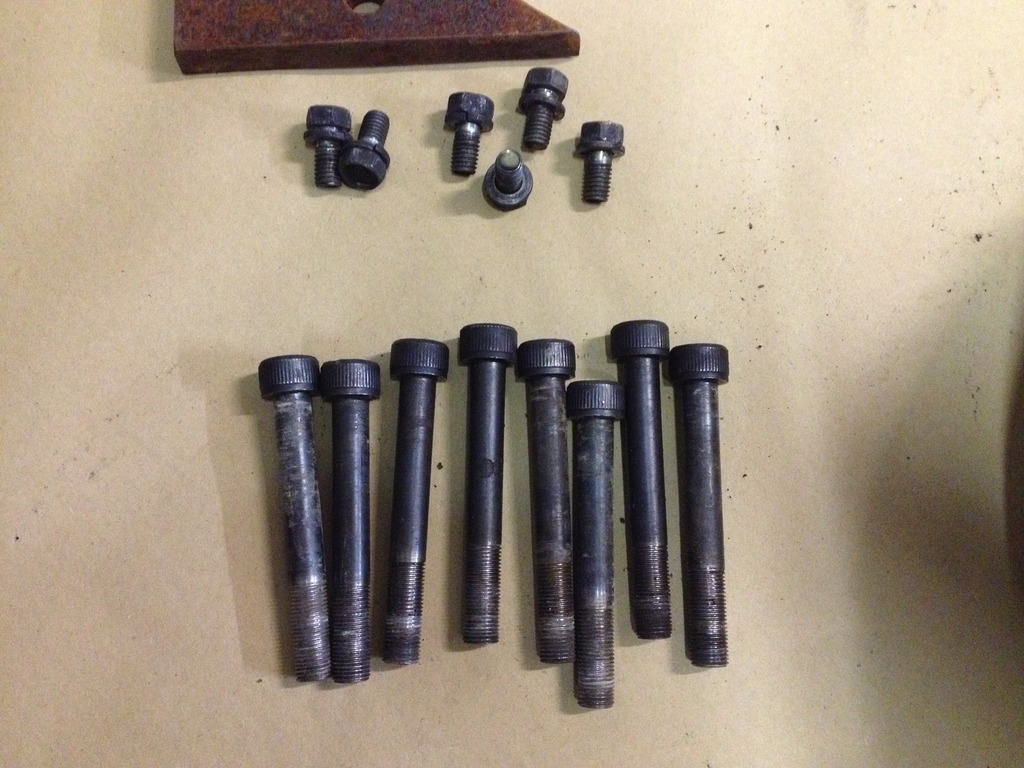

Clutch cover bolts, spigot bearing, high tensile Flywheel bolts are also included.

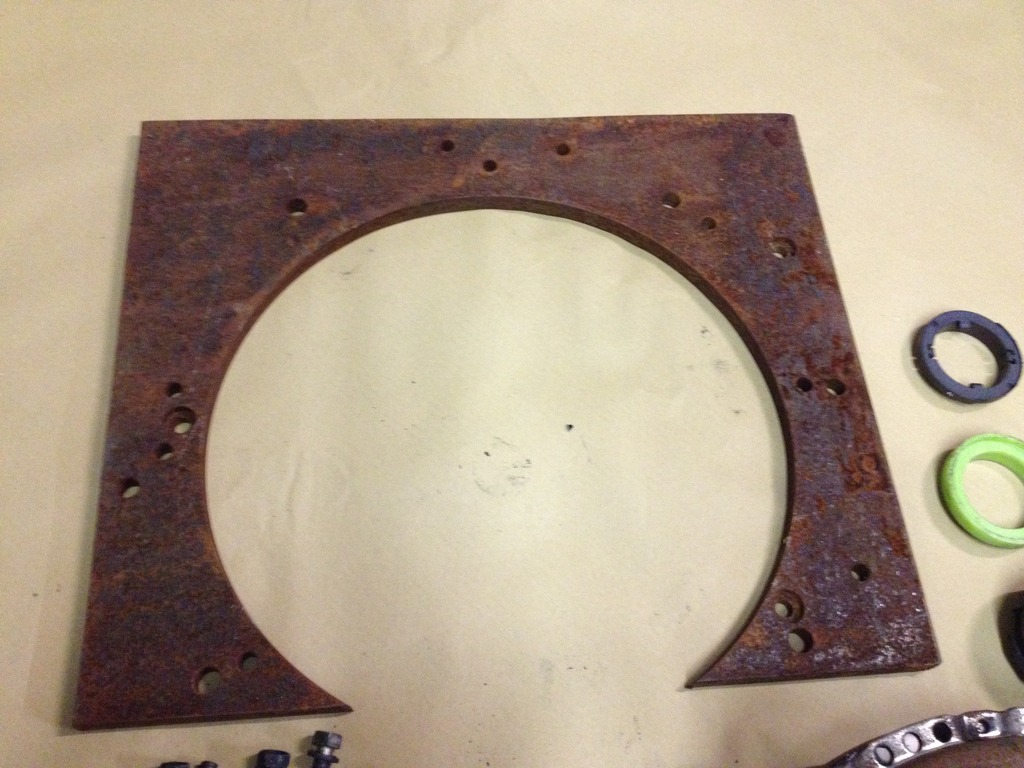

What I have also included (and these parts will require some work as they have not been fitted) is a plastic ring to insert magnets into for the speedo conversion and also a 12.5mm thick adaptor plate that has some holes drilled in it in the INCORRECT place, but could be plug welded and re drilled (its the same basic shape as the plate I am running).
I don't need these parts lying around and think it would give someone the ideal opportunity to do something very similar to what I have done with my car.
Parts you would need: audi gearbox, prop and rear diff, Audi gear remote. I think I have two front shafts available (perhaps at extra cost) however you would have to have some rears made. I'm sorry I have no time to make these parts just now. What you will need is a bit of imagination and some skill to make the gearbox and diff mounts, gear linkage etc, however there are extensive picture on my build thread and i am also here to answer questions, it doesnt really get much easier!
Looking for £100 plus whatever the postage would be to your area, not looking to retire out of it!

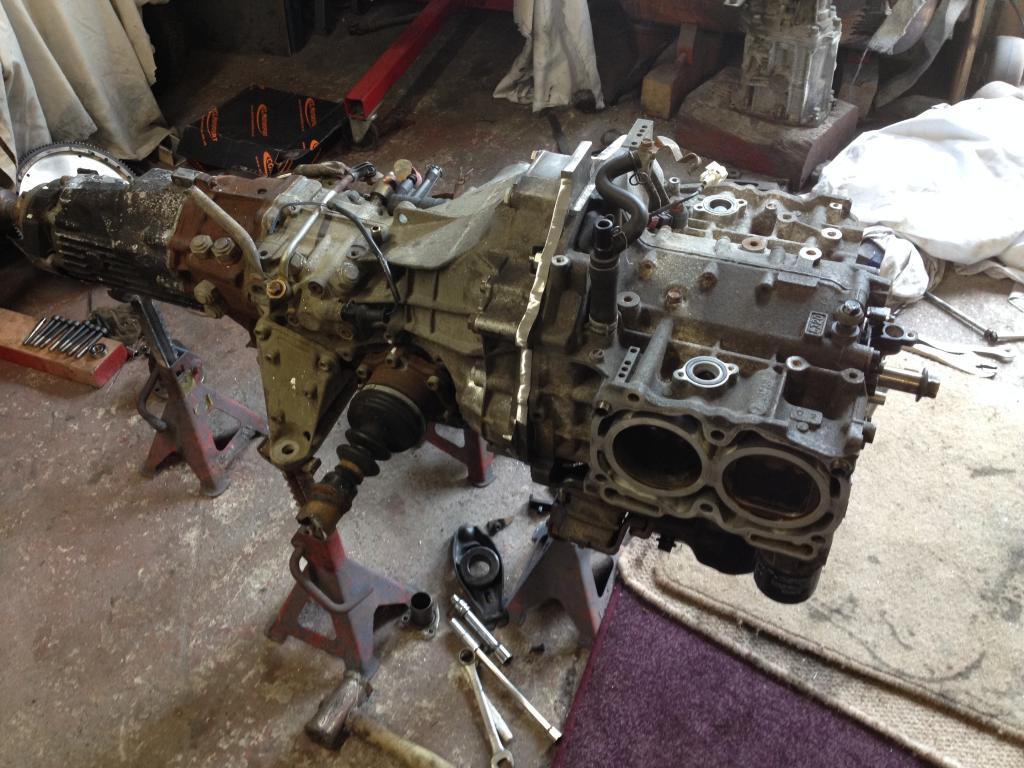

Also an overview of the engine and box mated together for your reference:
The clutch system is mk4 golf V6 4motion/R32 etc so is readily available should you need in the future.
Included: Bespoke 4140 high alloy steel billet flywheel, made to suit the impreza engine (all EJ) and the Audi O1E gearbox with a 12.5mm thick adaptor in place.
Used clutch cover and Tilton 6 puk clutch (showing signs of use but still perfectly servicable)
Clutch cover bolts, spigot bearing, high tensile Flywheel bolts are also included.
What I have also included (and these parts will require some work as they have not been fitted) is a plastic ring to insert magnets into for the speedo conversion and also a 12.5mm thick adaptor plate that has some holes drilled in it in the INCORRECT place, but could be plug welded and re drilled (its the same basic shape as the plate I am running).
I don't need these parts lying around and think it would give someone the ideal opportunity to do something very similar to what I have done with my car.
Parts you would need: audi gearbox, prop and rear diff, Audi gear remote. I think I have two front shafts available (perhaps at extra cost) however you would have to have some rears made. I'm sorry I have no time to make these parts just now. What you will need is a bit of imagination and some skill to make the gearbox and diff mounts, gear linkage etc, however there are extensive picture on my build thread and i am also here to answer questions, it doesnt really get much easier!
Looking for £100 plus whatever the postage would be to your area, not looking to retire out of it!
Also an overview of the engine and box mated together for your reference:
Last edited by boosted; Oct 23, 2015 at 08:35 AM.
Thread Starter
Scooby Regular
Joined: Jul 2011
Posts: 2,514
Likes: 1
From: harlow
Some parts I have just removed from my Impreza running the ultra strong and affordable Audi O1E 6 speed gearbox. Covered 10,000 mile in the past 18 months these parts are well proven, the flywheel alone would cost hundreds to manufacture. I have changed to an organic setup and at the same time I have changed the flywheel (no longer need the paddle for drag racing)
The clutch system is mk4 golf V6 4motion/R32 etc so is readily available should you need in the future.
Included: Bespoke 4140 high alloy steel billet flywheel, made to suit the impreza engine (all EJ) and the Audi O1E gearbox with a 12.5mm thick adaptor in place.
Used clutch cover and Tilton 6 puk clutch (showing signs of use but still perfectly servicable)
Clutch cover bolts, spigot bearing, high tensile Flywheel bolts are also included.
What I have also included (and these parts will require some work as they have not been fitted) is a plastic ring to insert magnets into for the speedo conversion and also a 12.5mm thick adaptor plate that has some holes drilled in it in the INCORRECT place, but could be plug welded and re drilled (its the same basic shape as the plate I am running).
I don't need these parts lying around and think it would give someone the ideal opportunity to do something very similar to what I have done with my car.
Parts you would need: audi gearbox, prop and rear diff, Audi gear remote. I think I have two front shafts available (perhaps at extra cost) however you would have to have some rears made. I'm sorry I have no time to make these parts just now. What you will need is a bit of imagination and some skill to make the gearbox and diff mounts, gear linkage etc, however there are extensive picture on my build thread and i am also here to answer questions, it doesnt really get much easier!
Looking for £100 plus whatever the postage would be to your area, not looking to retire out of it!
Also an overview of the engine and box mated together for your reference:
The clutch system is mk4 golf V6 4motion/R32 etc so is readily available should you need in the future.
Included: Bespoke 4140 high alloy steel billet flywheel, made to suit the impreza engine (all EJ) and the Audi O1E gearbox with a 12.5mm thick adaptor in place.
Used clutch cover and Tilton 6 puk clutch (showing signs of use but still perfectly servicable)
Clutch cover bolts, spigot bearing, high tensile Flywheel bolts are also included.
What I have also included (and these parts will require some work as they have not been fitted) is a plastic ring to insert magnets into for the speedo conversion and also a 12.5mm thick adaptor plate that has some holes drilled in it in the INCORRECT place, but could be plug welded and re drilled (its the same basic shape as the plate I am running).
I don't need these parts lying around and think it would give someone the ideal opportunity to do something very similar to what I have done with my car.
Parts you would need: audi gearbox, prop and rear diff, Audi gear remote. I think I have two front shafts available (perhaps at extra cost) however you would have to have some rears made. I'm sorry I have no time to make these parts just now. What you will need is a bit of imagination and some skill to make the gearbox and diff mounts, gear linkage etc, however there are extensive picture on my build thread and i am also here to answer questions, it doesnt really get much easier!
Looking for £100 plus whatever the postage would be to your area, not looking to retire out of it!
Also an overview of the engine and box mated together for your reference:
Thread Starter
Scooby Regular
Joined: Jul 2011
Posts: 2,514
Likes: 1
From: harlow
Just seen this - I'm interested for a project of mine, however I will have to do some measuring first to see if the box will fit my project.
I would need the spare front shafts as well, if possible, so how much would you want for all the spare bits you have?
I would need the spare front shafts as well, if possible, so how much would you want for all the spare bits you have?
Thread Starter
Scooby Regular
Joined: Jul 2011
Posts: 2,514
Likes: 1
From: harlow
I will have to check the shed for the front shafts, be looking for £100 for this lot and £50 for front shafts. Plus the postage. Cheers
