Impreza v6 sprint / hill climb car
Selling my car, I have a build thread on here if you want to see the build
Price is £16000 with private reg V2WRC
Impreza spec
Impreza GC8 version 6 Japanese Import (JDM)
Shell:
Full Multi-point Weld in Roll cage Sprayed Green
Welded Seat mount bars,
Heated Front Screen with step down stage Controller
RA Roof Flap Kit
P2000 WRC rear wing with carbon blade
22b/RA Limited Narrow body Front Bumper Customised with smooth fogs for aero
Genuine 22b bonnet air intakes
RCM Carbon Reverse Bonnet vent Sprayed Black
WRC carbon wing mirrors
Lockable Carbon Effect aero catches
Kevlar WRC sill protectors
All JDM spats and bumper moulds removed for smoother look
Arches rolled and flaired to accommodate GDB Wider Running Gear and Wheels
Re-sprayed in OE 51e paint (shines a treat)
All Sound deadening removed along with any unneeded wiring etc
Chassis:
All Running Gear from GDB STI (wider arms, most castor / camber adjust etc)
Front GDB Frame Powdercoated Black and Polybushed
13:1 GDB Spec C Quick rack with custom modified UJ.
GDB Front Alloy Arms powder coated Green
Front 22mm Eibach anti Roll bar super pro Bushes and Links
Rear GDB Frame & Arms
R180 Rear Conversion using GBD parts, shafts hubs etc
Rear 24mm eibach anti roll bar Super Pro Bushes and Links
AST Tarmac spec 3-way adjustable Coilover suspension with adjustable top mounts and external canisters. Just had overhaul with new valves, Seals etc
Genuine Clean STI Carbon Strut Brace
Engine / Transmission / Brakes
5 speed DCCD low ratio 4:444 gearbox, Stronger 54 Casing and just undergone full rebuild with all new bearings, syncros etc
5 speed Excedy Pink box Clutch
RCM lightend Flywheel
Rear R180 LSD 4:444 matching Diff
Rear Brembo 2 pot calipers painted Black Ferodo DS2500 pads
310mm discs (New)
Front 6 pot Cosworth AP Calipers Project Mu race pads(awesome braking power)
355mm Genuine AP bells and rotors
Full HEL braided lines throughout the car.
Vertical Hydraulic Handbrake
Genuine AP Bias Valve
Revolution Millenium 18x8 wheels with R888s toyos
Engine Newage GDB Block
Forged Pistons
GC8 V6 Heads & Cams
Steel Headgaskets
ACL Bearings
RCM baffled sump
Mocal oil catch tank
Modified Oil Pump
Setrab 24 Row Oil Cooler, Braided Goodridge Lines, all Genuine Speedflow connectons (not cheap stuff)
VF34 Turbo Charger
Turbosmart Boost Controller
Inverted Front mounted cooler (Toyosports Core painted Black)
Custom made cooler pipes from stainless and alloy ( polished and custom routed under headlights for shortend route)
Modified inlet manifold mirror polished
Mirror polished and podercoated header tank with STI Cap
RCM induction trumpet with KnN cone filter
Full SFS black silicon hoses with custom made intake and induction hoses
GDB Power steering Conversion with custom lines and speedflow connections
RCM Pullys
RCM slam panel
Polished Alternator with modified bracket and Genuine STI Aux Belt (polished tentioner)
All bolts and clips nickel plated
Green modified throttle body
Custom made fuel rails with -6 fittings, powder coated with 550cc side feed injectors
Custom Goodridge parallel fuel engine feed lines
Custom fuel filter polished
Custom pfd fuel lines throughout car to Speedflow fittings to tank with GDB spec c In tank anti surge pickup with Aeromotive fuel pump & Aeromotive Fuel Pressure Regulator.
Engine dress up parts i.e STI oil cap, Battery Tray Removed, sprayed etc
Solid engine mounts
RCM GT Spec stainless exhaust manifold
Haywood & Scott De-catted down pipe, center pipe and back box.(Track Friendly Levels)
RCM up pipe
Battery relocated to behind passenger seat (oddesey pc680)
Cartek Electronic Kill Switch
Washer bottle relocated to in car behind passenger seat(de clutter engine bay and weight distribution)
Custom made vehicle Loom, stripped out and lightened, all mechanisms taken from doors, all excess wires cut out ( a lot of time was spent doing this) saving weight and tidying up the over all look.

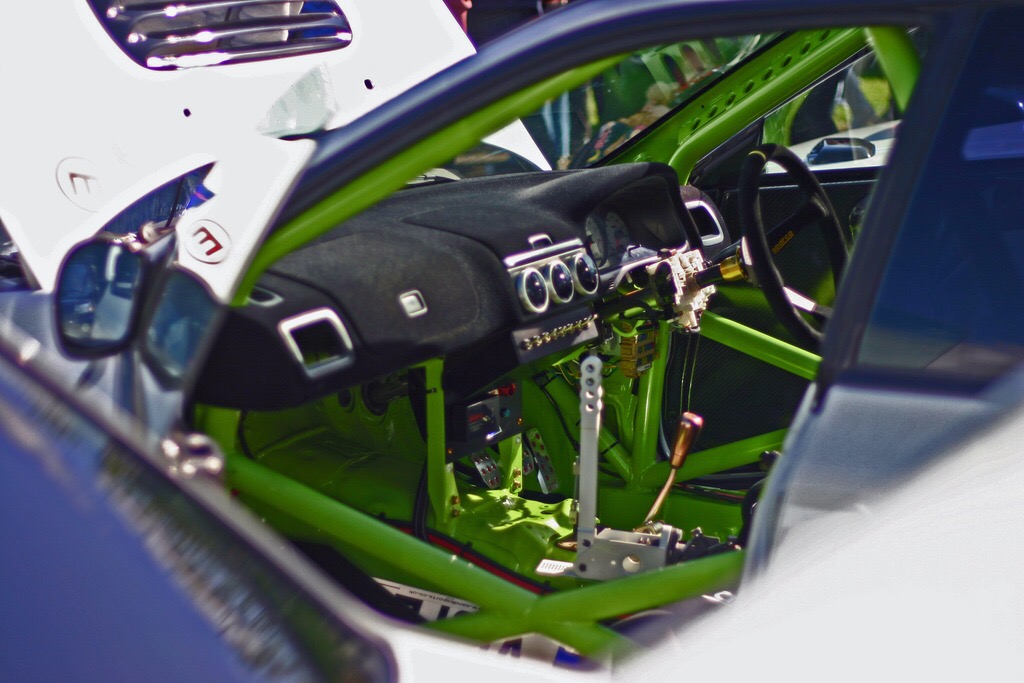

Interior
2x Sparco pro2000 seats (New and in date) one Sparco Pro 200 II other standard size Pro 2000
6 point Aerobuckle Sabelt harnesses (New and in date)
Sparco 330mm dished Suede wheel on a welded to steering shaft Snap off kit
Custom made centre console with 3x Defi BF gauges (link controller hidden with hazard switch under top dash pocket)
Toggle switches to control Anti lag, Ignition, Start Stop,etc.
Lifeline plumbed in extinguisher with carbon control box, extinguisher behind drivers seat
Hand Held Extinguisher By Passenger Footwell
Carbon door cards front and rear

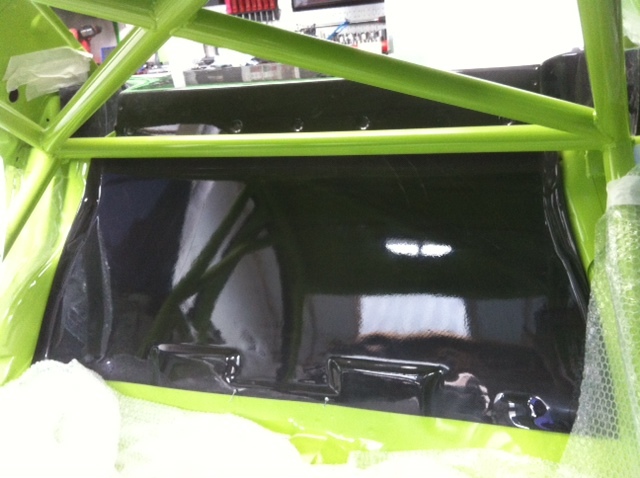

Carbon rear firewall
Carbon rear parcel shelf
Carbon rear strut inserts
Carbon drivers footwell insert
Fibreglass passenger / navigators footrest
Lightened flocked dash (only top half)
Ecu relocated to passenger top glove box housed in carbon Casing
Sti pedal set
All heater matrix, ducting etc removed
ECU
Latest Alkatek Ecu with launch control / anti lag / mapped on v-power
