Default JDM rear wiper arm replacement

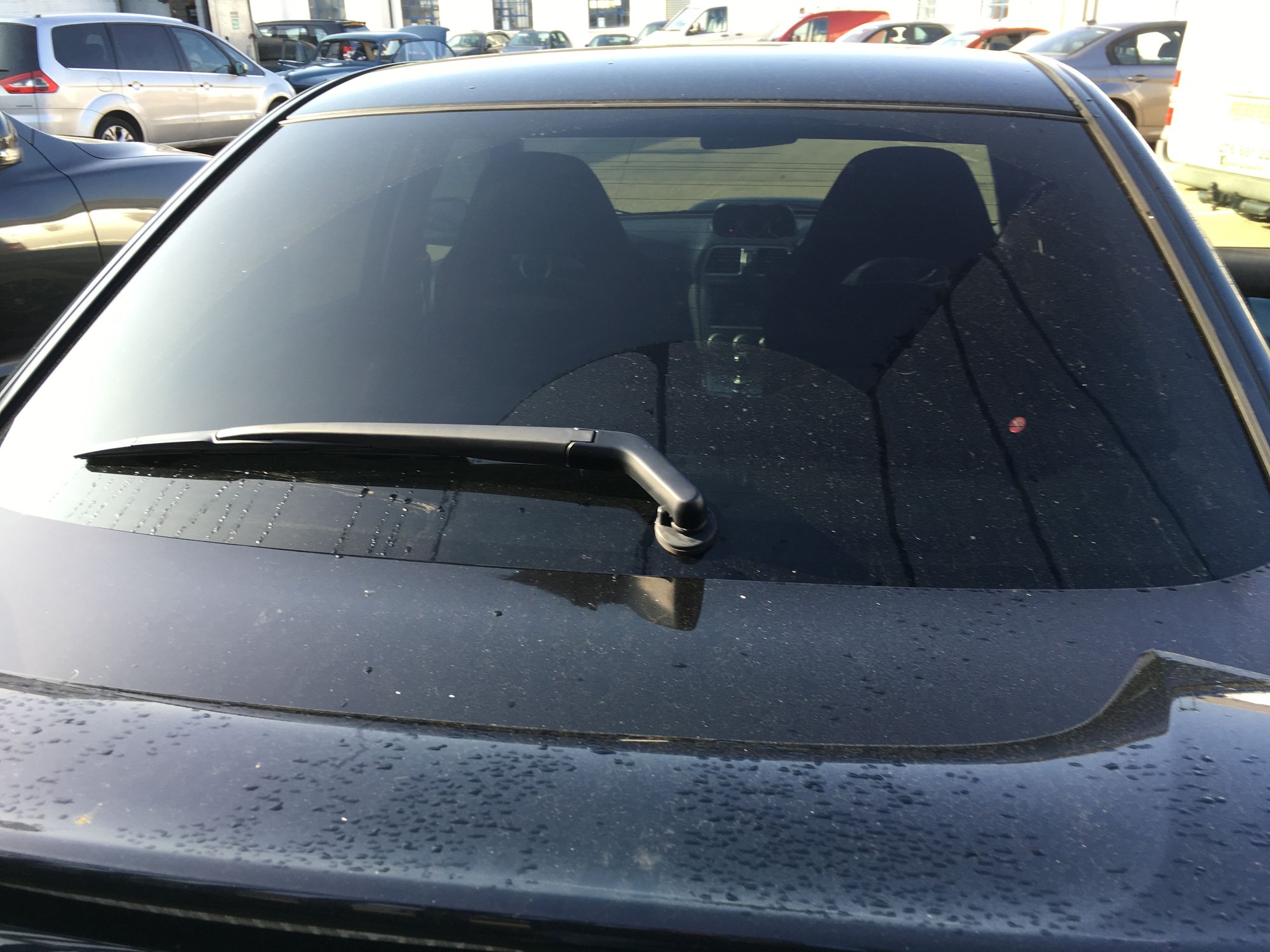

The wiper arms on my JDM Bug are in need of a refurb. One option I have is to have them dipped but tbh think they look a bit naff and thinking of a flatter more modern style replacement.
Have seen this style on eBay https://rover.ebay.com/rover/0/0/0?m...2F163057817538 but not sure how great fitment will be or if itíll sweep the screen as well.
Has anyone else with a JDM done this?
MrNoisy is offline   Reply With Quote
Old 12 July 2018, 09:46 AM   #2
alcazar
Scooby Regular
iTrader: (2)

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,444
Default

Can't see why it wouldn't work, provided it's the right length and the spline fitment is correct?
alcazar is offline   Reply With Quote
Old 12 July 2018, 11:37 AM   #3
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,368
Default

Similar to the MY04-08 forester rear arm - you also need the correct fitment blade to go with it



Same style as fitted to late Revision D onwards JDM G11 wagons (rear only) and European wagons



The G11 Saloon rear arms looks far more complicated


Last edited by Don Clark; 12 July 2018 at 11:49 AM.
Don Clark is offline   Reply With Quote
Old 12 July 2018, 02:44 PM   #4
The Trooper 1815
18 June 1815 - Waterloo
iTrader: (31)

The Trooper 1815's Avatar

Join Date: Dec 2004
Location: To the valley men!
Posts: 18,823
Default

Don,

The Legacy Gen 4 (BP/BL) should be the same?

Can you confirm?

I have a spare arm somewhere I think.
The Trooper 1815 is offline   Reply With Quote
Old 12 July 2018, 03:21 PM   #5
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,368
Default

The B13 Legacy is very similar
Wagon


Saloon is the cranked type in the "newer" design

Don Clark is offline   Reply With Quote
Old 13 July 2018, 05:24 PM   #6
Mark10sti
Scooby Regular
iTrader: (2)

Mark10sti's Avatar

Join Date: Nov 2010
Posts: 771
Default

Looking on with interest on this one
Mark10sti is offline   Reply With Quote
Old 24 July 2018, 11:33 PM   #7
MrNoisy
Supporting Member
Thread Starter
iTrader: (28)

MrNoisy's Avatar

Join Date: Dec 2006
Location: The South
Posts: 4,019
Default

Well at £6 delivered I figured it was worth a punt so weíll see what turns up...
MrNoisy is offline   Reply With Quote
Old 09 August 2018, 06:26 AM   #8
MrNoisy
Supporting Member
Thread Starter
iTrader: (28)

MrNoisy's Avatar

Join Date: Dec 2006
Location: The South
Posts: 4,019
Default

To follow up, it turned up yesterday and closely resembles the one Don posted for a Legacy wagon above, so itís WAY too short, probably at least 8-10cm out.

Don, any idea if the new Legacy saloon design would fit?


Last edited by MrNoisy; 09 August 2018 at 06:30 AM.
MrNoisy is offline   Reply With Quote
Old 09 August 2018, 07:08 AM   #9
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,368
Default

Quote:
Originally Posted by MrNoisy View Post
To follow up, it turned up yesterday and closely resembles the one Don posted for a Legacy wagon above, so itís WAY too short, probably at least 8-10cm out.

Don, any idea if the new Legacy saloon design would fit?

No personal experience but here is a link to someone who has fitted it to a GD impreza

https://minkara.carview.co.jp/userid...768/parts.aspx
Don Clark is offline   Reply With Quote
Old 09 August 2018, 04:43 PM   #10
MrNoisy
Supporting Member
Thread Starter
iTrader: (28)

MrNoisy's Avatar

Join Date: Dec 2006
Location: The South
Posts: 4,019
Default

Cheers guys.
Well a phonecall to ICP means I know that a new genuine rear wiper arm will set me back £26.50 including VAT + Postage.

Thanks to Don's link, looks like the part numbers for the Legacy one are:
WIPER ARM 86532AG100
BLADE 86543AG110
COVER 86538AG030

Few pics of other cars with them on so looks like it should be relatively straightforward (hopefully)
https://minkara.carview.co.jp/search/?q=86532ag100

And a before and after on a legacy saloon:

MrNoisy is offline   Reply With Quote
Old 15 August 2018, 01:38 PM   #11
MrNoisy
Supporting Member
Thread Starter
iTrader: (28)

MrNoisy's Avatar

Join Date: Dec 2006
Location: The South
Posts: 4,019
Default

So several conversations later with the local dealer's parts department haven't yielded a lot of progress; the guy doesn't seem to know which model this is off despite sending several photos so have sent this link today
https://jp-carparts.com/subaru/partl...art=86532AG100

I'm not entirely certain why but he was claiming he couldn't find the part numbers in the photos above, so I'm hoping the above will help....waiting to see what he comes back with.
MrNoisy is offline   Reply With Quote
Old 15 August 2018, 05:12 PM   #12
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,368
Default

Probably because European/UK saloon Legacy's like Impreza's don't have rear wipers and there are no parts listed in the database the dealers use.

The Dealer would need to enquire through Subaru UK as to obtaining them for you from Japan (special order) or probably easier import them yourself.
