HELP WITH THIS

Thread Tools

Search this Thread

Old 29 October 2015, 07:25 PM
  #1
scoobyman2007
Scooby Regular
Thread Starter
iTrader: (5)

scoobyman2007's Avatar

Join Date: Oct 2009
Location: london sw
Posts: 1,651
Received 2 Likes on 2 Posts
Default HELP WITH THIS

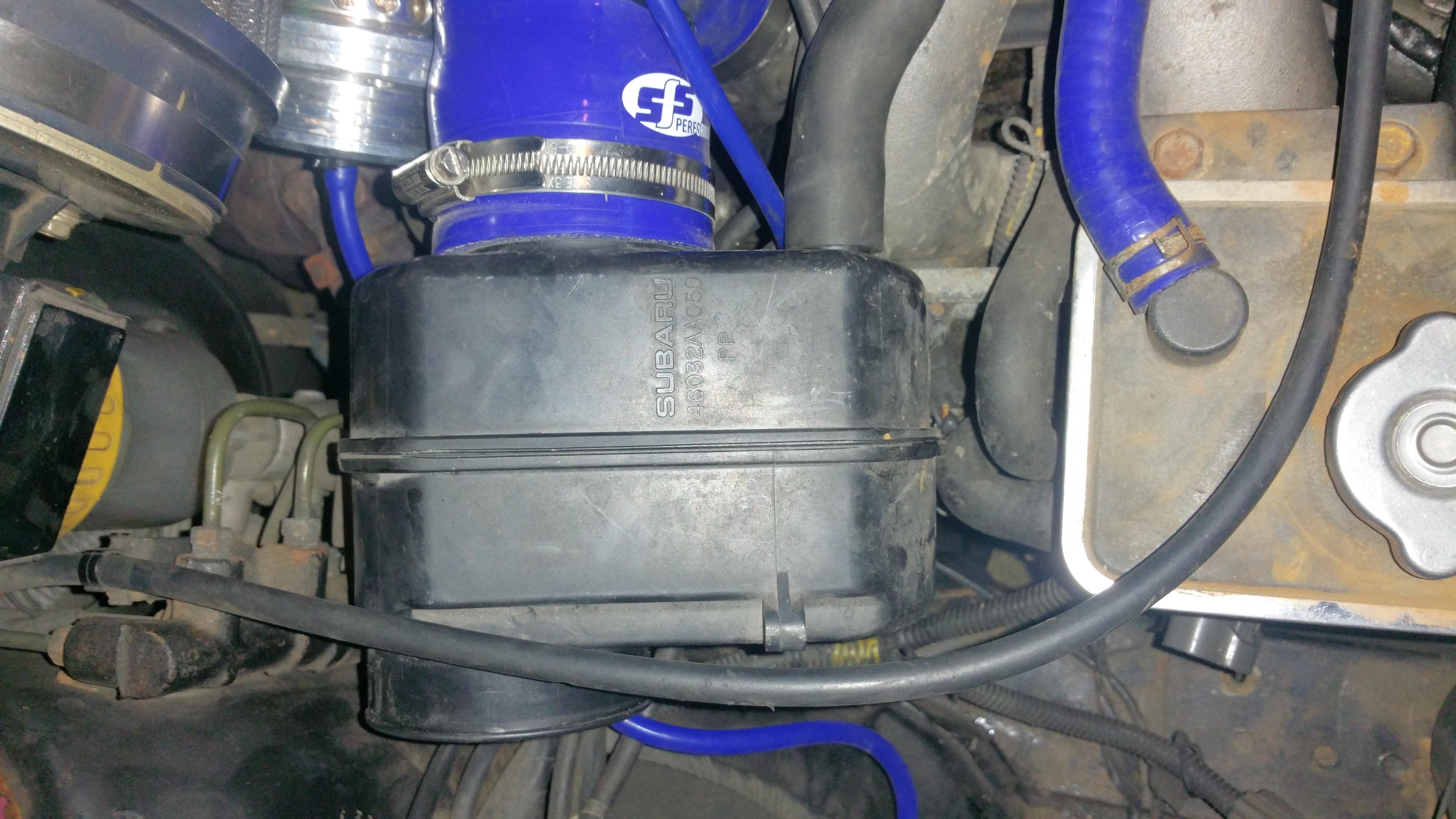

i have had 3 classics and not 1 has had one car is a 95 wrx and its the big black box i need to no and can i take it off thanks
Attached Thumbnails Click image for larger version

Name:	20151029_171048 (1).jpg
Views:	0
Size:	1.33 MB
ID:	19559
Old 29 October 2015, 07:34 PM
  #2
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Received 39 Likes on 27 Posts
Default

Looks like a resonator to dampen down the sound?
Older Impreza have them in the inner wing.
Should have no problem removing it.
Old 29 October 2015, 07:56 PM
  #3
scoobyman2007
Scooby Regular
Thread Starter
iTrader: (5)

scoobyman2007's Avatar

Join Date: Oct 2009
Location: london sw
Posts: 1,651
Received 2 Likes on 2 Posts
Default

i have and car runs like **** mate and it makes a **** load of noise
Old 29 October 2015, 08:18 PM
  #4
MattyB1983
Scooby Regular
iTrader: (51)

MattyB1983's Avatar

Join Date: Jul 2010
Location: Around
Posts: 12,716
Likes: 0
Received 46 Likes on 30 Posts
Default

That's just a resonator to quieten down the induction noise. Early cars like yours had them fitted between the turbo and the air box.
Yes it can be removed (I did mine) but you must replace the two hoses that attach to it. One large one which can be seen in your picture and the smaller one underneath. Both these pipes need to fit onto whichever pipe you choose to replace the resonator with.

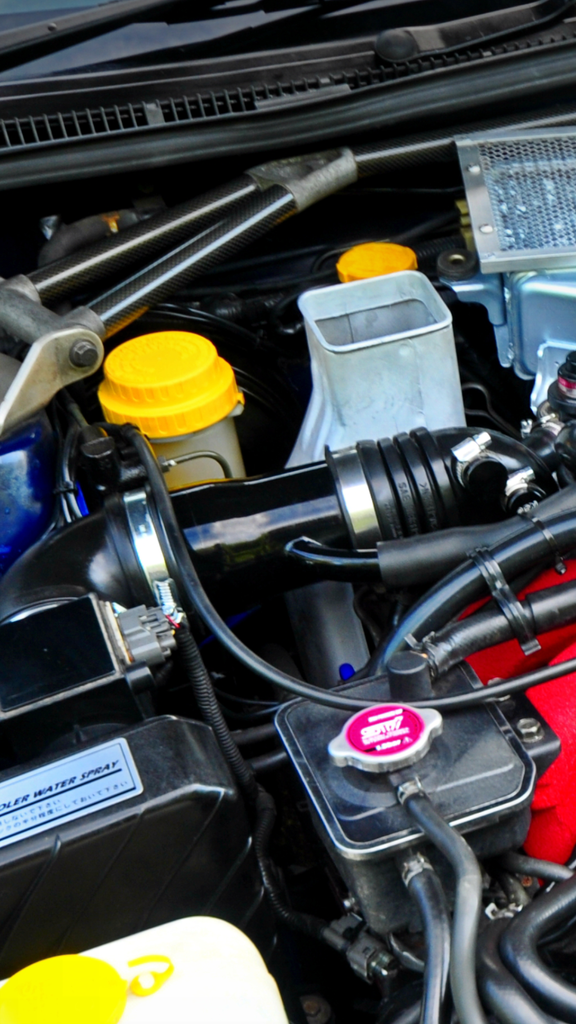

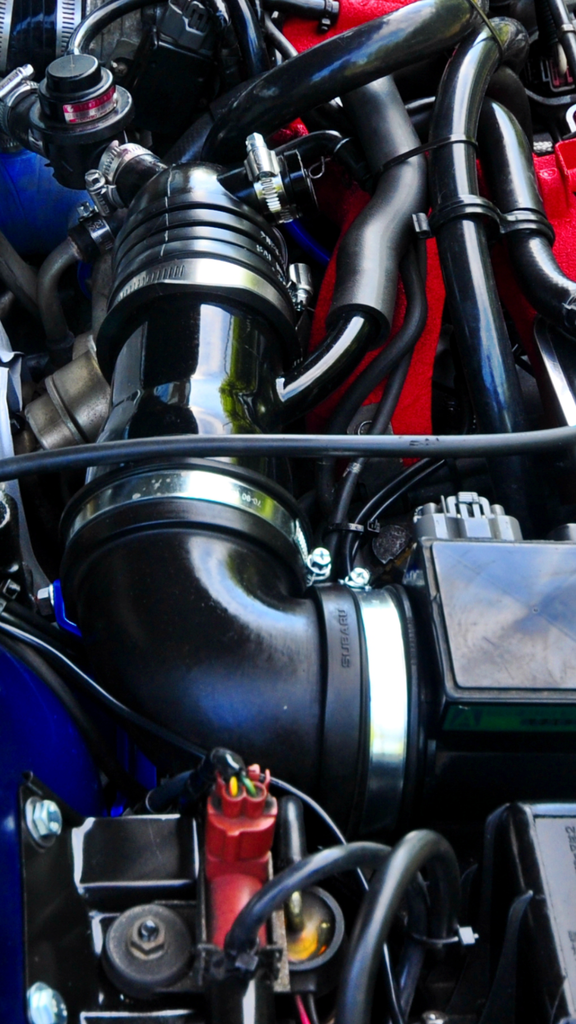

Here's mine for example.

Name:  Screenshot_2015-10-29-19-16-21.png
Views: 0
Size:  860.3 KB


Name:  Screenshot_2015-10-29-19-16-09.png
Views: 0
Size:  882.3 KB
Old 29 October 2015, 08:19 PM
  #5
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Received 39 Likes on 27 Posts
Default

The snorkus delete might be slightly different on the older cars,have a search for air box resonator delete,I remember reading you have to make sure solenoid and idle return are still piped up
