ESL /RaceDynamix 1997 Demo Wagon

Old 24 January 2013, 09:18 AM
  #1
dynamix
RaceDynamix Ecu Remapping
Thread Starter
iTrader: (3)

Join Date: Feb 2006
Location: near you
Posts: 9,708
Default ESL /RaceDynamix 1997 Demo Wagon

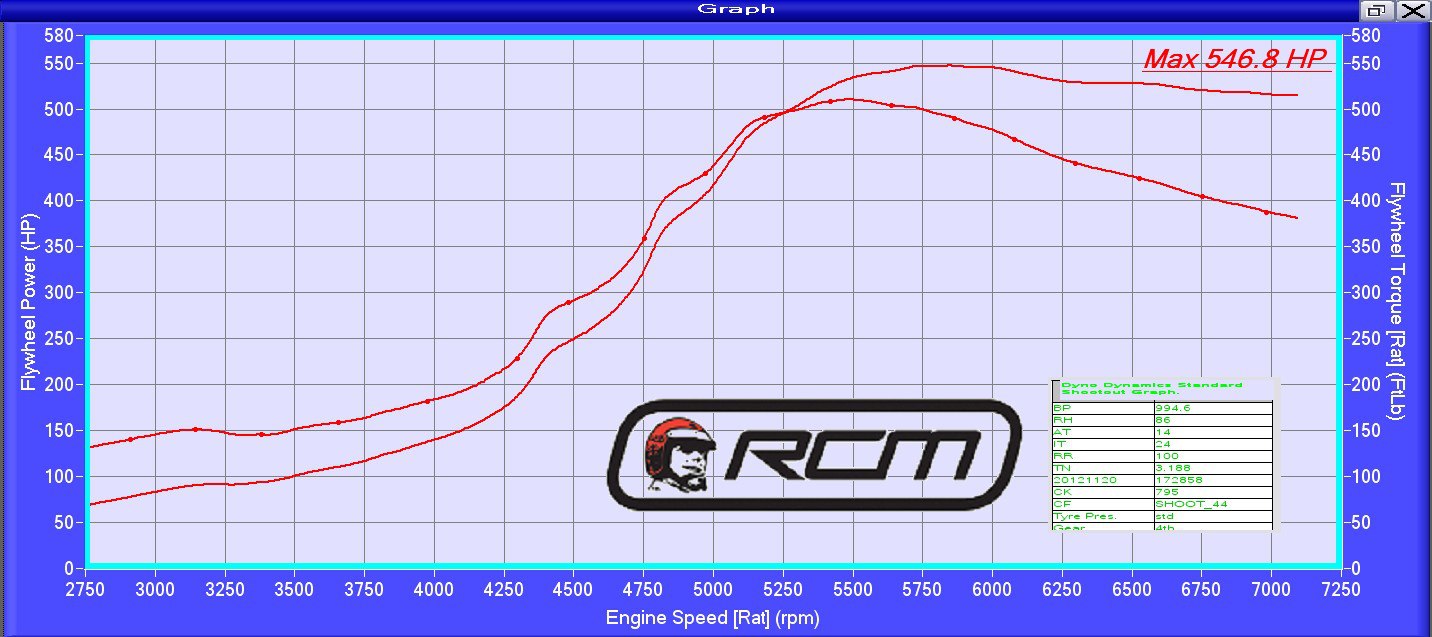

547bhp ... That was the power figure produced by the ESL/Racedynamix demo car after I mapped it at RCMS, which is a decent result for a standard location GT30 turbo on a forged 2.0 litre and ESLs latest generation management system. The car still starts on the first turn, idles and drives like OEM whatever the season until the taps are turned on and then it makes off like a stabbed rat.

This is running Mafless and a 20% methanol mix - I love mapping with methanol



A bit of history; Originally Stan Stancombes, this 97 UK Impreza was bought a few years back with a decent spec at a good price but Andy said that it felt quite slow for a 20G on a 2 litre and was using alot of oil.

The car was equipped with a PPG gearbox, 2.0 Cosworth bottom end, STI 3 heads, 780cc injectors, bosch pump, 20G turbo, AP brakes, Quaife ATB diffs front and rear and some basic coilovers.

In addition, the combination of a GEMS ECU and paddle clutch did not make for a relaxed drive as it was a poor starter and required some deft heel and toeing to stop it stalling at junctions.

The head gasket quickly let go and a teardown revealed cracks to the skirts of all four Cossie pistons.

ESL had a few bits and pieces lying around and decided to change the spec a bit. An RCMS bottom end, version heads, ATP stock location GT3076 Turbo, 4 bar MAP sensor, EU six speed box and some BC ER coilovers seemed a promising mix.

With this spec we put the new ESL 97/8 ECU in which improved both performance and driveability dramatically.

Andy was sent to North Weald running relatively low boost to compete against a large field of Ferraris, Porsches, TVRs and some well known sprint Subaru’s and Evos, and it beat absolutely everything with the exception of Duncan Cowpers TA Pro winning Dax Rush. We though this was pretty good for a 5000 car (worth less than the carbon wheels on one of the GT3s) with a 295 ECU. The link to the results is here (No. 28):

http://www.enduringsolutions.com/13Mar11.pdf

This was despite the new BCs not having been properly installed (the top mounts were left loose at the rear) which explains the wayward handling and knocking sound in this video:

www.youtube.com/watch?v=lfoBe2xOoLs

The car was then used to test the new motorsport features. Here is a quick shot of the Launch Control in action from the speedos perspective (excuse the tardy shift):

www.youtube.com/watch?v=NnL0vxJBfnw

The next job was to up the power level a bit. I mapped it on the RCMS rollers and while it managed a decent 482bhp, we couldn’t get the boost much above 1.75bar.

This was tracked down to a loose wastegate actuator. When fixed, the car immediately started boosting at over two bar, so it was straight back to RCMS to see what it would do hence the dyno graph at the top.



This is an ongoing project and I will add bits to this when I can ... really as an example of what can be done on the ESL ... more to be added soon


Last edited by dynamix; 24 January 2013 at 09:21 AM.
dynamix is offline
Old 24 January 2013, 10:29 AM
  #2
TK-WRX
Scooby Regular
iTrader: (3)

Join Date: Apr 2005
Posts: 325
Default

brilliant, i have also spun coming through the finish at north weald
will andy be competing this year ? be good to see him out
i'l be in touch soon for an esl on my 95 ra im just sorting a few bits and bobs to get it ready
TK-WRX is offline
Old 24 January 2013, 10:46 AM
  #3
csibee
Scooby Regular

Join Date: Jan 2010
Posts: 63
Default

subscribed!
csibee is offline
Old 24 January 2013, 11:32 AM
  #4
sonic93
Scooby Regular
iTrader: (16)

sonic93's Avatar

Join Date: Oct 2009
Location: borehamwood
Posts: 3,915
Default

Well done great result that . 5 k car gearbox and engine would be over 5 k would it not?
sonic93 is offline
Old 24 January 2013, 11:48 AM
  #5
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

I bought the entire car for 5k, replaced the GEMS with ESL, replaced the 20g with a 500 turbo off scoobynet (sold the 20g for the same), replaced 20% of the petrol with meth, and ta da!

TK-WRX, is that you Trev?
Andy Stevens is offline
Old 24 January 2013, 11:55 AM
  #6
TK-WRX
Scooby Regular
iTrader: (3)

Join Date: Apr 2005
Posts: 325
Default

Yes its Trev Andy, long time no see
will be back out sprinting in an impreza this year i picked up a 95 type ra before xmas and sorting it out at the moment
should be quite a few in roadgoing this year, Mike has also picked up an early555 sti to join in
TK-WRX is offline
Old 24 January 2013, 11:57 AM
  #7
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Yes mate its been a while, I'd best get my licence sorted then, be rude not too. Is that Mike Blackmore?
Andy Stevens is offline
Old 24 January 2013, 12:46 PM
  #8
TK-WRX
Scooby Regular
iTrader: (3)

Join Date: Apr 2005
Posts: 325
Default

yes and mikey sheering in his type r,jason has just bought an ra aswell and hopefully will be there apparently there was a few in class last year so numbers look to be good
bit concerened you bringing the wagon though we will all be sub 350 bhp still all good fun
me and mike will be in touch soon regarding an esl, mikey is well chuffed with his since ditching the apexi pfc
TK-WRX is offline
Old 24 January 2013, 01:29 PM
  #9
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Cool, every scooby there will be on ESL then. Mike S said he was well pleased since Dunc switched his car to ESL from Apexi, it's the way ahead.

Don't know about the class structure these days but might have to go up a class if I'm running all the motorsport algorithms, so we might not be going head to head. I'm after some wet weather FTDs
Andy Stevens is offline
Old 24 January 2013, 02:03 PM
  #10
sonic93
Scooby Regular
iTrader: (16)

sonic93's Avatar

Join Date: Oct 2009
Location: borehamwood
Posts: 3,915
Default

Il be sprinting this year in a sprint virgin I'm running a 380 type r with simtec
sonic93 is offline
Old 24 January 2013, 02:12 PM
  #11
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

The sprint mob are a good bunch, you will have a warm welcome, be interesting to compare ECUs.
Andy Stevens is offline
Old 24 January 2013, 02:38 PM
  #12
The Pink Ninja
Scooby Regular
iTrader: (23)

The Pink Ninja's Avatar

Join Date: Apr 2008
Location: ...
Posts: 6,703
Default

Is that AndrewC`s old car?
The Pink Ninja is offline
Old 24 January 2013, 02:43 PM
  #13
dynamix
RaceDynamix Ecu Remapping
Thread Starter
iTrader: (3)

Join Date: Feb 2006
Location: near you
Posts: 9,708
Default

Originally Posted by TK-WRX View Post
yes and mikey sheering in his type r,jason has just bought an ra aswell and hopefully will be there apparently there was a few in class last year so numbers look to be good
bit concerened you bringing the wagon though we will all be sub 350 bhp still all good fun
me and mike will be in touch soon regarding an esl, mikey is well chuffed with his since ditching the apexi pfc
Enjoyed mapping Mikes - lovely car but never ran right on the apexi I am told.

Hopefully see you later in the year trev
dynamix is offline
Old 24 January 2013, 02:55 PM
  #14
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Originally Posted by GAZ2293 View Post
Is that AndrewC`s old car?
No - Stan Stancombes.
Andy Stevens is offline
Old 24 January 2013, 06:00 PM
  #15
sonic93
Scooby Regular
iTrader: (16)

sonic93's Avatar

Join Date: Oct 2009
Location: borehamwood
Posts: 3,915
Default

You guys do the debden sprints ? I can't wait
sonic93 is offline
Old 24 January 2013, 06:58 PM
  #16
mark type ra
Scooby Regular

mark type ra's Avatar

Join Date: Jun 2012
Location: hampshire
Posts: 167
Default

Gear result guys
mark type ra is offline
Old 24 January 2013, 09:55 PM
  #17
TK-WRX
Scooby Regular
iTrader: (3)

Join Date: Apr 2005
Posts: 325
Default

Originally Posted by sonic93 View Post
You guys do the debden sprints ? I can't wait
should be at debden work permitting
TK-WRX is offline
Old 24 January 2013, 10:16 PM
  #18
trails
Scooby Regular
iTrader: (41)

trails's Avatar

Join Date: Nov 2003
Location: in the woods...........555 Wagon Sqn
Posts: 12,800
Default

Great to see a wagon kicking ***...and really nice that Stans wagon lives on. Good work fellas
trails is offline
Old 24 January 2013, 10:24 PM
  #19
Silver Scooby Sport
Moderator
iTrader: (15)

Silver Scooby Sport's Avatar

Join Date: Sep 2002
Location: South Wales
Posts: 13,840
Default

Very impressive
Silver Scooby Sport is offline
Old 24 January 2013, 11:11 PM
  #20
RICHARD J
Scooby Regular
iTrader: (4)

Join Date: Apr 2008
Posts: 2,270
Default

That's an amazing result for a budget build, I'll be following this.
RICHARD J is offline
Old 06 April 2013, 10:28 PM
  #21
Badger sti
Scooby Regular

Badger sti's Avatar

Join Date: Jul 2012
Location: Redditch
Posts: 185
Smile

Subscribed.....
Badger sti is offline
Old 07 April 2013, 01:25 PM
  #22
RICHARD J
Scooby Regular
iTrader: (4)

Join Date: Apr 2008
Posts: 2,270
Default

I was looking at a standard location GT30 for my 2L V3 STI fully forged, but have been told it will be far too laggy. Is this not the case? They usually sell at a reasonable price so I'd be interested in one if it's suitable.
RICHARD J is offline
Old 07 April 2013, 01:48 PM
  #23
rickya
Scooby Regular
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Default

Great results
rickya is offline
Old 08 April 2013, 12:04 PM
  #24
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Originally Posted by RICHARD J View Post
I was looking at a standard location GT30 for my 2L V3 STI fully forged, but have been told it will be far too laggy. Is this not the case? They usually sell at a reasonable price so I'd be interested in one if it's suitable.
It's a good question. "Far too laggy" is a bit hard to quantify as it is subjective. The car has a wider powerband than my S2000, but you do need to keep the engine speed up to achieve boost.

It is certainly has more lag than a standard car. In top gear on the road I hit full boost (2.1bar) at just under 4000rpm. I'll do some logs of manifold pressure vs engine speed and post them up.

However, dependent on what you want the car for, this can be mitigated to a certain extent.

For drag racing, the LC can be used to generate whatever boost is required at standstill (I have seen up to 2 bar but tend to set it up to launch at 1 bar). The important thing to note however, is that the throttle plate is wide open. The TC can then be adjusted to give an optimal launch and limit wheelspin and the flat shift can be used between gear changes to keep the boost up.

This means that the throttle is never anything but wide open throughout the accelerative phase and the major restriction to air flow in the inlet path (the throttle plate) is removed from the equation. This means you have positive boost from before you move to when you cross the line, i.e. no lag.

For a daily driven road car where the requirement is instant power as opposed to outright power, the GT30 might not be the obvious choice, but the shove in the back is pretty addictive.
Andy Stevens is offline
Old 22 May 2013, 03:04 PM
  #25
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

A slightly frustrating day at the pod, the Head Gaskets let go early on so the car was down on power so managed 11.5sec @ 126mph.

Still alot of weight in the car and it obviously wasn't completely on song, but with some work I think a late 10 might be possible, still pretty good for such an inexpensive car.

Here is the video, the HG failure is obvious, the Launch Control and Flat Shift worked well:






This was my playmate for the day, a 620hp GTR. Even without using his LC he was a couple of tenths up on me, the DCT transmission keeps the acceleration seamless, amazing car.

Last edited by Andy Stevens; 22 May 2013 at 03:06 PM.
Andy Stevens is offline
Old 22 May 2013, 03:45 PM
  #26
tubbytommy
BANNED
iTrader: (20)

Join Date: Mar 2010
Location: crawley :)
Posts: 16,950
Default

lol I like they way you kept your foot planted even with all that water coming out the bonnet.
tubbytommy is offline
Old 23 May 2013, 02:10 PM
  #27
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Oil temps stayed OK so I kept it planted. I rigged a catch can and refilled it after each run and ran another couple of 11s but then the water temp went nuts and the misfire worsened. Might be time to go up a size on the studs.
Andy Stevens is offline
Old 23 May 2013, 10:04 PM
  #28
Bob Rawle
Ecu Specialist

Bob Rawle's Avatar

Join Date: Mar 1999
Location: Swindon
Posts: 3,938
Default

If you only have 11mm studs in the engine that was inevitable I think, 14mm conversion will sort it Andy. Heads will probably be warped but thats a good excuse to raise the compression a bit :-)

looking good though

cheers
Bob Rawle is offline
Old 25 May 2013, 01:13 PM
  #29
Andy Stevens
Scooby Regular

Join Date: Feb 2007
Posts: 893
Default

Not sure how much meat I have left in these heads Bob

I've heard of others running similar power on 11mm ARPs but it doesn't seem to have worked for me.
Andy Stevens is offline
Old 26 May 2013, 12:27 PM
  #30
MartynJ
Scooby Regular

Join Date: Jan 2006
Location: Enginetuner Plymouth for 4wd RR Mapping Apexi Ecutek Alcatek Proper Garage More than just a laptop!
Posts: 2,614
Default

No need to go bigger, go stronger.
Cosworth 11mm 260,000 psi studs should do you fine and save you the cost of all of the machining work.
MartynJ is offline
