Another Project
Got a 1998 v4 type r project.
Putting together a engine for the v4 sti.
Spec:
Sti v4 o.d.b soda blasted, deburred, honed, refaced matched decks.
Ra crank balanced assembly
Acl Race mains/big ends
Sti new rods shot peen'd & weight matched
P.M Omega pistons & rings
Matched deck heights
P.M v4 gas flowed heads, deburred,
PM valve guides, matched cc volumes
OEM gaskets, seals and o rings
PM group n sump
PM uprated oil pump
PM belt guide
Flowed & cleaned injectors
Overhauled & balanced turbo
Fabing up a short track exhaust manifold

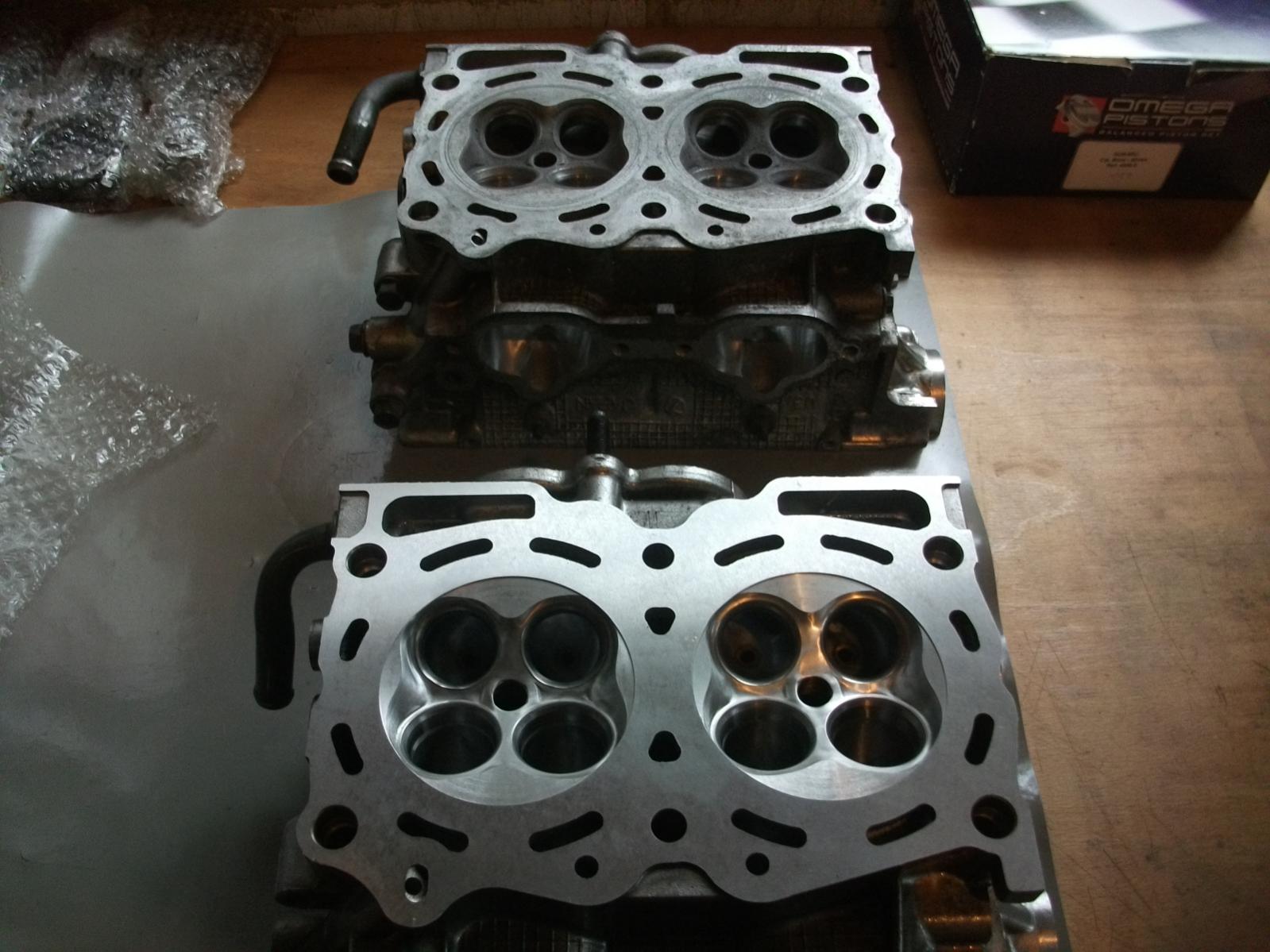

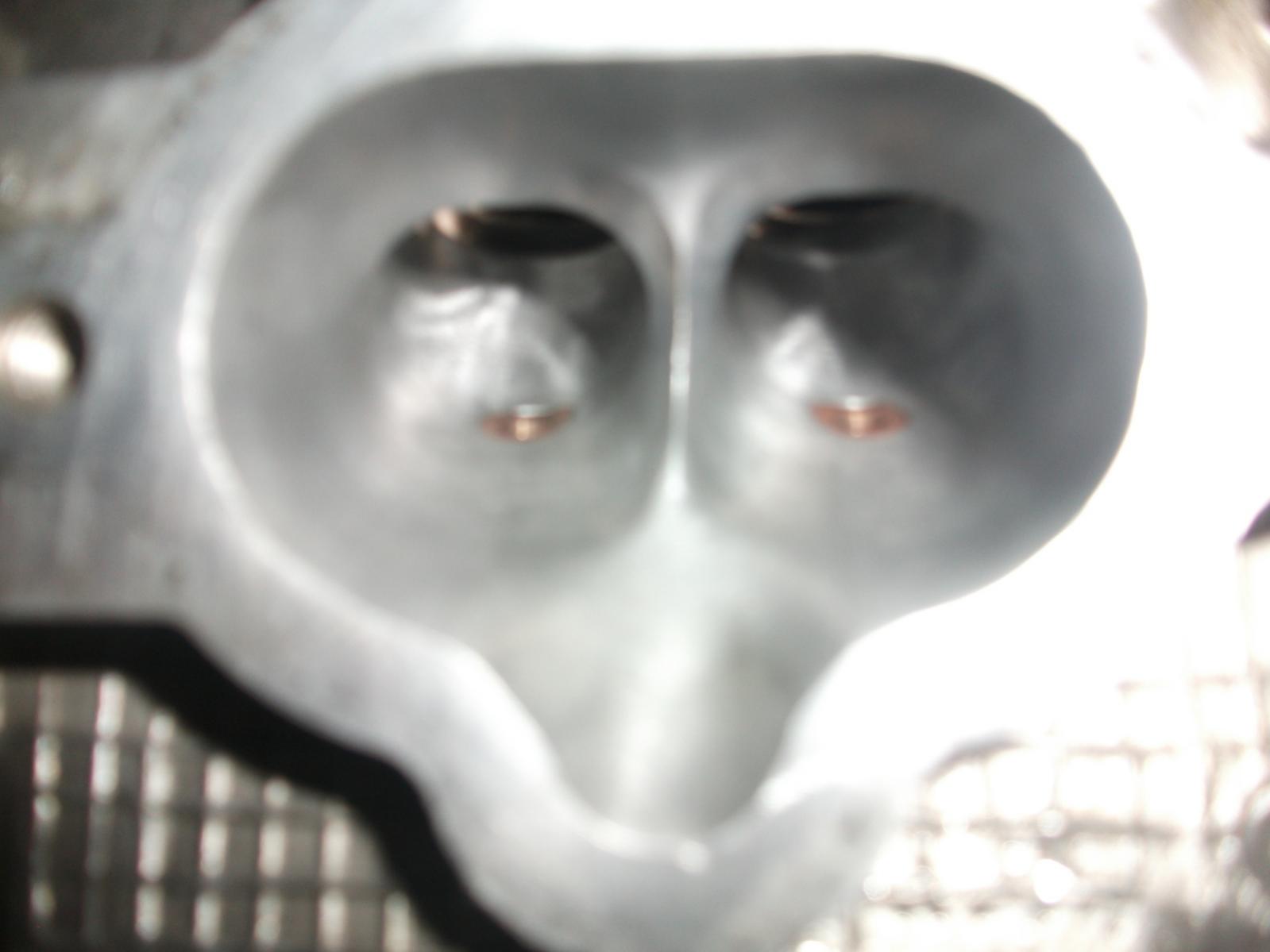

Currently doing the heads, put some pics up of my head work, here we go again with another pair!
Putting together a engine for the v4 sti.
Spec:
Sti v4 o.d.b soda blasted, deburred, honed, refaced matched decks.
Ra crank balanced assembly
Acl Race mains/big ends
Sti new rods shot peen'd & weight matched
P.M Omega pistons & rings
Matched deck heights
P.M v4 gas flowed heads, deburred,
PM valve guides, matched cc volumes
OEM gaskets, seals and o rings
PM group n sump
PM uprated oil pump
PM belt guide
Flowed & cleaned injectors
Overhauled & balanced turbo
Fabing up a short track exhaust manifold
Currently doing the heads, put some pics up of my head work, here we go again with another pair!
