DIY - Hawkeye Headlight Modification

Old 14 December 2011, 08:42 AM
  #1
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default DIY - Hawkeye Headlight Modification

This is a modification I identified as a must have even before I bought the Hawkeye STI. It has taken since March to do the research, find the time and make sure my wife was out so I could use the oven

Alot of stories about it being much harder then the Blobeye modification, that you have to take the bumper of and the headlights are very expensive if you break them......but I thought in Top Gear style 'How Hard Can It Be' !!!!!!

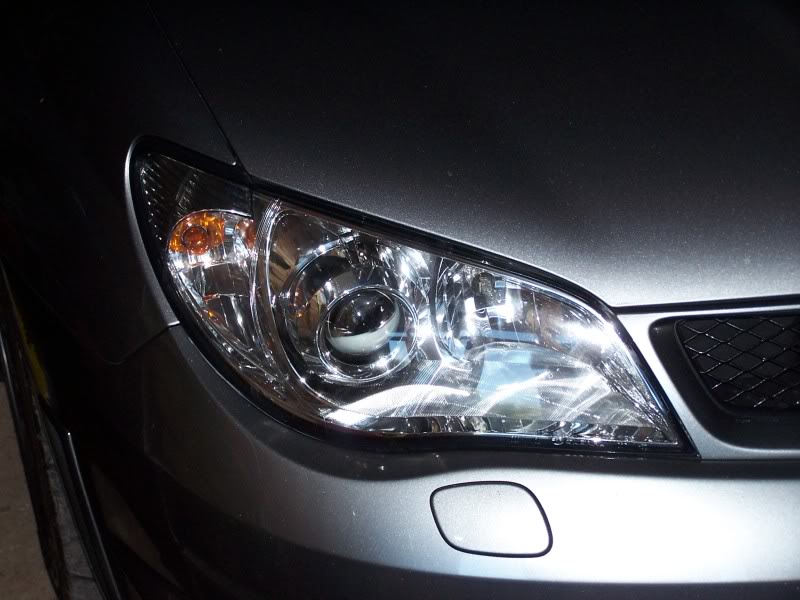

Before Modification :
Name:  100_8640.jpg
Views: 0
Size:  69.3 KB

1. Mask up around edge of headlight and around edges of centre and left/right grills. These need to come out to gain access to the headlight mounting bolts.

2. Remove large trim clips from top edge of bumper, along slam panel.

3. Remove small trim clips holding grills in place, and 1 small trim clip on each top edge of headlight.

4. Remove centre grill by placing hand down behind and releasing 4 plastic clips, 2 easg side.

5. Remove left and right hand grills in a similar fashion. They are a bit of a fiddle but they will come out and you will realise why masking the bumper is a good idea.

6. Remove the single M6 bolt from the top of the headlight where it bolts to the slam panel.

7. Remove the 2 M6 bolts, 2 M6 nuts and 1 trim clip that hold the headlight in place that are located behind the grill you have just removed.

8. Now comes the removal of the light. Give it a wiggle and a tug on the outer/wing edge. It should partly pop out (If anyone has removed the sidelight on a classic they will be familiar with the pin/clip that hold it into the wing retainer). Tilt the light forward and try to get it under the slam panel as far as possible, making sure the mounting bracket that was un-bolted previously draws of it's mounting bolts . The light will not fully come out like this, but once it is as far as possible place your hand behind the light and lift up, you should now be able to see between the bottom of the light and the bumper to see what's stopping it coming forward. Basically nothing is stopping at apart from the base of the light just touching the top edge of the appature/bumper lip. A twist and a shove from behind should pop it out, all the time making sure the mounting bracket hasn't managed to slip back onto it's mount bolts.

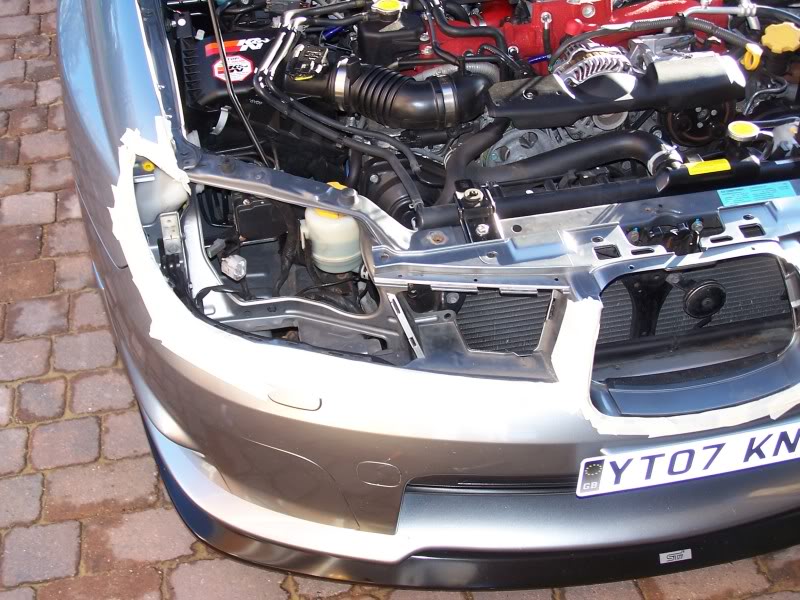

9. At this stage it will be partly out bar from the loom connector. Disconnect these and your done. Steps 1 - 9 above took me approx 30 mins, alot quicker then i thought it would take.

Name:  100_8642.jpg
Views: 0
Size:  108.0 KB

10. Repeat the above for the other light. I managed to get this one out alot quicker after learning on the other side.

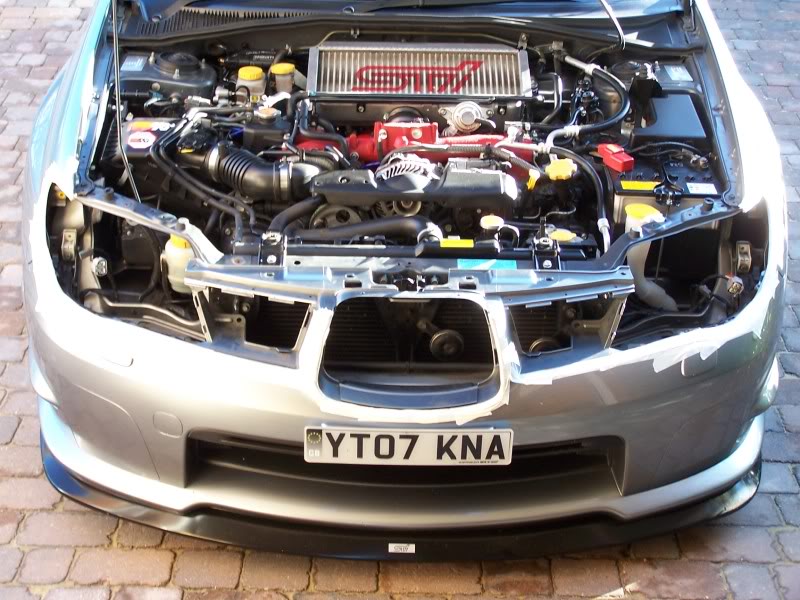

Name:  100_8643.jpg
Views: 0
Size:  105.4 KB

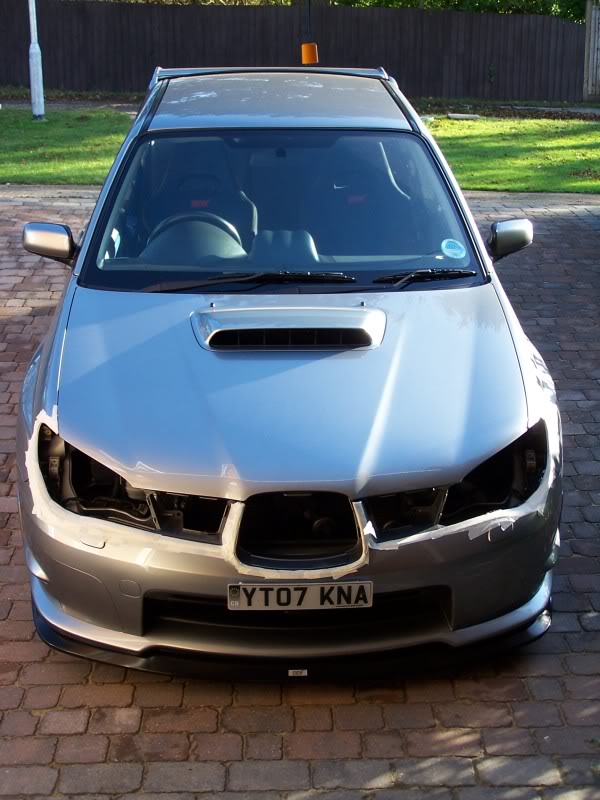

Looks quite cool don't it

Name:  100_8645.jpg
Views: 0
Size:  79.0 KB

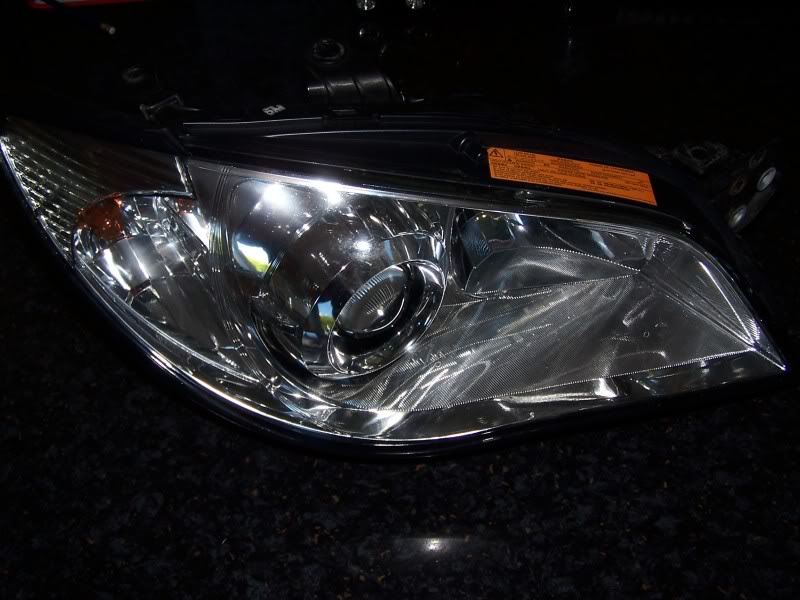

11. Retire to the comfort of the kitchen breakfast bar

Name:  100_8647.jpg
Views: 0
Size:  74.3 KB

12. Remove the 5 self-tapping screws from the rear of the light.

13. I also removed the Ballast resistor that's screwed to the bottom of the housing, as didn't want to risk damaging that in the oven. Remove the 3 screws holding this in place and disonnect the cable harness from it.

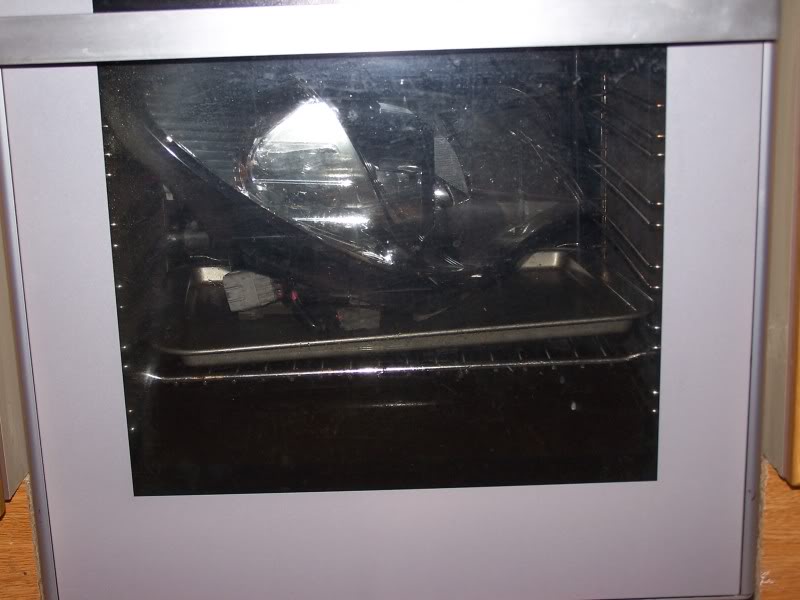

14. Set oven to 100 DegC and timer to 10 mins, place light in oven on baking tray.

Name:  100_8648.jpg
Views: 0
Size:  50.5 KB

Yes I know the oven door needs cleaning, but that's not my department.......

15. Remove after 10 minutes and leaver open the headlight with a large flat blade screwdriver, it comes apart wuite easy. I started at the bottom incase the screwdriver damaged/marked the plastics. It did make small marks but by the time you work round to the top edge which will be visible when re-fitted, it comes off easier and hence doesn't mark the plastic. Once it is loose and you have a gap one end it can be pulled apart by hand. Cut or catch the excess sealant as you go.



16. You now have 2 halves.

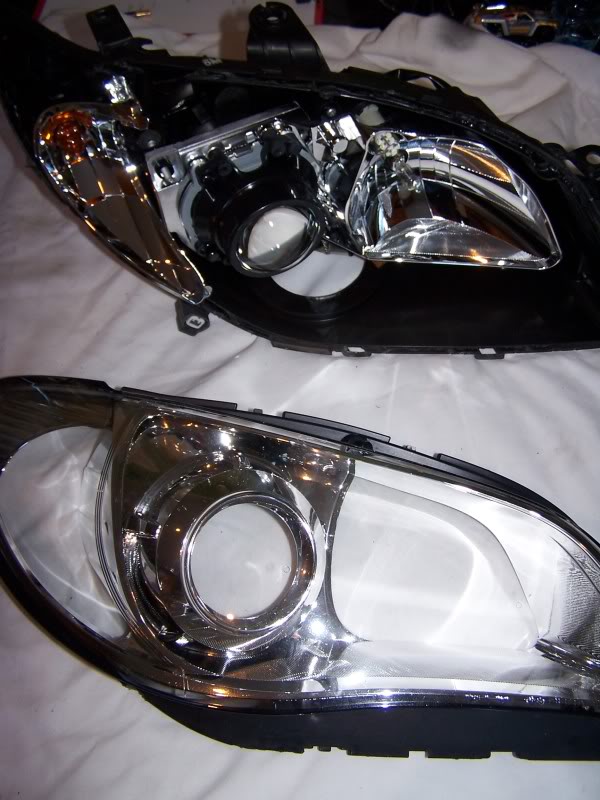

Name:  100_8651.jpg
Views: 0
Size:  82.2 KB

17. Put rear section to one side after tapping the stringy/excess sealant roughly back in place. Do the same with the front lense.

18. Remove the self-tapper screws that hold the refelctor in place on the front lense. Then remove the reflector

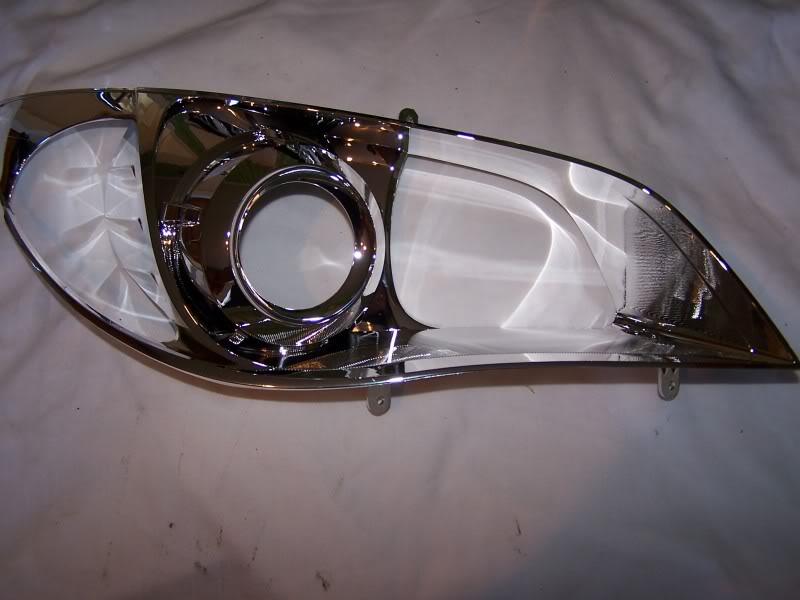

Name:  100_8652.jpg
Views: 0
Size:  53.2 KB

19. I then masked a ring around the HID apature to maintain a chrome ring. Some people spray the whole reflector black, other spray a coloured rings around the HID. But I decide to stick with chrome.

20. Spray reflector with colour of your choice. I used Satin Black Plasti-kote.

21. Remove masked HID ring and ready for re-fitting

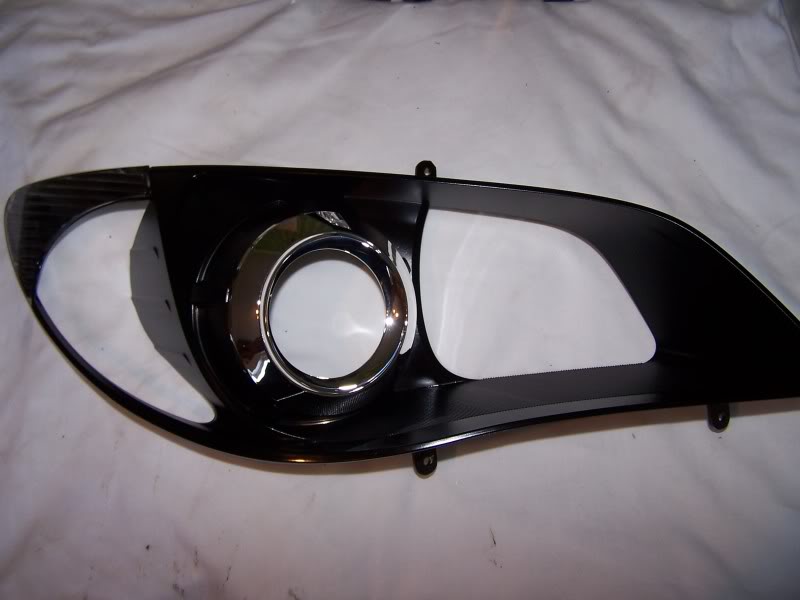

Name:  100_8655.jpg
Views: 0
Size:  38.1 KB

22. Refit refelctor into lense.

23. To soften the sealant prior to refitting I placed both halves back in the over for 5 mins at 100DegC.

24. Remove from oven and while still hot quickly push two halves together and screw back in place.

25. Refit ballast resistor......job done in about 30 mins including paint (dried with hair drier)

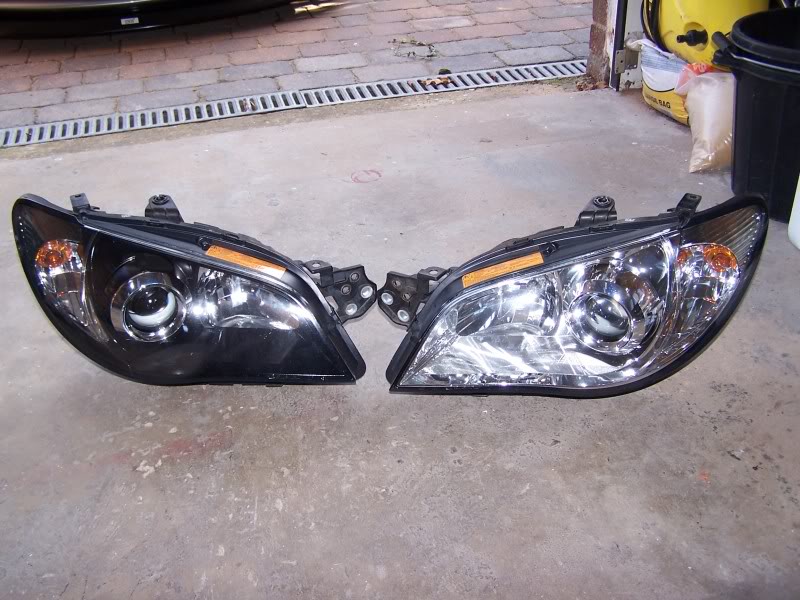

Compared lights :

Name:  100_8658.jpg
Views: 0
Size:  100.2 KB

26. Repeat for other side.

Took approx 2 hours to remove dismantle, paint and re-assemble both lights.

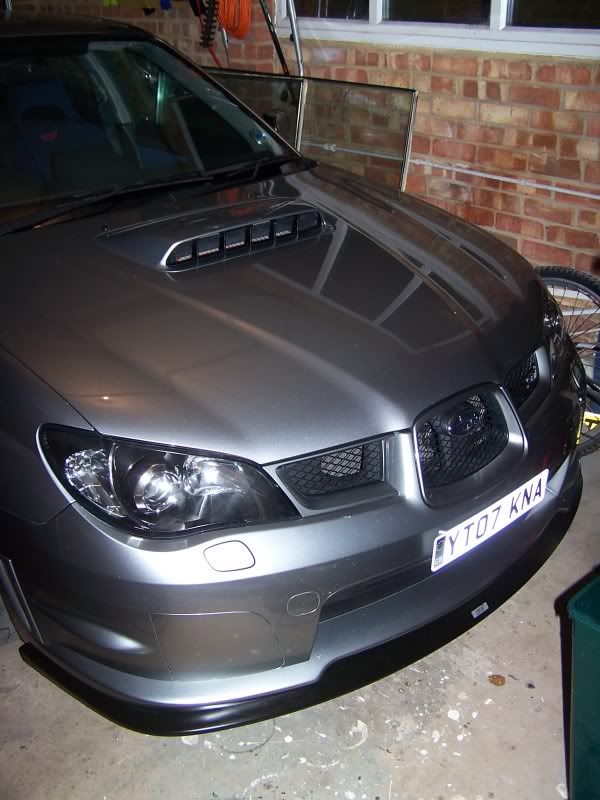

All back in the car, fitting back was easier then taking out, although highly recommend the use of plenty of masking tape to protect the surrounding area's.

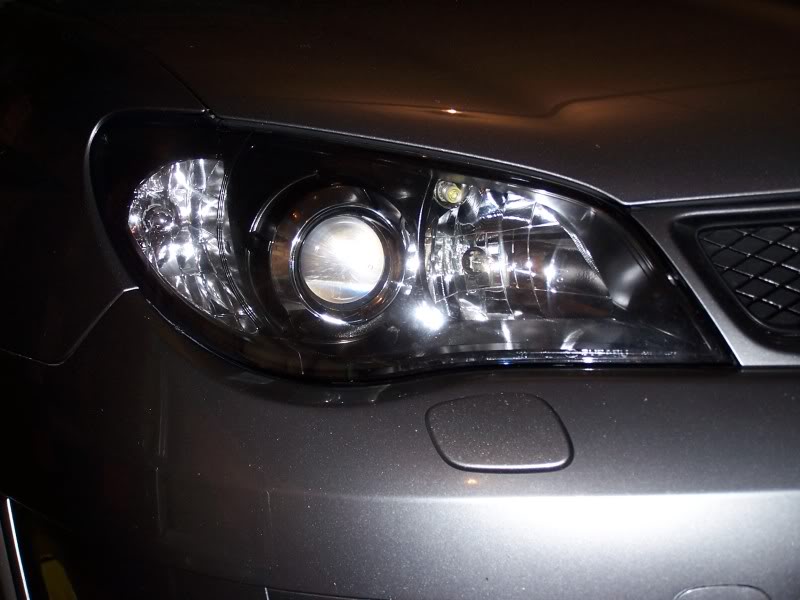

Name:  100_8666.jpg
Views: 0
Size:  58.5 KB
Name:  100_8671.jpg
Views: 0
Size:  78.1 KB

And another little mod whils I was there....
Been trying to De-Pink the front end and failed a few times with re-painting the STI badge to my satisfation (quite tricky due to the bi-colour embossed badge).

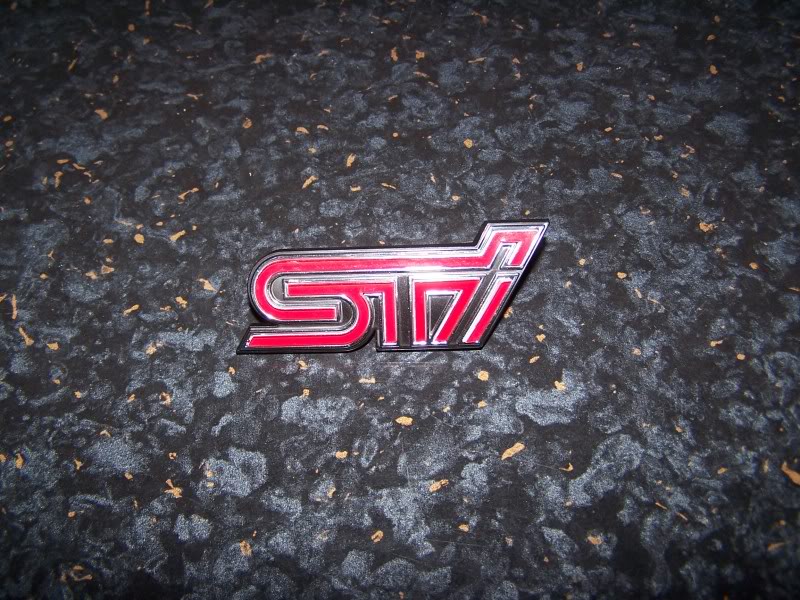

Decided to by an aftermarket Red badge.
Name:  100_8660.jpg
Views: 0
Size:  134.5 KB

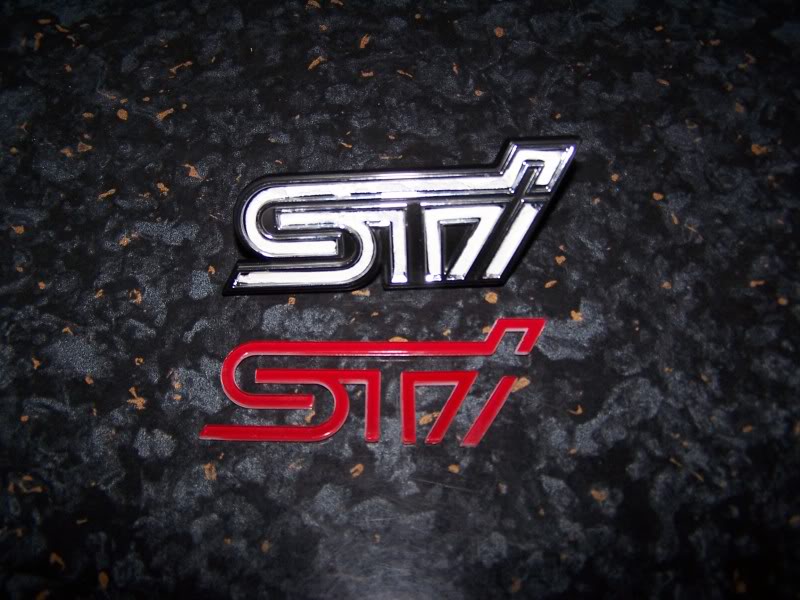

Found by pure fluke that the one I ordered had the 'Red' bits stuck to the 'Black' bit. A sharp blade and some cotton managed to seperate the 2.
Name:  100_8661.jpg
Views: 0
Size:  81.6 KB

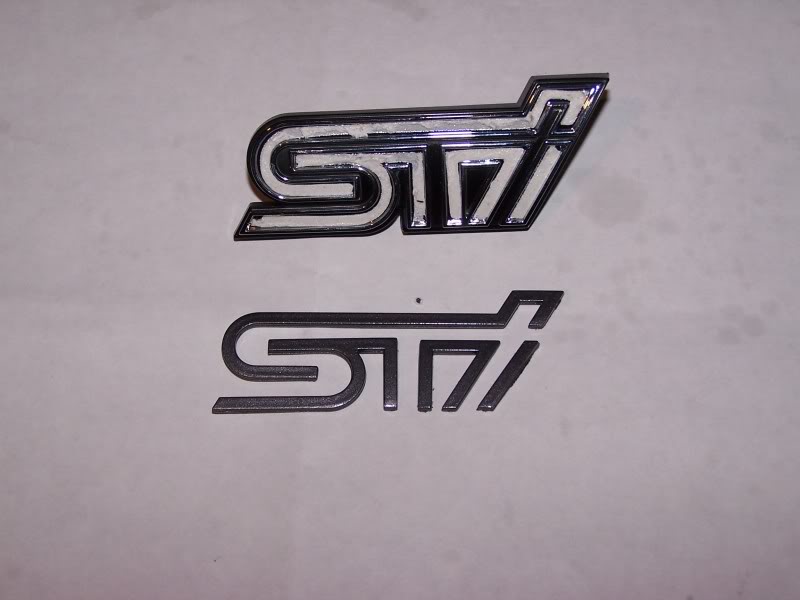

Re-Paint the 'Red' bits
Name:  100_8662.jpg
Views: 0
Size:  38.9 KB

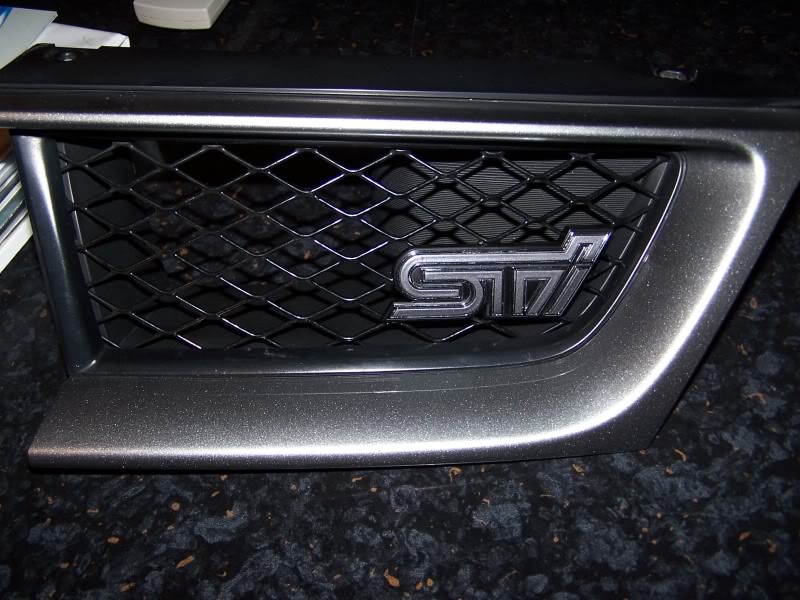

Re-Fit, while Grill was off the car
Name:  100_8663.jpg
Views: 0
Size:  97.0 KB

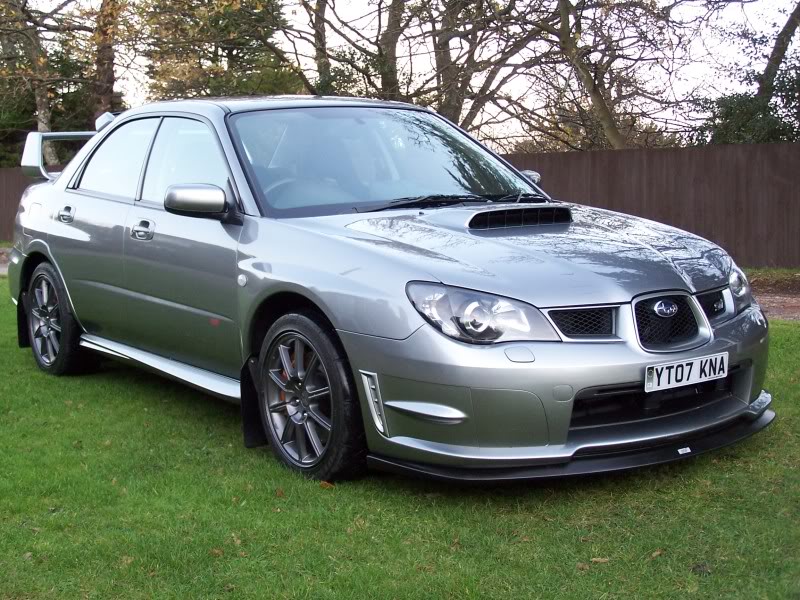

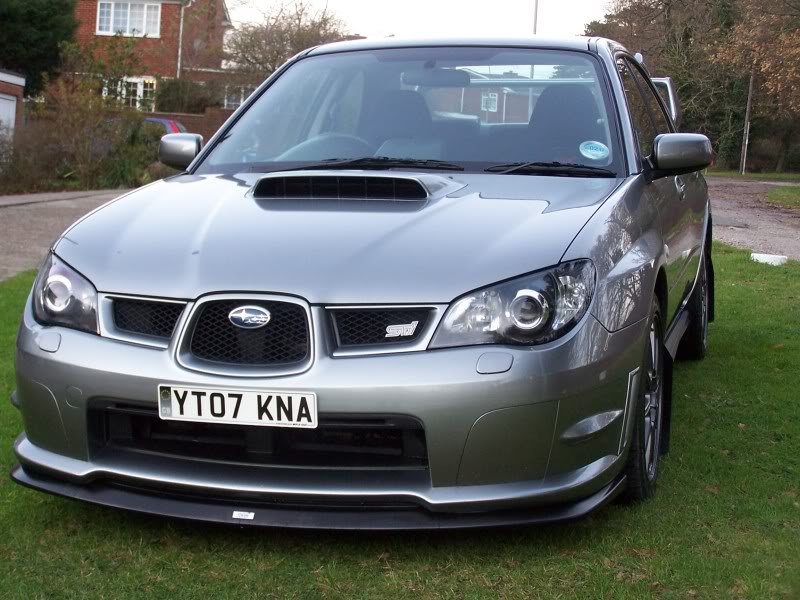

A few more pic's out in daylight.

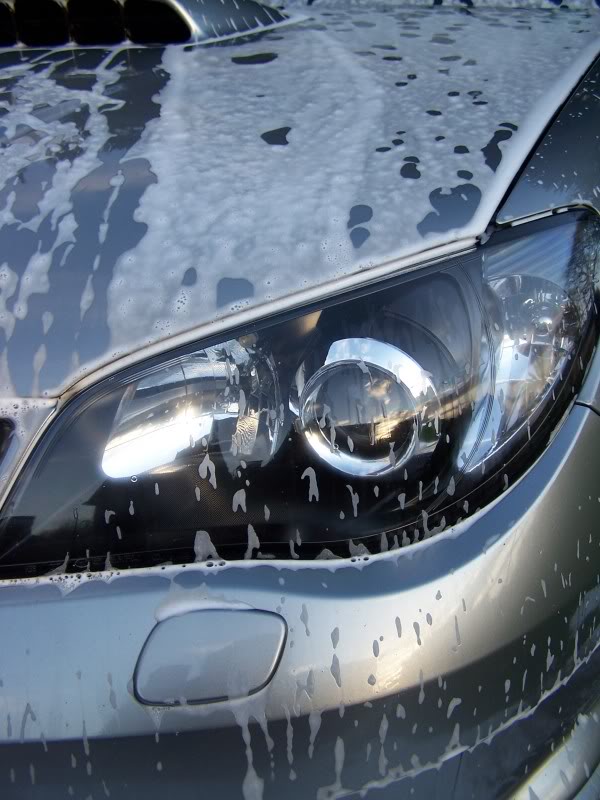

Name:  100_8673.jpg
Views: 0
Size:  79.4 KB

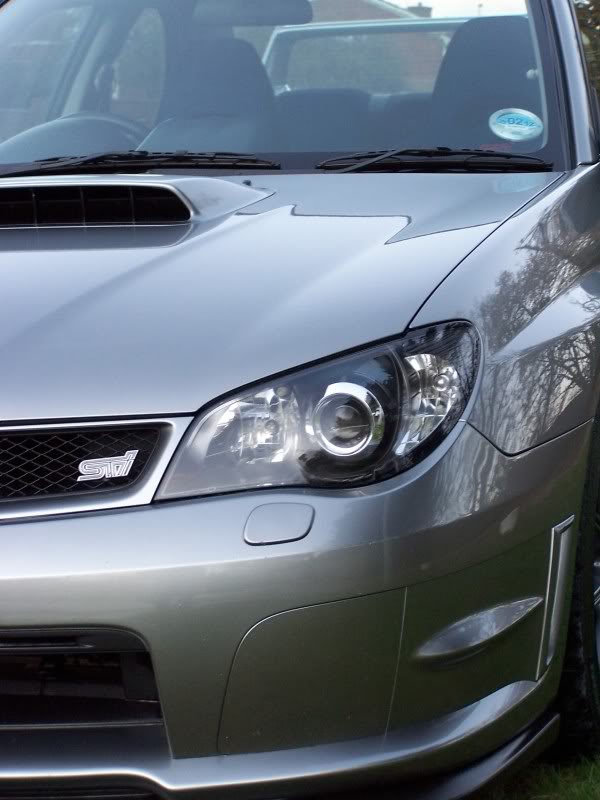

Name:  100_8679.jpg
Views: 0
Size:  60.1 KB

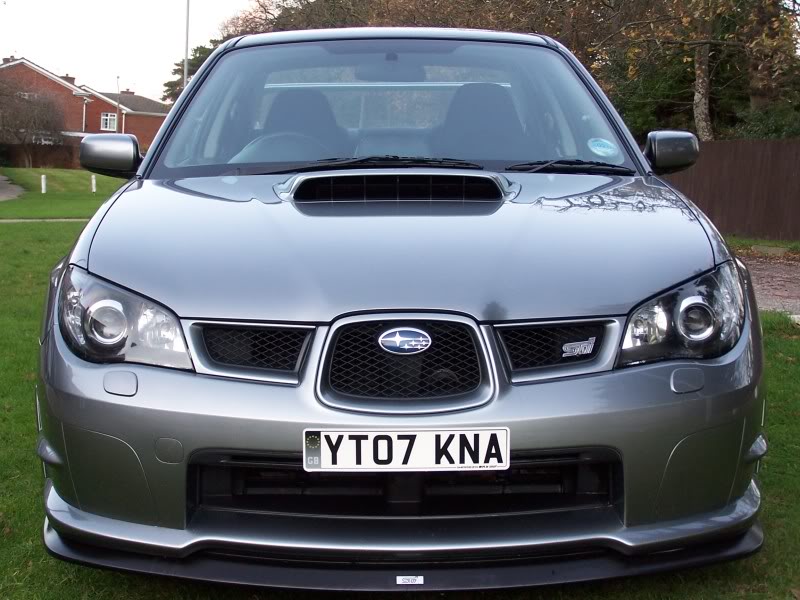

Name:  100_8678.jpg
Views: 0
Size:  86.5 KB
Name:  100_8677.jpg
Views: 0
Size:  137.6 KB
Name:  100_8694.jpg
Views: 0
Size:  94.4 KB
Scott.T is offline
Old 14 December 2011, 09:40 AM
  #2
wiley
Scooby Regular
iTrader: (63)

wiley's Avatar

Join Date: May 2008
Location: dagenham a13
Posts: 7,859
Likes: 0
Received 0 Likes on 0 Posts
Default

Amazing job. Lots spot on, need to do mine when it's back from garage

Wiley
wiley is offline
Old 14 December 2011, 10:03 AM
  #3
alcazar
Scooby Regular
iTrader: (2)

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,663
Likes: 0
Received 0 Likes on 0 Posts
Default

Looks pretty good.

I wonder how easy it would be to fit a second pair of HID projectors to do just the main beam, since you already have them for dip?
Do you think a second pair would fit? The Morimoto Minis are quite compact....

Also, your car has HID dips as standard, yes?
Does it ALSO have both headlamp wash and SELF-LEVELLING HEADLIGHTS? Do they auto test every time you switch them on?
Thanks.
alcazar is offline
Old 14 December 2011, 01:35 PM
  #4
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by alcazar View Post
Looks pretty good.

I wonder how easy it would be to fit a second pair of HID projectors to do just the main beam, since you already have them for dip?
Do you think a second pair would fit? The Morimoto Minis are quite compact....

Also, your car has HID dips as standard, yes?
Does it ALSO have both headlamp wash and SELF-LEVELLING HEADLIGHTS? Do they auto test every time you switch them on?
Thanks.
The HID type unit/bulbs are not used for high beam due to the time they take to light/ignite.
The HID's flicker when you first turn on and take a couple of seconds to get up to full power. This would be no good for flashing or short bursts of high beam.

Yes they have Auto wash and levelling. sometime you can see the levelling working automatically.

Last edited by Scott.T; 14 December 2011 at 01:37 PM.
Scott.T is offline
Old 14 December 2011, 03:17 PM
  #5
Scooby Dan
Scooby Regular

Join Date: Nov 2004
Posts: 825
Likes: 0
Received 0 Likes on 0 Posts
Default

Nice job , looks cool .
Just to add a little , the lights are easier to get in and out if you remove the bolts from the top of the wing . I haven't done this mod but did once have to split a hawkeye light as it was condensing up , I removed the hid box but left everything else in , when I replaced the light the dipped beam wouldn't work . Luckily a few days later it started working again but I would advise removing the bulbs etc before putting it in the oven .
Scooby Dan is offline
Old 14 December 2011, 03:23 PM
  #6
alcazar
Scooby Regular
iTrader: (2)

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,663
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Scott.T View Post
The HID type unit/bulbs are not used for high beam due to the time they take to light/ignite.
The HID's flicker when you first turn on and take a couple of seconds to get up to full power. This would be no good for flashing or short bursts of high beam.
Interesting: my HID projectors do that, but my Hella HID driving lights don't. If anything they flash bright to start with, then go dimmer, then warm up to bright again.
I think it might be down to a difference in ballasts.

Originally Posted by Scott.T View Post
Yes they have Auto wash and levelling. sometime you can see the levelling working automatically.
Interesting.
alcazar is offline
Old 14 December 2011, 09:43 PM
  #7
jsrush09
Scooby Regular
iTrader: (1)

Join Date: Dec 2011
Location: Wolverhampton
Posts: 144
Likes: 0
Received 0 Likes on 0 Posts
Default Rear lights

hi do you think this will work the same on the rears as i need to change over the fog and reverse?
jsrush09 is offline
Old 14 December 2011, 10:05 PM
  #8
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by jsrush09 View Post
hi do you think this will work the same on the rears as i need to change over the fog and reverse?
I think the rears hard glued rather the sealed with a sealant.
Scott.T is offline
Old 14 December 2011, 10:39 PM
  #9
alcazar
Scooby Regular
iTrader: (2)

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,663
Likes: 0
Received 0 Likes on 0 Posts
Default

I've NEVER hrard of anyone successfully splitting the rears by this method.........in fact not by any method

But: change them over in what way? Why is it necessary to have the f/l where the reverese is and vice versa?
alcazar is offline
Old 15 December 2011, 08:30 PM
  #10
jsrush09
Scooby Regular
iTrader: (1)

Join Date: Dec 2011
Location: Wolverhampton
Posts: 144
Likes: 0
Received 0 Likes on 0 Posts
Default

Its the law over in germany, the fog light has to be on the left, any ideas any1
jsrush09 is offline
Old 15 December 2011, 09:42 PM
  #11
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by jsrush09 View Post
Its the law over in germany, the fog light has to be on the left, any ideas any1
If it's UK registered it won't be a problem. But talking to a guy today you will have to return the car to the UK for a number of days per year to prevent being forced to re-register it in Germany.
Scott.T is offline
Old 15 December 2011, 10:11 PM
  #12
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 8,108
Likes: 0
Received 0 Likes on 0 Posts
Default

Nice job. Been looking to do this mod too. Looks great. Good decision to leave the Chrome rings. Nice write up. Thanks.
BrownPantsRacing is offline
Old 15 December 2011, 11:02 PM
  #13
alcazar
Scooby Regular
iTrader: (2)

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,663
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by jsrush09 View Post
Its the law over in germany, the fog light has to be on the left, any ideas any1

See answer in other thread.
alcazar is offline
Old 15 January 2012, 11:02 PM
  #14
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

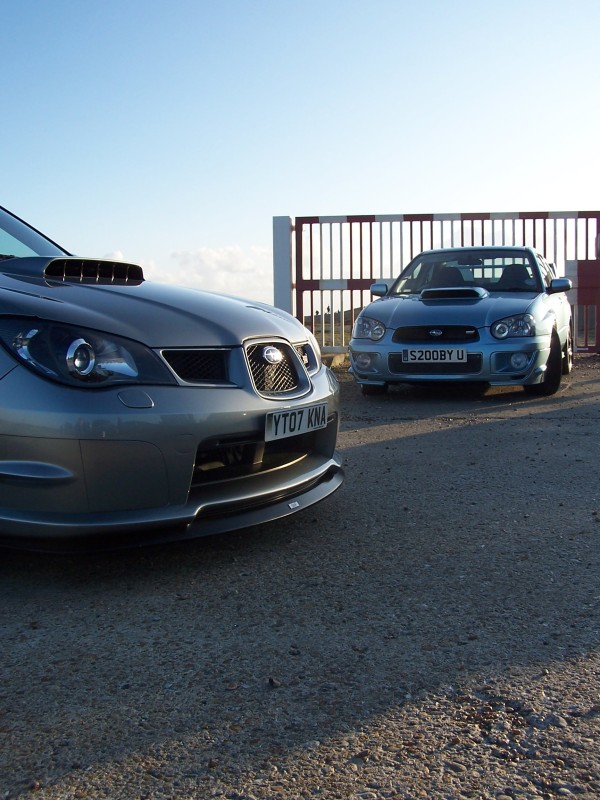

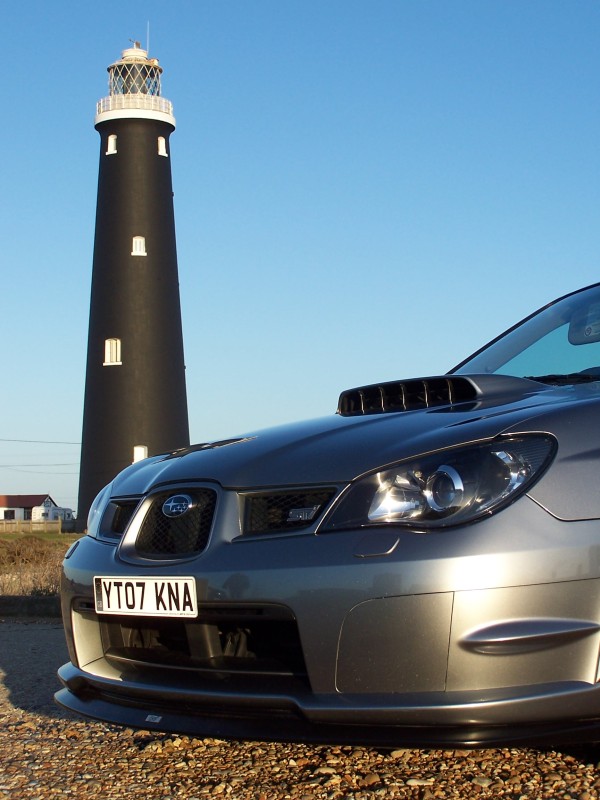

Couple of extra pics :

Name:  100_1599.jpg
Views: 0
Size:  99.0 KB

Name:  100_1575.jpg
Views: 0
Size:  125.0 KB
Scott.T is offline
Old 17 January 2012, 04:46 PM
  #15
scooby546
Scooby Regular
iTrader: (1)

scooby546's Avatar

Join Date: Nov 2005
Posts: 547
Likes: 0
Received 0 Likes on 0 Posts
Default

Looks great - I need to take my headlights out soon as well so thanks for the guide
scooby546 is offline
Old 18 June 2012, 11:51 PM
  #16
Donz144
Scooby Regular

Donz144's Avatar

Join Date: Nov 2007
Location: Kinross, Scotland
Posts: 165
Likes: 0
Received 0 Likes on 0 Posts
Default

Spot on. Get the oven on!
Donz144 is offline
Old 08 October 2012, 07:04 PM
  #17
wiley
Scooby Regular
iTrader: (63)

wiley's Avatar

Join Date: May 2008
Location: dagenham a13
Posts: 7,859
Likes: 0
Received 0 Likes on 0 Posts
Default

followed this guide and did mine today. couple of hours i'd say all in
looks great!

wiley
wiley is offline
Old 10 October 2012, 08:35 PM
  #18
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 8,108
Likes: 0
Received 0 Likes on 0 Posts
Default

pickies please!!!!!
BrownPantsRacing is offline
Old 10 October 2012, 09:06 PM
  #19
wiley
Scooby Regular
iTrader: (63)

wiley's Avatar

Join Date: May 2008
Location: dagenham a13
Posts: 7,859
Likes: 0
Received 0 Likes on 0 Posts
Default

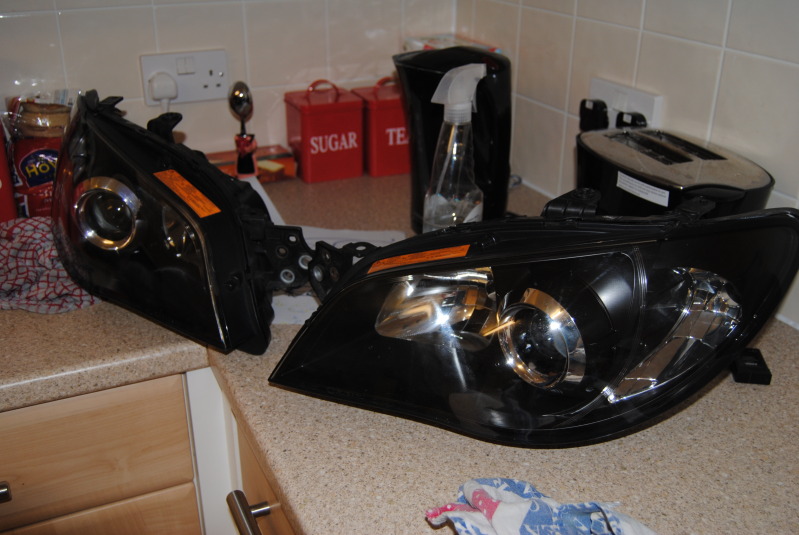

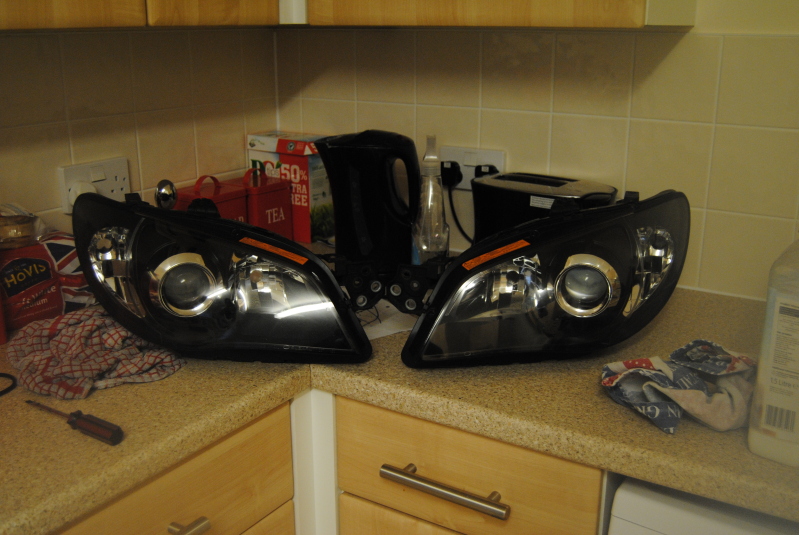

took my time making sure glass was clean inside, and paint was sprayed evenly over 4-5 coats
Name:  DSC_0035.jpg
Views: 0
Size:  120.0 KB
Name:  DSC_0034.jpg
Views: 0
Size:  250.0 KB

wiley
wiley is offline
Old 10 October 2012, 09:08 PM
  #20
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 8,108
Likes: 0
Received 0 Likes on 0 Posts
Default

Nice job!
BrownPantsRacing is offline
Old 19 November 2012, 03:26 PM
  #21
Da Matser
Scooby Regular

Join Date: May 2012
Location: Walsall
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks for this Scott. I will be having a go in a couple of weeks.
Your car is currently for sale at http://www.grahamwalker.co.uk/subaru...hester-2459799
I looked at it last week, but in the end bought another Urban Grey Hawkeye as yours didn't seem to me to have the correct stamps
One final thing, where did you get the badge (I know you have to mod it) and number plates please? Nice touches
Da Matser is offline
Old 19 November 2012, 09:39 PM
  #22
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Da Matser View Post
Thanks for this Scott. I will be having a go in a couple of weeks.
Your car is currently for sale at http://www.grahamwalker.co.uk/subaru...hester-2459799
I looked at it last week, but in the end bought another Urban Grey Hawkeye as yours didn't seem to me to have the correct stamps
One final thing, where did you get the badge (I know you have to mod it) and number plates please? Nice touches
No worries mate.
The last 2 Stamps in the book are mine, for the 18 months I had it, as had a stamp made up with a Log Number.
This tallies the log number on the stamp with the service sheet records (which are in accordance with the Subaru Service History chart) in the accompanying folder.
And IMHO worth more and better then any dealer.

It had 'dealer' history on it when I got it and it took a bloody age to free up the pads to get them out and inspect them. If you were to do it now they would literally fall out.

All a dealer does is a visual.....sometimes !!!!!

You may work out that I don't trust dealers, infact I don't trust my car with anyone. I've had Subaru's for 12 years and the only time one had left me for a workshop was for a Cambelt change.

If I do it myself I know it's done and it wasn't serviced by this weeks work experience guy.
A month doesn't go by without me being under the car, under the bonnet or cleaning or servicing something.

I've just got an A4 S-line as family wheels with full Audi 'Dealer' history. They didn't even spot a missfire which I felt before and after the service, and yes they did test drive it because they ticked the 'test drive' box on the service sheet.

Last edited by Scott.T; 19 November 2012 at 10:08 PM.
Scott.T is offline
Old 19 November 2012, 09:55 PM
  #23
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Da Matser View Post
One final thing, where did you get the badge (I know you have to mod it) and number plates please? Nice touches
Sorry for the rant about dealers.....I'll answer your other question now LOL....

Plates were from www.fancyplates.com use the fancy plate configuration tool but select normal fonts and 2/3rd's size for the front. The rear is oversized to fit the space in the bumper, but I can't remember dimensions.

STi badge was from ebay, this one I think http://www.ebay.co.uk/itm/Subaru-STI...item2c657dce3a
Scott.T is offline
Old 19 November 2012, 10:44 PM
  #24
Da Matser
Scooby Regular

Join Date: May 2012
Location: Walsall
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks for the links Scott.
If I'd tracked you down earlier and known the full facts about the service history, I may have just bought the car and wouldn't now need to do the mods!
But glad you've enlighted me

One more thing Scott. I was told you needed heat-resistant paint for the lights. Did you find the Plasti-kote stood up to the heat OK?

Last edited by Da Matser; 19 November 2012 at 11:18 PM. Reason: Paint query
Da Matser is offline
Old 19 November 2012, 11:37 PM
  #25
Scott.T
Scooby Regular
Thread Starter
iTrader: (2)

Scott.T's Avatar

Join Date: Feb 2000
Location: East Sussex
Posts: 6,175
Likes: 0
Received 0 Likes on 0 Posts
Default

plasti-kote is fine and is quite heat resistant. I've used it on rocker covers and disk hubs in the past. Gives a better finish then heat paint too.
Scott.T is offline
Old 23 November 2012, 01:31 AM
  #26
TurboAndy
Scooby Regular
iTrader: (1)

TurboAndy's Avatar

Join Date: Mar 2006
Location: Cumbria
Posts: 1,841
Likes: 0
Received 0 Likes on 0 Posts
Default

This has been done on my blobeye. makes such a difference.

Top Job Scott
TurboAndy is offline
Old 01 May 2013, 02:28 PM
  #27
blackhawksti
Scooby Regular

Join Date: Oct 2012
Location: north west
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Default

The above content is great. However, after searching for something un-related I found this video of an American guy carrying out the same. Thought it was spot, so here's the link......
blackhawksti is offline
Old 01 May 2013, 11:24 PM
  #28
Donz144
Scooby Regular

Donz144's Avatar

Join Date: Nov 2007
Location: Kinross, Scotland
Posts: 165
Likes: 0
Received 0 Likes on 0 Posts
Default

Another good find. I really must do this!
Donz144 is offline
Old 30 June 2014, 09:39 AM
  #29
Captainfunbags
Scooby Regular
iTrader: (2)

Join Date: Mar 2013
Location: Teesside
Posts: 488
Likes: 0
Received 0 Likes on 0 Posts
Default

Captainfunbags is offline
Old 24 September 2015, 09:31 PM
  #30
McGoo
Scooby Regular

McGoo's Avatar

Join Date: May 2015
Location: up North
Posts: 88
Likes: 0
Received 0 Likes on 0 Posts
Default

headlights look awesome! i may have to do mine!
McGoo is offline

Thread Tools
Search this Thread
Quick Reply: DIY - Hawkeye Headlight Modification


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
