Interior Gauges, steering wheels, seats etc

Quick release Steering wheel kits advice

Old 02 July 2014, 01:16 PM
  #1
rickya
Scooby Regular
Thread Starter
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Default Quick release Steering wheel kits advice

I recently bought a 340mm Momo steering wheel with boss from a friend and would like to fit it with a quick release kit. I am not bothered about indicators cancelling but would like the horn button to work. Also I need to retain the clockspring for DDCD sensor purposes, will this be an issue?
Not sure which is suitable or better, any advice appreciated

There are a few kits I have seen on ebay etc:

1) Sparco £45

http://www.ebay.co.uk/itm/2513210006...84.m1423.l2648

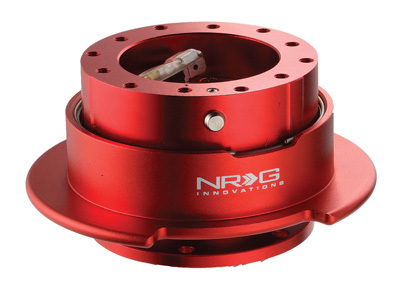

2) NRG £87

http://www.ebay.co.uk/itm/2712710520...84.m1423.l2648

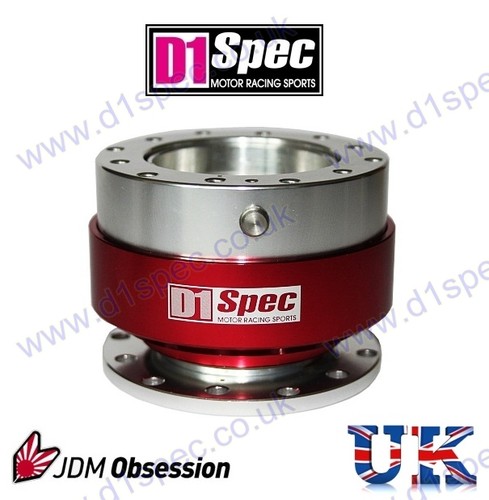

3) D1Spec £51

http://www.ebay.co.uk/itm/1912087154...84.m1423.l2648

Last edited by rickya; 02 July 2014 at 01:29 PM.
rickya is offline
Old 02 July 2014, 02:12 PM
  #2
JayUK91
Scooby Regular

JayUK91's Avatar

Join Date: Sep 2012
Location: Northants
Posts: 84
Default

Had a quick release on my MR2 for about a day. Bought one of those 'Sparco' jobbies, but they're just cheap generic kits from China.

Didn't like it due to:
a) It had a tiny amount of play in it
b) It moved the steering wheel too far away from the dash - meaning I couldn't reach any of the stalks with just a finger flick.

Just something to bear in mind, but try to get the thinnest kit you can find. I've heard good things about the NRG kits though - much better build quality.
JayUK91 is offline
Old 02 July 2014, 02:30 PM
  #3
rickya
Scooby Regular
Thread Starter
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Default

Thanks mate, good info.
Was also thinking NRG but may have to get their slim hub kit too instead of using the Momo hub kit I currently have.
rickya is offline
Old 02 July 2014, 02:33 PM
  #4
JayUK91
Scooby Regular

JayUK91's Avatar

Join Date: Sep 2012
Location: Northants
Posts: 84
Default

Yeah, MOMO collapsible boss' are quite large (what I had) so if you can find the correct NRG kit that's probably worth doing.
JayUK91 is offline
Old 02 July 2014, 03:15 PM
  #5
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

I have the NRG Gen.2 quick release. Incredible quality, works a dream - absolutely no play in it whatsoever. Plus, it's dual-drilled, so excepts pretty much all modern 6x70mm and 6x74mm wheels.

My main reason for choosing it over the 'motorsport-esque' Sparco one, is that you can lock the separate NRG anti-theft cover over the quick release, for added security!

Whatever you do, make sure you buy the genuine NRG item, and not those cheapo, far east knock-off pattern versions that proliferate eBay!


My actual boss is the regular OMP one, which is fine for me using a flat steering wheel; you can just about get your fingers to the stalks when holding the wheel. But if that boss (or Simoni, MOMO, etc.) is too long, you can also get the short, matching NRG boss, which is about an inch shorter IIRC...

Last edited by joz8968; 02 July 2014 at 08:04 PM.
joz8968 is offline
Old 02 July 2014, 03:56 PM
  #6
marcio
Scooby Regular

Join Date: Jun 2012
Location: Abroad
Posts: 35
Default

I have been using a NRG Gen. 2.5 quick release with a NRG short boss for over an year now, tracked the car a few times, occasional street drive and some trips when needed and no issues, no play, no unintentional release of the wheel so far :-).

But a few comments about the quick release + short boss NRG 'combo': at the time I bought them there were no NRG short boss that fit the STi v6 steering column (I think they still don't have one) and I had to buy a WRX one. The end of the steering column is a bit different between the models (same thread pattern to fit the boss, but the STi column after the threads is thicker than the WRX one so the short boss won't slide to the correct position). I had to remove some material from the inside of the short boss, as well as its back part/part that faces the steering column to get a 100% fit.

I also had to use a metal contact to link the back of the short boss to the horn wiring and make the horn work, and buy a separate resistor to cancel the Air Bag light. These parts didn't come with the NRG short boss.

Despite those NRG short boss related issue, as I said I couldn't find a problem in the NRG quick release itself so far.

btw: a friend and I thought that going 'fancy' would change something and he bought a Works Bell Short boss + quick release combo specific for the STi v6 (his car model also) and ended up having the same fitting problems I had with the short boss described above.

Cheers,
Marcio
marcio is offline
Old 02 July 2014, 04:56 PM
  #7
rickya
Scooby Regular
Thread Starter
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Default

Thanks so far, very useful feedback.
If I go with the NRG one will the clockspring with dccd plugs etc still be retained and also will the steering wheel be too close to my body with this?
rickya is offline
Old 02 July 2014, 05:01 PM
  #8
RoyPinhey
Scooby Regular

RoyPinhey's Avatar

Join Date: Sep 2013
Location: Plymouth
Posts: 473
Default

As said above you will need a resistor for your airbag light . . I too have an nrg and can't rate it highly enough
RoyPinhey is offline
Old 02 July 2014, 05:23 PM
  #9
marcio
Scooby Regular

Join Date: Jun 2012
Location: Abroad
Posts: 35
Default

I don't know about the clockspring with DCCD plugs... but regarding the distance, those pictures are not very good but may help:

When NRG advertises 'short boss' you'd better believe, they are really short:



With the amount of material I removed, I was able to completely slide the boss into the steering column. You can also see in the picture the back part of the quick release bolted to the short hub.

This is the wheel in place:





(don't worry about the parts missing in the picture. I'm currently working on the car and had to remove them, but everything fits in place without any issues)

If you have a short boss, a quick release and a FLAT style steering wheel, there will be very little to no difference in the distance of the wheel to your body or to the levers compared to the stock steergin wheel, at least in the NRG short hub + 2.5 gen quick release combo as the one I have the distance changed only by a few mm, nothing to worry about.

Cheers,
Marcio
marcio is offline
Old 02 July 2014, 06:36 PM
  #10
rickya
Scooby Regular
Thread Starter
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Default

Thank you Marcio for your help & advice
I think I will need to buy the NRG short hub rather than using my Momo hub.
That then adds up in cost & may then be better off getting this below which comes as a whole kit?

http://www.rhdjapan.com/works-bell-r...k-release.html
rickya is offline
Old 08 July 2014, 10:29 AM
  #11
marcio
Scooby Regular

Join Date: Jun 2012
Location: Abroad
Posts: 35
Default

Doesn't look like it is a kit in the link you sent, only the quick release from what I understood.

You still need the boss to install it, could be the momo one you have if you don't bother about the steering wheel distance to your body / indicator/wiper stalks or a short boss if distance is an issue.

Cheers,
Marcio
marcio is offline
Old 12 July 2014, 01:55 AM
  #12
crookedvulture
BANNED
iTrader: (3)

Join Date: Oct 2010
Location: UP TO MY NUTS IN GUTS
Posts: 513
Default

My advice would be to buy the best you can afford.I bought a Chinese ebay special & it was absolute shizer,I then spent £150 on a Sabelt one which is great,but I do have an OMP WRC dished steering wheel that makes it pretty far back.btw those ones pictured are not genuine Sparco.I believe those Bell ones are pretty good also Lifeline too.
crookedvulture is offline
Old 19 July 2014, 03:43 PM
  #13
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,928
Default

Ricky I have a works bell kit on mine and it's beautifully engineered and has zero play in it. Also comes with the airbag light delete resistor.
Expensive but worth the money IMO.

Call Playskool Motorsport. That's where I sourced mine.
frayz is offline
Old 20 July 2014, 12:54 PM
  #14
Mr Blobby
Scooby Regular

Join Date: Feb 2013
Location: Portsmouth
Posts: 152
Default

Originally Posted by frayz View Post
Ricky I have a works bell kit on mine and it's beautifully engineered and has zero play in it. Also comes with the airbag light delete resistor.
Expensive but worth the money IMO.

Call Playskool Motorsport. That's where I sourced mine.
+1 Such a good kit to buy.
Mr Blobby is offline
Old 27 August 2014, 12:41 PM
  #15
JamesDundee
Scooby Regular
iTrader: (2)

JamesDundee's Avatar

Join Date: Jan 2008
Location: Lancashire (Not Dundee Anymore)
Posts: 837
Default

Ive ordered cheap ones in the past and also ordered NRG ones from Ebay and it turned out to be fake..... Terrible quality.
I currently run a Driftworks QR boss which locks VERY solid, weighs a ton, and is a quality bit of kit. No play whatsoever, unlike some of the others. I also have a HKB boss which cancels indicators, retains the clock spring etc etc and comes with little wiring loom with resister, with push fit connectors to cancel the airbag light. Extremely good bit of kit. Coupled with my Personal 330mm wheel its nice and close and quality!
JamesDundee is offline
Old 28 August 2014, 01:47 PM
  #16
ZX-TT
Scooby Regular

Join Date: Jun 2012
Location: Aylesbury
Posts: 881
Default

Does anyone have a fitting guide for this set up? I have the NRG Short Boss the 2.5 Quick release hub kit and a dished steering wheel, I have never fitted anything like this before and connot figure out the horn wiring with the metal rings? I also have the resister for the air bag.

Any help would be greatly appreciated
ZX-TT is offline
Old 28 August 2014, 04:01 PM
  #17
stonejedi
Scooby Regular
iTrader: (51)

stonejedi's Avatar

Join Date: Jan 2008
Posts: 6,987
Default

.SJ.
stonejedi is offline
Old 28 August 2014, 04:58 PM
  #18
ZX-TT
Scooby Regular

Join Date: Jun 2012
Location: Aylesbury
Posts: 881
Default

Seen this one mate but he doesnt wire up the horn? I can put it all together is the wiring thats catching me out.
ZX-TT is offline
Old 28 August 2014, 05:01 PM
  #19
stonejedi
Scooby Regular
iTrader: (51)

stonejedi's Avatar

Join Date: Jan 2008
Posts: 6,987
Default

Try this one.SJ.
stonejedi is offline
Old 30 August 2014, 05:29 PM
  #20
F1 CJE UK
Scooby Regular
iTrader: (8)

Join Date: Jan 2006
Location: MK
Posts: 4,930
Default

Originally Posted by Mr Blobby View Post
+1 Such a good kit to buy.
and they are great people o deal with! had a issue with my one had they fixed it in a few days
F1 CJE UK is offline
Old 10 September 2014, 10:50 AM
  #21
crazyspeedfreakz
Scooby Regular
iTrader: (92)

crazyspeedfreakz's Avatar

Join Date: Apr 2009
Location: Surrey
Posts: 5,841
Default

Originally Posted by marcio View Post
I don't know about the clockspring with DCCD plugs... but regarding the distance, those pictures are not very good but may help:

When NRG advertises 'short boss' you'd better believe, they are really short:



With the amount of material I removed, I was able to completely slide the boss into the steering column. You can also see in the picture the back part of the quick release bolted to the short hub.

This is the wheel in place:





(don't worry about the parts missing in the picture. I'm currently working on the car and had to remove them, but everything fits in place without any issues)

If you have a short boss, a quick release and a FLAT style steering wheel, there will be very little to no difference in the distance of the wheel to your body or to the levers compared to the stock steergin wheel, at least in the NRG short hub + 2.5 gen quick release combo as the one I have the distance changed only by a few mm, nothing to worry about.

Cheers,
Marcio



Hi marcio

I have this same set did u figure out a way of keeping the automatic indicator cancel ?? Or do u have to cancel manually ?

Cheers
crazyspeedfreakz is offline
Old 13 September 2016, 11:42 PM
  #22
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,217
Default

Originally Posted by crazyspeedfreakz View Post
Hi marcio

I have this same set did u figure out a way of keeping the automatic indicator cancel ?? Or do u have to cancel manually ?

Cheers
Thread revival

Is there any way to get the auto cancel for indicators with this kit?

Cheers
Rich
ossett2k2 is online now
Old 14 September 2016, 06:21 PM
  #23
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,217
Default

ossett2k2 is online now
Old 15 September 2016, 12:22 PM
  #24
crazyspeedfreakz
Scooby Regular
iTrader: (92)

crazyspeedfreakz's Avatar

Join Date: Apr 2009
Location: Surrey
Posts: 5,841
Default

Never did figure out a way of keeping the auto cancel, sorry, I just cancel by hand now :/
crazyspeedfreakz is offline
Old 15 September 2016, 01:23 PM
  #25
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,217
Default

Originally Posted by crazyspeedfreakz View Post
Never did figure out a way of keeping the auto cancel, sorry, I just cancel by hand now :/
ossett2k2 is online now
Old 15 September 2016, 06:33 PM
  #26
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

HKB boss FTW!
joz8968 is offline
Old 15 September 2016, 07:00 PM
  #27
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,217
Default

Originally Posted by joz8968 View Post
HKB boss FTW!
But my NRG one is the dogs danglies and wouldn't change it,I've learnt to drive without making any turns now so don't really need indicators
ossett2k2 is online now
Old 15 September 2016, 07:25 PM
  #28
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

Do you have the NRG short boss, then?

Because if not, I'd flog on the regular NRG boss and replace with the HKB. You won't regret it.


(BTW, I also have the NRG 2.5 quick release on top on the HKB - best of ALL worlds and sh¡t lol. You know it makes sense. )

Last edited by joz8968; 15 September 2016 at 07:32 PM.
joz8968 is offline
Old 15 September 2016, 07:38 PM
  #29
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,217
Default

It's the same as the boss in post #9 but in red.
I've lived with manual cancel for over a year now so am pretty much used to it,as long as I can take my steering wheel to bed with me then that's the main thing,auto cancel would be a bonus,I'll take a look at the HKB ones.
ossett2k2 is online now
Old 15 September 2016, 07:49 PM
  #30
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

Originally Posted by ossett2k2
It's the same as the boss in post #9 but in red.
Yeah, their short ('Italian driver, long reach') boss lol


- I know what you mean, though. You do get used to (put up with) it.

But I always really hankered after it being back to normal. It was only after accidentally stumbling upon a thread that I realised the HKB would give me everything I needed.

I just happened to retain my clockspring (in case I want to return it all back to stock in future). Which was helpful.

Last edited by joz8968; 15 September 2016 at 10:21 PM.
joz8968 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Matty[email protected] Developments
Full Cars Breaking For Spares
33
29 August 2017 07:18 PM
MH-Racing
Subaru Parts
18
18 October 2015 04:49 PM


Thread Tools
Search this Thread
Quick Reply: Quick release Steering wheel kits advice


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
