Major_Sarcasm

iTrader: (27)

SOLD

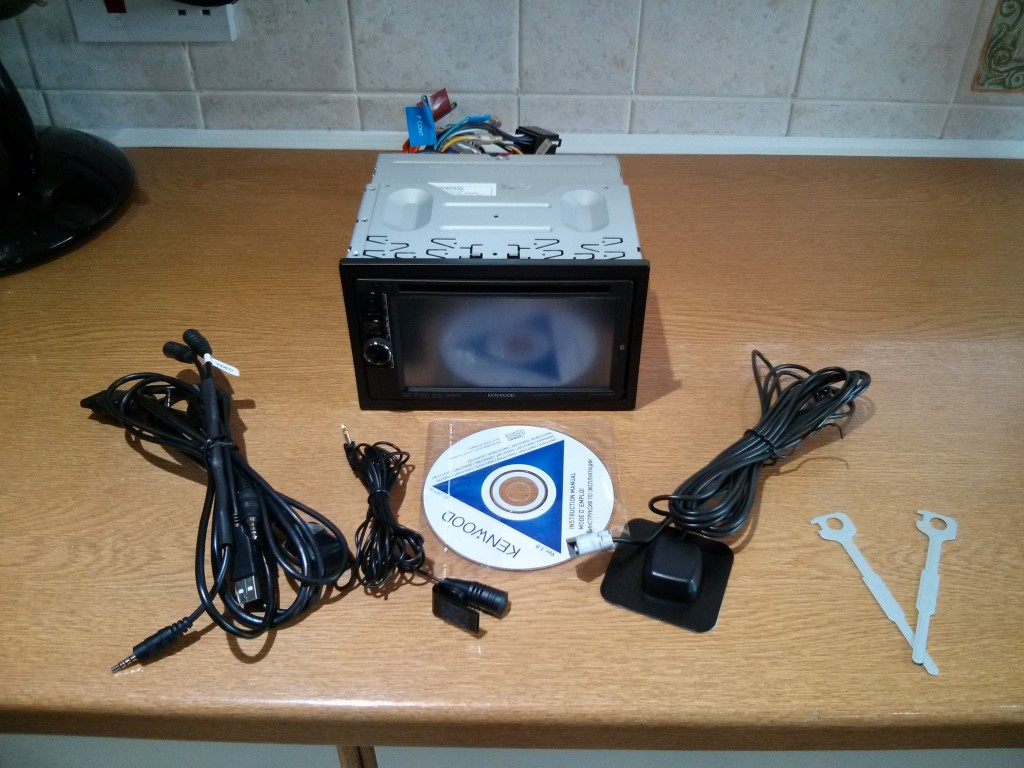

Due to needing some cash, I'm putting up my mint condtion DNX4210BT for sale. Supplied with iPod cables, GPS antenna for Garmin SatNav, Microphone for Bluetooth calls, USB input in harness. Connect your iPod/phone, Android phone (direct control via app), USB stick...

Link to Kenwood's DNX4210BT page is here.

The spec is enormous...

General
2 DIN navigation AV unit
Disabled System Indicator (DSI)
On Screen Display (OSD) Operation
Smooth GUI
Variable colour Key Illumination
Rotary Encoder & Control ****
Installer Memory
Back-up Memory
Attenuator with Smooth Volume Return
Touch Sensor Tone
Digital Clock (24H)
Bluetooth unit built-in
Navigation unit built-in
Made for iPod
Firmware upgreadable

Multimedia GUI Features:
Full Graphics OSDC Type
Variable Colour illumination
GUI colour coordinate
Background Customize
Picture in picture
USB Software updates (SoC)
Slide Touch Operation
(2D) Animation
Scroll Display

Monitor Features:
6.1 inch Wide VGA LCD
LED LCD backlight
4 Display Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display
Brigtness/Tint/Colour/Contrast/Black Level/Sharpness/Dimmer Screen Adjustments
Manual/Sync/Navi Sync Dimmer function
DVD/Video/(TV)/USB/iPod/App Visual Source Mode
Touch Panel
Auto NTSC/PAL judge
V.OFF/TFT Off Mode

Audio features:
Max. Output Power (MOSFET Power IC) 4 x 50W
3x RCA Pre-out: Front/Rear/Subwoofer
2V Pre-out Output Level
Subwoofer Reference Level Adjust
Dual Zone Source & Volume Control
Balance/Fader Control
Att.(-20dB) with smooth Volume Return
Sound Excellence DSP
3-band parametric EQ Built-in
System E's+ (Built-in HPF & LPF)
Beep On/Off

Video Features:
1 RCA Audio/Video Output
1 RCA Audio/Video Input
iPod AV input switchable to additional AV input
1 dedicated NTSC video input (RCA) for Rear-view Camera
(Rear) camera display view control
RGB Input For Navigation System
DVD Menu Direct Touch Operation

Tuner Features:
Radio Data System
Radio Text Plus
Program Type Function (PTY)
Enhanced Other Networks Function (EON)
Traffic Information
FM Reception
AM (MW/LW) Reception
24 Presets (18FM / 3LW / 3MW)
Station Select from List
Automatic Memory Entry (AME)
Up/Down Seek Tuning
Tuning mode (Auto1 / Auto2 / Manual)
FM Stereo / Mono Selector

DVD-Features:
Single Disc Capacity
DVD±R/RW Compatible
DVD Region Code 2
CD-R/RW Compatible
CD Text
MP3, WMA & AAC playback
24 bit Digital/Analog Converter
MPEG1/2 Video File (.mpg) Compatible
DivXCD-DA Repeat/Scan/Random play
Direct Search
Disc Menu Direct Touch

USB Features:
Rear USB terminal
USB1.1 / USB 2.0
Kenwood Music Editor Lite
Kenwood music control App for Android
MP3, WMA, AAC & WAV playback
MPEG1 Video decoder
MPEG2 Video Decoder
MPEG4 Video Decoder
H.264 Video decoder
WMV video decoder
JPEG slide show
JPEG picture control
Repeat/Scan/Random search
Direct search
Category search

iPod Features:
Made for iPod & iPhone
USB Video & Audio direct control (2 wire) with optional KCA-iP202
Album art support
Music library search
Alphabet search
App & iPod control mode
Reverse browsing
Works with iPod Classic 80G, 120G & 160G
Works with iPod Video 5th & 6th generation
Works with iPod Touch 1st & 2nd generation
Works with iPod Nano 1st, 2nd, 3rd, 4th & 5th Generation
Works with iPhone
Battery charge + power control
1A current capability

Bluetooth General Features:
Telechip Module built-in
Hands free Profile (HPF)
Easy pairing HFP device
Bluetooth firmware upgradeable
Bluetooth compatibility

Navigation Features:
Touch-screen controllable
Easy-to-use Graphical Interface
Built-in Map Data City Navigator NT version 14E
Map Upgrade via USB(donwload)
Map Coverage City Navigator Europe NT - V14E included
2-Dimensional Map Display
Auto Zoom Function
Turn-by-Turn Instructions
Automatic Re-Route
Day/Night Colour mode
Detour Re-Routing
Route Preference Function
GPS Info page
Primary/Secundary GUI
Destination Search (Multi)
Voice Guidance
Text-to-Speech (TTS) Voice Guidance
Phone call by POI search
Lane Assistance
Globe view (world mapping)
ecoRoute™
Multi-route review
Traffic Trend / My Trend
Traffic Message Channel Built-in
Vehicle Position Sensing by GPS
Trip Computer
Trip log output to PC via USB
Additional main map field
Speed camera's: Uploaded by USB

Connectivity:
OEM Wired Remote Control
Parking sensor wire
Reverse sensor wire
Power Control (P.CON) wire
2-way (Tel/Navi) mute wire
Dimmer control wire
GPS Antenna Input
External microphone input

Monitor Specifications:
Screen size (Diagonal): 6.1 Inches Wide
Screen Size (WxH): 136.2 x 72mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels: 0.9999%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

Video Specifications:
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA): 2 V / 25 kOhm
Video Output Level (RCA): 1 Vpp / 75 Ohm
Audio Output Level (RCA): 1.2 Vpp / 10 kOhm

Tuner Specifications:
FM Frequency range (50kHz step): 87.5MHz ~ 108MHz
FM Usable Sensitivity: 0.9μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 2μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 65dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 35dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
LW Frequency Range: 153kHz ~ 279kHz

DVD Specifications:
D/A Converter: 24 bit
Video decoder: MPEG1/MPEG2/DivX
Audio decoder: Linear PCM/Dolby Digital/dts/MP3/WMA/AAC
Wow & Flutter: Below Measurable Limit
Freq. Resp. (96kHz Sampling): 20Hz ~ 20kHz
Freq. Resp. (48kHz Sampling): 20Hz ~ 20kHz
Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
Total Harmonic Distortion: 0.0001% (1kHz)
Signal to Noise Ratio: 98dB (1kHz)
Dynamic Range: 98dB
Disc Format: DVD-Video/Video-CD/CD-DA
Sample Frequency: 96k / 48k / 44,1kHz
Quantifying bit number: 13/20/24bit

USB Specifications:
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 1000mA
D/A Converter: 24 bit
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC "m4a" Files
WAV Decode: Linear - PCM Files
Acceptable video files: MPEG1, MPEG2, MPEG4, H.264, WMV

Bluetooth specifications:
Technology: Bluetooth 1.2 certified
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP)

Navigation specifications:
Receiver type: High sensitivity GPS receiver
Receiver frequency: 1575.42 MHz (C/A code)
Acquisition time cold: < 35 sec
Update rate: 1/sec continuous
Position accuracy: < 6 meters/typical
Velocity accuracy: 0.1 meter/sec RMS
Positioning method: GPS
Antenna: External GPS antenna

Accessories:
Release keys: 2 pieces
Escutcheon
Installation Sleeve
GPS antenna: 50 cm cable
Handsfree Microphone: 300 cm cable
iPod connection cables (x2)
Instructions on CD
Printed quick-start guide and wiring guide

------------------------------------------------------------------------
I've seen these for sale for between £500 & £850(!) without the iPod cables. I think £400 posted is fair.

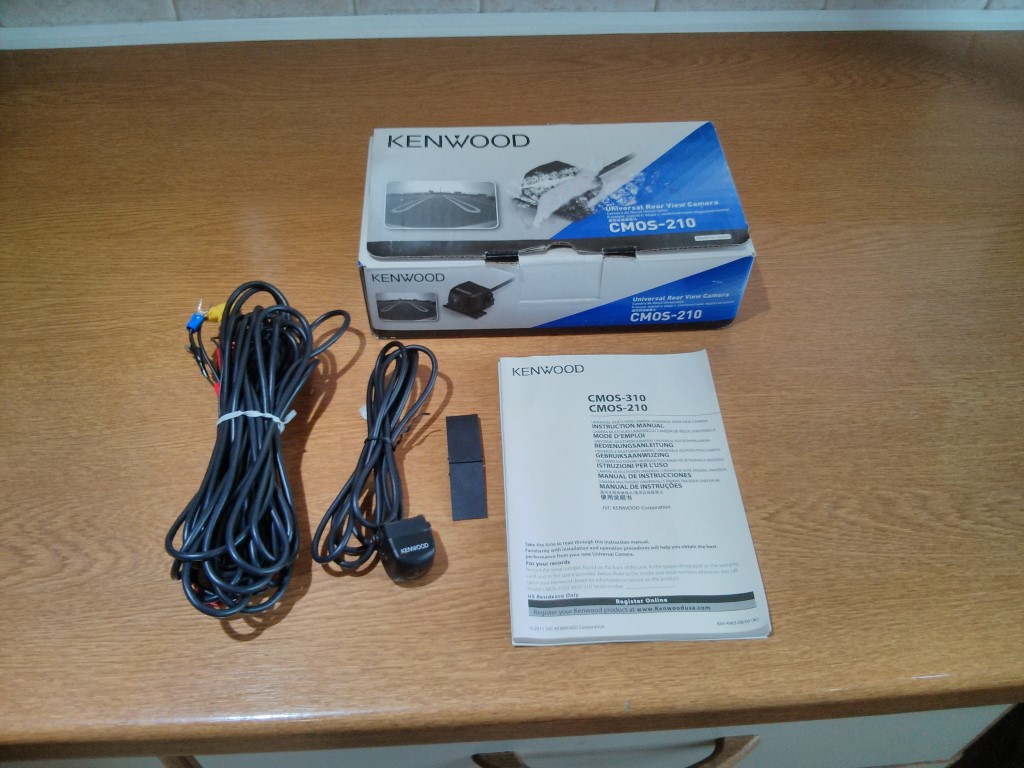

I also have a CMOS-210 reversing camera for sale, £75 if sold separately, £60 if bought with the headunit.

sprigeteer

iTrader: (9)

PM sent

Major_Sarcasm

iTrader: (27)

Replied

Edit: provisionally sold!

PrimeKos

iTrader: (1)

Has it sold?

Major_Sarcasm

iTrader: (27)

Yes.
