newage. where does this pipe go?

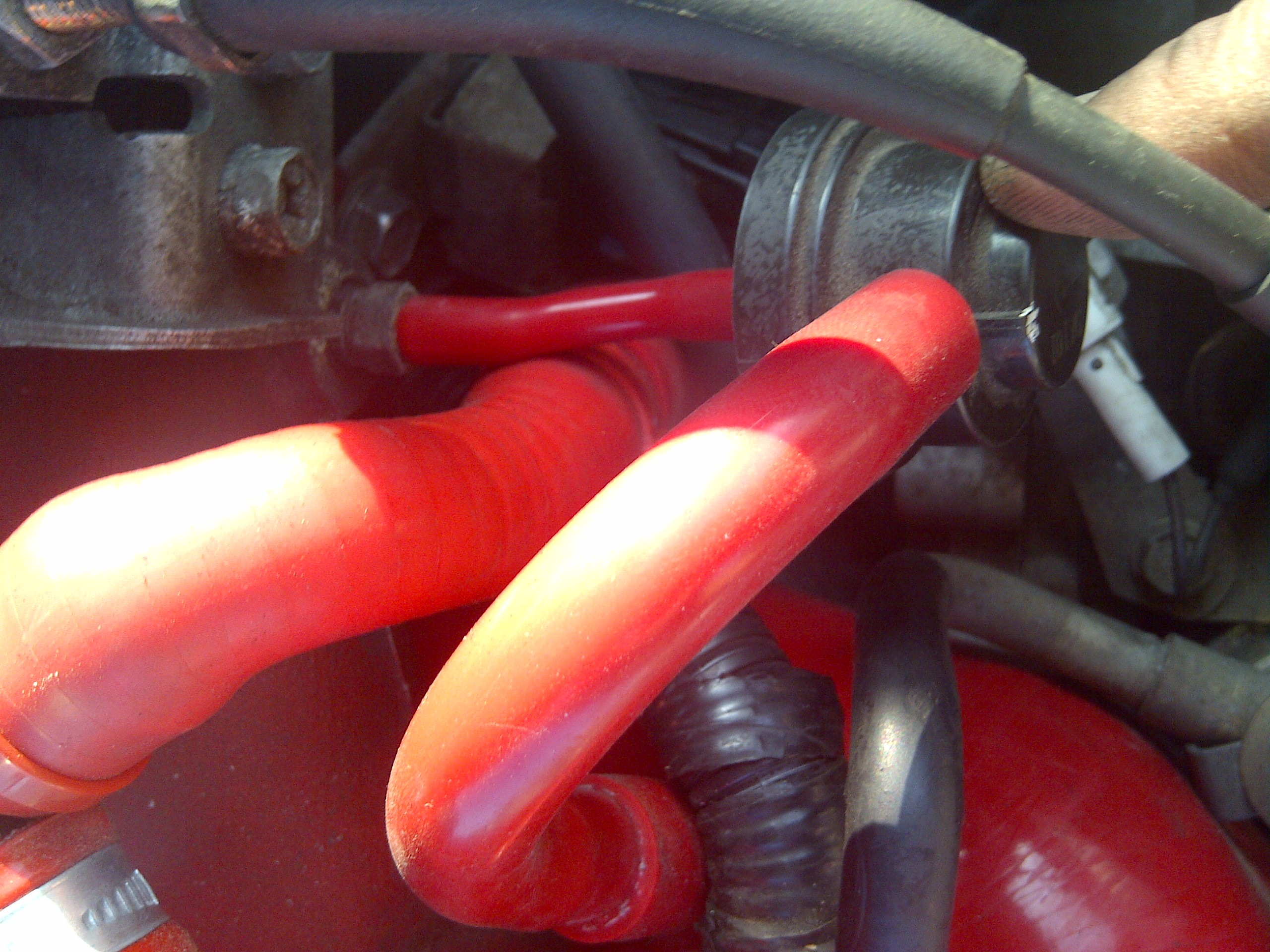

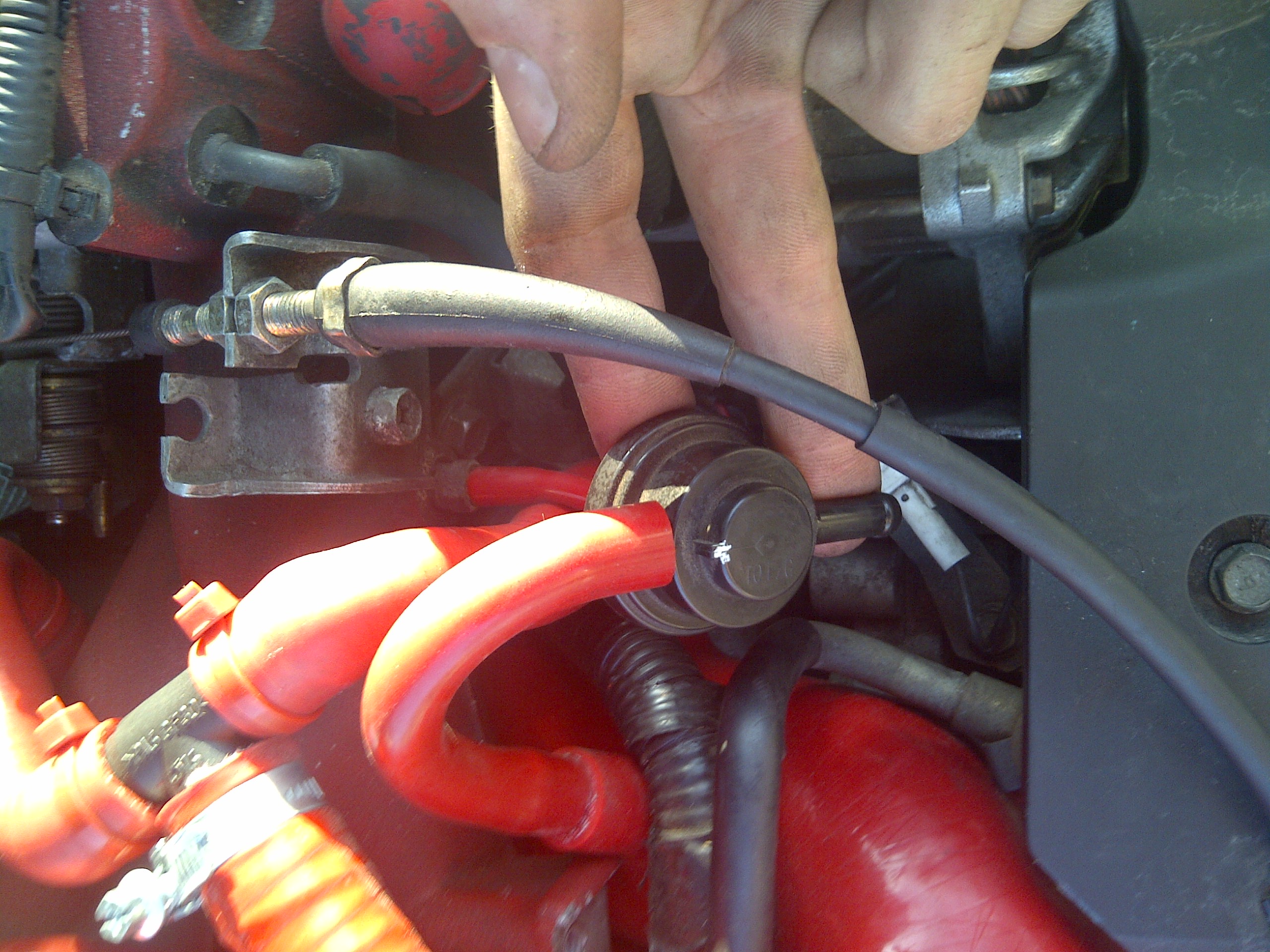

Just replacing some pipework with lovely red 1's but I can't seem to locate where the pipe from the bottom of this goes????

Top 1 goes to turbo hose middle 1 goes to inlet

bottom??? Vent to air??

Reply Like

28 March 2012, 10:03 PM

beefoss

Scooby Regular

iTrader: (2)

Join Date: Jul 2011

Location: Somerset

Posts: 168

Likes: 0

Received 0 Likes on 0 Posts

On a 2006 WRX it goes to a T-piece which is sited juts to the left of the alternator and under the electric connectors. Not sure if this helps.

Reply Like

28 March 2012, 10:05 PM

LewisL

Scooby Regular

Thread Starter

iTrader: (3)

Join Date: Jun 2011

Location: Bristol

Posts: 579

Likes: 0

Received 0 Likes on 0 Posts

Thanks mate

I will have a look round that area tomorrow in the light

Reply Like

28 March 2012, 10:06 PM

360ste

Scooby Regular

iTrader: (1)

Join Date: Apr 2005

Location: In the Flatlands of Lincolnshire

Posts: 2,892

Likes: 0

Received 0 Likes on 0 Posts

You should have a pipe coming under the manifold from over by the fuel filter. As it connects to purge tank at the rear of the car. As above there should be a blue T-piece floating around down there somewhere.

Last edited by 360ste; 28 March 2012 at 10:08 PM.
