help with pipe work (pics)

Thread Tools

Search this Thread

Old Apr 13, 2010 | 07:42 PM
  #1
dooby-do's Avatar
dooby-do
Thread Starter
Scooby Regular
iTrader: (2)

Joined: Apr 2008
Posts: 626
Likes: 0
From: Milton keynes
Default help with pipe work (pics)

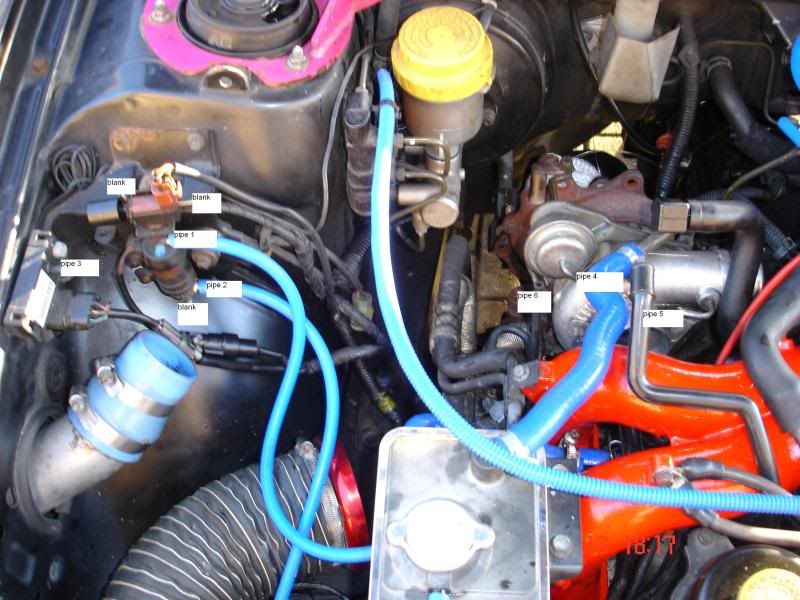

hi people i had some work done on my subaru wrx turbo however i removed the pipes around the turbo and cannot remember were they go silly mistake but it happens,my car is running simtek so the pipes are diffrent to my mates scooby i have put a picture up with the pipes labeled 1-6 also i have marked the blank ones if anybody could shed some light would be very much appriciated

Reply
Old Apr 13, 2010 | 11:28 PM
  #2
FB Tuning's Avatar
FB Tuning
Former Sponsor
iTrader: (30)

Joined: Jan 2005
Posts: 4,219
Likes: 0
From: FB Tuning Workshop - HP27
Default

1 - turbo pressure source (to #5)
2 - turbo actuator (to #4)
3 - from the aftermarket MAP sensor to the inlet plenum
4 - to #2
5 - to #1
6 - I can't see it too well, but looks like the pipe from the stock fuel pressure regulator to the inlet plenum - What's the other end of it connected to?
