Genuine td05-16G part
#1
Scooby Newbie
Thread Starter
Join Date: Apr 2006
Location: Lisbon
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Genuine td05-16G part
Hi. I bought a TD05-16G with a 90º elbow entry. Now i'm looking to buy a front entry housing and i found this one:
2.25" Compressor housing
This is a JAWAREHOUSE product so i don't know if i should buy it or not. How can i tell if this one is a genuine Mitsubishi TD05 part or not?
edit: Can anyone tell me other supliers for this item?
cheers
2.25" Compressor housing
This is a JAWAREHOUSE product so i don't know if i should buy it or not. How can i tell if this one is a genuine Mitsubishi TD05 part or not?
edit: Can anyone tell me other supliers for this item?
cheers
#4
Scooby Regular
Join Date: Jul 2000
Location: Lancashire
Posts: 2,209
Likes: 0
Received 0 Likes
on
0 Posts
Lol, I never looked at the link.
I presume you mean FHI never made a front entry comp cover for a TD05-16G wheel with a Subaru location WG actuator mount and compressor exit style
I presume you mean FHI never made a front entry comp cover for a TD05-16G wheel with a Subaru location WG actuator mount and compressor exit style
#6
Scooby Regular
Yes, basically the Subaru application TD05-16G never came with a front entry cover, simple as that. Neither were they ever an OE add on. By the time the layout moved to front entry, TD05s were no longer used as standard on any Subaru.
So any FE cover must be aftermarket. Therefore give it a go. I bought a genuine 16G that had had its 90 degree cover machined down and to be honest it's not the right solution really, you don't get enough 'flange' left to slip the inlet pipe securely over. A FE cover designed for the job is better.
So any FE cover must be aftermarket. Therefore give it a go. I bought a genuine 16G that had had its 90 degree cover machined down and to be honest it's not the right solution really, you don't get enough 'flange' left to slip the inlet pipe securely over. A FE cover designed for the job is better.
#7
Scooby Regular
iTrader: (1)
Join Date: Aug 2007
Location: york
Posts: 1,171
Likes: 0
Received 0 Likes
on
0 Posts
is that all you need to do, buy a td05 with a 90 degree and buy the FE cover of ebay,
Just wanted to know as just bought a vf23 today, and the bloody seller has pulled out says its damaged, (more like you didnt get what you wanted for it)
Just wanted to know as just bought a vf23 today, and the bloody seller has pulled out says its damaged, (more like you didnt get what you wanted for it)
Trending Topics
#8
Scooby Newbie
Thread Starter
Join Date: Apr 2006
Location: Lisbon
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Hi.
I thought that the 90º entry had the part number 14412AA091 and the 14412AA092 is the exact same turbo but with a front entry. I saw here that it was used in the EJ20G engine. Is this page showing wrong information or i'm i making some mistake somewere ?
cheers
I thought that the 90º entry had the part number 14412AA091 and the 14412AA092 is the exact same turbo but with a front entry. I saw here that it was used in the EJ20G engine. Is this page showing wrong information or i'm i making some mistake somewere ?
cheers
#10
The part you have linked to is a copy of the 90 degree housing (but cast with a front entry).
It will not fit a (your) Subaru TD05 16G as it is profiled for a EVO3 16G compressor wheel which is larger.
It will not fit a (your) Subaru TD05 16G as it is profiled for a EVO3 16G compressor wheel which is larger.
#11
Scooby Regular
iTrader: (1)
Join Date: Feb 2006
Location: Warwickshire, UK
Posts: 2,099
Likes: 0
Received 0 Likes
on
0 Posts
The difference between the normal 16G and the BIG 16G is a minor change in the exducer size, the inducer and initial blade profile (the bit closest to the housing) is unchanged, so the housing should be fine on a normal 16G
Simon
Simon
Last edited by The rookie; 10 October 2008 at 10:11 AM.
#12
Hi!
The Big 16G's compressor is rated at 34 lbs/minute which is only slightly better than the Standard 16G. The difference is how much faster the flow starts to come on with the Big 16G over the Standard 16G. The ability to move more air sooner makes the Big 16G more responsive during on-boost, off-boost, on-boost transitions. The Standard 16G will spool to full boost quicker but the Big 16G has better recovery once you drop below full boost. The Big 16G will produce between 295 and 315 WHP on a 2.0L.
The Big 16G's compressor is rated at 34 lbs/minute which is only slightly better than the Standard 16G. The difference is how much faster the flow starts to come on with the Big 16G over the Standard 16G. The ability to move more air sooner makes the Big 16G more responsive during on-boost, off-boost, on-boost transitions. The Standard 16G will spool to full boost quicker but the Big 16G has better recovery once you drop below full boost. The Big 16G will produce between 295 and 315 WHP on a 2.0L.
#13
We are talking about the EVO 16G wheel, not the Big 16G. Either way, both wheels are larger (inducer & exducer) are are of a different trim. If you think that will be 'fine', then no problem
#19
Scooby Regular
Join Date: Feb 2003
Location: Zed Ess Won Hay Tee
Posts: 21,611
Likes: 0
Received 0 Likes
on
0 Posts
you can chop the 90degree part off, and then chop a straight section of the bit you just chopped off, and weld it back onto the original cover
just like i did
just like i did
#21
Scooby Newbie
Thread Starter
Join Date: Apr 2006
Location: Lisbon
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Hi all.
I've finally recived my converted front cover but now i have another problem

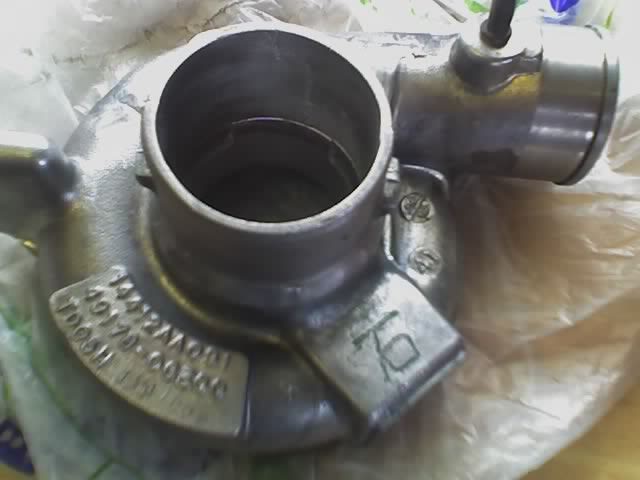

My original cover has the part number
14412AA091
49178-06300
TD05H
And the new one has this
14412AA090
49178-06200
TD05H
Can i use the new one??
Cheers
Rui Rodrigues
I've finally recived my converted front cover but now i have another problem
My original cover has the part number
14412AA091
49178-06300
TD05H
And the new one has this
14412AA090
49178-06200
TD05H
Can i use the new one??
Cheers
Rui Rodrigues
