Newage wrx - EGT CEL fix problem only on mway *FIXED*
Recently decatted up-pipe on MY01 WRX which removed the EGT sensor. Bought a CEL fix from Hayward & Scott, which is basically a resistor, and it's been fitted correctly to ECU. Car has been Ecutek remapped and other than this glitch is running absolutely fine.
On Idle the CEL fix causes temp reading of 365 (If I remember correctly) on DeltaDash.
On normal driving, no problems including full boost runs, town driving and combinations.
On motorway, when cruising at steady speeds the car throws a CEL - Exhaust Gas Temperature Sensor after 20mins or so. Been looked at in Delta Dash no other problems logged, all other parameters remain as set on mapping. ECU was reset and was fine until another motorway run when the CEL came on again. I'm assuming same fault code as neither time it missed etc.
Any ideas how I can get round this ?
Anyone know where I can get a OBD cable->USB and some software so that I can do an ecu check and a reset myself till I get it sorted properly.
Cheers
Martin.
On Idle the CEL fix causes temp reading of 365 (If I remember correctly) on DeltaDash.
On normal driving, no problems including full boost runs, town driving and combinations.
On motorway, when cruising at steady speeds the car throws a CEL - Exhaust Gas Temperature Sensor after 20mins or so. Been looked at in Delta Dash no other problems logged, all other parameters remain as set on mapping. ECU was reset and was fine until another motorway run when the CEL came on again. I'm assuming same fault code as neither time it missed etc.
Any ideas how I can get round this ?
Anyone know where I can get a OBD cable->USB and some software so that I can do an ecu check and a reset myself till I get it sorted properly.
Cheers
Martin.
Last edited by funkyspider; 10 March 2007 at 03:56 PM. Reason: problem fixed :)
#2
Scooby Regular
iTrader: (2)
Join Date: Jan 2004
Location: Hertfordshire
Posts: 4,312
Likes: 0
Received 0 Likes
on
0 Posts
Different as on mine, I used to get these symtoms and code after fitting a de-cat(same as you,Only on motorway at cruising speeds). Fitted a cel-fix and cured the problem.
Gives me the impression you have the wrong size resistor or its not quite right some where.
Is it soldered in? sometimes when using scotch blocks or similar you can add a small amound of resistance in the joint which may be causing the problem. Soldering it in would eliminate this.
Gives me the impression you have the wrong size resistor or its not quite right some where.
Is it soldered in? sometimes when using scotch blocks or similar you can add a small amound of resistance in the joint which may be causing the problem. Soldering it in would eliminate this.
#3
Scooby Regular
iTrader: (2)
Martin,
I thought that the CEL fix wired into the ECU block connector was to fix CELs from the second O2 sensor - ie after the downpipe.
Are you mixing this up with the EGT decat?
When I put on a decat up-pipe, I simply jammed a resistor into the connector by the wing. The car was then remapped and I don't recall any need for any tweaking of the map to cope with any EGT CEL.
Before Christmas I had a CEL for the rear O2 sensor crop up quite regularly when crusing about 50 mph at a fixed throttle.
This turned out to be a combination of a gasket leak on the centre section and a threshold signal needing to be tweaked to stop the CEL.
Nick
I thought that the CEL fix wired into the ECU block connector was to fix CELs from the second O2 sensor - ie after the downpipe.
Are you mixing this up with the EGT decat?
When I put on a decat up-pipe, I simply jammed a resistor into the connector by the wing. The car was then remapped and I don't recall any need for any tweaking of the map to cope with any EGT CEL.
Before Christmas I had a CEL for the rear O2 sensor crop up quite regularly when crusing about 50 mph at a fixed throttle.
This turned out to be a combination of a gasket leak on the centre section and a threshold signal needing to be tweaked to stop the CEL.
Nick
#4
Bugeye EGT CEL fix resistor fits into the connectors in the engine bay (by the wing)adjacent to the Boost solenoid ..... as Butty has just mentioned
2.1K ohm from Maplins 35 pence from memory
Shaun
2.1K ohm from Maplins 35 pence from memory
Shaun
#6
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
I wonder whether Hayward and Scott sent me an O2 sensor CEL fix rather than an EGT sensor fix. I don't need the O2 CEL fix as the threshold has been modified in the map. I specifically requested EGT fix, but the mapper said that the installation instructions were to wire it directly into the ECU loom. I shall investigate.. cheers guys
Now is it 2.1K ohm or 2.2K ohm ...
Now is it 2.1K ohm or 2.2K ohm ...
#7
Scooby Regular
Join Date: Sep 2005
Location: in the scoob in notts or is it derbys
Posts: 648
Likes: 0
Received 0 Likes
on
0 Posts
had the same on mine would only happen on motorway
got kev at scoobyclinic to fix it
its a 15min job and wont cost much give him a bell ive had no probs since
got kev at scoobyclinic to fix it
its a 15min job and wont cost much give him a bell ive had no probs since
Trending Topics
#8
Scooby Regular
iTrader: (23)
Join Date: May 2006
Location: Rota Subzeros FOR sale!
Posts: 3,701
Likes: 0
Received 0 Likes
on
0 Posts
I havew the same on my MY01, whats the fix for this, does anyone have a fitting guide for it, not vvery technie minded!!
I did buy a new EGT sensor at a VERY discounted rate from Subaru.
S!
I did buy a new EGT sensor at a VERY discounted rate from Subaru.
S!
#9
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
Right I've investigated resistors lol.
2k2 (red/red/red apparently) but what wattage and tolerance do I need.
Maplins website I found
M2K2 - Metal Film 0.6w 13 pence
D2K2 - Metal Film 2W Res 2K2 18 pence
W2K2 - Wirewound 3 Watt Resistor - W/W Min 2k2 33 pence
Dropping back to some physics, Assuming 12v
I = V/R = 12 / 2200 = 5mA
P = V*I = 12 * 5mA = 0.06W
So, a 0.6W resistor should be fine, higher wattage should work but the tolerances would be greater if I remember correctly ??
Fancy a group buy on these stalked!
2k2 (red/red/red apparently) but what wattage and tolerance do I need.
Maplins website I found
M2K2 - Metal Film 0.6w 13 pence
D2K2 - Metal Film 2W Res 2K2 18 pence
W2K2 - Wirewound 3 Watt Resistor - W/W Min 2k2 33 pence
Dropping back to some physics, Assuming 12v
I = V/R = 12 / 2200 = 5mA
P = V*I = 12 * 5mA = 0.06W
So, a 0.6W resistor should be fine, higher wattage should work but the tolerances would be greater if I remember correctly ??
Fancy a group buy on these stalked!
#11
Scooby Regular
iTrader: (5)
Join Date: Feb 2003
Location: Worcester
Posts: 2,625
Likes: 0
Received 0 Likes
on
0 Posts
find your up pipe and you will see the egt sensor in it
follow the cable to a connector about 1 foot along the cable there is a male \ female style connector - pull them apart
on the cable not going to the sensor wedge in the resistor I then wapped mine in insulator tape just to stop it falling out
it may also be worth wiping out the old sensor and replacing it with a bolt as it has been rumored to brake off and end up going through the turbo
I can't remember the bolt size but im sure someone will remind me
#12
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
Not too bright here either - I originally ordered a CEL fix from H&S, had my mapper fit it assuring him it was for EGT, although he wasnt convinced - it was actually for the O2 sensor which had already been mapped out I've since had to send a sheepish email appologising for talking outa my ar$e
Have a read here and learn from my mistakes lol.
Uppipe FAQ: Read if you are thinking of buying one! - Newbies & FAQs - NASIOC
and my post here where I waffle on. Live and learn eh
https://www.scoobynet.com/general-te...ml#post6729850
Have a read here and learn from my mistakes lol.
Uppipe FAQ: Read if you are thinking of buying one! - Newbies & FAQs - NASIOC
and my post here where I waffle on. Live and learn eh
https://www.scoobynet.com/general-te...ml#post6729850
#13
I'd just like a bit of help here too as my EGT CEL fix resistor plays up
I went to Maplins and asked the guy behind the counter for a 2.2K ohm resistor He looked a bit blank and wanted volts / watts etc. I just said it was for a car and I went away with 2 for less than a quid LOL
After installation the CEL went but comes on again from time to time...... I just wonder if I have got the right one ?
I said the Volts was 12 v for a car but I guess the EGT is simply a thermocouple and generates it's own EMF ?
Butty..... what did you buy ??
Cheers
Shaun
I went to Maplins and asked the guy behind the counter for a 2.2K ohm resistor He looked a bit blank and wanted volts / watts etc. I just said it was for a car and I went away with 2 for less than a quid LOL
After installation the CEL went but comes on again from time to time...... I just wonder if I have got the right one ?
I said the Volts was 12 v for a car but I guess the EGT is simply a thermocouple and generates it's own EMF ?
Butty..... what did you buy ??
Cheers
Shaun
#14
Scooby Regular
Join Date: Aug 2004
Location: On the edge, man!!
Posts: 1,924
Likes: 0
Received 0 Likes
on
0 Posts
I'd just like a bit of help here too as my EGT CEL fix resistor plays up
I went to Maplins and asked the guy behind the counter for a 2.2K ohm resistor He looked a bit blank and wanted volts / watts etc. I just said it was for a car and I went away with 2 for less than a quid LOL
After installation the CEL went but comes on again from time to time...... I just wonder if I have got the right one ?
I said the Volts was 12 v for a car but I guess the EGT is simply a thermocouple and generates it's own EMF ?
Butty..... what did you buy ??
Cheers
Shaun
I went to Maplins and asked the guy behind the counter for a 2.2K ohm resistor He looked a bit blank and wanted volts / watts etc. I just said it was for a car and I went away with 2 for less than a quid LOL
After installation the CEL went but comes on again from time to time...... I just wonder if I have got the right one ?
I said the Volts was 12 v for a car but I guess the EGT is simply a thermocouple and generates it's own EMF ?
Butty..... what did you buy ??
Cheers
Shaun
Lee
#16
Scooby Regular
Join Date: Aug 2004
Location: On the edge, man!!
Posts: 1,924
Likes: 0
Received 0 Likes
on
0 Posts
Shaun, pm me your addy and will post one out tomorrow. not to the price of a stamp mate,you have given me some good advice on here . make sure you have a good connection and put tape over it when fitted.
cheers
Lee
cheers
Lee
#17
Hi Lee
you have PM
Thanks for the help as ever SN is about give and take and I was wondering what I could swap it for..how about a bottle of NF octane booster
Cheers
Shaun
you have PM
Thanks for the help as ever SN is about give and take and I was wondering what I could swap it for..how about a bottle of NF octane booster
Cheers
Shaun
#18
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
Hi, When you get it (or before you send it) could you either describe the markings or take a quick photo. Resistors are colour coded with stripes and I'll be able to work out (ok ask my electronics m8) what rating it is.
Markings are in stripes like red/red/red.. gold etc.
Cheers
Martin.
Markings are in stripes like red/red/red.. gold etc.
Cheers
Martin.
#19
Scooby Regular
Join Date: Dec 2006
Location: at the petrol station again!!!
Posts: 1,213
Likes: 0
Received 0 Likes
on
0 Posts
i have recently done mine for the same fault.
i got a 2.2kohm 3watt resistor from maplins cant remember name of it but it was not conventional type,it was a white block type with no coloured stripes?
i cut the cable off egt and soldered it to the wires close to the plug and wrapped in insulation tape before plugging back in by suspension turret
i also found the cel would not clear until it was reset properly,not even after having battery off overnight,had no problems since
just looked on maplins it was a w2k2 resistor
i got a 2.2kohm 3watt resistor from maplins cant remember name of it but it was not conventional type,it was a white block type with no coloured stripes?
i cut the cable off egt and soldered it to the wires close to the plug and wrapped in insulation tape before plugging back in by suspension turret
i also found the cel would not clear until it was reset properly,not even after having battery off overnight,had no problems since
just looked on maplins it was a w2k2 resistor
Last edited by johnnyroper; 09 March 2007 at 08:34 AM.
#22
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
That colour code is a wierd resistance rating for the job lol
It sounds like a 5band (with it having 5 bands lol) so... = 115 ohms, +/-2%
5 Band calculator : Resistor Code Calculator - Colours to Value
4 Band calculator : Graphical Resistance Calculator
Red/Red/Red/Brown would be 2220 ohms, last band is the tolerance
It sounds like a 5band (with it having 5 bands lol) so... = 115 ohms, +/-2%
5 Band calculator : Resistor Code Calculator - Colours to Value
4 Band calculator : Graphical Resistance Calculator
Red/Red/Red/Brown would be 2220 ohms, last band is the tolerance
#24
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
#26
Scooby Regular
Join Date: Aug 2004
Location: On the edge, man!!
Posts: 1,924
Likes: 0
Received 0 Likes
on
0 Posts
That colour code is a wierd resistance rating for the job lol
It sounds like a 5band (with it having 5 bands lol) so... = 115 ohms, +/-2%
5 Band calculator : Resistor Code Calculator - Colours to Value
4 Band calculator : Graphical Resistance Calculator
Red/Red/Red/Brown would be 2220 ohms, last band is the tolerance
It sounds like a 5band (with it having 5 bands lol) so... = 115 ohms, +/-2%
5 Band calculator : Resistor Code Calculator - Colours to Value
4 Band calculator : Graphical Resistance Calculator
Red/Red/Red/Brown would be 2220 ohms, last band is the tolerance
Lee
#27
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
#28
Scooby Regular
Thread Starter
Join Date: Nov 2005
Location: Lancashire & District Subaru Owners
Posts: 1,335
Likes: 0
Received 0 Likes
on
0 Posts
CEL light is now off.

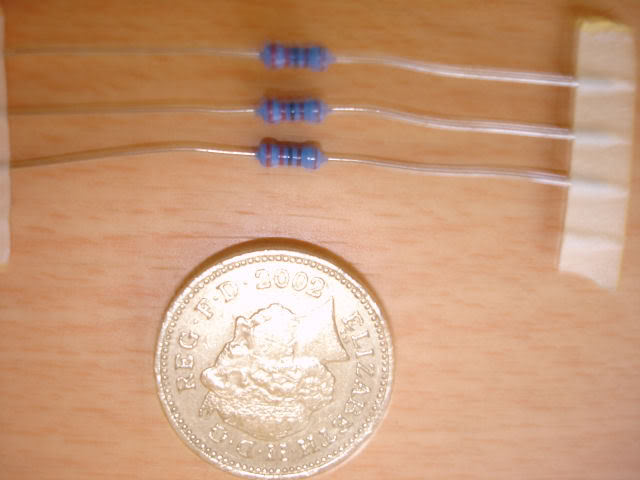

From Maplin : M2K2 - 2.2K Ohm resistor. Metal Film 0.6w 13 pence
Ignition on/off a few times. Started engine and CEL is off. Been 70 miles on motorway without any problems.
I suspect a higher watt rated 2.2k resistor would also do fine.

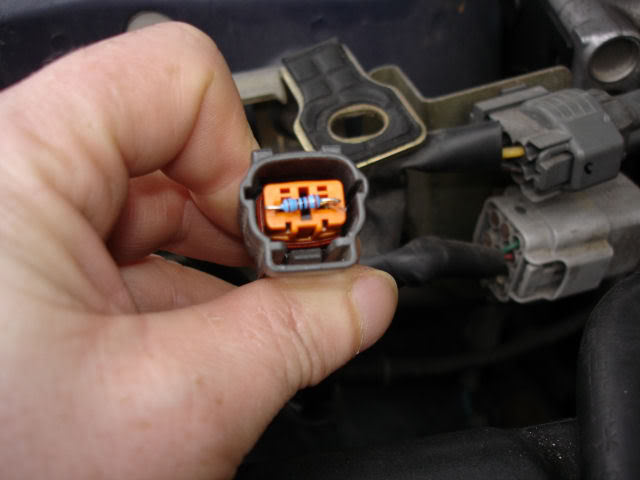

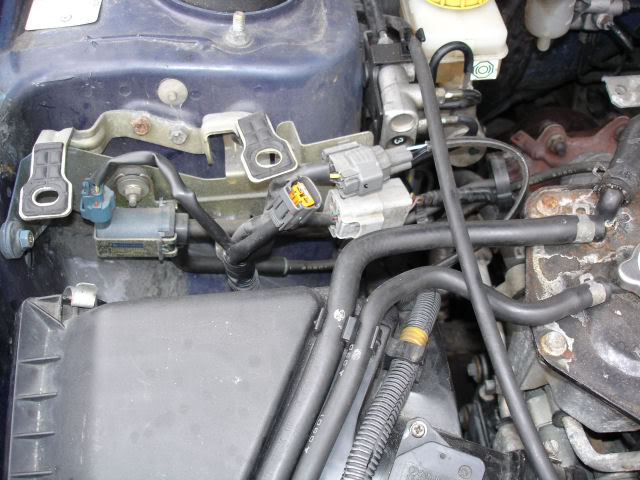

Plugged into socket left open when EGT sensor was removed. Socket is just under black removable cover just in front of drivers side suspension top.
From Maplin : M2K2 - 2.2K Ohm resistor. Metal Film 0.6w 13 pence
Ignition on/off a few times. Started engine and CEL is off. Been 70 miles on motorway without any problems.
I suspect a higher watt rated 2.2k resistor would also do fine.
Plugged into socket left open when EGT sensor was removed. Socket is just under black removable cover just in front of drivers side suspension top.
Last edited by funkyspider; 10 March 2007 at 04:37 PM.
