2007 UK spec Forester XT Tow Bar and Rear Parking Sensors
#1
2007 UK spec Forester XT Tow Bar and Rear Parking Sensors
Hi all. I've just bought a 2007 Forester XT (UK spec). It's got a tow bar and rear park sensor. The sensor unit just beeps 3 times when selecting reverse and does not beep on proxitmity, so I assume they are switched off because of the tow bar. Does anyone know where thes switch is to turn them back on?
Cheers!
Cheers!
#2
Scooby Regular

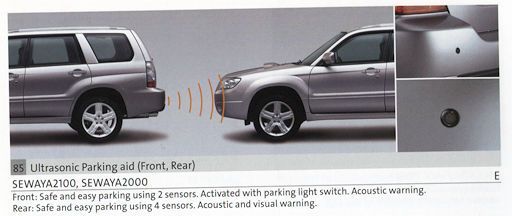

Front or rear parking sensors are an accessory kit. Rear:- p/n SEWAYA2000
Which I believe is a WAECO Magic Watch MWE 850
https://www.manualslib.com/manual/10...?page=9#manual
Suspect the supply will be tapped into reversing light supply either at a rear lamp assembly or using the towing connector (LH side spare wheel well area/ lower rear side trim).
Unless the earlier "metallic strip on inside of bumper cover" version was fitted.
Which I believe is a WAECO Magic Watch MWE 850
https://www.manualslib.com/manual/10...?page=9#manual
Suspect the supply will be tapped into reversing light supply either at a rear lamp assembly or using the towing connector (LH side spare wheel well area/ lower rear side trim).
Unless the earlier "metallic strip on inside of bumper cover" version was fitted.
Last edited by Don Clark; 21 August 2023 at 01:43 PM.
#3
Thanks Don! I hadn't paid much attention to this part of the car yet (the engine's in bits already!), but I took it apart just now. It seems the unit, whatever it is, was fitted after 2013, and their idea of turning it off, was to butcher the trim and the wiring harness... eye roll...
#4
Scooby Regular
So probably non Subaru supplied.
The following might help
Rear Harness info PDF attached. For this Forester it appears the Trailer connector is on the RH side (R79) (shown below)
The following might help
Rear Harness info PDF attached. For this Forester it appears the Trailer connector is on the RH side (R79) (shown below)
Last edited by Don Clark; 21 August 2023 at 02:40 PM.
