Been quoted £1750 for Fuel swirl pot
#1
Scooby Regular
Thread Starter
Join Date: Oct 2016
Location: Lancashire
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Been quoted £1750 for Fuel swirl pot
Hi
ive been quoted £1500+vat to fit and supply this set up.on my blobeye
i think this a bit pricey
need somebody to help me out.am looking into fitting a 2litre swirl pot with a single 044 pump connected to my rcm in tank lift pump. And rcm parrall fuel rail
What size of fixings on the tank do i need and which fixing on tank connects to which part.
hope some can help me.
thanks for looking and help
ive been quoted £1500+vat to fit and supply this set up.on my blobeye
i think this a bit pricey
need somebody to help me out.am looking into fitting a 2litre swirl pot with a single 044 pump connected to my rcm in tank lift pump. And rcm parrall fuel rail
What size of fixings on the tank do i need and which fixing on tank connects to which part.
hope some can help me.
thanks for looking and help
#4
Scooby Regular
Thread Starter
Join Date: Oct 2016
Location: Lancashire
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for replys
I thought so.its going in boot.just clear this up first.ive had syvecs fitted and getting flex fuel fitted and remaped.
then they mentioned this swril pot set up.but the price put me off.
basically when ive had flex fitted and mapped would fitting the swril pot setup my self ,need any remap adjustments??
also
is a spec c anti-surge any good ??
I thought so.its going in boot.just clear this up first.ive had syvecs fitted and getting flex fuel fitted and remaped.
then they mentioned this swril pot set up.but the price put me off.
basically when ive had flex fitted and mapped would fitting the swril pot setup my self ,need any remap adjustments??
also
is a spec c anti-surge any good ??
#6
Scooby Regular
Thread Starter
Join Date: Oct 2016
Location: Lancashire
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Yes.i think you right with that one.just back to the question on which tank and fixing are required.
does the telfon pipe just push on the plastic tabs on top of in-tank pump with jubilee clips then connect to the swril pot with jic fixings????
then the 044 oump connects to the swril pot with an fuel filter then to the fuel rail(which rcm parallel rail does it go to)
but unsure which what size of jic to use (do they use different sizes an-6 ,an-8 and an-10
but again not sure which pipe goes from intank pump to swril pot apart from the 044 which i can buy already fixed to swril tank from telfon.
can you help with diagram please
does the telfon pipe just push on the plastic tabs on top of in-tank pump with jubilee clips then connect to the swril pot with jic fixings????
then the 044 oump connects to the swril pot with an fuel filter then to the fuel rail(which rcm parallel rail does it go to)
but unsure which what size of jic to use (do they use different sizes an-6 ,an-8 and an-10
but again not sure which pipe goes from intank pump to swril pot apart from the 044 which i can buy already fixed to swril tank from telfon.
can you help with diagram please
#7
Every set up is different and a custom job. My 044 and swirl pot were under bonnet I think most of the fittings were were -6 but you will need all sorts like adaptors for the pump etc. Look on Torques website you can buy it all there and they will swap bits if wrong. Buy the best spec fuel line steel braided and if running meth make sure it’s up to it and use heat shrouding near the turbo. Also Alan at AS can supply you and is helpful with the set up. Is it a track car because it’s not really needed on a road car and even on a track day fuel surge won’t usually be an issue if you keep your fuel tank over half full.
Trending Topics
#8
#12
Scooby Regular
Thread Starter
Join Date: Oct 2016
Location: Lancashire
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for all replys.its most appreciated.
its not a track car,it was scoobyclinic that mentioned it,when got in touch about having flex fuel fitted.
my cars running 456 without meth.and wanted to get 500.my pump is a rcm and shouldn't need an 044 external pump to get this or should i.they never mentioned about needing an extra pump to add the flex
i was thinking spec c tank and pump .but do these do the job ok coz they aint cheap.ive seen one for sale £500.
its not a track car,it was scoobyclinic that mentioned it,when got in touch about having flex fuel fitted.
my cars running 456 without meth.and wanted to get 500.my pump is a rcm and shouldn't need an 044 external pump to get this or should i.they never mentioned about needing an extra pump to add the flex
i was thinking spec c tank and pump .but do these do the job ok coz they aint cheap.ive seen one for sale £500.
#14
Scooby Regular
iTrader: (5)
What I mean is; consider for example a walbro 255, vs a bosch 044 pump. Now, say you run 3 bar static pressure, and then run 1.5 bar boost pressure on top (so your fuel pressure would actually be 4.5 bar at this point).
It's not certain that the smaller pump can maintain the required flow rate at 4.5bar, so the actual rail pressure might be 4.0 bar (for instance). If mapped with the smaller pump, this would have been "mapped in" to injector timings, so to speak, so if you then fit a "better" pump, which can maintain 4.5 bar at the required flow rate, your injectors would still open for the same period of time, and you'd be running rich here, even though at idle and low boost it would make no difference.
Therefore, I'm with you Trev - get whatever primary pump you're going to use fitted before mapping.
#15
Scooby Regular
iTrader: (2)
I have an adjustable FPR (fuelab) with gauge + tee off an in-car gauge from the same port for monitoring. I run a swirlpot for track but disconnect the system for road only use. The adjustable fpr give's me flexibility to do that without additional mapping. It's just a case of tweaking back the extra pressure (0.3bar) from the 044 and monitoring for the expected lift from boost. My in-tank pump is a RCM350 so more than adequate otherwise.
Trev
Trev
#16
Scooby Regular
iTrader: (5)

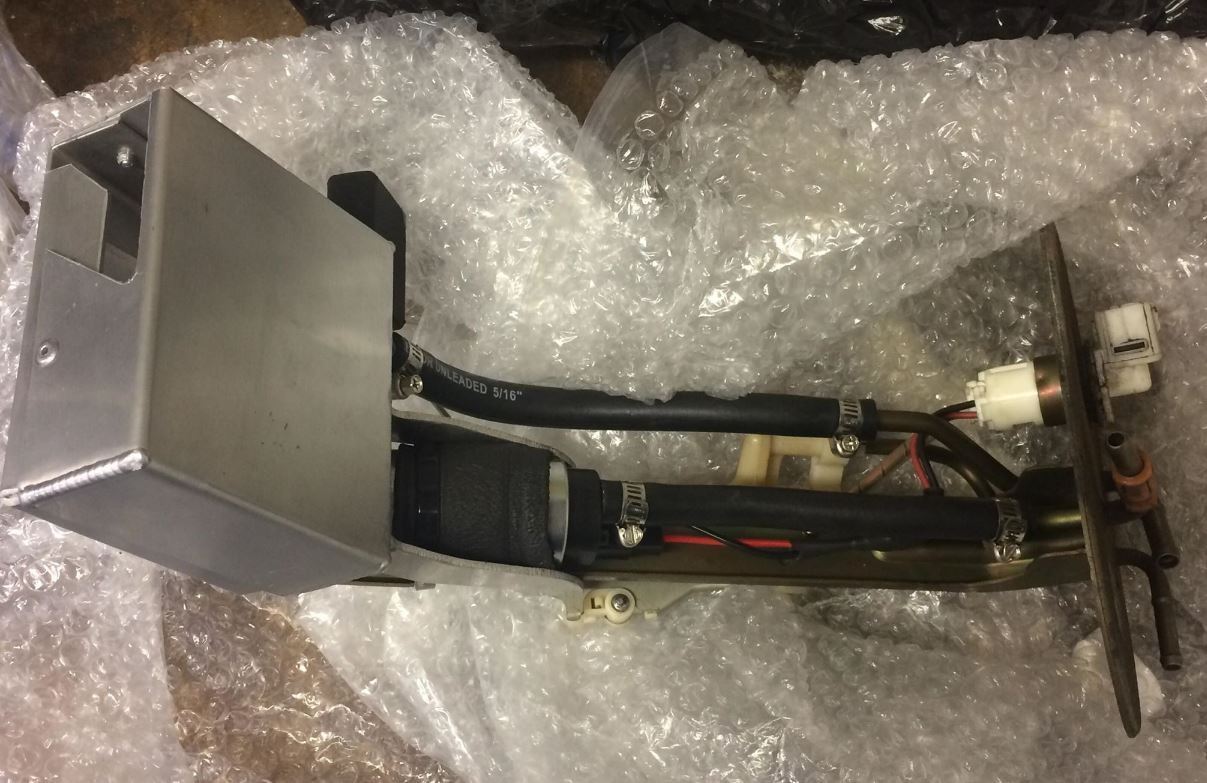

Further to the mention of the spec c anti surge can. Chevron Motorsport do bespoke antisurge cans, I had one made by them a couple of months ago. Great to deal with, quick turn around and a heap cheaper and safer than going swirlpot. Its not full proof and i've yet to test it out on track but i see no reason why it wont work as well, if not better than the spec C unit.
#17
Scooby Regular
Thanks for all replys.its most appreciated.
its not a track car,it was scoobyclinic that mentioned it,when got in touch about having flex fuel fitted.
my cars running 456 without meth.and wanted to get 500.my pump is a rcm and shouldn't need an 044 external pump to get this or should i.they never mentioned about needing an extra pump to add the flex
i was thinking spec c tank and pump .but do these do the job ok coz they aint cheap.ive seen one for sale £500.
its not a track car,it was scoobyclinic that mentioned it,when got in touch about having flex fuel fitted.
my cars running 456 without meth.and wanted to get 500.my pump is a rcm and shouldn't need an 044 external pump to get this or should i.they never mentioned about needing an extra pump to add the flex
i was thinking spec c tank and pump .but do these do the job ok coz they aint cheap.ive seen one for sale £500.
#18
Scooby Regular
Further to the mention of the spec c anti surge can. Chevron Motorsport do bespoke antisurge cans, I had one made by them a couple of months ago. Great to deal with, quick turn around and a heap cheaper and safer than going swirlpot. Its not full proof and i've yet to test it out on track but i see no reason why it wont work as well, if not better than the spec C unit.
