Griblands

Can anyone advise how I identify the cams fitted to my engine?

As an example, the Part Numbers I can see on one camshaft are:

• L3IN
• A9

merlin24

iTrader: (1)

What type of valve clearance adjusting shims are fitted ?
Over bucket/under bucket/under bucket top hat ?

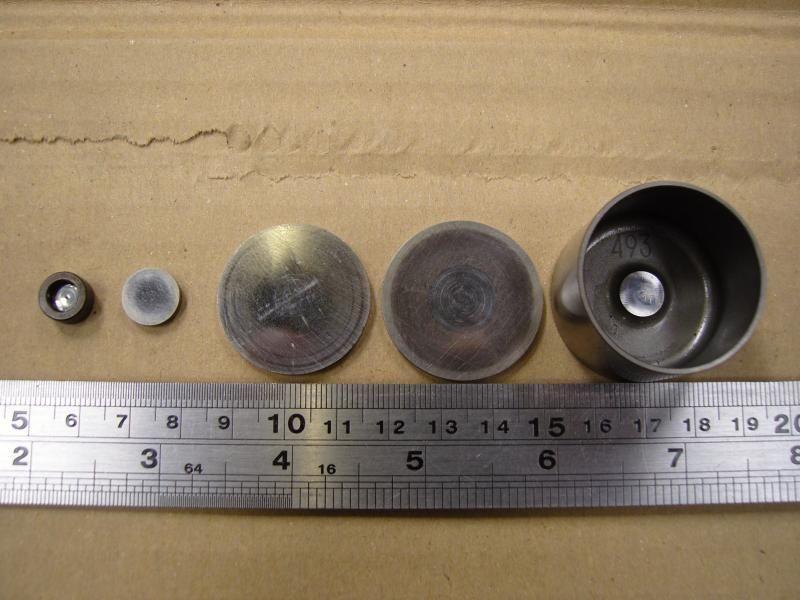

Markings on the cam are similar to STi Version 2 RA and shims would be under bucket top hat shims ( far left in the picture below )

Griblands

As far Left

merlin24

iTrader: (1)

Good educated guess then - STi Version 2 RA cams

Mick

Griblands

Much appreciated - Confirms what I was told

I don’t suppose you know the duration and lift profiles of these? I have been told that they are the best oe Cams for my car which is a gravel spec. Rally Car running a 34mm Restrictor.
