400bhp turbo: Seeking the holy grail.
08 September 2016, 04:37 PM
Scooby Regular
Thread Starter
Join Date: Sep 2012
Location: Essex innit
Posts: 1,036
400bhp turbo: Seeking the holy grail.
I'm currently running a standard TD05 90deg entry on a Finch built 2.0 V2 making a modest 320. Very happy with its performance but I'm now feeling the urge to chase horses and improve 1/4 mile times. The number I have in my head is 400 (ish) but I want the fastest spooling turbo possible at the lowest revs.
08 September 2016, 05:02 PM
Scooby Regular
Join Date: Jan 2012
Location: The 2dr club
Posts: 12,979
Likes: 0
09 September 2016, 02:07 AM
Scooby Regular
Join Date: Aug 2012
Location: Essex
Posts: 184
Likes: 0
Received 0 Likes
on
0 Posts
I have a sc38 on mine.
10 September 2016, 05:10 PM
Scooby Regular
Thread Starter
Join Date: Sep 2012
Location: Essex innit
Posts: 1,036
Are the SC turbo wheels ball bearing mounted?
10 September 2016, 05:15 PM
Scooby Senior
Join Date: Oct 2004
Location: Type R
Posts: 16,598
For 400bhp I would also be looking at the MDX321H, well suited to a 2 litre engine too
10 September 2016, 06:22 PM
Scooby Regular
Join Date: Jan 2012
Location: The 2dr club
Posts: 12,979
Likes: 0
Quote:
Originally Posted by
edsel
Are the SC turbo wheels ball bearing mounted?
Yes bb and billet, not sure about the older ones.
11 September 2016, 01:10 AM
Scooby Regular
Thread Starter
Join Date: Sep 2012
Location: Essex innit
Posts: 1,036
Quote:
Originally Posted by
bustaMOVEs
Yes bb and billet, not sure about the older ones.
Thanks, I assumed the sc range were the cheaper bushed type compressor wheel as it doesn't mention ball bearing on their website .
11 September 2016, 03:01 AM
Scooby Regular
Join Date: Jul 2015
Location: Midlands
Posts: 228
Likes: 0
Quote:
Originally Posted by
edsel
Thanks, I assumed the sc range were the cheaper bushed type compressor wheel as it doesn't mention ball bearing on their website .
Look at the Blouch turbo www Think all the Dominator Turbos have ceramic ball bearings
12 September 2016, 12:00 PM
Scooby Regular
Thread Starter
Join Date: Sep 2012
Location: Essex innit
Posts: 1,036
Im reliably informed the SC36 and 38 are journal bearing, the 42 is BB. I should have rephrased my original post to 400 max. Will a the MD321 take me over 400? The weakest link on my car is the new age sti rods and open deck block.
12 September 2016, 12:19 PM
Scooby Senior
Join Date: Jul 2002
Location: WMI
Posts: 5,143
Likes: 0
12 September 2016, 12:57 PM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Mamba gt28. Thank me later
12 September 2016, 09:15 PM
Scooby Senior
Join Date: Oct 2004
Location: Type R
Posts: 16,598
Quote:
Originally Posted by
veerinder9
Mamba gt28. Thank me later
He wants 400bhp not 40
12 September 2016, 10:20 PM
Scooby Regular
Join Date: Mar 2008
Posts: 171
Likes: 0
Quote:
Originally Posted by
banny sti
He wants 400bhp not 40
Mamba gt3071r twinscroll,1.5 bar just Vpower on my03 jdm sti normal bolt on mods.
You were saying.
Last edited by ian12; 12 September 2016 at 10:22 PM .
12 September 2016, 10:30 PM
Scooby Senior
Join Date: Oct 2004
Location: Type R
Posts: 16,598
Dont get butt hurt, its an inside joke with vee lol
12 September 2016, 10:47 PM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Lol it's just a joke mate but yes mamba ftw
13 September 2016, 07:00 AM
Scooby Regular
Thread Starter
Join Date: Sep 2012
Location: Essex innit
Posts: 1,036
Would like it to make 400 for longer than a few weeks, what's the reliability like?
13 September 2016, 08:41 AM
Scooby Regular
Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Quote:
Originally Posted by
ian12
Mamba gt3071r twinscroll,1.5 bar just Vpower on my03 jdm sti normal bolt on mods.
You were saying.
What's it drive like? Looks laggy and the torque drops off quickly
SC42 Ts ftw
13 September 2016, 09:06 AM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Quote:
Originally Posted by
ossett2k2
What's it drive like? Looks laggy and the torque drops off quickly
SC42 Ts ftw
2.1 avcs. Mamba gt3076r. 550bhp rated on site. Making 435bhp at 1.5 bar boost (held back due to intercooler and wastegate issues) will see what it makes after these Changes. Considering size of turbk don't think that's laggy at all
13 September 2016, 09:12 AM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Quote:
Originally Posted by
edsel
Would like it to make 400 for longer than a few weeks, what's the reliability like?
A few people have been running these and as far as i know no one has reported back any failures. Mines been on for a few months no issues as of yet.. Touch wood..
13 September 2016, 09:26 AM
Scooby Regular
Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Are the gt3071 and the gt3076 Both 500+ rated ?
How about the gt28? It would be interesting to see a graph of the 28 to see if that gets going a bit earlier
13 September 2016, 09:30 AM
Scooby Regular
Join Date: Mar 2003
Location: Aberdeen
Posts: 5,584
I Have the MD321H and cant fault it, I was running 415 with the old EcuTek map but having an Alkatek installed soon. The MDX range will spool a bit quicker but also another version that will give a bit more power.
13 September 2016, 09:38 AM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Quote:
Originally Posted by
ossett2k2
Are the gt3071 and the gt3076 Both 500+ rated ?
How about the gt28? It would be interesting to see a graph of the 28 to see if that gets going a bit earlier
i think the gt3071 is 500 and 3076 is 550. So gt28 should be 450. The specs are all a on their website
13 September 2016, 09:51 AM
Scooby Regular
Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Quote:
Originally Posted by
veerinder9
i think the gt3071 is 500 and 3076 is 550. So gt28 should be 450. The specs are all a on their website
Site says 350bhp for the gt28.
13 September 2016, 09:55 AM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts
Quote:
Originally Posted by
ossett2k2
Site says 350bhp for the gt28.
Some figures are slightly underated lol
13 September 2016, 10:05 AM
Scooby Regular
Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes
on
0 Posts

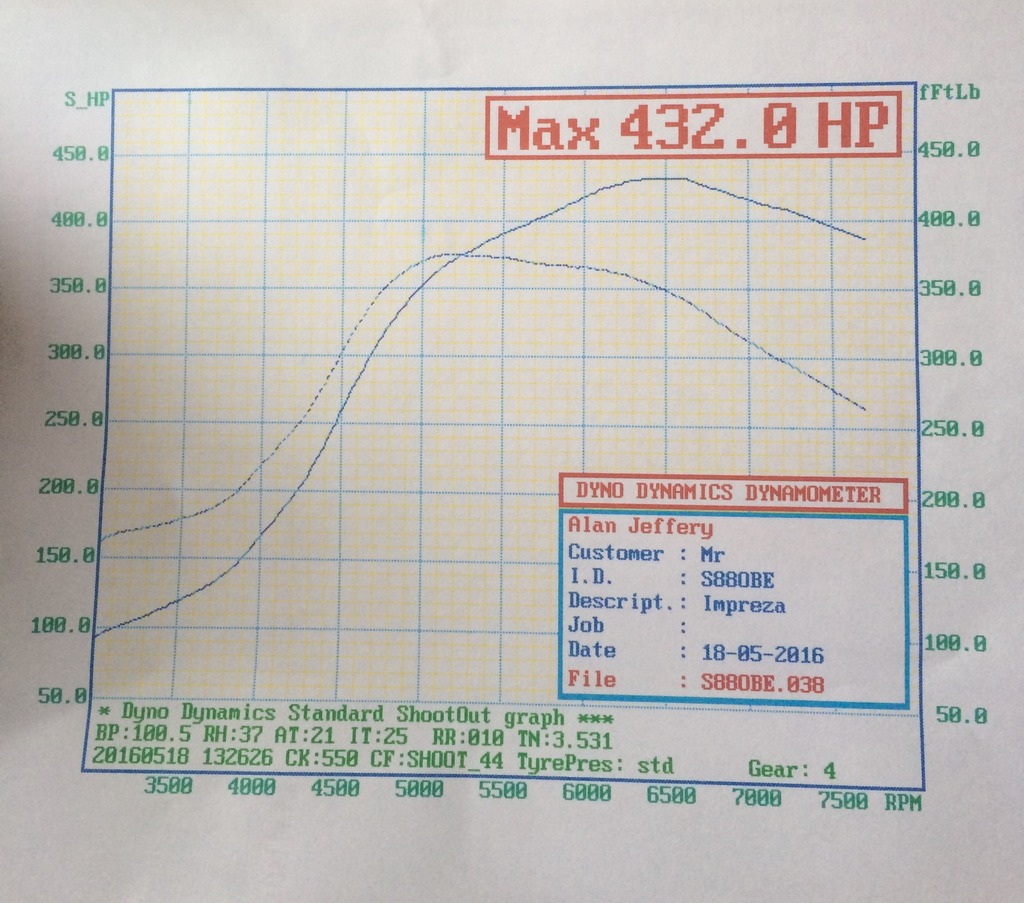

This is is a little interesting
13 September 2016, 12:02 PM
Scooby Regular
Join Date: Jan 2006
Location: Enginetuner Plymouth for 4wd RR Mapping Apexi Ecutek Alcatek Proper Garage More than just a laptop!
Posts: 2,629
Quote:
Originally Posted by
edsel
Would like it to make 400 for longer than a few weeks, what's the reliability like?
We've sold a fair few of these in varying sizes, no failures to date.
The 16G is a cracking little unit but if you're wanting 400bhp the 18G billet with the 9 blade turbine wheel should do very well indeed.
13 September 2016, 04:02 PM
Scooby Regular
Join Date: Aug 2012
Location: Essex
Posts: 184
Likes: 0
Received 0 Likes
on
0 Posts

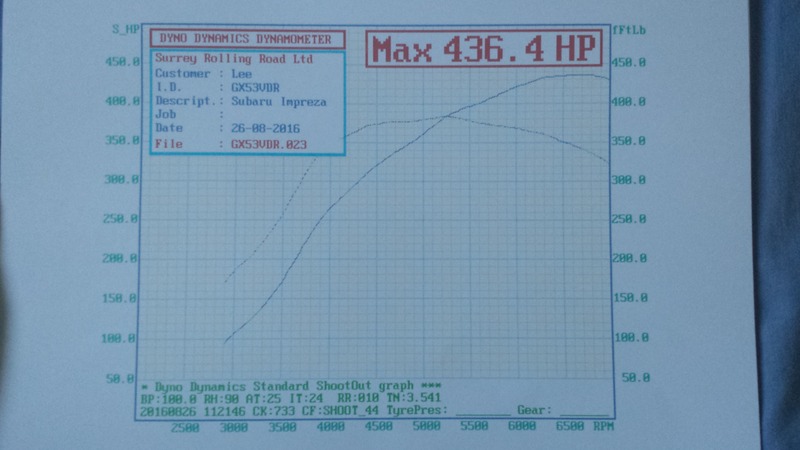

My meth map on a SC38
13 September 2016, 04:33 PM
Scooby Regular
Join Date: Apr 2016
Location: Banned
Posts: 1,752
Likes: 0
all that power in an Impreza
...do you guys use them on roads or track days aswell ?
13 September 2016, 05:45 PM
Scooby Regular
Join Date: Dec 2011
Location: yorkshire
Posts: 3,244
Likes: 0
[QUOTE=Scooby_Lee101;11875692]My meth map on a SC38
[/QUOT
Who mapped it and what fuel?
Last edited by joe v3sti; 13 September 2016 at 05:46 PM .
13 September 2016, 05:58 PM
Scooby Senior
Join Date: Oct 2004
Location: Type R
Posts: 16,598
SRR, my guess would be Duncan and it does say meth so would assume 20% mix Joe
