Getting my engine rebuilt and have decided to do a few extra mods before fitting to my car. I have some parallel fuel rails bought off someone on here they are going to be mated to my new cdf New age fuel rails. The engine is a cdb bottom end with him new age avcs heads and it is all going in a 1999 subaru impreza turbo. Does anyone have a visual guide on how to do this ?



Fitting the parallel fuel rails and cdf fuel rails that is...

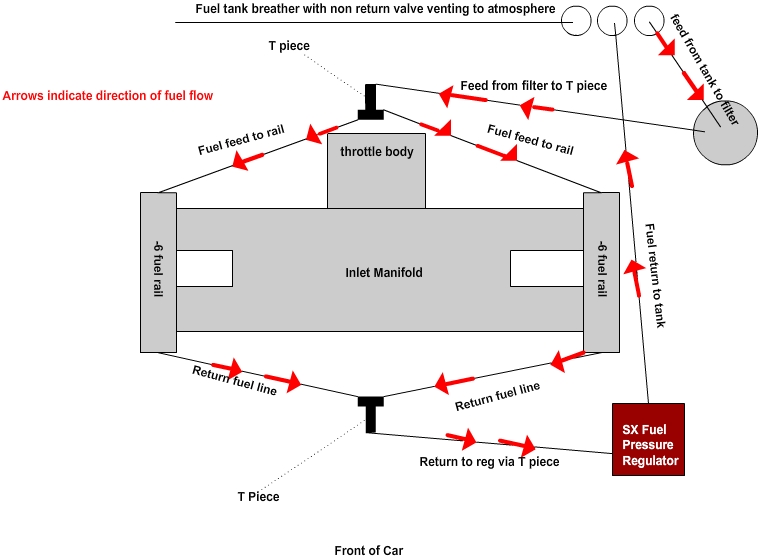

I'm using the attached image to plan mine



Yep as above. Of course you can run the other way and have the fuel coming in at the front and out the back. Doesn't really matter.

As long as the FPR is after the injectors.

Fitting it all in and around everything is the issue especially with braided hose as it will literally eat through anything it rubs against and it's quite stiff.
