ECU help
#1
Scooby Newbie
Thread Starter
Join Date: Oct 2011
Location: london
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
ECU help
Hi Folks its been a while since I've been on the forum. So apologies for re visiting with a head scratcher.
First of all my Subaru engine is is not in a Subaru its in a 1976 VW Beetle . I have owned an STI before but don't at the moment as I am busy trying to sort this project.
OK problem is I have had a 2L Turbo engine fitted from a MY03 STI into my Beetle and was advised by the engine builder Andy Williams to use an earlier loom. As the engine/car sat for ages I forgot his recommendation and fitted a loom and ECU from a MYO4 car. I now realise I need a chipped key immobiliser etc to get the ECU to operate but I don't have them. Are my only options 1.buy a key, chip immobiliser etc and have it sorted by someone with the appropriate Subaru software ( no idea of costs of this ) or 2. buy an aftermarket ECU Simtek etc and have it mapped. Sorry for the ignorance here folks any help would be much appreciated.

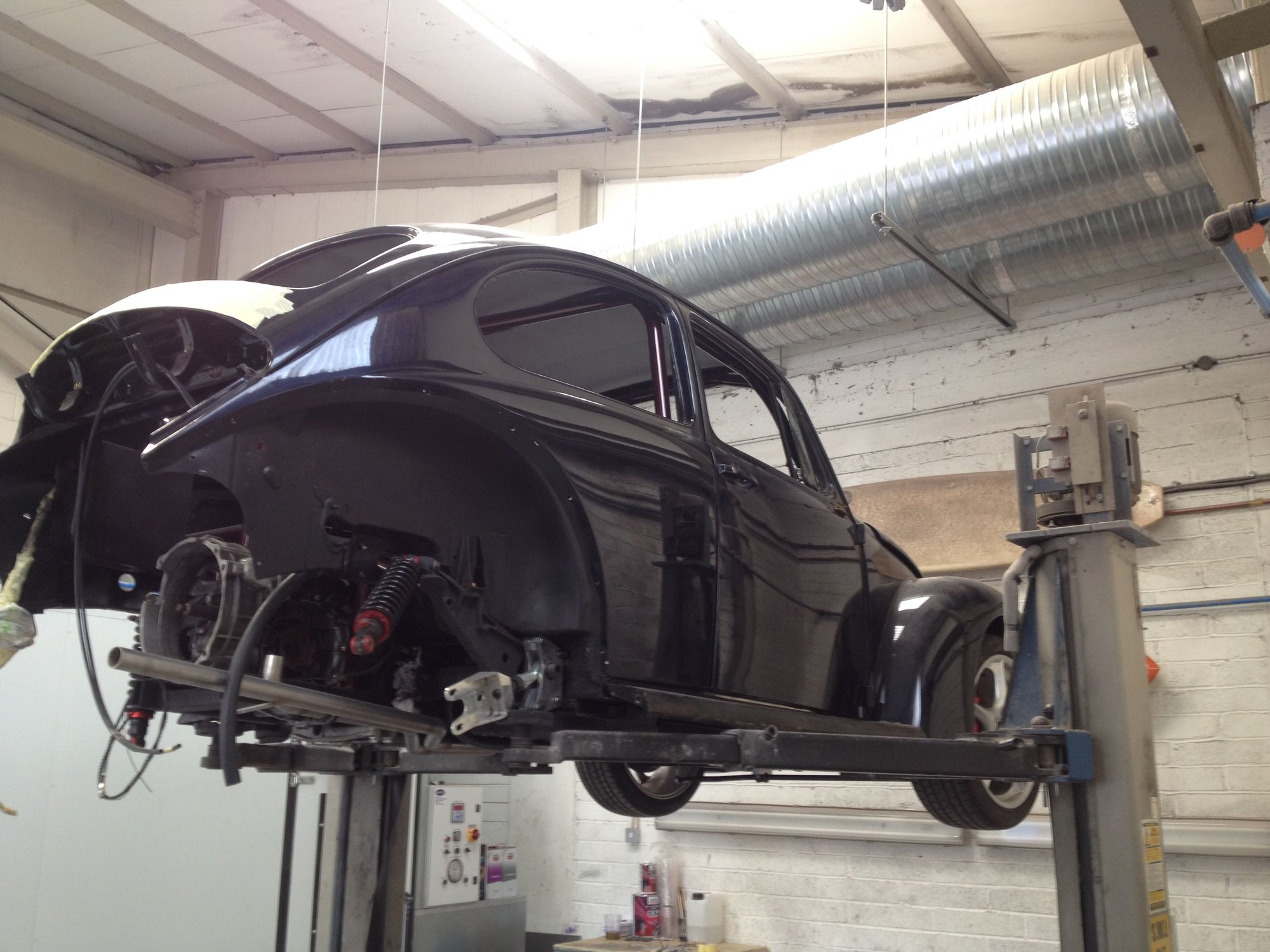

here is a couple of pics of the money pit
First of all my Subaru engine is is not in a Subaru its in a 1976 VW Beetle . I have owned an STI before but don't at the moment as I am busy trying to sort this project.
OK problem is I have had a 2L Turbo engine fitted from a MY03 STI into my Beetle and was advised by the engine builder Andy Williams to use an earlier loom. As the engine/car sat for ages I forgot his recommendation and fitted a loom and ECU from a MYO4 car. I now realise I need a chipped key immobiliser etc to get the ECU to operate but I don't have them. Are my only options 1.buy a key, chip immobiliser etc and have it sorted by someone with the appropriate Subaru software ( no idea of costs of this ) or 2. buy an aftermarket ECU Simtek etc and have it mapped. Sorry for the ignorance here folks any help would be much appreciated.
here is a couple of pics of the money pit
#3
Personally I'd find someone breaking up the right model of scoob you need, 03 sti, and get the ecu, chipped key, transponder and all necessary gubbins then it's plug n play. Just need to make sure you know if the ecu is mapped etc so your hardware matches. Maybe consider the loom too as I don't know what differences are between model years.
I've no experience doing it to Subaru's but to other make it was ecu, chip from the key and transponder.
That's my input, hope it's some help.
I've no experience doing it to Subaru's but to other make it was ecu, chip from the key and transponder.
That's my input, hope it's some help.
#5
Scooby Newbie
Thread Starter
Join Date: Oct 2011
Location: london
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Cheers for the reply fellas.
So if I get the chipped key, transponder and all necessary gubbins from an MY03 car it should just plug in and be good to go, no computer programming or Subaru speicalist bod needed ?
So if I get the chipped key, transponder and all necessary gubbins from an MY03 car it should just plug in and be good to go, no computer programming or Subaru speicalist bod needed ?
#6
Scooby Regular
iTrader: (46)
I know with my 1998 model the key is tied into the ECU, i did think on later models like the 1999-2000 the immobiliser was separate from the ecu.
I know with mine that Esl daughter board bypasses the Imobilser, so aftermarket ecu might work with yours, put you would need to do some research.
I know with mine that Esl daughter board bypasses the Imobilser, so aftermarket ecu might work with yours, put you would need to do some research.
Trending Topics
#8
Scooby Regular
iTrader: (3)
i've heard that if you use the open source carberry rom the immobiliser isn't checked, same would be the case for some of the JDM ecu's as they don't have the UK immobiliser on them. If you already have an 03/04 UK ECU then would be worth putting a carberry map on it to see if it starts (plus you could go mafless if you are tight for space in the engine bay).
#9
Scooby Newbie
Thread Starter
Join Date: Oct 2011
Location: london
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Hey Bludgod thanks for the heads on Carberry rom its not something I haven't heard of before , out of touch here so thanks for that Im looking into it nice one.
#10
Scooby Regular
iTrader: (3)
no problems, more info here:
http://www.romraider.com/forum/viewforum.php?f=36
but if you have any questions drop me a line happy to help if i can
http://www.romraider.com/forum/viewforum.php?f=36
but if you have any questions drop me a line happy to help if i can
#11
Scooby Newbie
Thread Starter
Join Date: Oct 2011
Location: london
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Seems like I had a complete stroke of LUCK by having Bludgood respond to my post here.
He has been an absolute diamond in helping me sort this ECU issue out. What a great bloke he is with lots of knowledge. He has bent over backwards to get me out the **** on this one. Anyone who ever needs confirmation that great people still exist can rest assured that they certainly do.YOUR A TOP BANANA Bludgod
He has been an absolute diamond in helping me sort this ECU issue out. What a great bloke he is with lots of knowledge. He has bent over backwards to get me out the **** on this one. Anyone who ever needs confirmation that great people still exist can rest assured that they certainly do.YOUR A TOP BANANA Bludgod
