S744hdv

iTrader: (1)

Got to say a big thank you to Alan and Martyn and all the guys down at Enginetuner.

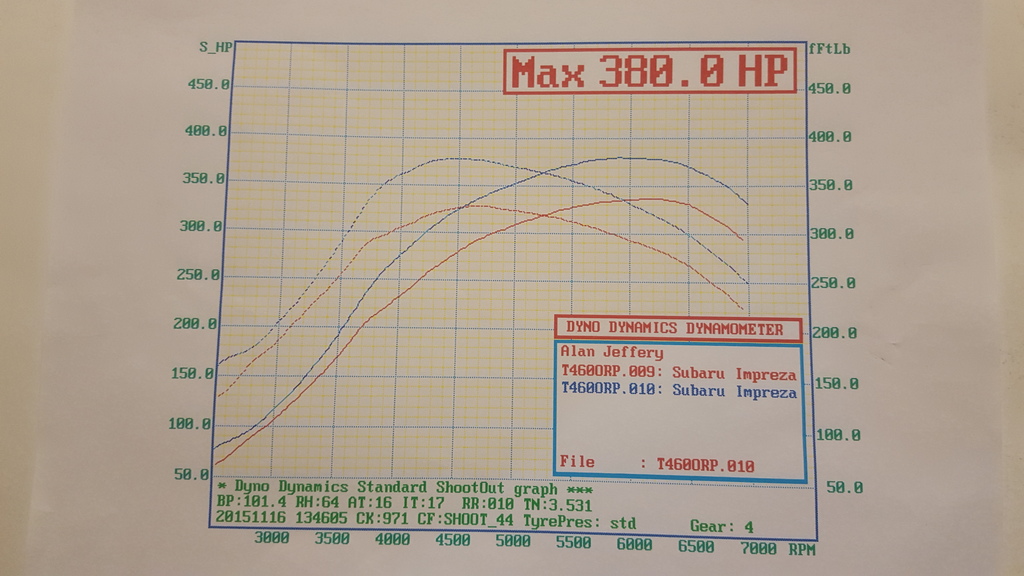

Had my type r down there yesterday for the final map after they rebuilt my engine and I'm very happy with the results, got a nice 380/380

Dazzles Fiesti

iTrader: (2)

Any details on the spec of the car/engine??

S744hdv

iTrader: (1)

A rough spec:
2.1 cdb with p1 heads
Td05 18g
Rcm headers+up pipe
Decat downpipe
3" hks exhaust system
550cc injectors
Parallel fuel rails
Walbro 255 fuel pump
Fuelab fpr
Fmic
K and n air filter
Alcatek ecu with toucan

ditchmyster

iTrader: (7)

Nice figures, is that on the standard gearbox too?

If so what did Alan and Martyn say about the box handling those numbers, just curious as I have a Type R as well.

boosted

Nice looking graph there, Do you have the boost AFR graph too? Was this achieved at circa 1.5 bar? Similar turbo as me, quite interested

S744hdv

iTrader: (1)

That's on a 5 speed dccd box from a version 3 type r.
Was told there's a lot of them running good figures so just a matter of seeing how far it will go before it breaks.

I don't have the boost graph but Martyn maybe able to post it if he has a copy.

ossett2k2

iTrader: (9)

Very nice indeed!

bustaMOVEs

iTrader: (31)

The dccd are known to be the better/stronger boxes albeit the 54 is the better one, I'd guess the op is running the 52.
Tbf most jdm boxes are better than the UK ones, Tim has broke 2 UK boxes in just a few drives but his RA box is holding up well at 530hp

It's just a piece of string sinario though.

S744hdv

iTrader: (1)

Yes it's a 52,although the car is a version 5,I bought it as a rolling shell and already had this gearbox so decided to go with that for the time being.

timmy2take

iTrader: (7)

......

bustaMOVEs

iTrader: (31)

Most of the jdm boxes seem to be stronger or better, maybe to do with ratios so less strain who knows.
Not saying it won't break though.

MartynJ

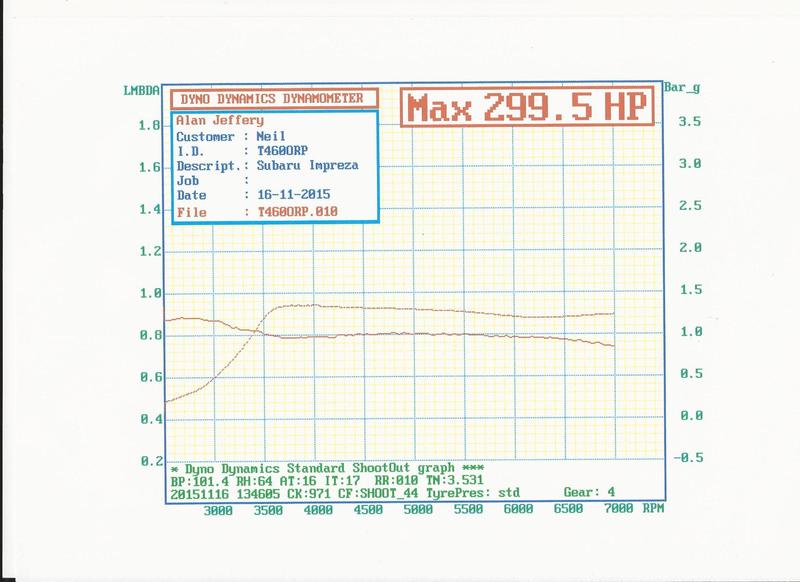

Ask and ye shall receive.

S744hdv

iTrader: (1)

Thanks Martyn

boosted

Cool, Martyn how much timing is the engine running at 4k, 5k and 6k? Very interested, thanks
Edit: .8 lambda that's 11.8afr ouft, was that on methanol?

MartynJ

10, 12.5, 14

It's actually at 11.5AFR as an average richening up to 10.7 right up the top end.
No it's running on straight vpower, why ?

boosted

I'm studying my own tune just now, I'm a good bit richer at 11.- 11.3 top end, but at 1.6 taper to 1.4 bar I'm running 14,15,17 degrees timing, wasn't sure if this was a low advance figure, but looks ok going by what you've just said. Cheers

MartynJ

It's relative to compression of course.

boosted

I see, I have .9mm head gaskets and so may have a slightly lower compression ratio than std. 8:1 say
