I have reshelled a JDM WRX , the engine was running in the damaged car so i know it should go,

the shell i bought was bare , so everything was transfered over

I couldnt get the car to start in the new shell, i changed cam sensor, crank sensor, coilpak. still no start. My loom was badly butchered at some point , so pulled the engine again , and replaced it with another known good loom from the same year/model of car. engine back in and still no go.

With the ignition on all lights are on the dash as they should be
The fuel pump primes at it should
the car turns over but will not start

There is no imboliser as it is a JDM

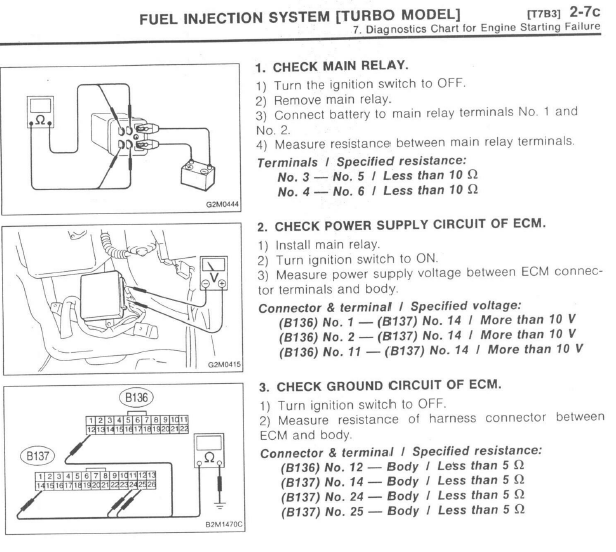

I have begun working through the service manual diagnostic



1. Pulled the relay and tested it, it clicked with 12v power and the readings were well within spec

2. B136 has 12v on pin 11, but NOTHING on 1 & 2

3. All four pins read less than 1 ohm

So if the relay is fine, is there anything else to check between it and the ECU ?

Any help appreciated



Can a slow blow fuse read good on the multimeter but not deal with the draw when the cars cranking ?



What year is it?



You got the feul pipes on the manifold in the wright order,



MY97 v3 jdm WRX

Yes fuel lines are 100%



following the Wiring diagram in the service manual, pin 1 &2 are from the main relay , i know the relay is good, (as above) but need to check that it is getting power to it, so that wil be next step,

any other suggestions welcome



Just trying to find a v3 97 wiring diagram got up to 96 then 99

I know you have tested the relay but have you got power to the relay think it will be two black/red wires but need a diagram to check the same on 97...

Also is the

On a 98/99 they come from MB 3



V3/4 manual here

http://www.mediafire.com/view/glsklh3u7q7vuix/Subaru_Impreza_1997-98_Service_Manual.pdf

Thanks Ian , yes power to the relay is my next test , hopefully get back to it at the beginning of the week here
