STI clocks to WRX, any issues?
04 January 2012, 07:07 PM
#32
http://i85.photobucket.com/albums/k4...STiCluster.jpg
First of all open link and print off picture.Locate wire B3 and cut leaving enough wire on either end. Next you need a 5 pin change over relay connect as follows
term 85 any ignition live
86 cut wire from loom
30 earth
87a cut wire from clocks
If you have problems with handbrake light term A2 needs an earth
to turn off diff temp light B4 needs an earth.
usual disclaimers at your own risk etc etc.
First of all open link and print off picture.Locate wire B3 and cut leaving enough wire on either end. Next you need a 5 pin change over relay connect as follows
term 85 any ignition live
86 cut wire from loom
30 earth
87a cut wire from clocks
If you have problems with handbrake light term A2 needs an earth
to turn off diff temp light B4 needs an earth.
usual disclaimers at your own risk etc etc.
i put some blob clocks in my bug and the 2 usual lights were on permantly so i did as andy suggested here and it didnt work, havent tried the handbrake one yet but my abs light still stays on????????????????
so is different for blob to bug??????????????
anyone
04 January 2012, 09:20 PM
#33
Scooby Regular
Join Date: Jan 2007
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
I have done this on several cars and it works. If you have done it as above you should hear relay click on when you turn ignition on then click off after 2 or 3 secs.Have you checked abs circuit reversal circuit needed some WRX clocks dont need it.
05 January 2012, 09:26 AM
#42
Scooby Regular
Join Date: Jan 2007
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
06 January 2012, 02:38 PM
#44
Bit of an update chaps, I've not attempted the re-wiring just yet but had a bit of a brain-wave (of sorts) last night.. I was planning to disable my ABS soon anyway as I'm just not keen on it, but then thought if the ABS light is ON with the fuse in, will it go out when I take fuse out??
Voila... It does..
So I now have STI clocks, disconnected ABS and no light..
Voila... It does..
So I now have STI clocks, disconnected ABS and no light..
06 January 2012, 04:59 PM
#45
Scooby Senior
iTrader: (51)
Join Date: Nov 2005
Location: Wherever I park my car, that's my home
Posts: 20,491
Likes: 0
Received 2 Likes
on
2 Posts
The only problem you'll have now is your MOT, if you wish to disable your ABS you need to remove it completely, remove the ABS pump and have new brake lines made to run were they previously ran through the ABS pump. Otherwise the MOT tester will not see the ABS light come on to indicate a self-test - if you put the fuse back in the light won't go out and voila, fail!!!
All in the new eco-cozy 2012 MOT regs
All in the new eco-cozy 2012 MOT regs
12 February 2012, 09:23 PM
#48
Scooby Regular
iTrader: (10)
Join Date: Jul 2009
Location: North of Scotland
Posts: 683
Likes: 0
Received 0 Likes
on
0 Posts

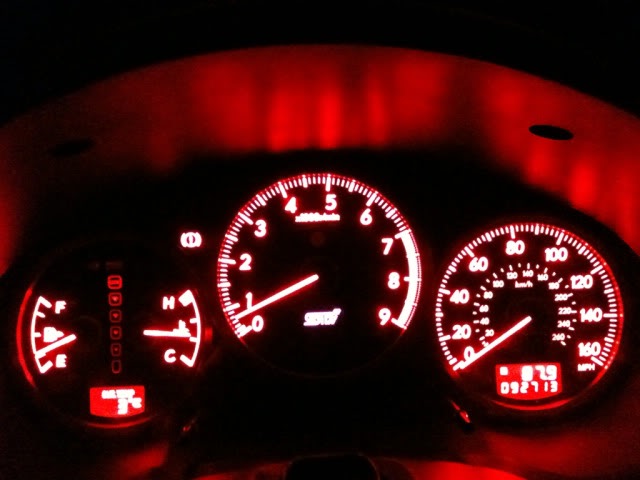

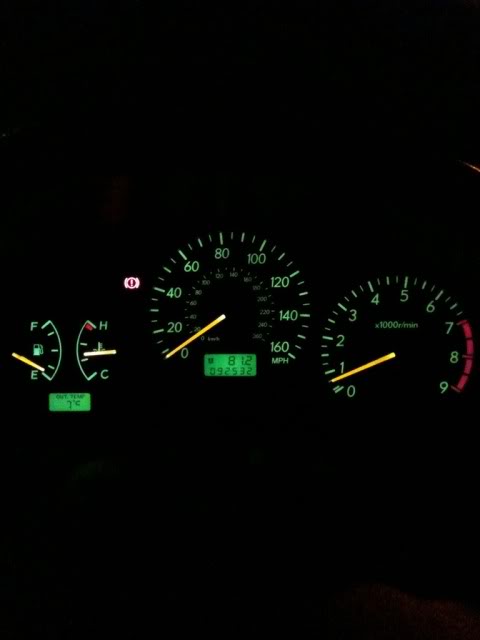

Guys, i have installed my Hawk STi Clocks into my WR1, looks mint with the amber defi's.
looking for a little help, im a computer geek, not a mechanic nor auto spark but i will give most things a try myself first if i feel i wont damage the car.
fitted clocks and the following has happened.
DCCD - Fine as the 1 has DCCD and is working as expected from the lighting perspective.
Rear Diff Temp- light illuminates on ignition on and turns off on engine start.
Hand Brake light - on as expected and i plan to talk to an auto spark after talking to you guys.
ABS Stays on as expected and i plan to talk to an auto spark to get the relay fitted.
Questions are as follows.
I went to maplin to ask for a normally closed relay switch, which i found out after trawling the boards on NASIOC (Epic) and you guys reference here, but when i went there he asked me what ampage did i want ?
can anyone clarify what ampage is needed, he said its probably 40A but i would like to get the nod from you guys, i don't doubt the chap but he works in maplin not on cars.
second is in regards to the handbrake light, which i have a few questions about.
1. its said that it needs an earth (B3) what does this mean, do i splice a ground to it, or do i ground the cable from the loom. (did say i am not car technical but im trying)
2. will this make the light work as expected. on when handbrake engaged and off when disengaged. or will this just ground the light out as new MOT rules will fail a car for not having the lights working as they should.
its maybe that this is clear to most but im not sure what all the advice by GC8Andy is actually meant to do.
E.g. C9 on a Blob and A9 on a Bug silences the constant buzzing.
if someone can take the time to clarify these points for me, id be happy to PayPal gift you a few beers on successful completion.
i don't expect to walk into a thread and just get what i need without appreciating the information given to me.
thanks in advance
looking for a little help, im a computer geek, not a mechanic nor auto spark but i will give most things a try myself first if i feel i wont damage the car.
fitted clocks and the following has happened.
DCCD - Fine as the 1 has DCCD and is working as expected from the lighting perspective.
Rear Diff Temp- light illuminates on ignition on and turns off on engine start.
Hand Brake light - on as expected and i plan to talk to an auto spark after talking to you guys.
ABS Stays on as expected and i plan to talk to an auto spark to get the relay fitted.
Questions are as follows.
I went to maplin to ask for a normally closed relay switch, which i found out after trawling the boards on NASIOC (Epic) and you guys reference here, but when i went there he asked me what ampage did i want ?
can anyone clarify what ampage is needed, he said its probably 40A but i would like to get the nod from you guys, i don't doubt the chap but he works in maplin not on cars.
second is in regards to the handbrake light, which i have a few questions about.
1. its said that it needs an earth (B3) what does this mean, do i splice a ground to it, or do i ground the cable from the loom. (did say i am not car technical but im trying)
2. will this make the light work as expected. on when handbrake engaged and off when disengaged. or will this just ground the light out as new MOT rules will fail a car for not having the lights working as they should.
its maybe that this is clear to most but im not sure what all the advice by GC8Andy is actually meant to do.
E.g. C9 on a Blob and A9 on a Bug silences the constant buzzing.
if someone can take the time to clarify these points for me, id be happy to PayPal gift you a few beers on successful completion.
i don't expect to walk into a thread and just get what i need without appreciating the information given to me.
thanks in advance
Last edited by BLOB EYE; 12 February 2012 at 09:24 PM.
13 February 2012, 08:42 AM
#49
Scooby Regular
iTrader: (2)
Join Date: Feb 2012
Location: Aberdeenshire
Posts: 460
Likes: 0
Received 0 Likes
on
0 Posts
Hope this helps..
Hi, just read through the 'old' part of the thread, it looks as if Sedge had connected the lamp feed to the normally open contacts of the relay, hence when energised it closed the contacts and light came on. I guess he has it sorted by now
But I thought it may help you out.
from what i can see the relay is just to solve the dash lamp issue, if thats the case then a 1A relay is plenty, or something around that rating. Its only operating the bulb (if i have read and understood correctly).
An earth in a car is almost always (ground) -ve. So if the instruction is to earth the cable or terminal, then connect it to the nearest earth point on the car body.
It depends where the -ve (ground) is applied in the circuit; that will determine if the handbrake light operates correctly or not.
Hope thats of some help!!
But I thought it may help you out.
from what i can see the relay is just to solve the dash lamp issue, if thats the case then a 1A relay is plenty, or something around that rating. Its only operating the bulb (if i have read and understood correctly).
An earth in a car is almost always (ground) -ve. So if the instruction is to earth the cable or terminal, then connect it to the nearest earth point on the car body.
It depends where the -ve (ground) is applied in the circuit; that will determine if the handbrake light operates correctly or not.
Hope thats of some help!!
13 February 2012, 07:04 PM
#50
Hi, just read through the 'old' part of the thread, it looks as if Sedge had connected the lamp feed to the normally open contacts of the relay, hence when energised it closed the contacts and light came on. I guess he has it sorted by now
But I thought it may help you out.
from what i can see the relay is just to solve the dash lamp issue, if thats the case then a 1A relay is plenty, or something around that rating. Its only operating the bulb (if i have read and understood correctly).
An earth in a car is almost always (ground) -ve. So if the instruction is to earth the cable or terminal, then connect it to the nearest earth point on the car body.
It depends where the -ve (ground) is applied in the circuit; that will determine if the handbrake light operates correctly or not.
Hope thats of some help!!
But I thought it may help you out.
from what i can see the relay is just to solve the dash lamp issue, if thats the case then a 1A relay is plenty, or something around that rating. Its only operating the bulb (if i have read and understood correctly).
An earth in a car is almost always (ground) -ve. So if the instruction is to earth the cable or terminal, then connect it to the nearest earth point on the car body.
It depends where the -ve (ground) is applied in the circuit; that will determine if the handbrake light operates correctly or not.
Hope thats of some help!!
thanks mate, will be in touch
14 February 2012, 12:18 AM
#59
Scooby Regular
iTrader: (10)
Join Date: Jul 2009
Location: North of Scotland
Posts: 683
Likes: 0
Received 0 Likes
on
0 Posts
are all the issues sorted razor, seems abs and what not is,
what about the handbrake light, does that work as normal, if not, next MOT is a fail mate. new rules as of jan 01 screws this mod up unless we can team together and get it locked down.
what about the handbrake light, does that work as normal, if not, next MOT is a fail mate. new rules as of jan 01 screws this mod up unless we can team together and get it locked down.
14 February 2012, 12:30 AM
#60
I will try ask Neil@Slowboy Racing about this,if he can help you with this
Jura
