They CE28 copies by Rota then? Look very nice.
dave_garrett is offline
Old 09 August 2010, 07:07 PM
  #62
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by rickya View Post
Nice wheels, Rota Fighters's?

Thanks to you & Musti for the R180 diff on the weekend mate
Yes Rota fighter, going to invest in some Advan RS's once the car is on the road then keep these for drag use
786omar is offline
Old 10 November 2010, 07:10 PM
  #63
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Its been a while since I lasted updated, but the project has now taken a major step foward the shell is undergone some major work, including a full wire tuck and engine bay re-spray, and the drivetrain has been fitted to the car - I ended up swapping my PPG setup with Clive's 6 speed setup from his track car (Mad HAmmer).

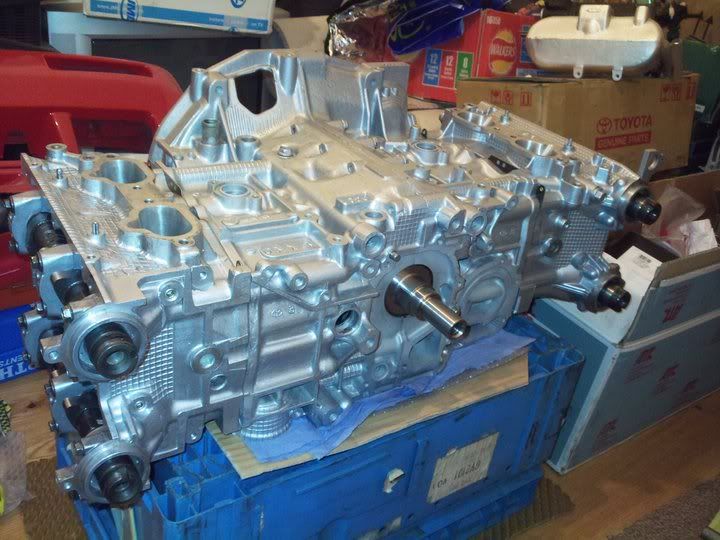

The long engine was completed last month...

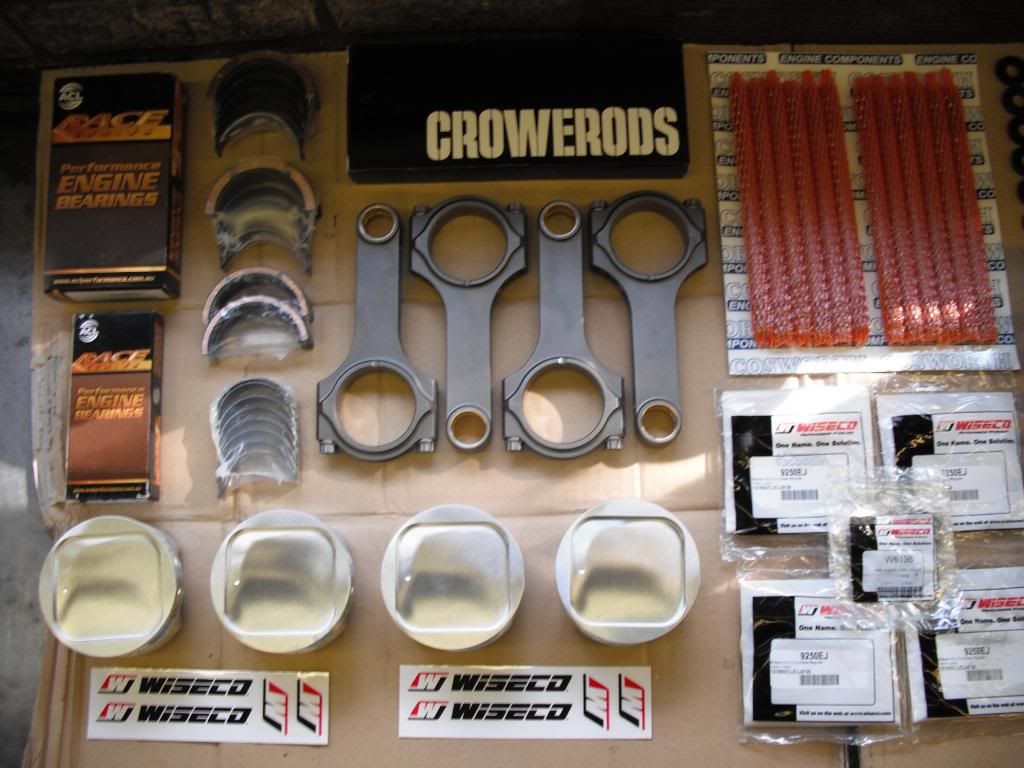

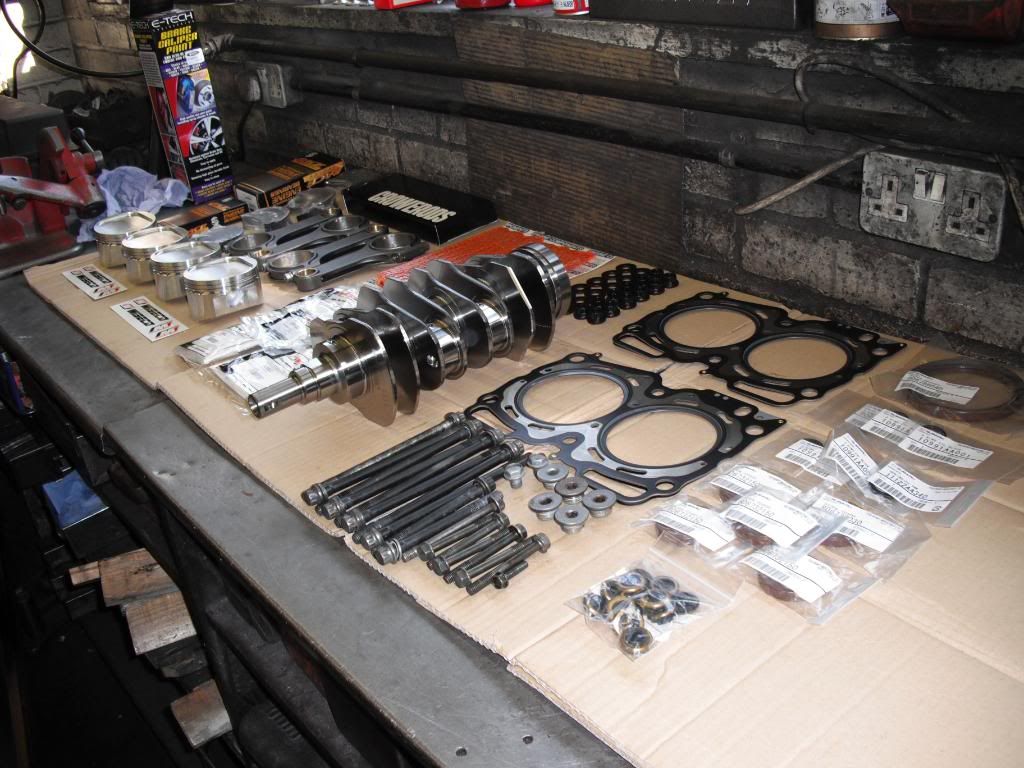

The workbench with all the goodies...

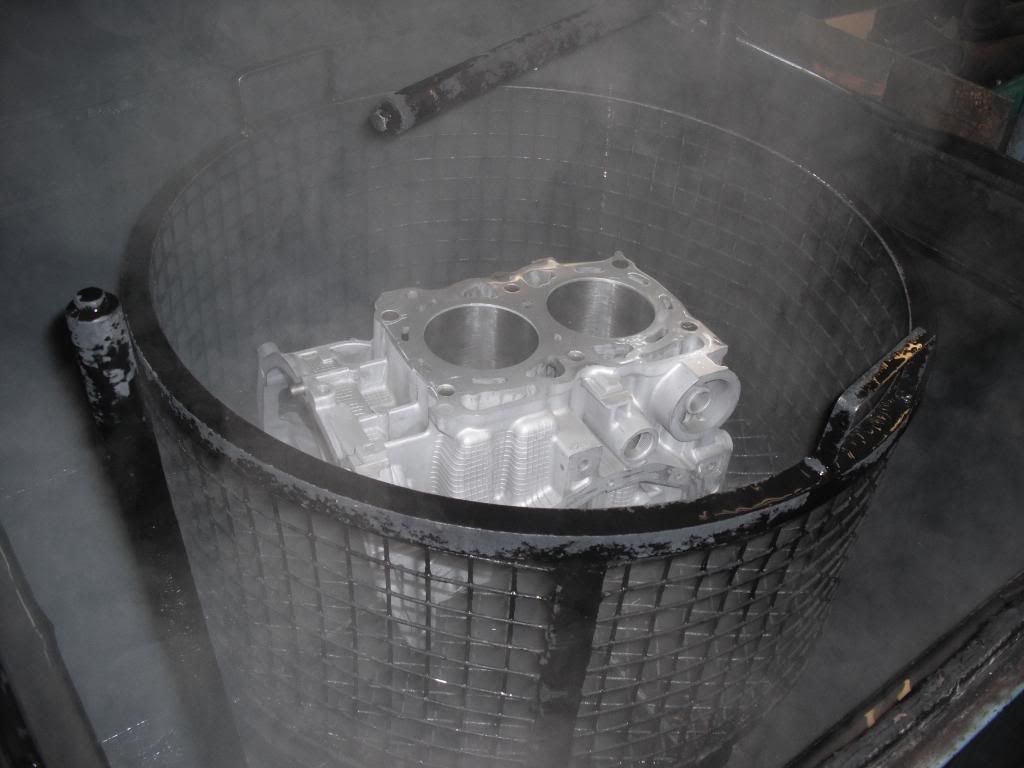

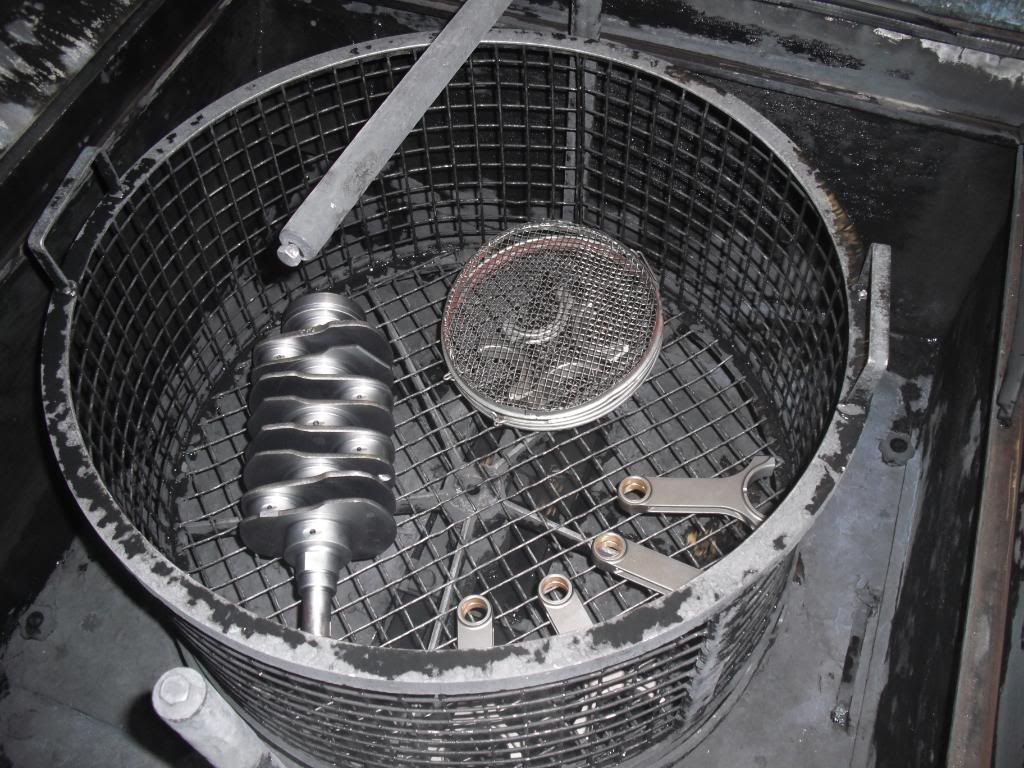

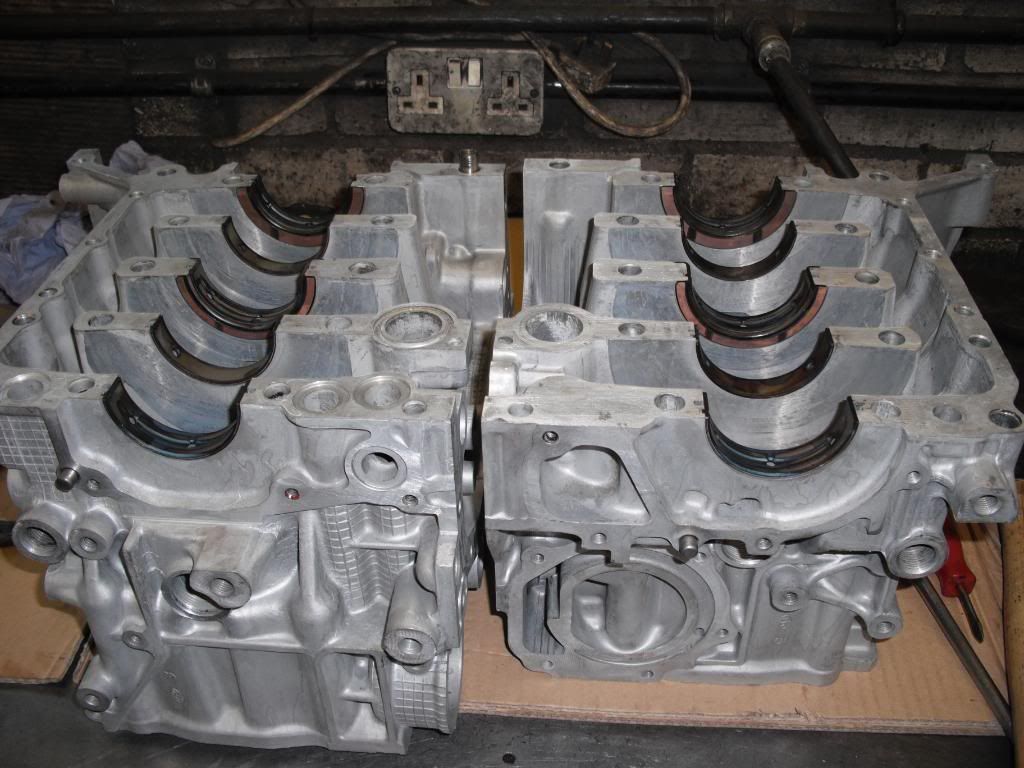

Although the block came back from Lateral spotlessly clean after the rear thrust conversion and rebore, we thought it would be best to give things a quick clean just in case any grit or dirt was picked up in transit...

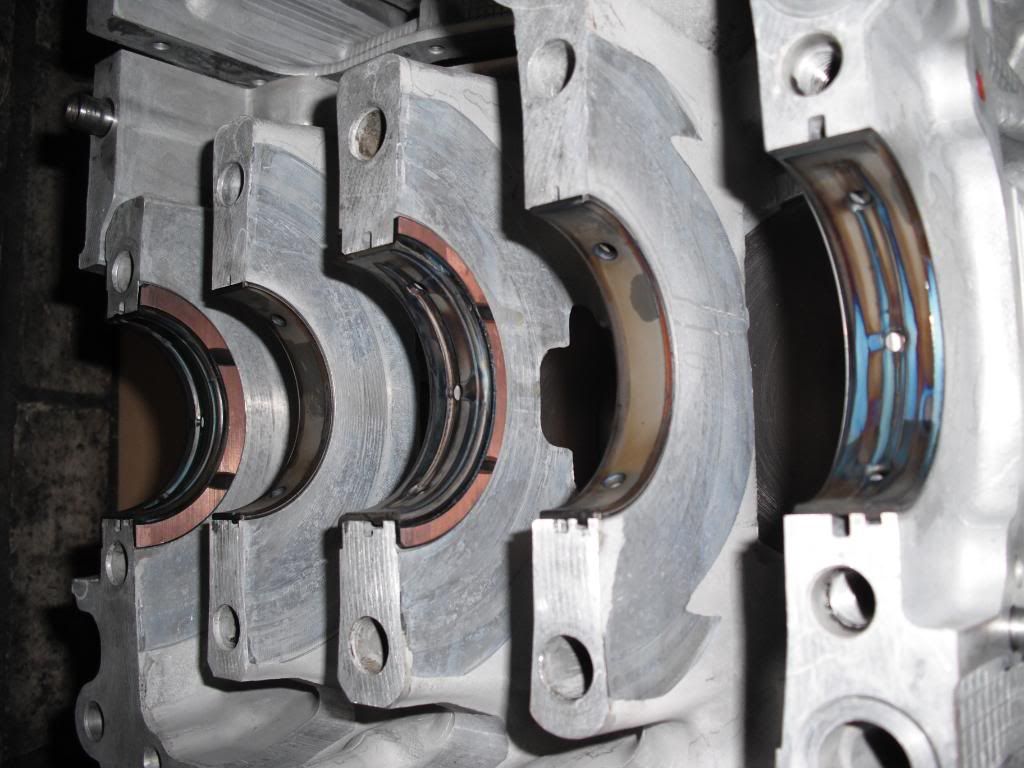

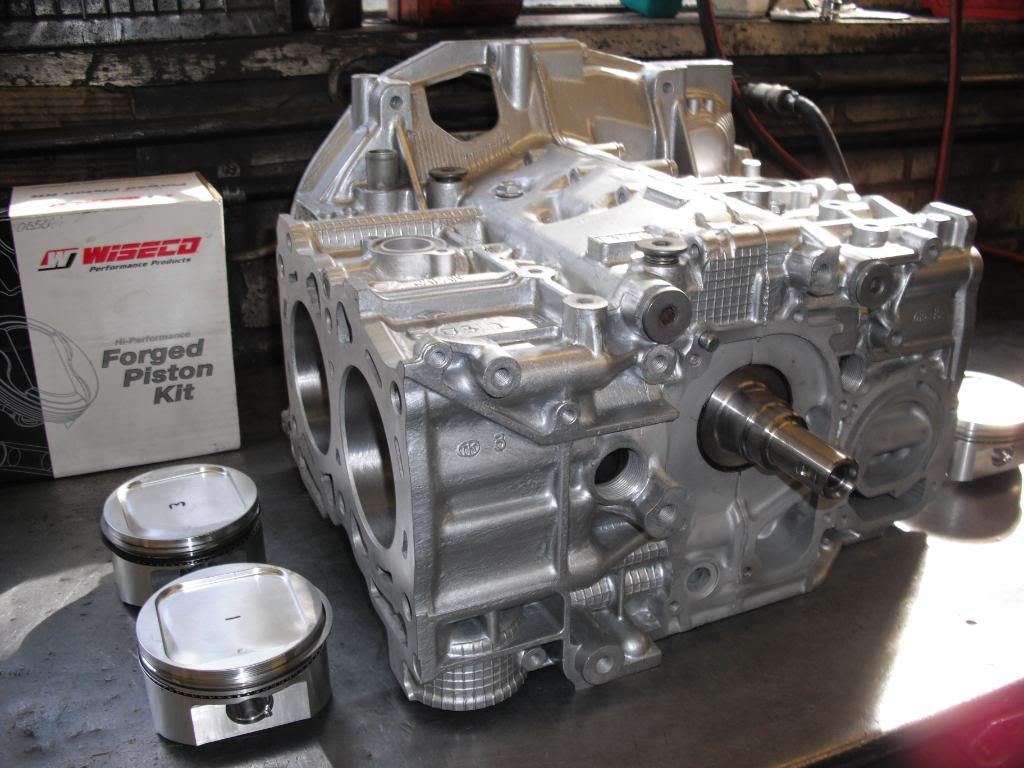

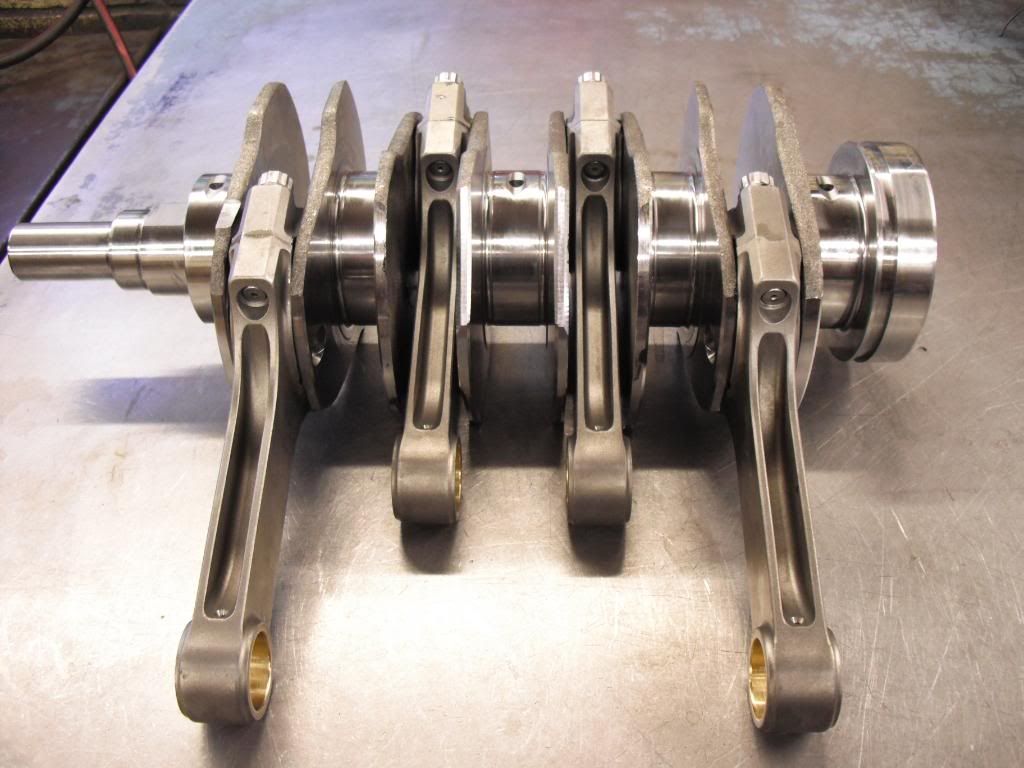

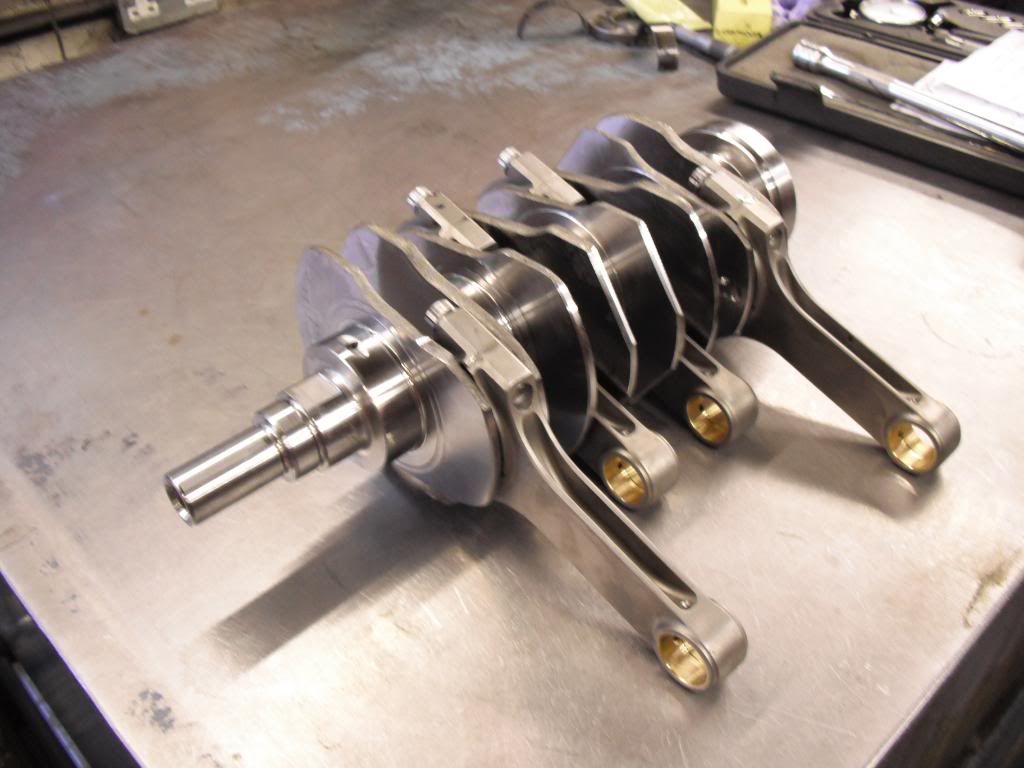

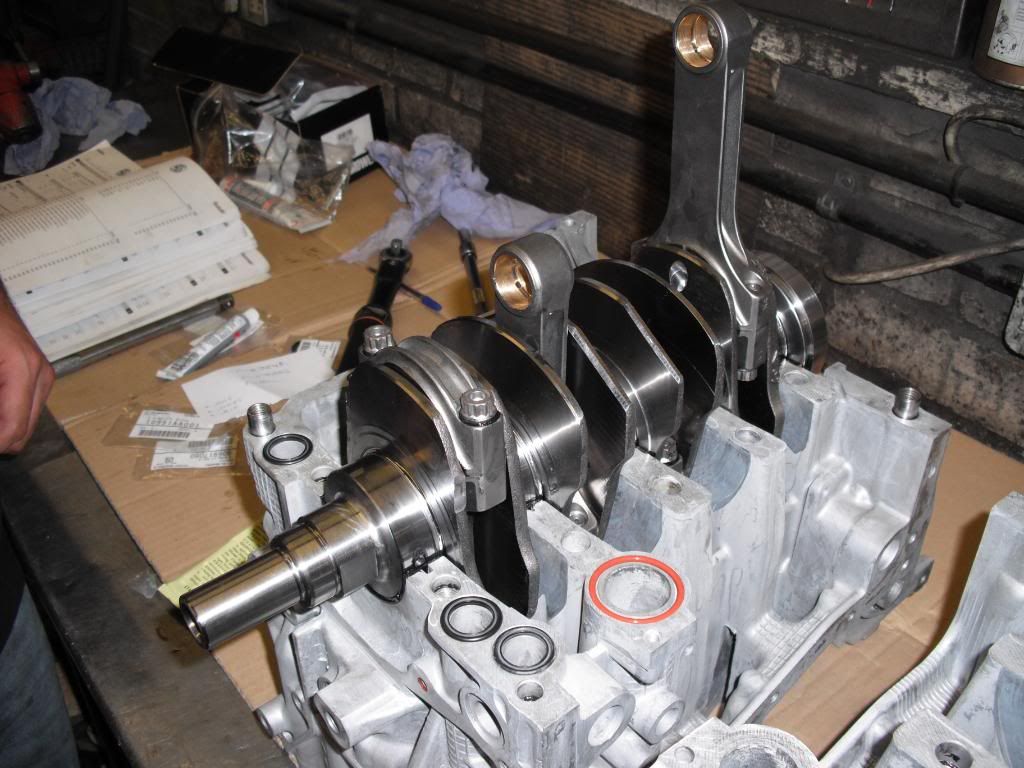

Once everything was clean to a standard assembly of the short was started, bearings, etc were lubricated using graphogen...













After speaking to several Tuners, including Wiseco themselves we decided to gap the rings to the following :

Top Ring = 0.0050" and "2nd Ring 0.0055"





The short Motor was then pretty much ready for the heads, so the Cosworth stud kit was installed alongside the headgaskets, the heads were tourqed down exactly to Cosworth's instructions...

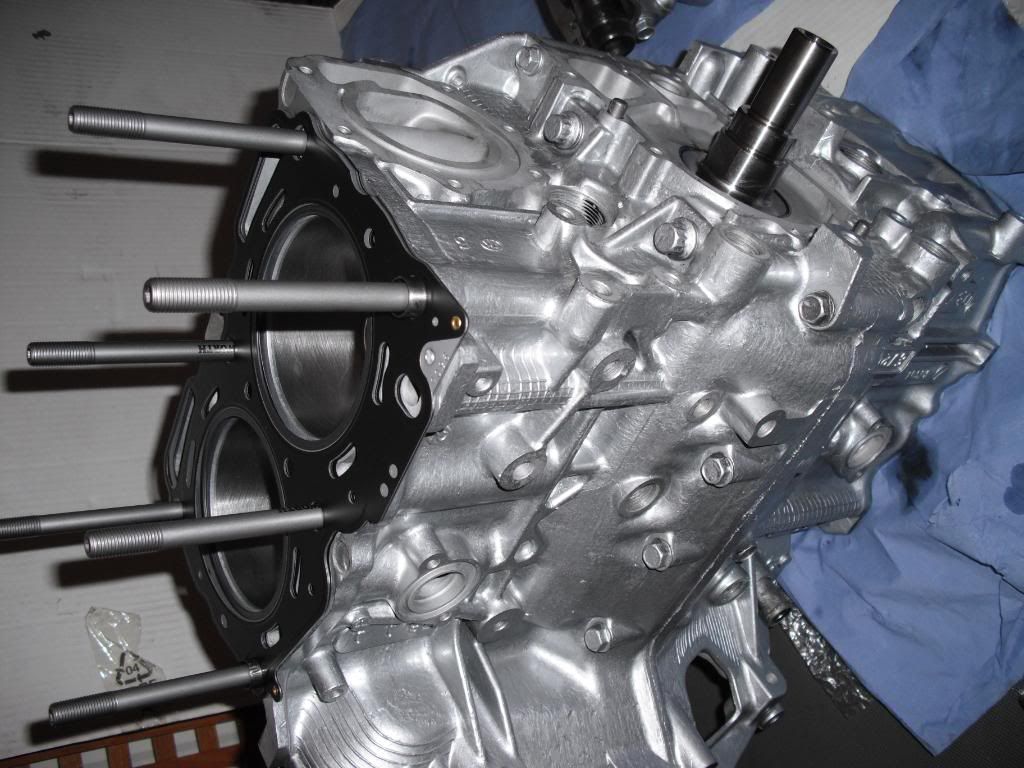

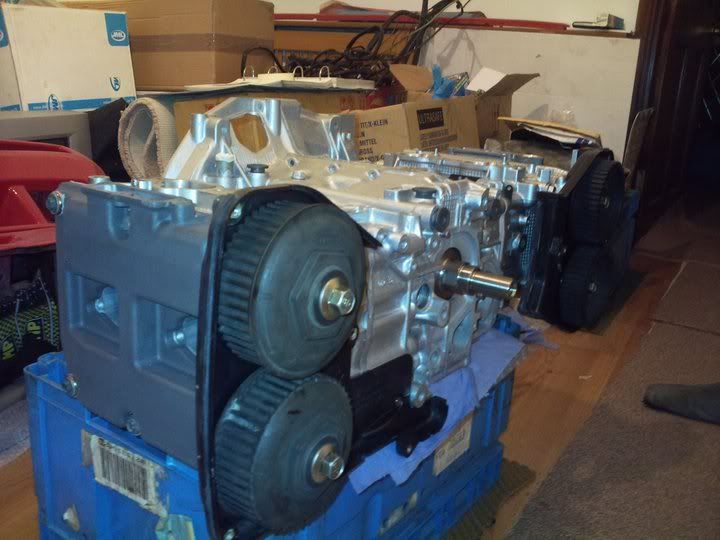

The end Result.....







Last edited by 786omar; 10 November 2010 at 07:16 PM.
786omar is offline
Old 10 November 2010, 07:43 PM
  #64
KAS35RSTI
Scooby Regular
iTrader: (73)

KAS35RSTI's Avatar

Join Date: May 2009
Location: 2.0 bar
Posts: 5,857
Likes: 0
Received 0 Likes on 0 Posts
Default

Good work bro keep it up. Any news on my head?
KAS35RSTI is offline
Old 10 November 2010, 07:46 PM
  #65
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Aladdin View Post
Good work bro keep it up. Any news on my head?
Off and ready
786omar is offline
Old 10 November 2010, 07:53 PM
  #66
Danny-WRX
Scooby Regular

Join Date: Apr 2008
Location: Wakefield, West Yorkshire
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Default

Off with his head
Danny-WRX is offline
Old 10 November 2010, 07:54 PM
  #67
Danny-WRX
Scooby Regular

Join Date: Apr 2008
Location: Wakefield, West Yorkshire
Posts: 110
Likes: 0
Received 0 Likes on 0 Posts
Default

Top work by the way Keeo it up and more pics of the car.
Danny-WRX is offline
Old 11 November 2010, 11:07 AM
  #68
P20SPD
Drag it!
iTrader: (1)

Join Date: Jun 2002
Location: Flame grilled Wagon anyone?
Posts: 9,866
Likes: 0
Received 0 Likes on 0 Posts
Default

You sure about those ring gaps, they look way too small!!
P20SPD is offline
Old 11 November 2010, 11:28 AM
  #69
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Sorry didn't mention, those figures are per inch of bore
786omar is offline
Old 11 November 2010, 12:02 PM
  #70
P20SPD
Drag it!
iTrader: (1)

Join Date: Jun 2002
Location: Flame grilled Wagon anyone?
Posts: 9,866
Likes: 0
Received 0 Likes on 0 Posts
Default

That's better. Wondered if you meant that, but thought it better to ask, than let you run it with those ring gaps
P20SPD is offline
Old 11 November 2010, 12:31 PM
  #71
KAS35RSTI
Scooby Regular
iTrader: (73)

KAS35RSTI's Avatar

Join Date: May 2009
Location: 2.0 bar
Posts: 5,857
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by 786omar View Post
Off and ready
When can i pick up?
KAS35RSTI is offline
Old 11 November 2010, 09:31 PM
  #72
Mus
Scooby Regular
iTrader: (2)

Mus's Avatar

Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes on 0 Posts
Default

looking good omar
Mus is offline
Old 11 November 2010, 10:44 PM
  #73
FB Tuning
Scooby Technician
iTrader: (30)

Join Date: Jan 2005
Location: FB Tuning Workshop - HP27
Posts: 4,219
Likes: 0
Received 0 Likes on 0 Posts
Default

No vernier pulleys to dial the cams in with?
FB Tuning is offline
Old 12 November 2010, 09:04 AM
  #74
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Would have loved some nice rcm vernier pulleys but i can't squeeze them in to the budget, I will most probably upgrade them when I have car mapped for race fuel, the oe pulleys will have to do for now..
786omar is offline
Old 12 November 2010, 09:16 AM
  #75
banny sti
Scooby Senior
iTrader: (68)

banny sti's Avatar

Join Date: Oct 2004
Location: Type R
Posts: 16,568
Likes: 0
Received 0 Likes on 0 Posts
Default

Omar how about the CDF vernier pulleys, they are pretty reasonable
banny sti is offline
Old 12 November 2010, 09:24 AM
  #76
Mad Hammer
Scooby Regular
iTrader: (55)

Mad Hammer's Avatar

Join Date: Apr 2003
Location: 1/4 mile PB 8.89 @ 160
Posts: 4,073
Received 1 Like on 1 Post
Default

Mine has run without verniers for the past two seasons, for your targets you don't need them.
Mad Hammer is offline
Old 12 November 2010, 09:34 AM
  #77
greekpeterfromlondon
Scooby Regular
iTrader: (2)

Join Date: Apr 2007
Location: london
Posts: 298
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi mate loving the work so far but would it be better to replace the plastic cam pules for the early metal pulleys just to be on the safe side ?
greekpeterfromlondon is offline
Old 12 November 2010, 10:27 AM
  #78
Fai17
Scooby Regular
iTrader: (2)

Fai17's Avatar

Join Date: Jan 2008
Location: MY 10s blobeye [email protected] 2.35/TO4Z next
Posts: 1,447
Likes: 0
Received 0 Likes on 0 Posts
Default

Ace work Omar!
Fai17 is offline
Old 12 November 2010, 11:47 AM
  #79
MIAMI
Scooby Regular
iTrader: (1)

MIAMI's Avatar

Join Date: Jan 2010
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Default

this is the rubber dingy rapids brooo

well done for having the bulls ***** for doing the work yourself, woould love to do this to mine.

keep it up
MIAMI is offline
Old 12 November 2010, 06:23 PM
  #80
FB Tuning
Scooby Technician
iTrader: (30)

Join Date: Jan 2005
Location: FB Tuning Workshop - HP27
Posts: 4,219
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Mad Hammer View Post
Mine has run without verniers for the past two seasons, for your targets you don't need them.
It's more about minimising your losses though, and improving on the efficiency of the motor....

If you've gone to the expenses of buying cams, then it would be worth dialling them in too. If you can pick up a few hp and ftlb and put a bit more area under the dyno graphs, then I would see it as being a worthwhile exercise

Omar - you might want to measure where your centrelines are on stock pulleys, to see how far out they are. A before and after comparison on the dyno would be interesting to see

Last edited by FB Tuning; 12 November 2010 at 06:50 PM.
FB Tuning is offline
Old 12 November 2010, 06:50 PM
  #81
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by banny sti View Post
Omar how about the CDF vernier pulleys, they are pretty reasonable
Anyone else using these on here? They do look tempting whats the quality like compared to the RCM pullies?
786omar is offline
Old 12 November 2010, 06:53 PM
  #82
4u2nv2
Scooby Regular

Join Date: Oct 2010
Posts: 268
Likes: 0
Received 0 Likes on 0 Posts
Default

this is the future, nice work fella keep it up, any pics of car.
4u2nv2 is offline
Old 12 November 2010, 06:56 PM
  #83
rickya
Scooby Regular
iTrader: (18)

rickya's Avatar

Join Date: May 2007
Location: Herts/Middx
Posts: 6,322
Likes: 0
Received 1 Like on 1 Post
Default

Good work mate
rickya is offline
Old 12 November 2010, 07:01 PM
  #84
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by FB Tuning View Post
It's more about minimising your losses though, and improving on the efficiency of the motor....

If you've gone to the expenses of buying cams, then it would be worth dialling them in too. If you can pick up a few hp and ftlb and put a bit more area under the dyno graphs, then I would see it as being a worthwhile exercise

Omar - you might want to measure where your centrelines are on stock pulleys, to see how far out they are. A before and after comparison on the dyno would be interesting to see
The cams I picked up dirt cheap from a mate who decided to use cosworth cams in his build, there is a rumour though that they originate from the original white RA that paul at zen had as his demo car, I have yet to confirm this with him though, Ill post up the spec sheet of the cams that piper gave to me when I had them inspected and measured up...

A direct comparison would be a good idea though, but for now I'll stick with the stock pulleys, but I'll definately have it mapped on both sets of pulleys on v-power for a direct comparison before I start messing about with methanol and race fuel
786omar is offline
Old 12 November 2010, 07:02 PM
  #85
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Fai17 View Post
Ace work Omar!
Thanks, saw some videos of your car, thats one hell of a car Chy has built you
786omar is offline
Old 12 November 2010, 07:03 PM
  #86
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by 4u2nv2 View Post
this is the future, nice work fella keep it up, any pics of car.
Thanks, I'll upload them soon...
786omar is offline
Old 12 November 2010, 07:04 PM
  #87
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by rickya View Post
Good work mate
hows that diff?
786omar is offline
Old 12 November 2010, 07:06 PM
  #88
786omar
Scooby Regular
Thread Starter
iTrader: (5)

Join Date: Oct 2006
Location: Elstree
Posts: 543
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Mad Hammer View Post
Mine has run without verniers for the past two seasons, for your targets you don't need them.
I was thinking that the other day as I dont remember yours having the pulleys either, so I guess I shouldn't really have any issues apart from missing out on possibly a few horses

Last edited by 786omar; 12 November 2010 at 07:12 PM.
786omar is offline
Old 12 November 2010, 09:09 PM
  #89
CDF Racing
Former Sponsor
iTrader: (49)

Join Date: Jan 2008
Posts: 3,222
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi Omar,

Nice build so far mate,

Our pulleys are used on 9 of the USA rally team cars. Simon (jgm) also has them on his car and Rich (FB tuning) has seen these first hand, I am sure they can vouch for the qualtiy. We are also currently making some pulleys for Andy forrest drag car.

We only use good grade hard anodized alloy for all our cam pulleys.


You said about maybe fitting some after, if you do this you will need to remove the engine to dial the cams correctly either that or you will have to use them in stock postions - this will still be better as those bakerlight ones are very weak.

You are more than welcome to come and view some to inspect them.


The ones with stainless centres retail at 550 or our titanium true lock ones will be 900 as we havent released them yet.

Drop me a pm and i'll do you a good deal


chris
CDF Racing is offline
Old 13 November 2010, 12:03 AM
  #90
Mus
Scooby Regular
iTrader: (2)

Mus's Avatar

Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes on 0 Posts
Default

very tempting you dont want to be thinking what if.... just get em omar youve come this far
