Wagons, stand up and show yourselfs!!
#1591
#1592
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
## 2007 Year of the Wagon ##
Some great wagons appearing
..Where have you all been hiding, 2006 was a Wagon Drought, now were flooding
The wagon goes from Strength to Stength
Dont forget the National Wagon Meet II at NBO 2007 organised by LordHarding any myself.
Come and say hello to the Wagon Squadron and our formation display
..Where have you all been hiding, 2006 was a Wagon Drought, now were flooding
The wagon goes from Strength to Stength
Dont forget the National Wagon Meet II at NBO 2007 organised by LordHarding any myself.
Come and say hello to the Wagon Squadron and our formation display
#1593
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
#1594
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
STI Wagons stand up and show yourselves
..Ours is called 'Monty'
Just had its 1k service on new engine, so full steam ahead for bigger injectors, turbo, fmic and map
Monty gets a waxing tommorrow so better pics to follow
Last edited by *smiles*; 31 March 2007 at 11:18 PM.
#1598
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
#1600
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
STI Wagons stand up and show yourselves
Some great wagons appearing.
Heres some updates of ours, spent all weekend giving it the full meguiars treatment. Just had its 1k service on new engine yesterday
Does my Bum look big in this
Heres some updates of ours, spent all weekend giving it the full meguiars treatment. Just had its 1k service on new engine yesterday
Does my Bum look big in this
#1602
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
#1604
Scooby Regular
Join Date: Apr 2006
Location: Middlesex
Posts: 319
Likes: 0
Received 0 Likes
on
0 Posts
Looking good
I think the splitter would look good colour coded
So not all scoobies are thought of as shes, we have a Moses and a Monty, we can't be the only ones naming their wagons can we
#1606
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
Next round of spending is on the paintwork
on thr naming front I think we must be
#1609
Scooby Regular
Join Date: Jan 2006
Location: The Darkside - Formerly Secret 555 Wgn Sqn Bunker
Posts: 3,032
Likes: 0
Received 0 Likes
on
0 Posts
#1610
Signing In :)
Hey all
Another wagon:
You'll know it as StanS's car, which is now mine my first scoob, had MR evo's & Nissan 200's before.
Had her about a month.
The main spec of the car has not changed.
Spec:
Cosworth Pistons/rings
Arrow rods and ARP2000 uprated bolts
CR 8.5:1
Baffled sump
GGR uprated oil pump (new).
Flywheel –billet 5.4kg
Clutch AP uprated organic
Balanced bottom end
Sti uprated engine mounts
Sti4 heads, fully flowed/ported, Sti 4 cams
SX Fuel regulator (1:1), and parallel feed rails
Competition fuel filter (300litres/hour)
TDO5/06 hybrid Turbo (Andy Forest)
Forge recirculating dump valve
Up pipe (Scoobysport)
3” decatted exhaust (Hayward and Scott)
Headers Hayward & Scott
Large K&N air filter fitted to custom 63mm intake pipe (no MAF moulding or breathers)
740 injectors
Walbro 250l/hr fuel pump
Ecu - Gems with anti-lag programmed, launch control not yet programmed.
Water/methanol injection
Hyperflow FMIC
Oil cooler + thermostat sandwich plate + pipes (not currently fitted)
Power steering fluid cooler
Oil Catch tank for crankcase, breather filters for cam covers
(new cambelt, tensioner + pulleys)
Par Challock gear set (std ratios), with straight cut 3rd/4th by PPG (all new gear box internals)
Quaife ATB front diff
Quaife ATB rear diff
Quick shift mechanism
Sti uprated gearbox mounts
Whiteline adj 24mm front sway bar, 24mm rear sway bar, anti-lift kit, drop links and various bushes.
Bump steer removal, + anti lift mod.
Forge front strut brace
Eibach springs
AP 6 pot 330mm brakes, braided hoses
17” Stilauto SR500 rims, Toyos.
AFR display (Removed load of rubbish as not wideband)
Knocklink display
SPA Oil press/temp gauges
SPA Air intake temp/ boost pressure gauges
SPA Water temp, fuel pressure gauges
Had a few bits done:
All the basic servicing stuff oil's (Engine, gearbox, diff's etc.). New front White line drop links & re-wrapped exhaust.
Water/methonal injection removed(Can't be arsed with that)
Re-mapped at AP-tuning.co.uk, on there brand new latest windows based version (first one in the country) Dyno Dynamics 4wd dyno. I can Thoroughly recommend these guys there ability's & service in my experience is second to none.
Which resulted in 392bhp & 350lb/ft on 97ron and NO booster type additives. Very drivable & usable power for fast road use IMHO. (If I can work how I'll post the graph)

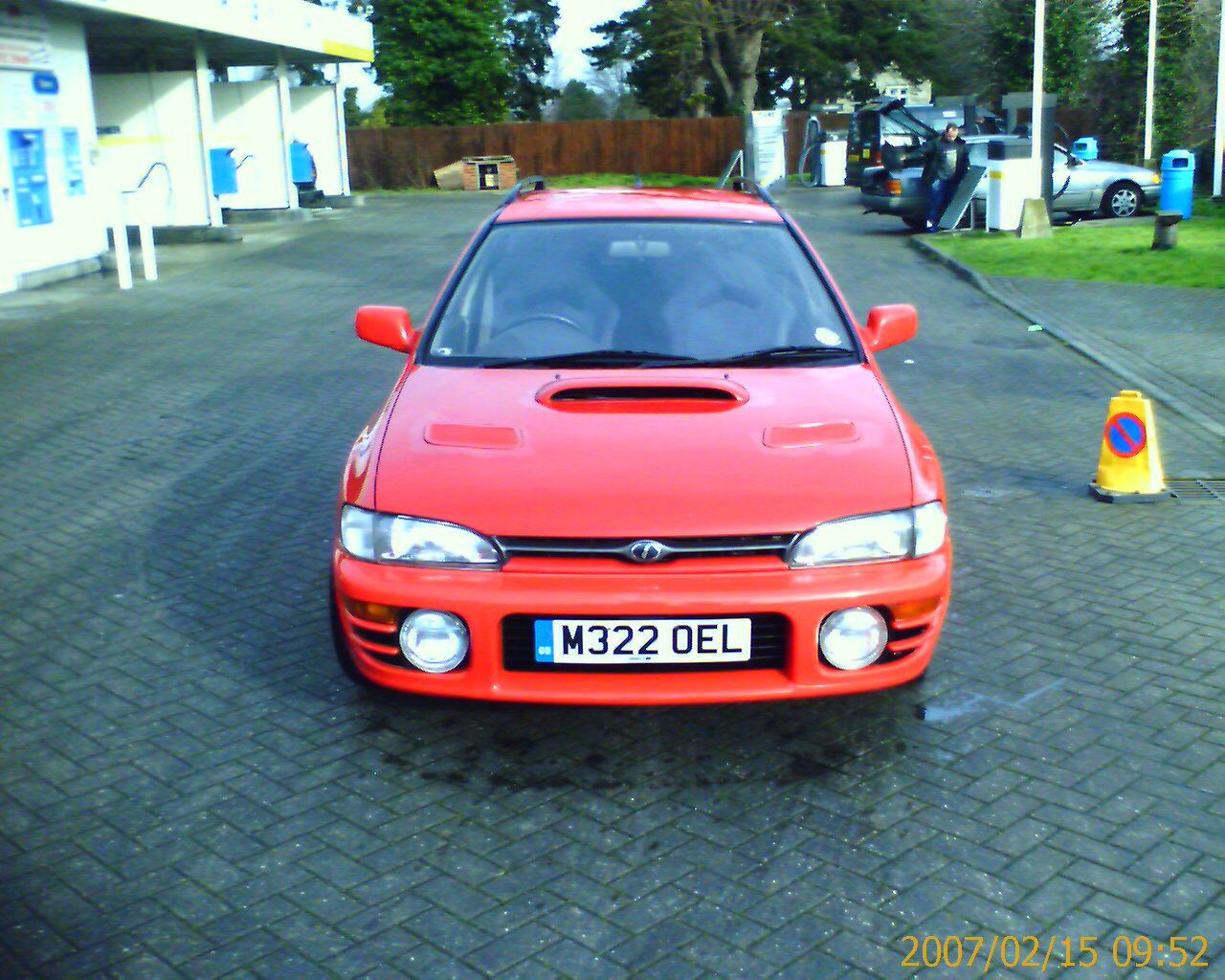

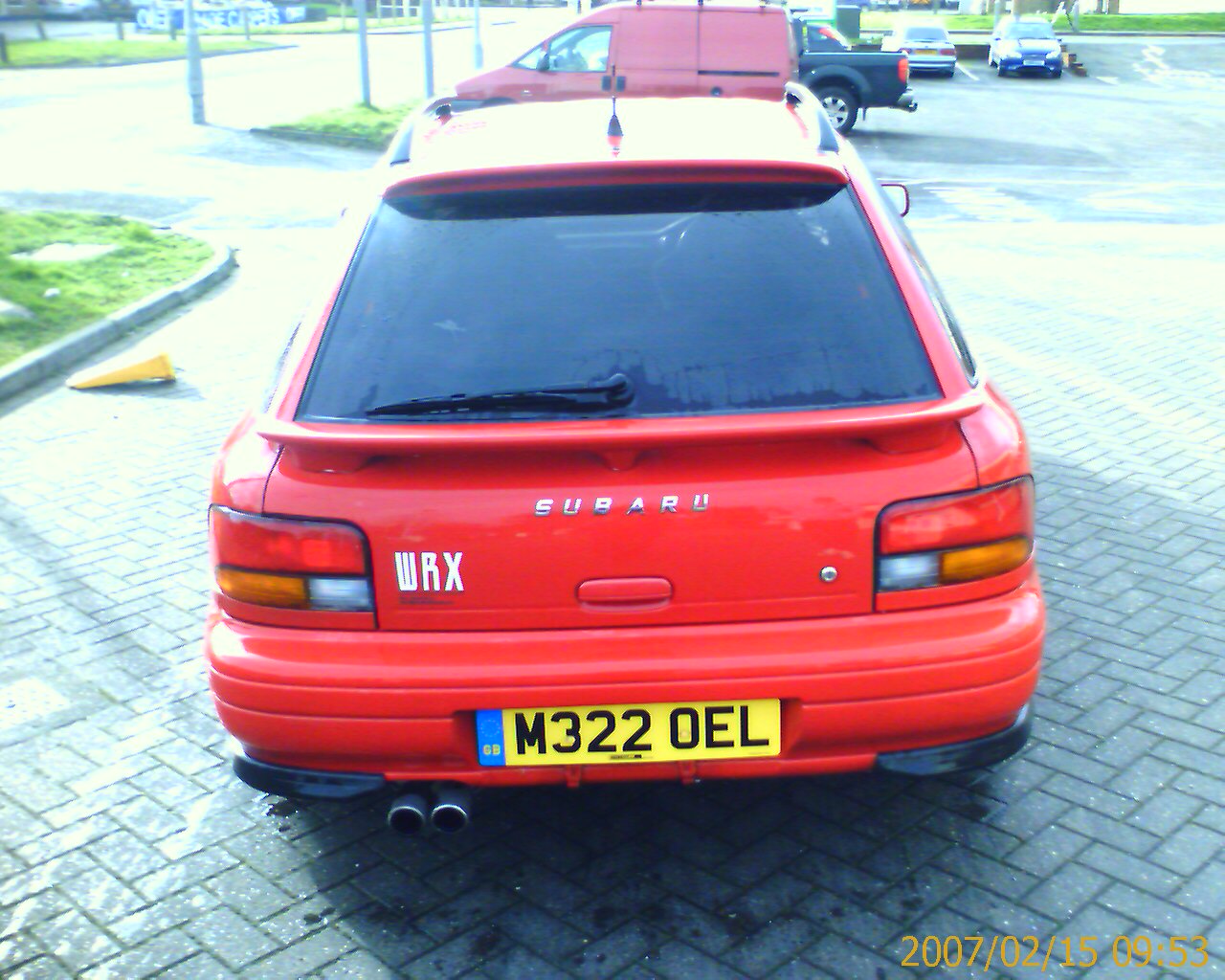

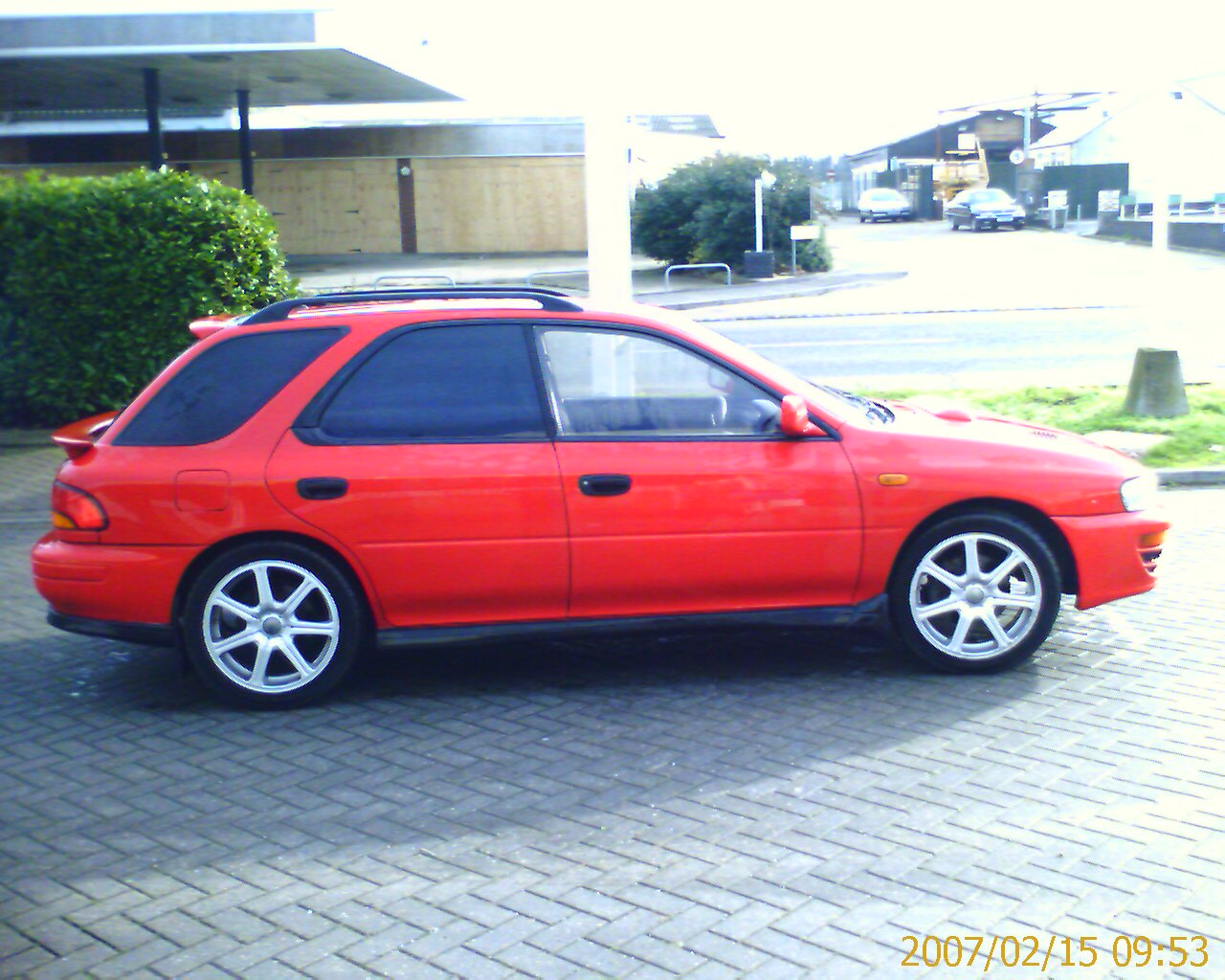

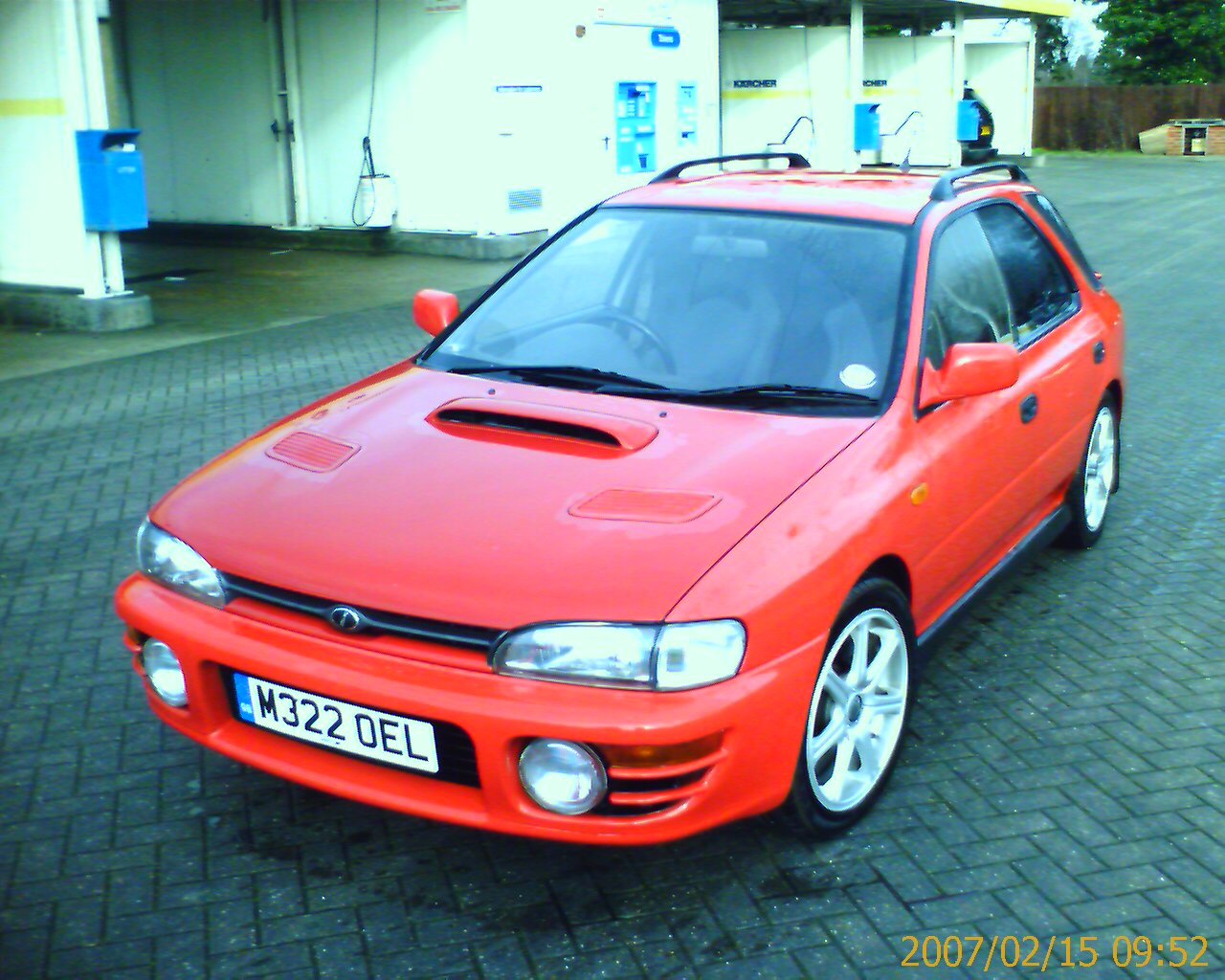

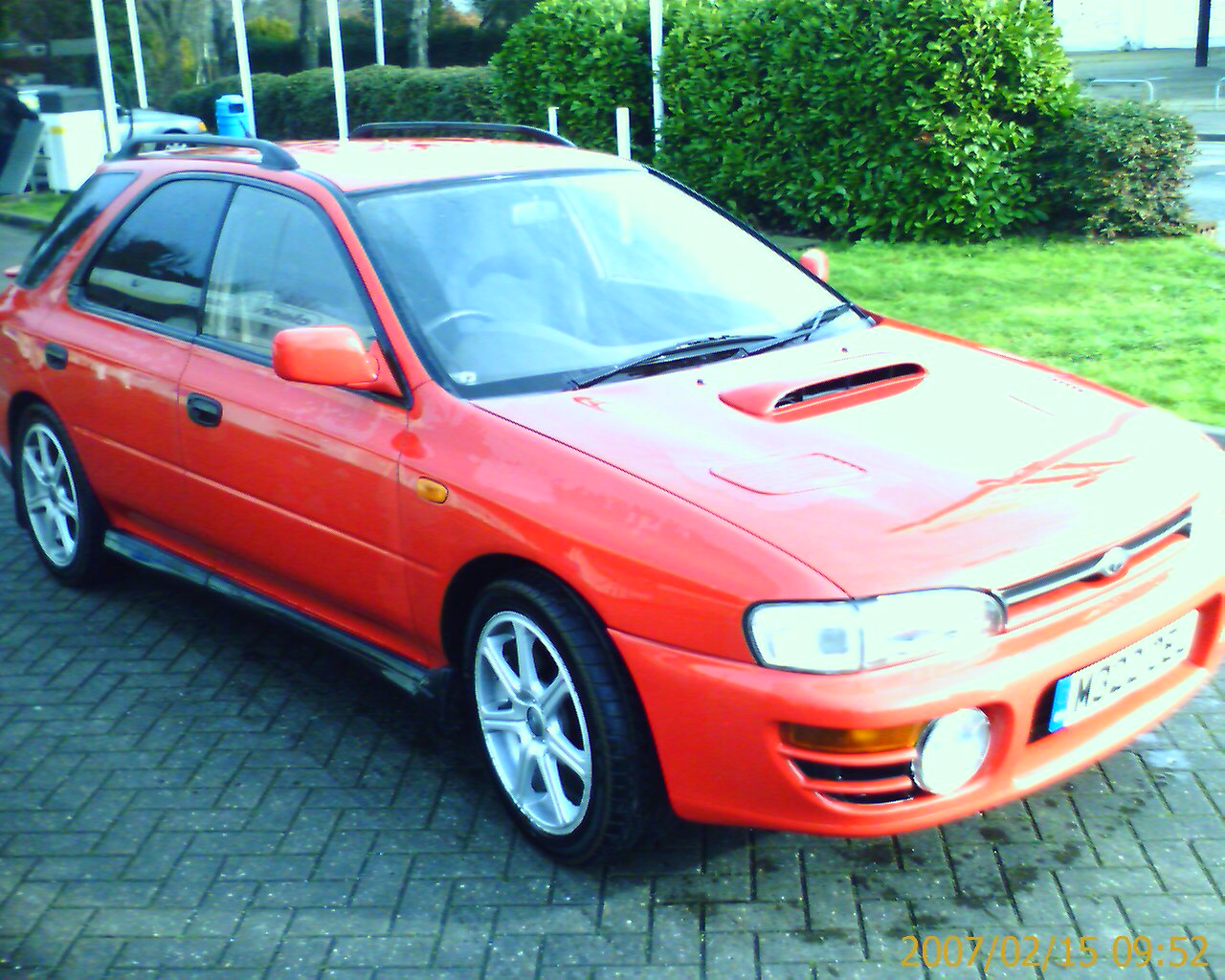

I'm sure you seen it before but heres an old pic, I'll post a new one when i can.
Need to sort a few bits namely the front bumper, FMIC pipes and a light weight bonnet(Dam the bonnet is heavy).
Anyone got any suggestions on how to make this look a bit more stock?
Cheers FB
Another wagon:
You'll know it as StanS's car, which is now mine my first scoob, had MR evo's & Nissan 200's before.
Had her about a month.
The main spec of the car has not changed.
Spec:
Cosworth Pistons/rings
Arrow rods and ARP2000 uprated bolts
CR 8.5:1
Baffled sump
GGR uprated oil pump (new).
Flywheel –billet 5.4kg
Clutch AP uprated organic
Balanced bottom end
Sti uprated engine mounts
Sti4 heads, fully flowed/ported, Sti 4 cams
SX Fuel regulator (1:1), and parallel feed rails
Competition fuel filter (300litres/hour)
TDO5/06 hybrid Turbo (Andy Forest)
Forge recirculating dump valve
Up pipe (Scoobysport)
3” decatted exhaust (Hayward and Scott)
Headers Hayward & Scott
Large K&N air filter fitted to custom 63mm intake pipe (no MAF moulding or breathers)
740 injectors
Walbro 250l/hr fuel pump
Ecu - Gems with anti-lag programmed, launch control not yet programmed.
Water/methanol injection
Hyperflow FMIC
Oil cooler + thermostat sandwich plate + pipes (not currently fitted)
Power steering fluid cooler
Oil Catch tank for crankcase, breather filters for cam covers
(new cambelt, tensioner + pulleys)
Par Challock gear set (std ratios), with straight cut 3rd/4th by PPG (all new gear box internals)
Quaife ATB front diff
Quaife ATB rear diff
Quick shift mechanism
Sti uprated gearbox mounts
Whiteline adj 24mm front sway bar, 24mm rear sway bar, anti-lift kit, drop links and various bushes.
Bump steer removal, + anti lift mod.
Forge front strut brace
Eibach springs
AP 6 pot 330mm brakes, braided hoses
17” Stilauto SR500 rims, Toyos.
AFR display (Removed load of rubbish as not wideband)
Knocklink display
SPA Oil press/temp gauges
SPA Air intake temp/ boost pressure gauges
SPA Water temp, fuel pressure gauges
Had a few bits done:
All the basic servicing stuff oil's (Engine, gearbox, diff's etc.). New front White line drop links & re-wrapped exhaust.
Water/methonal injection removed(Can't be arsed with that)
Re-mapped at AP-tuning.co.uk, on there brand new latest windows based version (first one in the country) Dyno Dynamics 4wd dyno. I can Thoroughly recommend these guys there ability's & service in my experience is second to none.
Which resulted in 392bhp & 350lb/ft on 97ron and NO booster type additives. Very drivable & usable power for fast road use IMHO. (If I can work how I'll post the graph)
I'm sure you seen it before but heres an old pic, I'll post a new one when i can.
Need to sort a few bits namely the front bumper, FMIC pipes and a light weight bonnet(Dam the bonnet is heavy).
Anyone got any suggestions on how to make this look a bit more stock?
Cheers FB
#1611
Scooby Regular
Nice car! I would personally just smart'n it up a bit. All clear lights and rear sti's. Front Sti lip and rear spoilers, then colour code the door handles and skirts. So it looks complete.
Never mind what I say, still a smashing car.
Never mind what I say, still a smashing car.
