I've just noticed that from the above vehicles only the 20th anniversary one (first pic) has headlight washers.

Why is that? Don't all JDM hatches have xenon lights and headlights washers as standard?



The answer to that is probably no.
Would appear to depend upon which Option Pack selected when ordered



Do the ones with non-xenon headlights come with a rotary switch to manually adjust the height of the beam?



Goes where the blank is under my red start button above (The LH rotary dial adjusts the dash illumination}



Thanks Don!



No starter button on mine; maybe PT82 has one?



Mine has keyless entry and a start button, but it's not red.
Are there any details of what's included with the different option codes? Mine is ECC.

Frame / Model Code GRB / G12 body W (wagon )
engine 207 (2.0L EMPI DOHC high power turbo )
drive 4W (full-time 4 wheel drive )
Production date 20.07.2010
transmission 6MT (6 speed manual transmission)
grade STI (WRX STI)
Option code ECC
Color code C3S (spark silver metallic (C3S))
Trim code G50 (off-black )

If you put your chassis number in www.amayama.com it shows the option code, but no info on what the codes mean.



Not on mine either.



Mine has a starter button double checked not red

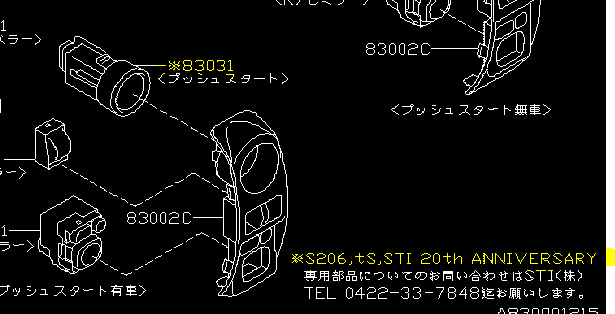

As per my previous post the red STi start button is limited to the S206, tS and 20th Century Anni models as OEM equipment. It can be purchased as an accessory.



Option code content is available if you can read Japanese
They are also different for each revision "year".......
just a few for examples.....
Revision A


Revision A


Revison B


Revision B


Revision B



Main Code details for each "Revision" (some cover 2 or more years)

Revision A



Revision B



Revision C



Revision D





Revision E



They all Have HID headlights, headlight washers is not a requirement in Japan.



Not all - SpecC with option pack 93 does not




Also shown here.....




Only models that don't appear to come with Headlight Washers are SpecC's and R205's and any others with option packs GR or GV



Does anyone know if it's only the Spec C that has a VF53 turbo?

What turbos do 20th anniversary and R205 have?

A "normal" 2.0 JDM hatchback STi has a VF49 if I am not mistaken.

Thanks.



20th Century is same as STi - 14411AA690 (VF49)
Spec C - 14411AA820 (VF53)
S206 - ST14411ZR010
R205 - ST14411ZR000 (VF56?)



Thanks Don!
Has anyone managed to silence the annoying beeping upon selecting reverse?
I did that in my FSTi but I have no idea where to start in the hatchback.



i think that some photos are called for at this point?!!



I'll dig out the thread I posted in SF.org and the photos (which are no more visible as photobucket doesn't display them externally)



If it's the integrated unit then the Hatch one is to the right of the A/V unit



Great information as always Don, thanks!



This is what was done (for pictures follow the iwsti link in the thread below until I upload pics):
http://www.subaruforester.org/vbulle...se-beep-80124/



Whats involved in fitting this, and what happens to the normal keys?
