I do have a finished design, and have had them on my car for over a year. But I had to get them printed professionally on a SLS machine. I just couldn't get a decent text quality on my own machine. This makes them more expensive but the quality is much better.
Its not really worth my time to take orders and play middle man, so I'll post up the 3D file and a link to the website I used...



Download the file here: https://drive.google.com/drive/folde...DU?usp=sharing

Upload it to this website to order: https://www.3dpeople.uk/
Just click on "Upload a 3D file"
When you get to the options select the following
Technology: SLS
Material: Nylon
Layer thickness: 100 mic
Filling: Solid
Polishing and dye are up to you. Polishing might not be a bad idea, but you'll then need to key the surface before painting. For reference the photo's I sent were of unpolished prints.
Remember to order the correct quantity you need!

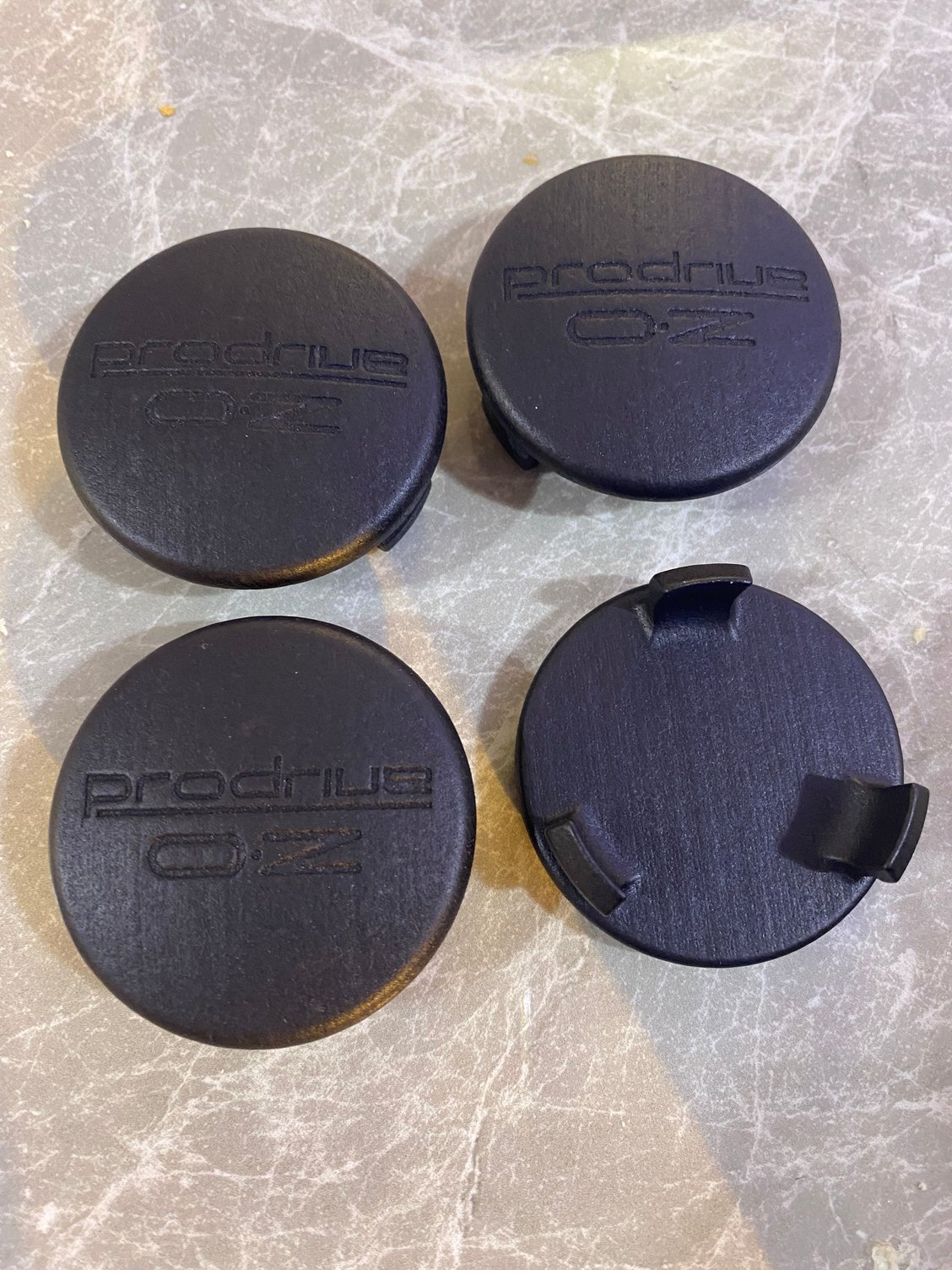

Here's photos of my set, I actually didn't bother sanding them down before painting, as I ran out of time.



Cheers, 👍



Think they would look better with a tad sanding.



Hello everyone I'm new to the Subaru game we've just picked up a 66 plate STI saloon and picked up some 18in prodrive wheels for it they have just been refurbished and we're looking for the correct centre caps if anyone can part number or picture of them so I can search. I have gone through this thread and just want to know which ones it the prodrive ones or the prodrive with o z



I know this is an old thread, but wondering if anybody has had these done recently? You happy with the results? About to order me some.
To be honest, I am planning on sticking some gel stickers on top, I think they look better than painted. If I find the right size, that is. Prob will have to sand the printed caps to flat, otherwise it's going to be a convex sticker over the convex cap, and that would be too much...roundness.



I've had mine on my winter wheels for two winters with no problems, other than wishing I'd bothered to sand them smooth before painting them.
I've saved off a version with a flat face and no logos to suit a gel sticker: https://drive.google.com/file/d/1Jr7...usp=share_link
Enjoy!



Thanks so much Jonny, looks great!



Went for domed, black and polished. Looking very good so far, and at least the outer diameter is spot on. Nicely done! Will try to fill the inlays with golden ink marker, sand smoothly and apply a clear coat. I’m thinking nail polish. If that doesn’t work I’ll have a set of the flats done for stickers.



That should look great, post pictures up for us to see when you're done.
PS I'd suggest doing a small test on the back side with what ever paints you want to use. Just to make sure they dont react with the nylon.



Not perfect, but good enough in particular from afar. The wheels anyway need a refurb this year, so at that point I’ll make another set and try another technique.
The gold marker I used (Edding 0.8mm) worked like a charm. And clear nail polish is also a good coating. Easy to apply and cheap. Although next time I may use epoxy resin. But I should have sanded more, just couldn’t be bothered. Again, good enough for now.



Hey Jonny,

can I just check this link is for flat face please? I’ve uploaded it but still get the domed face preview.

Thanks for doing some epic work on this!

Tom



Not sure why, but that link seems to be directing back to the original domed file.
This link should take you to the folder with both of them in.
https://drive.google.com/drive/folde...usp=drive_link

This link should give you the flat centre cap directly
https://drive.google.com/file/d/1O8C...usp=drive_link

Happy printing!
