JDM Alarm fob

Old 11 March 2019, 04:55 PM
  #1
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default JDM Alarm fob

wondering if anyone can steer me in the right direction. On a JDM Impreza. Iím lead to believe the alarms are retrofitted. My fob has recently been intermittent so changed the battery (tear shaped fob with 2 buttons on it). After placing a new battery in it there was a visible red illuminated light. However the fob will not unlock the central locking. At present the car is secure. When I last drove the physical ignition key worked fine. So Iím sure thatís not an issue. I donít believe I need reprogram any keys etc (not even sure if the JDM has the internal touch pad but I believe not).
Anyway to my point! Anybody got any advice on this. Red light should indicate all good with new battery in the fob???? If I open the drivers door using the key alone the alarm will go off & I then canít switch it off.
Am I limited to an auto locksmith/ mobile alarm specialist to sort for me? Any steers gratefully received as Iím now stuck without a car 😡. Many thanks in advance.
R666ORY+1 is offline
Old 11 March 2019, 04:59 PM
  #2
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,821
Default

Sounds like the central locking on the car itself isn't working. If the keyfob disarms the alarm ok then it's doing what it should and sending the signal. My bet would be the drivers door central locking motor or something from the main alarm module not triggering it, broken wire etc.

Your key may well have a transponder fitted so this will start the car if the transponder is present even if your keyfob battery is working fine or not.
BrownPantsRacing is offline
Old 11 March 2019, 06:11 PM
  #3
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,782
Default

Depending upon year and model your car may or may not have a transponder chip in the key for an ECU equipped immobiliser.

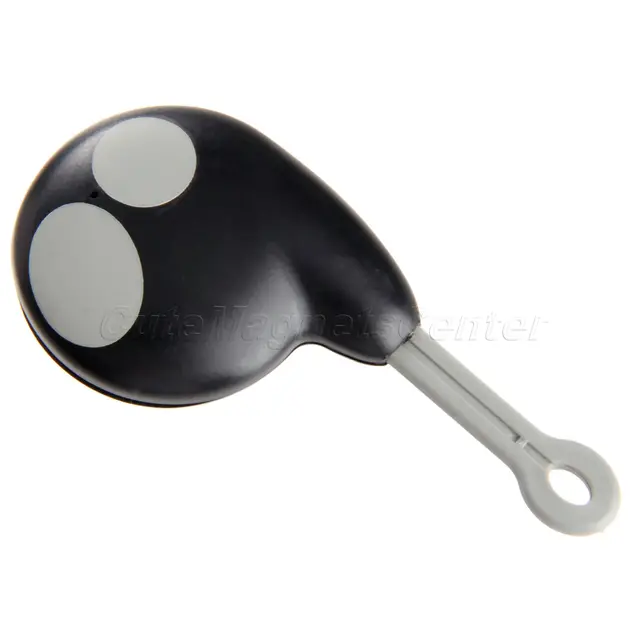

As it's JDM, and you say it has a 2 button teardrop alarm fob, it's probably got some version of cobra alarm fitted rather than the UK installed Sigma alarm to which you allude.


Does your actual key have any buttons on it??

Last edited by Don Clark; 11 March 2019 at 06:13 PM.
Don Clark is offline
Old 11 March 2019, 06:19 PM
  #4
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

BPR,

Thanks, think Iím a step closer to working it out! Having done a few searches on the wider net the fob with new battery will need resetting to the after market system fitted. I believe (but could be wrong) the aftermarket alarm & fob then takes over as the primary means of activating the central locking & alarm (waiting on confirmation of this). Unfortunately I have no other info as to the after market alarm fitted which doesnít make it crystal clear which direction I go in. I believe the steady red light in the fob I observed is it telling me it is ready to be reset to the existing system. The fob is already set to the work with the current system but the interrupted power supply requires a reset to reconnect the two if that makes sense. Unfortunately I only ever received one ignition key & one fob when I took ownership of the vehicle. Lesson learned, I kept putting off replacements as they are not cheap via Subaru!
Any further input is gratefully received. As and when I get it figured out I will put any relevant info on here for others if they ever find themselves in a similar situation!!!! But again thank you.
R666ORY+1 is offline
Old 11 March 2019, 06:23 PM
  #5
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

Originally Posted by Don Clark View Post
Depending upon year and model your car may or may not have a transponder chip in the key for an ECU equipped immobiliser.
As it's JDM, and you say it has a 2 button teardrop alarm fob, it's probably got some version of cobra alarm fitted rather than the UK installed Sigma alarm to which you allude.


Does your actual key have any buttons on it??
Hi Don,

physical ignition key has 2 buttons on them but they are redundant as far as I know. Have never used them to lock/unlock the vehicle & donít work now if I try. It is a 2003. The image you provided is very similar (if not identical) to my fob & primary means of entering the vehicle & deactivating the alarm. I only use the larger of the 2 buttons to unlock & lock the vehicle. Can you shed any light please?
R666ORY+1 is offline
Old 11 March 2019, 06:43 PM
  #6
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

Don,

Sorry, it is a Blob Impreza. Having just thought about it further, when I sat in the vehicle (previously) for any length of time it would rearm the immobiliser, to get the vehicle to start I would need depress the large button on the fob again & got a very low level audioable click. So I would surmise the fob also deals with the immobiler. That may or may not still require the ignition key to be in the ignition barrel. So Iím short, new battery in fob, steady red light seen in fob (since gone out). Iím starting to think I need work out how to get back to that point (steady red light on fob) then sync fob back to alarm/immobiliser/central locking? Sound plausible anyone!?!?!?!?! Starting to believe that is my issue 😂 (car related at least!!!).
R666ORY+1 is offline
Old 11 March 2019, 07:04 PM
  #7
Flyingdrag
Scooby Newbie

Join Date: Mar 2019
Location: Crushing Fat-Thomas
Posts: 19
Default

seat in the car ,push 2 buttons for 8-10s ,red light should be on
push big button once
above is how to connect fob to alarm ( youtube is your friend)
now should be all good ,big button should arm and disarm alarm plus lock doors
small button works as a panic button
F
Flyingdrag is offline
Old 11 March 2019, 08:42 PM
  #8
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

Originally Posted by Flyingdrag View Post
seat in the car ,push 2 buttons for 8-10s ,red light should be on
push big button once
above is how to connect fob to alarm ( youtube is your friend)
now should be all good ,big button should arm and disarm alarm plus lock doors
small button works as a panic button
F
Hi bud, canít sit in car as canít get in without setting off alarm. From what Iíve leaent so far you should not activate any security related parameters if you wish a simple reset. Think Iím on the right track now though, Iím pretty convinced I just need sync fob (that powered down & has new battery) to the existing system & im sorted. Iím away from the car at present so canít try till the AM. Once I have it cracked I will add to this in case anyone else needs it at a later date!
R666ORY+1 is offline
Old 11 March 2019, 09:22 PM
  #9
Flyingdrag
Scooby Newbie

Join Date: Mar 2019
Location: Crushing Fat-Thomas
Posts: 19
Default

Originally Posted by R666ORY+1 View Post


Hi bud, can’t sit in car as can’t get in without setting off alarm. From what I’ve leaent so far you should not activate any security related parameters if you wish a simple reset. Think I’m on the right track now though, I’m pretty convinced I just need sync fob (that powered down & has new battery) to the existing system & im sorted. I’m away from the car at present so can’t try till the AM. Once I have it cracked I will add to this in case anyone else needs it at a later date!

'seat' heh my bloody phone
Right i forgot i've got cobra touch main pen/fob to switch alarm off
i think it does not matter car is armed or disarmed ( i dropped fob few times with battery out of it and when putting battery back i could pair fob to armed alarm staying outside my car)

Last edited by Flyingdrag; 11 March 2019 at 09:29 PM.
Flyingdrag is offline
Old 14 March 2019, 03:09 PM
  #10
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

So thought I would update on this! Cannot resynch key fob to vehicle. It seems ridiculous but my only option may now be to have someone come out, bypass the alarm & immobiliser & then install a new alarm!!!! Not cheap for what started out as a simple fob battery change!!!! Having spoken to a few specialists today this may now be my only option 😡.
So word of caution, if anyone else has an after market alarm fitted, either have 2 fobs & never change both fob batteries at the same time or always ensure one is working prior to attempting to switch the other one out.
R666ORY+1 is offline
Old 14 March 2019, 03:16 PM
  #11
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,821
Default

Ouch. That's not good. Is it worth contacting the alarm manufacturer to explain and ask what can be done before you go through ripping it all out?
BrownPantsRacing is offline
Old 14 March 2019, 03:20 PM
  #12
Flyingdrag
Scooby Newbie

Join Date: Mar 2019
Location: Crushing Fat-Thomas
Posts: 19
Default

Originally Posted by R666ORY+1 View Post
So thought I would update on this! Cannot resynch key fob to vehicle. It seems ridiculous but my only option may now be to have someone come out, bypass the alarm & immobiliser & then install a new alarm!!!! Not cheap for what started out as a simple fob battery change!!!! Having spoken to a few specialists today this may now be my only option ��.
So word of caution, if anyone else has an after market alarm fitted, either have 2 fobs & never change both fob batteries at the same time or always ensure one is working prior to attempting to switch the other one out.
strange ,i have one cobra fob and dropped keys few times after work or gym- battery out and in -had no problem to pair it with a car
Found Naps ( not sure they are nationwide) company excellent with alarms ,mine was bypassed due to internal failure ,others wish to charge me for new alarm and only Naps been able/wish to repair it

Last edited by Flyingdrag; 14 March 2019 at 03:25 PM.
Flyingdrag is offline
Old 14 March 2019, 03:37 PM
  #13
R666ORY+1
Scooby Regular
Thread Starter

Join Date: Aug 2017
Location: Eutopia
Posts: 177
Default

Yeah strange indeed. I am going to contact Cobra UK but having checked their website they farm work out rather than dealing with direct. Think Iím just unlucky on this one but will persevere with it! It definerly doesnít want to resynch as it is now!
Bugger!!!
R666ORY+1 is offline
Old 14 March 2019, 04:01 PM
  #14
Flyingdrag
Scooby Newbie

Join Date: Mar 2019
Location: Crushing Fat-Thomas
Posts: 19
Default

Originally Posted by R666ORY+1 View Post
Yeah strange indeed. I am going to contact Cobra UK but having checked their website they farm work out rather than dealing with direct. Think I’m just unlucky on this one but will persevere with it! It definerly doesn’t want to resynch as it is now!
Bugger!!!
Naps use vans not sure how far You are
You could ask them to step in and finally bypass if they could not help (or other mobile company)

Last edited by Flyingdrag; 14 March 2019 at 04:02 PM.
Flyingdrag is offline
Old 14 March 2019, 04:26 PM
  #15
Martin typeR
Scooby Regular

Join Date: Feb 2007
Posts: 105
Default

Where in the country are you Mr R666ORY+1?? if in kent i can recommend a very good auto electrician/alarm guy who worked wonders fixing my old alarm when it had a hissy fit
Martin typeR is offline
Old 14 March 2019, 05:42 PM
  #16
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,782
Default

Have you looked on

https://www.youtube.com/results?sear...ra+alarm+reset
Don Clark is offline
Old 14 March 2019, 08:17 PM
  #17
wrx2005
Scooby Regular

Join Date: Jan 2019
Location: manchester
Posts: 184
Default

Originally Posted by Flyingdrag View Post
seat in the car ,push 2 buttons for 8-10s ,red light should be on
push big button once
above is how to connect fob to alarm ( youtube is your friend)
now should be all good ,big button should arm and disarm alarm plus lock doors
small button works as a panic button
F
you certainly need an alarm in kingsthorpe
wrx2005 is online now
Old 14 March 2019, 08:55 PM
  #18
Flyingdrag
Scooby Newbie

Join Date: Mar 2019
Location: Crushing Fat-Thomas
Posts: 19
Default

Originally Posted by wrx2005 View Post
you certainly need an alarm in kingsthorpe
Thats not me babe
Thats where notfromsomerset lives
Flyingdrag is offline
