sprigeteer

iTrader: (9)

Prodrive PFF7 centre cap sizes. Does anyone know the internal clip diameter and the external diameter? Refurbing my set and need some tidy replica caps but need to know manufacturer sizes.

maxwr1

The centre caps for the 18 pff7s are 60mm

sprigeteer

iTrader: (9)

Cheers.
Don't suppose you know the internal clip diameter?

maxwr1

I will measure it later and post back

sprigeteer

iTrader: (9)

Very kind

The Trooper 1815

iTrader: (31)

Subaru bore size for the WR1 is 56.1mm

http://www.wheelfitment.eu/car/Subar...-%202005).html

pacenote

Need a new set of these myself as the set I ordered from Subaru were too small and now looking for a supplier of decent replicas

maxwr1

55mm from edge to edge

maxwr1

I have bought a set of stickers to go over the original caps off eBay, I haven't put them on yet but they look pretty good quality

sprigeteer

iTrader: (9)

I've ordered some caps off these chaps, and then I'll get some gel stickers to go on them. I've gone for a 60mm/55.5mm set and see how I go. Otherwise, they do a 59mm/55mm set. It's only 7 quid, so I'll give it a bash.

http://ej-parts.co.uk/category/wheel...Center%20Caps/

maxwr1

Good call, I didn't really want to put the stickers on the original ones so I will order a set and do the same

sprigeteer

iTrader: (9)

Had the centre caps delivered today along with the gel stickers and result! Fit is very good. So, if you want pff7 centre caps it is 60x55.5 from above company, and use a 60 mm gel sticker. Although the cap would probably also take a 59 mm sticker as this the dimension on the spec sheet. I'll have a look at the fit from behind once I have the wheels off, but on first look it seems secure.
Full spec

Old cap
New cap
Side by side

Turbovin

iTrader: (2)

Does anyone know if it would be the same size for the OZ Prodrive P1 18" wheels? I need new ones in gold.

maxwr1

They look pretty damn good, definitely getting some

Huzaifa

iTrader: (1)

That’s my query sorted. Thanks mate! Love this site.

man utd

iTrader: (1)

Don’t suppose anyone knows where you can get centre caps for Prodrive Gt1,s think they are 55mm outer 45mm inner
cheers for any help

Samu81

https://scoobyparts.com/subaru-impre...et-54mm-set-of

I'd like to find similar ones but for the 18" PFF7's. Apparently these are different size?

RobsyUK

iTrader: (2)

I bought fake ones off ebay. Can't tell the difference and binned the oem ones I had as they were rotten.

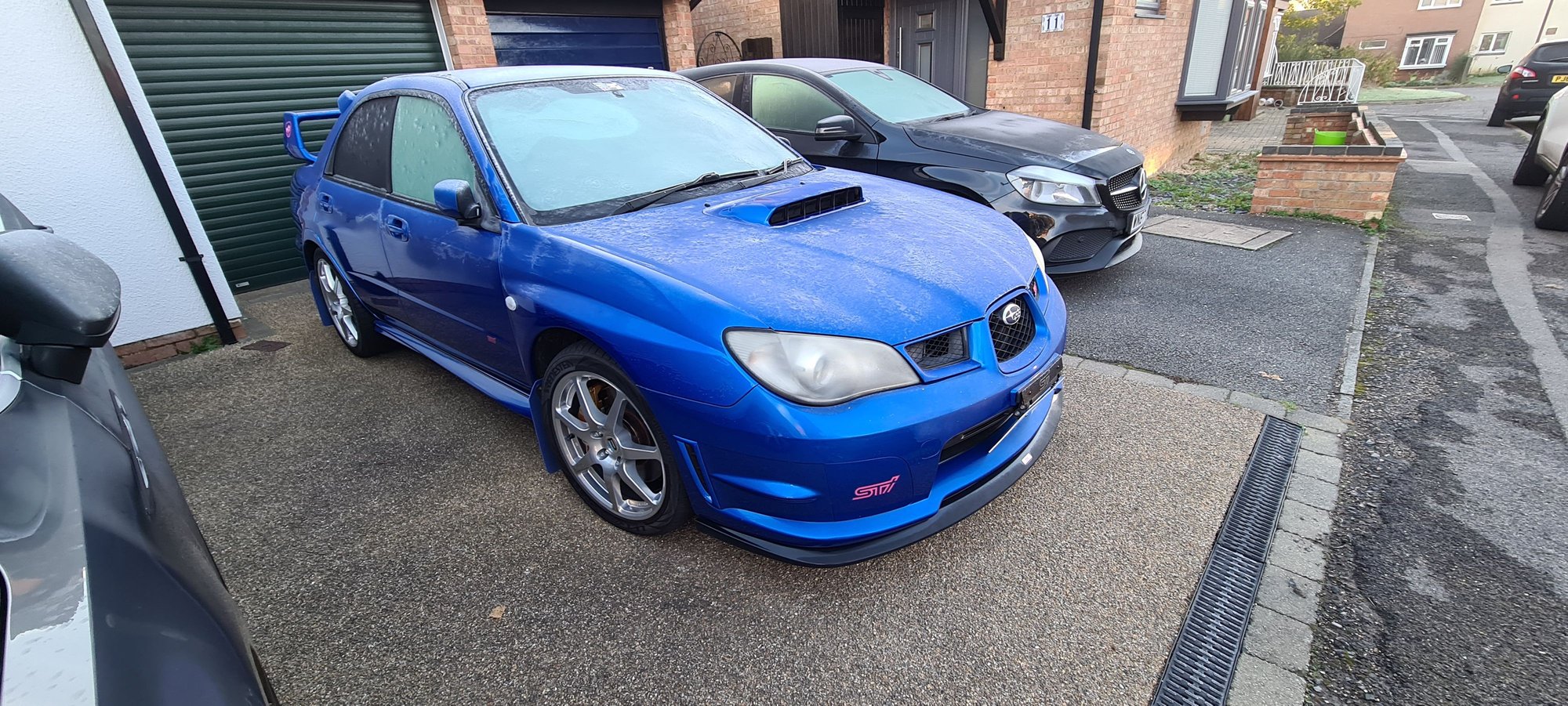

w

will upload a better pic after it's mot.

Gazza82

I’ve just my centre caps for my PFF7’s, just bought universal flat caps and gel stickers to put on them, I think they look good 👍

The size I got were 59 mm outer with a 55mm inner clip diameter. I had to file them down slightly as I think the powder coat is quite thick but they fit ok 👍

The sticker diameter I got was 60mm.

Gazza82

Links to caps and stickers I used 👍

caps:

https://ej-parts.co.uk/wheel-center-...f-4-four-caps/

stickers:

https://www.etsy.com/uk/listing/6905...xoCPRIQAvD_BwE

crazyspeedfreakz

iTrader: (92)

@man utd ive just had @Bazil_SW 3d print some Center caps for my prodrive gt1 alloys with
great results… I’ve just test fitted the prototype and they are a great fit

I’m sure bazil will get some photos up of his work absolutely spot on !!

Bazil_SW

iTrader: (4)

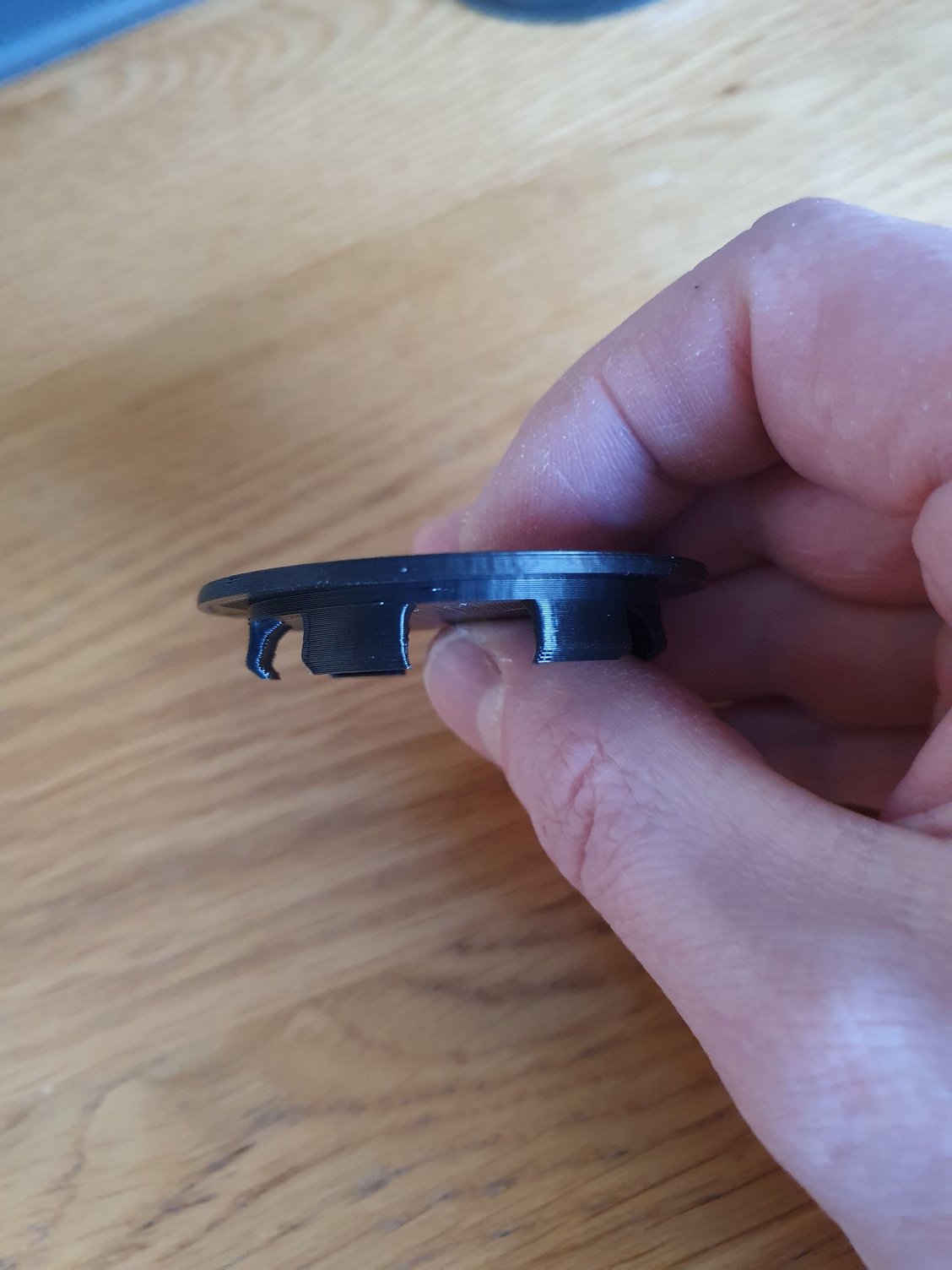

Hi all. This is the prototype, printed in pla plastic, knocked up from csf's measurements. It fitted first time which was a pleasant surprise!

The proper ones would be in PETG which is a bit more robust material and I could do different logos. I'd suggest they be painted too.
