My Wrx 2.0 c.w. hawkeye with lsd

Notices
Member's Gallery Pictures of your pride and joy

My Wrx 2.0 c.w. hawkeye with lsd

Old 16 February 2018, 05:32 PM
  #1
alexwrx05
Scooby Newbie
Thread Starter

Join Date: Feb 2018
Location: Italy
Posts: 5
Default My Wrx 2.0 c.w. hawkeye with lsd

This is my wrx of 2005 ej20 now hawk look

MECHANICS
Rear Cusco rs 1.5 at 75% lock and 6 springs
Front Quaife lsd QDH3Y
Coilover tein flex z camber ant -140' conv 0----post -110' conv -0,5mm x wheel
rear sway bar cusco 22 mm adjustable
sti brembo calipers
dba 4000t3 326mm
project mu hc+ front pads - ebc rosse rear
metallic tubes
rear lsd oil cusco 80w 90
gear oil 75w 90 motul gear 300 ls
brake oil motul rbf660
engine oil mobil1 5w-50
filter k&n
downpipe skat
center with skat 200 brain
walbro fuel pump
modded airbox soretti
spark ngk iridium
supersprint exhaust
ecu ecutek by soretti ( 270 hp e 377 nm)
radiator mishimoto
ad08r tyres

LOOK
Front and side hawkeye
Oz ultraleggera 17x8 graphite wheels
Sti steering wheel


Seven years ago take it full stock







Later the restyling and upgrading









Last edited by alexwrx05; 16 December 2018 at 02:29 PM.
alexwrx05 is offline
Old 16 February 2018, 05:37 PM
  #2
alexwrx05
Scooby Newbie
Thread Starter

Join Date: Feb 2018
Location: Italy
Posts: 5
Default

The last upgrade is the front quaife lsd. It is amazing and change great wrx handling

Last edited by alexwrx05; 16 February 2018 at 05:59 PM.
alexwrx05 is offline
Old 18 February 2018, 08:17 AM
  #3
the shreksta
Scooby Regular
iTrader: (20)

the shreksta's Avatar

Join Date: Apr 2011
Location: hinckley
Posts: 6,836
Default

looking good alex, keep up the good work
the shreksta is offline
Old 25 February 2018, 04:41 PM
  #4
alexwrx05
Scooby Newbie
Thread Starter

Join Date: Feb 2018
Location: Italy
Posts: 5
Default

thank you ... I think the next upgrade will be cusco rear lsd. With quaife + cusco will be better than sti transmission
alexwrx05 is offline
Old 04 March 2018, 10:20 AM
  #5
sunny1989
Scooby Regular

sunny1989's Avatar

Join Date: Aug 2010
Location: 35,000 ft
Posts: 680
Default

Very nicely done, Quality parts used and subtle
sunny1989 is offline
Old 15 December 2018, 11:42 PM
  #6
alexwrx05
Scooby Newbie
Thread Starter

Join Date: Feb 2018
Location: Italy
Posts: 5
Default

Thank you!

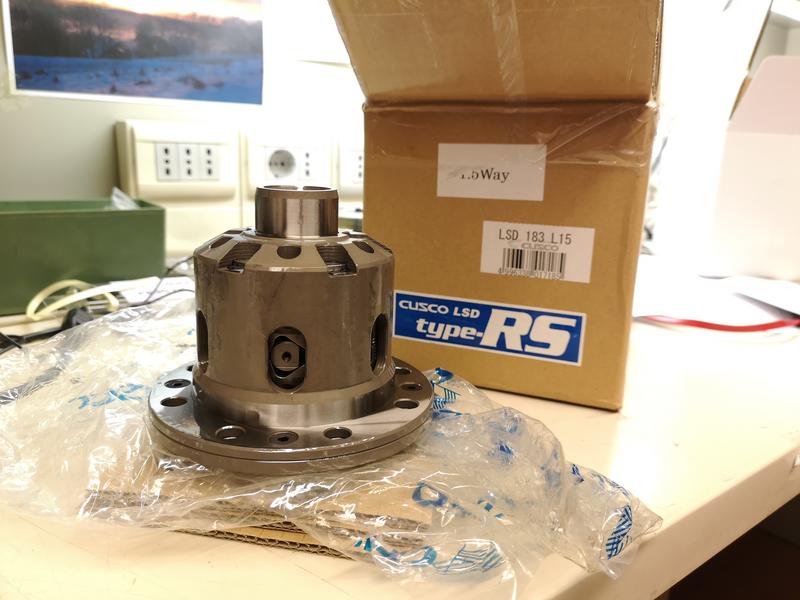

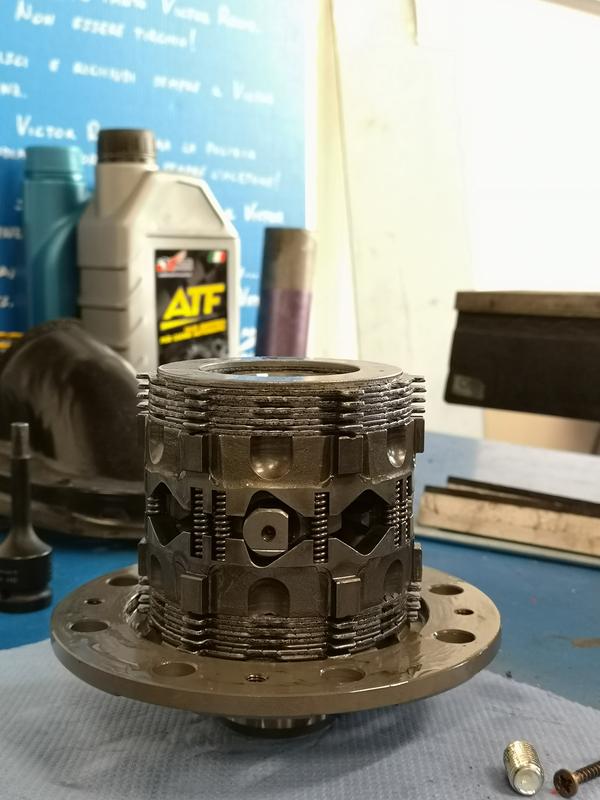

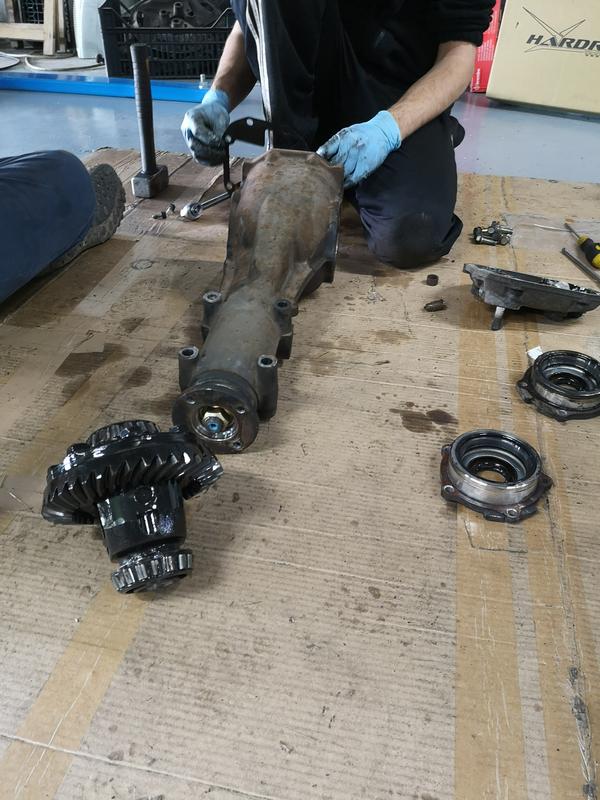

Some days ago I installed a new rear cusco rs 1.5 for r160 and set at 75% with six of 12 springs, for have smooth torque also because I have a strong front quaife . Now I am making the first brake in the new of 500 miles slow.
I used a good cusco 80 90 oil with friction modifier, and lsd is so silent





Last edited by alexwrx05; 15 December 2018 at 11:44 PM.
alexwrx05 is offline
Old 16 December 2018, 12:20 AM
  #7
scooobydont
Scooby Newbie

Join Date: Nov 2018
Location: Central Scotland
Posts: 16
Default

Love the front end swap, I didn't know that was a thing (sorry, still new to these things).
scooobydont is offline
Old 16 December 2018, 12:02 PM
  #8
scooby kid
Scooby Regular
iTrader: (6)

Join Date: Jul 2010
Location: hastings
Posts: 1,449
Default

Looks great...
scooby kid is offline
Old 16 December 2018, 02:26 PM
  #9
alexwrx05
Scooby Newbie
Thread Starter

Join Date: Feb 2018
Location: Italy
Posts: 5
Default

Many thanks
alexwrx05 is offline
Old 17 December 2018, 03:29 AM
  #10
[email protected]
Scooby Regular

Join Date: Apr 2018
Location: UK
Posts: 86
Default

Cracking job well done.
AT@JDM is offline
