Default Rounded off wheel nut removal tool?

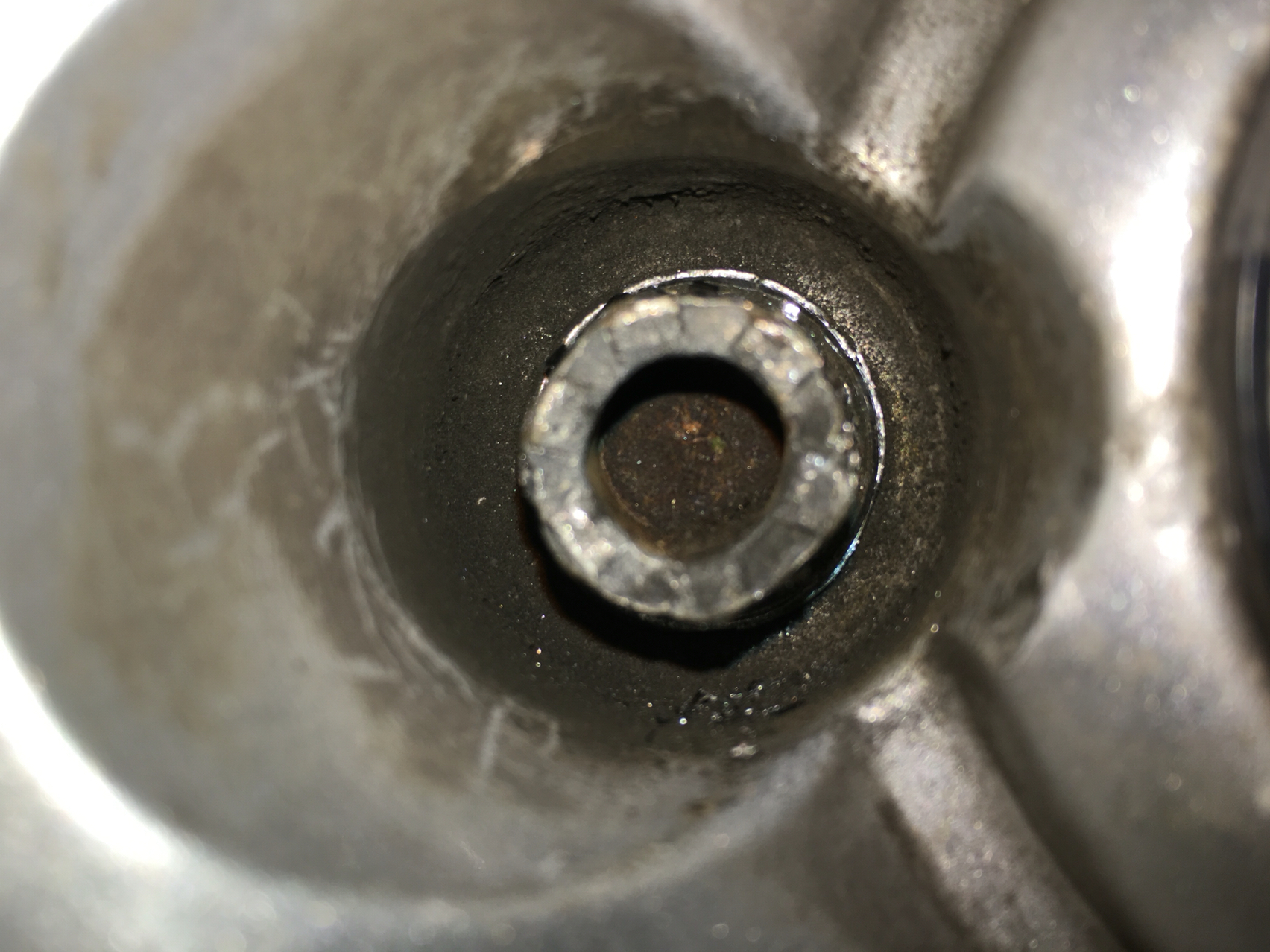

Anyone got any experience of a decent wheel nut removal set? Seen loads on the net but not sure which is actually decent and going to work?

The actual nut in question has been slightly rounded off so upon trying to undo the nut slips off. I have tried 3 splines and bashed them over the top but they just keep on breaking!

Click image for larger version

Name:	photo575.jpg
Views:	0
Size:	1.73 MB
ID:	21784
Old 23 November 2016, 01:54 PM
  #2
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,433
Received 39 Likes on 27 Posts
Default

These get really good reviews and have been recommended on here a few times.
I've not used them but am going to order a set:
http://www.screwfix.com/p/irwin-bolt...FeMy0wodj6INXg

Although just looking at spec,they only go upto 16mm
I'm sure they might do bigger sizes?

Last edited by ossett2k2; 23 November 2016 at 01:56 PM.
Old 23 November 2016, 02:12 PM
  #3
JDM_Stig
Scooby Regular
iTrader: (3)

JDM_Stig's Avatar

Join Date: Feb 2009
Location: Mount Weather
Posts: 5,840
Received 41 Likes on 33 Posts
Default

Originally Posted by jonnyboy82
Anyone got any experience of a decent wheel nut removal set? Seen loads on the net but not sure which is actually decent and going to work?

The actual nut in question has been slightly rounded off so upon trying to undo the nut slips off. I have tried 3 splines and bashed them over the top but they just keep on breaking!

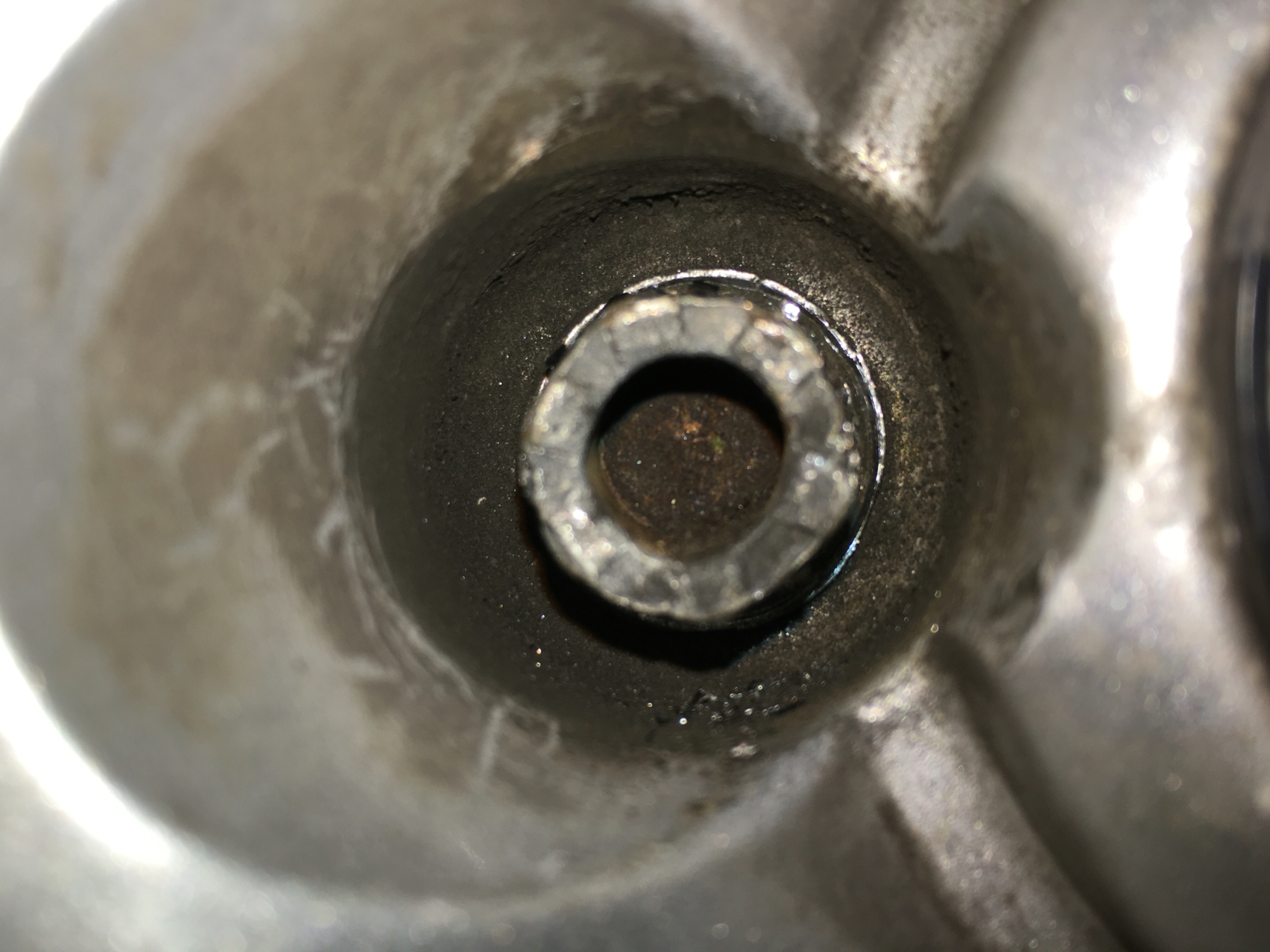

Attachment 21784
Id be tempted to try hammering a socket on that, then removing.
Old 23 November 2016, 02:14 PM
  #4
imprezagaz
Scooby Regular
iTrader: (2)

imprezagaz's Avatar

Join Date: Feb 2008
Location: Grimsby
Posts: 1,147
Received 7 Likes on 5 Posts
Default

Could you heat it up abit?
Old 23 November 2016, 03:12 PM
  #5
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Originally Posted by ossett2k2
These get really good reviews and have been recommended on here a few times.
I've not used them but am going to order a set:
http://www.screwfix.com/p/irwin-bolt...FeMy0wodj6INXg

Although just looking at spec,they only go upto 16mm
I'm sure they might do bigger sizes?
I did see these but only up to 16mm?

Originally Posted by JDM_Stig
Id be tempted to try hammering a socket on that, then removing.
Tried already and broke 3!

Originally Posted by imprezagaz
Could you heat it up abit?
This I will try 👍
Old 23 November 2016, 04:05 PM
  #6
Ash Webster
Scooby Regular

Ash Webster's Avatar

Join Date: Dec 2013
Location: Lytham St Annes
Posts: 975
Received 2 Likes on 2 Posts
Default

the irwin bolt extractors are a godsend. even if you dont use them for this you WILL use them in future
Old 23 November 2016, 04:13 PM
  #7
Matty81
Scooby Regular

Matty81's Avatar

Join Date: Apr 2016
Location: Banned
Posts: 1,752
Likes: 0
Received 18 Likes on 15 Posts
Default

Second that!. Same thing happened to me and I banged a nut onto it then it came out with a bit of muscle
Old 24 November 2016, 08:51 PM
  #8
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Well the removal tool never worked so last solution is to drill it out!
Old 24 November 2016, 09:18 PM
  #9
JDM_Stig
Scooby Regular
iTrader: (3)

JDM_Stig's Avatar

Join Date: Feb 2009
Location: Mount Weather
Posts: 5,840
Received 41 Likes on 33 Posts
Default

are you using a 4.99 socket set ? it may be a case of finding a imp or metric that is close, impact type even better,
Drilling will take a long time fella, been there, done that, in the past,

are you or a family member in the AA? if so flat tyre and no key . .
Old 24 November 2016, 09:31 PM
  #10
Matty81
Scooby Regular

Matty81's Avatar

Join Date: Apr 2016
Location: Banned
Posts: 1,752
Likes: 0
Received 18 Likes on 15 Posts
Default

I took mine to my mates garage he works in and he banged a slightly smaller socket onto it and it came straight off
Old 24 November 2016, 09:32 PM
  #11
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Originally Posted by JDM_Stig
are you using a 4.99 socket set ? it may be a case of finding a imp or metric that is close, impact type even better,
Drilling will take a long time fella, been there, done that, in the past,

are you or a family member in the AA? if so flat tyre and no key . .
Yes I have used a heavy duty steel nut but even once bashed on it just slips off once you try and turn it.

I am an AA member tbh I never thought of that. I am willing to try the drilling approach though.
Old 24 November 2016, 09:53 PM
  #12
cuprajake
Scooby Regular
iTrader: (11)

cuprajake's Avatar

Join Date: Nov 2006
Posts: 2,987
Likes: 0
Received 7 Likes on 3 Posts
Default

Agree on the Irwin extractors.

Used twice successfully. But on one wheel, we had to drill, cut, kill a hub
Old 24 November 2016, 09:59 PM
  #13
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Originally Posted by cuprajake
Agree on the Irwin extractors.

Used twice successfully. But on one wheel, we had to drill, cut, kill a hub
I never tried the irwin one but I'm not sure there's much left to grip onto as the bolt started @ 17mm now it's @ 14mm where I have bashed various sockets to try. Might go buy it then if you think it's worth it?
Old 25 November 2016, 12:37 AM
  #14
1509joe
Scooby Regular
iTrader: (2)

1509joe's Avatar

Join Date: Jan 2009
Location: Not sure
Posts: 3,294
Received 278 Likes on 248 Posts
Default

Believe it or not a plasma cutter if you very careful will take the head of with minimal damage to the paint. Know its hard to believe but have removed a few this way. It all started when a man brought a car in and was in a panic and didn't care about the rim he just said get it off, he had a flat and was late for a flight. Tried all conventional methods and this was the last resort very very little damage and none to the alloy whatsoever.
Old 25 November 2016, 08:20 AM
  #15
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Originally Posted by 1509joe
Believe it or not a plasma cutter if you very careful will take the head of with minimal damage to the paint. Know its hard to believe but have removed a few this way. It all started when a man brought a car in and was in a panic and didn't care about the rim he just said get it off, he had a flat and was late for a flight. Tried all conventional methods and this was the last resort very very little damage and none to the alloy whatsoever.
Cracking idea but where am I going to get one of them from?
Old 25 November 2016, 09:48 AM
  #16
JDM_Stig
Scooby Regular
iTrader: (3)

JDM_Stig's Avatar

Join Date: Feb 2009
Location: Mount Weather
Posts: 5,840
Received 41 Likes on 33 Posts
Default

you know your local tyre place will do it for a few quid.
Old 25 November 2016, 10:23 AM
  #17
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Originally Posted by JDM_Stig
you know your local tyre place will do it for a few quid.
Never thought of that either tbh! Good shout 👍
Old 25 November 2016, 10:13 PM
  #18
jonnyboy82
Scooby Regular
Thread Starter
iTrader: (10)

jonnyboy82's Avatar

Join Date: Dec 2014
Location: London
Posts: 844
Received 4 Likes on 4 Posts
Default

Well to my suprise I bought the irwin set and it worked a treat! Thanks for those who suggested giving them a go! What a relief.
Old 25 November 2016, 11:33 PM
  #19
1509joe
Scooby Regular
iTrader: (2)

1509joe's Avatar

Join Date: Jan 2009
Location: Not sure
Posts: 3,294
Received 278 Likes on 248 Posts
Default
