Bits I used:
Oil catch tank x 1
1/2 inch reinforced blue air line hose, I used about 2.5 Metres.
Size 20 Jubilee clips x 6
1/2 inch equal Tee x 1
Aluminium bungs made to suit inlet pipe
Cable ties

Disclaimer
Any mod you make to your car is up to you. Although I'm pretty handy with the spanners I'm no guru and have no formal training as such.
This is how I've fitted my catch tank and it works fine.
I wont be blamed if you do something and it all goes pear shaped.
Mike.

1)

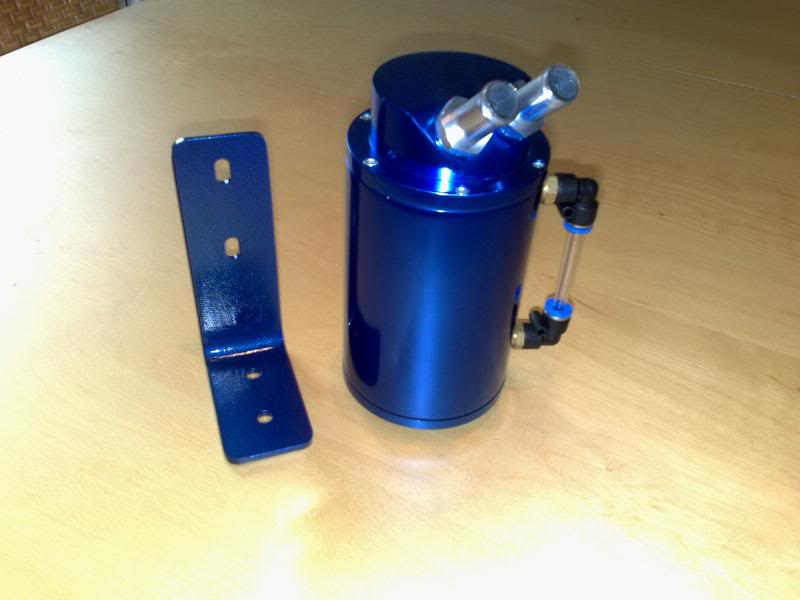

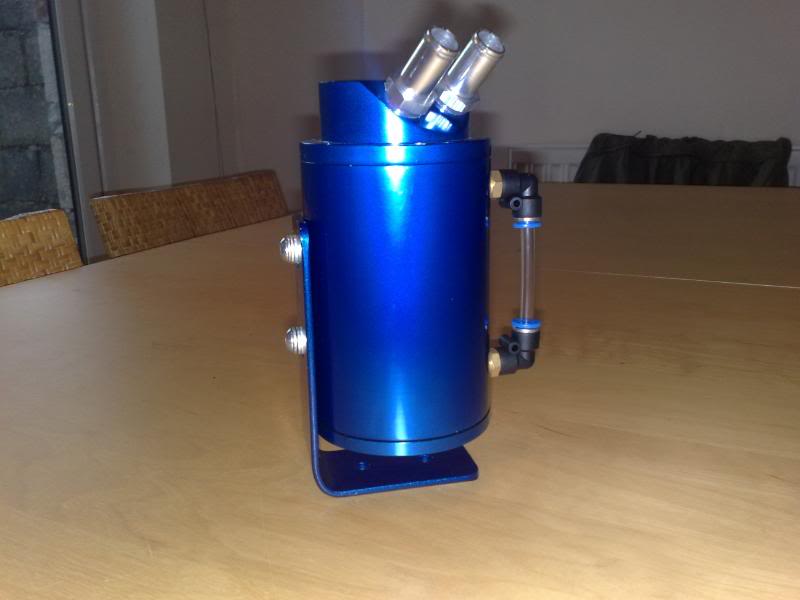

I made my own bracket as the one supplied was crap and couldn't be fitted anywhere decent.




2)

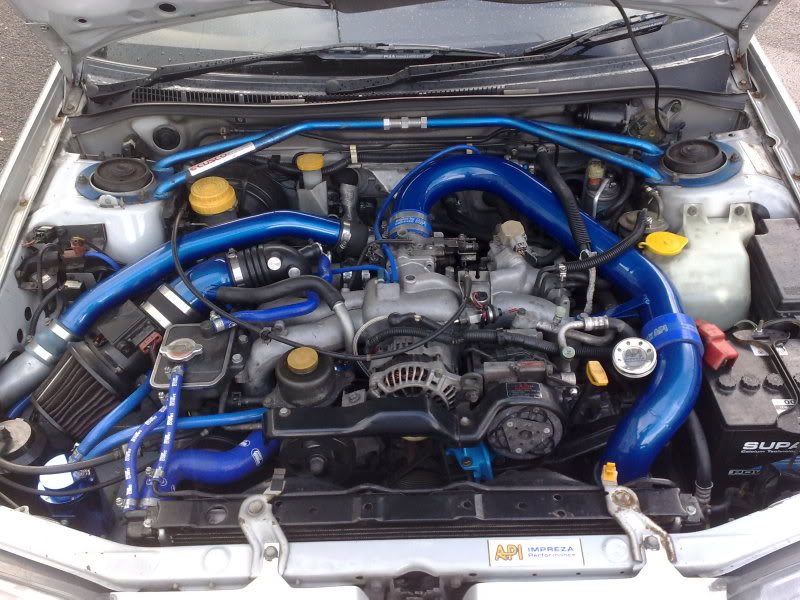

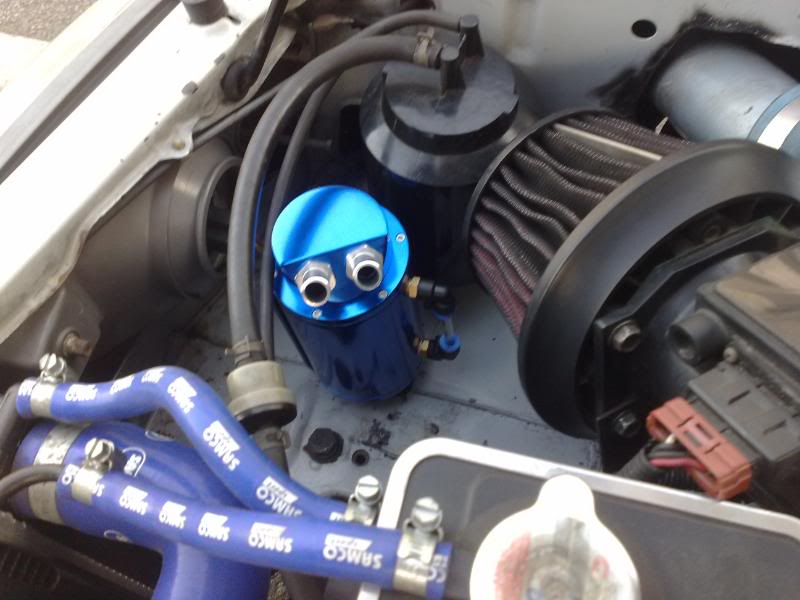

Decide where you want to mount it, bearing in mind where you are going to route the pipework.





3)

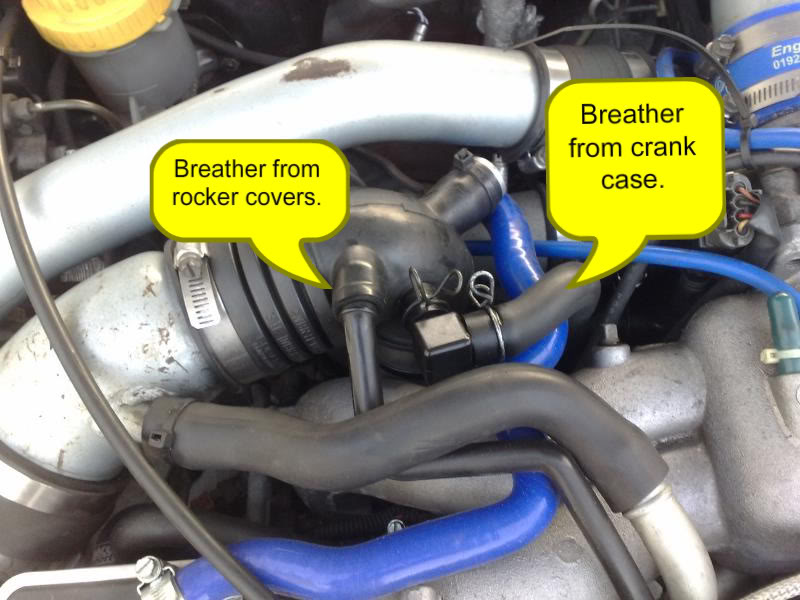

These are the breather pipes you need to do away with. When you take them out bung up the holes. I hade some aluminium bar turned to the right diameter.



4)
The crank case breaths into a T piece which directs the "fumes" either to the throttle body or the air intake pipe depending whether or not the engine is on boost. This is determined by the PCV valve in the throttle body. Off boost it is open, letting the "fumes" breath into the throttle body. On boost the valve shuts and the "fumes" travel up the other pipe to the air intake.
You can either take the T piece off altogether and block the PCV valve, or just take the pipe off that goes to the air intake (keeping the T piece and PCV intact).
I choose to keep the PCV.


5)
Remove the crank breather pipe that went to the air intake.









6)
This bit is easier to do with the alternator out of the way.

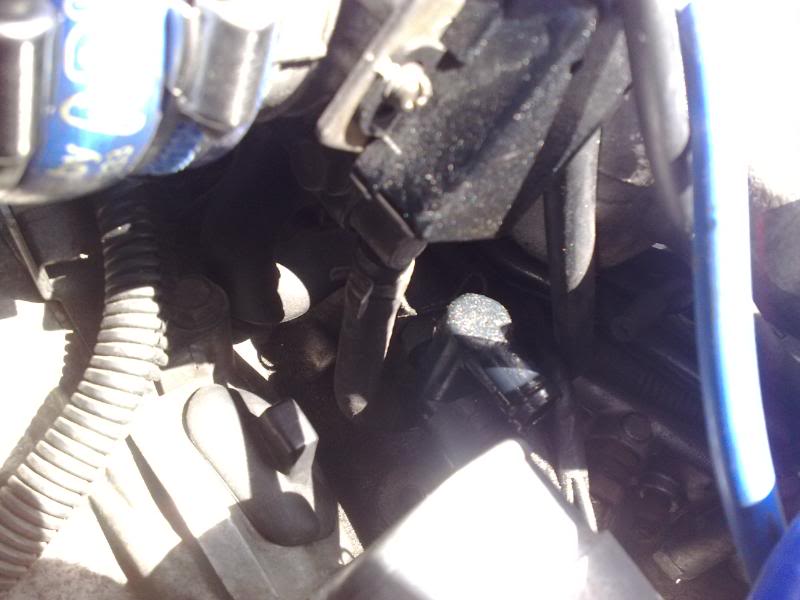

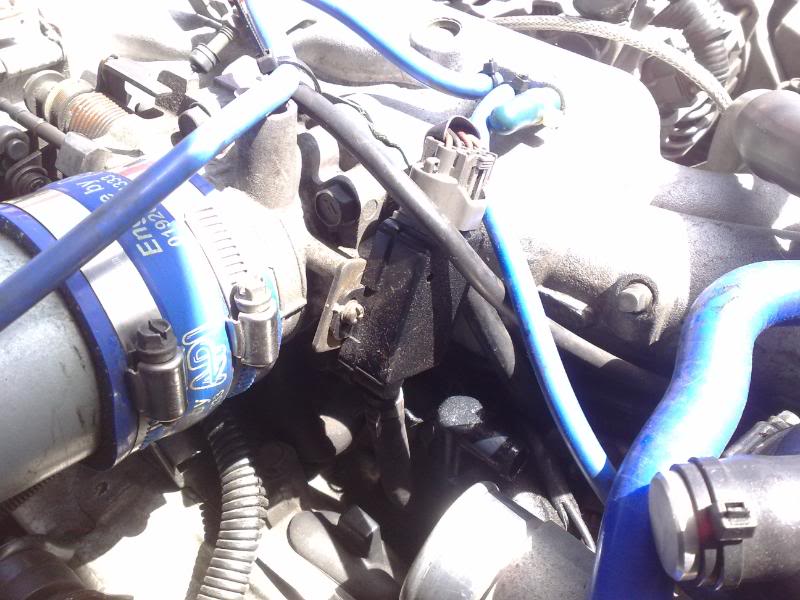

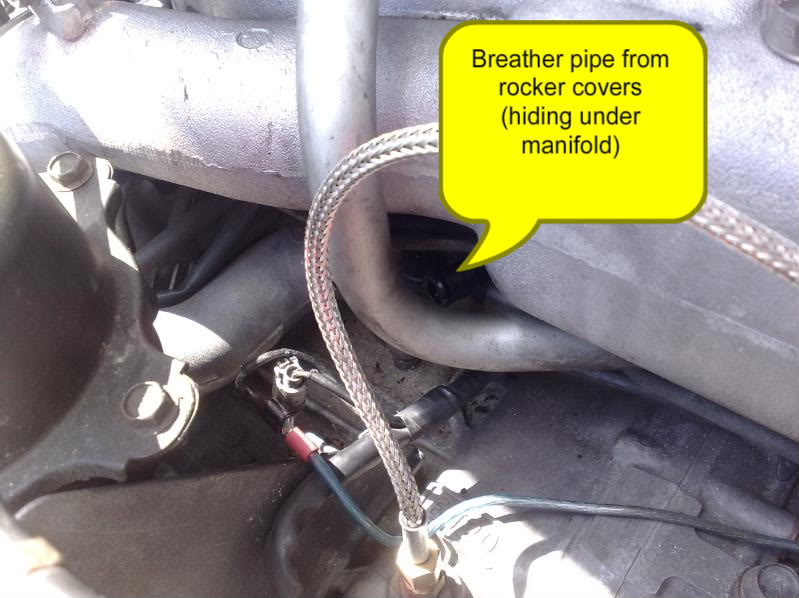

Remove the rocker cover breather from the air intake, you will be left with this pipe poking out under the manifold:


7)

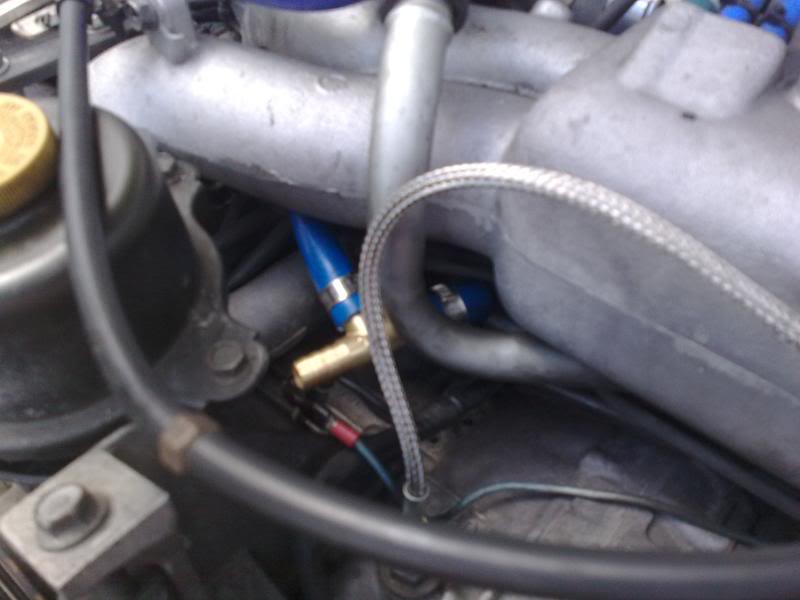

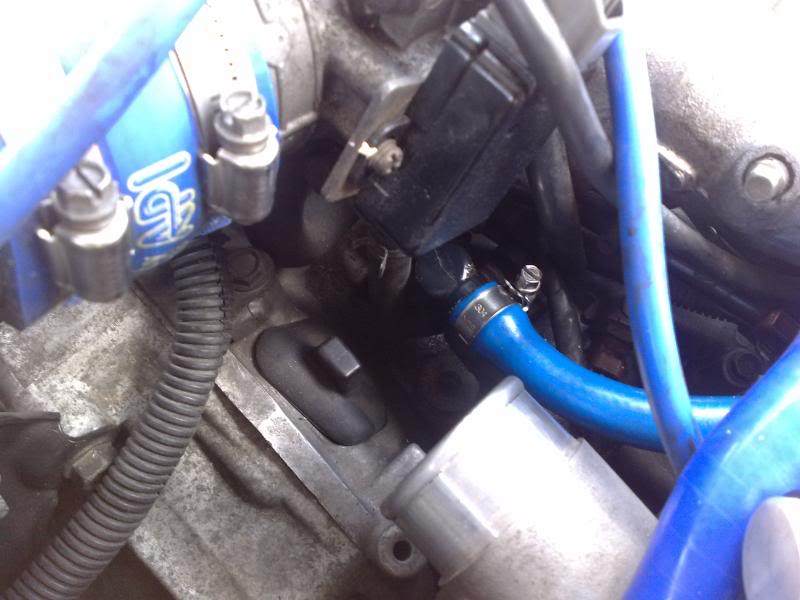

Connect your new pipe to the crank case T piece. This will need to be T'd to the rocker cover breather pipe.
As the tube is 1/2" inside diameter (13mm) there is no way it will fit over the crank breather T piece. T piece is about 16mm. Warm the end of the pipe with a blow torch so it goes really soft, then wiggle it on.

You can see how much it stretched in this pic.



8)

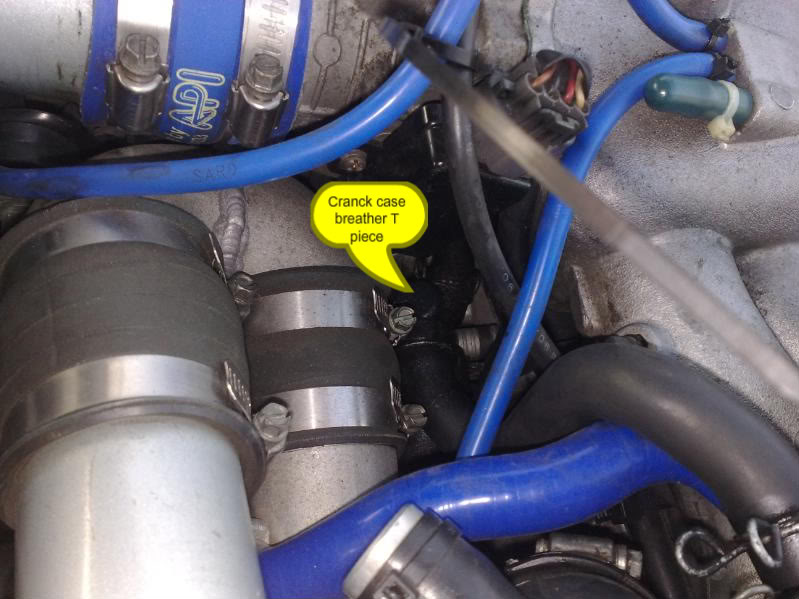

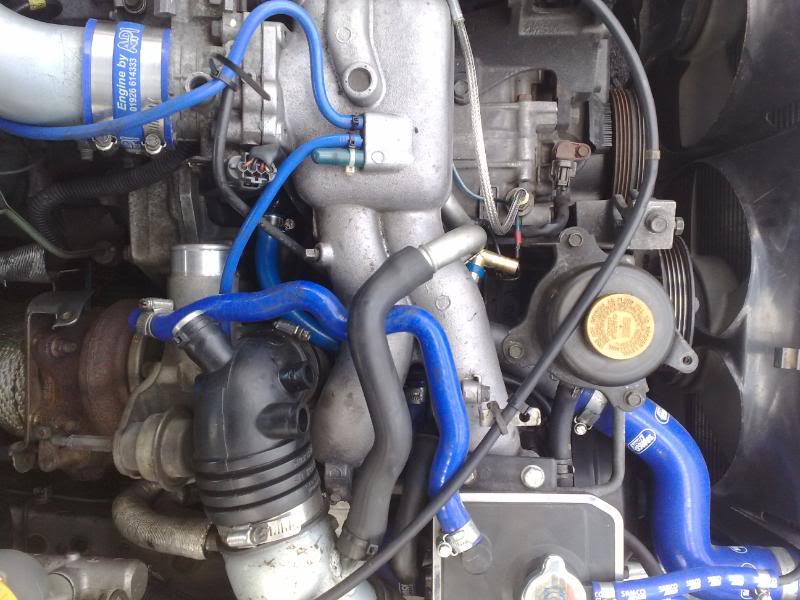

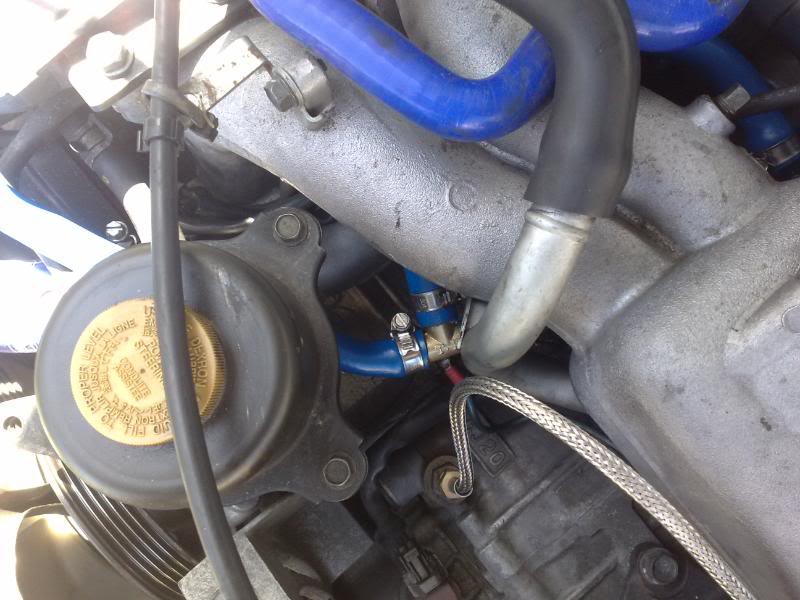

Crank case and Rocker covers T'd together.




9)

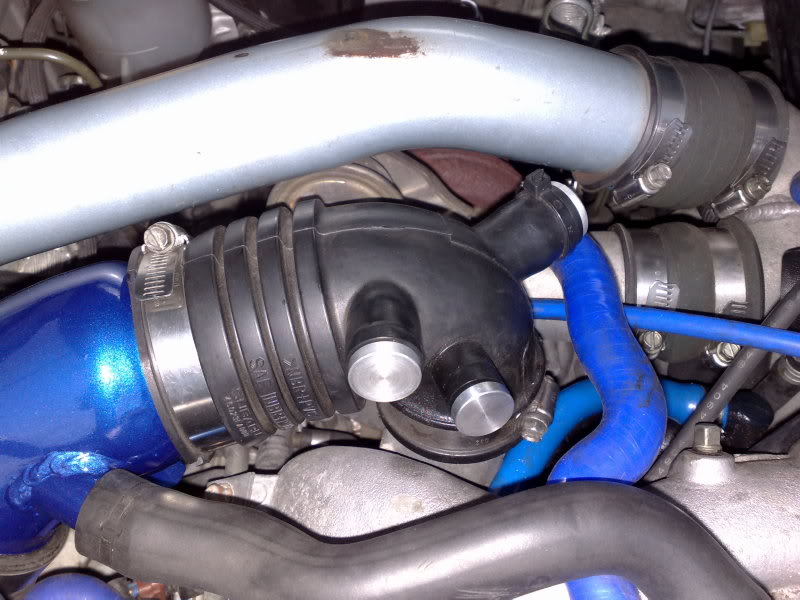

Fit the bungs into the air intake.




10)

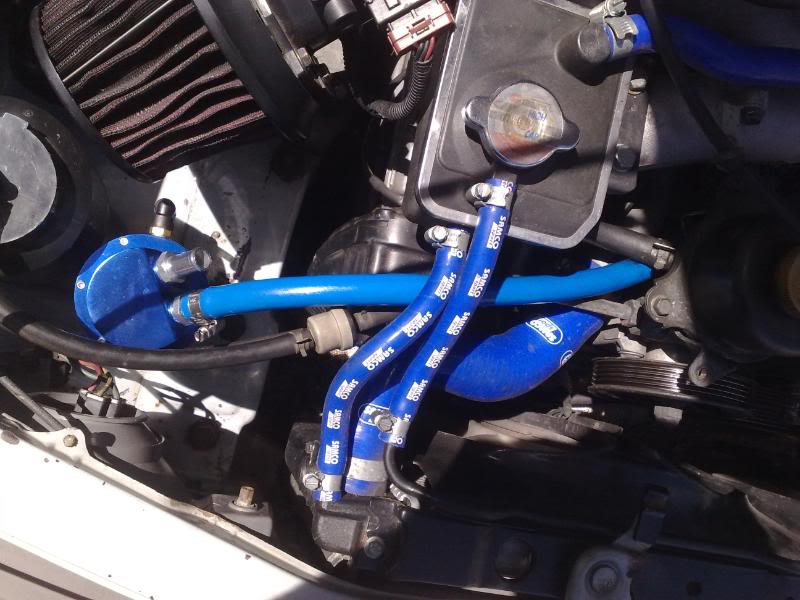

Now you need to join the breathers to the catch tank inlet.





11)

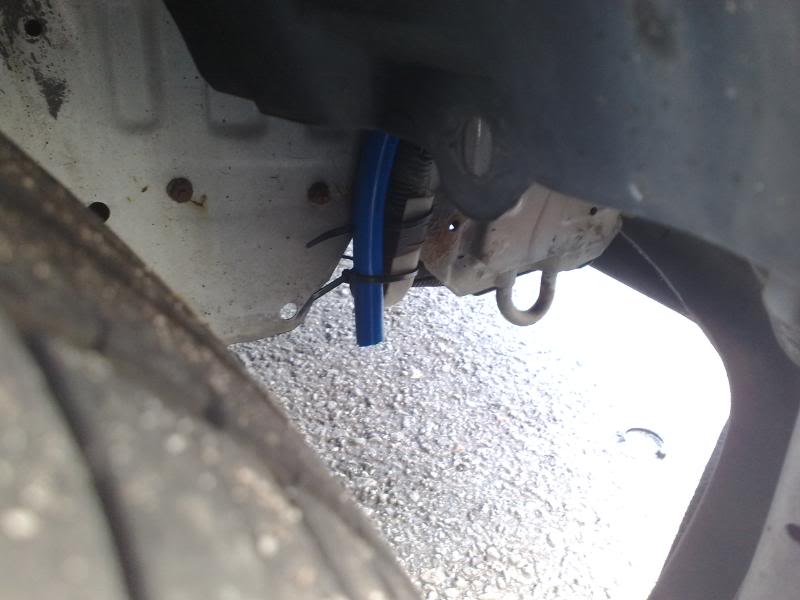

Then connect the oulet pipe and either vent the can to atmosphere, or back to the air intake. As I bunged the holes in my intake, I vented mine to atmosphere. I ran the pipe from the oulet through the inner wing and pointed it to the floor.





12)

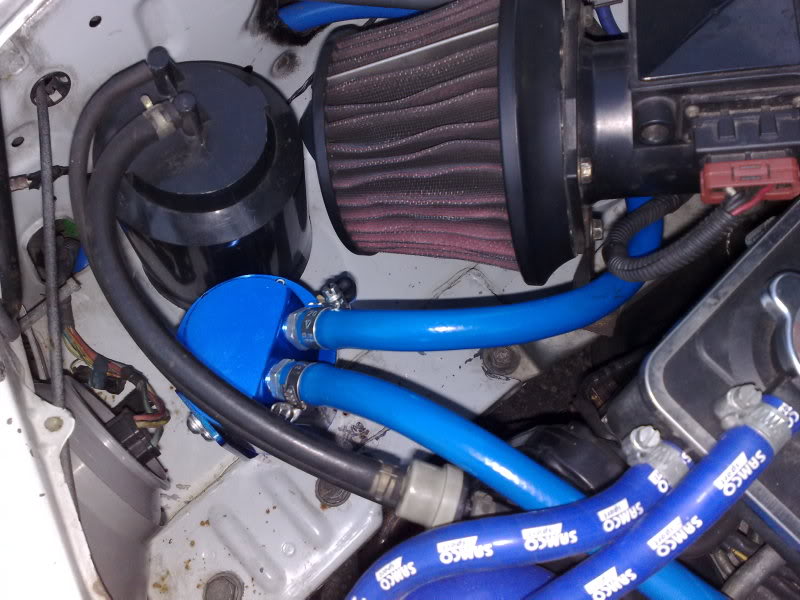

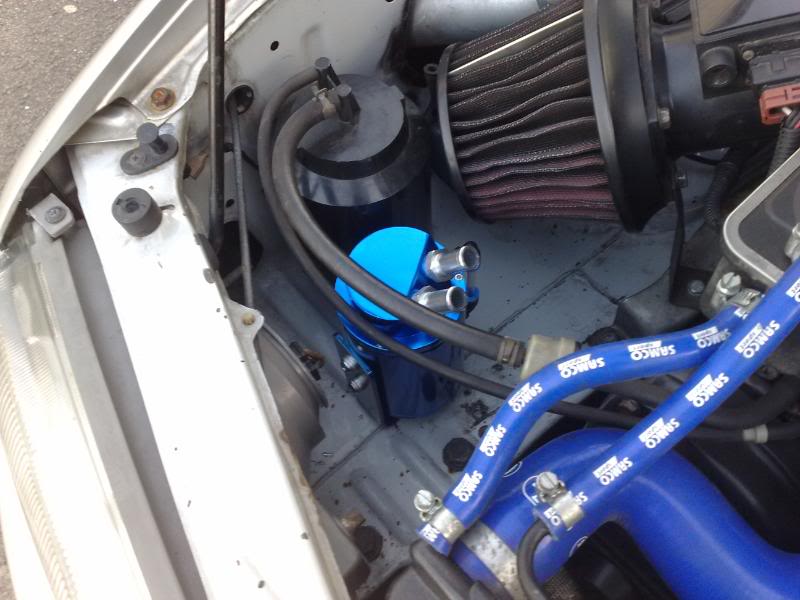

All done.


I have some more of the pipe I have used for sale @ £3 per metre + postage. Just PM me.
