2005 wide track blob sti project
21 January 2016, 10:34 PM
#212
So I have put a Deposit on a 2.35 to be built by Andy at WMS, while that's being built few bits have come this week
4 x AD08R 265/35/18 tyres
2 x Sparco Pro 2000 seats
1 x sparco Steering wheel
1 x lifeline electric plumbed in fire system
4 x AD08R 265/35/18 tyres
2 x Sparco Pro 2000 seats
1 x sparco Steering wheel
1 x lifeline electric plumbed in fire system
29 January 2016, 08:51 PM
#220
update
Bit of a update..
The EJ22 block came back today for AS Performance, hoping by end of next week it will be ready to start getting put together once the block is bored out

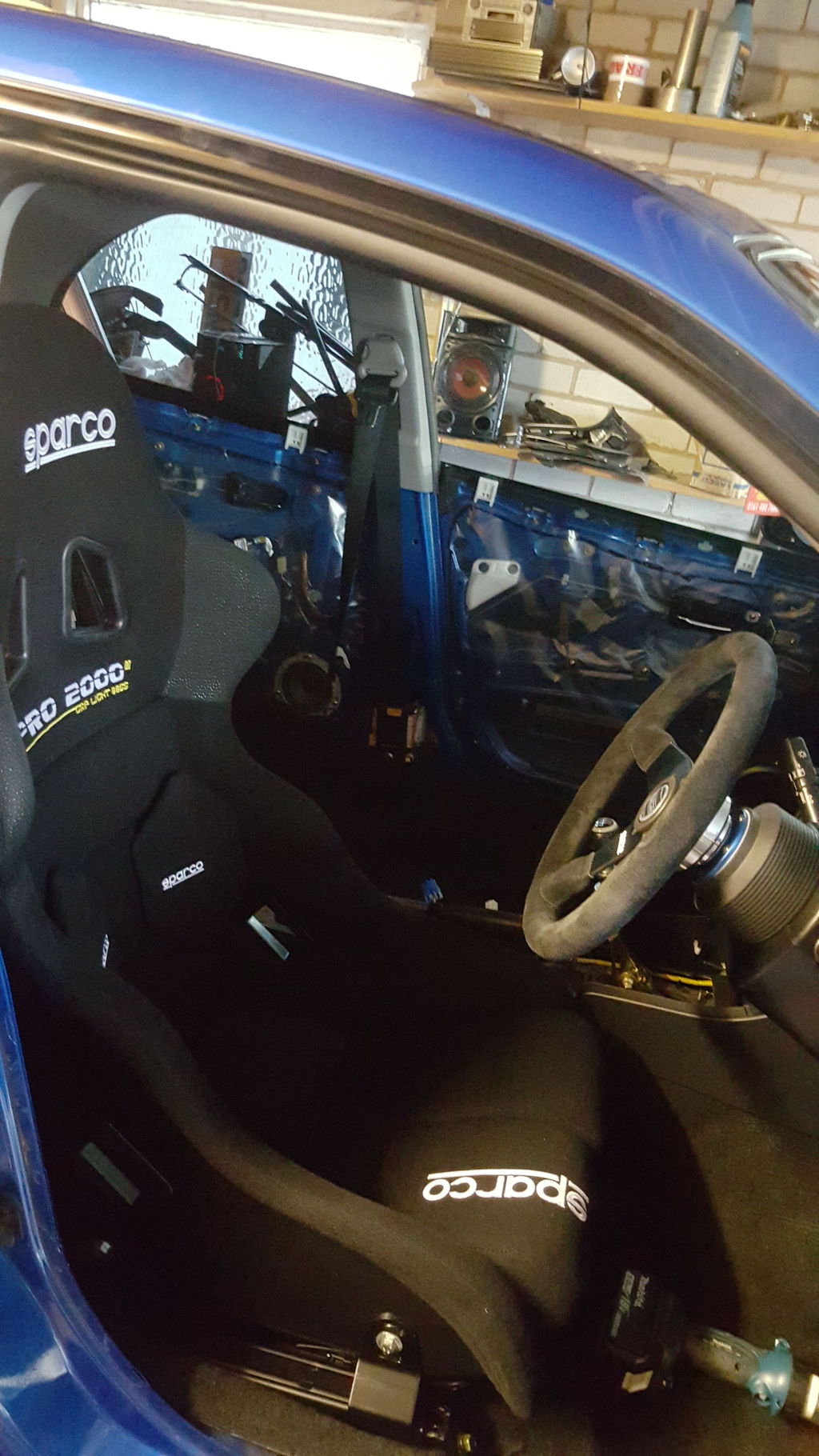

Plans for tomorrow and over the weekend are to get the Spec C carpet and door cards fitted and the New Sparco Pro2000 seats also fitted..
Also get boot built up get the Lifeline fire extinguisher system all plumbed in boot built up.
Ryan
The EJ22 block came back today for AS Performance, hoping by end of next week it will be ready to start getting put together once the block is bored out
Plans for tomorrow and over the weekend are to get the Spec C carpet and door cards fitted and the New Sparco Pro2000 seats also fitted..
Also get boot built up get the Lifeline fire extinguisher system all plumbed in boot built up.
Ryan
30 January 2016, 05:25 PM
#224
Quick Spec sheet of it
EJ22 block
block bored and faces skimmed
Rear thrust conversion
acl main bearings (race series)
Mahle motorsport big end bearings
ej257 heat treated crank
11 oil pump
Crower rods
Crower bolts
Ceramic omega pistons
New crank seals
14mm head stud conversion
AS Performance twinscroll baffled sump*
SPEC C Big port heads ported and polished
Bosche 1000cc injectors
CdF fuel rails
Braided fuel lines
3 port boost solenoid*
Spec c inlet manifold
HDI GT2 FMIC with reverse inlet custom pipework*
Electric power steering conversion*
RCM twinscroll headers and up pipe heat wrapped*
Miltek full decat downpipe
TOMEI Titanium 3 inch cat back statement*
Owens Development / Chevron custom twinscroll turbo.. 2 bar at 3000rpm.
80mm turbo inlet
K&N large cone filter
Custom Nissan pulsar molded radiator
Large 19row oil cooler
Battery to boot relocation*
Suspension and handling*
Full space frame front end custom made
D2 8Pots at the front
Rear Brembos*
24mm Whiteline front adjustable arb*
24mm Whiteline rear adjustable arb
Front Whiteline adjustable droplinks*
Rear Whiteline adjustable droplinks*
Spec c front arms custom caster mod and poly bushed
Spec c rear arms poly bushed
BC Coilovers with camber and caster plates
Beatrush front strut brace
Beatrush rear strut brace
Beatrush rear boot H frame
Beatrush rear passenger well braces
Beatrush rear different support*
Beatrush solid engine mounts
Beatrush gearbox bushes and mounts
Beatrush Dog bone*
Braided fuel lines*
XXR 530 18x9.75*
AD08R 265/35/18 tyres
EJ22 block
block bored and faces skimmed
Rear thrust conversion
acl main bearings (race series)
Mahle motorsport big end bearings
ej257 heat treated crank
11 oil pump
Crower rods
Crower bolts
Ceramic omega pistons
New crank seals
14mm head stud conversion
AS Performance twinscroll baffled sump*
SPEC C Big port heads ported and polished
Bosche 1000cc injectors
CdF fuel rails
Braided fuel lines
3 port boost solenoid*
Spec c inlet manifold
HDI GT2 FMIC with reverse inlet custom pipework*
Electric power steering conversion*
RCM twinscroll headers and up pipe heat wrapped*
Miltek full decat downpipe
TOMEI Titanium 3 inch cat back statement*
Owens Development / Chevron custom twinscroll turbo.. 2 bar at 3000rpm.
80mm turbo inlet
K&N large cone filter
Custom Nissan pulsar molded radiator
Large 19row oil cooler
Battery to boot relocation*
Suspension and handling*
Full space frame front end custom made
D2 8Pots at the front
Rear Brembos*
24mm Whiteline front adjustable arb*
24mm Whiteline rear adjustable arb
Front Whiteline adjustable droplinks*
Rear Whiteline adjustable droplinks*
Spec c front arms custom caster mod and poly bushed
Spec c rear arms poly bushed
BC Coilovers with camber and caster plates
Beatrush front strut brace
Beatrush rear strut brace
Beatrush rear boot H frame
Beatrush rear passenger well braces
Beatrush rear different support*
Beatrush solid engine mounts
Beatrush gearbox bushes and mounts
Beatrush Dog bone*
Braided fuel lines*
XXR 530 18x9.75*
AD08R 265/35/18 tyres
03 February 2016, 09:36 PM
#225
Just doing bits and bobs to the car while I'm waiting for the engine

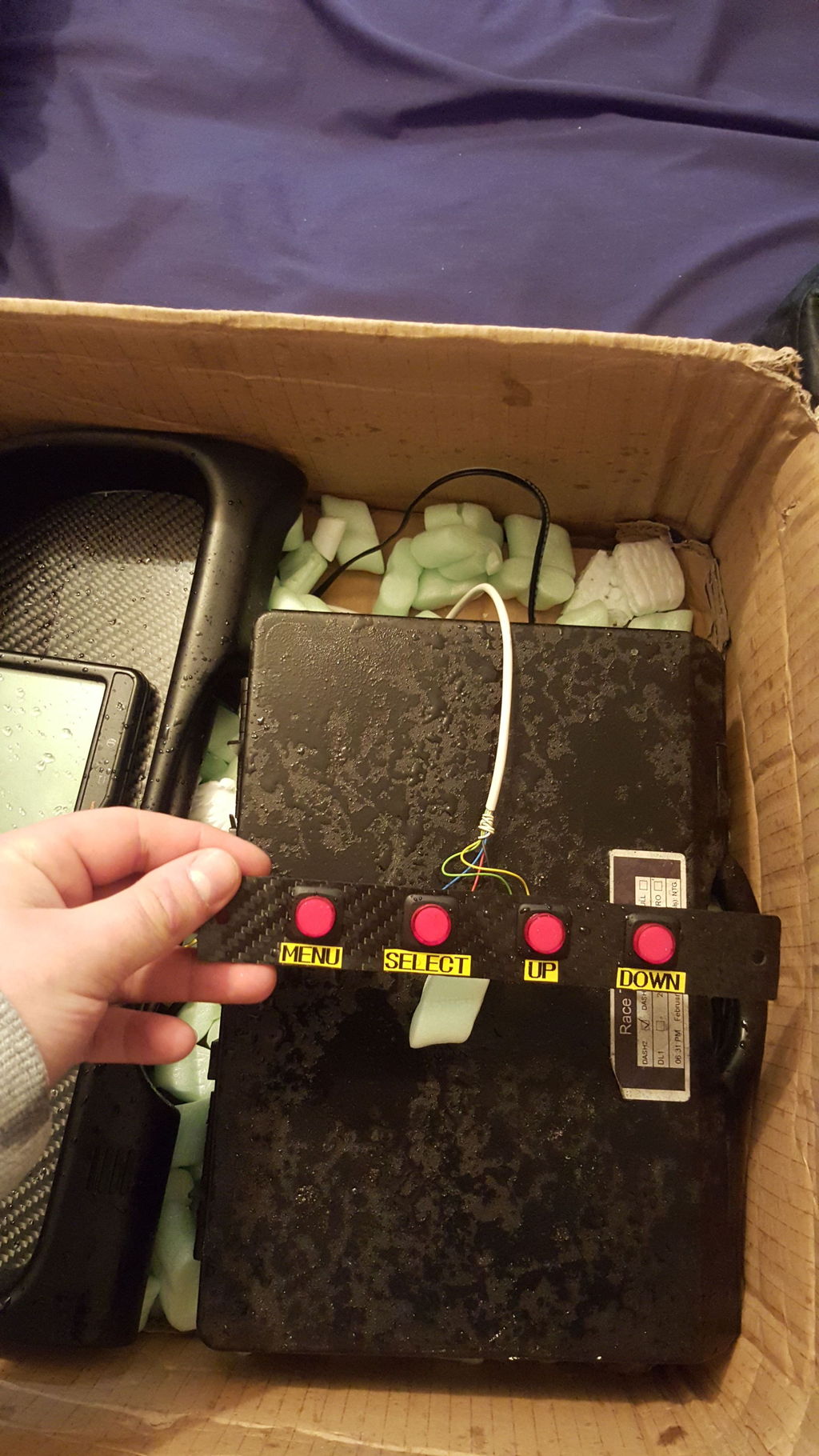

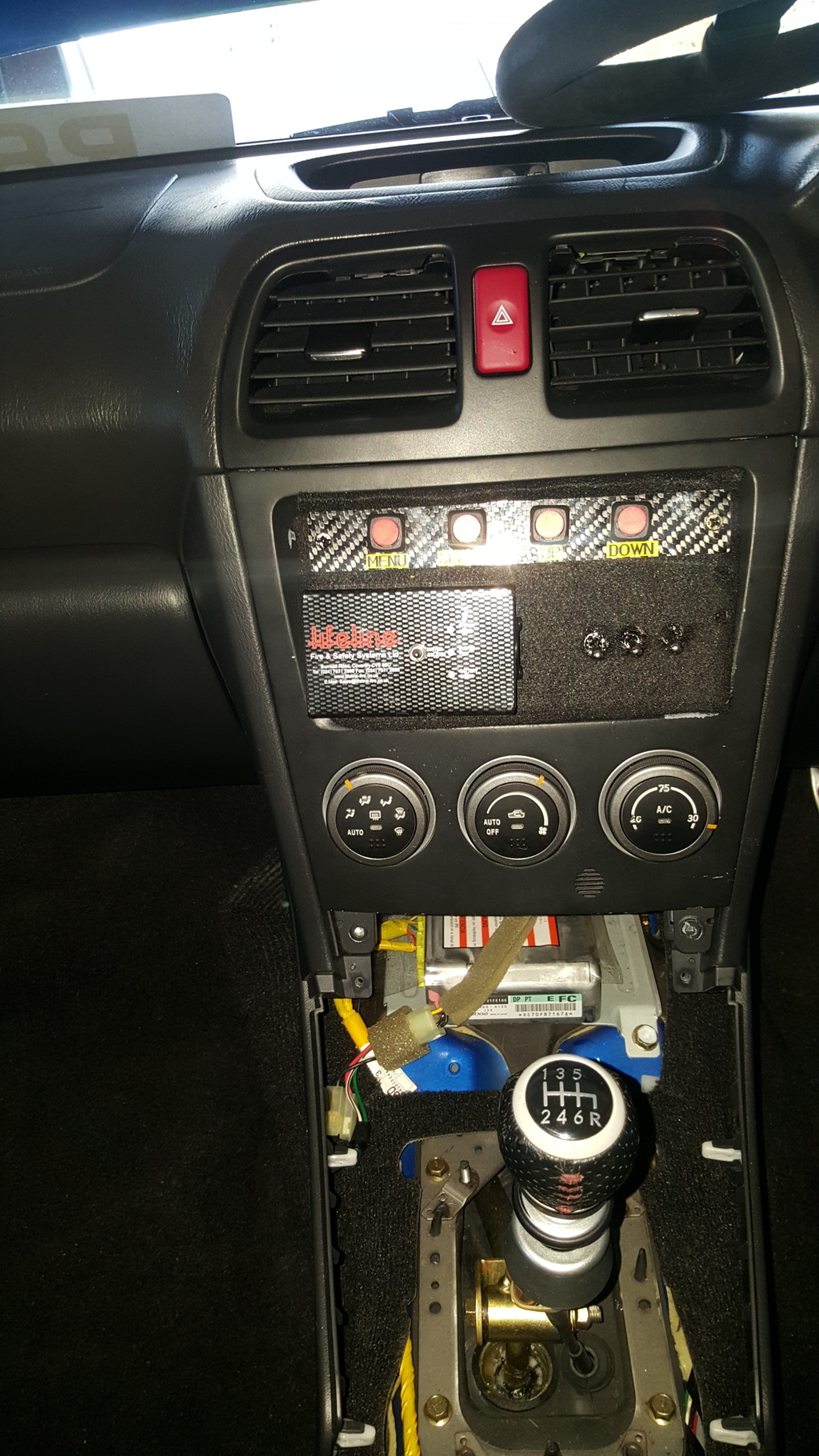

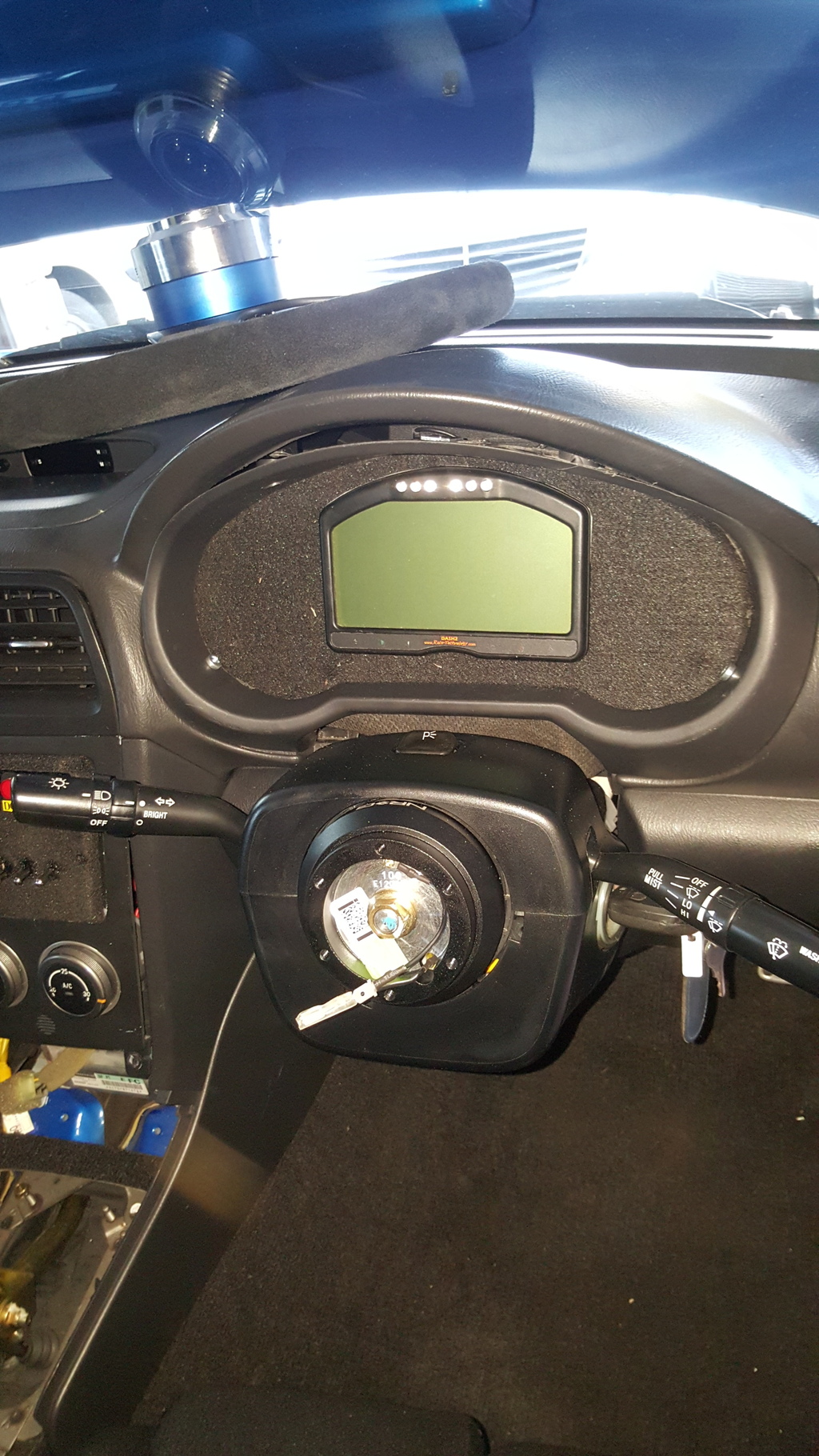

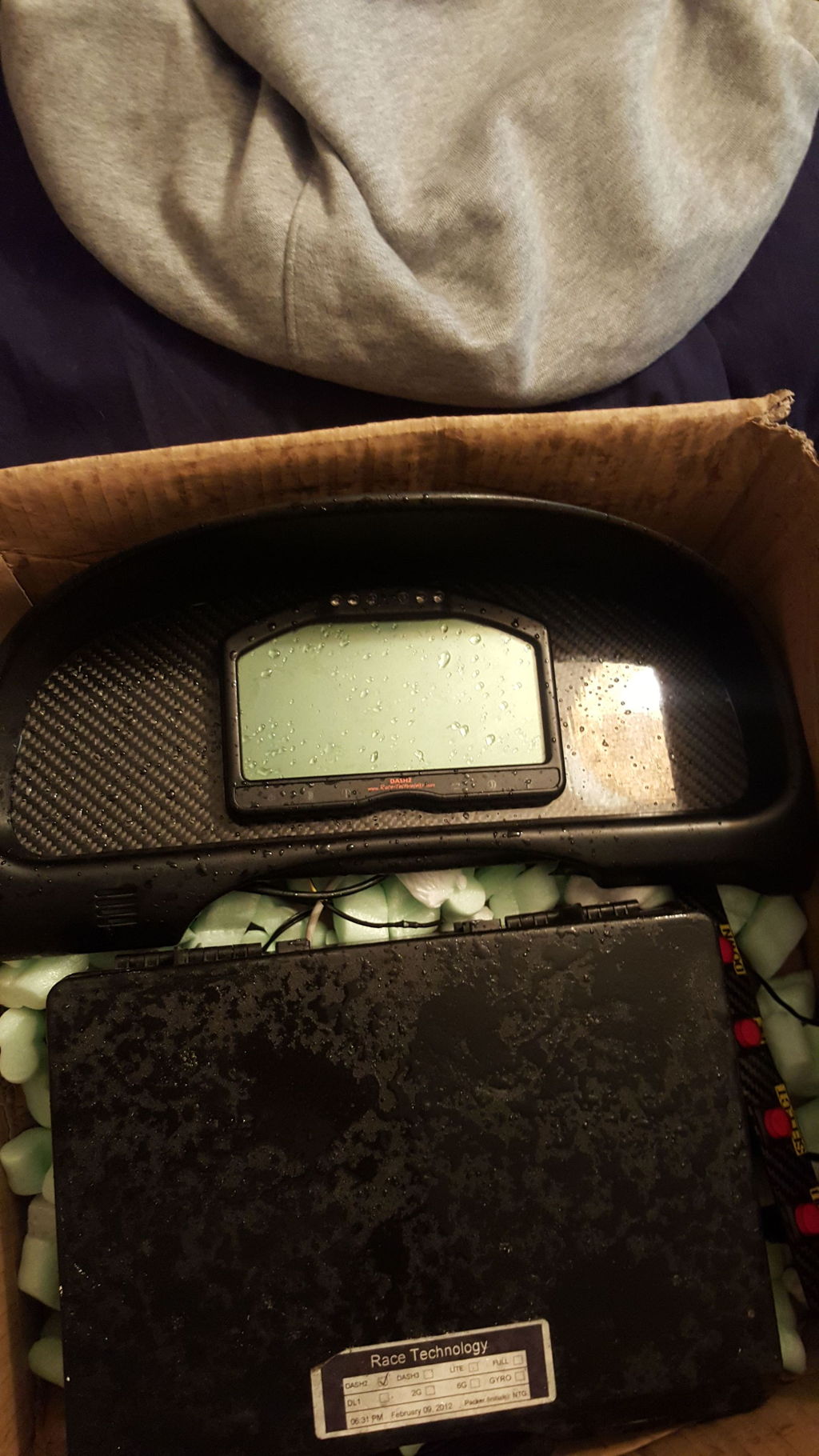

Hoping to pick up a Syveccs ECU and Race Technology Dash 2 this week.

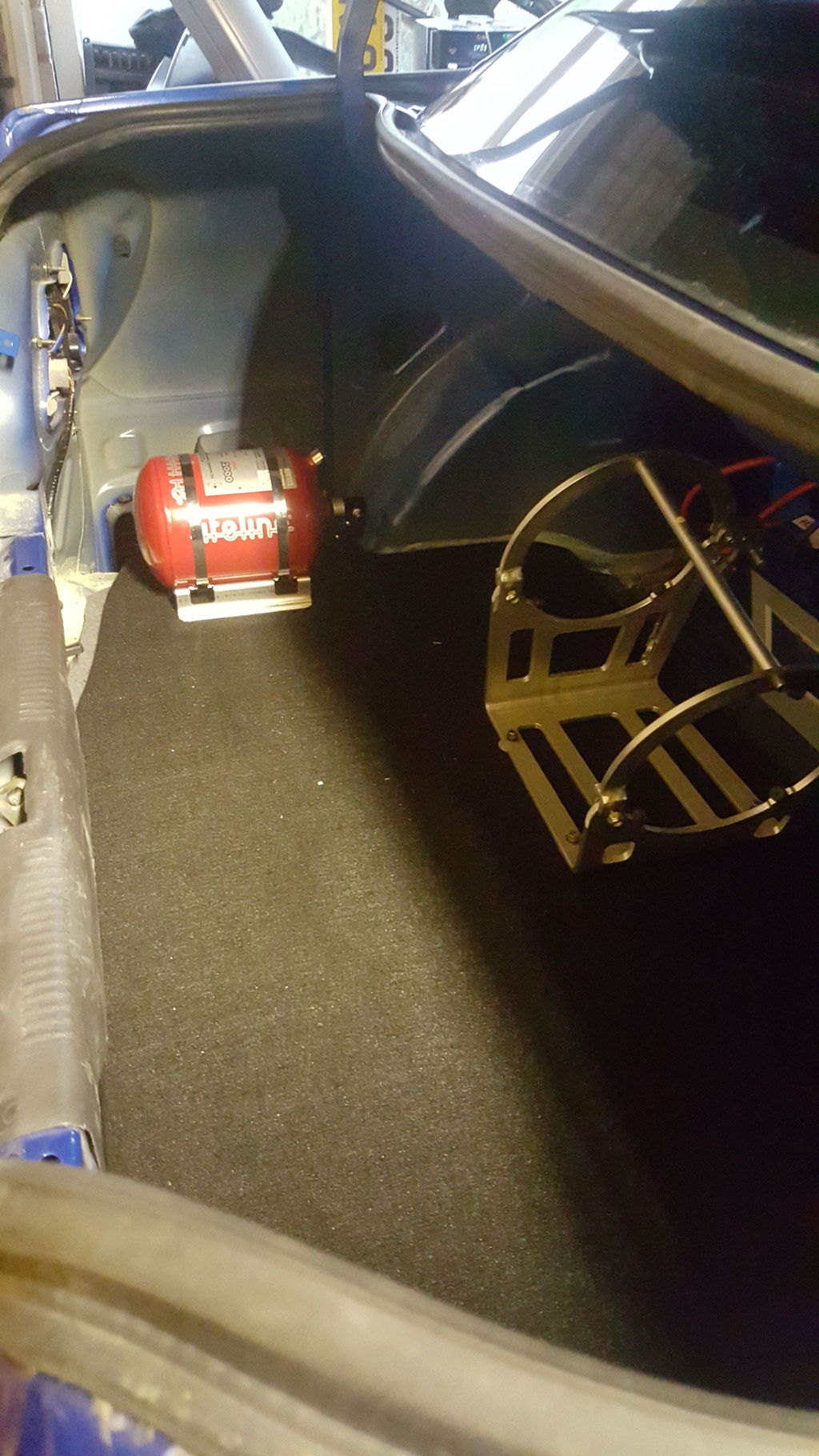

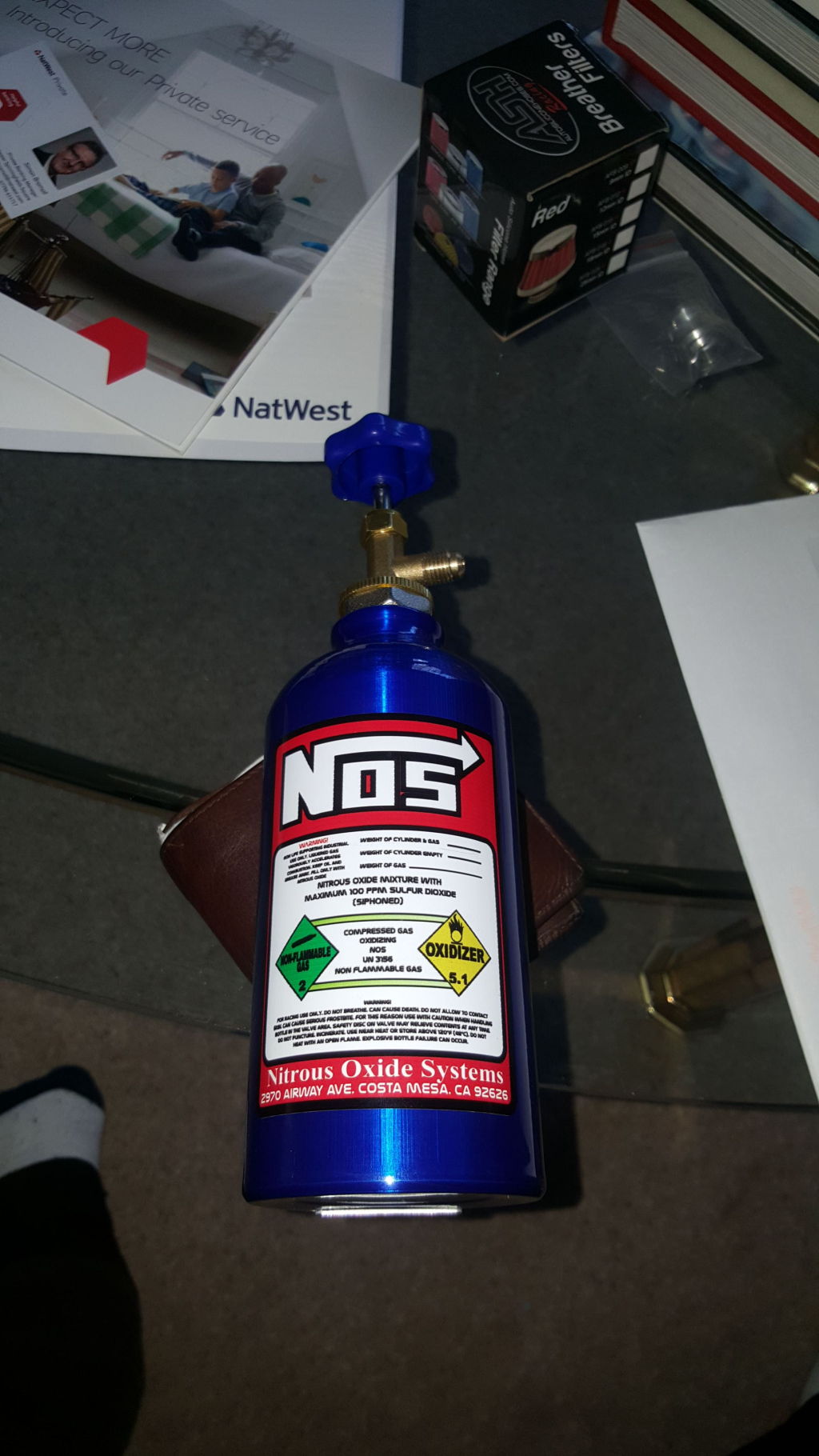

Also started getting the boot fitted. Made a new floor plate for it and just need to fit side panels. The fire extinguisher system is in and the NOS bottle holder is also in. Just need to make plate for the swirl pot set up and external fuel pumps
Hoping to pick up a Syveccs ECU and Race Technology Dash 2 this week.
Also started getting the boot fitted. Made a new floor plate for it and just need to fit side panels. The fire extinguisher system is in and the NOS bottle holder is also in. Just need to make plate for the swirl pot set up and external fuel pumps
02 March 2016, 01:05 PM
#230
<a href="http://s1059.photobucket.com/user/rbon91/media/Mobile%20Uploads/FB_IMG_1456923824457_zpstosqzrxq.jpg.html" target="_blank"><img src="http://i1059.photobucket.com/albums/t424/rbon91/Mobile%20Uploads/FB_IMG_1456923824457_zpstosqzrxq.jpg" border="0" alt=" photo FB_IMG_1456923824457_zpstosqzrxq.jpg"/></a>
02 March 2016, 06:56 PM
#235
09 March 2016, 03:41 PM
#237
Bit of a update, so the bottom end of the engine is built with the rest being built atm. hoping by friday full long engine will be built and its going back in on monday. today i ordered a ACT 6 Puk paddle clutch of Alyn at AS, rated up to 700ftlbs so should do the job fine with a lightened flywheel. As well as buying some Royal Purple engine and diff oil off him. not the cheapest stuff in the world but doing alot of research its amazing stuff. Unfortunately Jase at area 52 cant map the car until the 4th of april so waiting until then for that..
ryan
ryan
