My "Old" 2011 WRX STi Saloon
#181
Scooby Regular
Thread Starter
Fitting kit supplied as part of the Subaru/Pioneer upgrade or I assume they can supply it separately - part number SACC1760FK11MY
Most parts are Pioneer, so could be sourced separately but the revised USB/Aux Jack outlet in the centre console is AFAIK Subaru supply only.
Steering wheel controls still work although the phone ones have limited function. I believe this can be fixed as Pioneer have a revised hard wired "comfort adaptor" part number CA-R-SUB.199PHA which includes the phone buttons.
Am not really fussed about them as the phone info comes up on the touchscreen anyway.
#182
Scooby Regular
iTrader: (2)
Join Date: Apr 2003
Location: NESF - IDDYSTI
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
Don, thanks for the info, got a wiring kit from Subaru. That wasnt cheap. Did you fit your usb connections, if so where does it go as there are no instructions with it.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
#183
Scooby Regular
Thread Starter
Don, thanks for the info, got a wiring kit from Subaru. That wasnt cheap. Did you fit your usb connections, if so where does it go as there are no instructions with it.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
You replace the one in the centre console between the seats under the arm rest. You replace the front panel and PCB using the existing housing.
The existing wiring is not used but remains in place.
You can use this guide as it gives an idea of what's involved, although the wiring around the console is slightly different.
It also shows where the GPS aerial should be fitted for optimum performance.
Just had a look at the fascia..............
http://www.caraudiodirect.co.uk/con-...u-impreza.html
Think I prefer the JDM one, but then again I would have to
Last edited by Don Clark; 03 February 2020 at 07:59 PM.
#185
Scooby Regular
Thread Starter
Years of searching the interweb
The Subaru of America tech site http://techinfo.subaru.com/search/index.html has some useful installation pdfs if you search using "Publication type" as "Accessory Installation Guide".
Even the guys at my Dealership have found them useful at times.
Last edited by Don Clark; 31 July 2012 at 03:57 PM.
#186
Scooby Regular
iTrader: (1)
Don, thanks for the info, got a wiring kit from Subaru. That wasnt cheap. Did you fit your usb connections, if so where does it go as there are no instructions with it.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
Just to let everyone else know there is a cheaper AV panel available from Car Audio Direct and its look exactly the same as the OEM version and its £13.99 + £2 p&p, alot cheaper than getting one from Japan.
Have you got this fitted? Any pics? Ta
#187
Scooby Regular
Thread Starter
Looking at the magnified picture on Car Audio Direct it looks as if it's a cropped photo.
Last edited by Don Clark; 03 February 2020 at 08:02 PM.
#188
Scooby Regular
iTrader: (2)
Join Date: Apr 2003
Location: NESF - IDDYSTI
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
to be fair I cant tell the difference between the two, the new one is very good quality for the price.
This is the original one

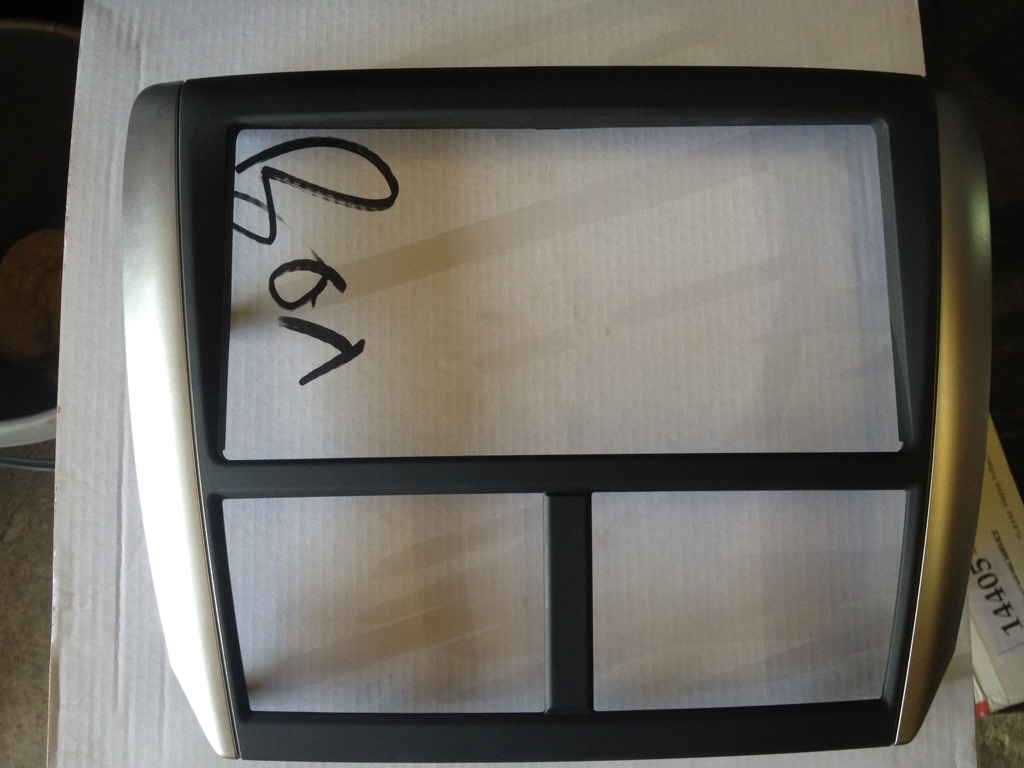

This is the new one

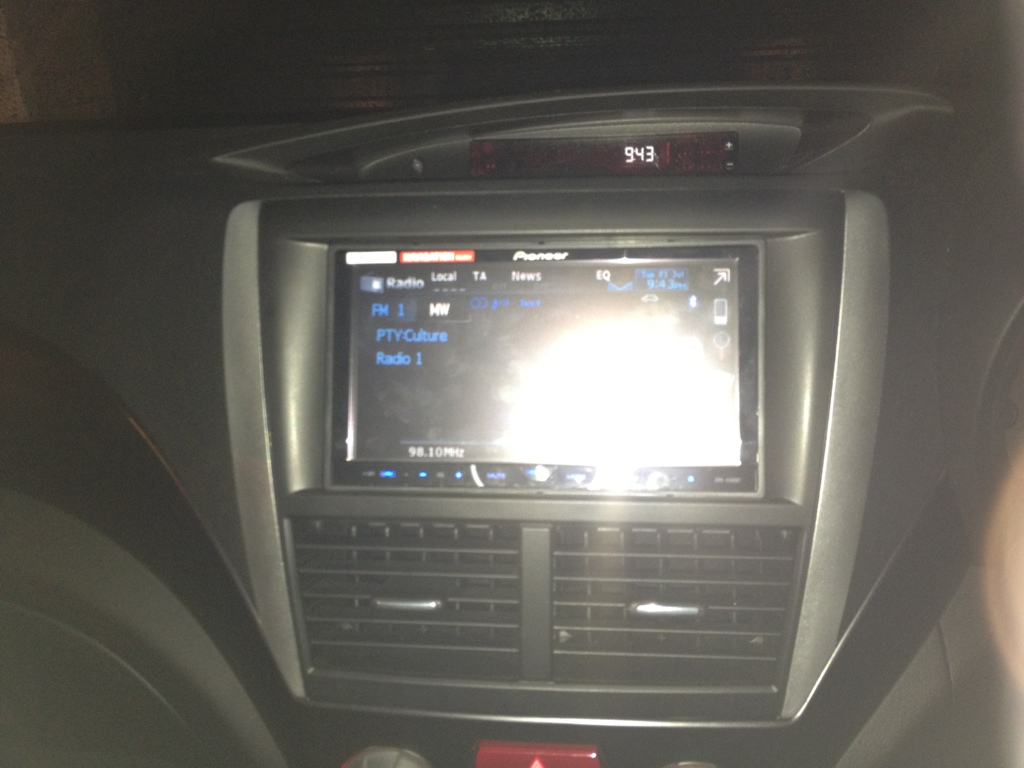

This is the new one fitted (the photo is not the best)
This is the original one
This is the new one
This is the new one fitted (the photo is not the best)
#189
Scooby Regular
Join Date: Jun 2012
Location: Scotland
Posts: 236
Likes: 0
Received 0 Likes
on
0 Posts
Years of searching the interweb
The Subaru of America tech site http://techinfo.subaru.com/search/index.html has some useful installation pdfs if you search using "Publication type" as "Accessory Installation Guide".
Even the guys at my Dealership have found them useful at times.
The Subaru of America tech site http://techinfo.subaru.com/search/index.html has some useful installation pdfs if you search using "Publication type" as "Accessory Installation Guide".
Even the guys at my Dealership have found them useful at times.
Thanks for that info don
Have you payed for a membership or did you get a login from somewhere
Last edited by Burnett; 01 August 2012 at 02:33 AM.
#190
Scooby Regular
Thread Starter
A subscription entitles you to download workshop manual details/info but as they are for US LHD versions, not always relevant to us here in the UK.
Last edited by Don Clark; 01 August 2012 at 07:08 AM.
#192
Scooby Regular
iTrader: (1)
They are, although my JDM one is no longer silver
Looking at the magnified picture on Car Audio Direct it looks as if it's a cropped photo.
As shown on another site..........
http://shop.audioimages.co.uk/connec...08-p-5610.html
Looking at the magnified picture on Car Audio Direct it looks as if it's a cropped photo.
As shown on another site..........
http://shop.audioimages.co.uk/connec...08-p-5610.html
#194
Scooby Regular
Thread Starter
Thanks again.
SatNav has beenvery good and having a rear view camera with it is a bonus.
Not had much use for the microSD reader apart from updates.
Have all my music on a USB stick in the centre console
#195
Scooby Regular
iTrader: (1)
Amazing car
Really confusing me now
A BRZ
Or a
STi salloon
The black looks fantastic
Quite a debate in the Harding household at the moment
The misses keeps on reminding me of the advantages of AWD and the 350z kept getting stuck in the snow and the BRZ would be no better
We just have so much rain up north that I'm worried the BRZ will be just too slow in bad weather conditions after 12 years of safe and rapid driving with subaru AWD
What sort of average mileage do you get 30/32 or 25 when you are having fun
Really confusing me now
A BRZ
Or a
STi salloon
The black looks fantastic
Quite a debate in the Harding household at the moment
The misses keeps on reminding me of the advantages of AWD and the 350z kept getting stuck in the snow and the BRZ would be no better
We just have so much rain up north that I'm worried the BRZ will be just too slow in bad weather conditions after 12 years of safe and rapid driving with subaru AWD
What sort of average mileage do you get 30/32 or 25 when you are having fun
#196
Scooby Regular
Thread Starter
#198
Scooby Regular
Thread Starter
Have had them on about a week.....

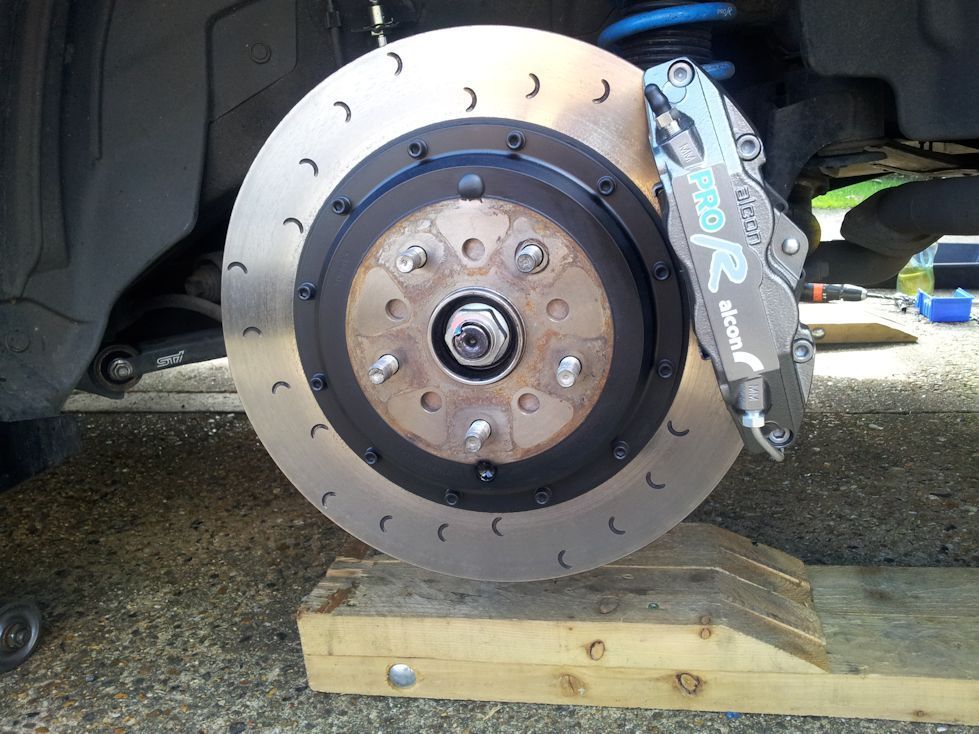

As it happens Tony,had the wheels off today to fit some Speedbleeder nipples, so took a couple of piccies
Only thing wrong was that Alcon hadn't drilled the parking brake/bell so that you can adjust the handbrake (Hatch onwards adjusted through the disk not the back plate).
Had to drill in the correct position, added a rubber grommet and did a little bit of balancing by drilling a dimple opposite.
As it happens Tony,had the wheels off today to fit some Speedbleeder nipples, so took a couple of piccies
Only thing wrong was that Alcon hadn't drilled the parking brake/bell so that you can adjust the handbrake (Hatch onwards adjusted through the disk not the back plate).
Had to drill in the correct position, added a rubber grommet and did a little bit of balancing by drilling a dimple opposite.
Last edited by Don Clark; 03 February 2020 at 08:09 PM.
#199
don, on the hatch the dash comes with the silver trim parts, was that the same with the my11 or did they supply it black as in yours? if not what did you use to paint them and is that a matt or satin black as i was thinking of doing mine this weekend
thanks
thanks
#201
Scooby Regular
Thread Starter
Steve, the saloon surround is the same as the hatch. I used tamiya spray paint as it's quick drying and designed for plastics.
#202
Scooby Regular
Thread Starter
There is a picture in post #1 that shows the original variations
Last edited by Don Clark; 18 August 2012 at 08:57 PM. Reason: Update on return from Rally Day :-)
#203
Scooby Regular
Hi Don, when you fitted the R205 Black fender garnish, how did you get your's off and was it a hard job, cheers hughy, car looks awesome by the way.....
#204
Scooby Regular
Thread Starter
Fairly easy.
You can either just pull the front fender garnish at the top away from the wing and then remove the badge (It's held on with strong doublesided tape).
Or if you want to remove the complete garnish/badge to the bench, you will need to unclip the front of the sideskirt before it can be removed.
Follow the relevant section in the Rally Armor flap fitting instructions.........
http://www.rallyarmor.com/store/sti_...structions.pdf
Last edited by Don Clark; 17 September 2012 at 06:00 PM.
