"Back to the future," in a JDM STI Ver-9 Widetrack
28 May 2011, 04:37 PM
#121
Since then I have also bought, to be fitted
And then finish mapping
Full "FB Tuning" mapping update & parts mentioned here, write up to follow next week!

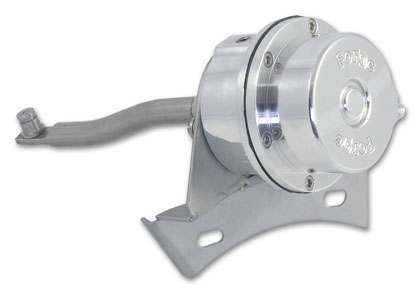

Forge uprated actuator (blue spring)
Silicone Rad hoses, (5mm wall thickness)
Jperformance 52mm core Radiator
And then finish mapping
Full "FB Tuning" mapping update & parts mentioned here, write up to follow next week!Forge uprated actuator (blue spring)
Silicone Rad hoses, (5mm wall thickness)
Jperformance 52mm core Radiator
Last edited by rickya; 28 May 2011 at 11:29 PM.
28 May 2011, 09:02 PM
#122
Scooby Regular
iTrader: (12)
Join Date: Jun 2007
Location: 700+ WR1 aka The Vuvu Zela...10.6 @ 136 weighing 1370kg....say no more....
Posts: 3,734
Likes: 0
Received 0 Likes
on
0 Posts
Looks gd Rickya. If you need any murray clamps for hoses then let me know as I have a few spare unused. Can give it to Maggs as I will be popping into to see him sometime soon.
Jag
Jag
28 May 2011, 11:01 PM
#125
Scooby Regular
iTrader: (12)
Join Date: Jun 2007
Location: 700+ WR1 aka The Vuvu Zela...10.6 @ 136 weighing 1370kg....say no more....
Posts: 3,734
Likes: 0
Received 0 Likes
on
0 Posts
Sure mate, will deffo text you on it. Long day today with Sy and Tim but overall we are happy with what we got done today on the "1".
Mapping is booked dependent on one small bit remaining. Got a few bits coming up for sale soon so text me if you need anything I may have and can bring that up with me.
Mapping is booked dependent on one small bit remaining. Got a few bits coming up for sale soon so text me if you need anything I may have and can bring that up with me.
30 May 2011, 02:55 PM
#129
Scooby Regular
iTrader: (12)
Join Date: Jun 2007
Location: 700+ WR1 aka The Vuvu Zela...10.6 @ 136 weighing 1370kg....say no more....
Posts: 3,734
Likes: 0
Received 0 Likes
on
0 Posts
Have a look and see what size you will need as the clamps I have are for 57-79mm (2.2" - 3.1").
04 June 2011, 10:38 PM
#133
Update:
Thursday at FB Tuning we fitted the 52mm core Alloy radiator & silicone hoses.
Then the Forge Actuator which turned out to have the wrong arm attached
So after a 1.5 hour delay Richard managed to tig weld & extend the arm & get it fitted eventually.
At the Motorwerx dyno (Dyno Dynamics) it made over 330 bhp & 350 ft/lbs torque. (after a couple of hours on the dyno where ambient temp was over 21 degrees). Good figures considering my Hawkeye Spec C (VF36 turbo not VF37) made approx 340bhp & 370 ft/bs torque on Powerstation's dyno (Maha). But most importantly the car now drives much, much better & is so much more fun to drive. It comes on boost quicker, has far more torque, & gear changes are seamless, exactly what twin scrolls are all about. Thanks to Richard @ FB Tuning.
I was waiting to test it out for a couple of weeks & then do a final write up on the tuning & mapping & how the car now feels to drive. l still will do one, but will also write about future power mods which I am currently researching for next year hopefully. Namely either a twin scroll Litchfield LM420 Billet or LM450 billet or a Lateral MD321 turbo
Thursday at FB Tuning we fitted the 52mm core Alloy radiator & silicone hoses.
Then the Forge Actuator which turned out to have the wrong arm attached
So after a 1.5 hour delay Richard managed to tig weld & extend the arm & get it fitted eventually.At the Motorwerx dyno (Dyno Dynamics) it made over 330 bhp & 350 ft/lbs torque. (after a couple of hours on the dyno where ambient temp was over 21 degrees). Good figures considering my Hawkeye Spec C (VF36 turbo not VF37) made approx 340bhp & 370 ft/bs torque on Powerstation's dyno (Maha). But most importantly the car now drives much, much better & is so much more fun to drive. It comes on boost quicker, has far more torque, & gear changes are seamless, exactly what twin scrolls are all about. Thanks to Richard @ FB Tuning.
I was waiting to test it out for a couple of weeks & then do a final write up on the tuning & mapping & how the car now feels to drive. l still will do one, but will also write about future power mods which I am currently researching for next year hopefully. Namely either a twin scroll Litchfield LM420 Billet or LM450 billet or a Lateral MD321 turbo
Last edited by rickya; 04 June 2011 at 10:45 PM.
04 June 2011, 11:08 PM
#134
Update:
Thursday at FB Tuning we fitted the 52mm core Alloy radiator & silicone hoses.
Then the Forge Actuator which turned out to have the wrong arm attached So after a 1.5 hour delay Richard managed to tig weld & extend the arm & get it fitted eventually.
At the Motorwerx dyno (Dyno Dynamics) it made over 330 bhp & 350 ft/lbs torque. (after a couple of hours on the dyno where ambient temp was over 21 degrees). Good figures considering my Hawkeye Spec C (VF36 turbo not VF37) made approx 340bhp & 370 ft/bs torque on Powerstation's dyno (Maha). But most importantly the car now drives much, much better & is so much more fun to drive. It comes on boost quicker, has far more torque, & gear changes are seamless, exactly what twin scrolls are all about. Thanks to Richard @ FB Tuning.
I was waiting to test it out for a couple of weeks & then do a final write up on the tuning & mapping & how the car now feels to drive. l still will do one, but will also write about future power mods which I am currently researching for next year hopefully. Namely either a twin scroll Litchfield LM420 Billet or LM450 billet or a Lateral MD321 turbo
Thursday at FB Tuning we fitted the 52mm core Alloy radiator & silicone hoses.
Then the Forge Actuator which turned out to have the wrong arm attached
So after a 1.5 hour delay Richard managed to tig weld & extend the arm & get it fitted eventually.At the Motorwerx dyno (Dyno Dynamics) it made over 330 bhp & 350 ft/lbs torque. (after a couple of hours on the dyno where ambient temp was over 21 degrees). Good figures considering my Hawkeye Spec C (VF36 turbo not VF37) made approx 340bhp & 370 ft/bs torque on Powerstation's dyno (Maha). But most importantly the car now drives much, much better & is so much more fun to drive. It comes on boost quicker, has far more torque, & gear changes are seamless, exactly what twin scrolls are all about. Thanks to Richard @ FB Tuning.
I was waiting to test it out for a couple of weeks & then do a final write up on the tuning & mapping & how the car now feels to drive. l still will do one, but will also write about future power mods which I am currently researching for next year hopefully. Namely either a twin scroll Litchfield LM420 Billet or LM450 billet or a Lateral MD321 turbo
Hi Ricky nice figures,i assume you are still running TMIC,airbox etc.?
About the upgrades i would suggest SC46 twin scroll.
Jura
05 June 2011, 09:16 AM
#135
Scooby Regular
iTrader: (6)
Join Date: Sep 2009
Location: M.S.O.C Hayes
Posts: 899
Likes: 0
Received 0 Likes
on
0 Posts
Ricky I had the same problem with Forge, they sent 3 different arms because of all the problem and then the 3 they sent didn't fit so I had to send the turbo to them to make me a custom arm for the 20g. Good figures on Dyno dynamics and the Mahas are so old now and way out. Still can't wait to see the motor
15 June 2011, 02:54 PM
#141
Update:
Two weeks ago I was back again at FB Tuning for a quick check over the AVCS. (See link below for more info on AVCS)
https://www.scoobynet.com/general-te...explained.html
Reason being, we were not entirely happy with the spool up, it seemed a few hundred rpm slower than it should be. After I did some research it seemed to point either towards the AVCS or an air leak (pre turbo). Richard checked his AVCS logs from our dyno run & they seemed fine. We quickly checked the AVCS union bolts to make sure the filters had been removed, which they already had. We also checked the turbo oil feed, banjo bolt to make sure it wasn't partially blocked, it wasn't. We also made another log of the AVCS, this time choosing specific parameters to confirm that both banks of AVCS solenoids were working.
All seemed fine, which is good, but still left us without an answer
We knew it could make & hold boost so its not a boost leak issue. So that really only left us with Exhaust manifold leak or Up-pipe leak. After a quick inspection of the manifold we saw a lot of exhaust soot on the heat shield near one end. It seemed we may have found the problem of a crack or hole on the exhaust manifold (headers). This week Richard managed to get hold of a used twin scroll manifold (just in case mine was too badly damaged) for us to swop over. While Richard heat wrapped the replacement manifold I drilled the heat shield casing off my old one. Only to discover my manifold was fine!! It turned out the gasket between the manifold & the up-pipe was leaking. So we swopped my manifold & put the, now heat wrapped one on instead along with all new gaskets. Fired up the engine, went for a quick blast and problem solved! Definitely spools up quicker, smoother on idle, no loss of boost between gear changes & seems to hit peak boost earlier.
Though I do believe another trip to the Dyno to tweek & confirm above will be the next instalment!!
Two weeks ago I was back again at FB Tuning for a quick check over the AVCS. (See link below for more info on AVCS)
https://www.scoobynet.com/general-te...explained.html
Reason being, we were not entirely happy with the spool up, it seemed a few hundred rpm slower than it should be. After I did some research it seemed to point either towards the AVCS or an air leak (pre turbo). Richard checked his AVCS logs from our dyno run & they seemed fine. We quickly checked the AVCS union bolts to make sure the filters had been removed, which they already had. We also checked the turbo oil feed, banjo bolt to make sure it wasn't partially blocked, it wasn't. We also made another log of the AVCS, this time choosing specific parameters to confirm that both banks of AVCS solenoids were working.
All seemed fine, which is good, but still left us without an answer
We knew it could make & hold boost so its not a boost leak issue. So that really only left us with Exhaust manifold leak or Up-pipe leak. After a quick inspection of the manifold we saw a lot of exhaust soot on the heat shield near one end. It seemed we may have found the problem of a crack or hole on the exhaust manifold (headers). This week Richard managed to get hold of a used twin scroll manifold (just in case mine was too badly damaged) for us to swop over. While Richard heat wrapped the replacement manifold I drilled the heat shield casing off my old one. Only to discover my manifold was fine!! It turned out the gasket between the manifold & the up-pipe was leaking. So we swopped my manifold & put the, now heat wrapped one on instead along with all new gaskets. Fired up the engine, went for a quick blast and problem solved! Definitely spools up quicker, smoother on idle, no loss of boost between gear changes & seems to hit peak boost earlier.
Though I do believe another trip to the Dyno to tweek & confirm above will be the next instalment!!
Last edited by rickya; 15 June 2011 at 06:37 PM.
17 June 2011, 04:59 PM
#142
OOoOOOoooohhhhhh!! Good for posing & keep my 17 Sti's with RE070's for any Monkeyballs or trackdays
5x114 in 18" Bronze with a 45mm offset (but maybe a no go if they dont do 35mm or 38mm offset), to run 245/40/18 tyres (Sti centrecaps )
Need to sell one of my two sets of Enkei Sti 17" wheels first
https://www.scoobynet.com/wheels-and...ei-wheels.html
Maggy can you get these??!
5x114 in 18" Bronze with a 45mm offset (but maybe a no go if they dont do 35mm or 38mm offset), to run 245/40/18 tyres (Sti centrecaps
)Need to sell one of my two sets of Enkei Sti 17" wheels first
https://www.scoobynet.com/wheels-and...ei-wheels.html
Maggy can you get these??!
Last edited by rickya; 17 June 2011 at 06:47 PM.
17 June 2011, 08:50 PM
#148
OOoOOOoooohhhhhh!! Good for posing & keep my 17 Sti's with RE070's for any Monkeyballs or trackdays
5x114 in 18" Bronze with a 45mm offset (but maybe a no go if they dont do 35mm or 38mm offset), to run 245/40/18 tyres (Sti centrecaps )
Need to sell one of my two sets of Enkei Sti 17" wheels first
https://www.scoobynet.com/wheels-and...ei-wheels.html
Maggy can you get these??!
5x114 in 18" Bronze with a 45mm offset (but maybe a no go if they dont do 35mm or 38mm offset), to run 245/40/18 tyres (Sti centrecaps
)Need to sell one of my two sets of Enkei Sti 17" wheels first
https://www.scoobynet.com/wheels-and...ei-wheels.html
Maggy can you get these??!
Wow these looking very nice,i've seen these on friend STi and i think these will look on yours good too
Jura
Last edited by jura11; 17 June 2011 at 08:51 PM.
05 August 2011, 08:52 AM
#149
Update: July
Start of July had a remap from Duncan @ Racedynamix. Very helpful & thoroughly nice guy. Car made similar power as before at 335bhp & 350 ft/lbs torque at approx 1.5bar on Subaru4You Dyno. Though as before there seems to be a little more power & torque in there somewhere but something may be a little a miss.
A possible issue which I rectified the following week was that the previous owner had the fueling set way too rich with the FPR set at 5bar.
This was rectified a couple of months ago but until that point the oil I had put in had probably already been a bit contaminated with fuel. Also at the same time the lamda sensor gave up & threw up an engine check light. This only compounded the problem for the next month, as in closed loop & low revs the Ecu was overfueling again due to the faulty lamda sensor. So I immediately drained off the extra "very thin" oil (which was actually more like petrol by that time!) as it was over filled due to fuel contamination.
Th following week (15t July) I sorted the issue once & for all. I rang Duncan from RaceDyanmix, he came round the next morning, checked the fault code, disconnected turned off the lamda sensor on the ECU. Great service.
Later that morning I took it down the road to Hugberry Vehicle Services where we flushed out all the old oil. (which actually acted as an engine flush almost!). Changed the spark plugs, which were in quite poor condition, for some one step colder NGK PFR7B's (from camskill). And to be on the safe side & rule out any engine issues, did a compression test. Thankfully the compression was fine with all cylinders identical with one cylinder being 4 psi less than the others. This is well within tolerances & all made over 125 psi & thats after a complete engine flush!
As soon as I took it up the road the difference was immediately felt & it pulls so much better and quicker. I only wish I had done this before my map but ah well not to worry, another map tweek won't harm
Also thanks to Maggy at Ruislip Tyres who kindly sent off one of my sets of Sti wheels to get refurbed & powder coated in Hyper Black. They look awesome & are now on the car with my Eagle F1 set of tyres, running with 10mm spacers. The other wheels have the Bridgestone Re070's on them for more strenuous work!! As well as that lot I also painted the front bumper lower grill in black; debadged front grill, compound polished the headlights to remove most of clouding on lens; fitted rear window lip spoiler; re fitted catch can; finally fixed the intercoller water spray. (Pics to follow)
Next mods to do: new grooved brake discs all round, braided brake lines, uprated brake fluid & uprated steering rack bushes. After that lot Iv got a cheeky little item (cheers MelTypeR
) waiting to be fitted ps though it will require another map tweek!! lol
Start of July had a remap from Duncan @ Racedynamix. Very helpful & thoroughly nice guy. Car made similar power as before at 335bhp & 350 ft/lbs torque at approx 1.5bar on Subaru4You Dyno. Though as before there seems to be a little more power & torque in there somewhere but something may be a little a miss.
A possible issue which I rectified the following week was that the previous owner had the fueling set way too rich with the FPR set at 5bar.
This was rectified a couple of months ago but until that point the oil I had put in had probably already been a bit contaminated with fuel. Also at the same time the lamda sensor gave up & threw up an engine check light. This only compounded the problem for the next month, as in closed loop & low revs the Ecu was overfueling again due to the faulty lamda sensor. So I immediately drained off the extra "very thin" oil (which was actually more like petrol by that time!) as it was over filled due to fuel contamination. Th following week (15t July) I sorted the issue once & for all. I rang Duncan from RaceDyanmix, he came round the next morning, checked the fault code, disconnected turned off the lamda sensor on the ECU. Great service.
Later that morning I took it down the road to Hugberry Vehicle Services where we flushed out all the old oil. (which actually acted as an engine flush almost!). Changed the spark plugs, which were in quite poor condition, for some one step colder NGK PFR7B's (from camskill). And to be on the safe side & rule out any engine issues, did a compression test. Thankfully the compression was fine with all cylinders identical with one cylinder being 4 psi less than the others. This is well within tolerances & all made over 125 psi & thats after a complete engine flush!
As soon as I took it up the road the difference was immediately felt & it pulls so much better and quicker. I only wish I had done this before my map but ah well not to worry, another map tweek won't harm
Also thanks to Maggy at Ruislip Tyres who kindly sent off one of my sets of Sti wheels to get refurbed & powder coated in Hyper Black. They look awesome & are now on the car with my Eagle F1 set of tyres, running with 10mm spacers. The other wheels have the Bridgestone Re070's on them for more strenuous work!! As well as that lot I also painted the front bumper lower grill in black; debadged front grill, compound polished the headlights to remove most of clouding on lens; fitted rear window lip spoiler; re fitted catch can; finally fixed the intercoller water spray. (Pics to follow)
Next mods to do: new grooved brake discs all round, braided brake lines, uprated brake fluid & uprated steering rack bushes. After that lot Iv got a cheeky little item (cheers MelTypeR
) waiting to be fitted ps though it will require another map tweek!! lol
